ASTM A192/A192M-91(2001)

(Specification)

Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service

Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service

SCOPE
1.1 This specification covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.
1.2 The tubing sizes and thicknesses usually furnished to this specification are 1/2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
1.3 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
1.4 When these products are to be used in applications conforming to ISO Recommendations for Boiler Construction, the requirements of Specification A 520 shall supplement and supersede the requirements of this specification.
1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

General Information

Status
Historical
Publication Date
14-Dec-1991
ICS
23.040.10 - Iron and steel pipes
Technical Committee
A01 - Steel, Stainless Steel and Related Alloys
Drafting Committee
A01.09 - Carbon Steel Tubular Products
Current Stage
Ref Project

Relations

Replaces
ASTM A192/A192M-91(1996)e1 - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
Effective Date
15-Dec-1991
Replaced By
ASTM A192/A192M-02 - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
Effective Date
10-Sep-2002
Referred By
ASTM F1155-10(2019) - Standard Practice for Selection and Application of Piping System Materials
Effective Date
15-Dec-1991
Referred By
ASTM A450/A450M-21 - Standard Specification for General Requirements for Carbon and Low Alloy Steel Tubes
Effective Date
15-Dec-1991

Buy Standard

ASTM A192/A192M-91(2001) - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure ServiceASTM A192/A192M-91(2001) - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
PreviousNext
Technical specification
ASTM A192/A192M-91(2001) - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
English language
2 pages
sale 15% off
Preview
sale 15% off
Preview

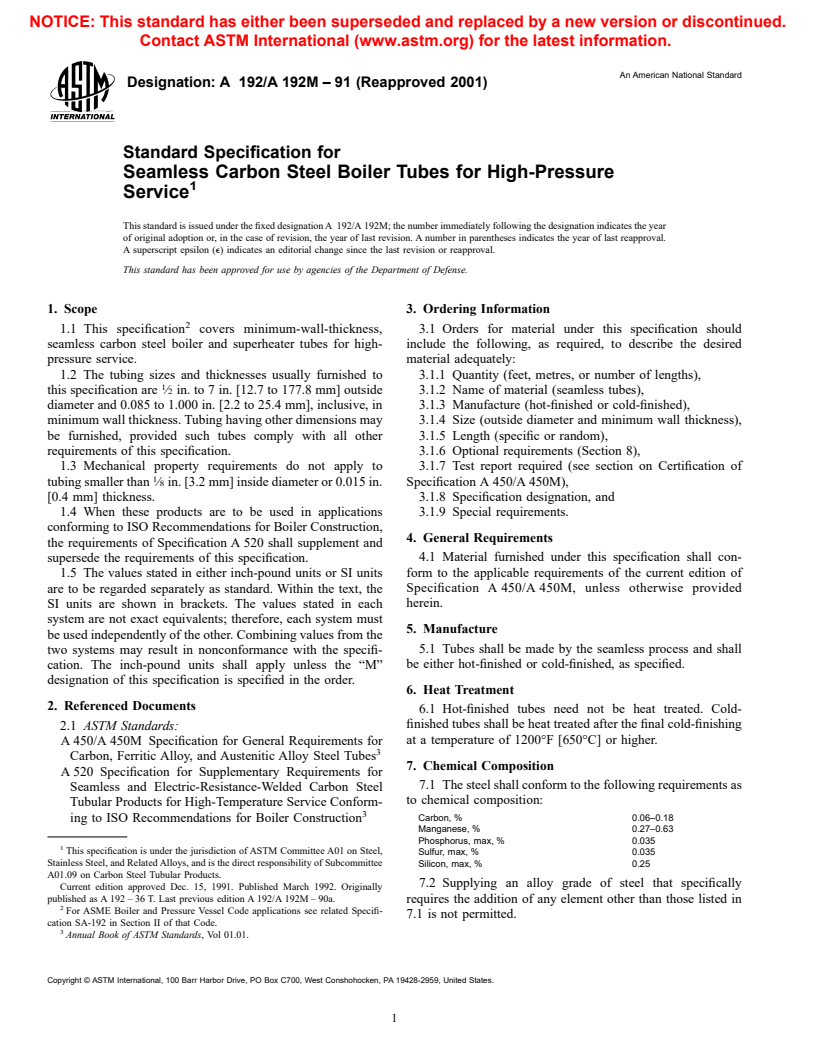

Standards Content (Sample)


NOTICE: This standard has either been superseded and replaced by a new version or discontinued.
Contact ASTM International (www.astm.org) for the latest information.
An American National Standard
Designation: A 192/A 192M – 91 (Reapproved 2001)
Standard Specification for
Seamless Carbon Steel Boiler Tubes for High-Pressure
Service
This standard is issued under the fixed designation A 192/A 192M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope 3. Ordering Information
1.1 This specification covers minimum-wall-thickness, 3.1 Orders for material under this specification should
seamless carbon steel boiler and superheater tubes for high- include the following, as required, to describe the desired
pressure service. material adequately:
1.2 The tubing sizes and thicknesses usually furnished to 3.1.1 Quantity (feet, metres, or number of lengths),
this specification are ⁄2 in. to 7 in. [12.7 to 177.8 mm] outside 3.1.2 Name of material (seamless tubes),
diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in 3.1.3 Manufacture (hot-finished or cold-finished),
minimum wall thickness. Tubing having other dimensions may 3.1.4 Size (outside diameter and minimum wall thickness),
be furnished, provided such tubes comply with all other 3.1.5 Length (specific or random),
requirements of this specification. 3.1.6 Optional requirements (Section 8),
1.3 Mechanical property requirements do not apply to 3.1.7 Test report required (see section on Certification of
tubing smaller than ⁄8 in. [3.2 mm] inside diameter or 0.015 in. Specification A 450/A 450M),
[0.4 mm] thickness. 3.1.8 Specification designation, and
1.4 When these products are to be used in applications 3.1.9 Special requirements.
conforming to ISO Recommendations for Boiler Construction,
4. General Requirements
the requirements of Specification A 520 shall supplement and
supersede the requirements of this specification. 4.1 Material furnished under this specification shall con-
form to the applicable requirements of the current edition of
1.5 The values stated in either inch-pound units or SI units
are to be regarded separately as standard. Within the text, the Specification A 450/A 450M, unless otherwise provided
SI units are shown in brackets. The values stated in each herein.
system are not exact equivalents; therefore, each system must
5. Manufacture
be used independently of the other. Combining values from the
5.1 Tubes shall be made by the seamless process and shall
two systems may result in nonconformance with the specifi-
be either hot-finished or cold-finished, as specified.
cation. The inch-pound units shall apply unless the “M”
designation of this specification is specified in the order.
6. Heat Treatment
2. Referenced Documents
6.1 Hot-finished tubes need not be heat treated. Cold-
finished tubes shall be heat treated after the final cold-finishing
2.1 ASTM Standards:
at a temperature of 1200°F [650°C] or higher.
A 450/A 450M Specification for General Requirements for
Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes
7. Chemical Composition
A 520 Specification for Supplementary Requirements for
7.1 The steel shall conform to the following requirements as
Seamless and Electric-Resistance-Welded Carbon Steel
to chemical composition:
Tubular Products for High-Temperature Service Conform-
Carbon, % 0.06–0.18
ing to ISO Recommendations for Boiler Construction
Manganese, % 0.27–0.63
Phosphorus, max, % 0.035
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
Sulfur, max, % 0.035
Stainless Steel, and Related Alloys, and is the direct responsibility of Subcommittee Silicon, max, % 0.25
A01.09 on Carbon Steel Tubular Products.
7.2 Supplying an alloy grade of steel that specifically
Current edition approved Dec. 15, 1991. Published March 1992. Originally
published as A 192 – 36 T. Last previous edition A 192/A 192M – 90a.
requires the addition of any element other than those listed in
For ASME Boiler and Pressure Vessel Code applications see related Specifi-
7.1 is not permitted.
cation SA-192 in Section II of that Code.
Annual Book of ASTM Standards, Vol 01.01.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
NOTICE: This standard has either been superseded and replaced by a new version or discontinued.
C
...
