ASTM A192/A192M-91(1996)e1

(Specification)

Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service

Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service

SCOPE
1.1 This specification covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.
1.2 The tubing sizes and thicknesses usually furnished to this specification are 1/2 in. to 7 in. [12.7 to 177.8 mm] outside diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.
1.3 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] inside diameter or 0.015 in. [0.4 mm] thickness.
1.4 When these products are to be used in applications conforming to ISO Recommendations for Boiler Construction, the requirements of Specification A 520 shall supplement and supersede the requirements of this specification.
1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

General Information

Status
Historical
Publication Date
14-Dec-1991
Technical Committee
A01 - Steel, Stainless Steel and Related Alloys
Drafting Committee
A01.09 - Carbon Steel Tubular Products
Current Stage
Ref Project

Relations

Replaced By
ASTM A192/A192M-91(2001) - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
Effective Date
15-Dec-1991

Buy Standard

ASTM A192/A192M-91(1996)e1 - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure ServiceASTM A192/A192M-91(1996)e1 - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
PreviousNext
Technical specification
ASTM A192/A192M-91(1996)e1 - Standard Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
English language
2 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information.
e1

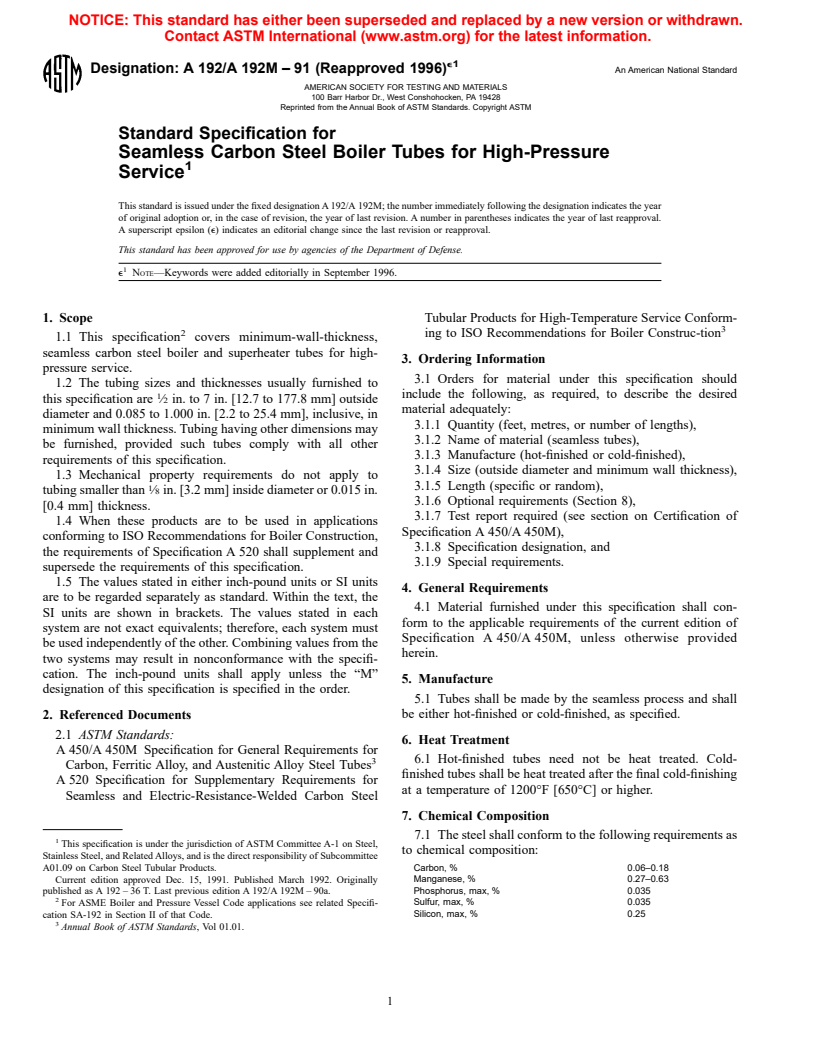

Designation: A 192/A 192M – 91 (Reapproved 1996) An American National Standard

AMERICAN SOCIETY FOR TESTING AND MATERIALS
100 Barr Harbor Dr., West Conshohocken, PA 19428
Reprinted from the Annual Book of ASTM Standards. Copyright ASTM
Standard Specification for
Seamless Carbon Steel Boiler Tubes for High-Pressure
Service
This standard is issued under the fixed designation A 192/A 192M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
e NOTE—Keywords were added editorially in September 1996.
1. Scope Tubular Products for High-Temperature Service Conform-
ing to ISO Recommendations for Boiler Construc-tion
1.1 This specification covers minimum-wall-thickness,
seamless carbon steel boiler and superheater tubes for high-
3. Ordering Information
pressure service.
3.1 Orders for material under this specification should
1.2 The tubing sizes and thicknesses usually furnished to
include the following, as required, to describe the desired
this specification are ⁄2 in. to 7 in. [12.7 to 177.8 mm] outside
material adequately:
diameter and 0.085 to 1.000 in. [2.2 to 25.4 mm], inclusive, in
3.1.1 Quantity (feet, metres, or number of lengths),
minimum wall thickness. Tubing having other dimensions may
3.1.2 Name of material (seamless tubes),
be furnished, provided such tubes comply with all other
3.1.3 Manufacture (hot-finished or cold-finished),
requirements of this specification.
3.1.4 Size (outside diameter and minimum wall thickness),
1.3 Mechanical property requirements do not apply to
3.1.5 Length (specific or random),
tubing smaller than ⁄8 in. [3.2 mm] inside diameter or 0.015 in.
3.1.6 Optional requirements (Section 8),
[0.4 mm] thickness.
3.1.7 Test report required (see section on Certification of
1.4 When these products are to be used in applications
Specification A 450/A 450M),
conforming to ISO Recommendations for Boiler Construction,
3.1.8 Specification designation, and
the requirements of Specification A 520 shall supplement and
3.1.9 Special requirements.
supersede the requirements of this specification.
1.5 The values stated in either inch-pound units or SI units
4. General Requirements
are to be regarded separately as standard. Within the text, the
4.1 Material furnished under this specification shall con-
SI units are shown in brackets. The values stated in each
form to the applicable requirements of the current edition of
system are not exact equivalents; therefore, each system must
Specification A 450/A 450M, unless otherwise provided
be used independently of the other. Combining values from the
herein.
two systems may result in nonconformance with the specifi-
cation. The inch-pound units shall apply unless the “M”
5. Manufacture
designation of this specification is specified in the order.
5.1 Tubes shall be made by the seamless process and shall
be either hot-finished or cold-finished, as specified.
2. Referenced Documents
2.1 ASTM Standards:
6. Heat Treatment
A 450/A 450M Specification for General Requirements for
6.1 Hot-finished tubes need not be heat treated. Cold-
Carbon, Ferritic Alloy, and Austenitic Alloy Steel Tubes
finished tubes shall be heat treated after the final cold-finishing
A 520 Specification for Supplementary Requirements for
at a temperature of 1200°F [650°C] or higher.
Seamless and Electric-Resistance-Welded Carbon Steel
7. Chemical Composition
7.1 The steel shall conform to the following requirements as
This specification is under the jurisdiction of ASTM Committee A-1 on Steel,
to chemical composition:
Stainless Steel, and Related Alloys, and is the direct responsibility of Subcommittee
A01.09 on Carbon Steel Tubular Products.
Carbon, % 0.06–0.18
Current edition approved Dec. 15, 1991. Published March 1992. Originally Manganese, % 0.27–0.63
published as A 192 – 36 T. Last previous edition A 192/A 192M – 90a. Phosphorus, max, % 0.035
Sulfur, max, % 0.035
For ASME Boiler and Pressure Vessel Code applications see related Specifi-
Silicon, max, % 0.25
cation SA-192 in Section II of that Code.
Annual Book of ASTM Standards, V
...
