ASTM D6725-01

(Practice)

Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated Aquifers

Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated Aquifers

SCOPE
1.1 This practice is based on recognized methods by which direct push monitoring wells may be designed and installed for the purpose of detecting the presence or absence of a contaminant, and collecting representative ground water quality data. The design standards and installation procedures herein are applicable to both detection and assessment monitoring programs for facilities.
1.2 The recommended monitoring well design, as presented in this practice, is based on the assumption that the objective of the program is to obtain representative ground water information and water quality samples from aquifers. Monitoring wells constructed following this practice should produce relatively turbidity-free samples for granular aquifer materials ranging from gravels to silty sand. Strata having grain sizes smaller than the recommended design for the smallest diameter filter pack materials should be monitored by alternative monitoring well designs which are not addressed in this practice.
1.3 Direct push procedures are not applicable for monitoring well installation under all geologic and soil conditions (for example, installation in bedrock). Other rotary drilling procedures are available for penetration of these consolidated materials for well construction purposes (Guide D 5092). Additionally, under some geologic conditions it may be appropriate to install monitoring wells without a filter pack (EPA 1991). Guide D 724 may be referred to for additional information on these and other methods for the direct push installation of ground water monitoring wells.
1.4 The values stated in inch-pound units are to be regarded as standard. The values in parentheses are for information only.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
1.6 This practice offers a set of instructions for performing one or more specific operations. This document cannot replace education or experience and should be used in conjunction with professional judgement. Not all aspects of this practice may be applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the adequacy of a given professional service must be judged, nor should this document be applied without consideration of the project's many unique aspects. The word "Standard" in the title of this document means only that the document has been approved through the ASTM consensus process.

General Information

Status
Historical
Publication Date
09-Nov-2001
ICS
13.060.10 - Water of natural resources
Technical Committee
D18 - Soil and Rock
Drafting Committee
D18.21 - Groundwater and Vadose Zone Investigations
Current Stage
Ref Project

Relations

Replaced By
ASTM D6725-04 - Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated Aquifers
Effective Date
01-Jul-2004

Buy Standard

ASTM D6725-01 - Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated AquifersASTM D6725-01 - Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated Aquifers
PreviousNext
Standard
ASTM D6725-01 - Standard Practice for Direct Push Installation of Prepacked Screen Monitoring Wells in Unconsolidated Aquifers
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

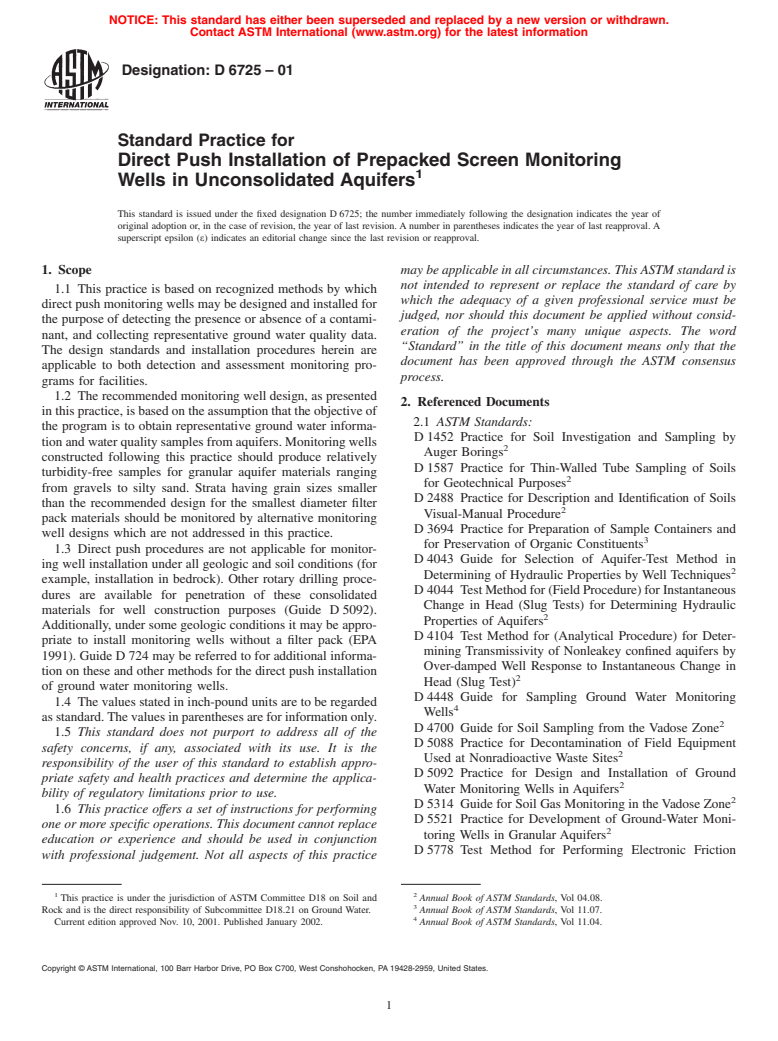

Designation: D 6725 – 01
Standard Practice for
Direct Push Installation of Prepacked Screen Monitoring
1
Wells in Unconsolidated Aquifers
This standard is issued under the fixed designation D 6725; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (ε) indicates an editorial change since the last revision or reapproval.
1. Scope may be applicable in all circumstances. This ASTM standard is
not intended to represent or replace the standard of care by
1.1 This practice is based on recognized methods by which
which the adequacy of a given professional service must be
direct push monitoring wells may be designed and installed for
judged, nor should this document be applied without consid-
the purpose of detecting the presence or absence of a contami-
eration of the project’s many unique aspects. The word
nant, and collecting representative ground water quality data.
“Standard” in the title of this document means only that the
The design standards and installation procedures herein are
document has been approved through the ASTM consensus
applicable to both detection and assessment monitoring pro-
process.
grams for facilities.
1.2 The recommended monitoring well design, as presented
2. Referenced Documents
inthispractice,isbasedontheassumptionthattheobjectiveof
2.1 ASTM Standards:
the program is to obtain representative ground water informa-
D 1452 Practice for Soil Investigation and Sampling by
tionandwaterqualitysamplesfromaquifers.Monitoringwells
2
Auger Borings
constructed following this practice should produce relatively
D 1587 Practice for Thin-Walled Tube Sampling of Soils
turbidity-free samples for granular aquifer materials ranging
2
for Geotechnical Purposes
from gravels to silty sand. Strata having grain sizes smaller
D 2488 Practice for Description and Identification of Soils
than the recommended design for the smallest diameter filter
2
Visual-Manual Procedure
pack materials should be monitored by alternative monitoring
D 3694 Practice for Preparation of Sample Containers and
well designs which are not addressed in this practice.
3
for Preservation of Organic Constituents
1.3 Direct push procedures are not applicable for monitor-
D 4043 Guide for Selection of Aquifer-Test Method in
ing well installation under all geologic and soil conditions (for
2
Determining of Hydraulic Properties by Well Techniques
example, installation in bedrock). Other rotary drilling proce-
D 4044 TestMethodfor(FieldProcedure)forInstantaneous
dures are available for penetration of these consolidated
Change in Head (Slug Tests) for Determining Hydraulic
materials for well construction purposes (Guide D 5092).
2
Properties of Aquifers
Additionally, under some geologic conditions it may be appro-
D 4104 Test Method for (Analytical Procedure) for Deter-
priate to install monitoring wells without a filter pack (EPA
mining Transmissivity of Nonleakey confined aquifers by
1991). Guide D 724 may be referred to for additional informa-
Over-damped Well Response to Instantaneous Change in
tion on these and other methods for the direct push installation
2
Head (Slug Test)
of ground water monitoring wells.
D 4448 Guide for Sampling Ground Water Monitoring
1.4 The values stated in inch-pound units are to be regarded
4
Wells
asstandard.Thevaluesinparenthesesareforinformationonly.
2
D 4700 Guide for Soil Sampling from the Vadose Zone
1.5 This standard does not purport to address all of the
D 5088 Practice for Decontamination of Field Equipment
safety concerns, if any, associated with its use. It is the
2
Used at Nonradioactive Waste Sites
responsibility of the user of this standard to establish appro-
D 5092 Practice for Design and Installation of Ground
priate safety and health practices and determine the applica-
2
Water Monitoring Wells in Aquifers
bility of regulatory limitations prior to use.
2
D 5314 Guide for Soil Gas Monitoring in the Vadose Zone
1.6 This practice offers a set of instructions for performing
D 5521 Practice for Development of Ground-Water Moni-
one or more specific operations. This document cannot replace
2
toring Wells in Granular Aquifers
education or experience and should be used in conjunction
D 5778 Test Method for Performing Electronic Friction
with professional judgement. Not all aspects of this practice
1 2
This practice is under the jurisdiction of ASTM Committee D18 on Soil and Annual Book of ASTM Standards, Vol 04.08.
3
Rock and is the direct responsibility of Subcommittee D18.21 on Ground Water. Annual Book of ASTM Standards, Vol 11.07.
4
Current edition approved Nov. 10, 2001. Published January 2002. Annual Book of ASTM Standards, Vol 11.04.
Copyright © ASTM International,
...
