ASTM B780-16(2021)

Standard Specification for 75 % Silver, 24.5 % Copper, 0.5 % Nickel Electrical Contact Alloy

ABSTRACT
This specification covers electrical contact alloys with the nominal composition of 75% silver, 24.5% copper, and 0.5% nickel in the form of rods, wires, strips, and sheets. Raw materials shall be of such quality and purity that the products, which shall be finished by such operations as cold working, heat treatment, annealing, turning, grinding, or pickling, shall adhere to the chemical composition and mechanical property requirements prescribed here. Besides analysis for the elements silver, copper, and nickel, further analysis is to be made for suspected or indicated impurities, such as zinc, iron, cadmium, and lead, to make sure that their total does not exceed specified limits. Mechanical tests, which are to be conducted at room temperature, shall evaluate the materials' tensile strength, elongation, Rockwell hardness, and area and thickness reduction.
SCOPE
1.1 This specification covers an electrical contact material with the nominal composition of 75 % silver, 24.5 % copper, and 0.5 % nickel in the form of rod, wire, strip, and sheet.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to become familiar with all hazards including those identified in the appropriate Safety Data Sheet (SDS) for this product/material as provided by the manufacturer, to establish appropriate safety, health, and environmental practices, and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Mar-2021
• ICS: 77.120.99 - Other non-ferrous metals and their alloys
• Technical Committee: B02 - Nonferrous Metals and Alloys
• Drafting Committee: B02.05 - Precious Metals and Electrical Contact Materials and Test Methods

Relations

• Refers: ASTM B476-01(2012) - Standard Specification for General Requirements for Wrought Precious Metal Electrical Contact Materials
• Effective Date: 01-May-2012
• Refers: ASTM B476-01(2006) - Standard Specification for General Requirements for Wrought Precious Metal Electrical Contact Materials
• Effective Date: 01-Jun-2006
• Refers: ASTM B476-01 - Standard Specification for General Requirements for Wrought Precious Metal Electrical Contact Materials
• Effective Date: 10-May-2001

Overview

ASTM B780-16(2021) specifies the requirements for an electrical contact alloy composed of 75% silver, 24.5% copper, and 0.5% nickel. This standard covers the manufacture and quality of rods, wires, strips, and sheets used for electrical contacts. Developed by ASTM International, it ensures consistent chemical composition, mechanical properties, and product performance for critical applications where electrical conductivity and durability are essential.

This document is widely recognized and used by manufacturers and engineers to guarantee that silver-copper-nickel alloy electrical contact materials meet international quality and safety standards.

Key Topics

• Material Composition:

  • Silver: 74.0–76.0%
  • Copper: 23.5% minimum (balance by difference)
  • Nickel: 0.35–0.65%
  • Strict limits on impurities: zinc, iron, cadmium, and lead
  • Total impurities not to exceed specified levels

• Product Forms:

  • Rods
  • Wires
  • Strips
  • Sheets

• Manufacturing Processes:

  • Cold working
  • Heat treating
  • Annealing
  • Turning, grinding, or pickling as needed to achieve required properties

• Mechanical Properties:

  • Mechanical tests at room temperature (68°F / 20°C)
  • Evaluation includes tensile strength, elongation, hardness, and reduction in area or thickness
  • Requirements tailored for various product forms and tempers

• Quality Assurance:

  • Regular chemical analysis for major and minor elements
  • Additional impurity analysis as needed
  • Compliance with referenced general requirements in ASTM B476
  • Mandatory inspection and certification

• Safety and Compliance:

  • Users must address all safety, health, and regulatory considerations, consulting manufacturer-provided Safety Data Sheets (SDS)
  • Aligns with internationally recognized standardization principles (WTO TBT Committee)

Applications

ASTM B780-16(2021) silver-copper-nickel alloy is crucial in fields requiring highly conductive and corrosion-resistant electrical contact materials. Common areas of application include:

• Electrical Switchgear:
  Used in arcing contacts and various switching components where high durability and consistent conductivity are vital.

• Relays and Connectors:
  Ensures reliable electrical performance and longevity in industrial, automotive, and telecommunication systems.

• Semiconductor and Circuit Breaker Contacts:
  Provides the necessary mechanical strength and electrical properties for precision electronic components.

• High-Reliability Assemblies:
  Employed in aerospace, defense, and critical control systems, where adherence to stringent material standards is mandatory.

By complying with ASTM B780, manufacturers and engineers can assure optimal electrical conductivity, wear resistance, and long service life in demanding electrical applications.

Related Standards

• ASTM B476: Specification for General Requirements for Wrought Precious Metal Electrical Contact Materials. Provides the baseline requirements referenced within ASTM B780 for material inspection, testing, and supply.

• Other Relevant ASTM Standards:

  • Standards related to electrical contact materials
  • Specifications on testing methods for mechanical properties and composition analysis

• International Harmonization:
  ASTM B780 is developed in accordance with the WTO Technical Barriers to Trade (TBT) Committee’s principles, facilitating international trade and regulatory compliance.

For producers and users of electrical contact materials, familiarity with ASTM B780 and related standards ensures product quality, safety, and worldwide market acceptance.

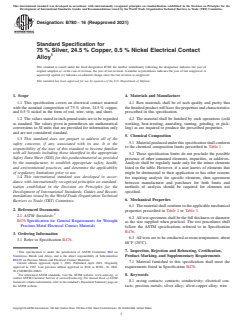

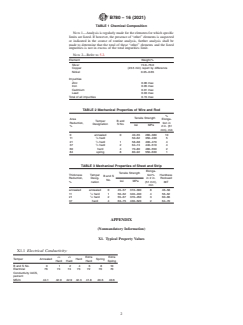

Standards Content (Sample)
