ASTM D6383/D6383M-99(2015)

Standard Practice for Time-to-Failure (Creep-Rupture) of Adhesive Joints Fabricated from EPDM Roof Membrane Material

SIGNIFICANCE AND USE
5.1 An important factor affecting the performance of seams of EPDM membranes is their ability to remain bonded over the membrane's expected service life. Time-to-failure tests provide a means of characterizing the behavior of joints under constant load over time.
Note 1: Table 1 is based on the results of an industry government consortium study on creep-rupture resistance (time-to-failure) of EPDM adhesive joints.4,5 Referral to Footnotes 5 and 6 provides typical time-to-failure data, developed under the conditions in Table 1, for EPDM joints fabricated in the laboratory with nonreinforced EPDM roof membrane material, butyl-based tapes, and liquid adhesives. It is noted that the peel load specified in this practice is 9.8 N [2.2 lbf]. The peel load under which the tests described in Footnotes 4 and 5 were conducted was 9.3 N [2.1 lbf]. A load of 9.8 N [2.2 lbf] corresponds to 1 kgf [2.2 lbf], and dead weights of 1-kg [2.2-lbm] mass are available through laboratory equipment supply houses. Similarly, a load of 29.4 N [6.6 lbf] corresponds to a dead weight of 3-kg [6.6-lbm] mass.
5.2 Time-to-failure tests complement other mechanical tests such as strength for characterizing joints of EPDM roof membranes, and can be incorporated in specifications for adhesives for joining EPDM roof membrane material.
5.3 This practice, which is specific to EPDM joints, complements Test Method D5405 that provides general requirements for the preparation and creep-rupture testing of joints fabricated from any nonbituminous organic roof membrane material.
5.4 Laboratory experience in conducting time-to-failure tests of joints EPDM roof membranes has shown that specimens are less creep-resistant under peel loading than under shear loading. Consequently, the majority of the tests stipulated in this practice are performed under peel loading.
5.5 This practice does not develop time-to-failure data on all environmental conditions to which EPDM adhesive seams can be subjected in s...
SCOPE
1.1 This practice covers sample preparation temperatures, test parameters, and specimen exposure conditions that are applicable when Test Method D5405 is used for conducting time-to-failure (creep-rupture) tests of adhesive joints fabricated from ethylene-propylene-diene terpolymer (EPDM) roof membrane material.
1.2 This practice is applicable to joints fabricated in the laboratory from EPDM roof membrane materials and adhesives received from suppliers, and to joints prepared from EPDM seams sampled from field installations.
1.3 The joints are bonded using preformed tape or liquid-based adhesives, and EPDM roof membrane materials that are non-reinforced, fabric- or scrim-reinforced, and fabric backed. Primers are also used as recommended for the specific adhesive.
1.4 This practice contains notes that are explanatory and are not part of the mandatory requirements of this practice.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of the regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 30-Nov-2015
• ICS: 91.060.20 - Roofs
• Technical Committee: D08 - Roofing and Waterproofing
• Drafting Committee: D08.18 - Nonbituminous Organic Roof Coverings

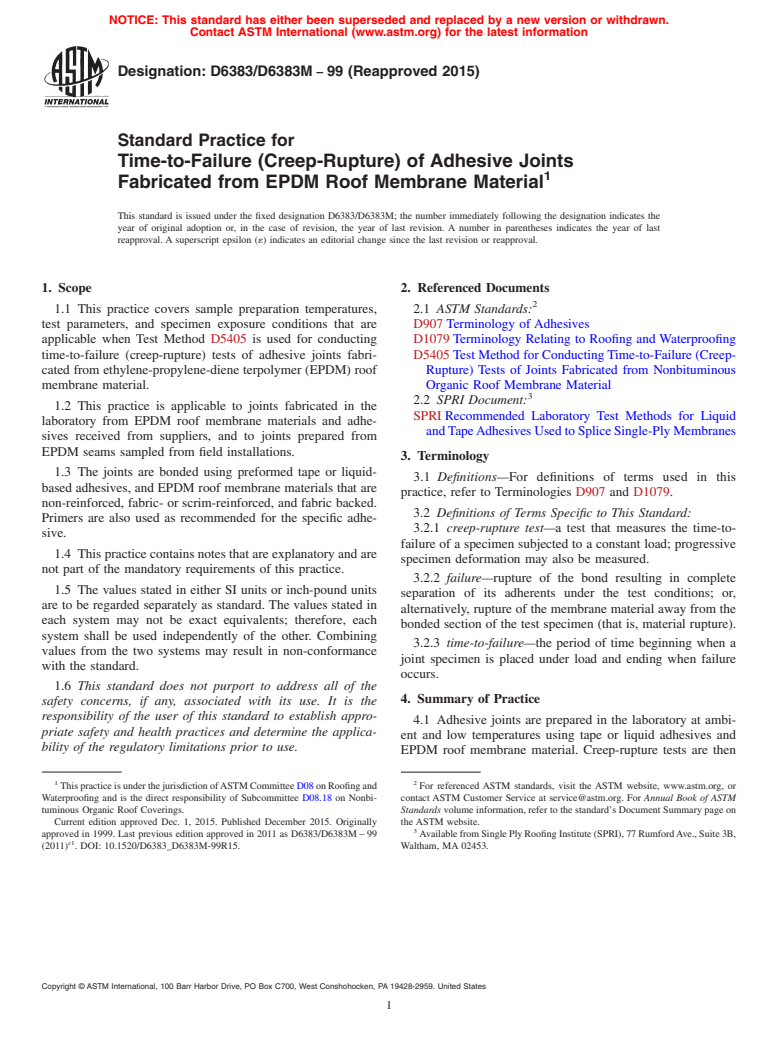

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation: D6383/D6383M − 99 (Reapproved 2015)
Standard Practice for
Time-to-Failure (Creep-Rupture) of Adhesive Joints
1
Fabricated from EPDM Roof Membrane Material
This standard is issued under the fixed designation D6383/D6383M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
1.1 This practice covers sample preparation temperatures, 2.1 ASTM Standards:
test parameters, and specimen exposure conditions that are D907Terminology of Adhesives
applicable when Test Method D5405 is used for conducting D1079Terminology Relating to Roofing and Waterproofing
time-to-failure (creep-rupture) tests of adhesive joints fabri- D5405Test Method for ConductingTime-to-Failure (Creep-
cated from ethylene-propylene-diene terpolymer (EPDM) roof Rupture) Tests of Joints Fabricated from Nonbituminous
membrane material. Organic Roof Membrane Material
3
2.2 SPRI Document:
1.2 This practice is applicable to joints fabricated in the
SPRIRecommended Laboratory Test Methods for Liquid
laboratory from EPDM roof membrane materials and adhe-
andTapeAdhesivesUsedtoSpliceSingle-PlyMembranes
sives received from suppliers, and to joints prepared from
EPDM seams sampled from field installations.
3. Terminology
1.3 The joints are bonded using preformed tape or liquid-
3.1 Definitions—For definitions of terms used in this
based adhesives, and EPDM roof membrane materials that are
practice, refer to Terminologies D907 and D1079.
non-reinforced, fabric- or scrim-reinforced, and fabric backed.
3.2 Definitions of Terms Specific to This Standard:
Primers are also used as recommended for the specific adhe-
3.2.1 creep-rupture test—a test that measures the time-to-
sive.
failure of a specimen subjected to a constant load; progressive
1.4 Thispracticecontainsnotesthatareexplanatoryandare
specimen deformation may also be measured.
not part of the mandatory requirements of this practice.
3.2.2 failure—rupture of the bond resulting in complete
1.5 The values stated in either SI units or inch-pound units
separation of its adherents under the test conditions; or,
are to be regarded separately as standard. The values stated in
alternatively, rupture of the membrane material away from the
each system may not be exact equivalents; therefore, each
bonded section of the test specimen (that is, material rupture).
system shall be used independently of the other. Combining
3.2.3 time-to-failure—the period of time beginning when a
values from the two systems may result in non-conformance
joint specimen is placed under load and ending when failure
with the standard.
occurs.
1.6 This standard does not purport to address all of the
4. Summary of Practice
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
4.1 Adhesive joints are prepared in the laboratory at ambi-
priate safety and health practices and determine the applica-
ent and low temperatures using tape or liquid adhesives and
bility of the regulatory limitations prior to use.
EPDM roof membrane material. Creep-rupture tests are then
1 2
ThispracticeisunderthejurisdictionofASTMCommitteeD08onRoofingand For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Waterproofing and is the direct responsibility of Subcommittee D08.18 on Nonbi- contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
tuminous Organic Roof Coverings. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Dec. 1, 2015. Published December 2015. Originally the ASTM website.
3
approved in 1999. Last previous edition approved in 2011 as D6383/D6383M–99 AvailablefromSinglePlyRoofingInstitute(SPRI),77RumfordAve.,Suite3B,
ɛ1
(2011) . DOI: 10.1520/D6383_D6383M-99R15. Waltham, MA 02453.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6383/D6383M − 99 (2015)
conducted in accordance with Test Method D5405 before and for the preparation and creep-rupture testing of joints fabri-
after subjecting these joints to artificial exposure in the cated from any nonbituminous organic roof membrane mate-
laboratory. The loads are applied in either peel or shear
rial.
configurations at ambient and elevated temperatures. Table 1
5.4 Laboratory experience in conducting time-to-failure
summarizes the preparation temperatures, test parameters, and
tests of joints EPDM roof membranes has shown that speci-
exposureconditionsincorporatedinthispractice.Alterna
...

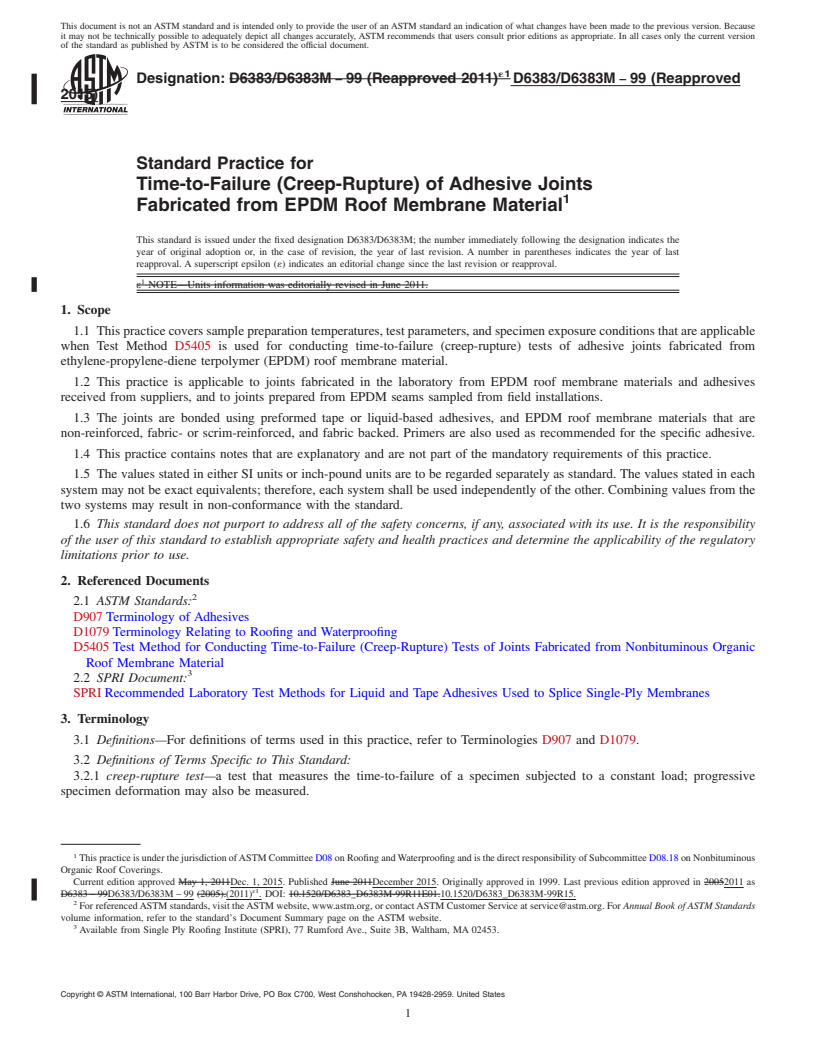

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
´1
Designation: D6383/D6383M − 99 (Reapproved 2011) D6383/D6383M − 99 (Reapproved
2015)
Standard Practice for
Time-to-Failure (Creep-Rupture) of Adhesive Joints
1
Fabricated from EPDM Roof Membrane Material
This standard is issued under the fixed designation D6383/D6383M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1
ε NOTE—Units information was editorially revised in June 2011.
1. Scope
1.1 This practice covers sample preparation temperatures, test parameters, and specimen exposure conditions that are applicable
when Test Method D5405 is used for conducting time-to-failure (creep-rupture) tests of adhesive joints fabricated from
ethylene-propylene-diene terpolymer (EPDM) roof membrane material.
1.2 This practice is applicable to joints fabricated in the laboratory from EPDM roof membrane materials and adhesives
received from suppliers, and to joints prepared from EPDM seams sampled from field installations.
1.3 The joints are bonded using preformed tape or liquid-based adhesives, and EPDM roof membrane materials that are
non-reinforced, fabric- or scrim-reinforced, and fabric backed. Primers are also used as recommended for the specific adhesive.
1.4 This practice contains notes that are explanatory and are not part of the mandatory requirements of this practice.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of the regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
D907 Terminology of Adhesives
D1079 Terminology Relating to Roofing and Waterproofing
D5405 Test Method for Conducting Time-to-Failure (Creep-Rupture) Tests of Joints Fabricated from Nonbituminous Organic
Roof Membrane Material
3
2.2 SPRI Document:
SPRI Recommended Laboratory Test Methods for Liquid and Tape Adhesives Used to Splice Single-Ply Membranes
3. Terminology
3.1 Definitions—For definitions of terms used in this practice, refer to Terminologies D907 and D1079.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 creep-rupture test—a test that measures the time-to-failure of a specimen subjected to a constant load; progressive
specimen deformation may also be measured.
1
This practice is under the jurisdiction of ASTM Committee D08 on Roofing and Waterproofing and is the direct responsibility of Subcommittee D08.18 on Nonbituminous
Organic Roof Coverings.
Current edition approved May 1, 2011Dec. 1, 2015. Published June 2011December 2015. Originally approved in 1999. Last previous edition approved in 20052011 as
ɛ1
D6383 – 99D6383/D6383M – 99 (2005).(2011) . DOI: 10.1520/D6383_D6383M-99R11E01.10.1520/D6383_D6383M-99R15.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Available from Single Ply Roofing Institute (SPRI), 77 Rumford Ave., Suite 3B, Waltham, MA 02453.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6383/D6383M − 99 (2015)
3.2.2 failure—rupture of the bond resulting in complete separation of its adherents under the test conditions; or, alternatively,
rupture of the membrane material away from the bonded section of the test specimen (that is, material rupture).
3.2.3 time-to-failure—the period of time beginning when a joint specimen is placed under load and ending when failure occurs.
4. Summary of Practice
4.1 Adhesive joints are prepared in the laboratory at ambient and low temperatures using tape or liquid adhesives and EPDM
roof membrane material. Creep-rupture tests are then conducted in accordance with Test Method D5405 before and after subjecting
these joints to artificial exposu
...
