ASTM F1430-03e1

(Test Method)

Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments

Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments

SIGNIFICANCE AND USE
This test method provides a means of evaluating acoustic emissions generated by the rapid release of energy from localized sources within an APD under controlled loading. The resultant energy releases occur during intentional application of a controlled predetermined load. These energy releases can be monitored and interpreted by qualified individuals.
This test method permits testing of the major components of an aerial device under controlled loading. This test method utilizes objective criteria for evaluation and may be discontinued at any time to investigate a particular area of concern or prevent a fault from continuing to ultimate failure.
This test method provides a means of detecting acoustic emissions that may be defects or irregularities, or both, affecting the structural integrity or intended use of the aerial device.
Sources of acoustic emission found with this test method shall be evaluated by either more refined acoustic emission test methods or other nondestructive techniques (visual, liquid penetrant, radiography, ultrasonics, magnetic particle, etc.). Other nondestructive tests may be required to locate defects present in APDs.
Defective areas found in aerial devices by this test method should be repaired and retested as appropriate. Repair procedure recommendations are outside the scope of this test method.
SCOPE
1.1 This test method describes a procedure for acoustic emission (AE) testing of aerial personnel devices (APDs) with supplemental load handling attachments.
1.1.1 Equipment Covered—This test method covers the following types of vehicle-mounted aerial personnel devices with supplemental load handling attachments:
1.1.1.1 Extensible-boom APDs,
1.1.1.2 Articulating-boom APDs, and
1.1.1.3 Any combination of 1.1.1.1 and 1.1.1.2.
1.1.2 Equipment Not Covered—This test method does not cover any of the following equipment:
1.1.2.1 Insulated aerial personnel devices without supplemental load handling attachments,
Digger-derricks with platform,
1.1.2.3 Cranes with platform, and
1.1.2.4 Aerial devices with load-lifting capabilities located anywhere other than adjacent to the platform.
Note 1—This test method is not intended to be a stand-alone NDT method for the verification of the structural integrity of an aerial device. Other NDT methods should be used to supplement the results.
1.2 The AE test method is used to detect and area-locate emission sources. Verification of emission sources may require the use of other nondestructive test (NDT) methods, such as radiography, ultrasonics, magnetic particle, liquid penetrant, and visual inspection. ( Warning—This test method requires that external loads be applied to the superstructure of the vehicle under test. During the test, caution must be taken to safeguard personnel and equipment against unexpected failure or instability of the vehicle or components.)
1.3 This standard does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Historical
Publication Date
09-Sep-2003
ICS
17.140.01 - Acoustic measurements and noise abatement in general
Technical Committee
F18 - Electrical Protective Equipment for Workers
Drafting Committee
F18.55 - Inspection and Non-Destructive Test Methods for Aerial Devices
Current Stage
Ref Project

Relations

Replaces
ASTM F1430-03 - Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments
Effective Date
10-Sep-2003
Replaced By
ASTM F1430/F1430M-10 - Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments
Effective Date
01-Apr-2010

Buy Standard

ASTM F1430-03e1 - Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling AttachmentsASTM F1430-03e1 - Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments
PreviousNext
Standard
ASTM F1430-03e1 - Standard Test Method for Acoustic Emission Testing of Insulated and Non-Insulated Aerial Personnel Devices with Supplemental Load Handling Attachments
English language
10 pages
sale 15% off
Preview
sale 15% off
Preview

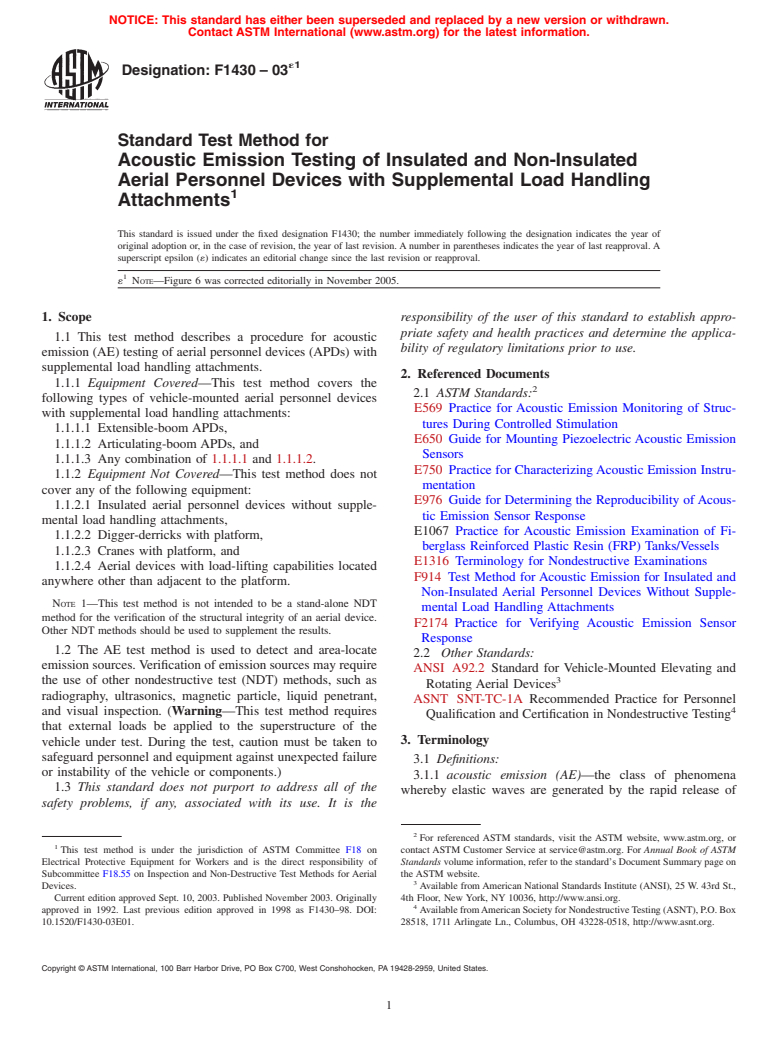

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information.
´1
Designation:F1430–03
Standard Test Method for
Acoustic Emission Testing of Insulated and Non-Insulated
Aerial Personnel Devices with Supplemental Load Handling
1
Attachments
This standard is issued under the fixed designation F1430; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1
´ NOTE—Figure 6 was corrected editorially in November 2005.
1. Scope responsibility of the user of this standard to establish appro-
priate safety and health practices and determine the applica-
1.1 This test method describes a procedure for acoustic
bility of regulatory limitations prior to use.
emission (AE) testing of aerial personnel devices (APDs) with
supplemental load handling attachments.
2. Referenced Documents
1.1.1 Equipment Covered—This test method covers the
2
2.1 ASTM Standards:
following types of vehicle-mounted aerial personnel devices
E569 Practice for Acoustic Emission Monitoring of Struc-
with supplemental load handling attachments:
tures During Controlled Stimulation
1.1.1.1 Extensible-boom APDs,
E650 Guide for Mounting Piezoelectric Acoustic Emission
1.1.1.2 Articulating-boom APDs, and
Sensors
1.1.1.3 Any combination of 1.1.1.1 and 1.1.1.2.
E750 Practice for CharacterizingAcoustic Emission Instru-
1.1.2 Equipment Not Covered—This test method does not
mentation
cover any of the following equipment:
E976 Guide for Determining the Reproducibility ofAcous-
1.1.2.1 Insulated aerial personnel devices without supple-
tic Emission Sensor Response
mental load handling attachments,
E1067 Practice for Acoustic Emission Examination of Fi-
1.1.2.2 Digger-derricks with platform,
berglass Reinforced Plastic Resin (FRP) Tanks/Vessels
1.1.2.3 Cranes with platform, and
E1316 Terminology for Nondestructive Examinations
1.1.2.4 Aerial devices with load-lifting capabilities located
F914 Test Method forAcoustic Emission for Insulated and
anywhere other than adjacent to the platform.
Non-Insulated Aerial Personnel Devices Without Supple-
NOTE 1—This test method is not intended to be a stand-alone NDT
mental Load Handling Attachments
method for the verification of the structural integrity of an aerial device.
F2174 Practice for Verifying Acoustic Emission Sensor
Other NDT methods should be used to supplement the results.
Response
1.2 The AE test method is used to detect and area-locate
2.2 Other Standards:
emissionsources.Verificationofemissionsourcesmayrequire
ANSI A92.2 Standard for Vehicle-Mounted Elevating and
3
the use of other nondestructive test (NDT) methods, such as
Rotating Aerial Devices
radiography, ultrasonics, magnetic particle, liquid penetrant,
ASNT SNT-TC-1A Recommended Practice for Personnel
4
and visual inspection. (Warning—This test method requires
Qualification and Certification in Nondestructive Testing
that external loads be applied to the superstructure of the
3. Terminology
vehicle under test. During the test, caution must be taken to
safeguard personnel and equipment against unexpected failure
3.1 Definitions:
or instability of the vehicle or components.)
3.1.1 acoustic emission (AE)—the class of phenomena
1.3 This standard does not purport to address all of the
whereby elastic waves are generated by the rapid release of
safety problems, if any, associated with its use. It is the
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1
This test method is under the jurisdiction of ASTM Committee F18 on contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Electrical Protective Equipment for Workers and is the direct responsibility of Standards volume information, refer to the standard’s Document Summary page on
Subcommittee F18.55 on Inspection and Non-Destructive Test Methods for Aerial the ASTM website.
3
Devices. Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
Current edition approved Sept. 10, 2003. Published November 2003. Originally 4th Floor, New York, NY 10036, http://www.ansi.org.
4
approved in 1992. Last previous edition approved in 1998 as F1430–98. DOI: AvailablefromAmericanSocietyforNondestructiveTesting(ASNT),P.O.Box
10.1520/F1430-03E01. 28518, 1711 Arlingate Ln., Columbus, OH 43228-0518, http://www.asnt.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
´1
F1430–03
energy from a localized source or sources within a material, or physical location of the emission source will then be the only
thetransientelasticwave(s)sogenerated.Acousticemissionis channel processing data from that source.
the r
...
