ASTM A529/A529M-03

Standard Specification for High-Strength Carbon-Manganese Steel of Structural Quality

SCOPE
1.1 This specification covers carbon-manganese steel shapes, plates, and bars of structural quality for use in riveted, bolted, or welded construction of buildings and for general structural purposes.
1.2 Material under this specification is available in two grades:GradeYield Strength,ksi [MPa]Thickness50 [345]50 [345]Plates to 1 in. [25 mm] thickto 14 in. [355 mm] wideBars to 31/2 in. [90 mm] Shapes with flange or leg thickness to 11/2 in. [40 mm] inclusive55 [380]55 [380]Plates to 1 in. [25 mm] thick to 14 in. [355 mm] wideBars to 3 in. [75 mm] Shapes with flange or leg thickness to 11/2 in. [40 mm] inclusive
1.3 When the steel is to be welded, it is presupposed that a welding procedure suitable for the grade of steel and intended use or service will be utilized. See Appendix X3 of Specification A 6/A 6M for information on weldability.
1.4 The values stated in either inch-pound units or SI units are to be regarded as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other.

General Information

• Status: Historical
• Publication Date: 09-Apr-2002
• ICS: 77.140.10 - Heat-treatable steels
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.02 - Structural Steel for Bridges, Buildings, Rolling Stock and Ships

Relations

• Replaces: ASTM A529/A529M-02 - Standard Specification for High-Strength Carbon-Manganese Steel of Structural Quality
• Effective Date: 10-Apr-2002
• Replaced By: ASTM A529/A529M-04 - Standard Specification for High-Strength Carbon-Manganese Steel of Structural Quality
• Effective Date: 01-Apr-2004
• Referred By: ASTM C1802-23 - Standard Specification for Design, Testing, Manufacture, Selection, and Installation of Horizontal Fabricated Metal Access Hatches for Utility, Water, and Wastewater Structures
• Effective Date: 10-Apr-2002

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

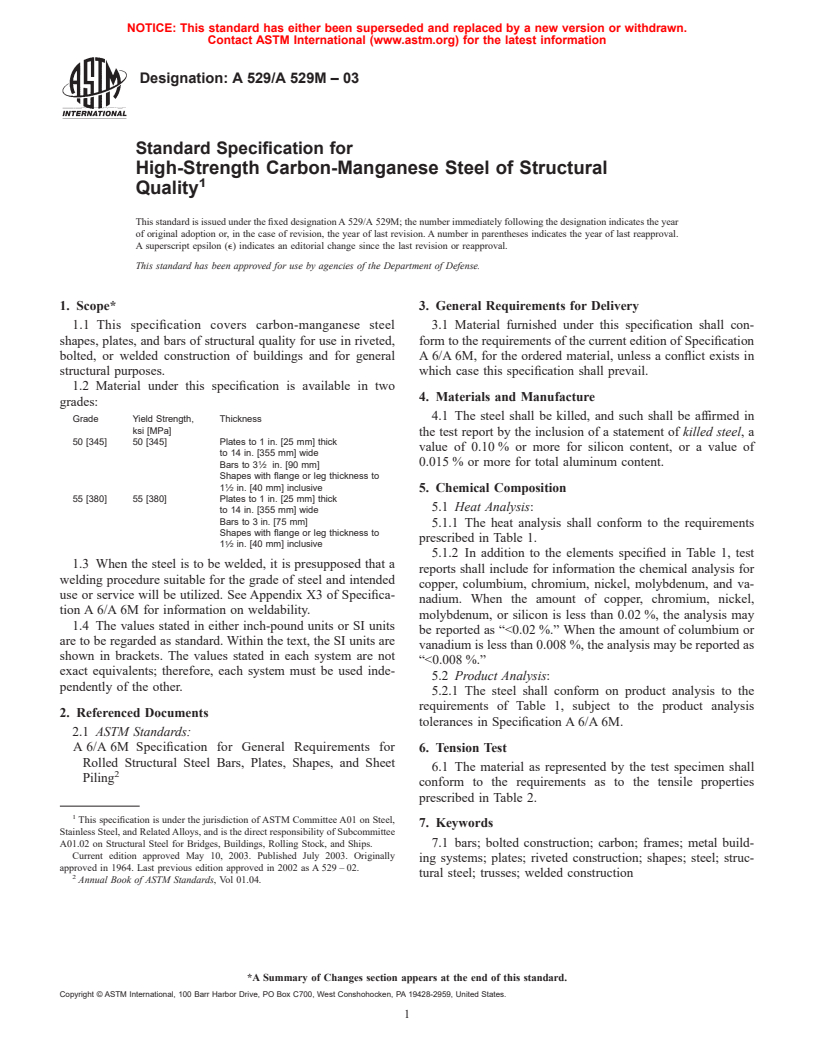

Designation: A 529/A 529M – 03
Standard Specification for
High-Strength Carbon-Manganese Steel of Structural
1
Quality
This standard is issued under the fixed designation A 529/A 529M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope* 3. General Requirements for Delivery
1.1 This specification covers carbon-manganese steel 3.1 Material furnished under this specification shall con-
shapes, plates, and bars of structural quality for use in riveted, form to the requirements of the current edition of Specification
bolted, or welded construction of buildings and for general A 6/A 6M, for the ordered material, unless a conflict exists in
structural purposes. which case this specification shall prevail.
1.2 Material under this specification is available in two
4. Materials and Manufacture
grades:
4.1 The steel shall be killed, and such shall be affirmed in
Grade Yield Strength, Thickness
ksi [MPa]
the test report by the inclusion of a statement of killed steel,a
50 [345] 50 [345] Plates to 1 in. [25 mm] thick
value of 0.10 % or more for silicon content, or a value of
to 14 in. [355 mm] wide
1
0.015 % or more for total aluminum content.
Bars to 3 ⁄2 in. [90 mm]
Shapes with flange or leg thickness to
1
1 ⁄2 in. [40 mm] inclusive
5. Chemical Composition
55 [380] 55 [380] Plates to 1 in. [25 mm] thick
5.1 Heat Analysis:
to 14 in. [355 mm] wide
Bars to 3 in. [75 mm]
5.1.1 The heat analysis shall conform to the requirements
Shapes with flange or leg thickness to
prescribed in Table 1.
1
1 ⁄2 in. [40 mm] inclusive
5.1.2 In addition to the elements specified in Table 1, test
1.3 When the steel is to be welded, it is presupposed that a
reports shall include for information the chemical analysis for
welding procedure suitable for the grade of steel and intended
copper, columbium, chromium, nickel, molybdenum, and va-
use or service will be utilized. See Appendix X3 of Specifica-
nadium. When the amount of copper, chromium, nickel,
tion A 6/A 6M for information on weldability.
molybdenum, or silicon is less than 0.02 %, the analysis may
1.4 The values stated in either inch-pound units or SI units
be reported as “<0.02 %.” When the amount of columbium or
are to be regarded as standard. Within the text, the SI units are
vanadium is less than 0.008 %, the analysis may be reported as
shown in brackets. The values stated in each system are not
“<0.008 %.”
exact equivalents; therefore, each system must be used inde-
5.2 Product Analysis:
pendently of the other.
5.2.1 The steel shall conform on product analysis to the
requirements of Table 1, subject to the product analysis
2. Referenced Documents
tolerances in Specification A 6/A 6M.
2.1 ASTM Standards:
A 6/A 6M Specification for General Requirements for 6. Tension Test
Rolled Structural Steel Bars, Plates, Shapes, and Sheet
6.1 The material as represented by the test specimen shall
2
Piling
conform to the requirements as to the tensile properties
prescribed in Table 2.
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
7. Keywords
Stainless Steel, and Related Alloys, and is the direct responsibility of Subcommittee
A01.02 on Structural Steel for Bridges, Buildings, Rolling Stock, and Ships. 7.1 bars; bolted construction; carbon; frames; metal build-
Current edition approved May 10, 2003. Published July 2003. Originally
ing systems; plates; riveted construction; shapes; steel; struc-
approved in 1964. Last previous edition approved in 2002 as A 529 – 02.
tural steel; trusses; welded construction
2
Annual Book of ASTM Standards, Vol 01.04.
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
A 529/A 529M – 03
TABLE 1 Chemical Requirements (Heat Analysis)
NOTE—A maximum of 1.50 % manganese is permissible, with an
associated reduction of the carbon maximum of 0.01 percentage point for
each 0.05 percentage point increase in manganese.
Element Composition, %
Grades 50 [345]
and 55 [380]
Carbon, max 0.27
Manganese, max 1.35
Phosphorus, max 0.04
Sulfur, max 0.05
Silicon, max 0.40
Copper, min, when copper is speci- 0.20
fied
A
TABLE 2 Tensile Requirements
Grade 50 [345] Grade 55 [380]
ksi [MPa] ksi [MPa]
B
Tensile strength, min 70 [485] 70 [485]
Tensile strength, max 100 [690] 100 [690]
Yield strength, min 50 [345] 55 [380]
Elongation in 8 in. [200 mm], 18 17
min, %
Elongation in 2 in. [50 m
...
