Stationary waste containers up to 5 000 l, top lifted and bottom emptied - Part 2: Additional requirements for underground or partly underground systems

This document specifies the additional requirements for underground or partly underground systems top lifted and bottom emptied, used for collection of solid non-hazardous wastes with a capacity up to 5 000 l.

Stationäre Abfallsammelbehälter bis 5 000 l, mit Behälteraufnahme an der Oberseite und Bodenentleerung - Teil 2: Zusätzliche Anforderungen für unterirdische oder teilweise unterirdische Systeme

Dieses Dokument legt die zusätzlichen Anforderungen für unterirdische oder teilweise unterirdische Systeme mit Behälteraufnahme an der Oberseite und Bodenentleerung fest, welche für die Sammlung von festen, ungefährlichen Abfallstoffen, mit einem Volumen bis 5 000 l genutzt werden.

Conteneurs fixes à déchets de capacité inférieure ou égale à 5 000 l, levés par le haut et vidés par le bas - Partie 2 : Exigences complémentaires relatives aux systèmes enterrés ou semi-enterrés

Le présent document spécifie les exigences complémentaires qui s’appliquent aux systèmes enterrés ou semi-enterrés, levés par le haut et vidés par le bas, utilisés pour la collecte de déchets solides non dangereux, d’une capacité inférieure ou égale à 5 000 l.

Nepremični zabojniki za odpadke do 5000 l, ki se dvigujejo zgoraj in praznijo spodaj - 2. del: Dodatne zahteve za podzemne ali delno podzemne sisteme

Ta standard določa dodatne zahteve za podzemne ali delno podzemne sisteme, ki se dvigujejo zgoraj in praznijo spodaj, za zbiranje trdih nenevarnih odpadkov s kapaciteto do 5000 l.

General Information

Status
Published
Publication Date
09-Jul-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
10-Jul-2019
Completion Date
10-Jul-2019

RELATIONS

Buy Standard

Standard
EN 13071-2:2019
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 13071-2:2019
01-september-2019
Nadomešča:
SIST EN 13071-2:2008+A1:2014
Nepremični zabojniki za odpadke do 5000 l, ki se dvigujejo zgoraj in praznijo
spodaj - 2. del: Dodatne zahteve za podzemne ali delno podzemne sisteme

Stationary waste containers up to 5 000 l, top lifted and bottom emptied - Part 2:

Additional requirements for underground or partly underground systems

Stationäre Abfallsammelbehälter bis 5 000 l, mit Behälteraufnahme an der Oberseite und

Bodenentleerung - Teil 2: Zusätzliche Anforderungen für unterirdische oder teilweise

unterirdische Systeme

Conteneurs fixes à déchets de capacité inférieure ou égale à 5000 l, levés par le haut et

vidés par le bas - Partie 2 : Exigences complémentaires relatives aux systèmes enterrés

ou semi-enterrés
Ta slovenski standard je istoveten z: EN 13071-2:2019
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
SIST EN 13071-2:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13071-2:2019
---------------------- Page: 2 ----------------------
SIST EN 13071-2:2019
EN 13071-2
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 13.030.40 Supersedes EN 13071-2:2008+A1:2013
English Version
Stationary waste containers up to 5 000 l, top lifted and
bottom emptied - Part 2: Additional requirements for
underground or partly underground systems

Conteneurs fixes à déchets de capacité inférieure ou Stationäre Abfallsammelbehälter bis 5 000 l, mit

égale à 5 000 l, levés par le haut et vidés par le bas - Behälteraufnahme an der Oberseite und

Partie 2 : Exigences complémentaires relatives aux Bodenentleerung - Teil 2: Zusätzliche Anforderungen

systèmes enterrés ou semi-enterrés für unterirdische oder teilweise unterirdische Systeme

This European Standard was approved by CEN on 19 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13071-2:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13071-2:2019
EN 13071-2:2019 (E)

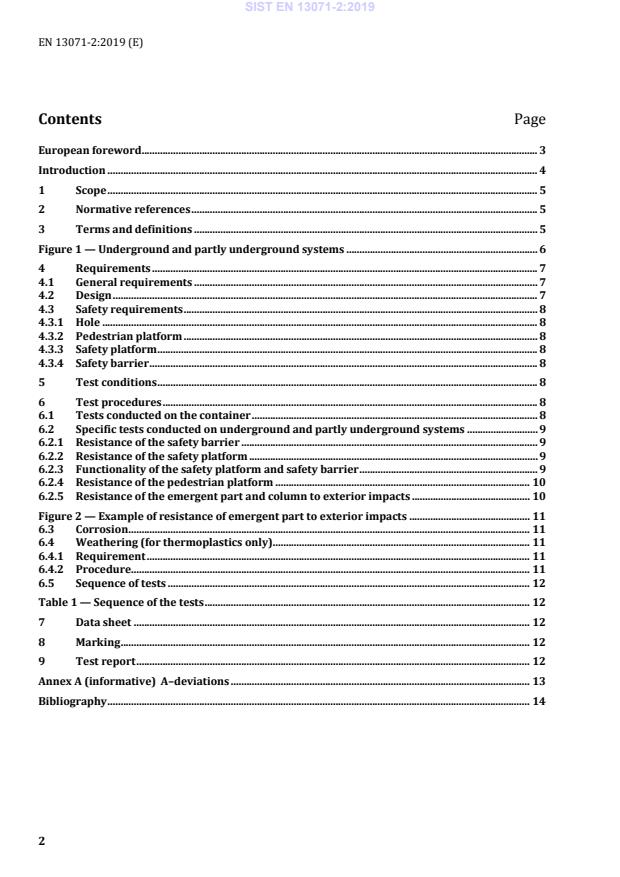

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

Figure 1 — Underground and partly underground systems ......................................................................... 6

4 Requirements ................................................................................................................................................... 7

4.1 General requirements ................................................................................................................................... 7

4.2 Design .................................................................................................................................................................. 7

4.3 Safety requirements ....................................................................................................................................... 8

4.3.1 Hole ...................................................................................................................................................................... 8

4.3.2 Pedestrian platform ....................................................................................................................................... 8

4.3.3 Safety platform ................................................................................................................................................. 8

4.3.4 Safety barrier .................................................................................................................................................... 8

5 Test conditions ................................................................................................................................................. 8

6 Test procedures ............................................................................................................................................... 8

6.1 Tests conducted on the container ............................................................................................................. 8

6.2 Specific tests conducted on underground and partly underground systems ........................... 9

6.2.1 Resistance of the safety barrier ................................................................................................................. 9

6.2.2 Resistance of the safety platform .............................................................................................................. 9

6.2.3 Functionality of the safety platform and safety barrier .................................................................... 9

6.2.4 Resistance of the pedestrian platform ................................................................................................. 10

6.2.5 Resistance of the emergent part and column to exterior impacts ............................................. 10

Figure 2 — Example of resistance of emergent part to exterior impacts .............................................. 11

6.3 Corrosion ......................................................................................................................................................... 11

6.4 Weathering (for thermoplastics only) .................................................................................................. 11

6.4.1 Requirement .................................................................................................................................................. 11

6.4.2 Procedure........................................................................................................................................................ 11

6.5 Sequence of tests .......................................................................................................................................... 12

Table 1 — Sequence of the tests ............................................................................................................................ 12

7 Data sheet ....................................................................................................................................................... 12

8 Marking ............................................................................................................................................................ 12

9 Test report ...................................................................................................................................................... 12

Annex A (informative) A–deviations .................................................................................................................. 13

Bibliography ................................................................................................................................................................. 14

---------------------- Page: 4 ----------------------
SIST EN 13071-2:2019
EN 13071-2:2019 (E)
European foreword

This document (EN 13071-2:2019) has been prepared by Technical Committee CEN/TC 183 “Waste

management”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall

be withdrawn at the latest by January 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 13071-2:2008+A1:2013.
The main changes compared to the previous edition are listed below:
a) addition of an introduction;
b) review of definitions 3.2 and 3.7;
c) replacement of term „housing“ with „column“ (3.4);
d) addition of further requirements for the design (4.2);

e) updating of safety requirements for holes (4.3.1), pedestrian platforms (4.3.2), safety platforms

(4.3.3), and safety barrier (4.3.4);
f) deletion of clause 7 “Recommendations”.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 13071-2:2019
EN 13071-2:2019 (E)
Introduction

According to the European health and safety requirements, work equipment have to be designed and

constructed so that it can be operated without putting persons at risk. The manufacturer has to

consider the intended conditions of use, but also any reasonably foreseeable misuse.

For that purpose he will carry out a risk analysis in order to determine the hazards which the operators

and users are exposed to. The equipment will then be designed and constructed taking into account the

results of this assessment, by an iterative process of risk assessment and risk reduction.

As specified in the guidance document “Classification of equipment used for lifting loads with lifting

machinery” (Machinery Working Group — January 2012), containers used for collecting and lifting bulk

material are not covered by Directive 2006/42/CE.

However, a large number of the hazards which the operators using such equipment and the persons

present in the vicinity of lifting/handling operations are exposed to are the same as those resulting

from the use of lifting appliances proper.

These are the reasons why CEN/TC 183 decided to include into this standard requirements intended to

support the corresponding essential health and safety requirements of Directive 2006/42, in particular

those related to lifting operations (part 4 of Annex I).
---------------------- Page: 6 ----------------------
SIST EN 13071-2:2019
EN 13071-2:2019 (E)
1 Scope

This document specifies the additional requirements for underground or partly underground systems

top lifted and bottom emptied, used for collection of solid non-hazardous wastes with a capacity up to

5 000 l.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 13071-1:2019, Stationary waste containers up to 5 000 l, top lifted and bottom emptied — Part 1:

General requirements

EN 10346, Continuously hot-dip coated steel flat products for cold forming — Technical delivery

conditions

EN ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test

methods (ISO 1461)

EN ISO 2081, Metallic and other inorganic coatings — Electroplated coatings of zinc with supplementary

treatments on iron or steel
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 13071-1:2019 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
underground or partly underground system

waste container with an emptying device located below surrounding ground level at any point

Note 1 to entry: See Figure 1. Safety devices are not shown in Figure 1.
---------------------- Page: 7 ----------------------
SIST EN 13071-2:2019
EN 13071-2:2019 (E)
Key
C underground or partly underground container
EP emergent part
H column
L liner
LC lifting connection
PP pedestrian platform
R roof
Figure 1 — Underground and partly underground systems
3.2
underground or partly underground container

mobile receptacle of underground or partly underground system, designated to collect/re

...
