prEN ISO 11592-2

Small craft - Determination of maximum propulsion power rating using manoeuvring speed - Part 2: Craft with a length of hull between 8 m and 24 m (ISO 11592-2:2019)

This document specifies the requirements for determining the maximum propulsion power rating using manoeuvring speed for engine-driven craft with a length of the hull (LH, as defined in ISO 8666) between 8 m and 24 m.
This document is applicable to craft with a calculated Froude number (Fn) ≥ 1,1.
This document is not applicable to:
— inflatable craft, as defined by ISO 6185‑4;
— craft designed and constructed solely for competitive racing (racing craft);
— craft primarily designed not to be engine driven.
This document does not specify craft constructional strength requirements related to maximum propulsion power rating and does not guarantee stability under all conditions of seaway, wind, wakes and waves.

Kleine Wasserfahrzeuge - Bestimmung der maximalen Vortriebsnennleistung unter Anwendung der Manövriergeschwindigkeit - Teil 2: Wasserfahrzeuge mit einer Rumpflänge zwischen 8 m und 24 m (ISO 11592-2:2019)

Petits navires - Détermination de la puissance maximale de propulsion en utilisant la vitesse de manoeuvre - Partie 2: Navires d'une longueur de coque comprise entre 8 m et 24 m (ISO 11592-2:2019)

Le présent document spécifie les exigences relatives à la détermination de la puissance maximale déclarée de propulsion en utilisant la vitesse de manœuvre pour les bateaux à moteur d'une longueur de coque (LH telles due définie dans l'ISO 8666) comprise entre 8 m et 24 m.
Ce document est applicable aux bateaux dont le nombre de Froude calculé (Fn) ≥ 1,1.
Ce document n'est pas applicable aux:
— bateaux pneumatiques, tels que définis par l'ISO 6185‑4;
— bateaux conçus et construits exclusivement pour la compétition (bateaux de course);
— bateaux principalement conçus pour ne pas être motorisés.
Ce document ne spécifie pas les exigences de résistance de construction du bateau liées à la puissance maximale déclarée de propulsion et ne garantit pas la stabilité dans toutes les conditions de mer, de vent, de sillage et de vagues.

Mala plovila - Določitev največje moči pogona z uporabo hitrosti manevriranja - 2. del: Plovilo z dolžino trupa med 8 m in 24 m (ISO 11592-2:2019)

General Information

• Status: Not Published
• Publication Date: 14-Nov-2021
• Withdrawal Date: 15-May-2022
• ICS: 47.080 - Small craft
• Technical Committee: CEN/TC 464 - Small Craft
• Drafting Committee: CEN/TC 464 - Small Craft
• Current Stage: 4098 - Decision to abandon - Enquiry
• Due Date: 27-Oct-2020
• Completion Date: 27-Oct-2020
• Directive: 2013/53/EU - Directive 2013/53/EU of the European Parliament and of the Council of 20 November 2013 on recreational craft and personal watercraft and repealing Directive 94/25/EC
• Mandate: M/542 - [C(2015)8736] Standardisation Request to the European Committee for Standardisation and the European Committee for Electro-technical Standardisation as regards recreational craft and personal watercraft in support of Directive 2013/53/EU of the European Parliament and of the Council of 20 November 2013 on recreational craft and personal watercraft and repealing Directive 94/25/EC.
• Ref Project: oSIST prEN ISO 11592-2:2020 - Small craft - Determination of maximum propulsion power rating using manoeuvring speed - Part 2: Craft with a length of hull between 8 m and 24 m (ISO 11592-2:2019)

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2020
Mala plovila - Določitev največje moči pogona z uporabo hitrosti manevriranja - 2.
del: Plovilo z dolžino trupa med 8 m in 24 m (ISO 11592-2:2019)
Small craft - Determination of maximum propulsion power rating using manoeuvring
speed - Part 2: Craft with a length of hull between 8 m and 24 m (ISO 11592-2:2019)
Kleine Wasserfahrzeuge - Bestimmung der maximalen Vortriebsnennleistung unter
Anwendung der Manövriergeschwindigkeit - Teil 2: Wasserfahrzeuge mit einer
Rumpflänge zwischen 8 m und 24 m (ISO 11592-2:2019)
Petits navires - Détermination de la puissance maximale de propulsion en utilisant la
vitesse de manoeuvre - Partie 2: Navires d'une longueur de coque comprise entre 8 m et
24 m (ISO 11592-2:2019)
Ta slovenski standard je istoveten z: prEN ISO 11592-2
ICS:
47.080 Čolni Small craft
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

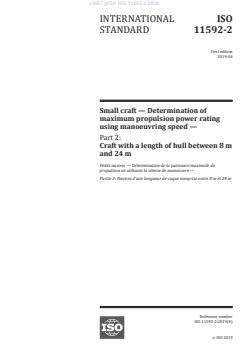

INTERNATIONAL ISO
STANDARD 11592-2
First edition
2019-04
Small craft — Determination of
maximum propulsion power rating
using manoeuvring speed —
Part 2:
Craft with a length of hull between 8 m
and 24 m
Petits navires — Détermination de la puissance maximale de
propulsion en utilisant la vitesse de manoeuvre —
Partie 2: Navires d'une longueur de coque comprise entre 8 m et 24 m
Reference number
ISO 11592-2:2019(E)
©
ISO 2019
ISO 11592-2:2019(E)
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

ISO 11592-2:2019(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General requirements . 2
5 Test procedures . 3
5.1 Purpose of the tests . 3
5.2 Craft preparation . 3
5.3 Test conditions . 4
6 Quick turn test . 4
7 Avoidance line test . 4
8 Documentation . 5
9 Warning labels . 6
10 Owner’s manual. 7
11 Engine power label . 7
Bibliography . 8
ISO 11592-2:2019(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of Standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 188, Small craft, Subcommittee SC 2,
Engines and propulsion systems.
A list of all parts in the ISO 11592 (series) can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 11592-2:2019(E)
Small craft — Determination of maximum propulsion
power rating using manoeuvring speed —
Part 2:
Craft with a length of hull between 8 m and 24 m
1 Scope
This document specifies the requirements for determining the maximum propulsion power rating
using manoeuvring speed for engine-driven craft with a length of the hull (L , as defined in ISO 8666)
H
between 8 m and 24 m.
This document is applicable to craft with a calculated Froude number (F ) ≥ 1,1.
n
This document is not applicable to:
— inflatable craft, as defined by ISO 6185-4;
— craft designed and constructed solely for competitive racing (racing craft);
— craft primarily designed not to be engine driven.
This document does not specify craft constructional strength requirements related to maximum
propulsion power rating and does not guarantee stability under all conditions of seaway, wind, wakes
and waves.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
ISO 7010:— , Graphical symbols — Safety colours and safety signs — Registered safety signs
ISO 8666:2016, Small craft — Principal data
ISO 10087:2019, Small craft —Craft identification— Coding system
2)
ISO 10240:— , Small craft — Owner's manual
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
1) Under preparation (revision of ISO 7010:2011). Stage at the time of publication: ISO/FDIS 7010:2019.
2) Under preparation (revision of ISO 10240:2004). Stage at the time of publication: ISO/DIS 10240:2019.
ISO 11592-2:2019(E)
3.1
engine power
engine manufacturer's declared power
Note 1 to entry: Engine power rated as specified in ISO 8665.
3.2
craft speed
speed of the craft through the water
3.3
propulsion
transformation of mechanical power to a force to move the craft through the water
Note 1 to entry: This is normally accomplished with a propeller but other devices can be used, such as a propulsive
nozzle (waterjet).
3.4
Froude number
F
n
speed to length ratio, calculated as follows:
v
max
F =
n
gL×
WL
where
v is the maximum craft speed, expressed in metres per second (m/s);
max
g is the gravitational constant, g = 9,8 m/s ;
L is the waterline length (as defined in ISO 8666), expressed in metres (m).
WL
3.5
maximum manoeuvring speed
maximum speed (knots) at which the craft successfully passes all required tests
3.6
maximum craft speed
v
max
average maximum speed (knots) of the craft when tested on a straight course in two opposite directions
3.7
maximum test speed limit
v
t max
maximum speed, limited to 70 knots, at which the craft is tested when v is greater than v
max t max
vL=+ 324
tmax H
where L is the length of hull, as defined in ISO 8666.
H
4 General requirements
4.1 The maximum propulsion power rating shall be derived using the results of the tests specified in
Clause 6 and Clause 7. These tests shall be used for determining the maximum manoeuvring speed.
4.2 Craft fitted with steering means other than a steering wheel shall pass the avoidance line test
specified in Clause 7.
4.3 Craft fitted with a steering wheel shall pass the quick turn test specified in Clause 6.
2 © ISO 2019 – All rights reserved

ISO 11592-2:2019(E)
4.4 The craft shall pass the tests at no less than 85 % of maximum craft speed (v ) or the maximum
max
test speed limit (v ), whichever is the lower, with the most powerful engine recommended by the
t max
craft manufacturer.
v shall not be more than 70 knots.
t max
4.5 The craft shall be equipped with a warning label in accordance with Clause 9, and provide
information in the owner´s manual in accordance with Clause 10, if:
a) v ˂ v and the craft fails to pass the avoidance line test and/or the quick turn test at 100 %
max t max
v , provided it passes the tests at not less than 85 % v or
max max,
b) v ≥ v and the craft passes the avoidance line test and/or the quick turn test at 100 % v .
max t max t max
Additionally, craft requiring a warning label shall have a speed measuring device visible from the helm
station(s).
4.6 If the maximum manoeuvring speed is less than required in 4.4, the craft manufacturer shall
change the installed engine(s) to an engine(s) giving a lower power output, or modify the craft in order
to comply with 4.4.
5 Test procedures
5.1 Purpose of the tests
Determination of maximum manoeuvring speed at which the craft complies with the avoidance line
test and/or the quick turn test.
5.2 Craft preparation
5.2.1 The craft shall be in the performance test mass condition (m ), as defined in ISO 8666, rigged
p
with equipment for safe operation of craft, engine and operator.
5.2.2 The maximum craft speed, v , shall be determined by no less than two timed passages over
max
a measured distance in both directions, or by any other suitable and accepted means of craft speed
measurement accurate within one knot of true craft speed.
5.2.3 The craft shall be equipped with engine(s) giving the maximum engine power recommended by
the craft manufacturer (see 4.4 and 4.6).
5.2.4 Equipment shall be installed in accordance with the equipment manufacturer’s recommendations.
5.2.5 During the test, the speed should be measured with an accuracy of ± one knot.
5.2.6 A steering system with the lowest ratio (quickest turn) offered on the craft model shall be
installed. For propeller-driven craft, the craft manufacturers’ or the engine manufacturer's recommended
propeller shall be mounted. If different propellers are offered, the propeller providing maximum craft
speed shall be used.
5.2.7 If the maximum engine power can be met with a single or multiple engines, the craft shall be
tested with the configuration giving the maximum spee
...
