EN 2003-002:2023

Aerospace series - Steels - Test methods - Part 002: Izod impact test

This document specifies the Izod impact test method for steel products used for aerospace applications. It shall be applied when referred to in the EN technical specification or material standard unless otherwise specified on the drawing, order or inspection schedule.

Luft- und Raumfahrt - Stahl - Prüfverfahren - Teil 002: Izod-Kerbschlagbiegeversuch

Dieses Dokument legt die Anforderungen an den Izod-Kerbschlagbiegeversuch für Stahlerzeugnisse für Anwendungen in der Luft- und Raumfahrt fest. Es ist anzuwenden, wenn in den Technischen Lieferbedingungen oder der Werkstoffnorm auf es verwiesen wird, falls nicht anders in der Zeichnung, Bestellung oder Prüfanweisung angegeben.

Série aérospatiale - Acier - Méthodes d’essais - Partie 002 : Essai de résilience Izod

Le présent document spécifie la méthode d’essai de résilience Izod pour les produits en acier utilisés pour les applications aérospatiales. Il doit être appliqué lorsqu'il est cité en référence dans la spécification technique ou la norme de matériau EN, sauf instruction contraire figurant sur le dessin, la commande ou la fiche d'essais.

Aeronavtika - Jekla - Preskusne metode - 2. del: Izodov udarni preizkus

Ta dokument določa metodo za udarno preskušanje po Izodu za jeklene izdelke za uporabo v aeronavtiki. Uporabljati ga je treba, kadar se nanj sklicuje v tehnični specifikaciji ali standardu EN za materiale, razen če je na risbi, v naročilu ali v razporedu pregledov navedeno drugače.

General Information

• Status: Published
• Publication Date: 07-Feb-2023
• ICS: 49.025.10 - Steels
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 3 - Steels & Heat Resisting Alloys
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 08-Feb-2023
• Completion Date: 08-Feb-2023
• Ref Project: SIST EN 2003-2:2023 - Aerospace series - Steels - Test methods - Part 2: Izod impact test

Overview

EN 2003-002:2023 - “Aerospace series - Steels - Test methods - Part 002: Izod impact test” (CEN, approved Feb 2023) specifies the procedure for performing the Izod impact test on steels intended for aerospace applications. It is applied when referenced in an EN technical specification or material standard and defines machine characteristics, specimen geometry, test conditions and reporting requirements to measure impact strength using a pendulum (Izod) impact machine.

Key Topics and Requirements

• Scope & principle
  • Measures energy absorbed by a notched steel specimen broken by a single blow from a swinging pendulum.
• Equipment
  • Pendulum impact machine verified per EN 2003-003.
  • Plane of pendulum swing vertical; centre of percussion at striker impact point.
  • Anvil and foundations weight ≥ 40× pendulum weight.
  • Striker speed at impact: 3.5 m·s⁻¹ ± 0.5 m·s⁻¹.
  • Specified striker geometry (e.g., tip radius ~0.75 mm ± 0.25 mm).
• Specimens (test pieces)
  • Round, machined specimens with V-notches (single, two or three notches per Annex A figures).
  • Key dimensions/tolerances: diameter 11.43 mm ± 0.025 mm, notch depth 8.13 mm ± 0.05 mm, root radius 0.25 mm ± 0.025 mm, and specified spacing/lengths.
  • Machining must minimise cold work; notches must be free from visible grooves.
• Test conditions
  • Standard ambient range 10 °C to 35 °C; in disputes use 23 °C ± 5 °C.
  • For non-ambient tests: immersion times (e.g., ≥10 min in liquid, ≥30 min in gas) and break within 5 s after removal.
• Results & reporting
  • Results in specified units (J or ft·lbf), individual and/or mean absorbed energies.
  • Test report must reference the standard and include equipment, temperature, specimen traceability, results, incidents and any deviations (see clauses a–k).

Applications and Who Uses It

• Practical uses
  • Qualifying aerospace steels for toughness and fracture resistance.
  • Material acceptance tests, design validation, supplier control and failure analysis.
• Primary users
  • Materials and mechanical engineers, metallurgical test laboratories, aerospace manufacturers, quality/inspection teams, certification authorities and procurement specialists specifying material test methods.

Related Standards

• EN 2003-003 - Calibration of pendulum impact machines (normative reference)
• EN 4258 - Organisation of the aerospace metallic material standards series
• Relevant national/adopted versions (CEN members and ASD‑STAN)

Keywords: EN 2003-002:2023, Izod impact test, aerospace steels, pendulum impact, test method, impact strength, test pieces, CEN, EN 2003-003.

Standards Content (Sample)

SLOVENSKI STANDARD
01-april-2023
Aeronavtika - Jekla - Preskusne metode - 2. del: Izodov udarni preizkus
Aerospace series - Steels - Test methods - Part 2: Izod impact test
Luft-und Raumfahrt - Stahl - Prüfverfahren - Teil 2: Izod-Kerbschlagbiegeversuch
Série aérospatiale - Acier - Méthodes d’essais - Partie 2 : Essai de résilience Izod
Ta slovenski standard je istoveten z: EN 2003-002:2023
ICS:
49.025.10 Jekla Steels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 2003-002
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2023
EUROPÄISCHE NORM
ICS 49.025.10
English Version
Aerospace series - Steels - Test methods - Part 2: Izod
impact test
Série aérospatiale - Acier - Méthodes d'essais - Partie 2 Luft-und Raumfahrt - Stahl - Prüfverfahren - Teil 2:
: Essai de résilience Izod Izod-Kerbschlagbiegeversuch
This European Standard was approved by CEN on 24 July 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2003-002:2023 E
worldwide for CEN national Members.

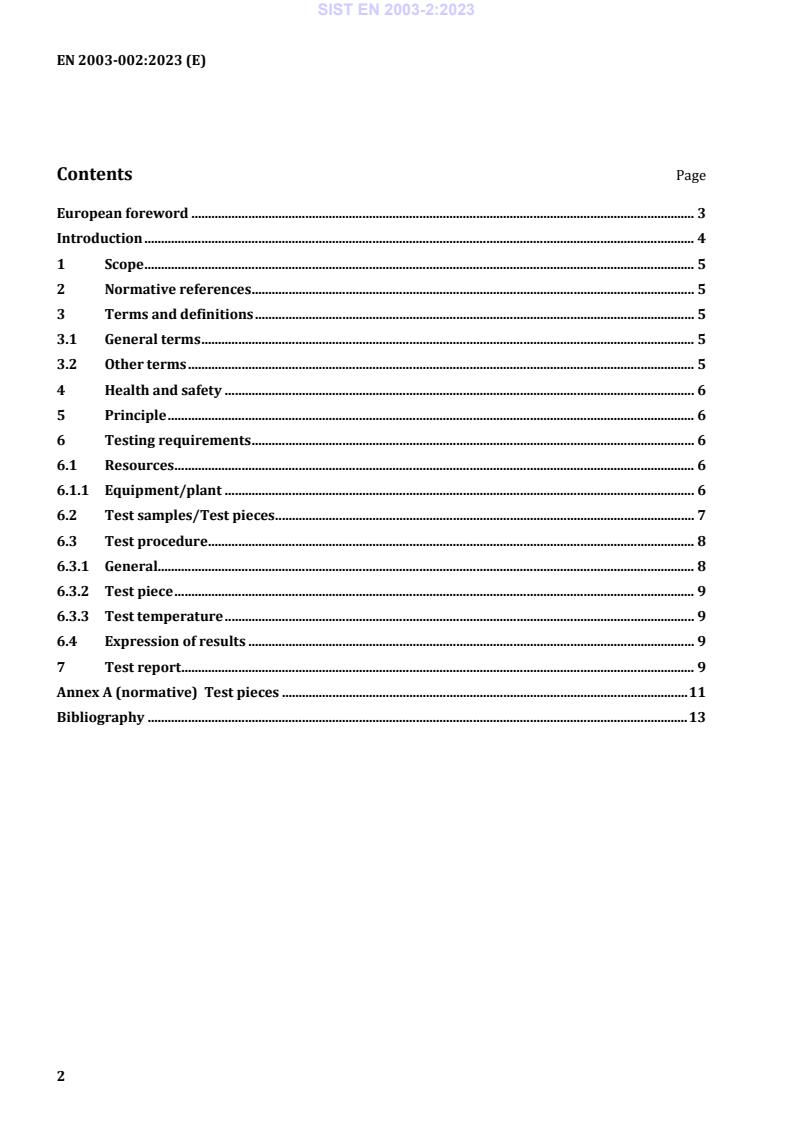

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
3.1 General terms . 5
3.2 Other terms . 5
4 Health and safety . 6
5 Principle . 6
6 Testing requirements . 6
6.1 Resources . 6
6.1.1 Equipment/plant . 6
6.2 Test samples/Test pieces . 7
6.3 Test procedure . 8
6.3.1 General. 8
6.3.2 Test piece . 9
6.3.3 Test temperature . 9
6.4 Expression of results . 9
7 Test report . 9
Annex A (normative) Test pieces . 11
Bibliography . 13

European foreword
This document (EN 2003-002:2023) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2023, and conflicting national standards shall
be withdrawn at the latest by August 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
This document is part of the series of EN metallic material standards for aerospace applications.
The general organization of this series is described in EN 4258.
1 Scope
This document specifies the Izod impact test method for steel products used for aerospace applications.
It shall be applied when referred to in the EN technical specification or material standard unless
otherwise specified on the drawing, order or inspection schedule.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2003-003, Aerospace series — Steel — Test methods — Part 3: Calibration of pendulum impact
machines
EN 4259, Aerospace series — Metallic materials — Definitions of general terms
ISO 286-1, Geometrical product specifications (GPS) — ISO code system for tolerances on linear sizes —
Part 1: Basis of tolerances, deviations and fits
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. ISO and IEC maintain
terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1 General terms
According to EN 4259.
3.2 Other terms
The parameters applicable to this document indicated in Figure A.1 to Figure A.5 of Annex A are defined
in Table 1 and Table 2 below.
Table 1 gives the units to be used.
Table 1 — Units
Reference in Figure A.1
Parameter Unit
to Figure A.5
1 Length o
...
