EN 12560-1:2024
(Main)Flanges and their joints - Dimensions of gaskets for Class-designated flanges - Part 1: Non-metallic flat gaskets with or without inserts
Flanges and their joints - Dimensions of gaskets for Class-designated flanges - Part 1: Non-metallic flat gaskets with or without inserts
This document specifies the dimensions, types, designation and marking of non-metallic flat gaskets, with or without inserts, for flanges in accordance with EN 1759-1, EN 1759-3 and EN 1759-4, for Class 150, Class 300, Class 600 and Class 900 for nominal sizes DN 15 to DN 600. In addition, this document also gives guidance on typical materials used and how they should be marked.
Flansche und ihre Verbindungen - Maße für Dichtungen für Flansche mit Class-Bezeichnung - Teil 1: Flachdichtungen aus nichtmetallischem Werkstoff mit oder ohne Einlagen
Dieses Dokument legt die Maße, Formen, Bezeichnung und Kennzeichnung von Flachdichtungen aus nichtmetallischem Werkstoff mit oder ohne Einlagen für Flansche nach EN 1759 1, EN 1759 3 und EN 1759 4 für Class 150, Class 300, Class 600 und Class 900 für die Nennweiten DN 15 bis DN 600 fest. Darüber hinaus enthält dieses Dokument auch Hinweise zu gängigen Werkstoffen und wie diese gekennzeichnet werden sollten.
Brides et leurs assemblages - Dimensions des joints pour les brides désignées Class - Partie 1 : Joints plats non-métalliques avec ou sans insert
Le présent document spécifie les dimensions, les types, la désignation et le marquage des joints plats non métalliques, avec ou sans inserts, pour les brides conformes aux EN 1759-1, EN 1759-3 et EN 1759-4 pour les Class 150, Class 300, Class 600 et Class 900 et pour les diamètres nominaux DN 15 à DN 600. En outre, ce document donne également des lignes directrices sur les matériaux typiques utilisés et sur la manière dont il convient de les marquer.
Prirobnice in prirobnični spoji - Mere tesnil za prirobnice z oznako Class - 1. del: Nekovinska ploščata tesnila z ojačitvijo ali brez nje
General Information
Relations
Standards Content (Sample)

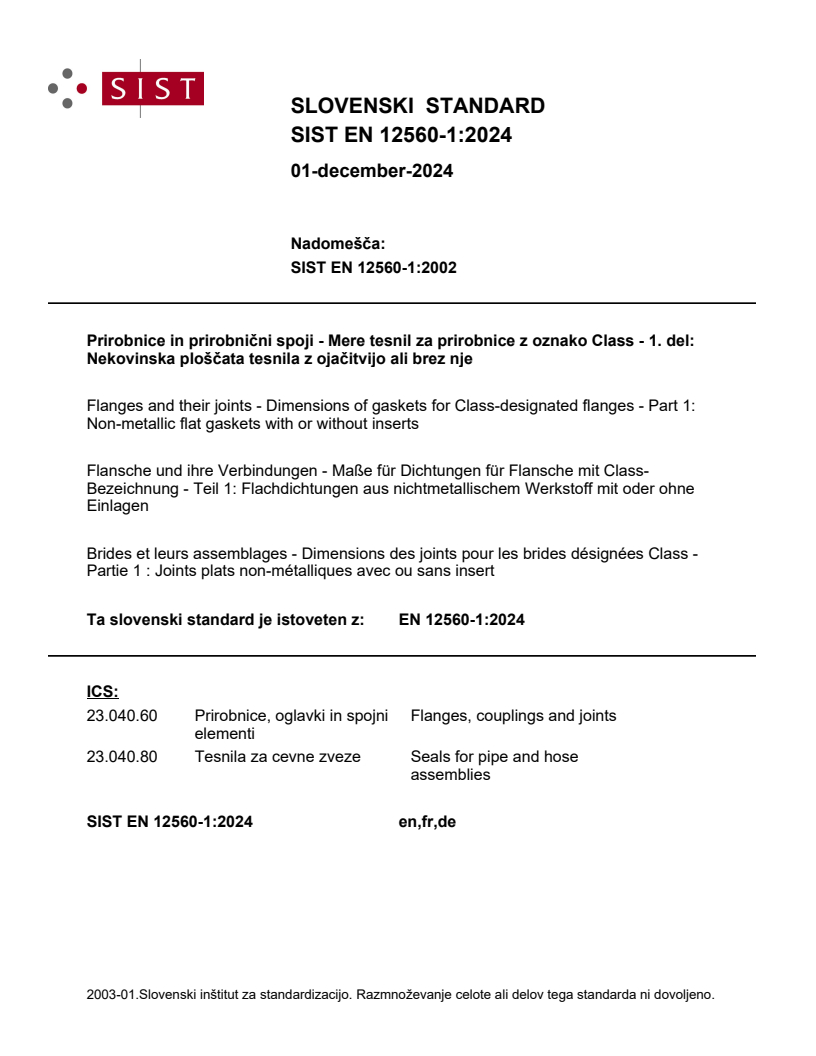

SLOVENSKI STANDARD
01-december-2024
Nadomešča:
SIST EN 12560-1:2002
Prirobnice in prirobnični spoji - Mere tesnil za prirobnice z oznako Class - 1. del:
Nekovinska ploščata tesnila z ojačitvijo ali brez nje
Flanges and their joints - Dimensions of gaskets for Class-designated flanges - Part 1:
Non-metallic flat gaskets with or without inserts
Flansche und ihre Verbindungen - Maße für Dichtungen für Flansche mit Class-
Bezeichnung - Teil 1: Flachdichtungen aus nichtmetallischem Werkstoff mit oder ohne
Einlagen
Brides et leurs assemblages - Dimensions des joints pour les brides désignées Class -
Partie 1 : Joints plats non-métalliques avec ou sans insert
Ta slovenski standard je istoveten z: EN 12560-1:2024
ICS:
23.040.60 Prirobnice, oglavki in spojni Flanges, couplings and joints
elementi
23.040.80 Tesnila za cevne zveze Seals for pipe and hose
assemblies
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 12560-1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2024
EUROPÄISCHE NORM
ICS 23.040.80 Supersedes EN 12560-1:2001
English Version
Flanges and their joints - Dimensions of gaskets for Class-
designated flanges - Part 1: Non-metallic flat gaskets with
or without inserts
Brides et leurs assemblages - Dimensions des joints Flansche und ihre Verbindungen - Maße für
pour les brides désignées Class - Partie 1 : Joints plats Dichtungen für Flansche mit Class-Bezeichnung - Teil
non-métalliques avec ou sans insert 1: Flachdichtungen aus nichtmetallischem Werkstoff
mit oder ohne Einlagen
This European Standard was approved by CEN on 3 June 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12560-1:2024 E
worldwide for CEN national Members.

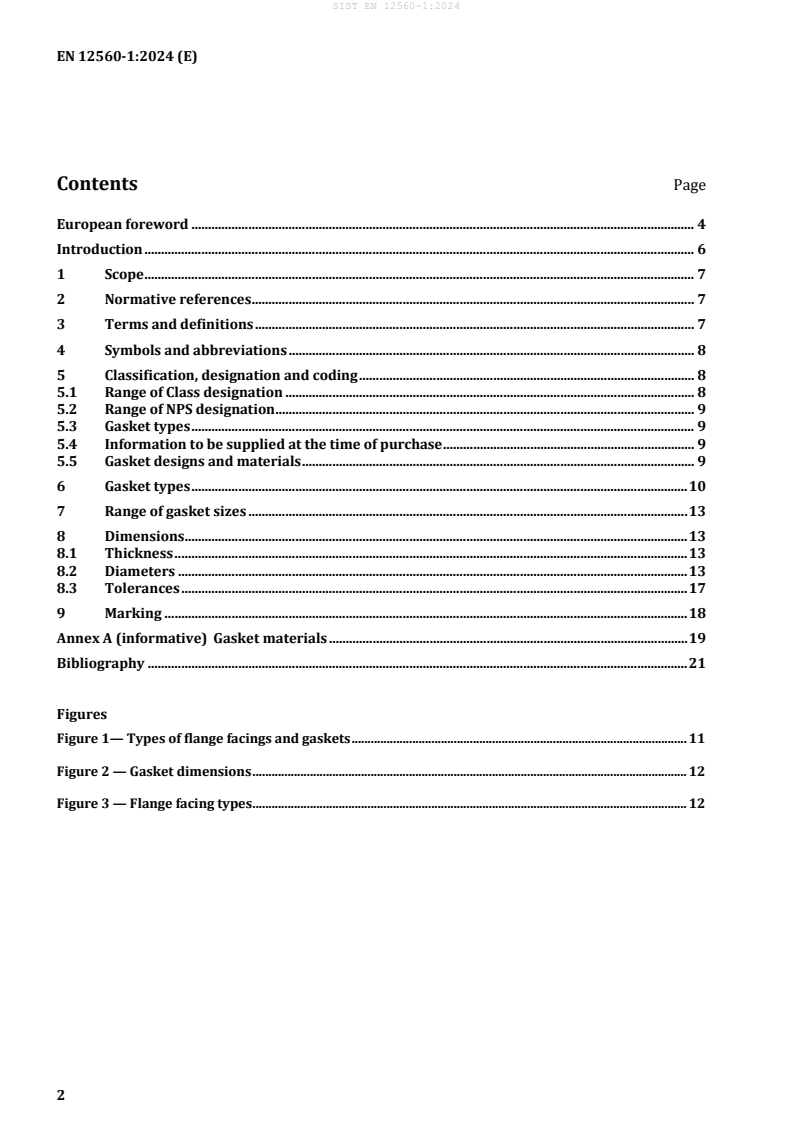

Contents Page
European foreword . 4
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Symbols and abbreviations . 8
5 Classification, designation and coding . 8
5.1 Range of Class designation . 8
5.2 Range of NPS designation . 9
5.3 Gasket types . 9
5.4 Information to be supplied at the time of purchase . 9
5.5 Gasket designs and materials . 9
6 Gasket types . 10
7 Range of gasket sizes . 13
8 Dimensions. 13
8.1 Thickness . 13
8.2 Diameters . 13
8.3 Tolerances . 17
9 Marking . 18
Annex A (informative) Gasket materials . 19
Bibliography . 21
Figures
Figure 1— Types of flange facings and gaskets . 11
Figure 2 — Gasket dimensions . 12
Figure 3 — Flange facing types . 12
Tables
Table 1 — Range of gasket sizes. 13
Table 2 — Gasket dimensions of type IBC (Inside Bolt Circle) Class 150 – 900. 14
Table 3 — Dimensions of Class designated gaskets Type FF (Full Face) Class 150 - 300 . 15
Table 4 — Dimensions for Class designated gaskets Type TG (Tongue and Groove) and SP (Spigot
and Recess) Class 300 - 900 . 17
Table 5 — Tolerance for non-metallic gasket dimensions . 18
Table 6 — Additional tolerance for non-metallic gasket dimensions not listed in Table 5 . 18
Table A.1 — Coding for sheet material . 19
European foreword
This document (EN 12560-1:2024) has been prepared by Technical Committee CEN/TC 74 “Flanges and
their joints”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2025, and conflicting national standards shall
be withdrawn at the latest by February 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12560-1:2001.
In comparison with the previous edition EN 12560-1:2001, the following technical modifications have
been made:
a) normative references have been updated;
b) terms and definitions have been updated;
c) Clause 4 “Symbols and abbreviations” has been inserted;
d) in Clause 5 information to be supplied by the purchaser has been revised and more details have been
added;
e) in Clause 8 table with gasket dimensions have been arranged according gasket types and tolerances
for gaskets have been introduced in 8.3;
f) in Clause 9 former content has been incorporated in Clause 8 and markings have been revised;
g) former Annex A “A-deviation” has been incorporated in 5.5;
h) new Annex A “gasket materials” to give guidance how to mark gaskets;
i) the document has been editorially revised.
EN 12560 will consist of the following parts:
— Part 1: Non-metallic flat gaskets with or without inserts
— Part 2: Spiral wound gaskets for use with steel flanges
— Part 3: Non-metallic PTFE envelope gaskets
— Part 4: Corrugated flat or grooved metallic and filled metallic gaskets for use with steel flanges
— Part 5: Metallic ring-joint gaskets for use with steel flanges
— Part 6: Covered serrated metal gaskets for use with steel flanges
— Part 7: Covered metal jacketed gaskets for use with steel flanges
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Dimensions for the internal diameter of gaskets are a compromise between all requirements of EN 1759-
1, EN 1759-3 and EN 1759-4 so that a single value is given for each gasket size.
1 Scope
This document specifies the dimensions, types, designation and marking of non-metallic flat gaskets, with
or without inserts, for flanges in accordance with EN 1759-1, EN 1759-3 and EN 1759-4, for Class 150,
Class 300, Class 600 and Class 900 for nominal sizes DN 15 to DN 600. In addition, this document also
gives guidance on typical materials used and how they should be marked.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1759-1, Flanges and their joint — Circular flanges for pipes, valves, fittings and accessories, Class
designated — Part 1: Steel flanges, NPS 1/2 to 24
EN 1759-3, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, Class
designated — Part 3: Copper alloy flanges
EN 1759-4, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, Class
designated — Part 4: Aluminium alloy flanges
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
DN
alphanumeric designation of size for components of a pipework system, which is used for reference
purposes, and is comprised of the letters DN followed by a dimensionless whole number which is
indirectly related to the physical size, in millimeters, of the bore or outside diameter of the end
connections
Note 1 to entry: The number following the letters DN does not represent a measurable value and is not used for
calculation purposes except where specified in the relevant standard.
[SOURCE: EN ISO 6708:1995, 2.1, modified – definition made into one statement, recommendation
removed from note 1 to entry]
3.2
NPS
alphanumeric designation of size for components of a pipework system, which is used for reference
purposes and is comprised of, for the purpose of Class designated flanges according to this document, the
letters NPS followed by a dimensionless number which is indirectly related to the physical size of the
bore or outside diameter of the end connections
Note 1 to entry: The number following the letters NPS does not represent a measurable value and is not used for
calculation purposes except where specified in the relevant standard. See EN ISO 6708.
[SOURCE: EN 1759-3:2004, 3.3, modified – definition made into one statement, recommendation
removed from note1 to entry]
3.3
Class
alphanumeric designation used for reference purposes related to a combination of mechanical and
dimensional characteristics of a component of a pipework system, and is comprised of the word Class
followed by a dimension
...
