EN 12312-15:2020+A1:2022
(Main)Aircraft ground support equipment - Specific requirements - Part 15: Baggage and equipment tractors
Aircraft ground support equipment - Specific requirements - Part 15: Baggage and equipment tractors
This document specifies the technical requirements to minimize the hazards listed in Clause 4 which can arise during the commissioning, the operation and the maintenance of baggage and equipment tractors when used as intended, including misuse reasonably foreseeable by the manufacturer, when carried out in accordance with the specifications given by the manufacturer or his authorized representative. It also takes into account some requirements recognized as essential by authorities, aircraft and ground support equipment (GSE) manufacturers as well as airlines and handling agencies.
This document applies to self-propelled baggage and equipment tractors with driver accommodation.
This document does not apply to pedestrian controlled equipment.
This document deals with vibrations which are considered as significant. Vibration measurements are dealt with in EN 1915-3.
No extra requirements on noise are provided other than those given in EN 1915-4.
NOTE EN 1915-4 provides the general GSE noise requirements.
This part of EN 12312 is not applicable to baggage and equipment tractors manufactured before the date of its publication.
This part of EN 12312 when used in conjunction with EN 1915-1, EN 1915-2, EN 1915-3 and EN 1915-4 provides the requirements for baggage and equipment tractors.
Luftfahrt-Bodengeräte - Besondere Anforderungen - Teil 15: Gepäck- und Geräteschlepper
Dieses Dokument (EN 12312-15:2020) wurde vom Technischen Komitee CEN/TC 274 „Luftfahrt-Bodengeräte“ erarbeitet, dessen Sekretariat von DIN gehalten wird.
Diese Europäische Norm muss den Status einer nationalen Norm erhalten, entweder durch Veröffentlichung eines identischen Textes oder durch Anerkennung bis September 2020, und etwaige entgegenstehende nationale Normen müssen bis September 2020 zurückgezogen werden.
Es wird auf die Möglichkeit hingewiesen, dass einige Elemente dieses Dokuments Patentrechte berühren können. CEN ist nicht dafür verantwortlich, einige oder alle diesbezüglichen Patentrechte zu identifizieren.
Dieses Dokument ersetzt EN 12312-15:2006+A1:2009.
Dieses Dokument wurde im Rahmen eines Mandats erarbeitet, das die Europäische Kommission und die Europäische Freihandelszone CEN erteilt haben, und unterstützt grundlegende Anforderungen der EU-Maschinenrichtlinie 2006/42/EG.
Zum Zusammenhang mit der EU-Richtlinie 2006/42/EG über Maschinen, siehe informativen Anhang ZA, der Bestandteil dieses Dokuments ist. [...]
Matériel au sol pour aéronefs - Exigences particulières - Partie 15 : Tracteurs à bagages et matériel
Le présent document spécifie les exigences techniques destinées à réduire les phénomènes dangereux énumérés à l’Article 4 qui peuvent survenir lors des opérations de mise en service, d’exploitation et de maintenance des tracteurs à bagages et matériel, selon leur utilisation prévue, y compris avec les erreurs d’utilisation raisonnablement prévisibles par le fabricant, lorsqu’elles sont réalisées conformément aux spécifications données par le fabricant ou son représentant légal. Il prend également en compte certaines exigences reconnues comme essentielles par les autorités, les constructeurs d’aéronefs et de matériel au sol (GSE, ground support equipment), ainsi que par les compagnies aériennes et les organismes d’assistance.
Le présent document s’applique aux tracteurs à bagages et matériel autotractés avec poste de conduite.
Ce document ne s’applique pas aux matériels à conducteur accompagnant.
Le présent document traite des vibrations considérées comme significatives. Les mesures des vibrations sont abordées dans l’EN 1915-3.
La présente norme ne spécifie pas d'exigences relatives au bruit autres que celles de l’EN 1915 4.
NOTE L’EN 1915 4 fournit les exigences générales relatives au bruit pour les GSE.
La présente partie de l’EN 12312 n’est pas applicable aux tracteurs à bagages et matériel fabriqués avant sa date de publication.
La présente partie de l’EN 12312, lorsqu’elle est utilisée conjointement avec les EN 1915-1, EN 1915-2, EN 1915-3 et EN 1915-4, fournit les exigences pour les tracteurs à bagages et matériel.
Podporna oprema na tleh za letalski promet - Posebne zahteve - 15. del: Vlečni traktorji za prtljago in opremo (vključuje dopolnilo A1)
Ta dokument določa tehnične zahteve za zmanjšanje nevarnosti, navedenih v točki 4, do katerih lahko pride pri začetku uporabe, upravljanju ter vzdrževanju vlečnih traktorjev za prtljago in opremo ter pri namenski uporabi, vključno s pričakovano nepravilno uporabo, ki jo določi proizvajalec, ko te postopke v skladu s specifikacijami izvaja proizvajalec ali njegov zakoniti zastopnik. Upošteva tudi nekatere zahteve, ki jih vladni organi, proizvajalci letal in podporne opreme na tleh, letalske družbe in agencije za oskrbo letal priznavajo za bistvene.
Ta dokument se uporablja za vlečne traktorje za prtljago in opremo z lastnim pogonom ter prostorom za voznika.
Ta dokument se ne uporablja za ročno upravljano opremo.
V tem dokumentu so obravnavane vibracije, ki se štejejo za znatne. Merjenje vibracij je obravnavano v standardu EN 1915-3.
Dodatne zahteve glede hrupa niso podane, razen tistih, ki so navedene v standardu EN 1915-4.
OPOMBA: Standard EN 1915-4 določa splošne zahteve glede hrupa pri podporni opremi na tleh (GSE).
Ta del standarda EN 12312 se ne uporablja za vlečne traktorje za prtljago in opremo, izdelane pred datumom njegove objave.
Ta del standarda EN 12312 skupaj s standardi EN 1915-1, EN 1915-2, EN 1915-3 in EN 1915-4 določa zahteve za vlečne traktorje za prtljago in opremo.
General Information
Relations
Standards Content (Sample)

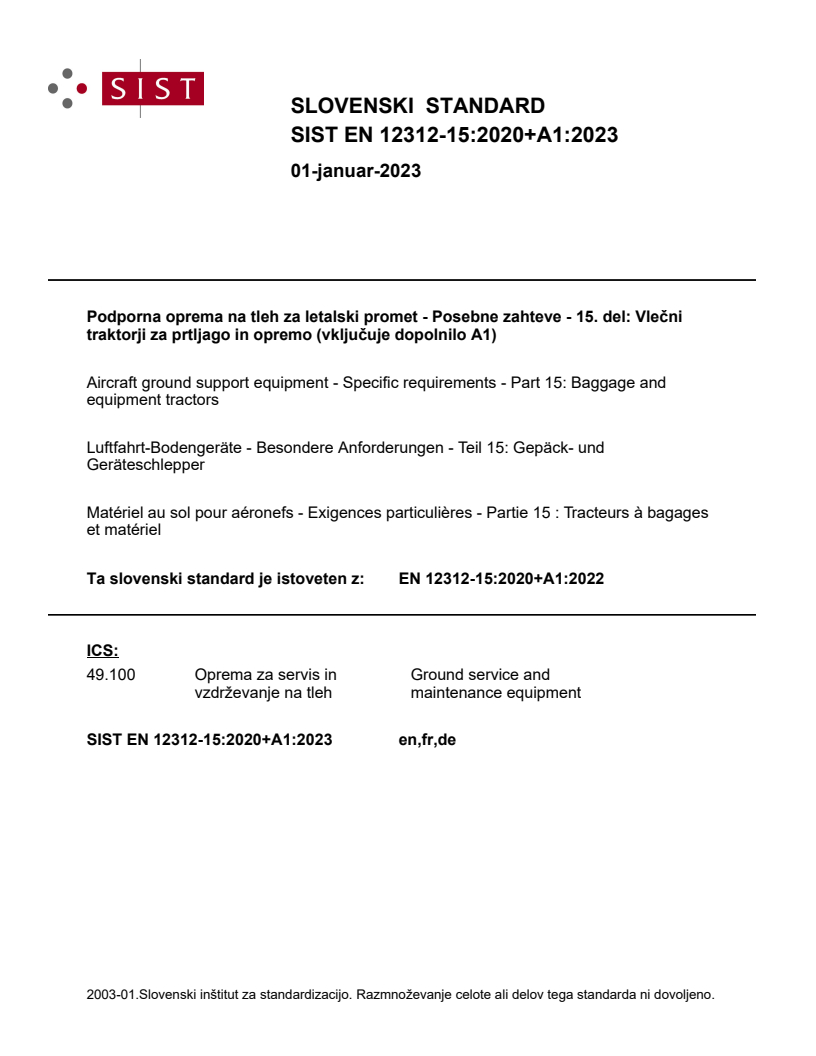

SLOVENSKI STANDARD
01-januar-2023
Podporna oprema na tleh za letalski promet - Posebne zahteve - 15. del: Vlečni
traktorji za prtljago in opremo (vključuje dopolnilo A1)
Aircraft ground support equipment - Specific requirements - Part 15: Baggage and
equipment tractors
Luftfahrt-Bodengeräte - Besondere Anforderungen - Teil 15: Gepäck- und
Geräteschlepper
Matériel au sol pour aéronefs - Exigences particulières - Partie 15 : Tracteurs à bagages
et matériel
Ta slovenski standard je istoveten z: EN 12312-15:2020+A1:2022
ICS:
49.100 Oprema za servis in Ground service and
vzdrževanje na tleh maintenance equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 12312-15:2020+A1

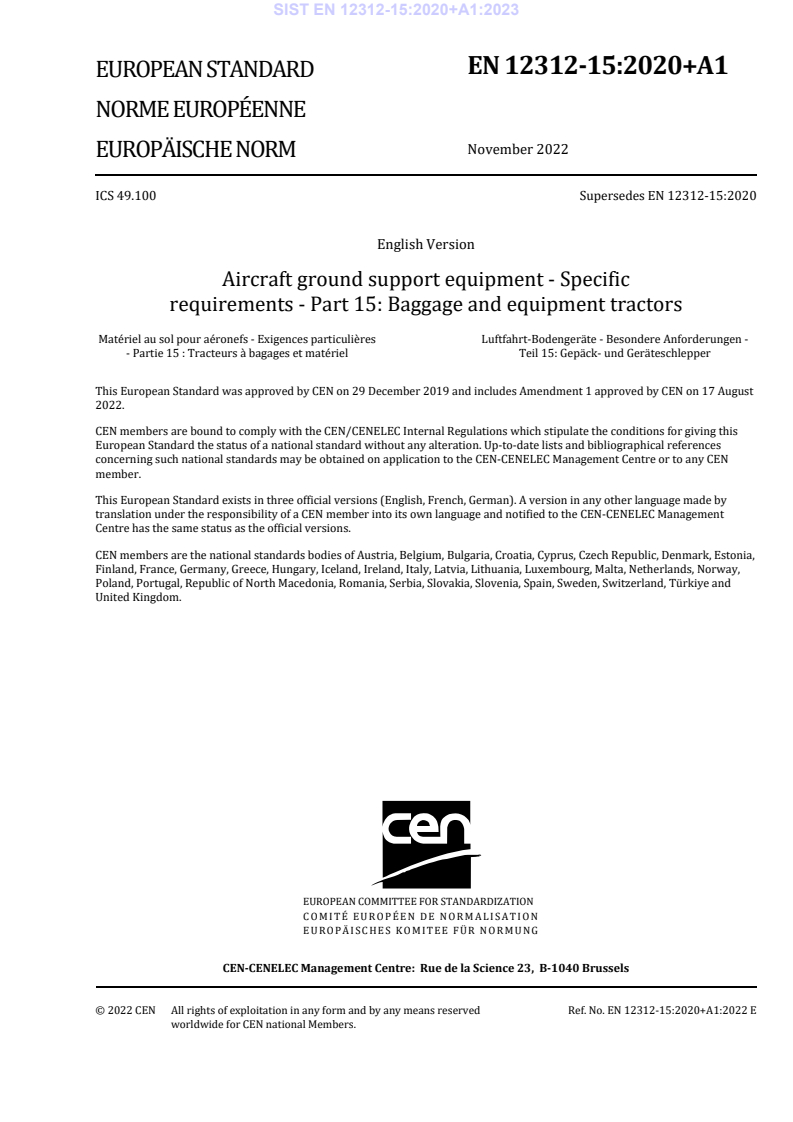

EUROPEAN STANDARD
NORME EUROPÉENNE
November 2022
EUROPÄISCHE NORM
ICS 49.100 Supersedes EN 12312-15:2020
English Version
Aircraft ground support equipment - Specific
requirements - Part 15: Baggage and equipment tractors
Matériel au sol pour aéronefs - Exigences particulières Luftfahrt-Bodengeräte - Besondere Anforderungen -
- Partie 15 : Tracteurs à bagages et matériel Teil 15: Gepäck- und Geräteschlepper
This European Standard was approved by CEN on 29 December 2019 and includes Amendment 1 approved by CEN on 17 August
2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12312-15:2020+A1:2022 E
worldwide for CEN national Members.

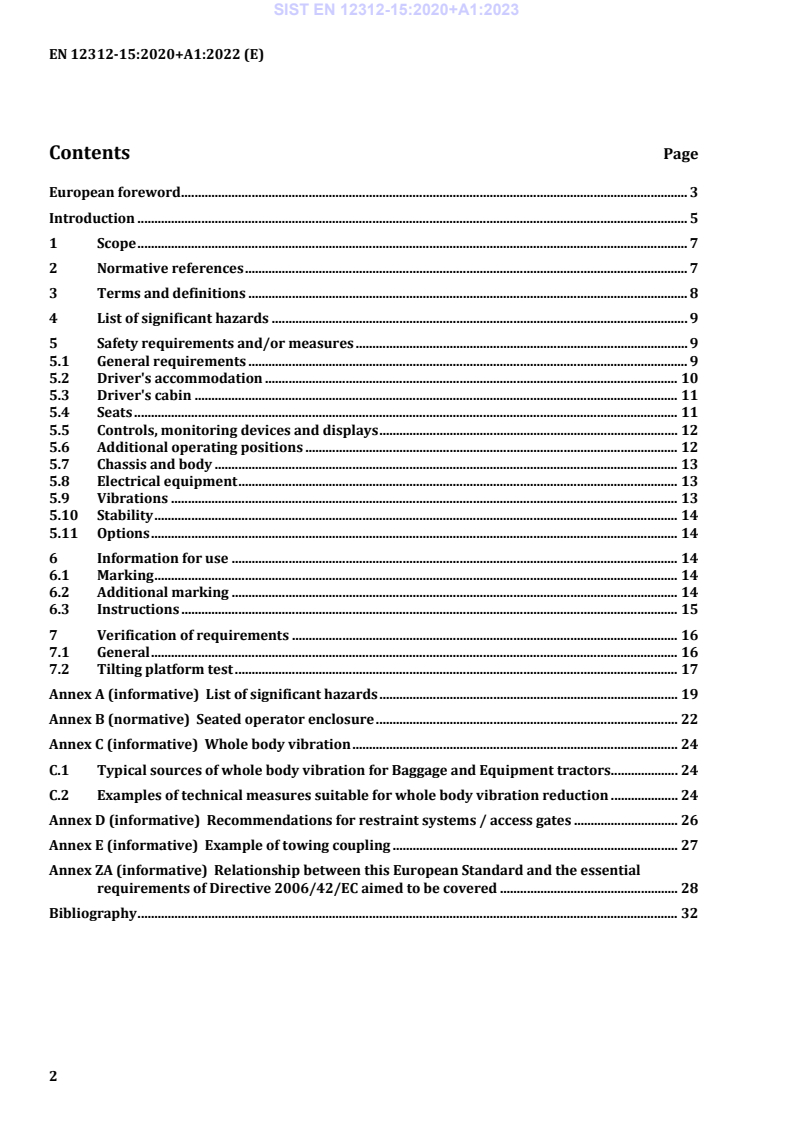

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 List of significant hazards . 9
5 Safety requirements and/or measures . 9
5.1 General requirements . 9
5.2 Driver's accommodation . 10
5.3 Driver's cabin . 11
5.4 Seats . 11
5.5 Controls, monitoring devices and displays . 12
5.6 Additional operating positions . 12
5.7 Chassis and body . 13
5.8 Electrical equipment . 13
5.9 Vibrations . 13
5.10 Stability . 14
5.11 Options . 14
6 Information for use . 14
6.1 Marking . 14
6.2 Additional marking . 14
6.3 Instructions . 15
7 Verification of requirements . 16
7.1 General . 16
7.2 Tilting platform test . 17
Annex A (informative) List of significant hazards . 19
Annex B (normative) Seated operator enclosure . 22
Annex C (informative) Whole body vibration . 24
C.1 Typical sources of whole body vibration for Baggage and Equipment tractors. 24
C.2 Examples of technical measures suitable for whole body vibration reduction . 24
Annex D (informative) Recommendations for restraint systems / access gates . 26
Annex E (informative) Example of towing coupling . 27
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 28
Bibliography . 32
European foreword
This document (EN 12312-15:2020+A1:2022) has been prepared by Technical Committee CEN/TC 274
“Aircraft ground support equipment”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2023, and conflicting national standards shall be
withdrawn at the latest by May 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 17 August 2022.
This document supersedes !EN 12312-15:2020".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 2006/42/EC on
machinery.
For relationship with EU Directive 2006/42/EC on machinery, see informative Annex ZA, which is an
integral part of this document.
EN 12312, Aircraft ground support equipment ― Specific requirements consists of the following parts:
— Part 1: Passenger stairs;
— Part 2: Catering vehicles;
— Part 3: Conveyor belt vehicles;
— Part 4: Passenger boarding bridges;
— Part 5: Aircraft fuelling equipment;
— Part 6: Deicers and deicing/anti-icing equipment;
— Part 7: Aircraft movement equipment;
— Part 8: Maintenance or service stairs and platforms;
— Part 9: Container/Pallet loaders;
— Part 10: Container/Pallet transfer transporters;
— Part 11: Container/Pallet dollies and loose load trailers;
— Part 12: Potable water service equipment;
— Part 13: Lavatory service equipment;
— Part 14: Disabled/incapacitated passenger boarding vehicles;
— Part 15: Baggage and equipment tractors (the present document);
— Part 16: Air start equipment;
— Part 17: Air conditioning equipment;
— Part 18: Nitrogen or Oxygen units;
— Part 19: Aircraft jacks, axle jacks and hydraulic tail stanchions;
— Part 20: Electrical ground power units.
The main changes compared to the previous edition EN 12312-15:2006+A1:2009 are:
a) amendment A1:2009 was incorporated;
b) the Introduction was updated in relation to the deviation from recommended criteria;
c) the Scope was updated to cover reasonably foreseeable misuse;
d) Clause 2, Normative references, was updated;
e) new definitions for whole body vibration, SEAT factor, categories, restraint system, SIP (Seat Index
Point) and OPC (operator presence control) were added;
f) list of significant hazards was updated to exclude hazards due to traffic and repair and was moved
to informative Annex A;
g) subclause 5.1, General requirements was changed to include stability and strength calculations and
site operational requirements;
h) subclause 5.2, Driver’s accommodation was completely revised and restraint systems/seat belts
were added;
i) in subclause 5.3, Driver’s cabin clarification was given regarding the requirements for the intake of
emissions;
j) subclause 5.4, Seats has been changed and contains now further requirements for seats and a table
giving advice for the selection of seats;
k) subclause 5.5, Controls, monitoring devices and displays was changed and contains a more detailed
clarification about the idle speed and the use of a deadman switch;
l) subclause 5.6, Additional operating positions was updated regarding controls and contains now
provisions for an interlocking system;
m) sublause 5.7, Chassis and body was changed regarding fuel tank requirements and clarifications for
the wheel position within the vehicle’s contour;
n) subclauses 5.9, Vibrations, 5.10 Stability and 5.11 Options were added;
o) subclause 6.2, Additional marking was updated to include a tolerance for the mass of the battery
and marking for the operator’s seat;
p) subclause 6.3 was updated to include instructions for the lateral restraint system and a declaration
of exhaust emission values and whole body vibrations;
q) Clause 7, Verification was updated and contains now a tilting platform test;
r) informative Annex A, Examples of typical baggage and equipment tractors was deleted and replaced
by informative Annex A List of significant hazards;
s) normative Annex C, Minimum space envelope for seated operator enclosure was moved to Annex B
and renamed Seat operator enclosure;
t) informative Annex D, Examples of couplings, was changed into informative Annex C, Whole body
vibration;
u) a new informative Annex D, Recommendations for restraint systems / access gate was added;
v) informative Annex D, Examples of couplings, was reduced to one example and changes to new
informative Annex E;
w) Annex ZA referring to the Machinery directive 98/37/EC was replaced by Annex ZA referring to the
new Machinery directive 2006/42/EC;
x) the Bibliography was updated.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Introduction
This European Standard defines health and safety requirements for baggage and equipment tractors
intended for towing equipment and baggage/cargo trailers on airports.
The minimum essential criteria are considered to be of primary importance in providing safe,
serviceable, economical and pr
...
