EN ISO 25649-5:2024
(Main)Floating leisure articles for use on and in the water - Part 5: Additional specific safety requirements and test methods for Class C devices (ISO 25649-5:2024)
Floating leisure articles for use on and in the water - Part 5: Additional specific safety requirements and test methods for Class C devices (ISO 25649-5:2024)
This document specifies additional specific safety requirements and test methods for Class C floating leisure articles for use on and in the water regardless whether the buoyancy is achieved by inflation or inherent buoyant material.
This document is applicable for Class C floating leisure articles as specified in ISO 25649-1:2024, Table 1.
NOTE 1 Typical products forming Class C (see Annex B):
— tube riders towable with interior holding facility and closed cockpit;
— raft riders towable;
— board riders towable;
— banana type towable.
NOTE 2 Typical places for application:
— distant from bathing areas and other frequented water surfaces, wide empty spaces, dedicated racetracks (parcours);
— no to little waves;
— no strong currents.
Schwimmende Freizeitartikel zum Gebrauch auf und im Wasser - Teil 5: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Artikel der Klasse C (ISO 25649-5:2024)
Dieses Dokument legt zusätzliche spezifische sicherheitstechnische Anforderungen und Prüfverfahren für schwimmende Freizeitartikel der Klasse C für den Gebrauch auf und im Wasser fest, unabhängig davon, ob der Auftrieb durch Aufblasen oder durch selbstschwimmendes Material erzielt wird.
Dieses Dokument ist anwendbar für schwimmende Freizeitartikel der Klasse C wie in ISO 25649 1:2024, Tabelle 1, festgelegt.
ANMERKUNG 1 Typische Produkte der Klasse C (siehe Anhang B):
ring /reifenartiger Gleiter (en: tube riders) als Nachschleppgerät mit Halteeinrichtung im Innenraum und abgeschlossenem Cockpit;
Floß als Nachschleppgerät;
Brettgleiter als Nachschleppgerät;
bananenförmiger Gleiter als Nachschleppgerät.
ANMERKUNG 2 Typische Orte der Verwendung:
entfernt von Badebereichen und anderen genutzten Wasserflächen, weite leere Flächen, welche als Fahrstrecken (Parcours) vorgesehen sind;
keine bis sehr geringe Wellenhöhe;
keine starken Strömungen.
Articles de loisirs flottants à utiliser sur ou dans l'eau - Partie 5: Exigences de sécurité et méthodes d'essai complémentaires propres aux dispositifs de Classe C (ISO 25649-5:2024)
Le présent document spécifie des méthodes d’essai et des exigences de sécurité spécifiques supplémentaires pour les articles de loisirs flottants à utiliser sur ou dans l’eau de Classe C, que la flottabilité soit obtenue par gonflage ou par un matériau ayant une flottabilité propre.
Le présent document s’applique aux articles de loisirs flottants de Classe C spécifiés dans l’ISO 25649-1:2024, Tableau 1.
NOTE 1 Produits types constituant la Classe C (voir l’Annexe B) :
— tubes tractables munis d’un dispositif intérieur de retenue et d’un habitacle fermé ;
— radeaux tractables ;
— planches tractables ;
— bananes tractables.
NOTE 2 Lieux d’utilisation types :
— à distance des zones de baignade et autres plans d’eau fréquentés, grands espaces vides, circuits dédiés (parcours) ;
— absence de vagues ou petites vagues ;
— pas de courants forts.
Plavajoči pripomočki za prosti čas, ki se uporabljajo na vodi in v njej - 5. del: Dodatne posebne varnostne zahteve in preskusne metode za pripomočke razreda C (ISO 25649-5:2024)
Ta dokument določa dodatne posebne varnostne zahteve in preskusne metode za plavajoče pripomočke za prosti čas razreda C, ki se uporabljajo na vodi in v njej, ne glede na to, ali je plovnost dosežena z napihovanjem ali plovnim materialom.
Ta dokument se uporablja za plavajoče pripomočke za prosti čas razreda C iz preglednice 1 standarda ISO 25649-1:2024.
OPOMBA 1: Tipični izdelki razreda C (glej dodatek B):
– vlečne tube z notranjimi ročaji za držanje in varnostno komoro;
– vlečni splavi;
– vlečne deske;
– vlečne banane.
OPOMBA 2: Običajna mesta uporabe:
– daleč od kopališč in drugih pogosto obiskanih vodnih površin, velika prazna območja, namenske dirkalne proge (parkurji);
– malo ali nič valov;
– brez močnih tokov.
General Information
Relations
Standards Content (Sample)

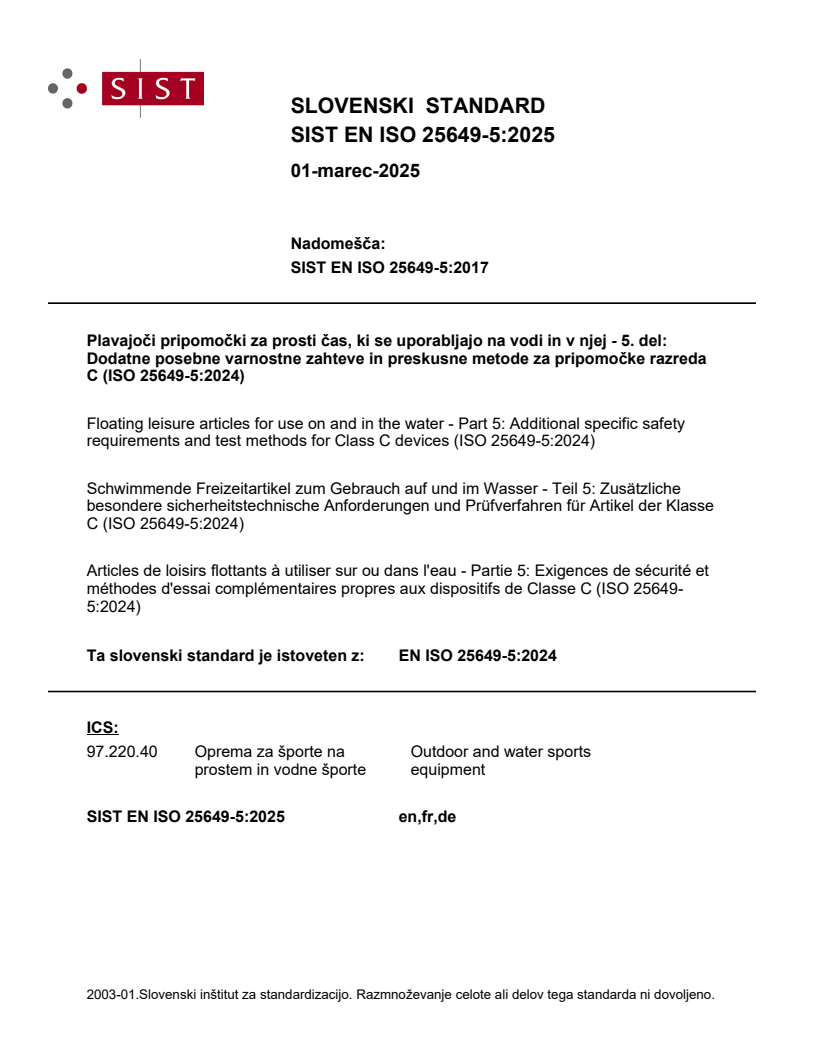

SLOVENSKI STANDARD
01-marec-2025
Nadomešča:
SIST EN ISO 25649-5:2017
Plavajoči pripomočki za prosti čas, ki se uporabljajo na vodi in v njej - 5. del:
Dodatne posebne varnostne zahteve in preskusne metode za pripomočke razreda
C (ISO 25649-5:2024)
Floating leisure articles for use on and in the water - Part 5: Additional specific safety
requirements and test methods for Class C devices (ISO 25649-5:2024)
Schwimmende Freizeitartikel zum Gebrauch auf und im Wasser - Teil 5: Zusätzliche
besondere sicherheitstechnische Anforderungen und Prüfverfahren für Artikel der Klasse
C (ISO 25649-5:2024)
Articles de loisirs flottants à utiliser sur ou dans l'eau - Partie 5: Exigences de sécurité et
méthodes d'essai complémentaires propres aux dispositifs de Classe C (ISO 25649-
5:2024)
Ta slovenski standard je istoveten z: EN ISO 25649-5:2024
ICS:
97.220.40 Oprema za športe na Outdoor and water sports
prostem in vodne športe equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 25649-5
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2024
EUROPÄISCHE NORM
ICS 97.220.40 Supersedes EN ISO 25649-5:2017
English Version
Floating leisure articles for use on and in the water - Part
5: Additional specific safety requirements and test
methods for Class C devices (ISO 25649-5:2024)
Articles de loisirs flottants à utiliser sur ou dans l'eau - Schwimmende Freizeitartikel zum Gebrauch auf und
Partie 5: Exigences de sécurité et méthodes d'essai im Wasser - Teil 5: Zusätzliche besondere
complémentaires propres aux dispositifs de Classe C sicherheitstechnische Anforderungen und
(ISO 25649-5:2024) Prüfverfahren für Artikel der Klasse C (ISO 25649-
5:2024)
This European Standard was approved by CEN on 2 November 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 25649-5:2024 E
worldwide for CEN national Members.

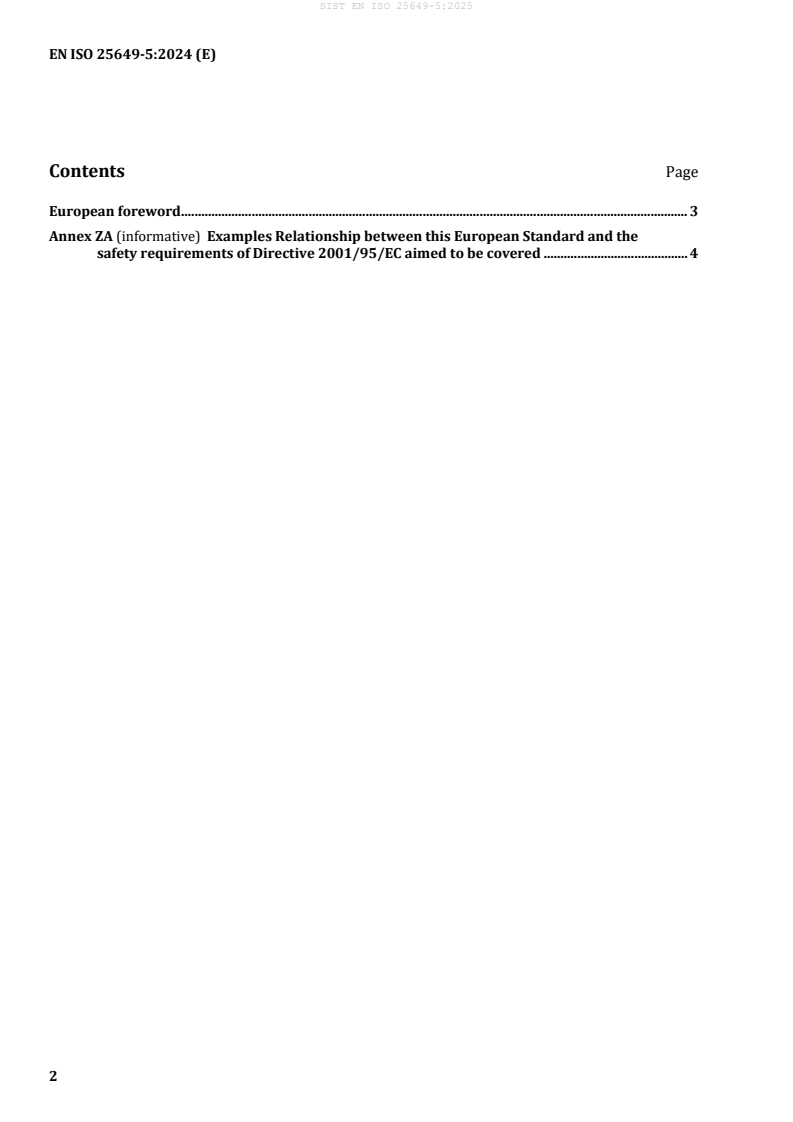

Contents Page
European foreword . 3
Annex ZA (informative) Examples Relationship between this European Standard and the
safety requirements of Directive 2001/95/EC aimed to be covered . 4
European foreword
This document (EN ISO 25649-5:2024) has been prepared by Technical Committee ISO/TC 83 "Sports
and other recreational facilities and equipment" in collaboration with Technical Committee CEN/TC
136 “Sports, playground and other recreational facilities and equipment” the secretariat of which is held
by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2025, and conflicting national standards shall be
withdrawn at the latest by May 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 25649-5:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 25649-5:2024 has been approved by CEN as EN ISO 25649-5:2024 without any
modification.
Annex ZA
(informative)
Examples Relationship between this European Standard and the safety
requirements of Directive 2001/95/EC aimed to be covered
This European Standard has been prepared under a Commission’s standardization request Mandate
M/372 Floating leisure products for use on or in the water to provide one voluntary means of
conforming to the product safety requirements for floating leisure products for use on or in the water
pursuant to Directive 2001/95/EC of the European Parliament and of the Council.
Once this standard is cited in the Official Journal of the European Union under that Directive
2001/95/EC, compliance with the normative clauses of this standard given in Table ZA.1 confers,
within the limits of the scope of this standard, a presumption of conformity with the corresponding
safety requirements set in the Directive and specified in the request M/372 and associated EFTA
regulations.
Table ZA.1 — Correspondence between this European Standard and Commission Decision No
2005/323/EC of 21/04/2005 implementing the General Product Safety Directive 2001/95/EC
and Commission's standardization request M/372 for floating leisure articles for use on or in the
water
Correspondence between this European
Standard and the Safety Requirements of
Clause(s)/subclause(s) of
Commission Decision No 2005/323/EC Remarks/Notes
this EN ISO 25649-5
implementing the Directive 2001/95/EC
and specified in the request M/372
C.1 Specific safety requirements
C.1 (a) floating stability in accordance with 4.1, 4.3.6, 4.4, 4.4.11
the intended and foreseeable use;
C.1 (b) minimum buoyancy and, in case of 4.3.6, 4.3.7, 4.4.10, 4.4.11
inflatable articles, residual buoyancy after
failure of one air chamber. Additionally
retention of function where appropriate
and in particular where collective use is
intended or likely;
C.1 (c) means of getting hold during use, 4.3.5, 4.4.10
easy gripping
C.1 (d) easy escape in case of capsizing, 4.3.8, 4.4.8, 4.4.11
avoidance of any other forms of
entrapments or entanglement regarding
parts of the human body
C.1 (e) means to facilitate re-embarkation 4.4.9, 4.4.11
in particular where collective use is
intended as well as means of getting hold
when
in the water in an emergency;
Correspondence between this European
Standard and the Safety Requirements of
Clause(s)/subclause(s) of
Commission Decision No 2005/323/EC Remarks/Notes
this EN ISO 25649-5
implementing the Directive 2001/95/EC
and specified in the request M/372
C.1 (f) presence of a reliable quick release 4.4.6, Annex A,
for products moved (towed) at high speed;
C.2 Warnings and information in respect of cautious use of the product
C.2(a) labelling regarding limitation of use:
— Number of users 4.3.2, 6.2
— Total weight 4.3.2, 6.2
— Risks linked to wind 6.2
— speed 6.1, 7.2
— interactions with other products and 7.2
objects (safety distance)
— foreseeable misuse 6.1, 7.2, 7.3
C.2 (b) Warning “Attention: no protection
against drowning. Swimmers only”
C.2 (c) Use of adequate personal protective 7.3
equipment (PEE) against drowning and for
impact resistance.
C.2 (d) Instruction of inflation and pressure 7.1 7.1 covers general written
conditions, maintenance, repair, storage warnings in the manual
and disposal (repeated use and aging and only includes correct
process) inflation
C.2 (e) specific warnings for categories of 7.2, Clause 8
consumers at risk when using product
(children, non-swimmers, elderly, etc.)
WARNING 1 Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 Other Union legislation may be applicable to the products falling within the scope of
this standard.
International
Standard
ISO 25649-5
Second edition
Floating leisure articles for use on
2024-10
and in the water —
Part 5:
Additional specific safety
requirements and test methods for
Class C devices
Articles de loisirs flottants à utiliser sur ou dans l’eau —
Partie 5: Exigences de sécurité et méthodes d’essai
complémentaires propres aux dispositifs de Classe C
Reference number
ISO 25649-5:2024(en) © ISO 2024
ISO 25649-5:2024(en)
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 25649-5:2024(en)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Safety requirements and test methods . 3
4.1 General .3
4.2 Test conditions .3
4.3 Design .3
4.3.1 General .3
4.3.2 Sizing, admissible number of users and maximum load capacity .4
4.3.3 Class C1 devices, space per person (passive user, including children) .4
4.3.4 Classes C2 and C3 devices, space per person .4
4.3.5 Grab handles .5
4.3.6 Quick release system for C1 towables .6
4.3.7 Buoyancy and load capacity .7
4.3.8 Residual buoyancy .7
4.3.9 Foot, leg and torso entrapment .7
4.3.10 Valves and other protruding parts .7
4.3.11 Accessible protruding parts, entanglement .8
4.3.12 Strength of towing device attachment .8
4.3.13 Towing system .9
4.3.14 Colour of towing rope .9
4.3.15 Floatability of towing rope .9
4.3.16 Fittings .9
4.3.17 Elasticity of towing rope .9
4.4 In-water performance .10
4.4.1 General .10
4.4.2 Selection of test subjects .10
4.4.3 Assessment panel .10
4.4.4 Selection of watercraft and towing personnel for testing .10
4.4.5 Test conditions, test course, duration of test, test speed, wind speed .10
4.4.6 Manoeuvres .11
4.4.7 Efficiency of drainage system for inflatable chambers designed with an external
cover .11
4.4.8 Entrapment, entanglement, additional practical in-water test during capsizing .11
4.4.9 Capsizing device, practical in-water test .11
4.4.10 Residual buoyancy, additional practical in-water test . 12
4.4.11 Pass and fail criteria . . 12
5 Required capabilities of the test persons being towed .12
6 Consumer information .13
6.1 General . 13
6.2 Intended use . 13
6.3 Responsibilities . 13
6.3.1 General . 13
6.3.2 Watercraft driver . 13
6.3.3 Observer . 13
6.3.4 Rider .14
7 Written warnings in the manual . 14
7.1 General .14
7.2 Special user manual on quick release .14
7.3 Warnings . 15
iii
ISO 25649-5:2024(en)
7.3.1 General . 15
7.3.2 Special warning on C1 quick release .16
7.4 Instructions .16
8 Signals . 17
9 Exclusion . 17
Annex A (informative) Examples of quick release design principles .18
Annex B (informative) Examples of hand signals .23
Annex C (informative) Examples of typical products forming Class C .26
Bibliography .28
iv
ISO 25649-5:2024(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 83, Sports and other recreational facilities and
equipment, in collaboration with the European Committee for Standardization (CEN) Technical Committee
CEN/TC 136, Sports, playground and other recreational facilities and equipment, in accordance with the
Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 25649-5:2017), which has been technically
revised.
The main changes are as follows:
— update of the introduction;
— update of Clauses 2, 3, 5 and 8;
— addition of requirements and test methods in 4.3.5 regarding foot and finger entrapments;
— update of Annex B.
A list of all parts in the ISO 25649 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
ISO 25649-5:2024(en)
Introduction
This document applies to floating leisure articles for dynamic use of Class C (see Figure 1 for distinction
between Classes C1, C2 and C3 products). Examples of Class C products can be seen in informative Annex C.
Most technical requirements in this document are derived from the overriding property of the products to
provide high speed rides when towed by fast motorboats. Thus, space per person and means to hold tight
reliably and comfortably and without entrapment or entanglement is an important subject. This document
also addresses safety requirements concerning towing ropes.
Safety and performance of the products are tested by practical tests under all conditions and manoeuvres,
including the issue of a quick release in case of an emergency as well as residual buoyancy.
This document also includes requirements on comprehensive consumer information, including a set of non-
verbal communication gestures.
vi
ISO 25649-5:2024(en)
Figure 1 — Interior structure of Class C devices
The risk assessment for this document is shown in Table 1.
vii
ISO 25649-5:2024(en)
viii
Table 1 — Introductory risk analysis
Position of
Function;
user with
range of Type of Partial risk Protection aims
Typical Place of regard to the Predictable
Class usage; movement/ related to water Final risk standard/
products usage equipment, misuse
target/age propulsion environment regulation
elevation
group
above water
Tube riders Sea shore or Adolescents; High speed Users are Use by Collision of Age limits;
with interior close to shore; adults; movement; sitting on non-swim- persons in the warning notes;
holding facility lakes, rivers; children devices towed or inside mers; no use of case of capsizing; quick release;
and closed large space accompanied by motor the device; PFD; fall from the gripping; escape
cockpit; raft for action is by adults boats; elevation from excessive device; device in case of danger;
riders; board needed (minimum water level speed; turning; residual
other means of
riders; banana age group) approximate- improper load catapulting out of buoyancy;
propulsion
riders (all to ly maximum distribution/ the device; impact use of PFD;
C
be towed by 60 cm sitting seating through device; DROWNING
length, strength
(C1, C2, C3)
motor boats) height; position; close nose dipping;
and elasticity of
kneeling, vicinity to sudden stop; crash
rope; reliability
lying; other users; down of kite-type
of quick release,
standing overload; towables; rupture
user qualifica-
inadmissible of the towing rope;
tions and
number of entrapment or
capabilities
passengers entanglement; nose
dive; use of rumps
International Standard ISO 25649-5:2024(en)
Floating leisure articles for use on and in the water —
Part 5:
Additional specific safety requirements and test methods for
Class C devices
1 Scope
This document specifies additional specific safety requirements and test methods for Class C floating leisure
articles for use on and in the water regardless whether the buoyancy is achieved by inflation or inherent
buoyant material.
This document is applicable for Class C floating leisure articles as specified in ISO 25649-1:2024, Table 1.
NOTE 1 Typical products forming Class C (see Annex B):
— tube riders towable with interior holding facility and closed cockpit;
— raft riders towable;
— board riders towable;
— banana type towable.
NOTE 2 Typical places for application:
— distant from bathing areas and other frequented water surfaces, wide empty spaces, dedicated racetracks
(parcours);
— no to little waves;
— no strong currents.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 25649-1:2024, Floating leisure articles for use on and in the water — Part 1: Classification, materials,
general requirements and test methods
ISO 25649-2:2024, Floating leisure articles for use on or in the water — Part 2: Consumer information
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 25649-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
ISO 25649-5:2024(en)
3.1
residual buoyancy
provision of remaining buoyancy in case of a defect of any buoyancy chamber
3.2
personal floatation device
PFD
garment or device which, when correctly worn and used in water, will provides the user with a specific
amount of buoyancy that will increase the likelihood of survival
[SOURCE: ISO 12402-5:2020]
3.3
means of re-embarkation
design feature that facilitates getting back on the floating leisure article from an in-water position, regardless
whether the buoyant structure is fully inflated or any chamber is deflated
3.4
towable
floating leisure article (inflatable or inherently buoyant) for dynamic use towed by mechanical means
3.5
rider
user of the towable (3.4) positioned on the towed device
3.6
watercraft driver
person having the responsibility for the towed and the towing device (watercraft or towing device)
3.7
observer
additional person watching the towable (3.4) and rider(s) (3.5) with a clear line of site
3.8
tow rope
connection between towing device and the towable (3.4)
3.9
towing streamer
signal flag attached to the rear of the towing device according to relevant requirements
3.10
quick release system
means to release the towable (3.4) from the tow rope (3.8) manually or automatically in case of an emergency
by triggering a release mechanism
3.11
available area
area on or inside a floating leisure article that can be used unrestrictedly for user accommodation when
taking the intended posture(s)
3.12
inherent buoyant material
non-crosslinked (closed-cell) foam or other materials enclosed in (a) sealed compartment(s) in the hull that
have a specific weight lower than 1 kg/dm
Note 1 to entry: Floating leisure articles made from inherent buoyant material are considered buoyant structures
(hull) achieving all or parts of their intended shape and buoyancy through soft foam, hard foam or sealed chambers
filled with air, gas or granules.
ISO 25649-5:2024(en)
3.13
raft rider
towable (3.4) designed as a floating structure where the rider (3.5) is fully or partly enclosed by surrounding
walls forming an inner cockpit
3.14
board rider
towable (3.4) designed as a flat open floating structure without walls
Note 1 to entry: Hybrid designs are possible.
4 Safety requirements and test methods
4.1 General
Construction of a floating leisure article shall be such that it corresponds in terms of design, dimensions,
safety, strength and durability to its intended use. The requirements set out in this document were chosen
to ensure compliance of the above construction. When floating leisure articles provide buoyancy in several
components, then requirements apply to all components. Floating leisure articles of Class C shall provide
residual buoyancy if one air chamber fails. This residual buoyancy shall maintain the safety of the device
even if its function is lost. The following safety requirements are therefore related to:
— design;
— sizing;
— materials;
— strength;
— performance;
— information.
Towables of all classes shall be designed in a way that the rider, when in the intended position(s), can always
at least partially be seen by the observer for communication purposes by and with the observer.
Class C products shall be marked with the safety information markings, as specified in ISO 25649-2:2024,
Table 8.
4.2 Test conditions
If not otherwise stated, all tests shall be carried out at an air temperature of (20 ± 3) °C.
4.3 Design
4.3.1 General
With regard to design and shape, there is a certain number of constant types of towables, as described in
the introduction. The entire product group of towables is however subject to continuous change in terms
of shape and function. For that reason, the space-per-person requirements shall be applied in a way that
satisfies safety and performance if these parameters depend on distinct body positions for which an
available area should be provided. This applies in particular if use by children is included.
ISO 25649-5:2024(en)
4.3.2 Sizing, admissible number of users and maximum load capacity
4.3.2.1 Sizing
Towables shall be sized according to their admissible number of passengers. The size shall be communicated
to the user by applying, on the packaging and on the product, the safety information symbols “number of the
users, adults/children” and “user’s body weight range … to …kg” as specified in ISO 25649-2:2024 (Figure 22
and Figure 24 respectively).
4.3.2.2 Test method
Testing shall be by visual inspection and application of template for sitting.
4.3.3 Class C1 devices, space per person (passive user, including children)
4.3.3.1 Class C1 tubes or other near-ring shaped devices
4.3.3.1.1 Requirements
Class C1 devices, tubes, etc. shall provide a closed cockpit with side walls (inflatable ring shaped tubes)
entirely around the passenger if child use is included. The minimum available area shall allow a 6-year-old
child to sit inside the device. This requirement is deemed to be met if the template for sitting according to
ISO 25649-1:2024, A.1 fits into the available area.
4.3.3.1.2 Test method
Apply template for sitting as specified in ISO 25649-1:2024, A.1.
Check whether this template can be placed into the interior sitting area without the need to bend or fold it.
4.3.3.2 Class C1 bikes, bananas, etc. (user sitting in row on the product)
4.3.3.2.1 Requirements
Class C1 devices providing the available seat area in row shall have a seat length of 60 cm per person. If
the device implies sitting in a line of more than one user, the sitting space for each user shall have at least a
length of:
— 50 cm for a child, if the thighs follow the seat surface;
— 70 cm for an adult, if the thighs follow the seat surface.
4.3.3.2.2 Test method
Apply template for sitting as specified in ISO 25649-1:2024, A.1.
Check whether this template can be placed into the interior sitting area without the need to bend or fold it.
4.3.4 Classes C2 and C3 devices, space per person
Classes C2 and C3 devices are used in a much more diverse manner. There are no requirements with regard
to minimum available areas for these categories.
ISO 25649-5:2024(en)
4.3.5 Grab handles
4.3.5.1 Grab handles availability and strength
There shall be at least one grab handle for each admissible user. The handles or other means for holding shall
be positioned in a way to allow holding when sitting on or in the intended user position(s).
Any handle used shall not have a gap between the handle and the surface of more than 30 mm. The gap shall
not increase when pulled by a force of at least 300 N, thereby preventing hand or finger entrapment.
Grab handles shall meet the tensile test as specified in 4.3.5.2. Any means of holding on shall be designed to
avoid entanglement or entrapment.
4.3.5.2 Test methods
Visual inspection and measurement are required.
To measure the strength of handles, start with the towable fully inflated and held rigidly near the handle
attachments.
th
Use a rigid force applicator the width of the hand of a 50 percentile male (9 cm) and apply a tensile pre-load
force of 50 N. Apply a tensile force of at least 1 kN.
4.3.5.3 Foot and fingers entrapments
4.3.5.3.1 Foot entrapment through handle opening
In order to avoid foot entrapment all handles attached to the towable shall not allow the passage of the foot
probe as specified in ISO 25649-1:2024, 5.2.1.4.1 when this probe is pulled into the handle opening as shown
in Figure 2b), under the test force F of 50 N.
H
4.3.5.3.2 Test method
Fully inflate the device. Apply foot probe (negative probe) as shown in Figure 2b) with regard to directions
and pulling force.
The test probe shall be pulled following the contour and surface of the fully inflated device by applying a
sliding movement parallel to the inflated device surface into the handle opening.
th
Test probe b), 3 years of age 5 percentile (smallest foot dimension).
ISO 25649-5:2024(en)
Dimensions in millimetres
a) Dimensions of foot probe b) Test foot entrapment on towables
Key
F pulling force (in N)
H
Figure 2 — Foot probe – child
4.3.5.3.3 Finger entrapment on handle components
In order to avoid entrapment of fingers, the inner diameter of hoses, tubes and other similar openings shall
be < 8 mm or > 25 mm.
The test shall be performed according to 4.4.
4.3.6 Quick release system for C1 towables
4.3.6.1 Design requirements
The design of the quick release system shall indicate how to trigger it. The direction of triggering shall be
permanently identifiable.
The part of the release system which is used for triggering, i.e. the triggering element, shall have a contrasting
colour to the other parts of the release system surface.
The release system should be free from finger entrapments, squeeze and shear points. Edges that could
come into contact with the user's hands during use or handling and maintenance should not be sharp, e.g.
deburred, broken, rolled or processed with comparable techniques.
The space of activation shall not be restricted at any time by any part.
A release system ready for test for each test condition shall be an integral part of the C1 towable provided by
the manufacturer and/or supplier.
This also relates to soft parts or components of the release system which can, while being gripped and used
for triggering, deform and/or tilt and consequently obstruct the actual movement of triggering. While being
triggered, no part or component of the release system should impact the user's hands.
4.3.6.2 Test methods
Quick release system test shall be performed as visual inspection and verification.
ISO 25649-5:2024(en)
4.3.7 Buoyancy and load capacity
4.3.7.1 Requirements
During the practical test it shall be proven that the device provides sufficient buoyancy to meet all in-water
performance tests also with the maximum number of admissible persons.
4.3.7.2 Test methods
The test shall be performed according to 4.4.
4.3.8 Residual buoyancy
4.3.8.1 Requirements
All floating Class C devices shall provide residual buoyancy after failure of the air chamber most likely
to cause the biggest loss of buoyancy. The amount of residual buoyancy shall be not less than 60 N per
admissible person. During the practical in-water tests, it shall be proven that each admissible person can get
hold to the remaining structure (details see 4.4).
4.3.8.2 Test method
Open the valve to deflate the chamber most likely to cause failure. Measure the residual buoyancy of the
remaining structure to determine if the 60 N per person requirement is satisfied.
4.3.9 Foot, leg and torso entrapment
4.3.9.1 General
Requirements and test procedures as specified in ISO 25649-1:2024, 5.2 to 5.4 shall apply. In particular, if
the harness system is attached at multiple points on the towable, the minimum gap size between harness
and towable shall conform to the child torso probe requirements, in accordance with ISO 25649-1:2024, 5.3.
4.3.9.2 Handles, foot rest or knee straps for supporting the users during use
In order to avoid entrapment, handles shall not be positioned in areas intended for knee and/or foot rest of
the user.
Handles should not have movable or rotating components.
Foot and knee supports shall be positioned in the ergonomically appropriate position to assist the user to
obtain a safe and secure hold while being towed.
There shall be no loose rope ends, which could result in entanglement.
4.3.10 Valves and other protruding parts
4.3.10.1 Requirements
In order to avoid injury or hindrance, any protruding hard objects, e.g. valves, shall not be located in the
area(s) intended to be occupied by the user(s).
4.3.10.2 Test method
Check whether action areas are free from any hindrance.
ISO 25649-5:2024(en)
4.3.11 Accessible protruding parts, entanglement
Requirements and test methods as specified in ISO 25649-1:2024, 5.4 shall apply.
4.3.12 Strength of towing device attachment
4.3.12.1 Requirements
Materials and design shall guarantee that the maximum load specified does not damage the air chambers,
the cover, or any other component of the complete system connecting the towing rope with the towed device.
4.3.12.2 Test method
The device shall be tested in a position such that th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
