FprCEN ISO/TS 23359

Nanotechnologies - Chemical characterization of graphene-related two-dimensional materials from powders and liquid dispersions (ISO/DTS 23359:2025)

The document describes methods for characterising the chemical properties of powders or liquid dispersions containing graphene-related two-dimensional materials, using a set of suitable measurement techniques. The techniques detailed are X-ray photoelectron spectroscopy (XPS), inductively coupled plasma mass spectrometry (ICP-MS), thermogravimetric analysis (TGA) and Fourier-transform infrared spectroscopy (FTIR). These determine the carbon-to-oxygen ratio, elemental composition, trace metal impurities, weight percentage of chemical species and the functional groups present. The sample preparation, protocols and data analysis for the different techniques are included.

Nanotechnologien - Chemische Charakterisierung von Graphen in Pulvern und Suspensionen (ISO/DTS 23359:2025)

Dieses Dokument legt Verfahren für die Bestimmung der chemischen Eigenschaften von Pulvern oder flüssigen Dispersionen, die mit Graphen verwandte zweidimensionale Materialien (GR2M) enthalten, unter Zuhilfenahme einer Reihe von geeigneten Messtechniken fest.
Dieses Dokument behandelt die Bestimmung der Elementzusammensetzung, des Sauerstoff-Kohlenstoff-Verhältnisses, von Spurenmetallverunreinigungen, des prozentualen Massenanteils von chemischen Spezies und der vorhandenen funktionellen Gruppen unter Zuhilfenahme der folgenden Techniken:
   Röntgenphotoelektronenspektroskopie (XPS);
   thermogravimetrische Analyse (TGA);
   Massenspektrometrie mit induktiv gekoppeltem Plasma (ICP-MS);
   Fourier-Transformations-Infrarotspektroskopie (FTIR).
Dieses Dokument deckt die Probenvorbereitung, Protokolle und Datenauswertungen für die verschiedenen Techniken ab.

Nanotechnologies - Caractérisation chimique des matériaux bidimensionnels similaires au graphène dans les poudres et les suspensions liquides (ISO/DTS 23359:2025)

Nanotehnologije - Kemijska karakterizacija dvodimenzionalnih materialov, podobnih grafenu, v prahu in tekoči suspenziji (ISO/DTS 23359:2025)

General Information

• Status: Not Published
• Publication Date: 21-Oct-2025
• ICS: 07.120 - Nanotechnologies
• Technical Committee: CEN/TC 352 - Nanotechnologies
• Drafting Committee: CEN/TC 352 - Nanotechnologies
• Current Stage: 5020 - Submission to Vote - Formal Approval
• Start Date: 01-May-2025
• Due Date: 20-Jan-2024
• Completion Date: 01-May-2025
• Ref Project: kSIST-TS FprCEN ISO/TS 23359:2025 - Nanotechnologies - Chemical characterization of graphene-related two-dimensional materials from powders and liquid dispersions (ISO/DTS 23359:2025)

Standards Content (Sample)

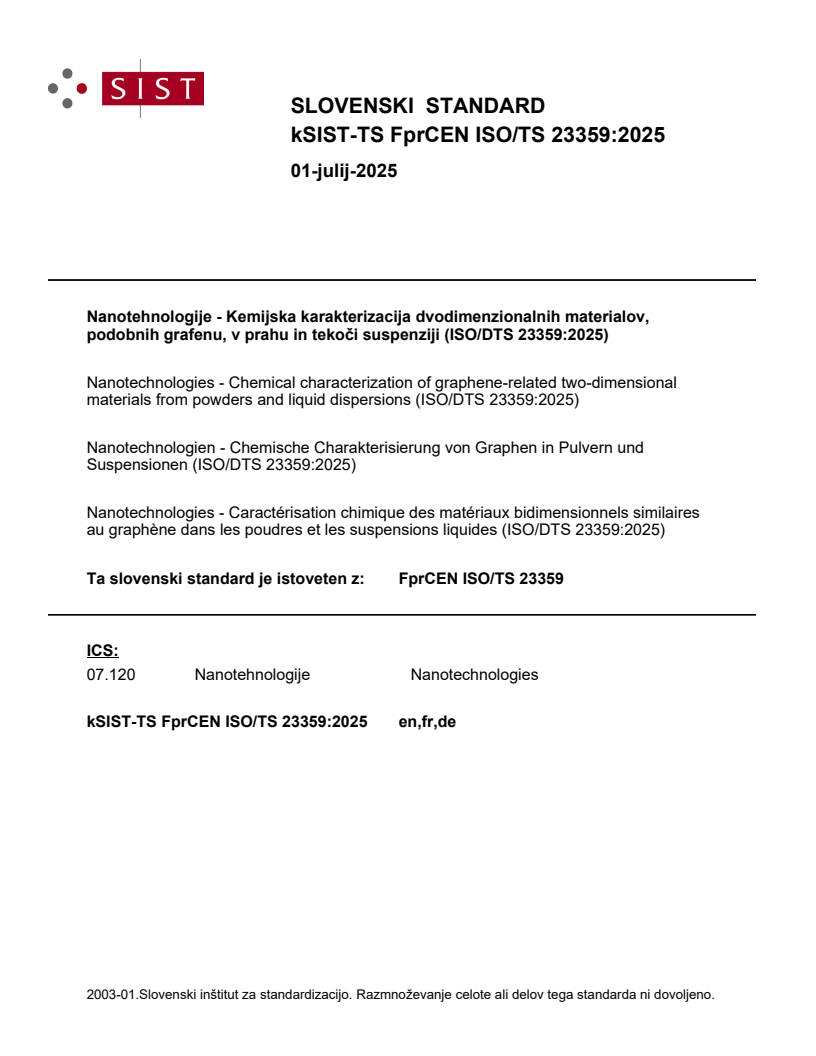

SLOVENSKI STANDARD
01-julij-2025
Nanotehnologije - Kemijska karakterizacija dvodimenzionalnih materialov,
podobnih grafenu, v prahu in tekoči suspenziji (ISO/DTS 23359:2025)
Nanotechnologies - Chemical characterization of graphene-related two-dimensional
materials from powders and liquid dispersions (ISO/DTS 23359:2025)
Nanotechnologien - Chemische Charakterisierung von Graphen in Pulvern und
Suspensionen (ISO/DTS 23359:2025)
Nanotechnologies - Caractérisation chimique des matériaux bidimensionnels similaires
au graphène dans les poudres et les suspensions liquides (ISO/DTS 23359:2025)
Ta slovenski standard je istoveten z: FprCEN ISO/TS 23359
ICS:
07.120 Nanotehnologije Nanotechnologies
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

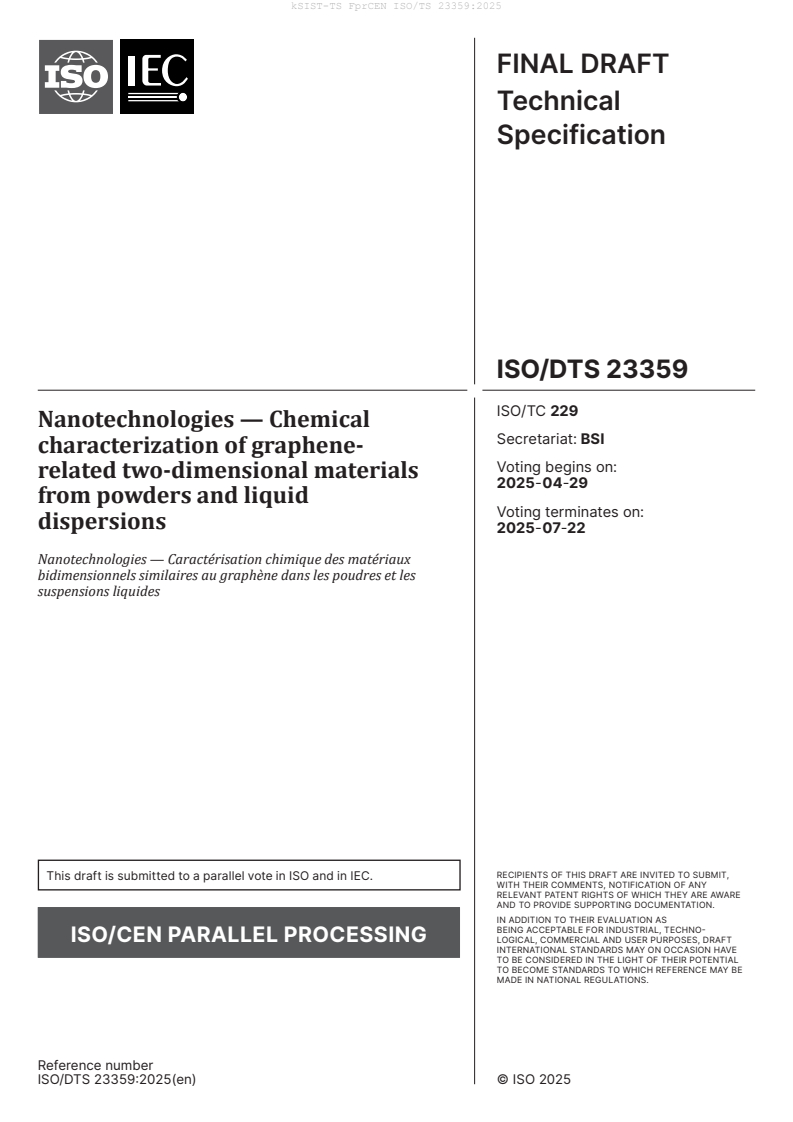

FINAL DRAFT
