EN 61158-6-24:2014
(Main)Industrial communication networks - Fieldbus specifications - Part 6-24: Application layer protocol specification - Type-24 Elements
Industrial communication networks - Fieldbus specifications - Part 6-24: Application layer protocol specification - Type-24 Elements
IEC 61158-6-24:2014 defines the protocol provided to define the wire-representation of the service primitives defined in IEC 61158-5-24, and define the externally visible behaviour associated with their transfer. This standard specifies the protocol of the Type 24 fieldbus Application Layer, in conformance with the OSI Basic Reference Model (ISO/IEC 7498-1) and the OSI application layer structure (ISO/IEC 9545).
Industrielle Kommunikationsnetze - Feldbusse - Teil 6-24: Protokollspezifikation des Application Layer (Anwendungsschicht) - Typ 24-Elemente
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 6-24: Spécification du protocole de la couche application - Éléments de type 24
L'IEC 61158-6-24:2014 décrit le protocole mis en place pour définir la représentation filaire des primitives de service définies dans la CEI 61158-5-24 et définir le comportement visible de l'extérieur associé à leur transfert. La présente norme spécifie le protocole de la couche application de bus de terrain de Type 24, en conformité avec le modèle de référence de base OSI (ISO/CEI 7498-1) et la structure de la couche application OSI (ISO/CEI 9545).
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 6-24. del: Specifikacija protokola na aplikacijski ravni - Elementi tipa 24 (IEC 61158-6-24:2014)
Namen standarda IEC 61158-6-24:2014 je opredeliti protokol za določitev žične predstavitve primitivov opravil iz standarda IEC 61158-5-24 in določitev zunanje vidnega vedenja, povezanega z njihovim prenosom. Ta standard določa protokol aplikacijskega nivoja procesnih vodil tipa 24 v skladu z osnovnim referenčnim modelom OSI (ISO/IEC 7498-1) in strukturo aplikacijskega nivoja OSI (ISO/IEC 9545).
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2015
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 6-24. del:
Specifikacija protokola na aplikacijski ravni - Elementi tipa 24 (IEC 61158-6-
24:2014)
Industrial communication networks - Fieldbus specifications - Part 6-24: Application layer
protocol specification - Type-24 Elements (IEC 61158-6-24:2014)
Industrielle Kommunikationsnetze - Feldbusse - Teil 6-24: Protokollspezifikation des
Application Layer (Anwendungsschicht) - Typ 24-Elemente (IEC 61158-6-24:2014)
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 6-24:
Spécification du protocole de la couche application - Éléments de type 24 (CEI 61158-6-
24:2014)
Ta slovenski standard je istoveten z: EN 61158-6-24:2014
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.70 Uporabniški sloj Application layer
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 61158-6-24
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 25.040.40; 35.100.70; 35.110
English Version
Industrial communication networks - Fieldbus specifications -
Part 6-24: Application layer protocol specification - Type-24
Elements
(IEC 61158-6-24:2014)
Réseaux de communication industriels - Spécifications des Industrielle Kommunikationsnetze - Feldbusse - Teil 6-24:
bus de terrain - Partie 6-24: Spécification du protocole de la Protokollspezifikation des Application Layer
couche application - Éléments de type 24 (Anwendungsschicht) - Typ 24-Elemente
(CEI 61158-6-24:2014) (IEC 61158-6-24:2014)
This European Standard was approved by CENELEC on 2014-09-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61158-6-24:2014 E

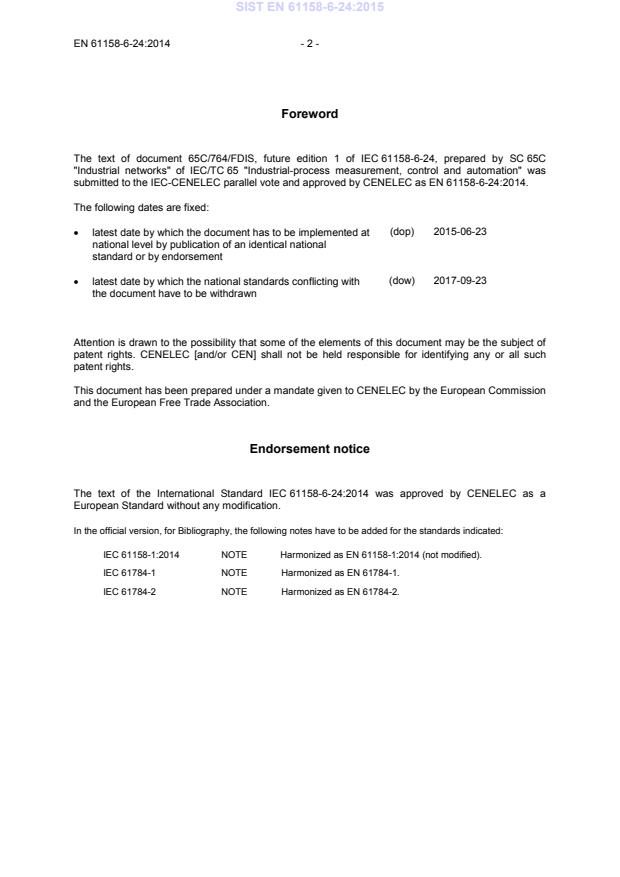

Foreword
The text of document 65C/764/FDIS, future edition 1 of IEC 61158-6-24, prepared by SC 65C
"Industrial networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61158-6-24:2014.
The following dates are fixed:
(dop) 2015-06-23
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2017-09-23
• latest date by which the national standards conflicting with
the document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 61158-6-24:2014 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61158-1:2014 NOTE Harmonized as EN 61158-1:2014 (not modified).
IEC 61784-1 NOTE Harmonized as EN 61784-1.
IEC 61784-2 NOTE Harmonized as EN 61784-2.
- 3 - EN 61158-6-24:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61158-5-24 2014 Industrial communication networks - EN 61158-5-24 2014
Fieldbus specifications -
Part 5-24: Application layer service
definition - Type 24 elements
IEC 61158-6 series Industrial communication networks - EN 61158-6 series
Fieldbus specifications -
Part 6: Application layer protocol
specification
ISO/IEC 646 - Information technology - ISO 7-bit coded - -
character set for information interchange
ISO/IEC 7498-1 - Information technology - Open Systems - -
Interconnection - Basic reference model:
The basic model
ISO/IEC 9545 - Information technology - Open Systems - -
Interconnection - Application layer
structure
ISO/IEC 9899 - Information technology - Programming - -
languages - C
ISO/IEC 10731 - Information technology - Open Systems - -
Interconnection - Basic Reference
Model - Conventions for the definition of
OSI services
ISO/IEC 19501 2005 Information technology - Open - -
Distributed Processing - Unified Modeling
Language (UML) Version 1.4.2
ISO/IEC/IEEE 60559 Information technology - Microprocessor - -
Systems - Floating-Point arithmetic
IEC 61158-6-24 ®
Edition 1.0 2014-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial communication networks – Fieldbus specifications –
Part 6-24: Application layer protocol specification – Type-24 Elements
Réseaux de communication industriels – Spécifications des bus de terrain –
Partie 6-24: Spécification du protocole de la couche application – Éléments
de type 24
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XF
ICS 25.040.40; 35.100.70; 35.110 ISBN 978-2-8322-1769-6
– 2 – IEC 61158-6-24:2014 © IEC 2014
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
1.1 General . 8
1.2 Specifications . 8
1.3 Conformance . 9
2 Normative references . 9
3 Terms, definitions, abbreviations, symbols and conventions . 9
3.1 Referenced terms and definitions . 9
3.2 Additional terms and definitions . 11
3.3 Abbreviations and symbols . 16
3.4 Conventions . 17
4 Abstract syntax . 19
4.1 Basic Data types . 19
4.2 FAL PDU types . 21
4.3 Detailed definitions of _FDCService-PDUs . 33
4.4 Device profile . 52
5 Transfer syntax . 52
5.1 Concepts . 52
5.2 Encode rules . 53
6 Structure of FAL protocol state machine . 58
7 AP-context state machine (APC SM) . 61
7.1 Overview . 61
7.2 State descriptions . 62
7.3 Triggering events . 63
7.4 Action descriptions at state transitions . 63
8 FAL service protocol machines (FSPM) . 64
8.1 Overview . 64
8.2 Field Deice Control Protocol Machine (FDC PM) . 64
8.3 Message Protocol Machine (MSGPM) . 89
9 Application relationship protocol machine (ARPM) . 95
9.1 General . 95
9.2 ARPM for FDC ASE . 95
9.3 ARPM for MSG ASE (ARPM-MSG) . 109
10 DLL mapping protocol machine (DMPM) . 111
Annex A (informative) Device profile and FDC command sets . 112
Annex B (normative) Virtual memory space and Device Information . 113
B.1 Overview . 113
B.2 Device Information . 114
B.2.1 Device identifier area structure . 114
B.2.2 Detail specifications of device IDs . 114
Annex C (informative) Basic message function . 120
Bibliography . 121
IEC 61158-6-24:2014 © IEC 2014 – 3 –
Figure 1 – Tree structure of APDU types . 22
Figure 2 – Encode of Integer subtypes . 53
Figure 3 – Example of transfer of INTEGER value . 54
Figure 4 – Encode of Unsigned subtypes . 54
Figure 5 – Float32 type encode . 55
Figure 6 – Float64 type encode . 55
Figure 7 – Bit field definition example with named bits . 56
Figure 8 – Bit field definition example with field size . 57
Figure 9 – SEQUENCE type encode . 58
Figure 10 – Structure of FAL protocol state machines . 60
Figure 11 – Statechart diagram of APCSM . 62
Figure 12 – Example communication cycle of FDC master AP. 66
Figure 13 – Example communication cycle of FDC slave AP . 67
Figure 14 – Synchronous command communication in sync state . 68
Figure 15 – Asynchronous command communication in sync state . 69
Figure 16 – Asynchronous command communication in async state . 70
Figure 17 – Event-driven communication . 71
Figure 18 – Statechart diagram of FDCPM-M . 72
Figure 19 – Statechart diagram of FDCPM-S . 78
Figure 20 – Statechart diagram of FDCPM-MN . 85
Figure 21 – PDU transmission flow for user message . 89
Figure 22 – PDU transmission flow for one-way message . 90
Figure 23 – Statechart diagram of MSGPM-RQ . 91
Figure 24 – Statechart diagram of MSGPM-RS . 93
Figure 25 – Example of single transfer process . 95
Figure 26 – Example of dual transfer process . 96
Figure 27 – Statechart diagram of ARPM-FDCM . 97
Figure 28 – Statechart diagram of ARPM-FDCS . 102
Figure 29 – Statechart diagram of ARPM-FDCMN . 107
Figure 30 – Statechart diagram of ARPM-MSG . 110
Figure B.1 – Memory map of virtual memory space . 113
Figure B.2 – Memory map of device ID area . 114
Table 1 – State transition descriptions . 18
Table 2 – Description of state machine elements . 18
Table 3 – Conventions used in state machines . 19
Table 4 – Mapping for Protocol State Machines . 60
Table 5 – State descriptions of APC SM . 62
Table 6 – Trigger event descriptions of APC SM . 63
Table 7 – Transitions of APC SM . 63
Table 8 – FDC protocol mode . 65
Table 9 – State descriptions of FDCPM-M . 72
Table 10 – Trigger event descriptions of FDCPM-M . 73
– 4 – IEC 61158-6-24:2014 © IEC 2014
Table 11 – Transitions of main SM of FDCPM-M . 74
Table 12 – Transitions of submachine of FDCPM-M . 75
Table 13 – State descriptions of FDCPM-S . 78
Table 14 – Trigger event descriptions of FDCPM-S . 79
Table 15 – Transitions of main SM of FDCPM-S . 80
Table 16 – Transitions of submachine of FDCPM-S . 82
Table 17 – State descriptions of FDCPM-MN . 85
Table 18 – Trigger event descriptions of FDCPM-MN . 86
Table 19 – Transitions of main SM of FDCPM-MN . 86
Table 20 – Transitions of submachine of FDCPM-MN . 86
Table 21 – State descriptions of MSGPM-RQ . 91
Table 22 – Trigger event descriptions of MSGPM-RQ . 92
Table 23 – Transitions of MSGPM-RQ . 92
Table 24 – State descriptions of MSGPM-RS . 93
Table 25 – Trigger event descriptions of MSGPM-RS . 94
Table 26 – Transitions of MSGPM-RS . 94
Table 27 – State descriptions of ARPM-FDCM . 97
Table 28 – Trigger event descriptions of ARPM-FDCM . 99
Table 29 – Transitions of main SM of ARPM-FDCM . 100
Table 30 – Transitions of submachine of ARPM-FDCM . 100
Table 31 – State descriptions of ARPM-FDCS . 102
Table 32 – Trigger event descriptions of ARPM-FDCS . 104
Table 33 – Transitions of main SM of ARPM-FDCS . 105
Table 34 – Transitions of submachine of ARPM-FDCS. 106
Table 35 – State descriptions of ARPM-FDCMN . 108
Table 36 – Trigger event descriptions of ARPM-FDCMN . 108
Table 37 – Transitions of main SM of ARPM-FDCMN . 108
Table 38 – Transitions of submachine of ARPM-FDCMN . 109
Table 39 – State descriptions of ARPM-MSG . 110
Table 40 – Trigger event descriptions of ARPM-MSG. 110
Table 41 – Transitions of ARPM-MSG . 111
Table A.1 – Example of registered device profiles . 112
Table A.2 – Example command list of the profile ‘00’H . 112
Table B.1 – Specifications of device IDs . 115
Table C.1 – Example of message command set . 120
IEC 61158-6-24:2014 © IEC 2014 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 6-24: Application layer protocol specification –
Type-24 Elements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
Attention is drawn to the fact that the use of the associated protocol type is restricted by its
intellectual-property-right holders. In all cases, the commitment to limited release of
intellectual-property-rights made by the holders of those rights permits a layer protocol type to
be used with other layer protocols of the same type, or in other type combinations explicitly
authorized by its intellectual-property-right holders.
NOTE Combinations of protocol types are specified in IEC 61784-1 and IEC 61784-2.
International Standard IEC 61158-6-24 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
– 6 – IEC 61158-6-24:2014 © IEC 2014
The text of this standard is based on the following documents:
FDIS Report on voting
65C/764/FDIS 65C/774/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61158 series, published under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 61158-6-24:2014 © IEC 2014 – 7 –
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC 61158-1.
The application protocol provides the application service by making use of the services
available from the data-link or other immediately lower layer. The primary aim of this standard
is to provide a set of rules for communication expressed in terms of the procedures to be
carried out by peer application entities (AEs) at the time of communication. These rules for
communication are intended to provide a sound basis for development in order to serve a
variety of purposes:
• as a guide for implementers and designers;
• for use in the testing and procurement of equipment;
• as part of an agreement for the admittance of systems into the open systems environment;
• as a refinement to the understanding of time-critical communications within OSI.
This standard is concerned, in particular, with the communication and interworking of sensors,
effectors and other automation devices. By using this standard together with other standards
positioned within the OSI or fieldbus reference models, otherwise incompatible systems may
work together in any combination.
– 8 – IEC 61158-6-24:2014 © IEC 2014
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 6-24: Application layer protocol specification –
Type-24 Elements
1 Scope
1.1 General
The Fieldbus Application Layer (FAL) provides user programs with a means to access the
fieldbus communication environment. In this respect, the FAL can be viewed as a “window
between corresponding application programs.”
This standard provides common elements for basic time-critical and non-time-critical
messaging communications between application programs in an automation environment and
material specific to Type 24 fieldbus. The term “time-critical” is used to represent the
presence of a time-window, within which one or more specified actions are required to be
completed with some defined level of certainty. Failure to complete specified actions within
the time window risks failure of the applications requesting the actions, with attendant risk to
equipment, plant and possibly human life.
This standard defines in an abstract way the externally visible behavior provided by the Type
24 fieldbus application layer in terms of
a) the abstract syntax defining the application layer protocol data units conveyed between
communicating application entities,
b) the transfer syntax defining the application layer protocol data units conveyed between
communicating application entities,
c) the application context state machines defining the application service behavior visibly
between communicating application entities, and
d) the application relationship state machines defining the communication behavior visibly
between communicating application entities.
The purpose of this standard is to define the protocol provided to
a) define the representation-on-wire of the service primitives defined in IEC 61158-5-24, and
b) define the externally visible behavior associated with their transfer.
This standard specifies the protocol of the Type 24 fieldbus application layer, in conformance
with the OSI Basic Reference Model (ISO/IEC 7498-1) and the OSI Application Layer
Structure (ISO/IEC 9545).
1.2 Specifications
The principal objective of this standard is to specify the syntax and behavior of the application
layer protocol that conveys the application layer services defined in IEC 61158-5-24.
A secondary objective is to provide migration paths from previously-existing industrial
communications protocols. It is this latter objective which gives rise to the diversity of
protocols standardized in IEC 61158-6.
IEC 61158-6-24:2014 © IEC 2014 – 9 –
1.3 Conformance
This standard does not specify individual implementations or products, nor does it constrain
the implementations of application layer entities within industrial automation systems.
Conformance is achieved through implementation of this application layer protocol
specification.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
NOTE All parts of the IEC 61158 series, as well as IEC 61784-1 and IEC 61784-2 are maintained simultaneously.
Cross-references to these documents within the text therefore refer to the editions as dated in this list of normative
references.
IEC 61158-5-24:2014, Industrial communication networks – Fieldbus specifications –
Part 5-24: Application layer service definition – Type 24 elements
IEC 61158-6 (all parts), Industrial communication networks – Fieldbus specifications – Part 6:
Application layer protocol specification
ISO/IEC 646, Information technology – ISO 7-bit coded character set for information
interchange
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model – Part 1: The Basic Model
ISO/IEC 9545, Information technology – Open Systems Interconnection – Application Layer
structure
ISO/IEC 9899, Information technology – Programming languages – C
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
ISO/IEC 19501:2005, Information technology – Open Distributed Processing – Unified
Modeling Language (UML) Version 1.4.2
ISO/IEC/IEEE 60559:2011, Information technology – Microprocessor Systems – Floating-
Point arithmetic
3 Terms, definitions, abbreviations, symbols and conventions
For the purposes of this document, the following terms, definitions, symbols, abbreviations
and conventions apply.
3.1 Referenced terms and definitions
For the purposes of this document, the following terms, definitions, symbols, abbreviations
and conventions apply.
– 10 – IEC 61158-6-24:2014 © IEC 2014
3.1.1 Terms and definitions from ISO/IEC 7498-1
For the purposes of this document, the following terms as defined in ISO/IEC 7498-1 apply:
a) abstract syntax;
b) application-entity;
c) application process;
d) application protocol data unit;
e) application-process-invocation;
f) (N)-facility;
g) (N)-function;
h) peer-(N)-entities;
i) presentation context;
j) real system;
k) transfer syntax.
3.1.2 Terms and definitions from ISO/IEC 9545
For the purposes of this document, the following terms as defined in ISO/IEC 9545 apply:
a) application-association;
b) application-context;
c) application-entity-invocation;
d) application-entity-type;
e) application-service-element.
3.1.3 Terms and definitions from ISO/IEC 8824-1
For the purposes of this document, the following terms as defined in ISO/IEC 8824-1 apply:
a) simple type;
b) component;
c) component type;
d) integer type;
e) bitstring type;
f) octetstring type;
g) null type;
h) sequence type;
i) sequence of type;
j) choice type;
k) IA5String type;
l) encoding.
3.1.4 Terms and definitions from ISO/IEC 10731
For the purposes of this document, the following terms as defined in ISO/IEC 10731 apply:
a) OSI-service-primitive; primitive;
b) OSI-service-provider; provider;
c) OSI-service-user; user.
IEC 61158-6-24:2014 © IEC 2014 – 11 –
3.1.5 Terms and definitions from ISO/IEC 19501
For the purposes of this document, the following terms as defined in ISO/IEC 19501 apply:
a) event;
b) state;
c) state machine;
d) substate;
e) submachine;
f) transition.
3.2 Additional terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.2.1
alarm
field device status to tell that the device has detected a fatal problem to be solved and cannot
continue normal working, through the field device control (FDC) service of the Type 24
fieldbus
Note 1 to entry: Any alarm statuses are latched and need some operations to be cleared.
Note 2 to entry: Alarms are classified into three groups; communication alarms, illegal-command-related ones,
and application specific ones. But concrete definitions are dependent on implementation of each field devices.
3.2.2
application process object
network representation of a specific aspect of an application process (AP), which is modelled
as a network accessible object contained within an AP or within another APO
Note 1 to entry: Refer IEC 61158-1, 9.3.4.
3.2.3
application process context
AP context
shared knowledge or a common set of rules, governing communication of FAL application
entities (AEs) and describing the permissible collective communications behavior between the
AEs that are party to a specific set of application relationships (ARs)
Note 1 to entry: Data within AP context can be specified by the user in advance, by the option selected while the
user uses a field bus management (FSM) service to read out the facility of peer AP, by the automatic negotiation
function that the FSM system handles, and so on. The method that is to be adopted depends on the specification of
each implementation.
3.2.4
application process type
AP type
description of a classification of application processes (APs) in terms of a set of capabilities
for FAL of the Type 24 fieldbus
Note 1 to entry: AP types are classified into three, C1 master AP, C2 master AP and slave AP, by their application
roles in the fieldbus network.
3.2.5
async command
type of a command application protocol data unit (APDU) of the FDC service of the Type 24
FAL, which can be issued any time after the previous transaction without consideration of
synchronization with the communication cycle
– 12 – IEC 61158-6-24:2014 © IEC 2014
Note 1 to entry: Definitions, which command should be async one or not, are dependent on an application. They
may be provided as a registered set of commands and responses or a device profiles. See 4.4 and Annex A.
3.2.6
asynchronous communication
state or a way of communication for the FDC service of the Type 24 FAL, in which a command
can be issued any time after the previous transaction without consideration of synchronization
with the communication cycle
Note 1 to entry: In this state, sync commands cannot be issued, but async commands can.
3.2.7
attribute
information or parameter contained in variable portions of an object
Note 1 to entry: Typically, they provide status information or govern the operation of an object. Attributes may
also affect the behavior of an object.
3.2.8
C1 master
AP type that has master facilities for the FDC service of the Type 24 FAL, or the device
implementing that AP type
Note 1 to entry: Only one C1 master exists in a network of the Type 24 fieldbus
3.2.9
C2 master
AP type that has only monitor facilities for the FDC service but requester facilities for
message (MSG) service of the Type 24 FAL, or the device implementing that AP type
Note 1 to entry: Less than two C2 masters can exist in a network of the Type 24 fieldbus
3.2.10
command
PDU issued by a requester or a master to make a responder or a slave execute some
functions
3.2.11
communication
transfer
transmission
– communication: process to exchange information in a formal manner between two or more
devices, users, APs or entities
– transfer: process to convey a PDU from a sender to a receiver
– transmission: process to send out and propagate electrical signals or encoded data
3.2.12
communication cycle
period of repetitive activities synchronized with the transmission cycle while the connection
establishing for the FDC protocol of the Type 24 FAL
Note 1 to entry: Communication cycle may synchronize with the transmission cycle multiplied by a specified
scaling factor.
3.2.13
connection
context or logical binding under specific conditions for the FDC protocol between a master
object and a slave object for the Type 24 FAL
IEC 61158-6-24:2014 © IEC 2014 – 13 –
3.2.14
cyclic
repetitive in a regular manner
3.2.15
cyclic communication
transmission mode in which request PDUs and response PDUs are exchanged repetitively in
the scheduled time slots synchronized with a transmission cycle for the lower layer protocol of
the Type 24
Note 1 to entry: In the AL, the communication cycle arises from the transmission cycle in this mode.
3.2.16
cycle scale counter
counter to generate a communication cycle by means of scaling a primary cycle or a
transmission cycle
3.2.17
device ID
part of “Device Information” to identify the device for a specific product type or model of the
Type 24 fieldbus
3.2.18
device information
formatted and device-embedded information to characterize a device, which mainly consists
of data for device model identification and device-profile specific parameters for the Type 24
fieldbus
3.2.19
device profile
collection of device-model-common information and functionality providing consistency
between different device models among the same kind of devices
3.2.20
dual transfer
transfer mode for the FDC protocol of the Type 24 FAL, in which a sender sends a same PDU
twice a transaction and a receiver uses them to detect and recover a communication error
such as data-corruption or data-loss in cyclic communication mode
3.2.21
event driven communication
transmission mode for the lower layer protocol of the Type 24 fieldbus in which a transaction
of command-response-exchanging arises as user’s demands
Note 1 to entry: Both the transmission cycle and the communication cycle don’t arise in this mode.
3.2.22
error
abnormal condition or malfunction for communication or any other activities
3.2.23
field device control
FDC service
time-critical communication service that handles a fixed length command data to control a
field device and the corresponding feedback response data in a severe restriction on delay or
jitter for the communication timing for the Type 24 FAL
– 14 – IEC 61158-6-24:2014 © IEC 2014
3.2.24
field device protocol
FDC protocol
time-critical communication protocol that handles a fixed length command data to control a
field device and the corresponding feedback response data in a severe restriction on delay or
jitter f
3.2.25
master
class or its instance object of FDC application service element (ASE) who plays a role of a
command requester for the Type 24 FAL
3.2.26
message service
MSG service
communication service that handles the variable length data and not required a severe
restriction on response time
3.2.27
monitor
class or its instance object of FDC ASE who plays a role of a watcher or subscriber of
commands and response between other communication nodes for the Type 24 FAL
3.2.28
monitor slave
variant of slave AP type who has both slave class and monitor class for FDC ASE of the Type
24 FAL
3.2.29
network clock
synchronized and periodically running counter that each nodes in a same network have, which
becomes an oscillation source of the transmission cycle
3.2.30
primary cycle
period of repetitive activities synchronized with the transmission cycle before the connection
establishing for the FDC protocol in Type 24 FAL
3.2.31
protocol machine
state machine that realizes a protocol as the main function of the entity in each layer
3.2.32
requester
class or its instance object of MSG ASE who plays a role of a command requester or sender
for the Type 24 FAL
3.2.33
responder
class or its instance object of MSG ASE who plays a role of a command responder or receiver
for the Type 24 FAL
3.2.34
response
PDU issued by a responder or a slave to inform a result or some status for the received
command to a requester or a master
IEC 61158-6-24:2014 © IEC 2014 – 15 –
3.2.35
service
operation or process that an object performs upon request from another object
3.2.36
single transfer
normal
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
