EN IEC 62541-4:2020 - OPC Unified Architecture (OPC UA) Part 4: Services (IEC 62541-4:2020) defines the abstract Services (the RPC-style operations) used by OPC UA Clients and Servers. It specifies the request/response models, Service Sets (Discovery, SecureChannel, Session, NodeManagement, View, Query, Attribute, Method, MonitoredItem, Subscription, etc.) and the behaviours required for secure, auditable, and interoperable communication in industrial automation systems. The document is abstract with no binding RPC mapping - concrete mappings (for example to XML Web Services) are defined in IEC 62541-6; Profiles are in IEC 62541-7.

Key technical topics and requirements

• Service Set model: formal structure for Service requests, responses and result codes across OPC UA.
• Discovery services: FindServers, GetEndpoints, FindServersOnNetwork, RegisterServer/ RegisterServer2 for network-wide discovery and capability filters.
• SecureChannel and Session: secure transport establishment, session creation, activation and closure; includes session-less invocation.
• MonitoredItem & Subscription: models for data monitoring, publish/subscribe, durable subscriptions (long lifetimes), and ResendData/Republish semantics.
• NodeManagement, View, Query, Attribute, Method: creation/modification of nodes, browsing, querying views, read/write/history, and remote method invocation.
• Security & identity:
  • Authorization patterns and use of Authorization Services to request user access tokens.
  • New user token types including JSON Web Tokens (JWTs) and new EncryptedSecret format for user identity tokens.
  • Requirements to protect against user identity token attacks.
  • Removal of software certificate definition (to be addressed in a future edition).
• Redundancy & Auditing: extended redundancy concepts (service-level sub-ranges, more redundancy terms) and explicit auditing requirements.
• Extensibility: generic AddNodes attributes structure allowing passing many attributes; session-less service invocation support.

Practical applications and who uses this standard

• OPC UA Server and Client implementers (device and edge vendors) for interoperable service implementations.
• Systems integrators and SCADA/IIoT architects building secure data exchange, monitoring and control systems.
• Cybersecurity engineers implementing secure authentication, JWT integration and token protection.
• Test labs and certification bodies verifying compliance with OPC UA Service requirements and Profiles.
• Industrial automation and process control sectors (SCADA, DCS, PLCs, historians) requiring standardized remote procedure interactions.

Related standards

• IEC 62541-1 / TR 62541-1: overview and concepts
• IEC 62541-2: security model
• IEC 62541-3: address space model
• IEC 62541-5: information model
• IEC 62541-6: mappings (concrete protocol bindings)
• IEC 62541-7: profiles (required Services per profile)

Keywords: OPC UA, OPC Unified Architecture, IEC 62541-4:2020, Services, SecureChannel, Session, Subscription, MonitoredItem, JWT, EncryptedSecret, FindServersOnNetwork, ResendData, durable subscriptions.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2020
Nadomešča:
SIST EN 62541-4:2015
Enotna arhitektura OPC - 4. del: Storitve (IEC 62541-4:2020)
OPC Unified Architecture - Part 4: Services (IEC 62541-4:2020)
OPC Unified Architecture - Teil 4: Dienste (IEC 62541-4:2020)
Architecture Unifiée OPC - Partie 4: Services (IEC 62541-4:2020)
Ta slovenski standard je istoveten z: EN IEC 62541-4:2020
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62541-4

NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2020
ICS 35.100.05; 25.040.40 Supersedes EN 62541-4:2015 and all of its amendments
and corrigenda (if any)
English Version
OPC Unified Architecture - Part 4: Services
(IEC 62541-4:2020)
Architecture Unifiée OPC - Partie 4: Services OPC Unified Architecture - Teil 4: Dienste
(IEC 62541-4:2020) (IEC 62541-4:2020)
This European Standard was approved by CENELEC on 2020-08-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62541-4:2020 E

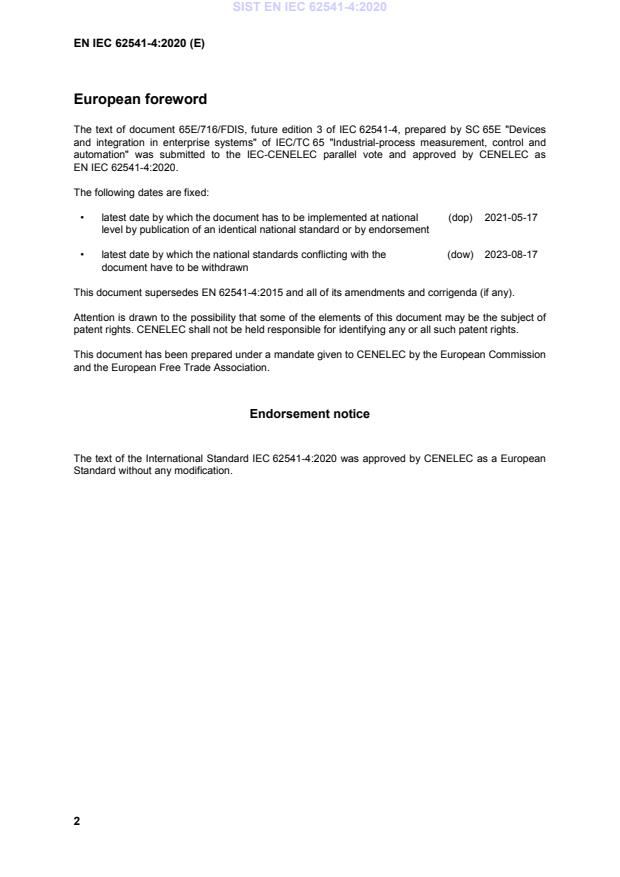

European foreword
