Optical amplifiers - Part 2: Single channel applications - Performance specification template

IEC 61291-2:2012 applies to single channel optical amplifier (OA) devices to be used in digital applications. For multichannel applications, use IEC 61291, Part 4. The object of this performance specification template is to provide a frame for the preparation of detail specifications on the performances of single channel OA devices to be used in digital applications. This edition constitutes a minor update through clarification that the scope is for single channel optical amplifiers, and that pump leakage parameters do not apply to semiconductor optical amplifiers.

Lichtwellenleiter-Verstärker - Teil 2: Einzelkanal-Anwendungen – Vorlage für Betriebsverhaltensspezifikationen

Amplificateurs optiques - Partie 2: Applications numériques - Modèles de spécifications de performances

IEC 61291-2:2016 fournit un modèle de spécifications de performances qui s’applique aux amplificateurs optiques (AO) destinés à être utilisés dans le cadre d’applications à un seul canal. Les applications multicanaux sont couvertes dans l’IEC 61291‑4. L’objet de ce modèle de spécifications de performances est de fournir une trame pour l’établissement de normes de performances et/ou de spécifications de produit relatives aux performances des dispositifs AO destinés à être utilisés dans le cadre d’applications à un seul canal. D’autres spécifications telles que les valeurs assignées, les conditions de fonctionnement, les essais et les critères de succès/défaillance peuvent être incluses dans les normes de performances ou les spécifications de produit, en plus des exigences basées sur ce modèle de spécifications de performances. Les rédacteurs de spécifications de produit peuvent ajouter des paramètres et/ou des groupes de paramètres à ces spécifications pour des applications particulières. Cependant, il convient que les rédacteurs de spécifications de produit ne suppriment pas les paramètres aux spécifications précisées dans la présente norme. Cette quatrième édition annule et remplace la troisième édition parue en 2012. Cette édition constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente: - le titre de la présente norme "applications numériques" est remplacé par "applications à un seul canal"; - le domaine d’application a été modifié et, par conséquent, les titres des tableaux ont été changés; - les termes et définitions ont été révisés; - trois tableaux donnant la liste minimale de paramètres applicables aux amplificateurs de puissance, préamplificateurs et amplificateurs de ligne basés sur des composants SOA (amplificateur optique à semiconducteur) ont été ajoutés; - les paramètres transitoires ont été ajoutés à la liste minimale de paramètres applicables aux préamplificateurs et amplificateurs de ligne basés sur un module OFA (amplificateur à fibres optiques).

Optični ojačevalniki - 2. del: Enokanalne aplikacije - Specifikacijska predloga delovanja (IEC 61291-2:2016)

Standard IEC 61291-2:2012 se uporablja za naprave z enokanalnim optičnim ojačevalnikom (OA), ki se uporabljajo za digitalne aplikacije. Za večkanalne aplikacije se uporablja standard IEC 61291, del 4. Cilj te specifikacijske predloge delovanja je zagotoviti okvir za pripravo podrobnih specifikacij za delovanje naprav z enokanalnim optičnim ojačevalnikom, ki se uporabljajo za digitalne aplikacije. Ta izdaja je manjša posodobitev na podlagi pojasnila, da področje uporabe velja za enokanalne optične ojačevalnike in da se parametri izpustov črpalke ne uporabljajo za polprevodniške optične ojačevalnike.

General Information

Status
Published
Publication Date
02-Jun-2016
Current Stage
6060 - Document made available
Due Date
19-Mar-2018

RELATIONS

Buy Standard

Standard
EN 61291-2:2016
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 61291-2:2016
01-september-2016
1DGRPHãþD
SIST EN 61291-2:2012
2SWLþQLRMDþHYDOQLNLGHO(QRNDQDOQHDSOLNDFLMH6SHFLILNDFLMVNDSUHGORJD
GHORYDQMD ,(&

Optical amplifiers - Part 2: Single channel applications - Performance specification

template (IEC 61291-2:2016)
Lichtwellenleiter-Verstärker - Teil 2: Digitale Anwendungen - Vorlage für
Betriebsverhaltensspezifikationen (IEC 61291-2:2016)

Amplificateurs optiques - Partie 2: Applications numériques - Modèles de spécifications

de performances (IEC 61291-2:2016)
Ta slovenski standard je istoveten z: EN 61291-2:2016
ICS:
33.180.30 2SWLþQLRMDþHYDOQLNL Optic amplifiers
SIST EN 61291-2:2016 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 61291-2:2016
---------------------- Page: 2 ----------------------
SIST EN 61291-2:2016
EUROPEAN STANDARD EN 61291-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2016
ICS 33.180.30 Supersedes EN 61291-2:2012
English Version
Optical amplifiers - Part 2: Single channel applications -
Performance specification template
(IEC 61291-2:2016)

Amplificateurs optiques - Partie 2: Applications numériques Lichtwellenleiter-Verstärker - Teil 2: Einzelkanal-

- Modèles de spécifications de performances Anwendungen - Vorlage für
(IEC 61291-2:2016) Betriebsverhaltensspezifikationen
(IEC 61291-2:2016)

This European Standard was approved by CENELEC on 2016-03-24. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 61291-2:2016 E
---------------------- Page: 3 ----------------------
SIST EN 61291-2:2016
EN 61291-2:2016

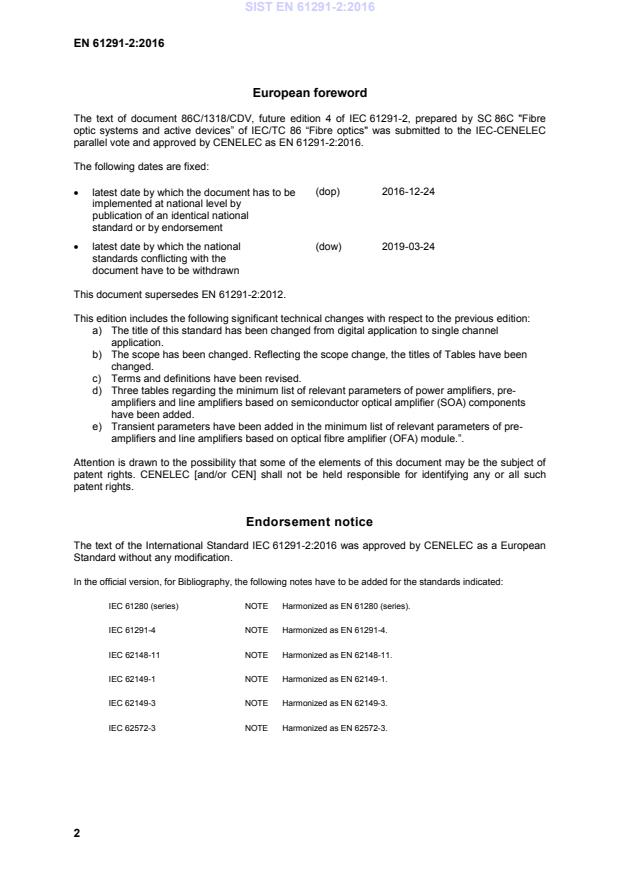

European foreword

The text of document 86C/1318/CDV, future edition 4 of IEC 61291-2, prepared by SC 86C "Fibre

optic systems and active devices” of IEC/TC 86 “Fibre optics" was submitted to the IEC-CENELEC

parallel vote and approved by CENELEC as EN 61291-2:2016.
The following dates are fixed:
• latest date by which the document has to be (dop) 2016-12-24
implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2019-03-24
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61291-2:2012.

This edition includes the following significant technical changes with respect to the previous edition:

a) The title of this standard has been changed from digital application to single channel

application.

b) The scope has been changed. Reflecting the scope change, the titles of Tables have been

changed.
c) Terms and definitions have been revised.

d) Three tables regarding the minimum list of relevant parameters of power amplifiers, pre-

amplifiers and line amplifiers based on semiconductor optical amplifier (SOA) components

have been added.

e) Transient parameters have been added in the minimum list of relevant parameters of pre-

amplifiers and line amplifiers based on optical fibre amplifier (OFA) module.”.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such

patent rights.
Endorsement notice

The text of the International Standard IEC 61291-2:2016 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61280 (series) NOTE Harmonized as EN 61280 (series).
IEC 61291-4 NOTE Harmonized as EN 61291-4.
IEC 62148-11 NOTE Harmonized as EN 62148-11.
IEC 62149-1 NOTE Harmonized as EN 62149-1.
IEC 62149-3 NOTE Harmonized as EN 62149-3.
IEC 62572-3 NOTE Harmonized as EN 62572-3.
---------------------- Page: 4 ----------------------
SIST EN 61291-2:2016
EN 61291-2:2016
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:

www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60825-1 - Safety of laser products -- Part 1: EN 60825-1 -
Equipment classification and requirements
IEC 61000 series Electromagnetic compatibility (EMC) EN 61000 series
Electromagnetic compatibility (EMC)

IEC 61290-1 series Optical amplifiers - Test methods - Part 1: EN 61290-1 series

Power and gain parameters

IEC 61290-3 series Optical amplifiers - Test methods - Part 3: EN 61290-3 series

Noise figure parameters
IEC 61290-4-3 Optical amplifiers - Test methods – Part 4- EN 61290-4-3
3: Power transient parameters – Single
channel optical amplifiers in output power
control
IEC 61290-5 series Optical amplifiers - Test methods -Part 5: EN 61290-5 series
Reflectance Parameters
IEC 61290-6-1 - Optical fibre amplifiers - Basic specification EN 61290-6-1 -
-- Part 6-1: Test methods for pump leakage
parameters - Optical demultiplexer

IEC 61290-11 series Optical amplifier - Test methods - Part 11: EN 61290-11 series

Polarization mode dispersion parameter
IEC 61291-1 - Optical amplifiers -- Part 1: Generic EN 61291-1 -
specification
IEC 61291-5-2 - Optical amplifiers -- Part 5-2: Qualification EN 61291-5-2 -
specifications - Reliability qualification for
optical fibre amplifiers
IEC/TS 62538 2008 Categorization of optical devices - -
---------------------- Page: 5 ----------------------
SIST EN 61291-2:2016
---------------------- Page: 6 ----------------------
SIST EN 61291-2:2016
IEC 61291-2
Edition 4.0 2016-02
INTERNATIONAL
STANDARD
Optical amplifiers –
Part 2: Single channel applications – Performance specification template
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.30 ISBN 978-2-8322-3185-2

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 7 ----------------------
SIST EN 61291-2:2016
– 2 – IEC 61291-2:2016 © IEC 2016
CONTENTS

FOREWORD ......................................................................................................................... 3

INTRODUCTION ................................................................................................................... 5

1 Scope ............................................................................................................................ 6

2 Normative references..................................................................................................... 6

3 Terms, definitions and abbreviated terms ....................................................................... 7

3.1 Terms and definitions ............................................................................................ 7

3.2 Abbreviated terms ................................................................................................. 8

4 Performance specification template for power amplifiers ................................................. 8

5 Performance specification template for pre-amplifiers ................................................... 11

6 Performance specification template for line amplifiers ................................................... 15

7 Electromagnetic compatibility (EMC) requirements ....................................................... 19

8 Laser safety requirements ............................................................................................ 19

Bibliography ....................................................................................................................... 20

Table 1 – Minimum relevant parameters for power amplifiers based on OFA

components or modules using active fibre specified for single channel applications ................ 9

Table 2 – Minimum relevant parameters for power amplifiers based on SOA

components specified for single channel applications .......................................................... 10

Table 3 – Minimum relevant parameters for pre-amplifiers based on OFA components

or modules using active fibre specified for single channel applications ................................. 12

Table 4 – Minimum relevant parameters for pre-amplifiers based on SOA components

specified for single channel applications .............................................................................. 14

Table 5 – Minimum relevant parameters for line amplifiers based on OFA components

or modules using active fibre specified for single channel applications ................................. 16

Table 6 – Minimum relevant parameters for line amplifiers based on SOA components

specified for single channel applications .............................................................................. 18

---------------------- Page: 8 ----------------------
SIST EN 61291-2:2016
IEC 61291-2:2016 © IEC 2016 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL AMPLIFIERS –
Part 2: Single channel applications –
Performance specification template
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61291-2 has been prepared by subcommittee 86C: Fibre optic

systems and active devices, of IEC technical committee 86: Fibre optics.

This fourth edition cancels and replaces the third edition published in 2012. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) the title of this standard has been changed from digital applications to single channel

applications;

b) the scope has been changed and, as a result, the titles of tables have been changed;

c) Terms and definitions have been revised;
---------------------- Page: 9 ----------------------
SIST EN 61291-2:2016
– 4 – IEC 61291-2:2016 © IEC 2016

d) three tables regarding the minimum list of relevant parameters of power amplifiers, pre-

amplifiers and line amplifiers based on semiconductor optical amplifier (SOA) components

have been added;

e) transient parameters have been added in the minimum list of relevant parameters of pre-

amplifiers and line amplifiers based on optical fibre amplifier (OFA) module.
The text of this standard is based on the following documents:
CDV Report on voting
86C/1318/CDV 86C/1365/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 61291 series, published under the general title Optical amplifiers,

can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 10 ----------------------
SIST EN 61291-2:2016
IEC 61291-2:2016 © IEC 2016 – 5 –
INTRODUCTION

This International Standard is devoted to the subject of optical amplifiers. The technology of

optical amplifiers is still rapidly evolving, hence amendments and new additions to this

standard can be expected. Each abbreviation introduced in this standard is generally

explained in the text the first time it appears. However, for an easier understanding of the

whole text, a list of all abbreviations used in this standard is given in Clause 3.

---------------------- Page: 11 ----------------------
SIST EN 61291-2:2016
– 6 – IEC 61291-2:2016 © IEC 2016
OPTICAL AMPLIFIERS –
Part 2: Single channel applications –
Performance specification template
1 Scope

This part of IEC 61291 provides a performance specification template which applies to optical

amplifiers (OAs) to be used in single channel applications. Multichannel applications are

covered in IEC 61291-4.

The object of this performance specification template is to provide a frame for the preparation

of performance standards and/or product specifications on the performance of OA devices to

be used in single channel applications. In the performance standards or product specifications,

other specifications such as ratings, operating conditions, tests and pass/fail criteria could be

included in addition to the requirements based on this performance specification template.

Product specification writers may add specification parameters and/or groups of specification

parameters for particular applications. However, product specification writers should not

remove specification parameters specified in this standard.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements

IEC 61000 (all parts), Electromagnetic compatibility (EMC)

IEC 61290-1 (all parts), Optical amplifiers – Test methods – Part 1: Power and gain

parameters

IEC 61290-3 (all parts), Optical amplifiers – Test methods – Part 3: Noise figure parameters

IEC 61290-4-3, Optical amplifiers – Test methods – Part 4-3: Power transient parameters –.

Single channel optical amplifiers in output power control

IEC 61290-5 (all parts), Optical amplifiers – Test methods – Part 5: Reflectance parameters

IEC 61290-6-1, Optical fibre amplifiers – Basic specification – Part 6-1: Test methods for

pump leakage parameters – Optical demultiplexer

IEC 61290-11 (all parts), Optical amplifiers – Test methods – Part 11-1: Polarization mode

dispersion parameter
IEC 61291-1, Optical amplifiers – Part 1: Generic specification

IEC 61291-5-2, Optical amplifiers – Part 5-2: Qualification specifications – Reliability

qualification for optical fibre amplifiers
---------------------- Page: 12 ----------------------
SIST EN 61291-2:2016
IEC 61291-2:2016 © IEC 2016 – 7 –
IEC TS 62538:2008, Categorization of optical devices
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 61291-1,

IEC TS 62538 and the following apply.

NOTE Possible supplementary definitions specific to OAs for single channel applications can be given in product

specifications.
3.1.1
optical amplifier

optical waveguide device containing a suitably pumped, active medium which is able to

amplify an optical signal
[SOURCE: IEC TR 61931:1998, 2.7.75]
3.1.2
optical fibre amplifier
OFA

optical amplifier made of active optical fibre which is doped with rare-earth ions, or which

presents non-linear optical effects in order to obtain optical amplification
3.1.3
semiconductor optical amplifier
SOA

optical amplifier in which the active optical waveguide is formed by a semiconductor laser

diode structure, which will be electrically pumped
[SOURCE: IEC TR 61931:1998, 2.7.77]
3.1.4
optical element

unpackaged or partially packaged optical basic unit, typically non repairable and

non-re-workable (at least by users)

Note 1 to entry: Examples of optical elements include laser chips or laser diodes, photodiodes, lenses, prisms,

optical c
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
