Overview - EN 60679-4-1:1998 / IEC 60679-4-1

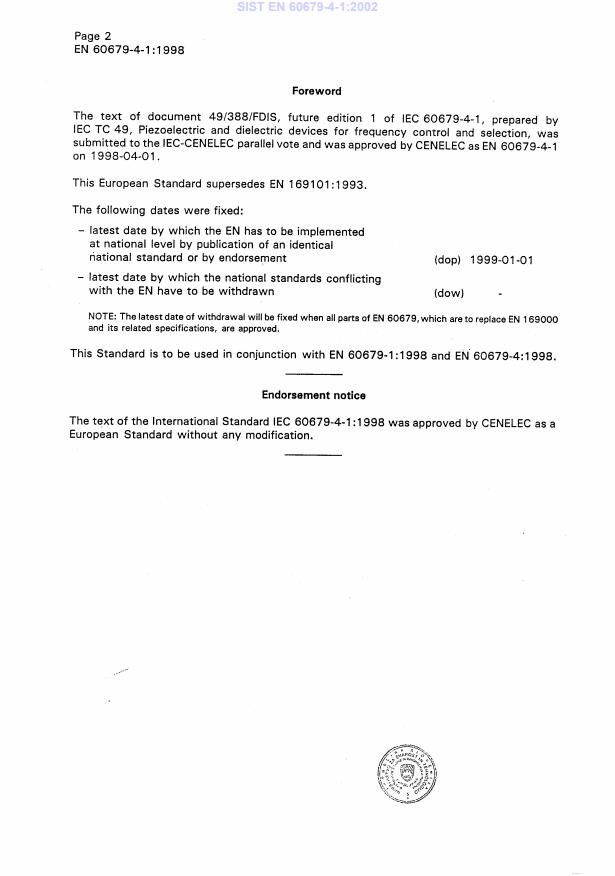

EN 60679-4-1:1998 (identical to IEC 60679-4-1:1998) is a blank detail specification for quartz crystal controlled oscillators of assessed quality where conformity is demonstrated by capability approval (IECQ). It is a supplementary document to the sectional specification and defines the minimum content and layout that manufacturers and purchasers should include in a customer detail specification for custom-built or catalogue oscillators.

Key topics and requirements

• Scope & purpose
  • Applies to quartz crystal controlled oscillators (SPXO, VCXO, TCXO, OCXO) supplied as custom or catalogue items whose quality is assessed by capability approval.
  • Intended to be used with IEC 60679-1 (generic) and IEC 60679-4 (sectional).
• Identification and front-page layout
  • Recommended fields (national authority, IECQ number, sectional/generic references, type description, construction notes, outline drawing).
• Ratings and characteristics
  • Mandatory entries for operating temperature range, climatic category, mechanical test severities.
  • Electrical and performance data: nominal output frequency, reference temperature, frequency tolerances, input/output voltages/power, waveform, load, and ageing.
  • VCXO/TCXO/OCXO-specific items: control voltage, pulling sensitivity, linearity, modulation details, oven supply, stabilization time, retrace.
• Marking, ordering and documentation
  • Marking requirements per IEC 60679-1; ordering info must include quantity, detail-spec number, frequency, product code, tolerance and temperature range.
  • Statement on whether certified test records are required.
• Inspection and test structure
  • Defines minimum inspection levels (IL) and acceptance quality levels (AQL) for group and subgroup tests (visual, frequency, output, waveform, input power, ageing, dimensions, hermetic leak tests).
  • Annex B: ageing test guidance - duration sufficient to confirm frequency slope over 5 days, minimum 15 days.
• Quality system linkage
  • Integrates with IECQ capability approval processes (QC numbers referenced).

Practical applications - who uses this standard

• Oscillator manufacturers creating customer detail specifications for capability approval.
• Supplier qualification / procurement teams requiring a standardized detail spec for purchase orders and audits.
• Quality engineers and test labs implementing inspection sampling plans, AQL/IL selection, and certified test records.
• Design engineers and systems integrators seeking consistent oscillator data (frequency tolerance, stability, ageing, OCXO stabilization) for system-level specifications.
• Certification bodies / IECQ auditors using the blank detail spec to evaluate manufacturer capability approval documentation.

Related standards

• IEC 60679-1: Generic specification (use in conjunction)
• IEC 60679-4 (sectional specification) - Capability approval
• IEC 60679-5 / 60679-5-1 - Qualification approval and blank detail for qualification
• IECQ QC numbering (e.g., QC 690101) for capability approval tracking

Keywords: EN 60679-4-1:1998, IEC 60679-4-1, quartz crystal controlled oscillators, blank detail specification, capability approval, IECQ, oscillator specification, frequency stability, ageing test.
