CLC/TS 61400-14:2017

Wind turbines - Part 14: Declaration of apparent sound power level and tonality values

Gives guidelines for declaring the apparent sound power level and tonality of a batch of wind turbines. Is to be used in conjunction with IEC 61400-11 which gives measurement procedures for apparent sound power level and tonality. This publication is of high relevance for Smart Grid.

Windenergieanlagen - Teil 14: Angabe von immissionsrelevanten Schallleistungspegel- und Tonhaltigkeitswerten

Éoliennes - Partie 14: Déclaration des valeurs du niveau de puissance acoustique apparent et de la tonalité

Vetrne turbine - 14. del: Izjava o nivoju navidezne moči zvoka in vrednostih tonalitete (IEC/TS 61400-14:2005)

Ta del standarda IEC 61400 daje smernice za razglasitev navidezne ravni zvočne moči in tonalitete serije vetrnih turbin. Postopki merjenja za navidezno raven zvočne moči in tonalitete so opredeljeni v standardu IEC 61400-11.

General Information

• Status: Published
• Publication Date: 31-Aug-2017
• ICS: 27.180 - Wind turbine energy systems
• Technical Committee: CLC/TC 88 - Wind turbines
• Drafting Committee: CLC/TC 88 - Wind turbines
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 01-Sep-2017
• Due Date: 05-Nov-2018
• Completion Date: 01-Sep-2017
• Ref Project: SIST-TS CLC/TS 61400-14:2017 - Wind turbines - Part 14: Declaration of apparent sound power level and tonality values (IEC/TS 61400-14:2005)

Overview

CLC/TS 61400-14:2017 (IEC/TS 61400‑14:2005) gives guidelines for declaring the apparent sound power level and tonality of a batch of wind turbines. It is intended to be used together with IEC 61400‑11 (acoustic measurement procedures) and provides a reproducible statistical approach so manufacturers, planners and authorities can state noise emission values for a turbine type rather than a single machine. The Technical Specification is relevant to wind farm planning, permitting and Smart Grid integration where acoustic performance influences siting and community acceptance.

Key topics and technical requirements

• Batch declaration: A batch is wind turbines of the same make, model and specifications. The TS defines how to derive a declared noise value for a batch from measurements on several turbines.
• Measurement basis: Uses apparent sound power level and tonality measured according to IEC 61400‑11. All individual measurement reports must be annexed to the declaration.
• Statistical treatment:
  • A mean apparent sound power level Lw and sample standard deviation s are calculated from n measurements (typically a minimum of three).
  • The standard deviations of production (σP) and reproducibility (σR) are used to compute the total standard deviation σ.
  • An example estimate for reproducibility is σR = 0.9 dB (from IEC 61400‑11 guidance).
  • The declared apparent sound power level Ld is given by Ld = Lw + K, where K = 1.645·σ (K corresponds to a 95 % confidence level that turbines will not exceed the declared value).
• Tonality: Tonality is reported per turbine (values and frequency/ies). The specification notes limited statistical data for tonality so it is not declared using the same statistical formula as sound power level.
• Additional provisions: Methods to convert sound power to a different hub height (Annex A) and discussion of turbine/site influences on acoustics (Annex B).

Applications and users

• Wind turbine manufacturers - to produce certified, batch-level noise declarations for product datasheets and procurement.
• Wind farm developers and planners - to assess cumulative noise impact and compare turbine models during site selection.
• Regulators and permitting authorities - to verify declared noise limits and enforce community noise criteria.
• Acoustic consultants and certification bodies - to perform compliant measurements, statistical analysis and verification.
• Smart Grid planners - to include acoustic constraints in distributed generation planning where siting, community acceptance and integrated system operation are concerned.

Related standards

• IEC 61400‑11 - Acoustic noise measurement techniques (measurement procedures used by this TS).
• ISO 4871 - Declaration and verification of noise emission values.
• ISO 7574 - Statistical methods for determining and verifying stated noise emission values.
• CLC/TS 61400‑14:2017 is the CENELEC adoption of IEC/TS 61400‑14.

Keywords: wind turbine noise, apparent sound power level, tonality, IEC 61400‑11, noise declaration, batch declaration, CLC/TS 61400‑14, Smart Grid.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2017
9HWUQHWXUELQHGHO,]MDYDRQLYRMXQDYLGH]QHPRþL]YRNDLQYUHGQRVWLK
WRQDOLWHWH,(&76
Wind turbines - Part 14: Declaration of apparent sound power level and tonality values
(IEC/TS 61400-14:2005)
Windenergieanlagen - Teil 14: Angabe der immissionsrelevanten Schallleistungspegel
und der Tonhaltigkeit (IEC/TS 61400-14:2005)
Éoliennes - Partie 14: Déclaration des valeurs du niveau de puissance acoustique
apparent et de la tonalité (IEC/TS 61400-14:2005)
Ta slovenski standard je istoveten z: CLC/TS 61400-14:2017
ICS:
27.180 Vetrne elektrarne Wind turbine energy systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION CLC/TS 61400-14

SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
September 2017
ICS 27.180
English Version
Wind turbines -
Part 14: Declaration of apparent sound power level
and tonality values
(IEC/TS 61400-14:2005)
Éoliennes -  Windenergieanlagen -
Partie 14: Déclaration des valeurs du niveau Teil 14: Angabe von immissionsrelevanten
de puissance acoustique apparent et de la tonalité Schallleistungspegel- und Tonhaltigkeitswerten
(IEC/TS 61400-14:2005) (IEC/TS 61400-14:2005)
This Technical Specification was approved by CENELEC on 2017-07-17.

CENELEC members are required to announce the existence of this TS in the same way as for an EN and to make the TS available promptly
at national level in an appropriate form. It is permissible to keep conflicting national standards in force.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. CLC/TS 61400-14:2017 E

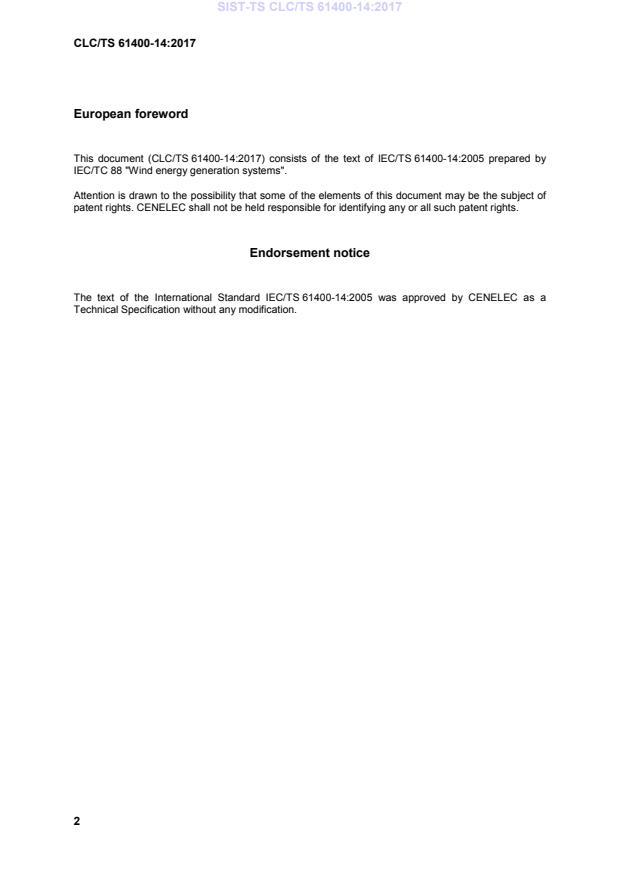

European foreword
