ETSI EN 302 372-2 V1.2.1 (2011-02)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Equipment for Detection and Movement; Tanks Level Probing Radar (TLPR) operating in the frequency bands 5,8 GHz, 10 GHz, 25 GHz, 61 GHz and 77 GHz; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

REN/ERM-TGTLPR-0117-2

Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Naprave kratkega dosega (SRD) - Oprema za odkrivanje in premikanje - Radar za sondiranje nivoja v rezervoarjih (TLPR), ki deluje v frekvenčnih pasovih 5,8 GHz, 10 GHz, 25 GHz, 61 GHz in 77 GHz - 2. del: Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE

Pričujoči dokument določa zahteve za uporabe radarja za sondiranje nivoja v rezervoarjih (TLPR), zasnovanega na pulznem RF,
FMCW ali podobnih širokopasovnih tehnikah, ki delujejo v naslednjih frekvenčnih pasovih ali delih, kot določeno v preglednici 1.
Preglednica 1 prikazuje seznam frekvenčnih pasov, kot je določen za radarje za sondiranje nivoja v rezervoarjih z Odločbo Komisije 2009/381/ES [i.4] in CEPT/ERC/ priporočili 70-03 [i.1], znanimi na datumu objave pričujočega dokumenta.
TLPR se uporabljajo za uporabe merjenja nivoja v rezervoarjih.
Področje uporabe je omejeno na TLPR, ki delujejo kot naprave kratkega dosega, vgrajene v zaprte kovinske rezervoarje ali utrjene betonske ali podobne zaprte strukture, izdelane iz primerljivih oslabljenih materialov, ki zadržujejo snovi, tekočine ali prah.
Uporabe radarja v pričujočem dokumentu niso predvidene za potrebe komunikacij. Njihova predvidena uporaba izvzema kakršno koli namerno uporabo za sevanje v okolje.
Pričujoči dokument velja za TLPR, ki sevajo signale RF neposredno z vrha rezervoarja na površino snovi, zajete v zaprtem rezervoarju. Kakršno koli sevanje zunaj rezervoarja je posledica puščanja in se šteje za nenamerne emisije. Velja samo za TLPR, nameščene z namenskimi antenami. Pričujoči dokument ne vključuje nujno vseh značilnosti, ki so lahko potrebne za uporabnika, niti ne predstavlja nujno največje dosegljive zmogljivosti.

General Information

• Status: Published
• Publication Date: 23-Feb-2011
• Technical Committee: ERM TGTLPR - Tank Level Probing Radar
• Current Stage: 12 - Completion
• Due Date: 30-Sep-2011
• Mandate: M/284
• Ref Project: SIST EN 302 372-2 V1.2.1:2011 - Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices (SRD) - Equipment for Detection and Movement; Tanks Level Probing Radar (TLPR) operating in the frequency bands 5,8 GHz, 10 GHz, 25 GHz, 61 GHz and 77 GHz - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices (SRD) - Equipment for Detection and Movement; Tanks Level Probing Radar (TLPR) operating in the frequency bands 5,8 GHz, 10 GHz, 25 GHz, 61 GHz and 77 GHz - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 302 372-2 Version 1.2.1SIST EN 302 372-2 V1.2.1:2011en01-maj-2011SIST EN 302 372-2 V1.2.1:2011SLOVENSKI
STANDARD



SIST EN 302 372-2 V1.2.1:2011



ETSI EN 302 372-2 V1.2.1 (2011-02)Harmonized European Standard Electromagnetic compatibilityand Radio spectrum Matters (ERM);Short Range Devices (SRD);Equipment for Detection and Movement;Tanks Level Probing Radar (TLPR) operating in thefrequency bands 5,8 GHz, 10 GHz, 25 GHz, 61 GHz and 77 GHz;Part 2: Harmonized EN covering the essential requirementsof article 3.2 of the R&TTE Directive SIST EN 302 372-2 V1.2.1:2011



ETSI ETSI EN 302 372-2 V1.2.1 (2011-02) 2

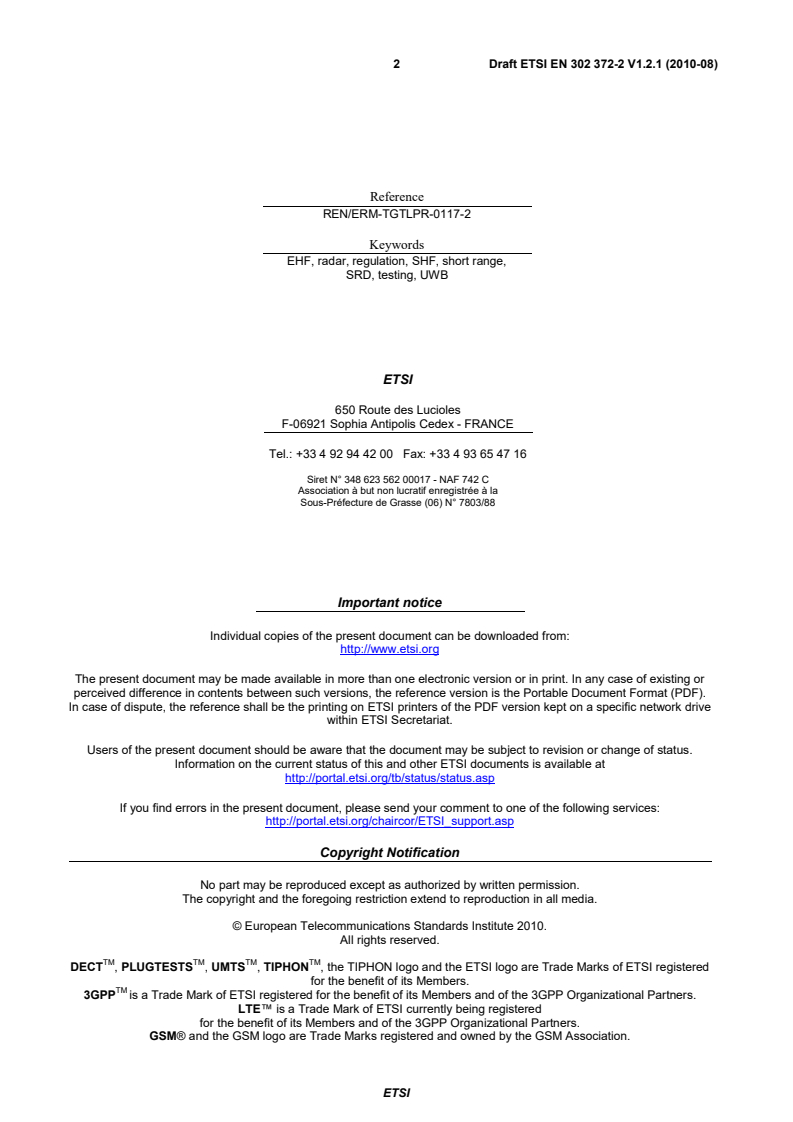

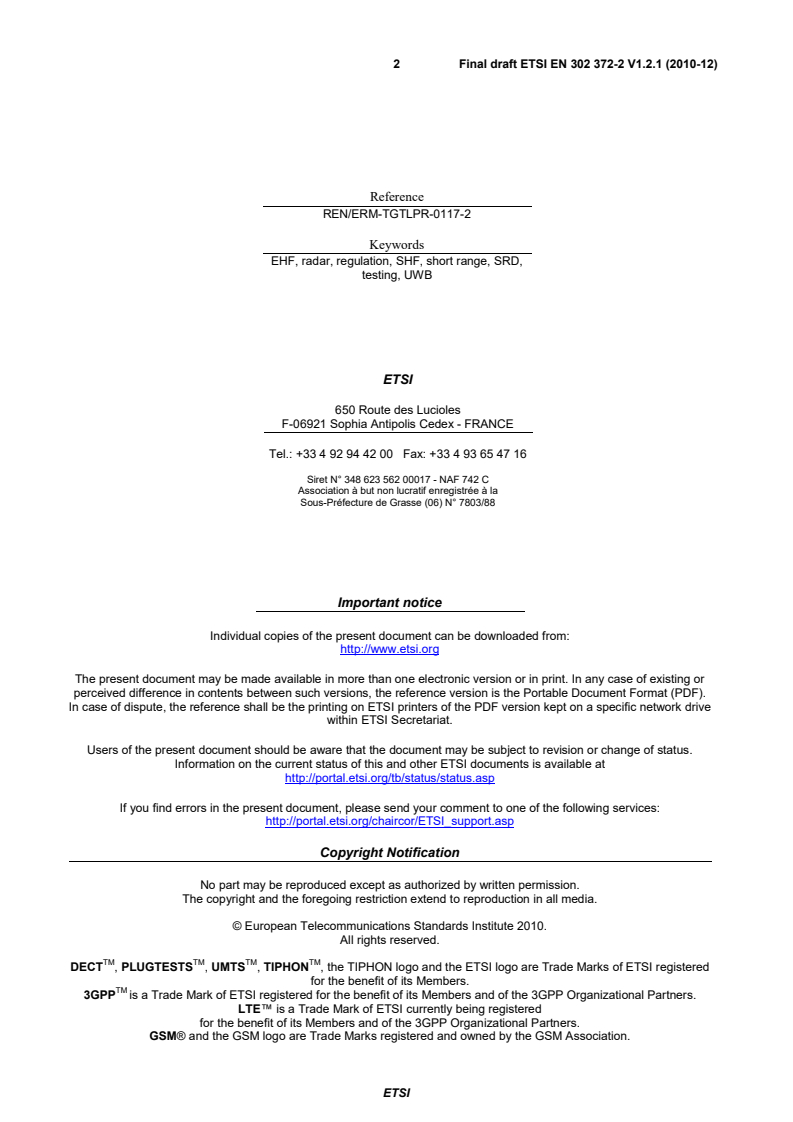

Reference REN/ERM-TGTLPR-0117-2 Keywords EHF, radar, regulation, SHF, short range, SRD, testing, UWB ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 372-2 V1.2.1:2011



ETSI ETSI EN 302 372-2 V1.2.1 (2011-02) 3 Contents Intellectual Property Rights . 4 Foreword . 4 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 6 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 7 3.3 Abbreviations . 7 4 Technical requirements specifications . 7 4.1 Environmental profile . 7 4.2 Conformance requirements . 8 4.2.1 Transmitter requirements . 8 4.2.1.1 Frequency band of operation . 8 4.2.1.2 Duty cycle . 8 4.2.1.3 Equivalent isotropically radiated power . 8 4.2.1.4 Emissions . 8 4.2.1.5 Installation requirements . 8 4.2.1.6 Range of modulation parameters . 8 5 Testing for compliance with technical requirements . 8 5.1 Environmental conditions for testing . 8 5.2 Interpretation of measurement results . 8 5.3 Conformance radio test suites . 8 5.3.1 Normal and extreme test conditions. 9 5.3.2 Test power source . 9 5.3.3 Choice of samples for test suites . 9 5.3.4 Transmitter test suites . 9 5.3.5 Frequency band of operation . 9 5.3.6 Equivalent radiated power . 9 5.3.7 Emissions . 9 5.3.8 Duty Cycle . 9 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 10 Annex B (informative): The EN title in the official languages . 12 History . 13
SIST EN 302 372-2 V1.2.1:2011



ETSI ETSI EN 302 372-2 V1.2.1 (2011-02) 4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC (as amended) [i.1] laying down a procedure for the provision of information in the field of technical standards and regulations. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). For non EEA countries the present document may be used for regulatory (type approval) purposes. The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A. The present document is part 2 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Equipment for Detection and Movement; Tanks Level Probing Radar (TLPR) operating in the frequency bands 5,8 GHz, 10 GHz, 25 GHz, 61 GHz and 77 GHz; as identified below: Part 1: "Technical characteristics and test methods"; Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
National transposition dates Date of adoption of this EN: 21 February 2011 Date of latest announcement of this EN (doa): 31 May 2011 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 November 2011 Date of withdrawal of any conflicting National Standard (dow): 30 November 2012
SIST EN 302 372-2 V1.2.1:2011



ETSI ETSI EN 302 372-2 V1.2.1 (2011-02) 5 Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.5]. SIST EN 302 372-2 V1.2.1:2011



ETSI ETSI EN 302 372-2 V1.2.1 (2011-02) 6 1 Scope The present document specifies the requirements for Tank Level Probing Radar (TLPR) applications based on pulse RF, FMCW, or similar wideband techniques, operating in the following frequency bands or part hereof as specified in t
...
