IEC 61076-2-106:2011

Connectors for electronic equipment - Product requirements - Part 2-106: Circular connectors - Detail specification for connectors M 16 x 0,75 with screw-locking and degree of protection IP40 or IP65/67

IEC 61076-2-106:2011 describes circular connectors with IP40 or IP65/67 protection degree, typically used for industrial process measurement and control. These connectors consist of fixed and free connectors, either rewireable or non-rewireable, with M16 x 0,75 screw-locking. Male connectors have round contacts Ø 1,5 mm or Ø 1,0 mm.

Connecteurs pour équipements éléctroniques - Exigences de produit - Partie 2-106: Connecteurs circulaires - Spécification particulière pour les connecteurs M 16 x 0,75 à vis de degré de protection IP40 ou IP65/67

La CEI 61076-2-106:2011 décrit les connecteurs circulaires qui possèdent un degré de protection IP40 ou IP65/67, généralement utilisés dans le domaine des mesures et commandes des processus industriels. Ces connecteurs se composent d'embases et de fiches, pouvant être recâblées ou non, à vis M16 x 0,75. Les connecteurs mâles possèdent des contacts ronds de Ø 1,5 mm ou Ø 1,0 mm.

General Information

• Status: Published
• Publication Date: 20-Jun-2011
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 21-Jun-2011
• Completion Date: 31-Jul-2011

Overview

IEC 61076-2-106:2011 is an international standard provided by the International Electrotechnical Commission (IEC) that specifies product requirements for circular connectors used in electronic equipment. This part of the IEC 61076 series focuses on detailed specifications for M16 x 0,75 circular connectors with screw-locking mechanisms. It covers connectors with degrees of protection IP40 and IP65/67, making them suitable for various industrial and measurement applications where reliable environmental protection is essential.

These circular connectors are designed primarily for industrial process measurement and control systems. They include fixed and free connector types, available as rewireable or non-rewireable variants. The male connectors feature round contacts of either 1.5 mm or 1.0 mm diameter, ensuring reliable electrical performance.

Key Topics

• Connector Types and Styles
  The standard defines multiple styles of fixed and free connectors, differentiated by mounting type (front or rear), contact gender (male or female), and protection level (IP40 or IP65/67). Protective caps and accessories for these connectors are also specified.

• Degree of Protection (IP Rating)
  The IEC 61076-2-106 standard ensures connectors meet IP40 for basic protection against solids and limited ingress, or IP65/67 for robust protection against dust and water, suitable for harsh environments.

• Mechanical and Electrical Characteristics
  Detailed mechanical requirements such as insertion/withdrawal forces, contact retention, vibration and shock resistance are outlined. The electrical characteristics include rated voltage, rated impulse voltage, current-carrying capacity, insulation resistance, and contact resistance values.

• Dimensions and Interface Specifications
  The standard provides comprehensive dimensional data for interface compatibility, including panel cut-out dimensions and pin location for different connector variants.

• Testing and Compliance
  A full test schedule covers preliminary tests, dynamic/climatic conditions, mechanical endurance, electrical load, chemical resistivity, and connection methods to guarantee performance and safety.

Applications

IEC 61076-2-106:2011 connectors are widely used in:

• Industrial Process Measurement and Control
  Their robust IP65/67-rated versions are ideal for factory automation, instrumentation, and control systems exposed to dust, dirt, and moisture.

• Electronic Equipment Connections
  Ensures secure, reliable electrical connections in diverse electronics requiring screw-locking circular connectors with standardized dimensions.

• Harsh Environment Installations
  The IP65/67 variants provide secure connections for outdoor or industrial environments where exposure to contaminants and water is expected.

• Field Wiring and Maintenance
  The availability of rewireable and non-rewireable free connectors supports ease of installation and maintenance in the field.

Related Standards

• IEC 61076-2 Series
  Other parts cover additional circular connector sizes and styles, extending the scope beyond M16 connectors.

• IEC 60529
  Defines the IP (Ingress Protection) rating system referenced extensively in IEC 61076-2-106 for environmental protection requirements.

• IEC 60228
  Specifies standard conductor sizes and properties which may be applicable for cables terminated by connectors.

• Industry-Specific Standards
  Depending on application, connectors conforming to IEC 61076-2-106 may also comply with additional industrial automation or instrumentation requirements.

---

Keywords: IEC 61076-2-106, circular connectors, M16 x 0.75 connectors, screw-locking connectors, IP40 connectors, IP65/67 connectors, industrial process measurement, electronic equipment connectors, connector dimensions, ingress protection, electrical connector standards.

Standards Content (Sample)

IEC 61076-2-106 ®
Edition 1.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Connectors for electronic equipment – Product requirements –
Part 2-106: Circular connectors – Detail specification for connectors
M 16 × 0,75 with screw-locking and degree of protection IP40 or IP65/67

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 2-106: Connecteurs circulaires – Spécification particulière pour les
connecteurs M 16 × 0,75 à vis de degré de protection IP40 ou IP65/67

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 61076-2-106 ®
Edition 1.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Connectors for electronic equipment – Product requirements –
Part 2-106: Circular connectors – Detail specification for connectors
M 16 × 0,75 with screw-locking and degree of protection IP40 or IP65/67

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 2-106: Connecteurs circulaires – Spécification particulière pour les
connecteurs M 16 × 0,75 à vis de degré de protection IP40 ou IP65/67

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 31.220.10 ISBN 978-2-88912-564-7

– 2 – 61076-2-106  IEC:2011

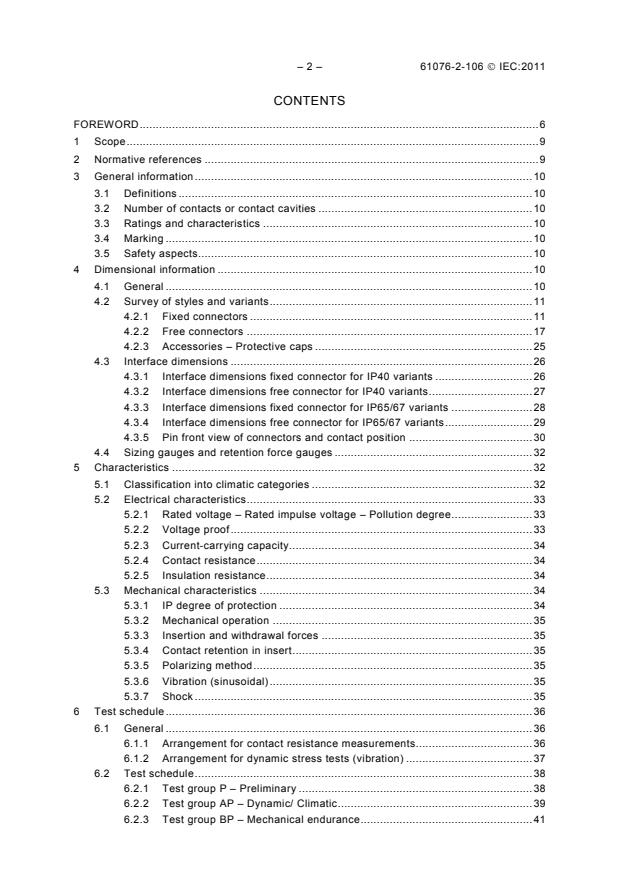

CONTENTS
FOREWORD . 6
1 Scope . 9
2 Normative references . 9
3 General information . 10
3.1 Definitions . 10
3.2 Number of contacts or contact cavities . 10
3.3 Ratings and characteristics . 10
3.4 Marking . 10
3.5 Safety aspects. 10
4 Dimensional information . 10
4.1 General . 10
4.2 Survey of styles and variants . 11
4.2.1 Fixed connectors . 11
4.2.2 Free connectors . 17
4.2.3 Accessories – Protective caps . 25
4.3 Interface dimensions . 26
4.3.1 Interface dimensions fixed connector for IP40 variants . 26
4.3.2 Interface dimensions free connector for IP40 variants . 27
4.3.3 Interface dimensions fixed connector for IP65/67 variants . 28
4.3.4 Interface dimensions free connector for IP65/67 variants . 29
4.3.5 Pin front view of connectors and contact position . 30
4.4 Sizing gauges and retention force gauges . 32
5 Characteristics . 32
5.1 Classification into climatic categories . 32
5.2 Electrical characteristics . 33
5.2.1 Rated voltage – Rated impulse voltage – Pollution degree . 33
5.2.2 Voltage proof . 33
5.2.3 Current-carrying capacity. 34
5.2.4 Contact resistance . 34
5.2.5 Insulation resistance . 34
5.3 Mechanical characteristics . 34
5.3.1 IP degree of protection . 34
5.3.2 Mechanical operation . 35
5.3.3 Insertion and withdrawal forces . 35
5.3.4 Contact retention in insert . 35
5.3.5 Polarizing method . 35
5.3.6 Vibration (sinusoidal) . 35
5.3.7 Shock . 35
6 Test schedule . 36
6.1 General . 36
6.1.1 Arrangement for contact resistance measurements. 36
6.1.2 Arrangement for dynamic stress tests (vibration) . 37
6.2 Test schedule . 38
6.2.1 Test group P – Preliminary . 38
6.2.2 Test group AP – Dynamic/ Climatic . 39
6.2.3 Test group BP – Mechanical endurance . 41

61076-2-106  IEC:2011 – 3 –
6.2.4 Test group CP – Electrical load . 42
6.2.5 Test group DP – Chemical resistivity . 42
6.2.6 Test group EP – Connection method tests . 43
Bibliography . 44

Figure 1 – Fixed connector, male contacts, IP40, front mounting . 11
Figure 2 – Fixed connector, male contacts, IP40, rear mounting . 12
Figure 3 – Fixed connector, male contacts, IP65/67, front mounting . 12
Figure 4 – Fixed connector, male contacts, IP65/67, rear mounting . 13
Figure 5 – Fixed connector, female contacts, IP40, front mounting . 14
Figure 6 – Fixed connector, female contacts, IP40, rear mounting . 14
Figure 7 – Fixed connector, female contacts, IP65/67, front mounting . 15
Figure 8 – Fixed connector, female contacts, IP65/67, rear mounting . 16
Figure 9 – Dimensions panel cut out IP40 . 16
Figure 10 – Dimensions panel cut out IP65/67 . 17
Figure 11 – Free connector, rewireable, straight version, cable outlet with clamping
ring, male contacts, IP40 . 18
Figure 12 – Free connector, rewireable, straight version, flexible cable boot, male
contacts, IP40 . 18
Figure 13 – Free connector, rewireable, right-angled version, flexible cable boot, male
contacts, IP40 . 19
Figure 14 – Free connector, rewireable, straight version, cable outlet with clamping
ring, male contacts, IP65/67 . 19
Figure 15 – Free connector, non-rewireable, straight version, flexible cable boot, male
contacts, IP65/67 . 20
Figure 16 – Free connector, rewireable, right-angled version, male contacts, IP65/67 . 20
Figure 17 – Free connector, non-rewireable, right-angled version, male contacts,
IP65/67 . 21
Figure 18 – Free connector, rewireable, straight version, cable outlet with clamping
ring, female contacts, IP40 . 21
Figure 19 – Free connector, rewireable, straight version, flexible cable boot, female
contacts, IP40 . 22
Figure 20 – Free connector, rewireable, right-angled version, flexible cable boot,
female contacts, IP40 . 22
Figure 21 – Free connector, rewireable, straight version, cable outlet with clamping
ring, female contacts, IP65/67 . 23
Figure 22 – Free connector, non-rewireable, straight version, female contacts, IP65/67 . 23
Figure 23 – Free connector, rewireable, right-angled version, female contacts, IP65/67 . 24
Figure 24 – Free connector, rewireable, right-angled version, female contacts, IP65/67 . 24
Figure 25 – Protective cap - connector with male contacts for IP40 variants . 25
Figure 26 – Protective cap- connector with female contacts for IP40 variants . 25
Figure 27 – Protective cap - connector with male contacts for IP65/67 variants . 25
Figure 28 – Protective cap- connector with female contacts for IP65/67 variants . 26
Figure 29 – Interface dimensions fixed connector for IP40 variants . 26
Figure 30 – Interface dimensions free connector for IP40 variants . 27
Figure 31 – Interface dimensions fixed connector for IP65/67 variants . 28

– 4 – 61076-2-106  IEC:2011
Figure 32 – Interface dimensions free connector for IP65/67 variants . 29
Figure 33 – Pin front view of connectors and contact position (variants 3 to 7a) . 30
Figure 34 – Pin front view of connectors and contact position (variants 7b to 19a) . 31
Figure 35 – Gauge dimensions . 32
Figure 36 – Contact resistance arrangement . 36
Figure 37 – Dynamic stress test arrangement . 37

Table 1 – Contact termination . 10
Table 2 – Styles of fixed connectors . 11
Table 3 – Dimension style AM . 11
Table 4 – Dimension style BM . 12
Table 5 – Dimension style CM . 13
Table 6 – Dimension style DM . 13
Table 7 – Dimension style AF . 14
Table 8 – Dimension style BF . 15
Table 9 – Dimension style CF . 15
Table 10 – Dimension style DF . 16
Table 11 – Dimension panel cut out IP65/67 . 17
Table 12 – Styles of free connectors . 17
Table 13 – Dimensions style IM . 18
Table 14 – Dimensions style JM. 18
Table 15 – Dimensions style KM . 19
Table 16 – Dimensions style LM . 19
Table 17 – Dimensions style MM . 20
Table 18 – Dimensions style NM . 20
Table 19 – Dimensions style OM . 21
Table 20 – Dimensions style IF . 21
Table 21 – Dimensions style JF . 22
Table 22 – Dimensions style KF . 22
Table 23 – Dimensions style LF . 23
Table 24 – Dimensions style MF . 23
Table 25 – Dimensions style NF. 24
Table 26 – Dimensions style OF . 24
Table 27 – Interface dimensions fixed connector for IP40 variants . 26
Table 28 – Interface dimensions free connector for IP40 variants . 27
Table 29 – Interface dimensions fixed connector for IP65/67 variants . 28
Table 30 – Interface dimensions free connector for IP65/67 variants. 29
Table 31 – Gauges . 32
Table 32 – Climatic category . 32
Table 33 – Rated voltage – Impulse voltage – Pollution degree . 33
Table 34 – Voltage proof connectors . 34
Table 35 – Number of mechanical operations . 35
Table 36 – Insertion and withdrawal forces . 35

61076-2-106  IEC:2011 – 5 –
Table 37 – Number of test specimens . 36
Table 38 – Test group P . 38
Table 39 – Test group AP . 39
Table 40 – Test group BP . 41
Table 41 – Test group CP . 42
Table 42 – Test group DP . 42
Table 43 – Test group EP . 43

– 6 – 61076-2-106  IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-106: Circular connectors –
Detail specification for connectors M 16 × 0,75
with screw-locking and degree of protection IP40 or IP65/67

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-2-106 has been prepared by subcommittee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48/2239/FDIS 48/2246/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

61076-2-106  IEC:2011 – 7 –
A list of all parts of the IEC 61076 series, published under the general title Connectors for
electronic equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 8 – 61076-2-106  IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION IEC 61076-2-106
IEC SC 48B – Connectors
ELECTRONIC COMPONENTS
IN ACCORDANCE WITH IEC 61076-1

Circular connectors
M16 × 0,75 mm  2 to 8 poles,
12,14,19 poles
Connectors with round contact
Rewireable
Free cable connectors
Straight and right angle connectors

Fixed connectors
Flange mounting
Rear mounting
IEC  1500/11
61076-2-106  IEC:2011 – 9 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-106: Circular connectors –
Detail specification for connectors M 16 × 0,75
with screw-locking and degree of protection IP40 or IP65/67

1 Scope
This International Standard describes circular connectors with IP40 or IP65/67 protection
degree, typically used for industrial process measurement and control. These connectors
consist of fixed and free connectors, either rewireable or non-rewireable, with M16 × 0,75
screw-locking. Male connectors have round contacts ∅ 1,5 mm or ∅ 1,0 mm.
NOTE IEC 60130-9, Edition 3.0 specified connectors with a similar mating interface for radio and associated
sound equipment. User of this standard should be aware that some of the IEC 60130-9 style could be mated to
some connector styles of this standard. However, IEC 60130-9:2011 (Edition 4.0) no longer includes these styles.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary – Part 581: Electromechanical
components for electronic equipment
IEC 60068-1:1988, Environmental testing – Part 1: General and guidance
Amendment 1 (1992)
IEC 60352-2, Solderless connections – Part 2: Crimped connections – General requirements,
test methods and practical guidance
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements –
Part 1-100: General – Applicable publications
IEC 60529:1989, Degrees of protection provided by enclosures (IP code)
IEC 60664-1:2007, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 61076-1, Connectors for electronic equipment – Product requirements – Part 1: Generic
specification
IEC 61076-2, Connectors for use in d.c., low-frequency analogue and digital high speed data
applications – Part 2: Circular connectors with assessed quality – Sectional specification
IEC 61984:2008, Connectors –Safety requirements and tests
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation

– 10 – 61076-2-106  IEC:2011
3 General information
Throughout this detail specification dimensions are in mm.
3.1 Definitions
For the purposes of this International Standard, the terms and definitions given in
IEC 60050-581 apply.
3.2 Number of contacts or contact cavities
2 to 8, 12, 14 and 19 contacts.
The contact terminations shall be of the following types: crimp or solder.
Other termination types upon agreement.
Table 1 – Contact termination
Dimensions in mm
Number of contacts Max. crimp termination Max. solder termination
a 2)
2 to 8 0,75 0,5 (0,75)
12, 14 and 19 0,25
a
Termination size of the crimp barrel upon agreement.
b
Or upon agreement.
3.3 Ratings and characteristics
Rated voltage: see 5.2.1, Table 33
Current rating: see 5.2.3
Insulation resistance: see 5.2.5
Climatic category: see 5.1, Table 32
Contact spacing:  see Clause 4
3.4 Marking
The marking of the connector and the package shall be in accordance with 2.6 of
IEC 61076-2.
3.5 Safety aspects
For safety aspects IEC 61984 shall be considered unless otherwise specified.
4 Dimensional information
4.1 General
All dimensions in mm are original. Drawings are shown in the first angle projection. The shape
of the connectors may deviate from those given in the following drawings as long as the
specified dimensions are not influenced.

61076-2-106  IEC:2011 – 11 –
For connector dimensions, see 4.2, Survey of styles and variants.
Missing dimensions shall be chosen according to the common characteristics and intended
use.
4.2 Survey of styles and variants
4.2.1 Fixed connectors
Table 2 – Styles of fixed connectors
Style Description
AM Fixed connector, front mounting, male contacts, IP40
BM Fixed connector, rear mounting, male contacts, IP40
CM Fixed connector, front mounting, male contacts, IP65/67
DM Fixed connector, rear mounting, male contacts, IP65/67
AF Fixed connector, front mounting, female contacts, IP40
BF Fixed connector, rear mounting, female contacts, IP40
CF Fixed connector, front mounting, female contacts, IP65/67
DF Fixed connector, rear mounting, female contacts, IP65/67
4.2.1.1 Style AM
L
C
B
F
1)
IEC  1501/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 1 – Fixed connector, male contacts, IP40, front mounting
Table 3 – Dimension style AM
Dimensions in millimetres
Reference Max. Min.
Ø D 20,1 19,9
a
B 2,5
C 6,6 6,2
F 1,0
L 16,5
M
M18 × 0,75
a
B can be 5,0 mm max. for crimp termination.
NOTE For alternative variants Cmax, Lmax upon agreement.
∅D
M
– 12 – 61076-2-106  IEC:2011
4.2.1.2 Style BM
L
B
K
F
1)
IEC  1502/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 2 – Fixed connector, male contacts, IP40, rear mounting
Table 4 – Dimension style BM
Dimensions in millimetres
Reference Max. Min.
Ø D 20,1 19,9
B 2,5
F 1,0
K 15,1 13,4
L 16,5
M M18 × 0,75
NOTE For alternative variants Kmax, Lmax upon agreement.
4.2.1.3 Style CM
L
C
B F
1)
IEC  1503/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 3 – Fixed connector, male contacts, IP65/67, front mounting
∅D
∅D
M
M
61076-2-106  IEC:2011 – 13 –
Table 5 – Dimension style CM
Dimensions in millimetres
Reference Max. Min.
Ø D 20,3 19,7
B 3,0
C 8,0 6,2
F 1,6 1,4
L 18 15,5
M
M18 × 0,75
NOTE For alternative variants Bmax, Cmax, Lmax upon agreement.
4.2.1.4 Style DM
L
K
F
B
1)
IEC  1504/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 4 – Fixed connector, male contacts, IP65/67, rear mounting
Table 6 – Dimension style DM
Dimensions in millimetres
Reference Max. Min.
Ø D 20,3 19,7
B 2,5
F 1,6 1,4
K 15,7 13,4
L 17,2
M
M18 × 0,75
NOTE For alternative variants Bmax, Kmax, Lmax upon agreement.
∅D
M
– 14 – 61076-2-106  IEC:2011
4.2.1.5 Style AF
L
B
E
1)
F
IEC  1504/11
1)
With ring or hexagonal nut width across flats 20 or upon agreement.
Figure 5 – Fixed connector, female contacts, IP40, front mounting
Table 7 – Dimension style AF
Dimensions in millimetres
Reference Max. Min.
Ø D 23,1 19,9
B 5,5
E 1,6 1,4
F 1,0
L 13,2
M M18 × 0,75
NOTE For alternative variants Bmax upon agreement.
4.2.1.6 Style BF
L
B
C
F
1)
IEC  1505/11
1)
With ring or hexagonal nut width across flats 20 or upon agreement.
Figure 6 – Fixed connector, female contacts, IP40, rear mounting
∅D
∅D
M
M
61076-2-106  IEC:2011 – 15 –
Table 8 – Dimension style BF
Dimensions in millimetres
Reference Max. Min.
Ø D 23,1 19,9
B 5,5
C 7,3
F 1,0
L 12,8 11,5
M
M18 × 0,75
NOTE For alternative variants Bmax upon agreement.
4.2.1.7 Style CF
B L
E
1)
IEC  1506/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 7 – Fixed connector, female contacts, IP65/67, front mounting
Table 9 – Dimension style CF
Dimensions in millimetres
Reference Max. Min.
Ø D 20,3 19,7
B 7,1
E 1,6 1,4
L 13,7
M
M18 × 0,75
NOTE For alternative variants Bmax upon agreement.
∅D
M
– 16 – 61076-2-106  IEC:2011
4.2.1.8 Style DF
B L
F
C
1)
IEC  1507/11
1)
With ring or hexagonal nut (Ø D 23,1 max.) width across flats 20 or upon agreement.
Figure 8 – Fixed connector, female contacts, IP65/67, rear mounting
Table 10 – Dimension style DF
Dimensions in millimetres
Reference Max. Min.
Ø D 20,3 19,7
B 7,1
C 8,0 5,3
F 1,6 1,4
L 12,8 11,5
M
M18 × 0,75
NOTE For alternative variants Bmax upon agreement.
4.2.1.9 Panel Cut Outs
For the styles IP40 the Figure 9 is valid for the panel cut out dimensions.
+ 0,1
∅18,0
+ 0,1
2,8
IEC  1508/11
Figure 9 – Dimensions panel cut out IP40
For the styles IP65/67 the Figure 10 and Table 11 are valid for the panel cut out dimensions.
∅D
+ 0,1
19,1
M
61076-2-106  IEC:2011 – 17 –
N
∅D1
∅D1
R
IEC  1509/11
Figure 10 – Dimensions panel cut out IP65/67
Table 11 – Dimension panel cut out IP65/67
Dimensions in millimetres
Reference Max. Min.
Ø D1 18,1 18,0
O 8,4 8,2
R 2,1 1,9
N 17,1 17,0
4.2.2 Free connectors
Table 12 – Styles of free connectors
Dimensions in millimetres
a
Style Description Ø Cable diameter
IM Free connector, rewireable, straight version, cable outlet 4-6 6-8
with clamping ring, male contacts, IP40
JM Free connector, rewireable, straight version, flexible cable 3-6 6-8
boot, male contacts, IP40
KM Free connector, rewireable, right-angled version, flexible 3-6
cable boot, male contacts, IP40
LM Free connector, rewireable, straight version, cable outlet with 4-6 6-8
clamping ring, male contacts, IP65/67
MM Free connector. non-rewireable, straight version, male contacts,
IP65/67
NM Free connector, rewireable, straight version, male 4-6 6-8
contacts, IP65/67
OM Free connector, non-rewireable, right-angled version, male
contacts, IP65/67
Free connector, rewireable, straight version, cable outlet
IF 4-6 6-8
with clamping ring, female contacts, IP40
JF Free connector, rewireable, straight version, flexible cable 3-6 6-8
boot, female contacts, IP40
KF Free connector, rewireable, right-angled version, flexible 3-6
cable boot, female contacts, IP40
LF Free connector, rewireable, straight version, cable outlet with 4-6 6-8
clamping ring, female contacts, IP65/67
MF Free connector, non-rewireable, straight version, female
contacts, IP65/67
NF Free connector, rewireable, right-angled version, female 4-6 6-8
contacts, IP65/67
OF Free connector, non-rewireable, right-angled version, female
contacts, IP65/67
a
Or upon agreement.
O
– 18 – 61076-2-106  IEC:2011
4.2.2.1 Style IM
L
B
IEC  1510/11
Figure 11 – Free connector, rewireable, straight version, cable outlet
with clamping ring, male contacts, IP40
Table 13 – Dimensions style IM
Dimensions in millimetres
Reference Max.
Ø D 19,5
B 54
L 63
4.2.2.2 Style JM
L
B
IEC  1511/11
Figure 12 – Free connector, rewireable, straight version,
flexible cable boot, male contacts, IP40
Table 14 – Dimensions style JM
Dimensions in millimetres
Reference Max.
Ø D 17,5
B 45
L 72
∅D
∅D
61076-2-106  IEC:2011 – 19 –
4.2.2.3 Style KM
B
C
IEC  1512/11
Figure 13 – Free connector, rewireable, right-angled version,
flexible cable boot, male contacts, IP40
Table 15 – Dimensions style KM
Dimensions in millimetres
Reference Max.
Ø D 17,5
B 20,0
C 40
L 65
S 10,5
4.2.2.4 Style LM
L
IEC  1513/11
Figure 14 – Free connector, rewireable, straight version, cable outlet with
clamping ring, male contacts, IP65/67
Table 16 – Dimensions style LM
Dimensions in millimetres
Reference Max.
Ø D 20,5
L 68
L
S
∅D
∅D
– 20 – 61076-2-106  IEC:2011
4.2.2.5 Style MM
L
IEC  1514/11
Figure 15 – Free connector, non-rewireable, straight version,
flexible cable boot, male contacts, IP65/67
Table 17 – Dimensions style MM
Dimensions in millimetres
Reference Max.
Ø D 20,5
L 70
4.2.2.6 Style NM
B C
IEC  1515/11
Figure 16 – Free connector, rewireable, right-angled version,
male contacts, IP65/67
Table 18 – Dimensions style NM
Dimensions in millimetres
Reference Max.
Ø D 20,5
B 21
C 40
L 63
S 15,5
L
S
∅D
∅D
61076-2-106  IEC:2011 – 21 –
4.2.2.7 Style OM
C
B
IEC  1516/11
Figure 17 – Free connector, non-rewireable, right-angled version,
male contacts, IP65/67
Table 19 – Dimensions style OM
Dimensions in millimetres
Reference Max.
Ø D 20,5
B 22
C 49
L 52
S 11
4.2.2.8 Style IF
L
B
IEC  1517/11
Figure 18 – Free connector, rewireable, straight version, cable outlet
with clamping ring, female contacts, IP40
Table 20 – Dimensions style IF
Dimensions in millimetres
Reference Max.
Ø D 19,5
B 54
L 63
L
S
∅D ∅D
– 22 – 61076-2-106  IEC:2011
4.2.2.9 Style JF
L
B
IEC  1518/11
Figure 19 – Free connector, rewireable, straight version, flexible cable boot,
female contacts, IP40
Table 21 – Dimensions style JF
Dimensions in millimetres
Reference Max.
Ø D 17,5
B 46
L 72
4.2.2.10 Style KF
B
C
IEC  1519/11
Figure 20 – Free connector, rewireable, right-angled version,
flexible cable boot, female contacts, IP40
Table 22 – Dimensions style KF
Dimensions in millimetres
Reference Max.
Ø D 17,5
B 21
C 40
L 65
L
S
∅D
∅D
61076-2-106  IEC:2011 – 23 –
4.2.2.11 Style LF
L
IEC  1520/11
Figure 21 – Free connector, rewireable, straight version, cable outlet with
clamping ring, female contacts, IP65/67
Table 23 – Dimensions style LF
Dimensions in millimetres
Reference Max.
Ø D 20,5
L 66
4.2.2.12 Style MF
L
Sealing
IEC  1521/11
Figure 22 – Free connector, non-rewireable, straight version,
female contacts, IP65/67
Table 24 – Dimensions style MF
Dimensions in millimetres
Reference Max.
Ø D 20,5
L 68
∅D
∅D
– 24 – 61076-2-106  IEC:2011
4.2.2.13 Style NF
C
IEC  1522/11
Figure 23 – Free connector, rewireable, right-angled version,
female contacts, IP65/67
Table 25 – Dimensions style NF
Dimensions in millimetres
Reference Max.
Ø D 20,5
S 15,5
C 44
L 63
4.2.2.14 Style OF
B C
Sealing
IEC  1523/11
Figure 24 – Free connector, rewireable, right-angled version,
female contacts, IP65/67
Table 26 – Dimensions style OF
Dimensions in millimetres
Reference Max.
Ø D 20,5
B 22
S 11
C 49
L 52
L
L
S
S
∅∅ DD
∅D
61076-2-106  IEC:2011 – 25 –
4.2.3 Accessories – Protective caps
4.2.3.1 Style PM for IP40 variants
16,0 max.
IEC  1524/11
Figure 25 – Protective cap - connector with male contacts for IP40 variants
NOTE The dimensions shall be chosen according to the male connector.
4.2.3.2 Style PF for IP40 variants
18,5 max.
IEC  1525/11
Figure 26 – Protective cap- connector with female contacts for IP40 variants
NOTE The dimensions shall be chosen according to the female connector.
4.2.3.3 Style QM for IP65/67 variants
Sealing
4,0 min.
IEC  1526/11
Figure 27 – Protective cap - connector with male contacts for IP65/67 variants
NOTE The dimensions shall be chosen according to the male connector.
∅20,5 max.
∅20,5 max.
∅20,5 max.
– 26 – 61076-2-106  IEC:2011
4.2.3.4 Style QF for IP65/67 variants
C
B
T
IEC  1527/11
Figure 28 – Protective cap- connector with female contacts for IP65/67 variants
NOTE The dimensions shall be chosen according to the female connector and the protective cap can be provided
with a fixing-cord.
For the missing dimensions T, B and C see Table 30 – Interface dimensions free connector
for IP65/67 variants.
4.3 Interface dimensions
The interface dimensions of the female styles shall be chosen according to the common
characteristics of the male styles.
4.3.1 Interface dimensions fixed connector for IP40 variants
T
S
H
L
K
IEC  1528/11
Figure 29 – Interface dimensions fixed connector for IP40 variants
Table 27 – Interface dimensions fixed connector for IP40 variants
Dimensions in millimetres
2-8 pole 12, 14, 19 pole
Reference
Max. Min. Max. Min.
H 4,9 4,55 4,9 4,55
F 2,4 2,1 2,4 2,1
D1 12,4 11,9 12,4 11,9
D2 13,6 13,1 13,6 13,1
L 2,5
...
