Ferrite cores - Guidelines on dimensions and the limits of surface irregularities - Part 11: EC-cores for use in power supply applications

IEC 63093-11:2018 specifies the dimensions that are of importance for mechanical interchangeability for a preferred range of EC-cores made of ferrite and the essential dimensions of coil formers to be used with them, as well the effective parameter values to be used in calculations involving them. It also gives guidelines on allowable limits of surface irregularities applicable to EC-cores.
The specifications contained in this document are useful in negotiations between ferrite core manufacturers and customers about surface irregularities.
This first edition cancels and replaces the first edition of IEC 62317-11 published in 2015 and the second edition of IEC 60424-3 published in 2015. This edition constitutes a technical revision.
This document includes the following significant technical changes with respect to IEC 62317­11:2015 and IEC 60424-3:2015:
a) This document integrates IEC 62317-11:2015 and IEC 60424­3:2015;
b) Table 3 – Allowable areas of chips for EC-cores, of IEC 60424-3:2015, has been moved to Annex B (informative) of this document.

Noyaux ferrites - Lignes directrices relatives aux dimensions et aux limites des irrégularités de surface - Partie 11: Noyaux EC destinés aux applications d’alimentation électrique

L’IEC 63093-11:2018 spécifie les dimensions importantes pour l’interchangeabilité mécanique d’une plage préférentielle de noyaux EC en matériaux ferrites et les dimensions essentielles des supports de bobines à utiliser avec, ainsi que les valeurs des paramètres effectifs destinées aux calculs les impliquant. Elle donne également les lignes directrices relatives aux limites admissibles des irrégularités de surface applicables aux noyaux EC.
Les spécifications du présent document sont utiles au dialogue entre les fabricants de noyaux en ferrite et leurs clients sur les irrégularités de surface.Cette première édition annule et remplace la première édition de l’IEC 62317-11 parue en 2015 et la deuxième édition de l’IEC 60424-3 parue en 2015. Cette édition constitue une révision technique.
Ce document inclut les modifications techniques majeures suivantes par rapport à l'IEC 62317­11:2015 et à l’IEC 60424-3:2015:
a) ce document intègre l’IEC 62317-11:2015 et l’IEC 60424­3:2015;
b) le Tableau 3 – Surfaces admissibles des éclats pour les noyaux EC, de l’IEC 60424-3:2015, a été déplacé à l’Annexe B (informative) de ce document.

General Information

Status
Published
Publication Date
20-Jun-2018
Current Stage
PPUB - Publication issued
Completion Date
21-Jun-2018
Ref Project

Buy Standard

Standard
IEC 63093-11:2018 - Ferrite cores - Guidelines on dimensions and the limits of surface irregularities - Part 11: EC-cores for use in power supply applications
English and French language
38 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

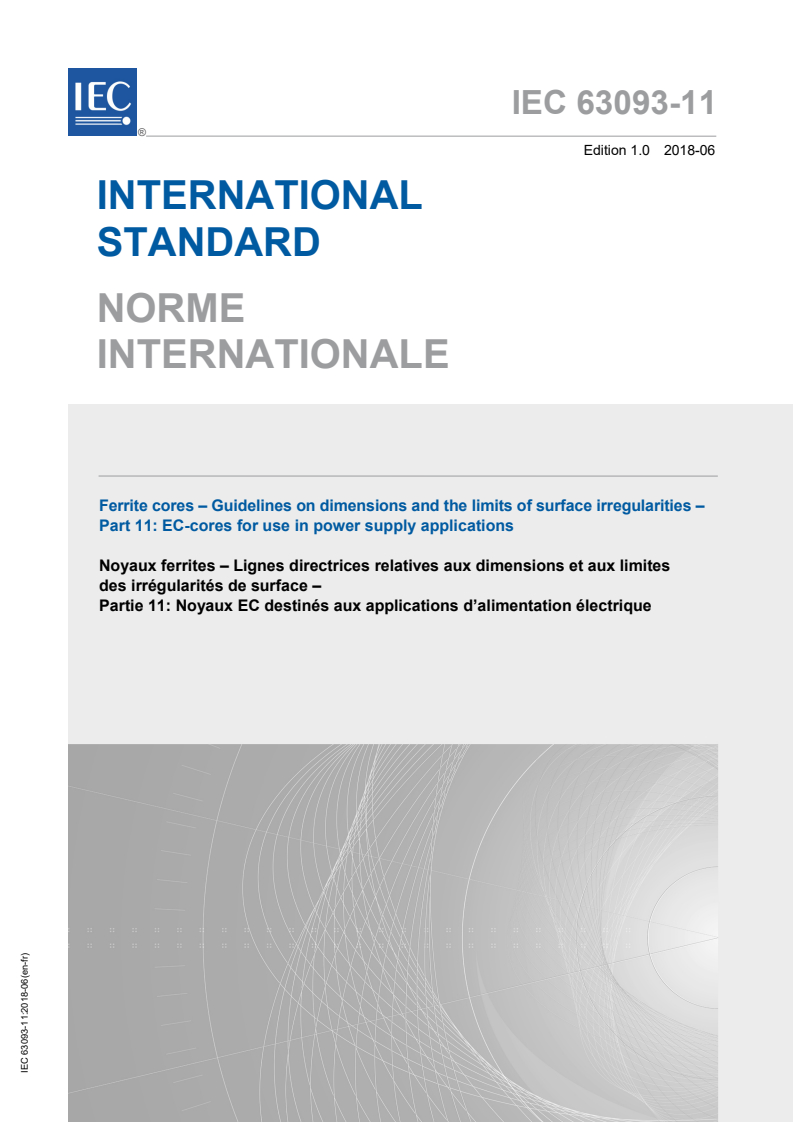

IEC 63093-11
Edition 1.0 2018-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Ferrite cores – Guidelines on dimensions and the limits of surface irregularities –

Part 11: EC-cores for use in power supply applications
Noyaux ferrites – Lignes directrices relatives aux dimensions et aux limites
des irrégularités de surface –
Partie 11: Noyaux EC destinés aux applications d’alimentation électrique
IEC 63093-11:2018-06(en-fr)
---------------------- Page: 1 ----------------------

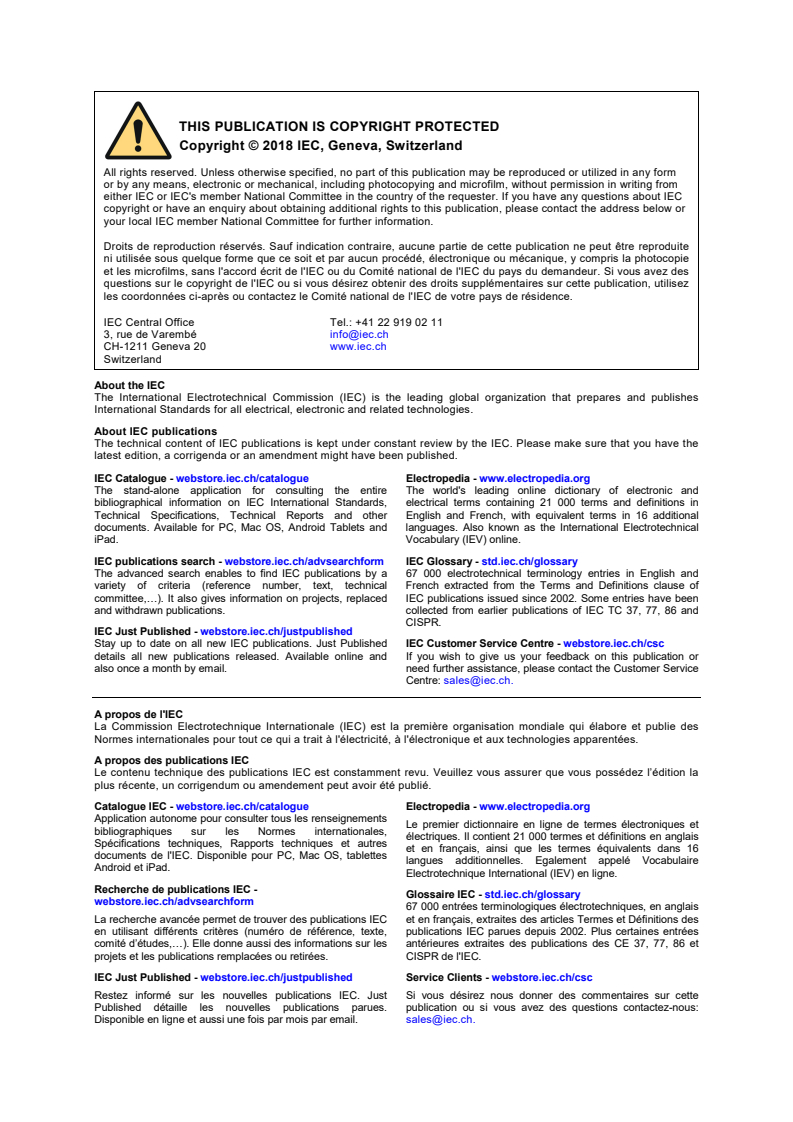

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

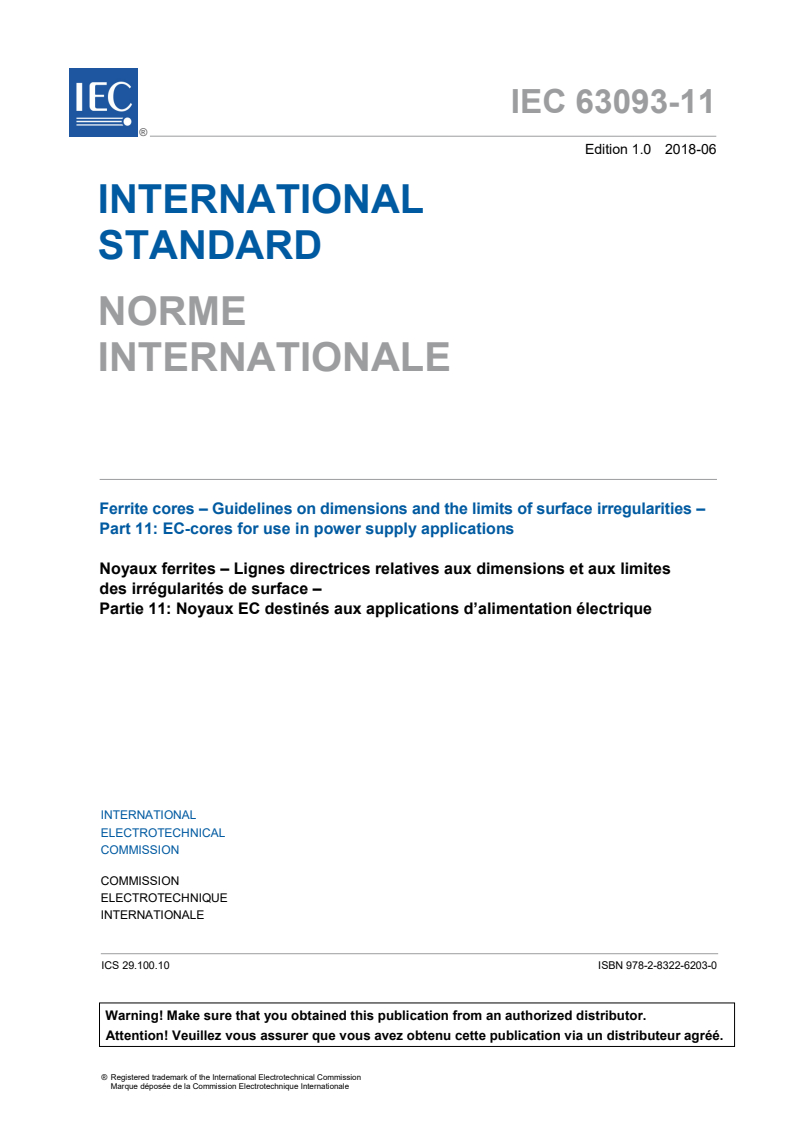

IEC 63093-11
Edition 1.0 2018-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Ferrite cores – Guidelines on dimensions and the limits of surface irregularities –

Part 11: EC-cores for use in power supply applications
Noyaux ferrites – Lignes directrices relatives aux dimensions et aux limites
des irrégularités de surface –
Partie 11: Noyaux EC destinés aux applications d’alimentation électrique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10 ISBN 978-2-8322-6203-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

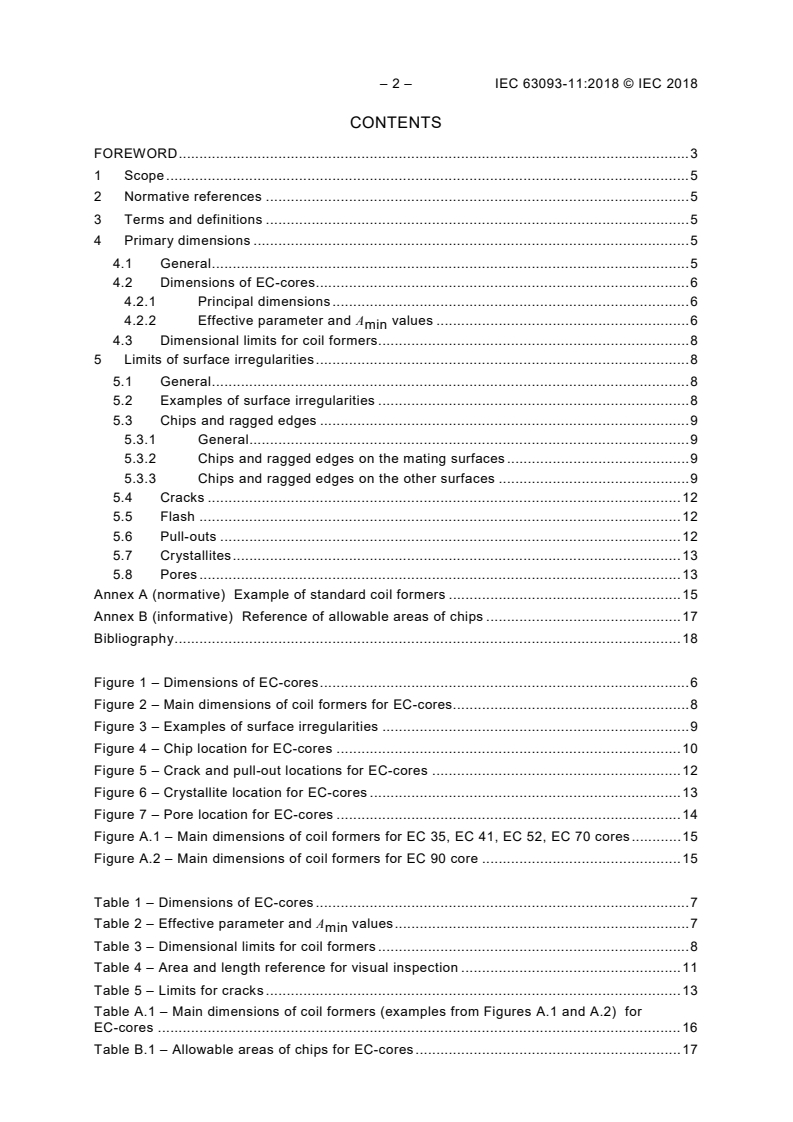

– 2 – IEC 63093-11:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Primary dimensions ......................................................................................................... 5

4.1 General ................................................................................................................... 5

4.2 Dimensions of EC-cores.......................................................................................... 6

4.2.1 Principal dimensions ...................................................................................... 6

4.2.2 Effective parameter and A values ............................................................. 6

min

4.3 Dimensional limits for coil formers........................................................................... 8

5 Limits of surface irregularities .......................................................................................... 8

5.1 General ................................................................................................................... 8

5.2 Examples of surface irregularities ........................................................................... 8

5.3 Chips and ragged edges ......................................................................................... 9

5.3.1 General.......................................................................................................... 9

5.3.2 Chips and ragged edges on the mating surfaces ............................................ 9

5.3.3 Chips and ragged edges on the other surfaces .............................................. 9

5.4 Cracks .................................................................................................................. 12

5.5 Flash .................................................................................................................... 12

5.6 Pull-outs ............................................................................................................... 12

5.7 Crystallites ............................................................................................................ 13

5.8 Pores .................................................................................................................... 13

Annex A (normative) Example of standard coil formers ........................................................ 15

Annex B (informative) Reference of allowable areas of chips ............................................... 17

Bibliography .......................................................................................................................... 18

Figure 1 – Dimensions of EC-cores ......................................................................................... 6

Figure 2 – Main dimensions of coil formers for EC-cores......................................................... 8

Figure 3 – Examples of surface irregularities .......................................................................... 9

Figure 4 – Chip location for EC-cores ................................................................................... 10

Figure 5 – Crack and pull-out locations for EC-cores ............................................................ 12

Figure 6 – Crystallite location for EC-cores ........................................................................... 13

Figure 7 – Pore location for EC-cores ................................................................................... 14

Figure A.1 – Main dimensions of coil formers for EC 35, EC 41, EC 52, EC 70 cores ............ 15

Figure A.2 – Main dimensions of coil formers for EC 90 core ................................................ 15

Table 1 – Dimensions of EC-cores .......................................................................................... 7

Table 2 – Effective parameter and A values ....................................................................... 7

min

Table 3 – Dimensional limits for coil formers ........................................................................... 8

Table 4 – Area and length reference for visual inspection ..................................................... 11

Table 5 – Limits for cracks .................................................................................................... 13

Table A.1 – Main dimensions of coil formers (examples from Figures A.1 and A.2) for

EC-cores .............................................................................................................................. 16

Table B.1 – Allowable areas of chips for EC-cores ................................................................ 17

---------------------- Page: 4 ----------------------
IEC 63093-11:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FERRITE CORES – GUIDELINES ON DIMENSIONS
AND THE LIMITS OF SURFACE IRREGULARITIES –
Part 11: EC-cores for use in power supply applications
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63093-11 has been prepared by IEC technical committee 51:

Magnetic components, ferrite and magnetic powder materials.

This bilingual version (2018-11) corresponds to the monolingual English version, published in

2018-06.

This first edition cancels and replaces the first edition of IEC 62317-11 published in 2015 and

the second edition of IEC 60424-3 published in 2015. This edition constitutes a technical

revision.

This document includes the following significant technical changes with respect to

IEC 62317-11:2015 and IEC 60424-3:2015:
a) This document integrates IEC 62317-11:2015 and IEC 60424-3:2015;
---------------------- Page: 5 ----------------------
– 4 – IEC 63093-11:2018 © IEC 2018

b) Table 3 – Allowable areas of chips for EC-cores, of IEC 60424-3:2015, has been moved to

Annex B (informative) of this document.
The text of this International Standard is based on the following documents:
CDV Report on voting
51/1214/CDV 51/1236/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
The French version of this standard has not been voted upon.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 63093 series, published under the general title Ferrite cores –

Guidelines on dimensions and the limits of surface irregularities, can be found on the IEC

website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 63093-11:2018 © IEC 2018 – 5 –
FERRITE CORES – GUIDELINES ON DIMENSIONS
AND THE LIMITS OF SURFACE IRREGULARITIES –
Part 11: EC-cores for use in power supply applications
1 Scope

This part of IEC 63093 specifies the dimensions that are of importance for mechanical

interchangeability for a preferred range of EC-cores made of ferrite and the essential

dimensions of coil formers to be used with them, as well the effective parameter values to be

used in calculations involving them. It also gives guidelines on allowable limits of surface

irregularities applicable to EC-cores.

The specifications contained in this document are useful in negotiations between ferrite core

manufacturers and customers about surface irregularities.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60205, Calculation of the effective parameters of magnetic piece parts

IEC 60401-1, Terms and nomenclature for cores made of magnetically soft ferrites – Part 1:

Terms used for physical irregularities

IEC 60424-1, Ferrite cores – Guidelines on the limits of surface irregularities – Part 1:

General specification
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60401-1 and

IEC 60424-1 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Primary dimensions
4.1 General

Compliance with the following requirements ensures mechanical interchangeability of

complete assemblies and coil formers.
---------------------- Page: 7 ----------------------
– 6 – IEC 63093-11:2018 © IEC 2018
4.2 Dimensions of EC-cores
4.2.1 Principal dimensions

The principal dimensions of EC-cores shall be those given in Figure 1 and Table 1.

values
4.2.2 Effective parameter and A
min

The effective parameter values of a pair of cores whose dimensions comply with 4.2.1 shall

be as given in Table 2. For the definitions of these parameters and their calculations,

reference shall be made to IEC 60205.
B C
IEC
Figure 1 – Dimensions of EC-cores
---------------------- Page: 8 ----------------------
IEC 63093-11:2018 © IEC 2018 – 7 –
Table 1 – Dimensions of EC-cores
A B C D E F r s T
Size mm mm mm mm mm mm mm mm mm

Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Max. Min. Max. Min. Max.

EC 35 33,7 35,3 17,15 17,45 9,2 9,8 11,9 12,6 22,2 23,3 9,2 9,8 0,5 2,5 3,0 27,7 29,3

EC 41 39,6 41,6 19,35 19,65 11,3 11,9 13,5 14,3 26,3 27,8 11,3 11,9 0,7 3,0 3,3 32,6 34,6

EC 52 50,9 53,5 24,05 24,35 13,05 13,75 15,5 16,3 32,1 33,9 13,05 13,75 0,8 3,5 4,0 42,7 45,3

EC 70 68,3 71,7 34,35 34,65 16,0 16,8 22,3 23,2 43,3 45,7 16,0 16,8 1,0 4,5 5,0 57,9 61,3

EC 90 88,2 91,8 44,35 45,65 29,0 31,0 35,0 36,0 68,5 71,5 29,0 31,0 1,0 5,2 5,8 77,2 80,8

EC 120 118,0 122,0 49,85 51,15 29,0 31,0 35,0 36,0 93,3 96,7 29,0 31,0 1,5 5,2 5,8 107,0 111,0

Table 2 – Effective parameter and A values
min
C C l A V A
1 2 e e e min
Size
-1 -3 2 3 2
mm mm mm mm mm mm
EC 35 0,857 84 9,490 2 × 10 77,5 90,4 7 010 70,9
EC 41 0,718 10 5,851 9 × 10 88,1 123 10 800 106
EC 52 0,572 11 103 181 18 600 141
3,168 9 × 10
EC 70 0,508 60 142 280 39 800 211
1,818 5 × 10
EC 90 0,342 51 0,544 66 × 10 215 629 135 000 570
EC 120 0,324 96 251 772 194 000 707
0,420 96 × 10

NOTE Manufacturers can indicate more precise values in their catalogues than those given in Table 2.

A is specified in IEC 60205.
min
---------------------- Page: 9 ----------------------
– 8 – IEC 63093-11:2018 © IEC 2018
4.3 Dimensional limits for coil formers

The essential dimensions of coil formers suitable for use with a pair of EC-cores shall be as

given in Table 3. The dimensions specified in Table 3 are illustrated in Figure 2.

Examples of standard coil formers are shown in Annex A.
IEC
Figure 2 – Main dimensions of coil formers for EC-cores
Table 3 – Dimensional limits for coil formers
d d d h h
1 2 3 1 2
Size mm mm mm mm mm
Max. Max. Min. Max. Min.
EC 35 21,8 12,3 9,9 23,6 21,4
EC 41 25,8 14,4 12,0 26,8 24,4
EC 52 31,6 16,3 13,85 30,7 28,2
EC 70 42,7 19,6 17,0 44,3 41,3
EC 90 67,7 35,6 31,4 69,6 64,8
EC 120 92,4 35,6 31,4 69,6 64,8
5 Limits of surface irregularities
5.1 General
Surface irregularities are defined in IEC 60424-1.
5.2 Examples of surface irregularities
Figure 3 shows different examples of surface irregularities of an EC-core.
---------------------- Page: 10 ----------------------
IEC 63093-11:2018 © IEC 2018 – 9 –
Cracks
Flash
Ragged
edge
Pull-out
Crystallite
Chip
Pore
IEC
Figure 3 – Examples of surface irregularities
5.3 Chips and ragged edges
5.3.1 General

The minimum area is taken as 0,5 mm , to be distinguishable to the naked eye, and the

maximum allowable area is 25 mm .
Examples of allowable areas of chips are given in Annex C.
5.3.2 Chips and ragged edges on the mating surfaces

The areas of the chips located on the mating surfaces (chip 1 and chip 1' irregularities in

Figure 4) shall not exceed the following limits:

– the cumulative area of the chips shall be less than 6 % of the mating surface (whether

gapped or ungapped) of the centre pole;

– the total length of the ragged edges shall be less than 25 % of the perimeter of the

relevant surface.
5.3.3 Chips and ragged edges on the other surfaces

The allowable areas of chips on the other surfaces are doubled as compared to the limits for

the mating surface (see Figure 4).
The rule for ragged edges is the same as that for the mating surface.
---------------------- Page: 11 ----------------------
– 10 – IEC 63093-11:2018 © IEC 2018
Matching surfaces
Chip 1'
Chip 2
Ragged
edge
Chip 1
IEC
Figure 4 – Chip location for EC-cores
---------------------- Page: 12 ----------------------
IEC 63093-11:2018 © IEC 2018 – 11 –
Area and length reference for visual inspection is given in Table 4.
Table 4 – Area and length reference for visual inspection
---------------------- Page: 13 ----------------------
– 12 – IEC 63093-11:2018 © IEC 2018
5.4 Cracks

The limits for cracks at various locations shown in Figure 5 are given in Table 5.

5.5 Flash

There shall be no flash extending from the core into the wire slot (see Figure 5).

5.6 Pull-outs

For EC-cores, the cumulative area of pull-outs of the core shall be less than 25 % of the total

respective surface area (see Figure 5).
S1''
S1'
S3''
S2'
S2''
S5'
Flash
S5''
Pull-out
S4'
S3'
S4'''
S4''
S6'
IEC
Figure 5 – Crack and pull-out locations for EC-cores
---------------------- Page: 14 ----------------------
IEC 63093-11:2018 © IEC 2018 – 13 –
Table 5 – Limits for cracks
Type Location Limits for Limits for
single crack multiple cracks
Mating surface of centre
S1 and S1' < 25 % of dimension W < 50 % of dimension W
pole
S1" Corner of centre pole Not acceptable Not acceptable

S2 and S2' Mating surface of outer leg < 25 % of dimension H < 25 % of dimension H

S2" Side of outer leg < 25 % of dimension H < 25 % of dimension H
S3 and S3" Centre pole < 25 % of dimension W < 25 % of dimension W
S3' Bottom corner of centre < 25 % of dimension W < 25 % of dimension W
pole / back wall and outer
leg / back wall
S4 Bottom corner of outer leg < 25 % of dimension T < 25 % of dimension T
/ back wall
S4' and S4" Back wall < 25 % of dimension T < 25 % of dimension T
S4''' Back wall < 50 % of dimension W < 100 % of dimension W
S5 and S5' and S5" Outer leg < 50 % of dimension W < 100 % of dimension W
S6 Back surface < 50 % of dimension W < 100 % of dimension W
S6' Back surface < 25 % of dimension W < 25 % of dimension W
S7 Corner of outer leg Not acceptable Not acceptable
5.7 Crystallites
Figure 6 shows an example of crystallite location on EC-cores:

– a single area of crystallites located on any surface shall be less than 2 % of the respective

surface area;

– the cumulative area of the crystallites located on any surface shall be less than 4 % of the

respective surface area (see Figure 6).
Crystallite
IEC
Figure 6 – Crystallite location for EC-cores
5.8 Pores
Figure 7 shows an example of pore location on EC-cores:

– the number of the pores located on the same surface shall not exceed two. The total

number of the pores located on all surfaces shall not exceed five;
– a hole with an area larger than 1 mm on any surface is not acceptable.
---------------------- Page: 15 ----------------------
– 14 – IEC 63093-11:2018 © IEC 2018
Pore
IEC
Figure 7 – Pore location for EC-cores
---------------------- Page: 16 ----------------------
IEC 63093-11:2018 © IEC 2018 – 15 –
Annex A
(normative)
Example of standard coil formers

Examples of standard coil formers for EC 35, EC 41, EC 52 and EC 70 cores are shown in

Figure A.1, and those for EC 90 cores are shown in Figure A.2 and in Table A.1.
c 2
g g g
IEC

Figure A.1 – Main dimensions of coil formers for EC 35, EC 41, EC 52, EC 70 cores

IEC
Figure A.2 – Main dimensions of coil formers for EC 90 core
---------------------- Page: 17 ----------------------
– 16 – IEC 63093-11:2018 © IEC 2018
Table A.1 – Main dimensions of coil formers
(examples from Figures A.1 and A.2) for EC-cores
c d d d e f g h h h h
1 2 3 1 2 3 4
Size mm mm mm mm mm mm mm mm mm mm mm

Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Nominal Min. Max. Min. Max. Min. Max. Min. Max.

EC 35 28,4 28,8 21,3 21,8 12,1 12,3 9,9 10,1 32,4 32,8 9,9 10,1 7,62 23,4 23,6 21,4 21,6 30,43 30,53 33,8 34,2

EC 41 28,4 28,8 25,5 25,8 14,2 14,4 12,0 12,2 37,0 37,4 12,0 12,2 7,62 26,6 26,8 24,4 24,6 32,97 33,07 38,3 38,5

EC 52 43,6 44,0 31,3 31,6 16,1 16,3 13,85 14,05 42,7 43,1 13,85 14,05 7,62 30,4 30,7 28,2 28,4 38,05 38,15 44,2 44,5

EC 70 56,3 56,7 42,4 42,7 19,4 19,6 17,0 17,3 56,0 56,5 17,0 17,3 10,16 44,0 44,3 41,3 41,6 50,75 50,85 57,6 58,0

EC 90 79,5 80,5 66,3 67,7 34,8 35,6 31,4 31,8 76,0 77,0 31,2 32,1 - 68,6 69,6 64,8 65,8 - - 89,1 90,5

---------------------- Page: 18 ----------------------
IEC 63093-11:2018 © IEC 2018 – 17 –
Annex B
(informative)
Reference of allowable areas of chips

The reference of allowable areas of chips for a given core is summarized in Table B.1.

NOTE Table B.1 has been taken from IEC 60424-3:2015, Table 3, and is included in Annex B for ease of

reference.
Table B.1 – Allowable areas of chips for EC-cores
Core size Mating surfaces Other surfaces
2 2
mm mm
EC 35 < 4 < 8
EC 41 < 6 < 12,5
EC 52 < 8 < 15
EC 70 < 12,5 < 25
EC 90 < 25 < 50
EC 20 < 25 < 50
---------------------- Page: 19 ----------------------
– 18 – IEC 63093-11:2018 © IEC 2018
Bibliography

IEC 60424-3:2015, Ferrite cores – Guidelines on the limits of surface irregularities – Part 3:

ETD-cores, EER-cores, EC-cores and E-cores

IEC 62317-11, Ferrite cores – Dimensions – Part 11: EC-cores for use in power supply

applications
_____________
____________
Withdrawn publication.
Withdrawn publication.
---------------------- Page: 20 ----------------------
