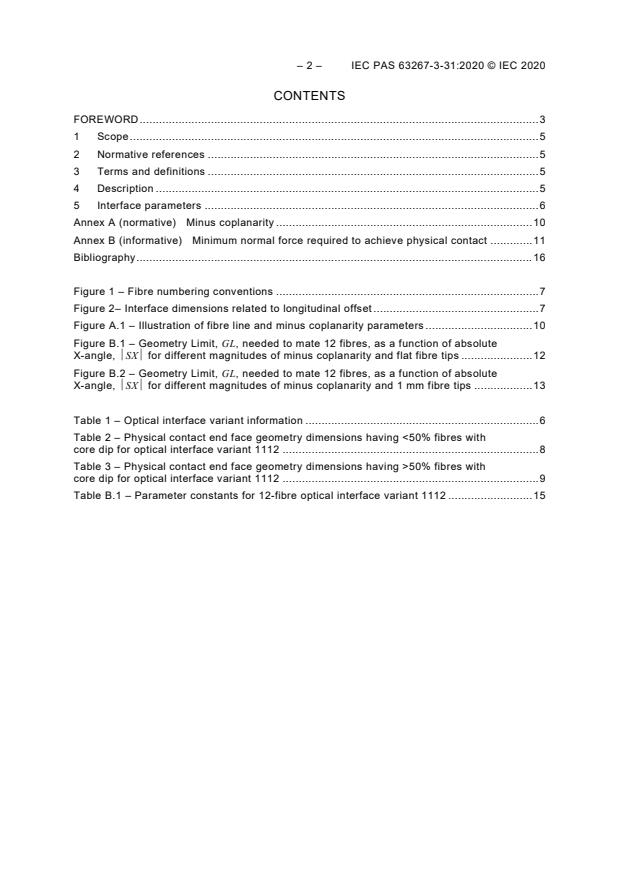

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Description . 5
5 Interface parameters . 6
Annex A (normative) Minus coplanarity . 10
Annex B (informative) Minimum normal force required to achieve physical contact . 11
Bibliography . 16
Figure 1 – Fibre numbering conventions . 7
Figure 2– Interface dimensions related to longitudinal offset . 7
Figure A.1 – Illustration of fibre line and minus coplanarity parameters . 10
Figure B.1 – Geometry Limit, GL, needed to mate 12 fibres, as a function of absolute
X-angle, SX for different magnitudes of minus coplanarity and flat fibre tips . 12
Figure B.2 – Geometry Limit, GL, needed to mate 12 fibres, as a function of absolute
X-angle, SX for different magnitudes of minus coplanarity and 1 mm fibre tips . 13
Table 1 – Optical interface variant information . 6
Table 2 – Physical contact end face geometry dimensions having <50% fibres with
core dip for optical interface variant 1112 . 8
Table 3 – Physical contact end face geometry dimensions having >50% fibres with
core dip for optical interface variant 1112 . 9
Table B.1 – Parameter constants for 12-fibre optical interface variant 1112 . 15
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
FIBRE OPTIC CONNECTOR OPTICAL INTERFACES –
Part 3-31: End face geometry – Flat PC PPS rectangular ferrule
multimode fibres
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
A PAS is an intermediate specification made available to the public and needing a lower level
of consensus than an International Standard to be approved by vote (simple majority).
IEC PAS 63267-3-31 has been processed by subcommittee 86B: Fibre optic interconnecting
devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this PAS is based on the This PAS was approved for
following document: publication by the P-members of the
committee concerned as indicated in
the following document
Draft PAS Report on voting
86B/4231/PAS 86B/4249/RVDPAS
Following publication of this PAS, which is a pre-standard publication, the technical committee
or subcommittee concerned may transform it into an International Standard.
– 4 – IEC PAS 63267-3-31:2020 © IEC 2020
This PAS shall remain valid for an initial maximum period of 2 years starting from the publication
date. The validity may be extended for a single period up to a maximum of 2 years, at the end
of which it shall be published as another type of normative document, or shall be withdrawn.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
FIBRE OPTIC CONNECTOR OPTICAL INTERFACES –
Part 3-31: End face geometry – Flat PC PPS rectangular ferrule
multimode fibres
1 Scope
This part of IEC 63267 defines certain dimensional limits of a flat PC rectangular polyphenylene
sulphide (PPS) ferrule optical interface in order to meet specific longitudinal offset requirements
for fibre-to-fibre interconnection. Ferrules made from the material specified in this PAS are
suitable for use in categories C, U, E, and O as defined in IEC 61753-1.
Ferrule interface dimensions and features are contained in IEC 61754 (all parts), which deals
with fibre optic connector interfaces.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61300-3-30, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-30: Examinations and measurements – Polish angle and
fibre position on single ferrule multifibre connectors
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Description
The performance of a multimode flat PC rectangular ferrule optical interface is determined by
the accuracy with which the optical datum targets of two mating ferrules are aligned with each
other. There are three conditions affecting the alignment of the optical datum targets: lateral
offset, angular offset, and longitudinal offset.
Parameters influencing the lateral and angular offset of the optical fibre axes include the
following:
– fibre hole deviation from designated location;
– fibre cladding diameter relative to fibre hole clearance;
– fibre hole angular misalignment;
– fibre core concentricity relative to the cladding diameter;
– alignment pin diameter relative to the guide hole clearance.
– 6 – IEC PAS 63267-3-31:2020 © IEC 2020
Parameters influencing the longitudinal offset of the optical fibre axes include the following:
– fibre protrusion;
– fibre array minus coplanarity;
– adjacent fibre height differential;
– end face angle in the x-axis;
– end face angle in the y-axis;
– end face radius in the x-axis;
– end face radius in the y-axis;
– fibre tip spherical radii;
– axial force on ferrule end face;
– ferrule and fibre material constants;
– frictional force of alignment pins in ferrule guide holes;
– core dip.
5 Interface parameters
This PAS defines the dimensional limits of flat PC rectangular ferrules with a single row of
12 fibres. The fibre centres are spaced with a nominal alignment pitch of 0,25 mm. Interface
variant, which identify nominal ferrule cross-section, is given in Table 1. The fibre numbering
conventions are illustrated in Figure 1.
End face geometry limits associated with longitudinal offset when < 50 % of the fibres have
core dip are specified in Table 2. End face geometry limits associated with longitudinal offset
when > 50 % of the fibres have core dip are specified in Table 3. In this case, geometry limit
(GL) is not calculated and maximum minus coplanarity is reduced.
Table 1 – Optical interface variant information
b, c a
Number of fibres
Variant n
...
