Standards Content (sample)

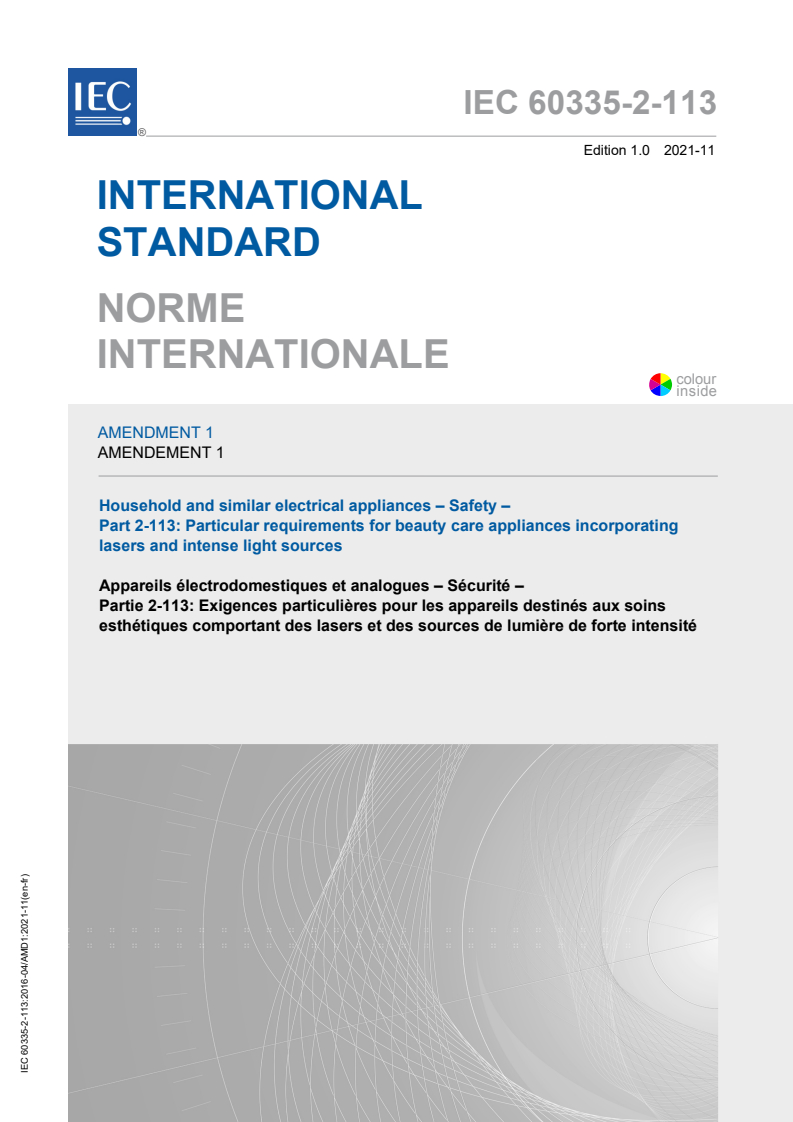

IEC 60335-2-113
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-113: Particular requirements for beauty care appliances incorporating
lasers and intense light sources
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-113: Exigences particulières pour les appareils destinés aux soins
esthétiques comportant des lasers et des sources de lumière de forte intensité
IEC 60335-2-113:2016-04/AMD1:2021-11(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

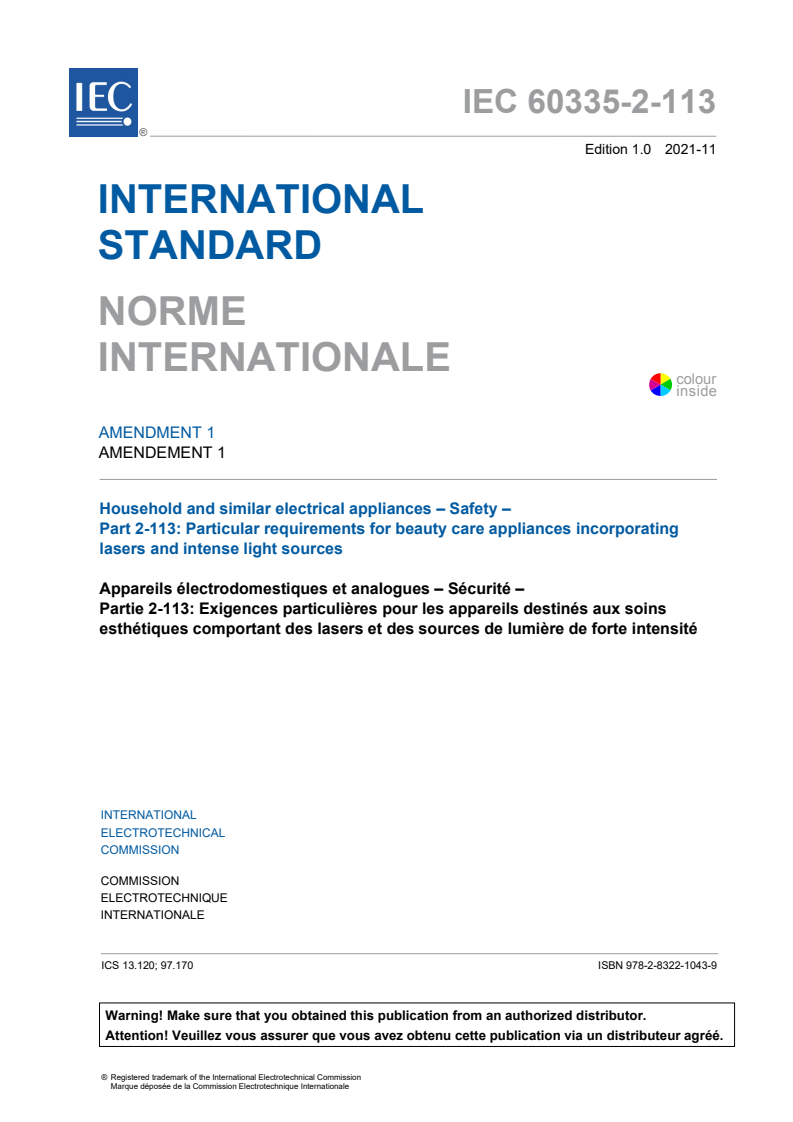

IEC 60335-2-113
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-113: Particular requirements for beauty care appliances incorporating
lasers and intense light sources
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-113: Exigences particulières pour les appareils destinés aux soins
esthétiques comportant des lasers et des sources de lumière de forte intensité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.170 ISBN 978-2-8322-1043-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

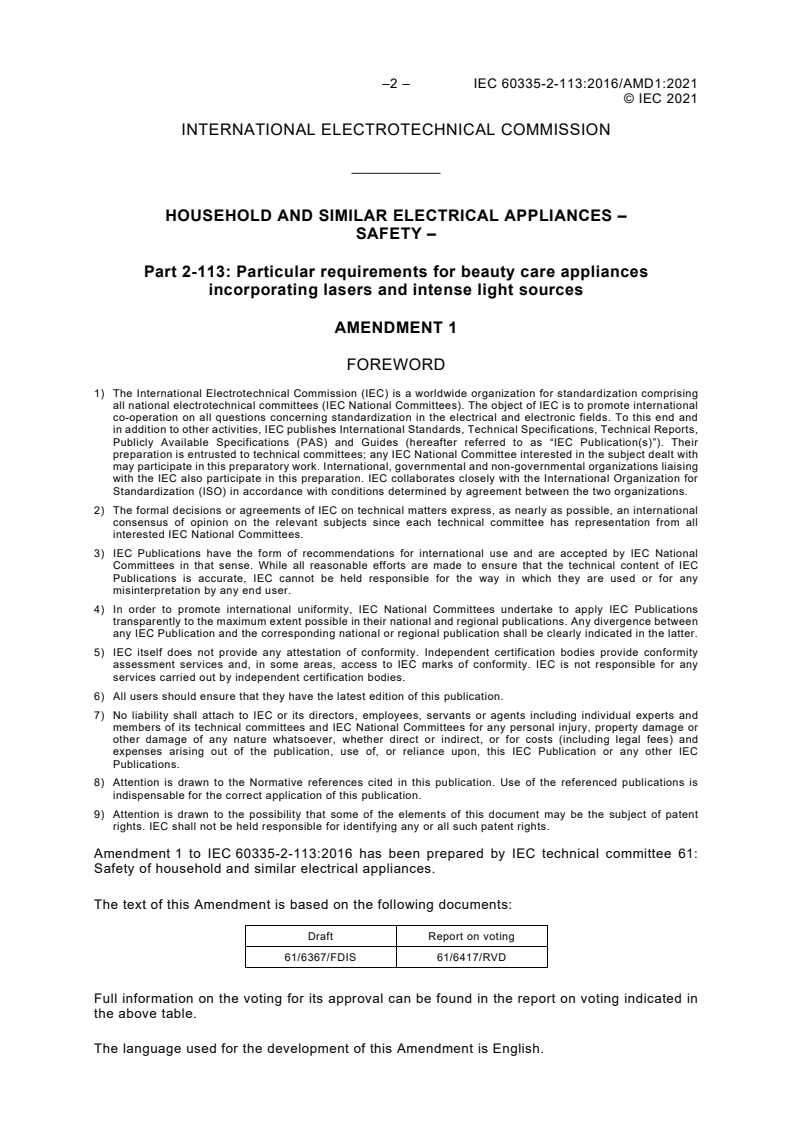

–2 – IEC 60335-2-113:2016/AMD1:2021
© IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-113: Particular requirements for beauty care appliances
incorporating lasers and intense light sources
AMENDMENT 1
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

Amendment 1 to IEC 60335-2-113:2016 has been prepared by IEC technical committee 61:

Safety of household and similar electrical appliances.
The text of this Amendment is based on the following documents:
Draft Report on voting
61/6367/FDIS 61/6417/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Amendment is English.
---------------------- Page: 4 ----------------------
IEC 60335-2-113:2016/AMD1:2021 – 3 –
© IEC 2021

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications/.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or

revised tests.

It is the recommendation of the committee that the content of this publication be adopted for implementation nationally

not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
____________
Title of Part 2-113
Delete, in the existing title, "cosmetic and".
1 Scope
Delete in the 2 paragraph, "cosmetic and".
2 Normative references
Replace the reference to ISO 7010 with the following new reference:

ISO 7010:2019, Graphical symbols – Safety colours and safety signs – Registered safety signs

3 Terms and definitions

In the Addition, replace "IEC 60825-1" by "IEC 60825-1:2014" and replace "IEC 62471" by

"IEC 62471:2006".
3.101 Replace the term and definition by the following:
accessible emission limit
maximum accessible emission permitted within a particular class of laser product
---------------------- Page: 5 ----------------------
–4 – IEC 60335-2-113:2016/AMD1:2021
© IEC 2021
Note 1 to entry: Accessible emission limit is hereinafter referred to as AEL.

Note 2 to entry: Wherever the text refers to "emission level not exceeding the AEL" or similar wording, it is implicit

that the accessible emission is determined following the measurement criteria specified in Clause 5 of

IEC 60825-1:2014.
3.103 Replace the existing term and definition with "Void".
3.104 Replace the definition and Note 1 to entry by the following:

state that is established when the applicator is positioned at the target skin so that the skin

acts to effectively prevent stray optical radiation emission in excess of the AEL for Class 1

laser products or the emission limits for the exempt group for intense light sources

3.108 Replace the existing term and definition with "Void".
7 Marking and instructions
7.1 Addition
Replace the 3 dashed item by the following:
– for Class 1C laser product appliances,
• sign shown in Figure 101; or
• warning sign ISO 7010-W004 (2019-07) and the substance of the following:
Laser radiation. Follow instructions. Class 1C laser product.
Replace, in the 4 dashed item, "symbol" by "warning sign".
7.6 Addition
Replace the first entry by the following:
[warning sign ISO 7010-W004 (2019-07)] Warning: Laser beam

Replace, in the second entry, "[symbol ISO 7010-W027 (2011-05)]" by "[warning sign ISO 7010-

W027 (2019-07)]".
7.12 Addition
th nd

Replace, in the 4 paragraph beginning with "For appliance incorporating lasers...", 2 dashed

item, "embedded laser" by "laser product".
th th

Delete, in the 4 paragraph of the Addition, 4 dashed item, "for a Class 1C laser product

appliance that contains an embedded laser".

Replace, in the last paragraph of the Addition, "symbol ISO 7000-1329" by "warning sign ISO

7010-W004, sign shown in Figure 101," and replace "symbol ISO 7010-W027" by "warning sign

ISO 7010-W027 (2019-07)".
---------------------- Page: 6 ----------------------
IEC 60335-2-113:2016/AMD1:2021 – 5 –
© IEC 2021
7.14 Addition

Replace "outer diameter of symbol ISO 7000-1329" by "height of the triangle in warning sign

ISO 7010-W004, height of the sign shown in Figure 101,"
Replace "symbol ISO 7010-W027" by "warning sign ISO 7010-W027 (2019-07)".
7.15 Addition

Replace, in the last sentence "AEL of the exempt group" by "emission limits of the exempt

group".
13 Leakage current and electric strength at operating temperature
Replace the text by the following:
This clause of Part 1 is applicable except as follows:
13.1 Addition:
Compliance is also checked by the test of 13.101.
13.2 Addition:

For an applicator intended to make contact with the human body, the allowable limit for leakage

current is 0,1 mA.

13.101 The leakage current for the applicator intended to make contact with the human body

shall also be measured between the part in contact with the human body and the poles of the

supply with each supply conductor interrupted one at a time and shall not exceed 0,5 mA.

21 Mechanical strength
Add the following new Subclauses 21.102 and 21.103:

21.102 The enclosure of a detachable power supply part used in a flexible cord shall have

adequate mechanical strength against crushing.
Compliance is checked by the following test.

The appliance is operated under the conditions of Clause 11 with the detachable power supply

part placed on the floor of the test corner.

After steady conditions are established, a compression force of 1 350 N is applied to the

detachable power supply part enclosure. The compression force is applied for one minute

using a flat surface 100 mm × 250 mm and repeated with the detachable power supply part

placed in all possible different orientations.

The detachable power supply part shall not be damaged to such an extent that compliance

with 8.1 and Clause 29 is impaired and it shall not emit flames or molten metal.

21.103 The enclosure of a detachable power supply part used in a flexible cord shall have

adequate mechanical strength against dropping.
Compliance is checked by the following test.
---------------------- Page: 7 ----------------------
–6 – IEC 60335-2-113:2016/AMD1:2021
© IEC 2021

The detachable power supply part is placed in a sling that is constructed by tying together

the four corners of a single layer of cheesecloth. The lowest point of the sling is suspended at

a height of 900 mm above a concrete or similar hard surface.

The detachable power supply part in the sling is dropped from a stationary position. The test

is carried out a total of five times with the detachable power supply part being positioned so

that it falls onto the concrete surface in five different orientations.

The detachable power supply part shall not be damaged to such an extent that compliance

with 8.1 and Clause 29 is impaired.
22 Construction

22.106 Replace, in the first dashed item of the requirement, "an embedded laser" with "a laser

product".
22.107 Replace the text by the following:
If an appliance incorporates

– a laser product that emits above the AEL of a Class 3B laser product in IEC 60825-1:2014;

– an ILS classified as risk group 3 as defined in 6.1.4 of IEC 62471:2006 (continuous wave

light source) or in 6.2 of IEC 62471:2006 (pulsed light source),

it shall have means to assess the skin pigmentation level and means to adjust the output

according to the skin pigmentation level so that damage to the bulk tissue is avoided.

NOTE The means to assess the skin pigmentation level can be via a colour chart.

Means of assessing the pigmentation level is not required if the appliance is not capable of

damaging the bulk tissue of any skin type when set at the maximum output.

Compliance is checked by inspection. For devices without means to adjust the output, the

manufacturer shall supply a validation study on human skin showing that damage to the bulk

tissue does not occur. The study shall be a registered clinical study in accordance with good

clinical practice as described in ISO 14155.

If compliance relies on an electronic circuit that is programmable, the software shall contain

measures to control the fault/error conditions specified in Table R.1 and it is evaluated in

accordance with the relevant requirements of Annex R.

22.108 Replace, in the first paragraph of the requirement, "an embedded laser" with "a laser

product".

Replace the second sentence of the sixth paragraph of the test specification, beginning with

"The emission level shall not exceed...", by the following:

The stray optical radiation shall not exceed the AEL of Class 1 as specified in Table 3 and

Table 4 of IEC 60825-1:2014 for an emission duration of 10 s, unless the appliance emission is

limited to a shorter emission duration.

Replace, in item a) of the seventh paragraph of the test specification, the third paragraph

beginning with "The emission level shall be below...", by the following:
---------------------- Page: 8 ----------------------
IEC 60335-2-113:2016/AMD1:2021 – 7 –
© IEC 2021

The stray optical radiation shall not exceed the AEL of Class 1 as specified in Table 3 and

Table 4 of IEC 60825-1:2014 for an emission duration of 10 s, unless the appliance emission is

limited to a shorter emission duration, after the loss of good contact with the skin.

Replace, in item b) of the seventh paragraph of the test specification, the third paragraph,

beginning with "After and during each individual test...", by the following:

The stray optical radiation shall not exceed the AEL of Class 1 as specified in Table 3 and

Table 4 of IEC 60825-1:2014 for an emission duration of 10 s, unless the appliance emission is

limited to a shorter emission duration, after the loss of good contact with the skin.

22.109 Replace the second sentence of the sixth paragraph of the test specification, beginning

with "The emission level shall not exceed the AEL...." by the following:

The emission level shall not exceed the emission limits of the exempt group specified in

Table 6.1 of IEC 62471
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
