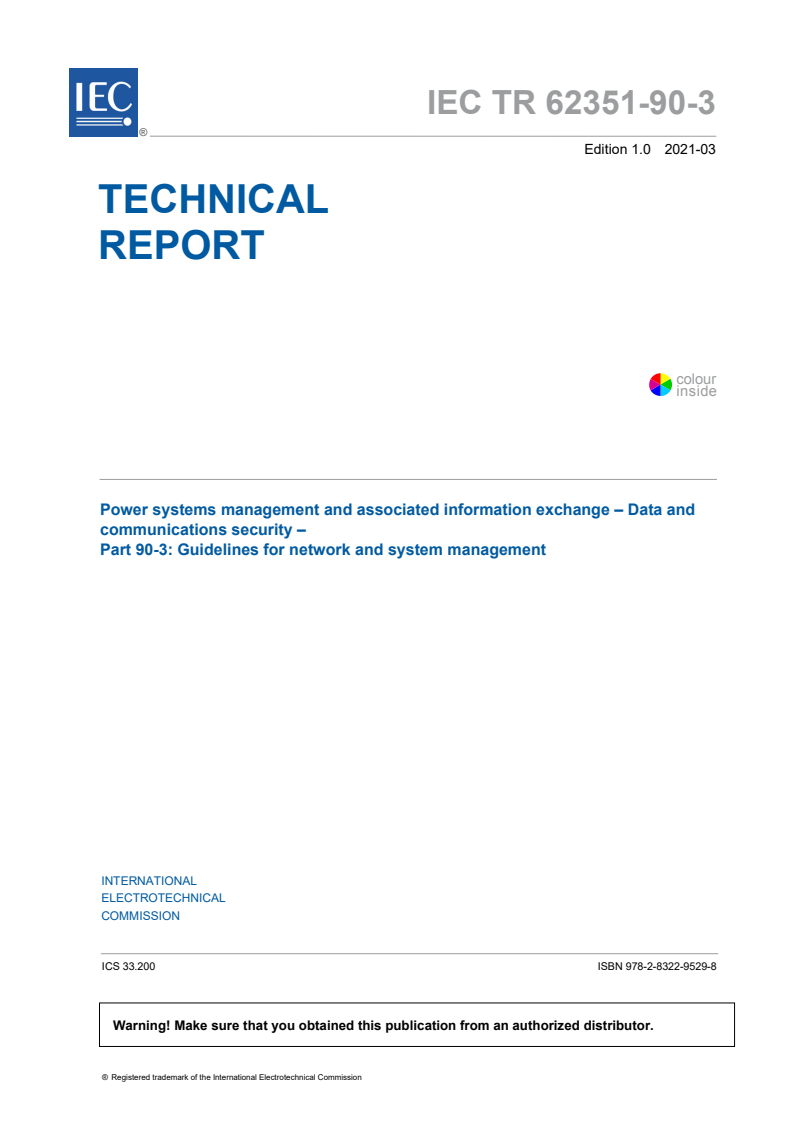

IEC TR 62351-90-3
Edition 1.0 2021-03
TECHNICAL
REPORT
colour
inside
Power systems management and associated information exchange – Data and
communications security –
Part 90-3: Guidelines for network and system management
IEC TR 62351-90-3:2021-03(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TR 62351-90-3
Edition 1.0 2021-03
TECHNICAL
REPORT
colour
inside
Power systems management and associated information exchange – Data and
communications security –
Part 90-3: Guidelines for network and system management
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.200 ISBN 978-2-8322-9529-8

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TR 62351-90-3:2021 © IEC 2021

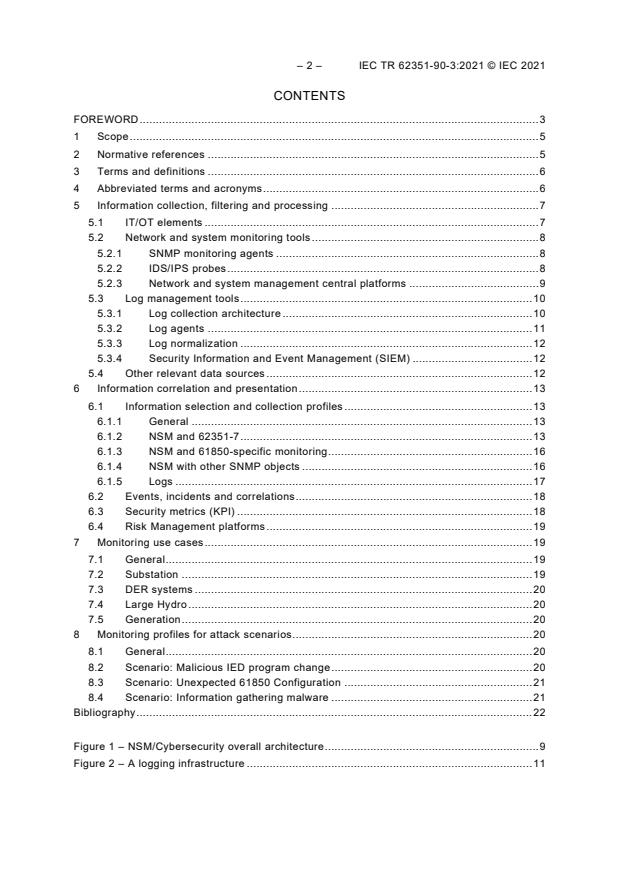

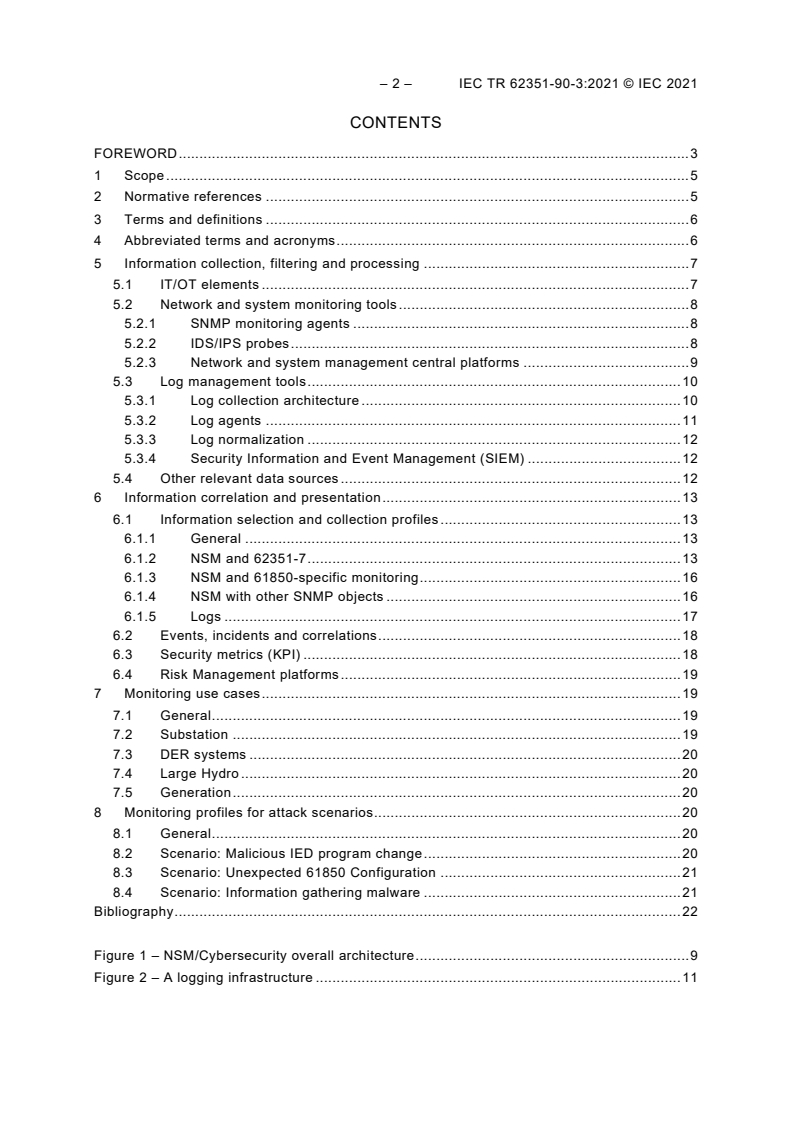

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 6

4 Abbreviated terms and acronyms ..................................................................................... 6

5 Information collection, filtering and processing ................................................................ 7

5.1 IT/OT elements ....................................................................................................... 7

5.2 Network and system monitoring tools ...................................................................... 8

5.2.1 SNMP monitoring agents ................................................................................. 8

5.2.2 IDS/IPS probes ................................................................................................ 8

5.2.3 Network and system management central platforms ........................................ 9

5.3 Log management tools .......................................................................................... 10

5.3.1 Log collection architecture ............................................................................. 10

5.3.2 Log agents .................................................................................................... 11

5.3.3 Log normalization .......................................................................................... 12

5.3.4 Security Information and Event Management (SIEM) ..................................... 12

5.4 Other relevant data sources .................................................................................. 12

6 Information correlation and presentation ........................................................................ 13

6.1 Information selection and collection profiles .......................................................... 13

6.1.1 General ......................................................................................................... 13

6.1.2 NSM and 62351-7 .......................................................................................... 13

6.1.3 NSM and 61850-specific monitoring ............................................................... 16

6.1.4 NSM with other SNMP objects ....................................................................... 16

6.1.5 Logs .............................................................................................................. 17

6.2 Events, incidents and correlations ......................................................................... 18

6.3 Security metrics (KPI) ........................................................................................... 18

6.4 Risk Management platforms .................................................................................. 19

7 Monitoring use cases ..................................................................................................... 19

7.1 General ................................................................................................................. 19

7.2 Substation ............................................................................................................ 19

7.3 DER systems ........................................................................................................ 20

7.4 Large Hydro .......................................................................................................... 20

7.5 Generation ............................................................................................................ 20

8 Monitoring profiles for attack scenarios .......................................................................... 20

8.1 General ................................................................................................................. 20

8.2 Scenario: Malicious IED program change .............................................................. 20

8.3 Scenario: Unexpected 61850 Configuration .......................................................... 21

8.4 Scenario: Information gathering malware .............................................................. 21

Bibliography .......................................................................................................................... 22

Figure 1 – NSM/Cybersecurity overall architecture .................................................................. 9

Figure 2 – A logging infrastructure ........................................................................................ 11

---------------------- Page: 4 ----------------------
IEC TR 62351-90-3:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER SYSTEMS MANAGEMENT AND ASSOCIATED INFORMATION
EXCHANGE – DATA AND COMMUNICATIONS SECURITY –
Part 90-3: Guidelines for network and system management
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC TR 62351-90-3 has been prepared by IEC technical committee 57: Power systems
management and associated information exchange. It is a Technical Report.
The text of this Technical Report is based on the following documents:
DTR Report on voting
57/2255/DTR 57/2337/RVDTR

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Technical Report is English.
---------------------- Page: 5 ----------------------
– 4 – IEC TR 62351-90-3:2021 © IEC 2021

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts of the IEC 62351 series, under the general title: Power systems management

and associated information exchange – Data and communications security, can be found on the

IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
---------------------- Page: 6 ----------------------
IEC TR 62351-90-3:2021 © IEC 2021 – 5 –
POWER SYSTEMS MANAGEMENT AND ASSOCIATED INFORMATION
EXCHANGE – DATA AND COMMUNICATIONS SECURITY –
Part 90-3: Guidelines for network and system management
1 Scope

This part of IEC 62351, which is a technical report, provides guidelines for efficiently handling

both IT and OT data in terms of their monitoring, classification and correlations on them to

deduce any possible useful outcomes about the state of the power system.

The convergence of information technologies (IT) and operational technologies (OT) refers to

the integration of the systems, processes and data associated with the domains of IT and OT.

This document provides guidelines for a comprehensive security monitoring for power grid

components based on IT/OT convergent systems. The emphasis is about the development of a

methodology and a set of recommendations for utility operators to build a general monitoring

framework based on the analysis of the data collected from different IT and OT systems through

network management, traffic inspection, and system activity readings. As such, the monitoring

framework that this document introduces relies on the integration of management and logging

information obtained using IEC 62351-7 and IEC 62351-14, respectively. Further systems and

data sources from IT and OT would be considered such as the data obtained, for instance,

through the IT network management using the Simple Network Management Protocol (SNMP),

the passive network monitoring, and the functional characterization of control and automation

processes.

This document's recommendations include the implementation of data collection, filtering and

correlation mechanisms. The development of data analytics algorithms is out of the scope of

this document and would be left to utility operators and owners. Finally, applications of the

general monitoring framework guidelines and recommendations are provided for different power

grid environments, namely for IEC 61850 substations and for Distributed Energy Resources

(DER) systems.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC TS 62351-1, Power systems management and associated information exchange – Data

and communications security – Part 1: Communication network and system security –

Introduction to security issues

IEC TS 62351-2, Power systems management and associated information exchange – Data

and communications security – Part 2: Glossary of terms

IEC 62351-3, Power systems management and associated information exchange – Data and

communications security – Part 3: Communication network and system security – Profiles

including TCP/IP

IEC 62351-4, Power systems management and associated information exchange – Data and

communications security – Part 4: Profiles including MMS and derivatives
---------------------- Page: 7 ----------------------
– 6 – IEC TR 62351-90-3:2021 © IEC 2021

IEC TS 62351-5, Power systems management and associated information exchange – Data

and communications security – Part 5: Security for IEC 60870-5 and derivatives

IEC 62351-6, Power systems management and associated information exchange – Data and

communications security – Part 6: Security for IEC 61850

IEC 62351-7, Power systems management and associated information exchange – Data and

communications security – Part 7: Network and System Management (NSM) data object models

IEC TS 62351-14, Power systems management and associated information exchange – Data

and communications security – Part 14: Cyber Security Event Logging

IEC TR 62351-90-2, Power systems management and associated information exchange – Data

and communications security – Part 90-2: Deep packet inspection of encrypted communications

IEC TR 61850-90-4, Communication networks and systems for power utility automation –

Part 90-4: Network engineering guidelines

IEC 60870-5-101, Telecontrol equipment and systems – Part 5-101: Transmission protocols –

Companion standard for basic telecontrol tasks

IEC 60870-5-104, Telecontrol equipment and systems – Part 5-104: Transmission protocols –

Network access for IEC 60870-5-101 using standard transport profiles

IEEE 1815-2012, IEEE Standard for Electric Power Systems Communications-Distributed

Network Protocol (DNP3)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC TS 62351-2 and

IEC 62351-7 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Abbreviated terms and acronyms
Additional abbreviated terms and acronyms are given in IEC TS 62351-2.
ASN.1 Abstract Syntax Notation One
DER Distributed Energy Resource
DTLS Datagram Transport Layer Security
DPI Deep Packet Inspection
GIS Geographical Information System
HMI Human Machine Interface
ICS Industrial Control System
IED Intelligent Electronic Device
___________
Under preparation. Stage at the time of publication: IEC TS/PCC 62351-14:2021.
---------------------- Page: 8 ----------------------
IEC TR 62351-90-3:2021 © IEC 2021 – 7 –
KDC Key Distribution Center
MIB Management Information Base
MMS Manufacturing Message Specification
NSM Network and System Management
NTS Network Time Security
OID Object IDentifier
PCI Protocol Control Information
PLC Programmable Logic Controller
PDU Protocol Data Unit
RTU Remote Terminal Unit
SCADA Supervisory Control And Data Acquisition
SIEM Security Information and Event Management
SMI Structure of Management Information
SNMP Simple Network Management Protocol
SOC Security Operation Center
TLS Transport Layer Security
TSM Transport Security Model
UML Unified Modelling Language
USM User-based Security Model
5 Information collection, filtering and processing
5.1 IT/OT elements

Converging IT/OT networks in a power grid include a wide range of components that allow the

connection of systems together and communication in a local or wide area network. A brief

overview of the elements is:

• IEDs, PLCs and RTUs – equipment connected with field sensors and actuators and able to

coordinate with other elements through Ethernet and other means. These elements use

protocols like IEC 60870-5-104/101 or IEEE 1815-2012 (protected with IEC 62351-3,

IEC 62351-5), IEC 61850-8-1 and IEC 61850-8-2 (protected with IEC 62351-4),

IEC 61850-8-1 and IEC 61850-9-2 (protected with IEC 62351-6), and other proprietary

protocols for configuration and diagnostics.

• Substation controllers – are used within Substation Automation Systems to implement and

automate controls, communication and monitoring. Also, these elements can use a variety

of protocols like the ones mentioned above for IEDs, PLCs and RTUs.

• Gateways – implemented either as a software function or hardware, allow to connect

elements in the network at application level, allowing a finer-grained segregation and/or a

change of communication protocol.

• HMIs – equipment dedicated for human interaction, often purpose-built computers with

touchscreens and software able to interact with the IEDs, PLCs and RTUs to understand

the status of the system or change it using the protocols listed above.

• Computers and servers – more classical IT equipment with software able to interact with

IEDs and similar devices. Many different kinds of protocols are used by these equipments,

that can include standard protocols to interact with IEDs, PLCs and RTUs but also other

standard and proprietary protocols to interact with other parts of the system.

• Switches, routers and firewalls – networking gear used to interconnect end systems together

in an efficient and secure manner. These equipments support and can interact with a wide

range of protocols like SSH, SNMP, Syslog, etc.
---------------------- Page: 9 ----------------------
– 8 – IEC TR 62351-90-3:2021 © IEC 2021

• VPN tunnels – generally composed of several sub-elements, can be implemented as

software functions of other network elements like firewalls. They play an important role in

IT/OT networks as they allow to interconnect different systems in a secure manner. From

the other side, they are a critical part of the system as they may allow access to otherwise

segregated networks.

Moreover, the way these components are provisioned and maintained is evolving. Virtualization

for example has become a well-accepted tool also in OT systems to provide a reliable and

flexible virtual version of most of the components above. Cloud computing on the other side is

an established IT way to deploy services and systems and is becoming an emerging IT/OT

integration technical mean that needs to be considered for the purposes of this document.

5.2 Network and system monitoring tools
5.2.1 SNMP monitoring agents

IEDs and also networking equipment implement SNMP mechanisms that are available today

and will arrive/are arriving (IEC 62351-7) – SNMPv2c (most common) SNMPv1 (less common),

SNMPv3 (more advanced and closer to IEC 62351-7).

It is interesting to note that network equipment come with both standard and vendor-specific

MIBs that are well supported and accepted in the industry and provide a common set of

information about generic health status of devices. In addition to these, the monitoring objects

defined in IEC 62351-7 allow OT-specific information to be collected, thus allowing better

control of the health and operational status of IEDs and similar devices.

The key takeaway is that SNMP is well-accepted and broadly implemented. It's important to

remember that there are many MIBs, many versions and there is a need for some smart SNMP

Manager able to support different versions and configurations (e.g. v2c, v3 with USM or TSM,

etc) to normalize data and hide complexities (backward compatibility).
5.2.2 IDS/IPS probes

Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) are aimed at

monitoring network communication packets and detecting any packet that is somehow foreign

in a particular network. In such a case, the IDS will send an alert to a SIEM, leading the

operators to execute appropriate actions following the intrusion detection and the identification

of the vulnerability that is being exploited.

The substantial difference between IDS and IPS is that the first are aimed only to detect possible

events informing other systems of the occurrence while IPS will also provide a possible direct

reaction agains the detected threat (i.e. dropping a malicious connection). The choice between

IDS and IPS should be dictated by either the need of a complete assurance of not affecting

operation (IDS) or the desire to have some form of inline protection (IPS), at the cost of

introducing delays due tue the fact that the packet need to pass its control logic and lack of

complete control over network operation as detection techniques are subject to false positives.

Even if classical IDS/IPS systems are physical entities collecting traffic from

switch/bridge/router mirror ports, the IDS/IPS function is often available in some other network

devices (i.e. firewall or routers) or end systems as well.

The less disruptive passive observation techniques (i.e. requiring no modifications to the

system, communication stack, or application) require only the addition of dedicated network-

based IDS devices without any modification to the existing equipment, thus making these

security upgrades easier and less expensive to implement. For this reason, passive IDSs are

the preferred approach when considering systems and equipment which are already installed

in a much consolidated way.
---------------------- Page: 10 ----------------------
IEC TR 62351-90-3:2021 © IEC 2021 – 9 –

IDS and IPS work using a "signature-based attack detection" approach through a pattern or

behavioural recognition logic. This approach does not require accessing the semantics of traffic

payload but IDS/IPS are able to detect the most of already known network attacks. These

probes need of course a constant signature update process in order to keep the best possible

detection capabilities. Anomaly-based approaches on the contrary permit to detect even

unknown attacks after a learning phase, by highlighting baseline deviations – this approach

allows the prevention of new attacks to be unnoticed but need further analysis by the user to

understand how the deviation may affect the monitored systems. Modern IDS/IPS probes often

combine both approaches.

To be effective in power grid systems, IDS probes need to be aware of the OT-specific devices,

protocols and architectures in order to be able to detect the different kinds of threats. Another

important effectiveness piece comes from the possibility to cope with encrypted

communications and be able to identify issues encrypted traffic. In regards of IEC 62351-

secured system (meaning the health of the end-to-end secure system), IEC TR 62351-90-2

contains an overview of how to apply DPI to IEC 62351-secured communications.
5.2.3 Network and system management central platforms

The NSM Operation center collects events and health status data from the devices through

agents deployed inside the device itself and collecting information from IDS probes located in

strategic positions on the telecommunication network.

Please note that the management data are collected from both ICS (OT systems) and corporate

networks (IT systems). This approach is aimed at providing a stronger correlation between

events arising from different perspectives.
Figure 1 – NSM/Cybersecurity overall architecture

The left-hand side of Figure 1 depicts the OT operation perspective, in terms of SCADA systems

and field devices, accessed with dedicated OT protocols.

The right-hand side depicts the Network and System Monitoring/Cyber Security operation

center that is in charge of the collection of events and information from both IT and OT

environments.
---------------------- Page: 11 ----------------------
– 10 – IEC TR 62351-90-3:2021 © IEC 2021
Multiple information sources points are required and available:

• Endpoint devices (IEDs) health and Data Objects and events, providing information and

events through IEC 62351-7 MIBs and in some cases also IETF MIBs

• Intermediate systems (RTUs, Network devices like routers and switches) Data Objects and

events, providing information and events through IEC 62351-7 MIBs, and IETF MIBs

• Network status information on packet flows, service classes, performance and congestion

information, typically derived from switches, bridges and routers

• Deep Packet Inspection new generation probes and IPS/IDS probes providing information

through passive traffic analisys.

Each device will provide also its own collected logs (e.g. collected through syslog messages).

The different purpose of SNMP information/events collection and log records collection should

be noted and understood.

SNMP MIBs provide information on the current health and security state of the device, using

"objects" that represent meaningful state variables (e.g. CPU usage, Memory usage,

Anomalous packet reception number, failed authentication count). SNMP information can be

queried whenever it's needed to catch the specific situation of a system.

Log records are meant to collect the history of the system events in an ordered way with the

aim to provide both the diagnostic but also the (forensic) proof of "what happened". Log records

are locally stored and then sent to a central collection system (entirely or filtered).

Some events can be tracked both with SNMP notifications and log records, but the target usage

is very different.
5.3 Log management tools
5.3.1 Log collection architecture
A typical log collection and management architecture (Figure 2) has some log c
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
