IEC 60603-7-82:2016

Connectors for electronic equipment - Part 7-82: Detail specification for 8-way, 12 contacts, shielded, free and fixed connectors, for data transmission with frequencies up to 2 000 MHz

IEC 60603-7-82:2016 covers 8-way, 12 contacts, shielded, free and fixed connectors, references dimensional, mechanical, electrical and environmental characteristics and tests in IEC 60603-7-7, and specifies electrical transmission requirements, including power sum alien (exogenous) crosstalk, for frequencies up to 2 000 MHz. These connectors are typically used as "category 8.2" connectors in "class II" cabling systems specified in ISO/IEC TR 11801-9901 and specified in ISO/IEC 11801-1. These connectors are intermateable and interoperable with other IEC 60603-7 series connectors, i.e. as defined in IEC 60603-7-7 and IEC 60603-7-1. These connectors are backward compatible with other IEC 60603-7 series connectors. Key words: Connectors, 8-way. Shielded Free and Fixed, Data Transmission

Connecteurs pour équipements électroniques - Partie 7-82: Spécification particulière pour les fiches et les embases écrantées à 8 voies et 12 contacts pour la transmission de données à des fréquences jusqu'à 2 000 MHz

L'IEC 60603-7-82:2016 couvre les fiches et les embases écrantées à 8 voies et 12 contacts, les caractéristiques dimensionnelles, mécaniques, électriques et environnementales de référence et les essais de l'IEC 60603-7-7, et elle spécifie les exigences de transmission électrique, y compris la puissance cumulée de la diaphonie exogène, pour des fréquences jusqu'à 2 000 MHz. Ces connecteurs sont typiquement utilisés comme des connecteurs de la catégorie 8.2 dans des systèmes de câblage de classe II spécifiés dans l'ISO/IEC TR 11801-9901 et dans l'ISO/IEC 11801-1. Ces connecteurs sont accouplables et interopérables avec d'autres connecteurs de la série IEC 60603-7, comme cela est défini dans l'IEC 60603-7-7 et dans l'IEC 60603-7-1. Ces connecteurs offrent une compatibilité amont avec d'autres connecteurs de la série IEC 60603-7. Mots clés: Connecteurs, 8 voies, fiches et les embases écrantées, Transmission de données

General Information

• Status: Published
• Publication Date: 24-Aug-2016
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 25-Aug-2016
• Completion Date: 15-Sep-2016

Overview

IEC 60603-7-82:2016 is an international standard published by the International Electrotechnical Commission (IEC) that specifies detailed requirements for 8-way, 12-contact shielded connectors used in electronic equipment for data transmission. These connectors support frequencies up to 2000 MHz and are designed as both free (plug) and fixed (socket) types. This standard outlines the dimensional, mechanical, electrical, and environmental characteristics, as well as the rigorous test procedures to ensure reliable performance, especially focusing on minimizing alien crosstalk and maintaining signal integrity.

The connectors described in IEC 60603-7-82:2016 are typically applied as “category 8.2” connectors within “class II” cabling systems according to ISO/IEC standards like ISO/IEC TR 11801-9901 and ISO/IEC 11801-1. They are designed to be intermateable and interoperable with other connectors in the IEC 60603-7 series, maintaining backward compatibility with earlier connector types to support legacy installations and system upgrades.

Key Topics

• Connector Configuration: 8-way connectors featuring 12 contacts, shielded for EMI/RFI protection, including both free (plug) and fixed (socket) variants.
• Frequency Support: Data transmission capability at frequencies up to 2000 MHz, targeting high-speed communication applications.
• Transmission Requirements: Emphasis on electrical characteristics such as insertion loss, return loss, propagation delay, delay skew, and various types of crosstalk including NEXT (Near-End Crosstalk), FEXT (Far-End Crosstalk), and alien crosstalk metrics.
• Mechanical and Environmental Standards: Defined parameters for connector dimensions, insertion and withdrawal forces, coupling effectiveness, and climatic classification to ensure durability and reliable operation under various environmental conditions.
• Testing Protocols: Comprehensive test schedules including contact resistance, vibration resistance, and preconditioning steps to validate performance against IEC 60603-7-7 test methods.
• Interoperability and Backward Compatibility: Ensures seamless integration with other IEC 60603-7 series connectors fostering system flexibility and future-proofing.

Applications

IEC 60603-7-82:2016 connectors are crucial components in high-speed data communication systems where signal integrity and electromagnetic compatibility are critical. Typical applications include:

• Category 8.2 Ethernet Cabling Systems: Used in data centers, enterprise LANs, and backbone networks needing 2 GHz bandwidth for 40 Gbps or higher data rates.
• Shielded Cabling Environments: Ideal for installations requiring enhanced shielding to minimize electromagnetic interference in dense or industrial environments.
• Electronic Equipment Connectivity: Suitable for various electronic and telecommunication devices requiring high-frequency signal transmission.
• Class II Structured Cabling Systems: Compliant with international cabling standards, ensuring compatibility and performance in modern network infrastructures.

Related Standards

• IEC 60603-7 Series: The base family of standards for connectors for electronic equipment, covering various connector types and transmission frequencies from 3 MHz to 2000 MHz, including IEC 60603-7-7 and IEC 60603-7-1 which specify mechanical and electrical tests referenced by IEC 60603-7-82.
• ISO/IEC 11801-1: International standard defining generic cabling for customer premises, specifying “class II” systems where category 8.2 connectors are used.
• ISO/IEC TR 11801-9901: Technical report supporting the cabling classifications and applications for high frequency category 8.2 connectors.
• IEC 60603-7-81: Related specification for 8-way, 8 contacts shielded connectors supporting frequencies up to 2000 MHz, often used alongside the 12-contact version.

---

Keywords: IEC 60603-7-82, shielded connectors, 8-way connectors, 12 contacts, data transmission connectors, category 8.2 connectors, class II cabling, alien crosstalk, high-frequency connectors, IEC connector standards, Ethernet cabling, 2000 MHz transmission.

Standards Content (Sample)

IEC 60603-7-82 ®
Edition 1.0 2016-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment –
Part 7-82: Detail specification for 8-way, 12 contacts, shielded, free and fixed
connectors, for data transmission with frequencies up to 2 000 MHz

Connecteurs pour équipements électroniques –
Partie 7-82: Spécification particulière pour les fiches et les embases écrantées à
8 voies et 12 contacts pour la transmission de données à des fréquences
jusqu’à 2 000 MHz
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60603-7-82 ®
Edition 1.0 2016-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment –

Part 7-82: Detail specification for 8-way, 12 contacts, shielded, free and fixed

connectors, for data transmission with frequencies up to 2 000 MHz

Connecteurs pour équipements électroniques –

Partie 7-82: Spécification particulière pour les fiches et les embases écrantées à

8 voies et 12 contacts pour la transmission de données à des fréquences

jusqu’à 2 000 MHz
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-3556-0

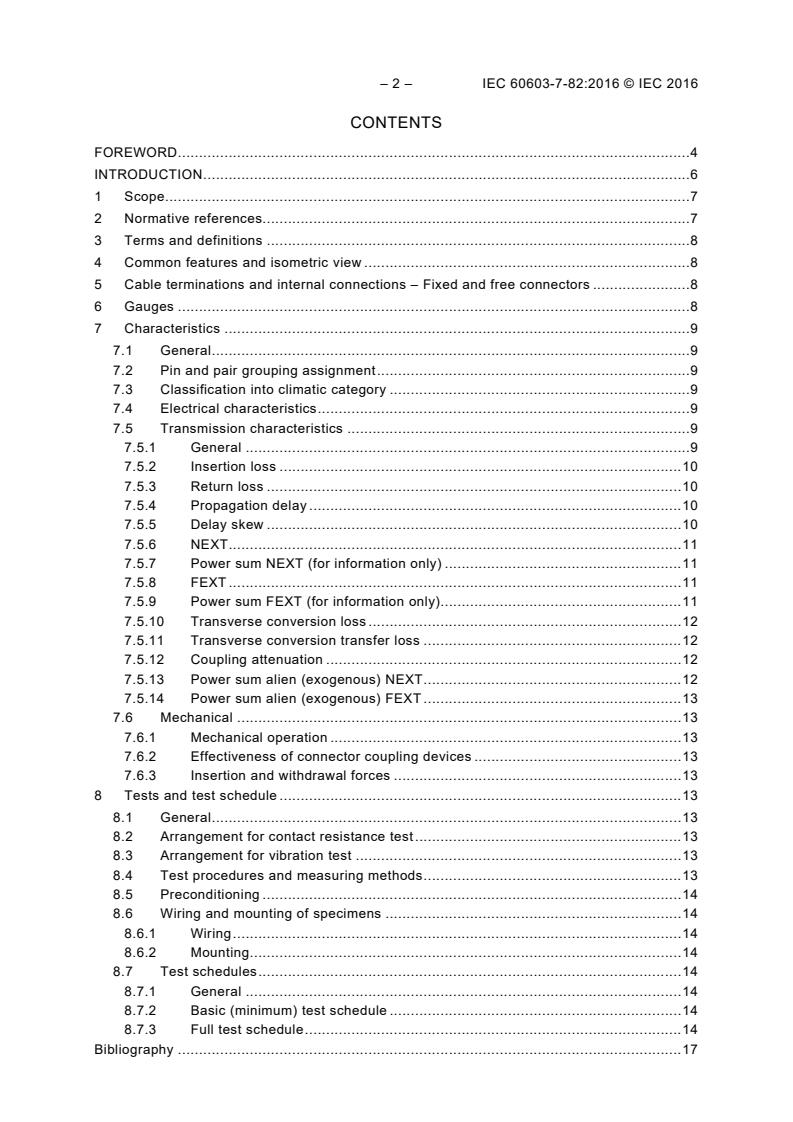

– 2 – IEC 60603-7-82:2016 © IEC 2016
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 8
4 Common features and isometric view . 8
5 Cable terminations and internal connections – Fixed and free connectors . 8
6 Gauges . 8
7 Characteristics . 9
7.1 General . 9
7.2 Pin and pair grouping assignment . 9
7.3 Classification into climatic category . 9
7.4 Electrical characteristics . 9
7.5 Transmission characteristics . 9
7.5.1 General . 9
7.5.2 Insertion loss . 10
7.5.3 Return loss . 10
7.5.4 Propagation delay . 10
7.5.5 Delay skew . 10
7.5.6 NEXT . 11
7.5.7 Power sum NEXT (for information only) . 11
7.5.8 FEXT . 11
7.5.9 Power sum FEXT (for information only). 11
7.5.10 Transverse conversion loss . 12
7.5.11 Transverse conversion transfer loss . 12
7.5.12 Coupling attenuation . 12
7.5.13 Power sum alien (exogenous) NEXT . 12
7.5.14 Power sum alien (exogenous) FEXT . 13
7.6 Mechanical . 13
7.6.1 Mechanical operation . 13
7.6.2 Effectiveness of connector coupling devices . 13
7.6.3 Insertion and withdrawal forces . 13
8 Tests and test schedule . 13
8.1 General . 13
8.2 Arrangement for contact resistance test . 13
8.3 Arrangement for vibration test . 13
8.4 Test procedures and measuring methods . 13
8.5 Preconditioning . 14
8.6 Wiring and mounting of specimens . 14
8.6.1 Wiring . 14
8.6.2 Mounting . 14
8.7 Test schedules . 14
8.7.1 General . 14
8.7.2 Basic (minimum) test schedule . 14
8.7.3 Full test schedule . 14
Bibliography . 17

Figure 1 – Diagram of the interrelation of the documents . 6

Table 1 – Test group EP . 15

– 4 – IEC 60603-7-82:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7-82: Detail specification for 8-way, 12 contacts, shielded,
free and fixed connectors, for data transmission
with frequencies up to 2 000 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60603-7-82 has been prepared by subcommittee 48B: Electrical
connectors, of IEC technical committee 48: Electrical connectors and mechanical structures
for electrical and electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/2497/FDIS 48B/2510/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 60603 series, under the general title Connectors for electronic
equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60603-7-82:2016 © IEC 2016
INTRODUCTION
IEC 60603-7 is the base specification of the whole series. Subsequent specifications do not
duplicate information given in the base document, but list only additional requirements. For
complete specification regarding a component of a higher number document all lower
numbered documents shall be considered as well. The following diagram (Figure 1) shows the
interrelation of the documents:
Shielded
Unshielded
(8 way)     (8 way, 12 contacts)
(8 way)
IEC 60603-7 IEC 60603-7-1
3 MHz
100 MHz
IEC 60603-7-2 IEC 60603-7-3
IEC 60603-7-5
IEC 60603-7-4
250 MHz
IEC 60603-7-41 IEC 60603-7-51
500 MHz
600 MHz
IEC 60603-7-7
1 000 MHz
IEC 60603-7-71
2 000 MHz
IEC 60603-7-81
2 000 MHz
IEC 60603-7-82
IEC
Key
Indicates reference for dimensions, mechanical and electrical characteristics, tests and test schedules
Indicates reference for transmission performance (backward compatibility)
Figure 1 – Diagram of the interrelation of the documents

CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 7-82: Detail specification for 8-way, 12 contacts, shielded,
free and fixed connectors, for data transmission
with frequencies up to 2 000 MHz

1 Scope
This part of IEC 60603 covers 8-way, 12 contacts, shielded, free and fixed connectors,
references dimensional, mechanical, electrical and environmental characteristics and tests in
IEC 60603-7-7, and specifies electrical transmission requirements, including power sum alien
(exogenous) crosstalk, for frequencies up to 2 000 MHz.
These connectors are typically used as “category 8.2” connectors in “class II” cabling systems
specified in ISO/IEC TR 11801-9901 and specified in ISO/IEC 11801-1 .
These connectors are intermateable and interoperable with other IEC 60603-7 series
connectors, i.e. as defined in IEC 60603-7-7 and IEC 60603-7-1.
These connectors are backward compatible with other IEC 60603-7 series connectors.
NOTE Transmission performance categories: in this IEC standard, the term “category”, when used in reference to
transmission performance, refers to those categories defined by ISO/IEC 11801-1.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60512-25-9, Connectors for electronic equipment – Tests and measurements –
Part 25-9: Signal integrity tests – Test 25i: Alien crosstalk
IEC 60512-26-100:2008, Connectors for electronic equipment – Tests and measurements –
Part 26-100: Measurement setup, test and reference arrangements and measurements for
connectors according to IEC 60603-7 – Tests 26a to 26g
IEC 60512-26-100:2008/AMD1:2011
IEC 60512-27-100, Connectors for electronic equipment – Tests and measurements –
Part 27-100: Signal integrity tests up to 500 MHz on IEC 60603-7 series connectors – Tests
27a to 27g
IEC 60512-28-100, Connectors for electronic equipment – Tests and measurements –
Part 28-100: Signal integrity tests for 1 000 MHz and up, for IEC 60603-7 series connectors –
Tests 28a to 28g
IEC 60603-7:2008, Connectors for electronic equipment – Part 7: Detail specification for 8-
way, unshielded, free and fixed connectors
___________
Under consideration.
The tests include frequencies up to 2 000 MHz.

– 8 – IEC 60603-7-82:2016 © IEC 2016
IEC 60603-7-1:2011, Connectors for electronic equipment – Part 7-1: Detail specification for
8-way, shielded, free and fixed connectors
IEC 60603-7-7:2010, Connectors for electronic equipment – Part 7-7: Detail specification for
8-way, shielded, free and fixed connectors, for data transmission with frequencies up to
600 MHz
IEC 61156 (all parts), Multicore and symmetrical pair/quad cables for digital communications
IEC 62153-4-15, Metallic communication cable test methods – Part 4-15: Electromagnetic
compatibility (EMC) – Test method for measuring transfer impedance and screening
attenuation – or coupling attenuation with triaxial cell
3 Terms and definitions
For the purposes of this document, the terms and definitions given in Clause 2 of
IEC 60603-7:2008, apply as well as the following.
3.1
backward compatibility
set of requirements which ensure that a free or fixed connector which is in compliance with
this standard, when mated with a fixed or free connector in compliance with a lower frequency
IEC 60603-7 series connector, fully complies with the transmission performance requirements
of the lower frequency IEC 60603-7 series connector
Note 1 to entry: The complete specification of the categories and the backward compatibility system for the
IEC 60603-7 series connectors, when used in standard balanced cabling systems, is specified in referenced
ISO/IEC 11801-1.
[SOURCE: IEC 60603-7-81:2015, 3.1, modified – The definition has been updated, and the
additional reference to Clause 3 of IEC 60603-7-1:2011 has been deleted.]
3.2
crosstalk loss
near-end-crosstalk (NEXT) and far-end-crosstalk (FEXT), commonly referred to as crosstalk
loss, are the specific transmission characteristics associated with the reverse and forward
crosstalk coupling attenuation between two pairs
4 Common features and isometric view
See Clause 3 of IEC 60603-7-7:2010 for dimensions, views and requirements.
5 Cable terminations and internal connections – Fixed and free connectors
See Clause 4 of IEC 60603-7-7:2010 for cable termination and internal connections types.
6 Gauges
The gauges as defined by IEC 60603-7 and IEC 60603-7-7 shall apply.

7 Characteristics
7.1 General
Connectors according to this standard shall also conform to all relevant requirements
specified by IEC 60603-7-7 and IEC 60603-7-1.
7.2 Pin and pair grouping assignment
The relevant pin and pair grouping assignment of IEC 60603-7-7, IEC 60603-7-1 and
IEC 60603-7 apply.
The complete specification for the pin and pair numbering and grouping assignments, for the
IEC 60603-7 series connectors used in balanced cabling systems is specified in
ISO/IEC 11801-1.
7.3 Classification into climatic category
Connectors according to this standard are classified in the same climatic categories as
defined by IEC 60603-7.
7.4 Electrical characteristics
Connectors according to this standard shall also conform to the electrical characteristics
of
specified by IEC 60603-7-7 and IEC 60603-7-1. In addition, the transfer impedance Z
t
connectors according to this standard shall meet the following requirements:
Transfer impedance, Z
t
Conditions:
IEC 60512-26-100, Test 26e
Mated connectors, terminated with each cable construction type intended to be allowed for
these connectors.
0,3
All types: ≤0,05f Ω from 1 MHz to 10 MHz
All types: ≤0,01f Ω from 10 MHz to 80 MHz
where f is the frequency in MHz.
7.5 Transmission characteristics
7.5.1 General
Compliance to this standard in respect to transmission characteristics, is determined
according to specific test methods described in test group EP, see Table 1. The
interoperability of connectors compliant to this standard shall be demonstrated by testing the
fixed connectors with the full range of free connectors according to IEC 60512-28-100.
For the connectors compliant to this standard:
• their interoperability with the IEC 60603-7-7 interface shall be demonstrated by testing the
fixed connectors with the full range of free connectors, according to IEC 60512-28-100,
from 1 MHz to 2 000 MHz.
• their interoperability with the IEC 60603-7-1 interface shall be demonstrated by testing the
fixed connectors with the full range of free connectors, according to IEC 60512-27-100
from 1 MHz to 500 MHz.
Compliance to these transmission performance requirements applies to the separated pairs of
contacts, which are the alternative contacts specified in IEC 60603-7-7, i.e. contact pairs 1-2,
7-8, 3’-6’, 4’-5’. The transmission performance requirements specified herein do not apply to

– 10 – IEC 60603-7-82:2016 © IEC 2016
the non-separated pairs of contacts, which are specified in IEC 60603-7 and IEC 60603-7-1,
i.e. contact pairs 3-6, 4-5. In the case of crosstalk requirements, these apply between the
combinations of separated pairs of contacts.
Compliance to this standard in respect to the alien (exogenous) crosstalk is determined
according to IEC 60512-25-9. Insofar as the connectors according to this standard are
shielded, power sum alien (exogenous) crosstalk requirements of this standard are assumed
to be met, if the requirements for coupling attenuation are met.
All transmission performance requirements apply between the reference planes specified in
IEC 60512-28-100.
In the following subclauses f is the frequency expressed in MHz.
7.5.2 Insertion loss
Conditions:
Test 28a of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pairs: ≤0,02 √(f) dB from 1 MHz to 1 000 MHz.
All pairs: ≤0,02 √(f) + 0,000 5 (f − 1 000) dB from 1 000 MHz to 2 000 MHz.
Whenever the formula results in a value less than 0,1 dB, the requirement shall revert to
0,1 dB.
7.5.3 Return loss
Conditions:
Test 28b of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pairs: ≥72 − 20 log (f) dB from 1 MHz to 2 000 MHz.
Whenever the requirement results in a value less than 12 dB, the requirement shall revert
to 12 dB.
Whenever the requirement results in a value greater than 30 dB, the requirement shall
revert to 30 dB.
7.5.4 Propagation delay
Shall be tested according to the contact assignment defined in IEC 60603-7-7 (separated
pairs).
Mated connectors
All pairs: ≤2,5 ns from 1 MHz to 2 000 MHz.
Propagation delay test does not need to be performed, since it is assumed that connectors
comply by design.
7.5.5 Delay skew
Shall be tested according to the contact assignment defined in IEC 60603-7-7 (separated
pairs).
Mated connectors
All pair combinations: ≤1,25 ns from 1 MHz to 2 000 MHz.
Delay Skew is calculated from the individual propagation delay measurements and, as
with propagation delay (7.5.4), it is assumed that connectors comply by design.

7.5.6 NEXT
Conditions:
Test 28c of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pair combinations: ≥116,3 – 20 log (f) dB from 1 MHz to 1 000 MHz.
All pair combinations: ≥56,3 – 60 log (f/1 000) dB from 1 000 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 80 dB, the requirement shall revert
to 80 dB.
7.5.7 Power sum NEXT (for information only)
Conditions:
Shall be tested according to the contact assignment defined in IEC 60603-7-7 (separated
pairs).
Mated connectors
−NEXT
ik
n
PS NEXT =−10log 10 (dB)
k 10 ∑
i=1,i≠k
For each pair: ≥113,3 – 20 log (f) dB from 1 MHz to 1 000 MHz.
For each pair: ≥53,3 – 60 log (f/1 000) dB from 1 000 MHz to 2 000 MHz.
Power sum NEXT is calculated from the individual NEXT loss measurements and
connector compliance is achieved by compliance to the NEXT loss requirements (7.5.6).
7.5.8 FEXT
Conditions:
Test 28d of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pair combinations: ≥103,9 – 20 log (f) dB from 1 MHz to 1 000 MHz.
All pair combinations: ≥43,9 – 60 log (f/1 000) dB from 1 000 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 80 dB, the requirement shall revert
to 80 dB.
7.5.9 Power sum FEXT (for information only)
Conditions:
Test 28a of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
−FEXT
ik
n
PS FEXT =−10log 10 (dB)
k 10 ∑
i=1,i≠k
For each pair: ≥100,9 – 20 log (f) dB from 1 MHz to 1 000 MHz.
For each pair: ≥40,9 – 60 log (f/1 000) dB from 1 000 MHz to 2 000 MHz.
Power sum FEXT is calculated from the individual FEXT loss measurements and
connector compliance is achieved by compliance to the FEXT loss requirements (7.5.8).

– 12 – IEC 60603-7-82:2016 © IEC 2016
7.5.10 Transverse conversion loss
Conditions:
Test 28f of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pairs: ≥74 – 20 log (f) dB from 1 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 40 dB, the requirement shall revert
to 40 dB.
7.5.11 Transverse conversion transfer loss
Conditions:
Test 28g of IEC 60512-28-100 shall be tested according to the contact assignment defined
in IEC 60603-7-7 (separated pairs).
Mated connectors
All pairs: ≥78 − 20 log (f) dB from 1 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 40 dB, the requirement shall revert
to 40 dB.
7.5.12 Coupling attenuation
Conditions:
IEC 62153-4-15 for coupling attenuation with triaxial cell shall be tested according to the
contact assignment defined in IEC 60603-7-7 (separated pairs).
Mated connectors, terminated with each cable construction type intended to be allowed for
these connectors.
All types: ≥85 – 20 log (f) dB, from 30 MHz to 3 000 MHz.
Whenever the formula results in a value greater than 85 dB, the requirement shall revert
to 85 dB.
The coupling attenuation requirement is assumed to be fulfilled when the transfer
impedance and unbalance attenuation (transverse conversion loss and transverse
conversion transfer loss) requirements are met on the full bandwidth.
7.5.13 Power sum alien (exogenous) NEXT
Conditions:
Test 25i of IEC 60512-25-9 shall be tested according to the contact assignment defined in
IEC 60603-7-7 (separated pairs).
Mated connectors
−ANEXT
 kij
N 4
 
PS ANEXT =−10log 10 (dB)
k 10
∑∑
 
j=1 i=1
 
 
All pair combinations: ≥135,5 – 20 log (f) dB from 1 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 84 dB, the requirement shall revert
to 84 dB.
Power sum alien (exogenous) NEXT cannot be determined by a mated connector in
isolation. Connector compliance is achieved by assessing a connector’s performance
when mounted in accordance with the manufacturer’s installation instructions for each
mounting type assessed and in relation to all other significant connectors in close
proximity (see IEC 60512-25-9).

The PS ANEXT and PS AFEXT requirements are fulfilled when the coupling attenuation is
verified and it is 25 dB better than the PS ANEXT and the PS AFEXT minimum
requirements.
7.5.14 Power sum alien (exogenous) FEXT
Conditions:
Test 25i of IEC 60512-25-9 shall be tested according to the contact assignment defined in
IEC 60603-7-7 (separated pairs).
Mated connectors
−AFEXT
 kij
N 4
 
PS AFEXT =−10log 10 (dB)
k 10∑∑
 
j=1 i=1
 
 
All pair combinations: ≥128,8 – 20 log (f) dB from 1 MHz to 2 000 MHz.
Whenever the formula results in a value greater than 84 dB, the requirement shall revert
to 84 dB.
Power sum alien (exogenous) FEXT cannot be determined by a mated connector in
isolation. Connector compliance is achieved by assessing a connector’s performance
when mounted in accordance with the manufacturer’s installation instructions for each
mounting type assessed and in relation to all other significant connectors in close
proximity (see IEC 60512-25-9).
The PS ANEXT and PS AFEXT requirements are fulfilled when the coupling attenuation is
verified and it is 25 dB better than the PS ANEXT and the PS AFEXT minimum
requirements.
7.6 Mechanical
7.6.1 Mechanical operation
See 6.6.1 of IEC 60603-7:2008.
7.6.2 Effectiveness of connector coupling devices
See 6.6.2 of IEC 60603-7:2008.
7.6.3 Insertion and withdrawal forces
See 6.6.3 of IEC 60603-7-7:2008.
8 Tests and test schedule
8.1 General
See 7.1 of IEC 60603-7:2008.
8.2 Arrangement for contact resistance test
The requirements and conditions as specified in IEC 60603-7:2008 apply for all contacts.
8.3 Arrangement for vibration test
The requirements and conditions as specified in IEC 60603-7:2008 apply for all contacts.
8.4 Test procedures and measuring methods
See 7.4 of IEC 60603-7:2008.
– 14 – IEC 60603-7-82:2016 © IEC 2016
8.5 Preconditioning
See 7.5 of IEC 60603-7:2008.
8.6 Wiring and mounting of specimens
8.6.1 Wiring
Wiring of these connectors shall take into account the wire and cable diameter of the cables
defined in the IEC 61156 series as applicable by manufacturer’s specification.
8.6.2 Mounting
See 7.6.2 of IEC 60603-7:2008.
8.7 Test schedules
8.7.1 General
The test parameters required shall not be less than those listed in Clause 6.
8.7.2 Basic (minimum) test schedule
Not applicable.
8.7.3 Full test schedule
8.7.3.1 General
In addition to the test schedules of IEC 60603-7 and IEC 60603-7-1, one further group of two
sets of mated connectors is required for group EP. The free connectors for group EP shall
additionally meet the requirements of the IEC 60512-28-100 and IEC 60512-25-9.
Additional sets of connectors are required for the power sum alien (exogenous) NEXT and
power sum alien (exogenous) FEXT (EP9 and EP10) measurements according to IEC 60512-
25-9.
8.7.3.2 Test group P – preliminary
All the test group specimens shall be subjected to the preliminary groups P of IEC 60603-7
and IEC 60603-7-1.
8.7.3.3 Test group AP
See 7.7.2.3 of IEC 60603-7:2008 and 7.7.2.3 of IEC 60603-7-1:2011.
8.7.3.4 Test group BP
See 7.7.2.4 of IEC 60603-7:2008 and 7.7.2.4 of IEC 60603-7-1:2011.
8.7.3.5 Test group CP
See 7.7.2.5 of IEC 60603-7:2008 and 7.7.2.5 of IEC 60603-7-1:2011.
8.7.3.6 Test group DP
See 7.7.2.6 of IEC 60603-7:2008 and 7.7.2.6 of IEC 60603-7-1:2011.

8.7.3.7 Test group EP
Table 1 – Test group EP
a
Test Test Measurement to be performed
phase
Title IEC 60512 Severity or Title IEC 60512 Requirements
Test No. condition of test Test No.
(or other IEC
b
test No.)
EP1  All pairs, one Insertion Test 28a Per 7.5.2
direction loss
EP2  All pair NEXT Test 28c Per 7.5.6
combinations, both
directions (pair to
pair)
EP3  All pairs, both Return loss Test 28b Per 7.5.3
directions
EP4  All pair FEXT Test 28d Per 7.5.8
combinations, both
directions (pair to
pair)
EP5  All pairs, both TCL Test 28f Per 7.5.10
directions
EP6  All pairs, both TCTL Test 28g Per 7.5.11
directions
EP7 Input to Measurement Millivolt IEC 60603-7, Per 6.4.5 of
b
output d.c. points cable level Test 2a IEC 60603-7:
resistance termination to method 2008
cable termination –
as close to the
connector housings
as possible
All input to output
conductor paths
EP8 Resistance Measurement Millivolt IEC 60603-7,
Per 6.4.6 of
b
unbalance points cable level Test 2a IEC 60603-7:
termination to method 2008
cable termination –
as close to the
connector housings
as possible
All input to output
connector paths
(conductor path to
conductor path)
EP9  All pair PS ANEXT Test 25i Per 7.5.13
combinations, both
directions
EP10  All pair PS AFEXT Test 25i Per 7.5.14
combinations, both
directions
b
EP11  All pairs, both CA IEC 62153-4-15 Per 7.5.12
directions Test for coupling
attenuation with
triaxial cell
a
All measurements shall be performed on mated connectors.
b
Applicable IEC standards.
– 16 – IEC 60603-7-82:2016 © IEC 2016
8.7.3.8 Test group FP
See 7.7.2.8 of IEC 60603-7:2008.
8.7.3.9 Test group GP
See 7.7.2.9 of IEC 60603-7-1:2011.

Bibliography
IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60603-7-2, Connectors for electronic equipment – Part 7-2: Detail specification for 8-
way, unshielded, free and fixed connectors, for data transmissions with frequencies up to
100 MHz
IEC 60603-7-3, Connectors for electronic equipment – Part 7-3: Detail specification for 8-
way, shielded, free and fixed connectors, for data transmission with frequencies up to
100 MHz
IEC 60603-7-4, Connectors for electronic equipment – Part 7-4: Detail specification for 8-
way, unshielded, free and fixed connectors, for data transmissions with frequencies up to 250
MHz
IEC 60603-7-5, Connectors for electronic equipment – Part 7-5: Detail specification for 8-
way, shielded, free and fixed connectors, for data transmissions with frequencies up to
250 MHz
IEC 60603-7-41, Connectors for electronic equipment – Part 7-41: Detail specification for 8-
way, unshielded, free and fixed connectors, for data transmissions with frequencies up to
500 MHz
IEC 60603-7-51, Connectors for electronic equipment – Part 7-51: Detail specification for 8-
way, shielded, free and fixed connectors, for data transmissions with frequencies up to
500 MHz
IEC 60603-7-71, Connectors for electronic equipment – Part 7-71: Detail specification for 8-
way, shielded, free and fixed connectors, for data transmission with frequencies up to
1 000 MHz
IEC 60603-7-81, Connectors for electronic equipment – Part Part 7-81: Detail specification
for 8-way, shielded, free and fixed connectors, for data transmissions with frequencies up to
2 000 MHz
ISO/IEC 11801-1, Information technology – Generic cabling for customer premises – Part 1:
General requirements
ISO/IEC TR 11801-9901, Information technology – Generic cabling for customer premises –
Part 9901: Guidance for balanced cabling in support of at least 40 Gbit/s data transmission

___________
___________
Under consideration.
– 18 – IEC 60603-7-82:2016 © IEC 2016
