IEC PAS 61755-3-31:2007

Fibre optic connector optical interfaces - Part 3-31: Optical interface - 8 degrees angled PC end-face PPS rectangular ferrule, single mode fibre

This Publicly Available Specification is part of IEC 61755 and defines certain dimensional limits that an angled PC end-face multi-fibre rectangular ferrule having two guide-holes for positioning two alignment pins and using polyphenylene sulphide (PPS) material with a Young's modulus of less than 20 GPa has to meet in order to comply with specific requirements for interconnections. Ferrules made from the material specified in this document are suitable for use in category C as defined in IEC 61753-1-1.

General Information

• Status: Withdrawn
• Publication Date: 15-Feb-2007
• Withdrawal Date: 23-Mar-2010
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Current Stage: WPUB - Publication withdrawn
• Start Date: 26-Mar-2010
• Completion Date: 14-Feb-2026

Standards Content (Sample)

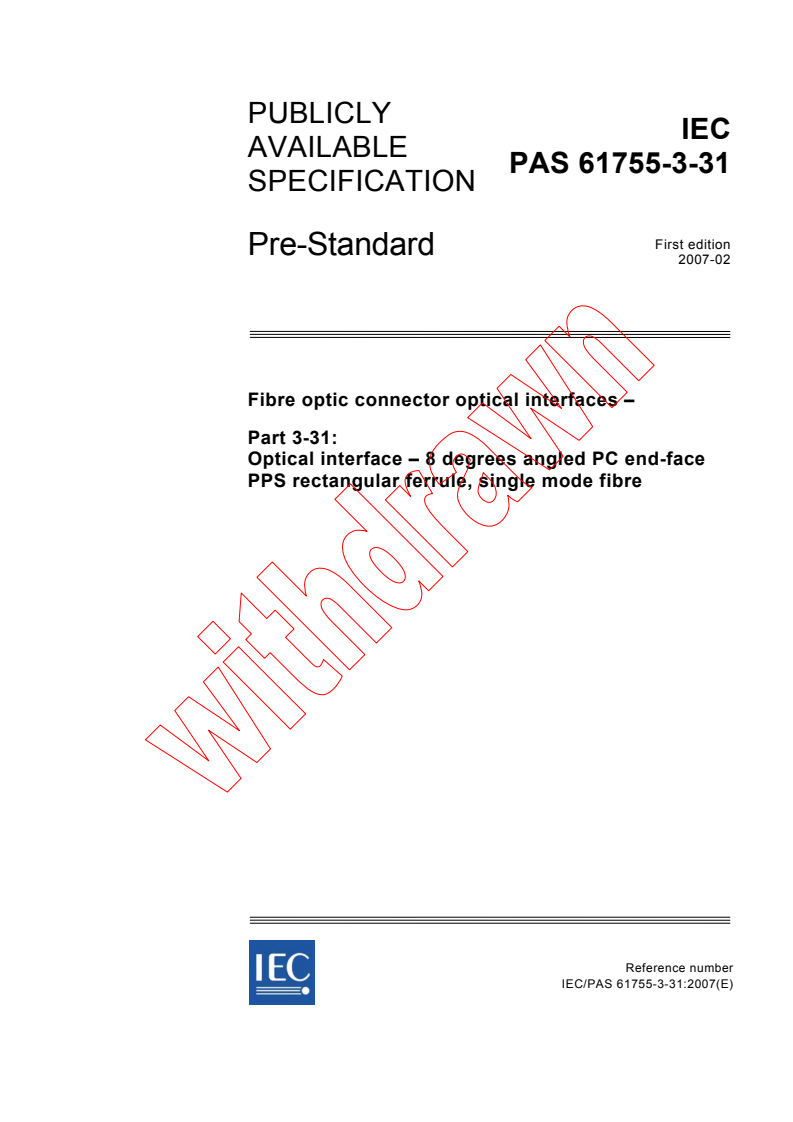

PUBLICLY
IEC
AVAILABLE
PAS 61755-3-31
SPECIFICATION
First edition
Pre-Standard
2007-02
Fibre optic connector optical interfaces –
Part 3-31:
Optical interface – 8 degrees angled PC end-face
PPS rectangular ferrule, single mode fibre

Reference number
IEC/PAS 61755-3-31:2007(E)

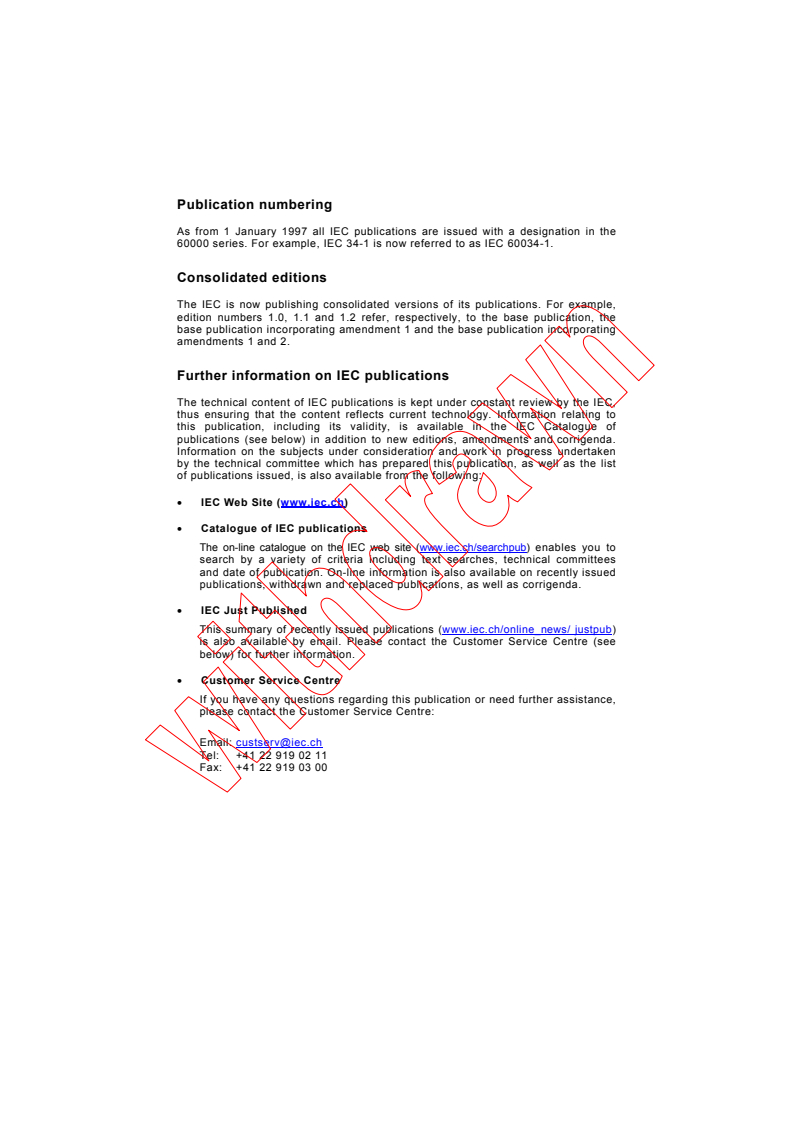

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]
PUBLICLY
IEC
AVAILABLE
PAS 61755-3-31
SPECIFICATION
First edition
Pre-Standard
2007-02
Fibre optic connector optical interfaces –
Part 3-31:
Optical interface – 8 degrees angled PC end-face
PPS rectangular ferrule, single mode fibre

 IEC 2007  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
J
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – PAS 61755-3-31  IEC:2007(E)

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
FIBRE OPTIC CONNECTOR OPTICAL INTERFACES –

Part 3-31: Optical interface – 8 degrees angled PC end-face

PPS rectangular ferrule, single mode fibre

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
A PAS is a technical specification not fulfilling the requirements for a standard but made

available to the public.
IEC-PAS 61755-3-31 has been processed by subcommittee 86B: Fibre optic interconnecting
devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this PAS is based on the This PAS was approved for
following document: publication by the P-members of the
committee concerned as indicated in
the following document:
Draft PAS Report on voting
86B/2386/NP 86B/2436/RVN
Following publication of this PAS, which is a pre-standard publication, the technical committee
or subcommittee concerned will transform it into an International Standard.
This PAS shall remain valid for an initial maximum period of three years starting from
2007-01. The validity may be extended for a single three-year period, following which it shall
be revised to become another type of normative document or shall be withdrawn.

PAS 61755-3-31  IEC:2007(E) – 3 –

FIBRE OPTIC CONNECTOR OPTICAL INTERFACES –

Part 3-31: Optical interface – 8 degrees angled PC end-face

PPS rectangular ferrule, single mode fibre

1 Scope
This part of IEC 61755 defines certain dimensional limits that an angled PC end-face multi-fibre

rectangular ferrule having two guide-holes for positioning two alignment pins and using

polyphenylene sulphide (PPS) material with a Young’s modulus of less than 20 GPa has to meet
in order to comply with specific requirements for interconnections. Ferrules made from the
material specified in this document are suitable for use in category C as defined in IEC 61753-1-1.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61753-1-1, Fibre optic interconnecting devices and passive components performance
standard – Part 1: General and guidance – Interconnecting devices
IEC 61754-5, Fibre optic connector interface – Part 5: Type MT connector family
IEC 61754-7, Fibre optic connector interfaces – Part 7: Type MPO connector family
IEC 61754-10, Fibre optic connector interfaces – Part 10: Type Mini-MPO connector family
IEC 61754-18, Fibre optic connector interfaces – Part 18: Type MT-RJ connector family
IEC 61755-1, Fibre optic connector optical interfaces – Part 1: Optical interfaces for single
mode non-dispersion shifted fibre – General and guidance
3 Description
The performance of the optical interface for an angled PC end-face multi-fibre rectangular
ferrule is determined by the accuracy with which the optical datum targets of two mating
ferrules are aligned with each other. There are three conditions affecting the alignment of two
optical datum targets, lateral alignment, angular alignment and axial alignment.

The specified end-face parameters in this standard are required to provide physical contact
between all fibre cores in the mated rectangular ferrules when the ferrules are placed in the
fibre optic connector interfaces described in IEC 61754-5, IEC 61574-7, IEC 61754-10 and
IEC 61754-18 and tested to conditions for a controlled environment as defined in category C
in IEC 61755-1.
The specified lateral and angular parameters are required to provide the performance grades
as specified IEC 61753-1.
Parameters influencing the lateral and angular alignment of the optical fibre axes include
• fibre hole position deviation from designated distance;
• clearance between fibre hole diameter and fibre cladding diameter;
• fibre hole angular misalignment;

– 4 – PAS 61755-3-31  IEC:2007(E)

• fibre core concentricity relative to the cladding diameter;

• clearance between guide hole diameter and alignment pin diameter;

• the amount of angled PC polishing in axial direction.

Parameters influencing the axial alignment of the optical fibre axes include

• end-face flatness;
• end-face angle in the X-axis;

• end-face angle in the Y-axis;

• fibre protrusion/undercut;
• maximum difference in fibre height
...
