IEC 60061-1:1969/AMD61:2020

Amendment 61 - Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 1: Lamp caps

Amendement 61 - Culots de lampes et douilles ainsi que calibres pour le contrôle de l'interchangeabilité et de la sécurité - Partie 1: Culots de lampes

General Information

• Status: Published
• Publication Date: 26-Nov-2020
• ICS: 29.140.10 - Lamp caps and holders
• Technical Committee: SC 34B - Lamp caps and holders
• Drafting Committee: WG 2 - TC 34/SC 34B/WG 2
• Current Stage: PPUB - Publication issued
• Start Date: 27-Nov-2020
• Completion Date: 18-Dec-2020

Overview

IEC 60061-1:1969/AMD61:2020 is the 61st amendment to the international standard IEC 60061-1, published by the International Electrotechnical Commission (IEC). This amendment focuses specifically on lamp caps, holders, and gauges designed to control the interchangeability and safety of lighting components. The document updates and inserts detailed specifications into the original IEC 60061-1 standard from 1969, reflecting modern requirements as of 2020.

The standard addresses numerous types and variations of lamp caps and holders, ensuring safe use and compatibility across various lamp types. It plays a critical role in harmonizing global manufacturing and safety practices for lighting industry components.

Key Topics

• Lamp Caps and Holders: The standard covers a wide range of lamp caps including bi-pin, screw, bayonet, pre-focus, festoon, double contact, and special caps for automotive and projector lamps. Each cap type is detailed with dimensional, mechanical, and safety requirements.
• Interchangeability Control: It ensures that lamps and holders from different manufacturers remain interchangeable while maintaining electrical safety and mechanical reliability.
• Safety Measures: The amendment sets guidelines for insulation, contact material, and geometric parameters to mitigate risks such as electrical shocks, overheating, and mechanical failures.
• Gauges for Compliance: Included are specifications for gauges that verify critical dimensions and features of lamp caps. These tools aid manufacturers, suppliers, and quality inspectors in maintaining standardized production.
• Comprehensive Listings: The document features an extensive list of lamp cap types with references to individual sheet numbers (e.g., bi-pin caps G1.27, screw caps E27, bayonet caps BA15d, and many others), enabling detailed identification and application.
• Multi-language Content: Published in English and French, facilitating international use.

Applications

• Lighting Manufacturers: Ensuring their lamp caps and holders meet international specifications for safety, interchangeability, and quality.
• Quality Control: Production lines and inspection facilities apply the detailed gauges and measurements provided to comply with IEC standards.
• Electrical Installers and Designers: Gain assurance that lamps and fittings conform to recognized dimensions and safety protocols, reducing installation errors.
• Safety Regulators: Use the standard as a benchmark to enforce compliance in commercial and residential lighting products.
• Automotive and Specialty Lighting: The standard details specific lamp caps used in automotive and projector lamps, ensuring these niche applications meet universal safety norms.

Related Standards

• IEC 60061-2: Covers lamp holders, complementing Part 1 on lamp caps.
• IEC 60598: Requirements for luminaires, closely related for overall lighting safety.
• IEC 62471: Photobiological safety of lamps and lamp systems.
• ISO 7000: Graphical symbols used on equipment, supporting user and installer safety with standardized markings.
• Industry-specific standards such as automotive lighting regulations may reference IEC 60061-1 for cap compatibility.

---

Keywords: IEC 60061-1 amendment 61, lamp caps standard, lamp holders, interchangeability control, lighting safety standards, IEC lamp specifications, bi-pin lamp caps, bayonet caps, screw caps, lighting component gauges, electrical safety, IEC lighting standards 2020, lamp cap dimensions, international lamp standards, IEC amendments.

Standards Content (Sample)

NORME IEC
INTERNATIONALE
INTERNATIONAL 60061-1
STANDARD
AMENDEMENT 61
AMENDMENT 61
2020-11
Amendement 61
Culots de lampes et douilles ainsi que calibres

pour le contrôle de l'interchangeabilité
et de la sécurité –
Partie 1:
Culots de lampes
Amendment 61
Lamp caps and holders together with
gauges for the control of interchangeability
and safety –
Part 1:
Lamp caps
Les feuilles de cet amendement sont à insérer dans
l'IEC 60061­1 (1969)
The sheets contained in this amendment are to be inserted
in IEC 60061­1 (1969)
 IEC 2020 Droits de reproduction réservés – Copyright - all rights reserved

International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch

NORME IEC
INTERNATIONALE
INTERNATIONAL
60061-1
STANDARD
Edition 3.61
2020-11
Modifiée selon les Compléments:
Amended in accordance with Supplements:

A(1970), B(1971), C(1972), D(1972), E(1972), F(1975), G(1977)
H(1977), J(1980), K(1983), L(1987), M(1989), N(1992), P(1994)

Q(1994), R(1995), S(1996), T(1996), U(1996), V(1997),
et les amendements/and amendments 21(1998), 22(1999), 23(1999), 24(2000), 25(2001), 26(2001),
27(2001), 28(2002), 29(2002), 30(2002), 31(2003), 32(2003), 33(2003), 34(2004), 35(2004), 36(2005),
37(2006), 38(2007), 39(2007), 40(2008), 41(2009), 42(2009), 43(2010), 44(2010), 45(2010), 46(2011),
47(2011), 48(2012), 49(2013), 50(2013), 51(2014), 52(2015), 53(2015), 54(2016), 55(2016), 56(2017),
57(2017), 58(2018), 59(2019), 60(2020) et/and 61(2020)

Culots de lampes et douilles ainsi que calibres

pour le contrôle de l'interchangeabilité

et de la sécurité –
Partie 1:
Culots de lampes
Lamp caps and holders together with
gauges for the control of interchangeability
and safety –
Part 1:
Lamp caps
 IEC 2020 Droits de reproduction réservés – Copyright - all rights reserved

Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch

SOMMAIRE CONTENTS
SOMMAIRE PAR DÉSIGNATION CONTENTS BY DESIGNATION
Feuilles Sheet
Culots à deux broches G1.27, GX1.27 & GY1.3 . 7004-2-2 Bi-pin caps G1.27, GX1.27 & GY1.3 . 7004-2-2
Culots à deux broches G2.54, GX2.54 & GY2.5 . 7004-3-2 Bi-pin caps G2.54, GX2.54 & GY2.5 . 7004-3-2
Culots PX26d, PY26d-1 … PY26d-7 . 7004-5-7 Caps PX26d, PY26d-1 … PY26d-7 . 7004-5-7
Culots à vis E11 . 7004-6-1 Screw caps E11 . 7004-6-1
Culots à vis EY10 . 7004-7-1 Screw caps EY10 . 7004-7-1
Culots à baïonnette BAX9s . 7004-8-1 Bayonet caps BAX9s . 7004-8-1
Culots à baïonnette BAY9s . 7004-9-1 Bayonet caps BAY9s . 7004-9-1
Culots B22d . 7004-10-7 Caps B22d . 7004-10-7
Culot à baïonnette B22d-3(90°/135°)/25x26 . 7004-10A-2 Bayonet cap B22d-3(90°/135°)/25x26 . 7004-10A-2
Culots B15d . 7004-11-6 Caps B15d . 7004-11-6
Culots à baïonnette BA15d & BA15s . 7004-11A-10 Bayonet caps BA15 . 7004-11A-10
Culots à baïonnette BAY15d & BAY15s . 7004-11B-8 Bayonet caps BAY15d. 7004-11B-8
Culots BAZ15d & BAZ15s. 7004-11C-3 Caps BAZ15 . 7004-11C-3
Culots à baïonnette BA15s-3(110°/130°) . 7004-11D-2 Bayonet caps BA15s-3. 7004-11D-2
Culots BAW15d & BAW15s . 7004-11E-1 Caps BAW15 . 7004-11E-1
Culots à baïonnette BA20 . 7004-12-7 Bayonet caps BA20 . 7004-12-7
Culots à baïonnette pour automobiles Bayonet automobile caps
BA21-3(120°) . 7004-13-4 BA21-3(120°) . 7004-13-4
Culot à baïonnette BA9s . 7004-14-10 Bayonet caps BA9s . 7004-14-10
Culot à baïonnette BA7 . 7004-15-2 Bayonet cap BA7 . 7004-15-2
Culot à baïonnette BY22d . 7004-17-3 Bayonet cap BY22d . 7004-17-3
Culots à baïonnette BAX15d . 7004-18-2 Bayonet caps BAX15d. 7004-18-2
Culots BAU15d & BAU15s . 7004-19-2 Caps BAU15d & BAU15s . 7004-19-2
Culots BA15d-3(110°), BA15s-3(110°), Caps BA15d-3(110°), BA15s-3(110°),
BAU15d-3(110°), BAU15s-3(110°), BAU15d-3(110°), BAU15s-3(110°),
BAW15d-3(110°), BAW15s-3(110°), BAW15d-3(110°), BAW15s-3(110°),
BAY15d-3(110°), BAY15s-3(110°), BAY15d-3(110°), BAY15s-3(110°),
BAZ15d-3(110°) & BAZ15s-3(110°) . 7004-19A-1
BAZd15-3(110°) & BAZs15-3(110°) . 7004-19A-1
Termination on finished lamps G16d . 7004-20-2
Connecteur des lampes terminées G16d . 7004-20-2
Screw caps E27 . 7004-21-10
Culots à vis E27 . 7004-21-10
Screw caps E26 . 7004-21A-3
Culots à vis E26 . 7004-21A-3
Screw caps E10 . 7004-22-6
Culots à vis E10 . 7004-22-6
Screw caps E14 . 7004-23-7
Culots à vis E14 . 7004-23-7
Screw caps E40 . 7004-24-7
Culots à vis E40 . 7004-24-7
Screw caps E39 . 7004-24A-2
Culots à vis E39 . 7004-24A-2
Screw cap E5 . 7004-25-3
Culot à vis E5 . 7004-25-3
Screw cap E17 . 7004-26-3
Culot à vis E17 . 7004-26-3
Screw cap E27/51x39 . 7004-27-3
Culot à vis E27/51x39 . 7004-27-3
Screw cap E12 . 7004-28-2
Culot à vis E12 . 7004-28-2
Double contact screw cap E26d . 7004-29-2
Culot à vis à double contact E26d . 7004-29-2
Prefocus screw caps EP10 . 7004-30-2
Culots à vis préfocus EP10 . 7004-30-2
Prefocus caps P20d, PX20d, PY20d & PZ20d . 7004-31-2
Culots préfocus P20d, PX20d, PY20d & PZ20d . 7004-31-2
Prefocus caps P22d & PX22d . 7004-32-2
Culots préfocus P22d & PX22d . 7004-32-2
Caps 2G13 . 7004-33-4
Culots 2G13 . 7004-33-4
Prefocus caps - Assembly of ring and cap
Culots préfocus - Assemblage de la collerette
on finished lamps PX43t . 7004-34-2
et du culot sur lampes terminées PX43t . 7004-34-2
Prefocus cap PX13.5s . 7004-35-2
Culot préfocus PX13.5s . 7004-35-2
Prefocus cap P26s on finished lamp . 7004-36-1
Culot préfocus P26s sur la lampe terminée . 7004-36-1
Prefocus caps - Assembly of ring and
Culots préfocus - Assemblage de la collerette
cap on finished lamps PKX22s . 7004-37-2
et du culot sur lampes terminées PKX22s . 7004-37-2

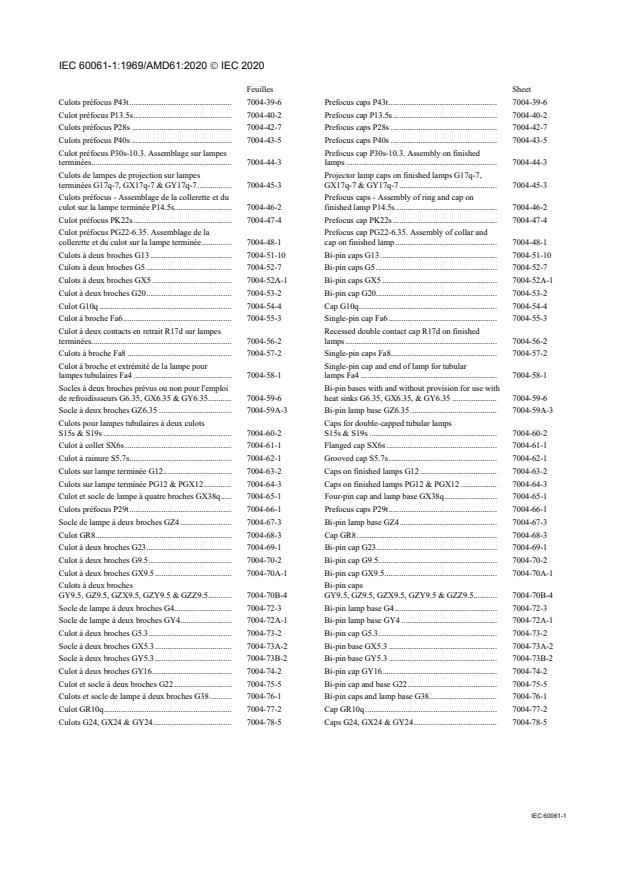

IEC 60061-1
Feuilles Sheet
Culots préfocus P43t . 7004-39-6 Prefocus caps P43t . 7004-39-6
Culot préfocus P13.5s . 7004-40-2 Prefocus cap P13.5s . 7004-40-2
Culots préfocus P28s . 7004-42-7 Prefocus caps P28s . 7004-42-7
Culots préfocus P40s . 7004-43-5 Prefocus caps P40s . 7004-43-5
Culot préfocus P30s-10.3. Assemblage sur lampes Prefocus cap P30s-10.3. Assembly on finished
terminées. 7004-44-3 lamps . 7004-44-3
Culots de lampes de projection sur lampes Projector lamp caps on finished lamps G17q-7,
terminées G17q-7, GX17q-7 & GY17q-7 . 7004-45-3 GX17q-7 & GY17q-7 . 7004-45-3
Culots préfocus - Assemblage de la collerette et du Prefocus caps - Assembly of ring and cap on
culot sur la lampe terminée P14.5s. 7004-46-2 finished lamp P14.5s . 7004-46-2
Culot préfocus PK22s . 7004-47-4 Prefocus cap PK22s . 7004-47-4
Culot préfocus PG22-6.35. Assemblage de la Prefocus cap PG22-6.35. Assembly of collar and
collerette et du culot sur la lampe terminée . 7004-48-1 cap on finished lamp . 7004-48-1
Culots à deux broches G13 . 7004-51-10 Bi-pin caps G13 . 7004-51-10
Culots à deux broches G5 . 7004-52-7 Bi-pin caps G5 . 7004-52-7
Culots à deux broches GX5 . 7004-52A-1 Bi-pin caps GX5 . 7004-52A-1
Culot à deux broches G20 . 7004-53-2 Bi-pin cap G20. 7004-53-2
Culot G10q . 7004-54-4 Cap G10q . 7004-54-4
Culot à broche Fa6 . 7004-55-3 Single-pin cap Fa6 . 7004-55-3
Culot à deux contacts en retrait R17d sur lampes Recessed double contact cap R17d on finished
terminées. 7004-56-2 lamps . 7004-56-2
Culots à broche Fa8 . 7004-57-2 Single-pin caps Fa8. 7004-57-2
Culot à broche et extrémité de la lampe pour Single-pin cap and end of lamp for tubular
lampes tubulaires Fa4 . 7004-58-1 lamps Fa4 . 7004-58-1
Socles à deux broches prévus ou non pour l'emploi Bi-pin bases with and without provision for use with
de refroidissseurs G6.35, GX6.35 & GY6.35. 7004-59-6 heat sinks G6.35, GX6.35, & GY6.35 . 7004-59-6
Socle à deux broches GZ6.35 . 7004-59A-3 Bi-pin lamp base GZ6.35 . 7004-59A-3
Culots pour lampes tubulaires à deux culots Caps for double-capped tubular lamps
S15s & S19s . 7004-60-2 S15s & S19s . 7004-60-2
Culot à collet SX6s . 7004-61-1 Flanged cap SX6s . 7004-61-1
Culot à rainure S5.7s . 7004-62-1 Grooved cap S5.7s . 7004-62-1
Culots sur lampe terminée G12 . 7004-63-2 Caps on finished lamps G12 . 7004-63-2
Culots sur lampe terminée PG12 & PGX12 . 7004-64-3 Caps on finished lamps PG12 & PGX12 . 7004-64-3
Culot et socle de lampe à quatre broches GX38q . 7004-65-1 Four-pin cap and lamp base GX38q . 7004-65-1
Culots préfocus P29t . 7004-66-1 Prefocus caps P29t . 7004-66-1
Socle de lampe à deux broches GZ4 . 7004-67-3 Bi-pin lamp base GZ4 . 7004-67-3
Culot GR8 . 7004-68-3 Cap GR8 . 7004-68-3
Culot à deux broches G23 . 7004-69-1 Bi-pin cap G23. 7004-69-1
Culot à deux broches G9.5 . 7004-70-2 Bi-pin cap G9.5. 7004-70-2
Culot à deux broches GX9.5 . 7004-70A-1 Bi-pin cap GX9.5 . 7004-70A-1
Culots à deux broches Bi-pin caps
GY9.5, GZ9.5, GZX9.5, GZY9.5 & GZZ9.5 . 7004-70B-4 GY9.5, GZ9.5, GZX9.5, GZY9.5 & GZZ9.5 . 7004-70B-4
Socle de lampe à deux broches G4. 7004-72-3 Bi-pin lamp base G4 . 7004-72-3
Socle de lampe à deux broches GY4 . 7004-72A-1 Bi-pin lamp base GY4 . 7004-72A-1
Culot à deux broches G5.3 . 7004-73-2 Bi-pin cap G5.3. 7004-73-2
Socle à deux broches GX5.3 . 7004-73A-2 Bi-pin base GX5.3 . 7004-73A-2
Socle à deux broches GY5.3 . 7004-73B-2 Bi-pin base GY5.3 . 7004-73B-2
Culot à deux broches GY16 . 7004-74-2 Bi-pin cap GY16 . 7004-74-2
Culot et socle à deux broches G22 . 7004-75-5 Bi-pin cap and base G22 . 7004-75-5
Culots et socle de lampe à deux broches G38 . 7004-76-1 Bi-pin caps and lamp base G38 . 7004-76-1
Culot GR10q . 7004-77-2 Cap GR10q . 7004-77-2
Culots G24, GX24 & GY24 . 7004-78-5 Caps G24, GX24 & GY24 . 7004-78-5

IEC 60061-1
Feuilles Sheet
Culots P11.5d. 7004-79-1 Caps P11.5d . 7004-79-1
Culots pour lampes plafonnier SV7 . 7004-80-7 Festoon caps SV7 . 7004-80-7
Culots pour lampes plafonnier SV8.5 . 7004-81-4 Festoon caps SV8.5 . 7004-81-4
Culots pour lampes plafonnier SVX8.5 . 7004-81A-1 Festoon caps SVX8.5 . 7004-81A-1
Culots 2G11 . 7004-82-2 Cap 2G11 . 7004-82-2
Culots 2GX11 . 7004-82A-2 Cap 2GX11 . 7004-82A-2
Culots pour lampes tubulaires à radiation Caps for tubular infra-red
infrarouge SK15s . 7004-83-1 lamps SK15s . 7004-83-1
Culots sur lampes terminées GX10q . 7004-84-2 Caps on finished lamps GX10q . 7004-84-2
Culots sur lampes terminées GY10q . 7004-85-2 Caps on finished lamps GY10q . 7004-85-2
Culot à deux broches GX23 . 7004-86-1 Bi-pin cap GX23 . 7004-86-1
Culots sur lampes terminées G32, GX32 & GY32. 7004-87-2 Caps on finished lamps G32, GX32 & GY32 . 7004-87-2
Culots préfocus - Assemblage de la collerette Prefocus caps - Assembly of ring and cap
et du culot sur lampes terminées PY43d . 7004-88-2 on finished lamps PY43d . 7004-88-2
Culot préfocus - Assemblage de la collerette Prefocus cap - Assembly of ring and cap
et du culot sur lampes terminées PZ43t. 7004-89-2 on finished lamps PZ43t . 7004-89-2
Socle de lampe flash W10.6x8.5d . 7004-90-2 Base of photo-flash lamp W10.6x8.5d . 7004-90-2
Socle de lampe W2.1x9.5d . 7004-91-3 Lamp base W2.1x9.5d . 7004-91-3
Socle de lampe WX2.1x9.5d . 7004-91A-1 Lamp base WX2.1x9.5d . 7004-91A-1
Culot à un contact encastré et extrémité de la Recessed single contact cap and end of
lampe R7s . 7004-92-3 lamp R7s . 7004-92-3
Culot à un contact encastré et extrémité de la Recessed single contact cap and end of
lampe RX7s . 7004-92A-4 lamp RX7s . 7004-92A-4
Socle de lampe W2x4.6d . 7004-94-2 Lamp base W2x4.6d . 7004-94-2
Culot préfocus P45t . 7004-95-5 Prefocus cap P45t . 7004-95-5
Culots à collet SX4s/4 . 7004-97-2 Flanged caps SX4s/4 . 7004-97-2
Culots à collet SY4s/7 . 7004-97A-1 Flanged caps SY4s/7 . 7004-97A-1
Culot préfocus et extrémité de la lampe pour Prefocus cap and end of lamp for
lampes pour automobiles X511 . 7004-99-2 automobile lamps X511 . 7004-99-2
Connecteur des lampes terminées G16t . 7004-100-3 Termination on finished lamps G16t . 7004-100-3
Culots GRX10q. . 7004-101-1 Caps GRX10q. . 7004-101-1
Culot 2G7 . 7004-102-2 Cap 2G7 . 7004-102-2
Culot 2GX7 . 7004-103-2 Cap 2GX7 . 7004-103-2
Socles W2.5x16 . 7004-104-1 Wedge bases W2.5x16 . 7004-104-1
Socles WX2.5x16 . 7004-104A-1 Wedge bases WX2.5x16 . 7004-104A-1
Socle WY2.5x16 . 7004-104B-1 Wedge base WY2.5x16 . 7004-104B-1
Socle WZ2.5x16 . 7004-104C-1 Wedge base WZ2.5x16 . 7004-104C-1
Socle WU2.5x16 . 7004-104D-1 Wedge base WU2.5x16 . 7004-104D-1
Socles W3x16d & WX3x16d . 7004-105-3 Lamp bases W3x16d & WX3x16d . 7004-105-3
Socles W3x16q, WX3x16q & WY3x16q . 7004-106-4 Lamp bases W3x16q, WX3x16q & WY3x16q . 7004-106-4
Culots PG13 & PGJ13 . 7004-107-4 Caps PG13 & PGJ13 . 7004-107-4
Socles de lampe à deux broches GU4 . 7004-108-2 Bi-pin lamp bases GU4 . 7004-108-2
Socles à deux broches GU5.3 . 7004-109-2 Bi-pin bases GU5.3 . 7004-109-2
Culots PGJ19 . 7004-110-3 Caps PGJ19 . 7004-110-3
Culots Préfocus PGJX19. 7004-110A-1 Prefocus Caps PGJX19 . 7004-110A-1
Culots prefocus P32d & PK32d . 7004-111-5 Prefocus caps P32d & PK32d . 7004-111-5
Culots S14 . 7004-112-1 Caps S14 . 7004-112-1
Socle de lampe à deux broches GU7 . 7004-113-1 Bi-pin lamp base GU7 . 7004-113-1
Culot et extrémité de la lampe Fc2. 7004-114-1 Cap and end of lamp Fc2 . 7004-114-1
Culot W4.3x8.5d . 7004-115-1 Cap W4.3x8.5d . 7004-115-1
Culot à vis EZ10 . 7004-116-1 Screw cap EZ10 . 7004-116-1
Culot 2G10 . 7004-118-2 Cap 2G10 . 7004-118-2
Culot à deux broches GY22 . 7004-119-1 Bi-pin cap GY22 . 7004-119-1
Socle de lampe à deux broches GZ10 . 7004-120-1 Bi-pin lamp base GZ10 . 7004-120-1
Socle de lampe à deux broches GU10 . 7004-121-2 Bi-pin lamp base GU10 . 7004-121-2

IEC 60061-1
Feuilles Sheet
Socle G8.5 . 7004-122-3 Base G8.5 . 7004-122-3
Culot GU10q. 7004-123-1 Cap GU10q . 7004-123-1
Culot GZ10q . 7004-124-1 Cap GZ10q . 7004-124-1
Culot 2GX13. 7004-125-1 Cap 2GX13 . 7004-125-1
Socle G5.3-4.8 . 7004-126-1 Base G5.3-4.8 . 7004-126-1
Culots PG20 & PGU20 . 7004-127-2 Caps PG20 & PGU20 . 7004-127-2
Culots P(X)(Y)26.4t & PJ26.4t . 7004-128-3 Caps P(X)(Y)26.4t & PJ26.4t . 7004-128-3
Socle G9 . 7004-129-3 Base G9 . 7004-129-3
Culots à vis avec jupe E26/50x39 & E26/51x39 . 7004-130-1 Skirted screw caps E26/50x39 & E26/51x39 . 7004-130-1
Culots GRZ10d . 7004-131-1 Caps GRZ10d . 7004-131-1
Culots GRZ10t . 7004-132-1 Caps GRZ10t . 7004-132-1
Culots P38t . 7004-133-1 Caps P38t . 7004-133-1
Connecteur des lampes terminées G53 . 7004-134-1 Termination on finished lamps G53 . 7004-134-1
Culots GX12 . 7004-135-1 Caps GX12 . 7004-135-1
Culots pour circuit imprimé GZX7d, GZY7d Printed circuit caps GZX7d, GZY7d
& GZZ7d . 7004-136-1 & GZZ7d . 7004-136-1
Culots pour circuit imprimé GUX2.5d, GUY2.5d Printed circuit caps GUX2.5d, GUY2.5d
& GUZ2.5d . 7004-137-1 & GUZ2.5d . 7004-137-1
Culot P23t . 7004-138-2 Cap P23t . 7004-138-2
Culot PX23t . 7004-138A-1 Cap PX23t . 7004-138A-1
Culots G7.9 & GX7.9 . 7004-139-1 Caps G7.9 & GX7.9 . 7004-139-1
Culots B8.4d & BX8.4d . 7004-140-1 Caps B8.4d & BX8.4d . 7004-140-1
Culots 2G8 . 7004-141-2 Caps 2G8 . 7004-141-2
Culots GX53 . 7004-142-2 Caps GX53 . 7004-142-2
Socle GX8.5. 7004-143-1 Base GX8.5. 7004-143-1
Socle GX10 . 7004-144-2 Base GX10. 7004-144-2
Culots PGJY19 . 7004-146-1 Caps PGJY19 . 7004-146-1
Culots PG18.5d . 7004-147-1 Caps PG18.5d . 7004-147-1
Culot PGZ12 . 7004-148-2 Cap PGZ12 . 7004-148-2
Culot BAW9s . 7004-149-1 Cap BAW9s . 7004-149-1
Culot BAZ9s . 7004-150-1 Cap BAZ9s . 7004-150-1
Culot BAU9s . 7004-150A-1 Cap BAU9s . 7004-150A-1
Culot BAUZ9s . 7004-150B-1 Cap BAUZ9s . 7004-150B-1
Socle WZ3x16q . 7004-151-2 Base WZ3x16q . 7004-151-2
Culot GU6.5. 7004-152-1 Cap GU6.5 . 7004-152-1
Culot PGJ5 . 7004-153-1 Cap PGJ5 . 7004-153-1
Connecteurs des lampes terminees GU16d/GX16d . 7004-154-2 Termination on finished lamps GU16d/GX16d . 7004-154-2
Culots PGJ23t . 7004-155-1 Caps PGJ23t . 7004-155-1
Culots PGJ(X)50 . 7004-156-2 Caps PGJ(X)50 . 7004-156-2
Culots GR14q . 7004-157-1 Caps GR14q. 7004-157-1
Culots PU20d . 7004-158-1 Caps PU20d . 7004-158-1
Culot SFa21-12 . 7004-159-1 Cap SFa21-12 . 7004-159-1
Culots SFc10-4 & SFc15.5-6 . 7004-160-1 Caps SFc10-4 & SFc15.5-6 . 7004-160-1
Culots G28d . 7004-161-1 Caps G28d . 7004-161-1
Culots CH14.65d . 7004-162-1 Caps CH14.65d . 7004-162-1
Culots PGZ18 & PGZX18 . 7004-163-1 Caps PGZ18 & PGZX18 . 7004-163-2
Culots WP3.3x14.5 . 7004-164-2 Caps WP3.3x14.5 . 7004-164-2
Culots PGJ21t . 7004-165-1 Caps PGJ21t . 7004-165-1
Culots GU8.5 . 7004-166-2 Caps GU8.5 . 7004-166-2
Culots et socle de lampe à deux broches GX51 . 7004-167-1 Bi-pin lamp caps GX51 . 7004-167-1
Culot et pied de cable K12s . 7004-168-1 Cap and cable shoe K12s . 7004-168-1
Culots PGJX28 . 7004-169-1 Caps PGJX28 . 7004-169-1
Socle de lampe à deux broches GUZ 10 . 7004-170-1 Bi-pin lamp base GUZ10 . 7004-170-1
Culots PU43t. 7004-171-2 Caps PU43t . 7004-171-2
Culots GX38 . 7004-172-1 Caps GX38 . 7004-172-1
Culots à baïonette BA15d-3 (100°/130°) . 7004-173-1 Caps BA15d-3 (100°/130°) . 7004-173-1

IEC 60061-1
Feuilles Sheets
Culots G(X)14.5 . 7004-174-1 Caps G(X)14.5 . 7004-174-1
Culot GUZ5.3 . 7004-175-2 Cap GUZ5.3 . 7004-175-2
Socle WUX2.5x16d . 7004-176-1 Wedge base WUX2.5x16d . 7004-176-1
Socle WUY2.5x16d . 7004-177-1 Wedge baseWUY2.5x16d. 7004-177-1
Socle WUZ2.5x16d . 7004-178-1 Wedge base WUZ2.5x16d . 7004-178-1
Socle WUU2.5x16d . 7004-179-1 Wedge base WUU2.5x16d . 7004-179-1
Socle WZX2.5x16q . 7004-180-1 Wedge base WZX2.5x16q . 7004-180-1
Socle WZY2.5x16q . 7004-181-1 Wedge base WZY2.5x16q . 7004-181-1
Culots préfocus PGJY50 . 7004-182-1 Prefocus caps PGJY50 . 7004-182-1
Culots GX16t-5 . 7004-183-2 Caps GX16t-5 . 7004-183-2
Culots PGJX36 . 7004-184-1 Caps PGJX36 . 7004-184-1
Culots préfocus PGJ18.5d/t. 7004-185-3 Prefocus caps PGJ18.5d/t. 7004-185-3
Culots GH36d . 7004-186-1 Caps . 7004-186-1
Culots GR6d . 7004-187-2 Caps GR6d. 7004-187-2

IEC 60061-1
LAMP CAPS AND LAMP BASES
CULOTS ET SOCLES DE LAMPES
Page 1/4
BA7 7004-15-2
B8.4d & BX8.4d 7004-140-1
BA9s 7004-14-10
BAX9s 7004-8-1
BAY9s 7004-9-1
BAU9s 7004-150A-1
BAUZ9s 7004-150B-1
BAW9s 7004-149-1
BAZ9s 7004-150-1
B15d 7004-11-6
BA15d/s 7004-11A-10
BA15d-3(110°) & BA15s-3(110°) 7004-19A-1
BAU15d & BA15s 7004-19-2
BAU15d-3(110°) & BA15s-3(110°) 7004-19A-1
BAW15d & BAW15s 7004-11E-1
BAW15d-3(110°) & BA15s-3(110°) 7004-19A-1
BAX15d 7004-18-2
BAY15d & BAY15s 7004-11B-8
BAY15d-3(110°) & BAY15s-3(110°) 7004-19A-1
BAZ15d/s 7004-11C-3
BAZ15d-3(110°) & BAZ15s-3(110°) 7004-19A-1
BA15s-3(100°/130°) 7004-11D-2
BA15d-3(100°/130°) 7004-173-1
BA20 7004-12-7
BA21-3(120°) 7004-13-4
B22d 7004-10-7
B22d-3(90°/135°)/25x26 7004-10A-2
BY22d 7004-17-3
CH14.65d 7004-162-1
E5 7004-25-3
E10 7004-22-6
EP10 7004-30-2
EY10 7004-7-1
EZ10 7004-116-1
E11 7004-6-1
E12 7004-28-2
E14 7004-23-7
E17 7004-26-3
E26 7004-21A-3
E26d 7004-29-2
E26/50x39 & E26/51x39 7004-130-1
E27 7004-21-10
E27/51x39 7004-27-3
E39 7004-24A-2
E40 7004-24-7
Fc2 7004-114-1
Fa4 7004-58-1
Fa6 7004-55-3
Fa8 7004-57-2
G1.27 & GX1.27 7004-2-2
G2.54 & GX2.54 7004-3-2
GUX2.5d, GUY2.5d & GUZ2.5d 7004-137-1
G4 7004-72-3
GU4 7004-108-2
GY4 7004-72A-1
GZ4 7004-67-3
G5 7004-52-7
GX5 7004-52A-1
G5.3 7004-73-2
G5.3-4.8 7004-126-1
GU5.3 7004-109-2
GUZ5.3 7004-175-2
GX5.3 7004-73A-2
GY5.3 7004-73B-2
CONTENTS BY DESIGNATION IEC 60061-1
SOMMAIRE PAR DESIGNATION
LAMP CAPS AND LAMP BASES
CULOTS ET SOCLES DE LAMPES
Page 2/4
GR6d 7004-187-2
G6.35, GX6.35 & GY6.35 7004-59-6
GZ6.35 7004-59A-3
GU6.5 7004-152-1
2G7 7004-102-2
GU7 7004-113-1
2GX7 7004-103-2
GZX7d, GZY7d & GZZ7d 7004-136-1
G7.9 & GX7.9 7004-139-1
2G8 7004-141-2
GR8 7004-68-3
G8.5 7004-122-3
GU8.5 7004-166-2
GX8.5 7004-143-1
G9 7004-129-3
G9.5 7004-70-2
GX9.5 7004-70A-1
GY9.5, GZ9.5, GZX9.5, GZY9.5 & GZZ9.5 7004-70B-4
G10q 7004-54-4
GR10q 7004-77-2
GRX10q 7004-101-1
GRZ10d 7004-131-1
GRZ10t 7004-132-1
GU10 7004-121-2
GU10q 7004-123-1
GUZ10 7004-170-1
GX10 7004-144-2
GX10q 7004-84-2
GY10q 7004-85-2
GZ10 7004-120-1
GZ10q 7004-124-1
2G10 7004-118-2
2G11 7004-82-2
2GX11 7004-82A-2
G12 7004-63-2
GX12 7004-135-1
G13 7004-51-10
2G13 7004-33-4
2GX13 7004-125-1
G14.5 & GX14.5 7004-174-1
GR14q 7004-157-1
G16d 7004-20-2
G16t 7004-100-3
GU16d/GX16d 7004-154-2
GX16t-5 7004-183-2
GY16 7004-74-2
G17q-7, GX17q-7 & GY17q-7 7004-45-3
G20 7004-53-2
G22 7004-75-5
GY22 7004-119-1
G23 7004-69-1
GX23 7004-86-1
G24, GX24 & GY24 7004-78-5
G28d 7004-161-1
G32, GX32 & GY32 7004-87-2
GH36d 7004-186-1
G38 7004-76-1
GX38 7004-172-1
GX38q 7004-65-1
GX51 7004-167-1
G53 7004-134-1
GX53 7004-142-2
K12s 7004-168-1
CONTENTS BY DESIGNATION IEC 60061-1
SOMMAIRE PAR DESIGNATION
LAMP CAPS AND LAMP BASES
CULOTS ET SOCLES DE LAMPES
Page 3/4
PGJ5 7004-153-1
P11.5d 7004-79-1
PG12 & PGX12 7004-64-3
PGZ12 7004-148-2
PG13 & PGJ13 7004-107-4
P13.5s 7004-40-2
PX13.5s 7004-35-2
P14.5s 7004-46-2
PGZ18 & PGZX18 7004-163-2
PG18.5d 7004-147-1
PGJ18.5d/t 7004-185-3
PGJ19 7004-110-3
PGJX19 7004-110A-1
PGJY19 7004-146-1
P20d, PX20d, PY20d & PZ20d 7004-31-2
PG20 & PGU20 7004-127-2
PU20d 7004-158-1
PGJ21t 7004-165-1
P22d & PX22d 7004-32-2
PG22-6.35 7004-48-1
PK22s 7004-47-4
PKX22s 7004-37-2
P23t 7004-138-2
PGJ23t 7004-155-1
PX23t 7004-138A-1
P26s 7004-36-1
PX26d, PY26d-1 … PY26d-7 7004-5-7
P(X)(Y)26.4t &PJ26.4t 7004-128-3
P28s 7004-42-7
PGJX28 7004-169-1
PGJX36 7004-184-1
P29t 7004-66-1
P30s-10.3 7004-44-3
P32d & PK32d 7004-111-5
P38t 7004-133-1
P40s 7004-43-5
P43t 7004-39-6
PU43t 7004-171-2
PX43t 7004-34-2
PY43d 7004-88-2
PZ43t 7004-89-2
P45t 7004-95-5
PGJ(X)50 7004-156-2
PGJY50 7004-182-1
R7s 7004-92-3
RX7s 7004-92A-4
R17d 7004-56-2
SX4s/4 7004-97-2
SY4s/7 7004-97A-1
S5.7s 7004-62-1
SX6s 7004-61-1
SV7 7004-80-7
SV8.5 7004-81-4
SVX8.5 7004-81A-1
SFc10-4 & SFc15.5-6 7004-160-1
S14 7004-112-1
S15s & S19s 7004-60-2
SK15s 7004-83-1
SFa21-12 7004-159-1
CONTENTS BY DESIGNATION IEC 60061-1
SOMMAIRE PAR DESIGNATION
LAMP CAPS AND LAMP BASES
CULOTS ET SOCLES DE LAMPES
Page 4/4
W2x4.6d 7004-94-2
W2.1x9.5d 7004-91-3
W2.5x16 7004-104-1
WU2.5x16 7004-104D-1
WUU2.5x16d 7004-179-1
WUX2.5x16d 7004-176-1
WUY2.5x16d 7004-177-1
WUZ2.5x16d 7004-178-1
WX2.1x9.5d 7004-91A-1
WX2.5x16 7004-104A-1
WY2.5x16 7004-104B-1
WZ2.5x16 7004-104C-1
WZX2.5x16q 7004-180-1
WZY2.5x16q 7004-181-1
W3x16d & WX3x16d 7004-105-3
W3x16q, WX3x16q & WY3x16q 7004-106-4
WZ3x16q 7004-151-2
WP3.3x14.5 7004-164-2
W4.3x8.5d 7004-115-1
W10.6x8.5d 7004-90-2
X511 7004-99-2
CONTENTS BY DESIGNATION IEC 60061-1
SOMMAIRE PAR DESIGNATION
INSTRUCTIONS POUR L'INSERTION DES INSTRUCTIONS FOR THE INSERTION OF NEW
NOUVELLES PAGES ET FEUILLES DE NORMES PAGES AND STANDARD SHEETS
DANS L'IEC 60061-1 IN IEC 60061-1

1. Retirer 1. Remove
les pages de titre existantes (2 pages), existing title pages (2 pages),
le sommaire existant (5 pages), existing contents (5 pages),
le sommaire par désignation existant (4 pages) et existing contents by designation (4 pages) and
l'avant-propos existant (1 page) existing foreword (1 page)

et insérer and insert in their place
les nouvelles pages de titre (2 pages), new title pages (2 pages),
le nouveau sommaire (5 pages), new contents (5 pages),
le nouveau sommaire par désignation (4 pages) new contents by designation (4 pages)
ainsi que and
le nouvel avant-propos (1 page). new foreword (1 page).

2. Retirer les feuilles existantes 2. Remove existing sheets

3. Retirer les feuilles existantes 3. Remove existing sheets
7004-110-2 (3 pages) 7004-110-2 (3 pages)
7004-185-2 (7pages) 7004-185-2 (7 pages)
et les remplacer par les feuilles and replace them with sheets
7004-110-3 (3 pages) 7004-110-3 (3 pages)
7004-185-3 (7 pages) 7004-185-3 (7 pages)

4. Insérer les nouvelles feuilles 4. Insert new sheets
7004-110A-1 (2 pages) 7004-110A-1 (2 pages)

AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 34B: Culots et douilles, du comité d’études
34 de l'IEC: Éclairage.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
34B/2098/FDIS 34B/2105/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera pas
modifié avant la date de stabilité indiquée sur le site web de l'IEC sous "http
...
