IEC 61076-3-118:2010

Connectors for electronic equipment - Product requirements - Part 3-118: Rectangular connectors - Detail specification for a 4 pole plus PE power connector with push-pull coupling

IEC 61076-3-118:2010 establishes specifications and test requirements for a connector with four contacts plus PE contact, for use in industrial environments. This standard also specifies free and fixed connectors, with round contacts, suitable for screw or crimp terminations. Other terminations techniques, as solder or printed board connections are upon agreement between manufacturer and user. The free and fixed connectors have a push-pull locking mechanism for IP65 and IP67 protection according to IEC 60529. The PE contact is first-make last-break. Connectors according this International Standard are without breaking capacity COC according to IEC 61984, therefore they are not intended to be engaged or disengaged in normal use when live or under load, if not otherwise specified by the manufacturer.

Connecteurs pour équipements électroniques - Exigences de produit - Partie 3-118: Connecteurs rectangulaires - Spécification particulière relative à un connecteur de puissance à 4 pôles plus PE avec mécanisme de couplage pousser-tirer

La CEI 61076-3-118:2010 établit des spécifications et des exigences d'essai relatives à un connecteur comportant quatre contacts plus un contact PE, utilisé dans les environnements industriels. La présente norme internationale spécifie les fiches et les embases, comportant des contacts arrondis, disponibles avec des raccordements à vis ou serties. D'autres techniques de raccordements, telles que des connexions à braser ou pour adapter sur carte imprimée font l'objet d'un accord entre le fabricant et l'utilisateur. Les fiches et les embases comportent un mécanisme de verrouillage pousser-tirer pour une protection IP65 et IP67 conformément à la CEI 60529. Le contact de terre de protection est de type "premier fermé, dernier ouvert". Les connecteurs conformes à la présente Norme Internationale sont sans pouvoir de coupure (COC) conformément à la CEI 61984; de ce fait, ils ne sont pas destinés à être connectés ou déconnectés lors d'une utilisation normale lorsqu'ils sont alimentés ou sous charge, sauf indication contraire de la part du fabricant.

General Information

• Status: Published
• Publication Date: 25-Apr-2010
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 26-Apr-2010
• Completion Date: 15-May-2010

Overview

IEC 61076-3-118:2010 specifies detailed product requirements for rectangular power connectors with 4 poles plus a protective earth (PE) contact. This standard is published by the International Electrotechnical Commission (IEC) and targets connectors used in industrial electronic equipment. The connectors feature a push-pull coupling mechanism, designed to ensure secure and reliable connections while facilitating quick mating and unmating. Protection ratings of IP65 and IP67 are achieved, making these connectors suitable for harsh environments with dust and water exposure.

Designed specifically for industrial applications, the standard covers both fixed (male) and free (female) connector versions. These connectors use round contacts and support termination by screw or crimp methods, with other termination techniques like soldering or printed board connections available upon agreement between manufacturer and user. Notably, these connectors do not have a breaking capacity rating under IEC 61984, indicating they are generally not intended to be connected or disconnected under load unless specified otherwise by the manufacturer.

Key Topics

• Connector Configuration: 4 power poles plus 1 protective earth (PE) contact with first-make last-break sequence to improve safety.
• Coupling Mechanism: Push-pull locking system ensuring secure connections and ease of use in demanding industrial environments.
• Environmental Protection: Compliance with IP65 and IP67 ratings according to IEC 60529, offering dust-tight and water-resistant performance.
• Contact Termination Types: Screw and crimp terminations are standardized; solder and printed board terminations may be used with agreement.
• Mechanical and Electrical Properties: Defined requirements for insertion/withdrawal forces, contact resistance, current-carrying capacity, dielectric strength, and insulation resistance.
• Climatic Categories and Durability: Classification into climatic categories to ensure performance reliability under various temperature and humidity conditions.
• Testing and Qualification: A comprehensive test schedule covers mechanical endurance, electrical performance, environmental resistance, and safety validations.
• Marking and Identification: Requirements for clear marking of insulation materials and connector coding for polarization to prevent mismating.

Applications

IEC 61076-3-118 connectors are crucial components in industrial electronic systems demanding robust and secure power connections with protective earth functionality. Typical applications include:

• Industrial automation and control equipment
• Power distribution modules in factory settings
• Harsh environment installations requiring high ingress protection
• Machinery and heavy equipment electrical interfaces
• Compact electronic assemblies requiring space-efficient and reliable power connectors

These connectors ensure operator safety, system reliability, and ease of maintenance in challenging industrial conditions. Their push-pull coupling mechanism supports quick connection cycles, beneficial for modular systems and frequent equipment changes.

Related Standards

To complement IEC 61076-3-118, consider these related international standards for connector technology and safety:

• IEC 60529: Degrees of protection provided by enclosures (IP Code) - relevant for understanding ingress protection ratings IP65/IP67.
• IEC 61984: Connectors - safety requirements and tests for connectors with rated voltages and currents.
• IEC 61076-1: Basic connector system standard defining compatibility levels.
• IEC 61076-3-X series: Additional rectangular connector specifications covering other connector configurations and applications.
• ISO/IEC 11801: Generic cabling for customer premises, which may reference power connector requirements in integrated systems.

Using IEC 61076-3-118-compliant connectors ensures conformity with global safety and performance standards, facilitating international system integration and enhancing product marketability.

---

By adhering to IEC 61076-3-118:2010, manufacturers and system integrators benefit from standardized, reliable, and durable 4-pole plus PE power connectors with effective push-pull coupling, optimized for industrial electronic equipment applications. This results in safer operational practices and improved uptime across industrial installations.

Standards Content (Sample)

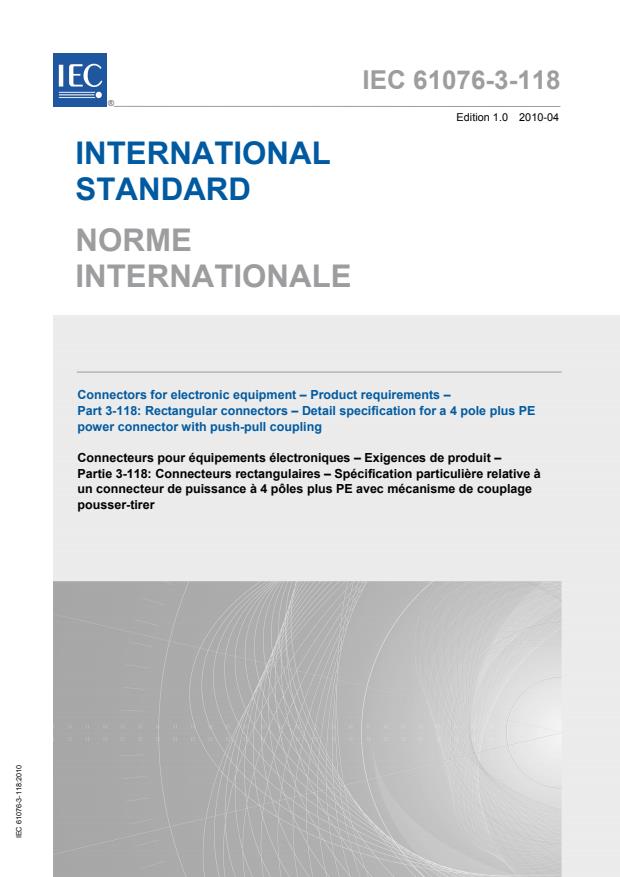

IEC 61076-3-118 ®
Edition 1.0 2010-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –
Part 3-118: Rectangular connectors – Detail specification for a 4 pole plus PE
power connector with push-pull coupling

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 3-118: Connecteurs rectangulaires – Spécification particulière relative à
un connecteur de puissance à 4 pôles plus PE avec mécanisme de couplage
pousser-tirer
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 61076-3-118 ®
Edition 1.0 2010-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –
Part 3-118: Rectangular connectors – Detail specification for a 4 pole plus PE
power connector with push-pull coupling

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 3-118: Connecteurs rectangulaires – Spécification particulière relative à
un connecteur de puissance à 4 pôles plus PE avec mécanisme de couplage
pousser-tirer
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
U
CODE PRIX
ICS 31.220.10 ISBN 978-2-88910-409-3

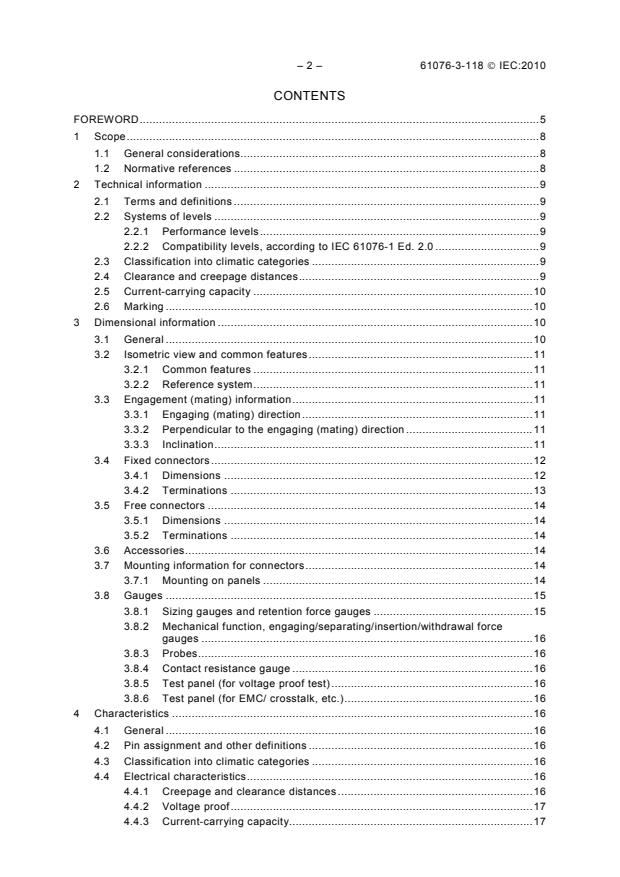

– 2 – 61076-3-118 © IEC:2010
CONTENTS
FOREWORD.5
1 Scope.8
1.1 General considerations.8
1.2 Normative references .8
2 Technical information .9
2.1 Terms and definitions .9
2.2 Systems of levels .9
2.2.1 Performance levels.9
2.2.2 Compatibility levels, according to IEC 61076-1 Ed. 2.0 .9
2.3 Classification into climatic categories .9
2.4 Clearance and creepage distances.9
2.5 Current-carrying capacity .10
2.6 Marking .10
3 Dimensional information .10
3.1 General .10
3.2 Isometric view and common features.11
3.2.1 Common features .11
3.2.2 Reference system.11
3.3 Engagement (mating) information.11
3.3.1 Engaging (mating) direction.11
3.3.2 Perpendicular to the engaging (mating) direction .11
3.3.3 Inclination.11
3.4 Fixed connectors .12
3.4.1 Dimensions .12
3.4.2 Terminations .13
3.5 Free connectors .14
3.5.1 Dimensions .14
3.5.2 Terminations .14
3.6 Accessories.14
3.7 Mounting information for connectors.14
3.7.1 Mounting on panels .14
3.8 Gauges .15
3.8.1 Sizing gauges and retention force gauges .15
3.8.2 Mechanical function, engaging/separating/insertion/withdrawal force
gauges .16
3.8.3 Probes.16
3.8.4 Contact resistance gauge .16
3.8.5 Test panel (for voltage proof test).16
3.8.6 Test panel (for EMC/ crosstalk, etc.).16
4 Characteristics .16
4.1 General .16
4.2 Pin assignment and other definitions .16
4.3 Classification into climatic categories .16
4.4 Electrical characteristics.16
4.4.1 Creepage and clearance distances.16
4.4.2 Voltage proof.17
4.4.3 Current-carrying capacity.17

61076-3-118 © IEC:2010 – 3 –
4.4.4 Contact resistance.17
4.4.5 Insulation resistance.17
4.4.6 Impedance.17
4.4.7 Transmission characteristics.17
4.5 Mechanical characteristics .17
4.5.1 Mechanical operation .17
4.5.2 Effectiveness of connector coupling devices.17
4.5.3 Insertion and withdrawal forces .17
4.5.4 Contact retention in insert.18
4.5.5 Polarizing and coding method.18
4.6 Other characteristics .18
4.6.1 Shock and vibration (method sine).18
4.6.2 Degree of protection provided by enclosures (IP-code).18
4.6.3 Screen and shielding properties .18
4.7 Environmental aspects .18
4.7.1 Marking of insulation material (plastics) .18
4.7.2 Design/ use of material.18
5 Test schedule.18
5.1 General .18
5.1.1 Climatic category.19
5.1.2 Clearance and creepage distances.19
5.1.3 Arrangement for contact resistance measurement .19
5.1.4 Arrangement for dynamic stress tests.19
5.1.5 Arrangement for testing static load; axial .19
5.1.6 Wiring of specimens .19
5.2 Test schedules .19
5.2.1 Basic (minimum) test schedule .19
5.2.2 Full test schedule .19
5.3 Test procedures and measuring methods .26
5.4 Preconditioning .26
5.5 Wiring and mounting of specimens .27
5.5.1 Wiring.27
5.5.2 Mounting .27
Bibliography.28

Figure 1 – Fixed (male) and free (female) connector .11
Figure 2 – Fixed male connector .12
Figure 3 – Free female connector .14
Figure 4 – Mounting drawing.15
Figure 5 – Gauge.15

Table 1 – Climatic categories - selected values for environmental performance level 1 .9
Table 2 – Clearance and creepage distances.10
Table 3 – Dimensions of the fixed connector.13
Table 4 – Dimensions of the free connector .14
Table 5 – Mounting information.15
Table 6 – Gauge dimensions .16

– 4 – 61076-3-118 © IEC:2010
Table 7 – Number of test specimens and contacts .20
Table 8 – Test group P .20
Table 9 – Test group AP .21
Table 10 – Test group BP .22
Table 11 – Test group CP .23
Table 12 – Test group DP .24
Table 13 – Test group EP .24
Table 14 – Test group FP .25
Table 15 – Test group JP.25
Table 16 – Test group KP .26

61076-3-118 © IEC:2010 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-118: Rectangular connectors – Detail specification for
a 4 pole plus PE power connector with push-pull coupling

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-3-118 has been prepared by subcommittee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/2134/FDIS 48B/2175/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 6 – 61076-3-118 © IEC:2010
A list of all parts of IEC 61076 series, under the general title Connectors for electronic
equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61076-3-118 © IEC:2010 – 7 –
IEC SC 48B – Connector Specifications available from:
IEC 61076-3-118 Ed. 1.0
IEC General secretariat
or from the addresses shown on the inside cover.

ELECTRONIC COMPONENTS
DETAIL SPECIFICATION in accordance with
IEC 61076-1 and IEC 61076-3
Outline drawing
Rectangular power connector with
push-pull coupling
Fixed and free connectors, for
industrial environments
Performance level: 1
– 8 – 61076-3-118 © IEC:2010
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-118: Rectangular connectors – Detail specification for
a 4 pole plus PE power connector with push-pull coupling

1 Scope
1.1 General considerations
This part of IEC 61076 establishes specifications and test requirements for a connector with
four contacts plus PE contact, for use in industrial environments.
NOTE For a definition of PE, see IEV, for example IEV 195-02-09.
This International Standard specifies free and fixed connectors, with round contacts, suitable
for screw or crimp terminations. Other terminations techniques, as solder or printed board
connections are upon agreement between manufacturer and user. The free and fixed
connectors have a push-pull locking mechanism for IP65 and IP67 protection according to
IEC 60529.
The PE contact is first-make last-break.
Connectors according this International Standard are without breaking capacity COC according
to IEC 61984, therefore they are not intended to be engaged or disengaged in normal use
when live or under load, if not otherwise specified by the manufacturer.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-581:2008, International Electrotechnical Vocabulary – Part 581: Electro-
mechanical components for electronic equipment
IEC 60068-1: Environmental testing – Part 1: General and guidance
IEC 60352 (all parts): Solderless connections
IEC 60512-1-2:2002, Connectors for electronic equipment – Tests and measurements – Part
1-2: General examination
IEC 60512-1-100: Connectors for electronic equipment – Tests and measurements – Part 1-
100: General: Applicable publications
IEC 60529:1989, Degree of protection provided by enclosures (IP Code)
IEC 60999-1:1999, Connecting devices – Electrical copper conductors – Safety requirements
for screw-type and screwless-type clamping units – Part 1: General requirements and
2 2
up to 35 mm (included)
particular requirements for conductors from 0,2 mm

61076-3-118 © IEC:2010 – 9 –
IEC 60999-2:2003, Connecting devices – Electrical copper conductors – Safety requirements
for screw-type and screwless-type clamping units – Part 2: Particular requirements for
2 2
clamping units for conductors above 35 mm up to 300 mm (included)
IEC 61076-1, Connectors for electronic equipment – Part 1: Generic specification
IEC 61984:2008, Connectors – Safety requirements and tests
IEC 62197-1:2006, Connectors for electronic equipment – Quality assessment requirements –
Part 1: Generic specification
IEC Guide 109: Environmental aspects – Inclusion in electrotechnical product standards
IEC Guide 114: Environmentally conscious design – Integrating environmental aspects into
design and development of electrotechnical products
ISO 1302:2002, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ISO 11469:2000, Plastics – Generic identification and marking of plastic products
2 Technical information
2.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-581 apply.
2.2 Systems of levels
2.2.1 Performance levels
Performance level for this connector is 1.
2.2.2 Compatibility levels, according to IEC 61076-1 Ed. 2.0
Connectors according to this standard are supposed to be intermateable.
2.3 Classification into climatic categories
Conditions: according to IEC 60068-1 and Table 1.
Table 1 – Climatic categories - selected values for environmental performance level 1
Climatic category Lower temperature Upper temperature Damp heat steady state
(days)
°C °C
40/125/21 –40  125 21
2.4 Clearance and creepage distances
Clearance and creepage distances shall be measured according to IEC 60512-1-2 with the
following additional requirements.
For this connector clearance and creepage distances shall be measured only in mated
position (connector without breaking capacity as defined in IEC 61984).

– 10 – 61076-3-118 © IEC:2010
The connector has protection against electric shock by finger safety (IP2X or IPXXB), both in
the mated or unmated condition, after mounting (see also 6.4.2.2 of IEC 61984). The
minimum values for clearance and creepage distances can be found in Table 2.
Table 2 – Clearance and creepage distances
Dimensions in mm
Minimum distance between contacts and
Minimum distance between adjacent contacts
earth contact
Creepage Clearance Creepage Clearance
4 3 6,3 3
2.5 Current-carrying capacity
The current-carrying capacity shall be measured according to IEC 60512, Test 5b and stated
by the manufacturer.
2.6 Marking
The marking of the connector and the package shall be in accordance with 2.7 of
IEC 61076-1.
The position of the contacts shall by identified by suitable marking. The contact marking shall
be on the termination side of the connector (or the connector insert) as long as the size of the
component allows the placement there.
3 Dimensional information
3.1 General
Dimensions are given in millimetres, drawings are shown in first angle projection. The shape
of the connectors may deviate from those given in the following drawings as long as the
specified dimensions are not influenced.
The following requirements apply to the complete connector consisting of both the free and
fixed connectors.
For safety aspects IEC 61984 shall be considered unless otherwise specified.
Missing dimensions shall be chosen according to the common characteristics and intended
use. The interface dimensions of the female style shall be chosen according to the common
characteristics of the male styles.

61076-3-118 © IEC:2010 – 11 –
3.2 Isometric view and common features

IEC  673/10
NOTE Male connectors according to this IS are those connectors having a male electric part.
Figure 1 – Fixed (male) and free (female) connector
3.2.1 Common features
Not applicable.
3.2.2 Reference system
No special reference system is applied.
3.3 Engagement (mating) information
3.3.1 Engaging (mating) direction
Not applicable.
3.3.1.1 Contact levels and sequencing
The PE contact is first-make last-break. All other contacts have the same contact level.
3.3.2 Perpendicular to the engaging (mating) direction
Not applicable
3.3.3 Inclination
Not applicable.
– 12 – 61076-3-118 © IEC:2010
3.4 Fixed connectors
3.4.1 Dimensions
AF
AM
AAM
AH
AG
AO AP A-A
A
AAN
AQ
1) +2)
AN
AS
AJ
X
X
AK
AAA
1 A
3 2
AE
AAF
Flat seal
AR
A
AAG
AAH
AAJ
AC
AD
IEC  674/10
NOTE 1 AS1 for PE contact.
NOTE 2 AS2 for power contacts 1-4.
Figure 2 – Fixed male connector
AAK
AAL
AAB
AAC
AAD
AAE
AT
AA
AB
AL
61076-3-118 © IEC:2010 – 13 –
Table 3 – Dimensions of the fixed connector
Dimensions in mm
Letter Maximum Minimum Nominal
AA 18,23 18,17 18,2
AB 21,55 21,45 21,5
AC 18,23 18,17 18,2
AD 20,3 20,1 20,2
AE 2,83 2,77 2,8
AF 14,85 14,75 14,8
AG 6,05 5,95 6
AH 1,7 1,3 1,5
AJ 31 29 30
AK 2,1 1,9 2
AL 0,7 0,6 0,65
AM 1,95 1,85 1,9
AN 2,1 1,9 2
AO 5,1 4,9 5
AP 8,35 8,25 8,3
AQ 11,55 11,45 11,5
AR 3,9 3,7 3,8
AS1 3,35 2,95 3,15
AS2 4,55 4,15 4,35
AT 2 1,96 2
AAA 2,55 2,45 2,5
AAB 2,7 2,6 2,6
AAC 3,7 3,6 3,6
AAD 5,35 5,25 5,3
AAE 12,4 12,3 12,3
AAF 0,5 0,4 0,45
AAG 4 3,9 4
AAH 6,4 6,3 6,4
AAJ 9,35 9,25 9,3
AAK 4,7 4,6 4,7
AAL 0,5 0,4 0,45
AAM 13,3 13,2 13,2
AAN 0,5 0,4 0,45
NOTE 1 AS1 for PE contact.
NOTE 2 AS2 for power contacts 1-4.
3.4.2 Terminations
Terminations according to IEC 61984, 6.6.
NOTE Other technologies such as printed-board terminations could be applied upon agreement between
manufacturer and customer.
– 14 – 61076-3-118 © IEC:2010
3.5 Free connectors
3.5.1 Dimensions
BC
BD
View B-B
B
BE
A
2 3
B
IEC  675/10
Figure 3 – Free female connector
Table 4 – Dimensions of the free connector
Dimensions in mm
Letter Maximum Minimum Nominal
BA 29 - -
BB 18,09 18,03 18,06
BC 22,8 - -
BD 18,09 18,03 18,06
BE 2,73 2,67 2,7
3.5.2 Terminations
Terminations according to IEC 61984, 6.6.
3.6 Accessories
Not applicable.
3.7 Mounting information for connectors
3.7.1 Mounting on panels
Mounting information for the fixed connector according Figure 4 and Table 5.
BA
BB
61076-3-118 © IEC:2010 – 15 –
BX
BZ
BV
BY
IEC  676/10
Figure 4 – Mounting drawing
Table 5 – Mounting information
Dimensions in mm
Letter Maximum Minimum Nominal
BV - 21,95 -
BW - 18,35 -
BX R 1,25 - -
BY 33,1 32,9 33
BZ - - M 3 or alternatively Ø 3,2

3.8 Gauges
3.8.1 Sizing gauges and retention force gauges
Material: tool steel, hardened.

=surface roughness according to ISO 1302: R = 0,25 μm max.
a
–0,2
IEC  677/10
Figure 5 – Gauge
d
BW
– 16 – 61076-3-118 © IEC:2010
Table 6 – Gauge dimensions
Gauge Weight Application d
minimum mm
G
P1 Sizing 2,00
–0,01
+0,01
P2 40 Retention force 1,96
NOTE 1 The sizing gauge is applied three times before the
retention gauge.
NOTE 2 The retention gauge shall be at least 0,03 mm less in
diameter then the sizing gauge.

3.8.2 Mechanical function, engaging/separating/insertion/withdrawal force gauges
Not applicable.
3.8.3 Probes
Not applicable.
3.8.4 Contact resistance gauge
Not applicable.
3.8.5 Test panel (for voltage proof test)
Not applicable.
3.8.6 Test panel (for EMC/ crosstalk, etc.)
Not applicable.
4 Characteristics
4.1 General
There is no corresponding Detail Quality Specification for connectors conform to this
International Standard. If necessary the methods according to IEC 62197-1 could be applied
upon agreement between manufacturer and customer.
4.2 Pin assignment and other definitions
For pin assignment, see Figures 2 and 3.
4.3 Classification into climatic categories
Conditions: according to IEC 60068-1 and Table 1.
4.4 Electrical characteristics
4.4.1 Creepage and clearance distances
See 2.4.
NOTE Application information – The permissible rated voltage depends on the application or specified safety
requirements. Reductions in creepage or clearance distances may occur due to the printed board or wiring used,
and shall duly be taken into account.

61076-3-118 © IEC:2010 – 17 –
4.4.2 Voltage proof
Condition: IEC 60512, test 4a.
Standard atmospheric conditions.
All variants: according to IEC 61984.
4.4.3 Current-carrying capacity
Conditions: IEC 60512, test 5b.
All contacts.
PE contact shall not be considered.
The minimal value is 16 A at an ambient temperature of 40 °C for 2,5 mm (AWG 14). The
maximal ambient temperature is 125 °C.
4.4.4 Contact resistance
Conditions: IEC 60512, test 2a.
Standard atmospheric conditions.
PE contact: 20 mΩ max.
All other contacts: 20 mΩ max.
4.4.5 Insulation resistance
Conditions: IEC 60512, test 3a.
Method A.
Mated connectors.
Standard atmospheric conditions.
Test voltage: 500 V d.c.
Each contact to all others: 100 MΩ min.
4.4.6 Impedance
Not applicable.
4.4.7 Transmission characteristics
Not applicable.
4.5 Mechanical characteristics
4.5.1 Mechanical operation
Conditions: IEC 60512, test 9a.
Standard atmospheric conditions.
Speed: 10mm/s max.
PL1: 500 operations.
4.5.2 Effectiveness of connector coupling devices
Conditions: IEC 60512, test 15f.
Standard atmospheric conditions.
Force 50 N to be applied at the end of the free housing to load the coupling device with the
maximum torque, time 60 s, force rise 44,5 N/s max.
4.5.3 Insertion and withdrawal forces
Conditions: IEC 60512, test 13b.

– 18 – 61076-3-118 © IEC:2010
Speed: 50 mm/min maximum.
All types, insertion and withdrawal: 100 N maximum.
4.5.4 Contact retention in insert
If applicable, see IEC 61984.
4.5.5 Polarizing and coding method
Conditions: IEC 60512, test 13e.
Standard atmospheric conditions.
Required force 100 N min.
4.6 Other characteristics
4.6.1 Shock and vibration (method sine)
4.6.1.1 Vibration (sine)
Conditions: IEC 60512, test 6d, standard atmospheric conditions.
Frequency range 5 Hz to 150 Hz, 0,35 mm, acceleration 5 g, duration 2 h each of 3 axis.
4.6.1.2 Shock
Conditions: IEC 60512, test 6c.
Standard atmospheric conditions.
Acceleration 5 g.
Duration 30 ms, 3 shocks in each axis and direction, half-sine wave.
4.6.2 Degree of protection provided by enclosures (IP-code)
Conditions: IEC 60529, test 14.2.5 and test 14.2.7 (second numeral) and IEC 60529, test 6,
Table 7 (first numeral).
IP65 and IP67 according to IEC 60529, connectors in mated and locked position.
4.6.3 Screen and shielding properties
Not applicable.
4.7 Environmental aspects
4.7.1 Marking of insulation material (plastics)
If applicable and reasonable, all plastic material shall be marked according to ISO 11469 to
ease recycling.
4.7.2 Design/ use of material
The design has to take into account the relevant IEC Guides for designing products
(IEC Guide 114) and the use of material (IEC Guide 109) with regard to the environment.
5 Test schedule
5.1 General
This test schedule shows the tests and the order in which they shall be carried out, as well as
the requirements to be met.
Unless otherwise specified, mated sets of connectors shall be tested. Care shall be taken to
keep a particular combination of connectors together during the complete test sequence;

61076-3-118 © IEC:2010 – 19 –
when unmating is, for example, necessary for a certain test, the same connectors shall be
mated for the subsequent tests.
In the following, a mated set of connectors is called a specimen.
5.1.1 Climatic category
See 2.3.
5.1.2 Clearance and creepage distances
See 2.4.
5.1.3 Arrangement for contact resistance measurement
Conditions: IEC 60512, test 2a.
The measurement of contact resistance shall be carried out on the number of contacts
specified. Any subsequent measurements of contact resistance shall be made on the same
contacts.
5.1.4 Arrangement for dynamic stress tests
Conditions: IEC 60512, tests 6c and 6d.
5.1.5 Arrangement for testing static load; axial
Not applicable.
5.1.6 Wiring of specimens
The specimens are to be wired according to IEC 61984.
5.2 Test schedules
5.2.1 Basic (minimum) test schedule
Not applicable.
5.2.2 Full test schedule
Contact resistance measurements and contact disturbance measurements may be performed
on different contacts. It is permissible to prepare separate connectors for each.
Dimensions shall be measured that affect clearance and creepage distances and other
critical dimensions that affect intermateability.
The test parameters required shall not be less than those listed. The following tests specify
the minimal characteristics to be checked and the minimal requirements to be fulfilled. The
test results shall be written down in a test report.
In Table 7 below, the minimum number of contacts shall be satisfied; for example if a
connector has only 4 contacts, there shall be 4 connectors for test group AP, to satisfy the
minimum number of contacts under test.
As only one performance level exists, the tests do not differ depending on performance level.

– 20 – 61076-3-118 © IEC:2010
Table 7 – Number of test specimens and contacts
Test group AP BP CP DP EP FP GP HP JP KP
Test specimens 3 3 3 3 3 3 Not Not see 3
applicable applicable relevant
test
standard
Number of 15 15 15 15 15 15 Not Not see 15
contacts applicable applicable relevant

test
standard
5.2.2.1 Test group P – Preliminary
All specimens shall be subject to the following tests.
Table 8 – Test group P
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 PL All connector
Test No. condition of Test No. styles
test
P1  General  Visual 1a There shall be no defect

examination examination that would impair
normal operation.
Specimens are free of
burrs, cracks, or other
deficiencies.
Examination of 1b The dimensions shall
dimensions  comply with those
and mass specified in the relevant
figure of Clause 3
P2 Polarizing 13e Force to be
method applied 100 N
P3  Contact 2a All contacts, including
resistance
PE: 20 mΩ max. see
4.4.4
P4  Insulation 3a 100 MΩ min.,
resistance
see 4.4.5
P5  Voltage proof 4a According 4.4.2
Only required on samples that have interim and final measurements performed after environmental testing.
As only performance level 1 is defined, no differentiation in standards is necessary. This applies to all test groups.
5.2.2.2 Test group AP – Dynamic/climatic
All specimens shall be subject to the following tests.

61076-3-118 © IEC:2010 – 21 –
Table 9 – Test group AP
Test Test Measurement to be Requirements
phase
performed
Title IEC 60512 Severity or Title IEC 60512 PL All connector
Test No. condition of Test No. styles
test
AP1  Insertion and 13b see 4.5.3
withdrawal
forces
AP2 Rapid 11d   five cycles, 30 min,
change of upper and lower
temperature temperature limit
AP3  Insulation 3a
resistance
AP4  Contact 2a
resistance
AP5  Voltage proof 4a
AP6  Visual 1a see test phase P1
examination
AP7 Climatic 11a
sequence
AP7.1 Dry heat 11I Insulation 3a
resistance at
high
temperature
(optional)
AP7.2 Damp heat, 11m Visual 1a see test phase P1
cyclic examination
AP7.3 Cold 11j Visual 1a see test phase P1
examination
AP7.4 Not
applicable
AP7.5 Damp heat 11m
cyclic,
remaining
cycles
AP8  Insulation 3a
resistance
AP9  Voltage proof 4a
AP10  Contact resis- 2a
tance
AP11 Second Not applicable  see test group KP
characteristi
c numeral
AP12 First Not applicable  see test group KP
characteristi
c numeral
AP13  Insertion and 13b see 4.5.3
withdrawal
forces
AP14 Effectivenes15f Applied force  see 4.5.2
s of 50 N and
connector duration 60 s,
coupling force rise 44,5
device N/s max.
AP15  Visual 1a see test phase P1
examination
– 22 – 61076-3-118 © IEC:2010
5.2.2.3 Test group BP – Mechanical endurance
All specimens shall be subject to the following tests.
Table 10 – Test group BP
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 PL All connector
Test No. condition of Test No. styles
test
BP1  Gauge retention 16e for conditions,
force (optional) see 3.8.1.
The gauge shall
be retained.
BP2  Insertion and  see 4.5.3
withdrawal
forces
(optional) 13b
BP3 Locking Not applicable
device
mechanical
operations
(double of
the specified
number of
cycles)
BP4 Cable clamp Not applicable
robustness
or other
cable
clamping
tests
BP5 Mechanical 9a   250 operations, see
operation also 4.5.1
(half of the
specified
number of
cycles)
BP6  Contact 2a
resistance
(optional)
BP7 Flowing 11-7, Contact 2a for Method 4 = 10
mixed gas Method 4 Resistance days
corrosion (optional after
test unmated
exposure,
required at the
end of test)
BP8 Mechanical 9a Visual 1a 250 operations, see
operation examination also 4.5.1
(remaining
number of
operations)
BP9  Insertion and  see 4.5.3
withdrawal
forces
(optional)
13b
61076-3-118 © IEC:2010 – 23 –
Table 10 (continued)
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 PL All connector
Test No. condition of Test No. styles
test
BP10  Contact 2a
resistance
BP11  Polarizing 13e Not applicable
method
see test group KP
BP12 Second Not applicable
characteristi
c numeral
BP13 First Not applicable  see test group KP
characteristi
c numeral
BP14  Visual exam- 1a see test phase P 1
ination
The specimens should be exposed the first 50 % of the exposure time in the unmated condition and the remaining 50
% of the exposure time in the mated condition. Typically either the fixed or free specimen is exposed unmated, but not
both.
5.2.2.4 Test group CP – Moisture
All specimens shall be subject to the following tests.
Table 11 – Test group CP
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 PL All connector
Test No. Condition of test Test No. styles
CP1  Insertion and 13b see 4.5.3
withdrawal
forces
CP2 Damp heat, 11c   21 days
steady
state
CP3  Insulation 3a see test phase P4
resistance
CP4  Voltage 4a see test phase P5
proof
CP5  Contact 2a see test phase P3
resistance
CP6  Insertion and
...
