IEC 60384-8-1:2005

Fixed capacitors for use in electronic equipment - Part 8-1: Blank detail specification: Fixed capacitors of ceramic dielectric, Class 1 - Assessment level EZ

IEC 60384-8-1:2005 is a supplementary document to the sectional specification and contains requirements for style and layout and minimum content of detail specifications. Detail specifications not complying with these requirements may not be considered as being in accordance with IEC specifications nor shall they be so described. In the preparation of detail specifications, the content of 1.4 of the sectional specification shall be taken into account. This second edition cancels and replaces the first edition published in 1988, amendment 1 (1993) and amendment 2 (2000). This second edition is a result of maintenance activities related to the previous edition. All changes that have been agreed upon can be categorized as minor revisions.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 8-1: Spécification particulière cadre: Condensateurs fixes à diélectrique en céramique, Classe 1 - Niveau d'assurance EZ

L'IEC 60384-8-1:2005 est un document annexe à la spécification intermédiaire qui contient des exigences pour le modèle, la disposition et le contenu minimal des spécifications particulières. Les spécifications particulières qui ne satisfont pas aux exigences peuvent ne pas être considérées comme conformes aux spécifications de la CEI et ne doivent pas être décrites comme telles. Dans la préparation des spécifications particulières, le contenu de 1.4 de la spécification intermédiaire doit être pris en compte. Cette deuxième édition annule et remplace la première édition parue en 1988, ainsi que son amendement 1 (1993) et son amendement 2 (2000). Cette deuxième édition est le résultat des activités de maintenance associées à l'édition précédente. Toutes les modifications acceptées peuvent être classées comme des révisions mineures.

General Information

• Status: Published
• Publication Date: 18-May-2005
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 31.060.20 - Ceramic and mica capacitors
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Current Stage: PPUB - Publication issued
• Start Date: 31-Aug-2005
• Completion Date: 19-May-2005

Relations

• Revises: IEC 60384-8-1:1988/AMD2:2000 - Amendment 2 - Fixed capacitors for use in electronic equipment. Part 8-1: Blank detail specification: Fixed capacitors of ceramic dielectric, class 1. Assessment level E
• Effective Date: 05-Sep-2023

Standards Content (Sample)

INTERNATIONAL IEC
STANDARD 60384-8-1
QC 300601
Second edition
2005-05
Fixed capacitors for use in electronic equipment –
Part 8-1:
Blank detail specification:
Fixed capacitors of ceramic dielectric,
Class 1 – Assessment level EZ
Reference number

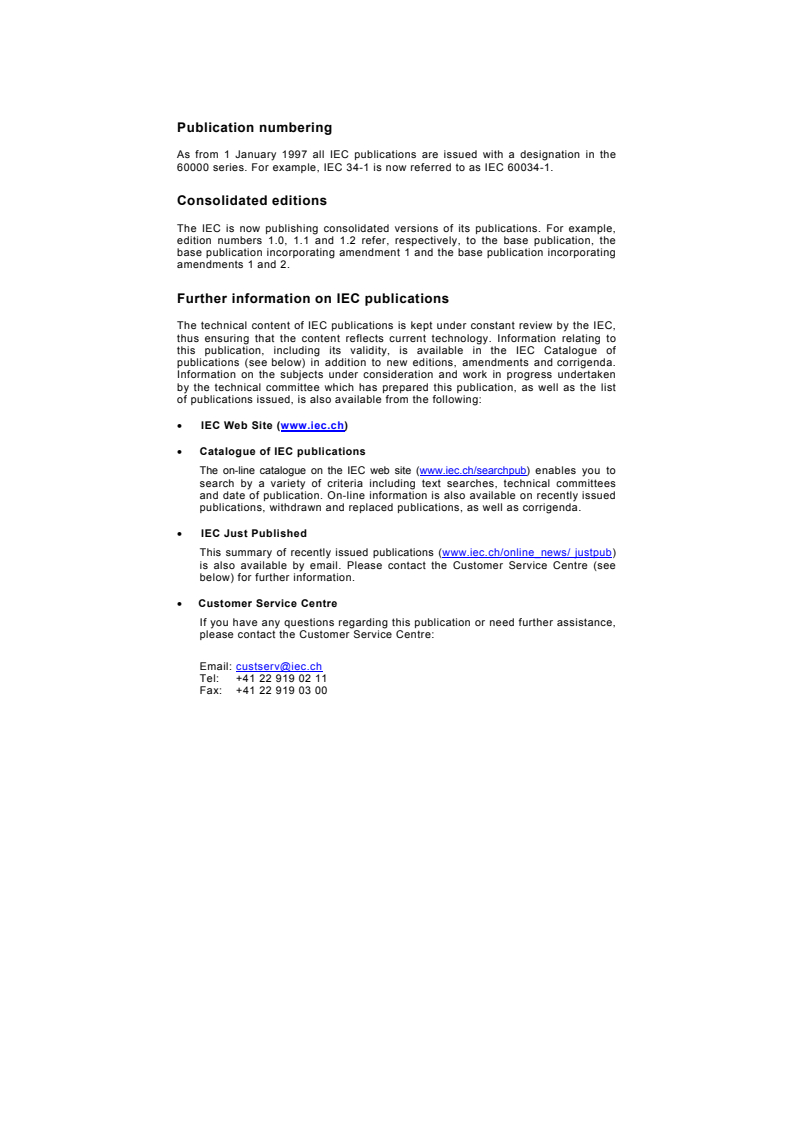

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]
INTERNATIONAL IEC
STANDARD 60384-8-1
QC 300601
Second edition
2005-05
Fixed capacitors for use in electronic equipment –
Part 8-1:
Blank detail specification:
Fixed capacitors of ceramic dielectric,
Class 1 – Assessment level EZ
 IEC 2005  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
M
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

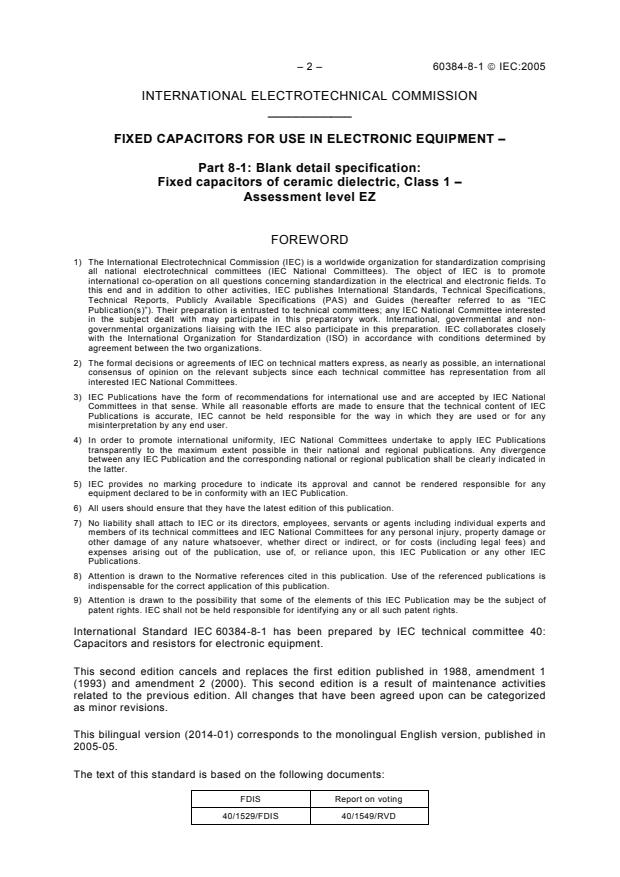

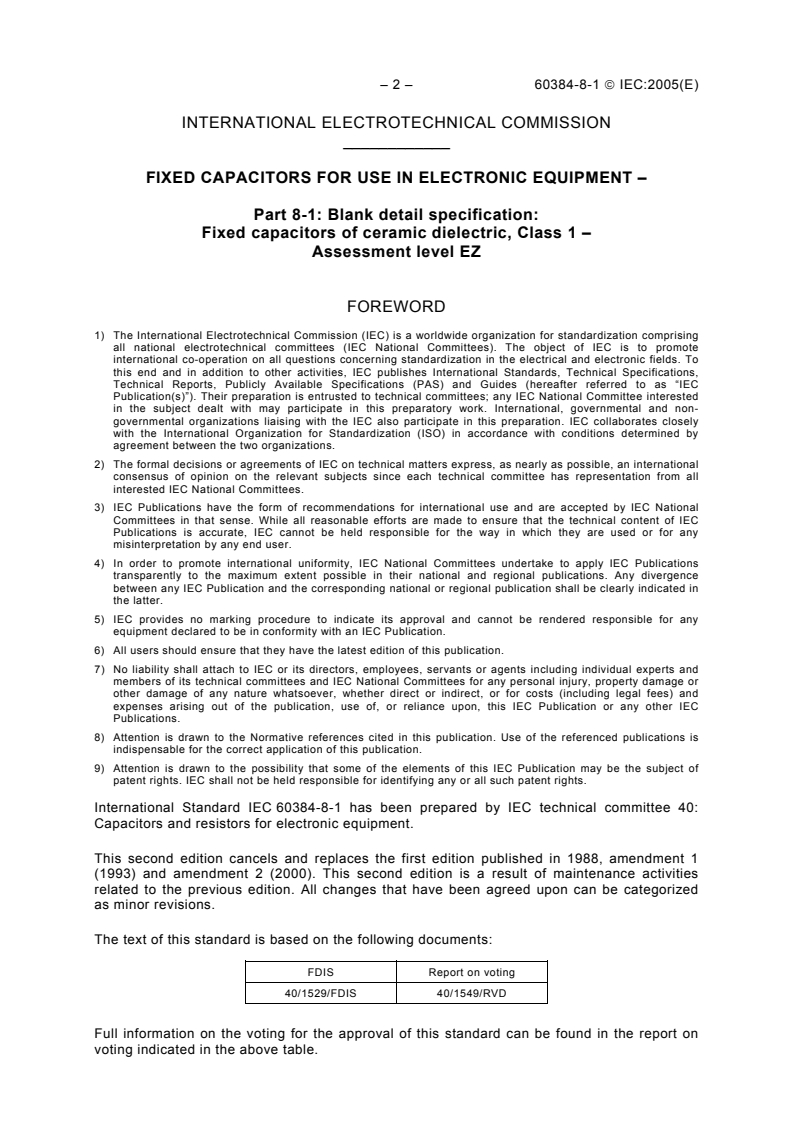

– 2 – 60384-8-1  IEC:2005(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 8-1: Blank detail specification:
Fixed capacitors of ceramic dielectric, Class 1 –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-8-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1988, amendment 1
(1993) and amendment 2 (2000). This second edition is a result of maintenance activities
related to the previous edition. All changes that have been agreed upon can be categorized
as minor revisions.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1529/FDIS 40/1549/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

60384-8-1  IEC:2005(E) – 3 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 60384 consists of the following parts, under the general title Fixed capacitors for use in
electronic equipment:
Part 1: Generic specification
Part 2: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
d.c. capacitors
Part 3: Sectional specification: Fixed tantalum chip capacitors
Part 4: Sectional specification: Aluminium electrolytic capacitors with solid and non-solid
electrolyte
Part 5: Sectional specification: Fixed mica dielectric d.c. capacitors with a rated voltage not
exceeding 3000 V – Selection of methods of test and general requirements
Part 6: Sectional specification: Fixed metallized polycarbonate film dielectric d.c.
capacitors
Part 7: Sectional specification: Fixed polystyrene film dielectric metal foil d.c. capacitors
Part 8: Sectional specification: Fixed capacitors of ceramic dielectric, Class 1
Part 9: Sectional specification: Fixed capacitors of ceramic dielectric, Class 2
Part 11: Sectional specification: Fixed polyethylene-terephthalate film dielectric metal foil
d.c. capacitors
Part 12: Sectional specification: Fixed polycarbonate film dielectric metal foil d.c. capacitors
Part 13: Sectional specification: Fixed polypropylene film dielectric metal foil d.c. capacitors
Part 14: Sectional specification: Fixed capacitors for electromagnetic interference
suppression and connection to the supply mains
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
Part 16: Sectional specification: Fixed metallized polypropylene film dielectric d.c.
capacitors
Part 17: Sectional specification: Fixed metallized polypropylene film dielectric a.c. and pulse
capacitors
Part 18: Sectional specification: Fixed aluminium electrolytic chip capacitors with solid and
non-solid electrolyte
Part 19: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
chip d.c. capacitors
Part 20: Sectional specification: Fixed metallized polyphenylene sulfide film dielectric chip
d.c. capacitors
Part 21: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 1
Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 2
Part 23: Sectional specification: Fixed surface mount metallized polyethylene naphthalate
film dielectric d.c. capacitors
Part 24: Sectional specification – Surface mount fixed tantalum electrolytic capacitors with
conductive polymer solid electrolyte①
Part 25: Sectional specification – Surface mount fixed aluminium electrolytic capacitors with
conductive polymer solid electrolyte①

———————
To be published.
– 4 – 60384-8-1  IEC:2005(E)
The QC number that appears on the front cover of this publication is the specification number
in the IECQ Quality Assessment System for Electronic Components.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

60384-8-1  IEC:2005(E) – 5 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT

Part 8-1: Blank detail specification:
Fixed capacitors of ceramic dielectric, Class 1 –
Assessment level EZ
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they be so described.
In the preparation of detail specifications, the content of 1.4 of the sectional specification shall
be taken into account.
The numbers between brackets on the first page correspond to the following information
which shall be inserted in the position indicated:
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national Generic Specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).
NOTE When the capacitor is not designed for use in printed board applications, this should be clearly
stated in the detail specification in this position.
[7] Outline drawing with main dimensions, which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively,
this drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
NOTE The assessment level(s) to be used in a detail specification is/are selected from the sectional
specification, 3.5.4. This implies that one blank detail specification may be used in combination with several
assessment levels provided the grouping of the tests does not change.
[9] Reference data on the most important properties, to allow comparison between the
various capacitor types.
– 6 – 60384-8-1  IEC:2005(E)
[1] IEC 60384-8-1-XXX [2]
QC 300601-XXX
ELECTRONIC COMPONENTS OF ASSESSED QUALITY IN IEC 60384-8-1 [4]
ACCORDANCE WITH: QC 300601
FIXED CAPACITORS OF [5]
[3]
CERAMIC DIELECTRIC, CLASS 1
Outline drawing: (see Table 1)

(… angle projection)
[6]
[7]
Assessment level(s): EZ [8]
(Other shapes are permitted within the dimensions given)

Information on the availability of components qualified to this
detail specification is given in IEC QC 001005.
[9]
1 General data
1.1 Recommended method(s) of mounting (to be inserted)
(See IEC 60384-8, 1.4.2).
1.2 Dimensions
Table 1 – Case size reference and dimensions
Case size reference Dimensions (in mm)
∅ L H d . . . . . . .
When there is no case size reference, Table 1 may be omitted and the dimensions shall be given in Table 2,
which then becomes Table 1.
The dimensions shall be given as maximum dimensions or as nominal dimensions with a tolerance.

60384-8-1  IEC:2005(E) – 7 –
1.3 Ratings and characteristics
Rated capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage
Category voltage (see Table 2)
Climatic category
Rated temperature
Tangent of loss angle
Insulation resistance
-6
Temperature coefficient α: … 10 /K

Table 2 – Values of capacitance and of voltage related to case sizes
Rated voltage
Temperature coefficient α
Rated capacitance Tolerance Case size Case size Case size Case size
(in pF and/or nF)
%
Table 3 – Temperature coefficient,
permissible capacitance variation and cyclic drift
Temperatu
...

IEC 60384-8-1 ®
Edition 2.0 2005-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 8-1: Blank detail specification: Fixed capacitors of ceramic dielectric,
Class 1 – Assessment level EZ
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 8-1: Spécification particulière cadre: Condensateurs fixes à diélectrique
en céramique, Classe 1 – Niveau d’assurance EZ

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60384-8-1 ®
Edition 2.0 2005-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –

Part 8-1: Blank detail specification: Fixed capacitors of ceramic dielectric,

Class 1 – Assessment level EZ
Condensateurs fixes utilisés dans les équipements électroniques –

Partie 8-1: Spécification particulière cadre: Condensateurs fixes à diélectrique

en céramique, Classe 1 – Niveau d’assurance EZ

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 31.060.20 ISBN 978-2-8322-1320-9

– 2 – 60384-8-1  IEC:2005
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 8-1: Blank detail specification:
Fixed capacitors of ceramic dielectric, Class 1 –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-8-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1988, amendment 1
(1993) and amendment 2 (2000). This second edition is a result of maintenance activities
related to the previous edition. All changes that have been agreed upon can be categorized
as minor revisions.
This bilingual version (2014-01) corresponds to the monolingual English version, published in
2005-05.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1529/FDIS 40/1549/RVD
60384-8-1  IEC:2005 – 3 –
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 60384 consists of the following parts, under the general title Fixed capacitors for use in
electronic equipment:
Part 1: Generic specification
Part 2: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
d.c. capacitors
Part 3: Sectional specification: Fixed tantalum chip capacitors
Part 4: Sectional specification: Aluminium electrolytic capacitors with solid and non-solid
electrolyte
Part 5: Sectional specification: Fixed mica dielectric d.c. capacitors with a rated voltage not
exceeding 3000 V – Selection of methods of test and general requirements
Part 6: Sectional specification: Fixed metallized polycarbonate film dielectric d.c.
capacitors
Part 7: Sectional specification: Fixed polystyrene film dielectric metal foil d.c. capacitors
Part 8: Sectional specification: Fixed capacitors of ceramic dielectric, Class 1
Part 9: Sectional specification: Fixed capacitors of ceramic dielectric, Class 2
Part 11: Sectional specification: Fixed polyethylene-terephthalate film dielectric metal foil
d.c. capacitors
Part 12: Sectional specification: Fixed polycarbonate film dielectric metal foil d.c. capacitors
Part 13: Sectional specification: Fixed polypropylene film dielectric metal foil d.c. capacitors
Part 14: Sectional specification: Fixed capacitors for electromagnetic interference
suppression and connection to the supply mains
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
Part 16: Sectional specification: Fixed metallized polypropylene film dielectric d.c.
capacitors
Part 17: Sectional specification: Fixed metallized polypropylene film dielectric a.c. and pulse
capacitors
Part 18: Sectional specification: Fixed aluminium electrolytic chip capacitors with solid and
non-solid electrolyte
Part 19: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
chip d.c. capacitors
Part 20: Sectional specification: Fixed metallized polyphenylene sulfide film dielectric chip
d.c. capacitors
Part 21: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 1
Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 2
Part 23: Sectional specification: Fixed surface mount metallized polyethylene naphthalate
film dielectric d.c. capacitors
———————
To be published.
– 4 – 60384-8-1  IEC:2005
Part 24: Sectional specification – Surface mount fixed tantalum electrolytic capacitors with
conductive polymer solid electrolyte①
Part 25: Sectional specification – Surface mount fixed aluminium electrolytic capacitors with
conductive polymer solid electrolyte①

The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60384-8-1  IEC:2005 – 5 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 8-1: Blank detail specification:
Fixed capacitors of ceramic dielectric, Class 1 –
Assessment level EZ
Blank detail specification
A blank detail specification is a
...
