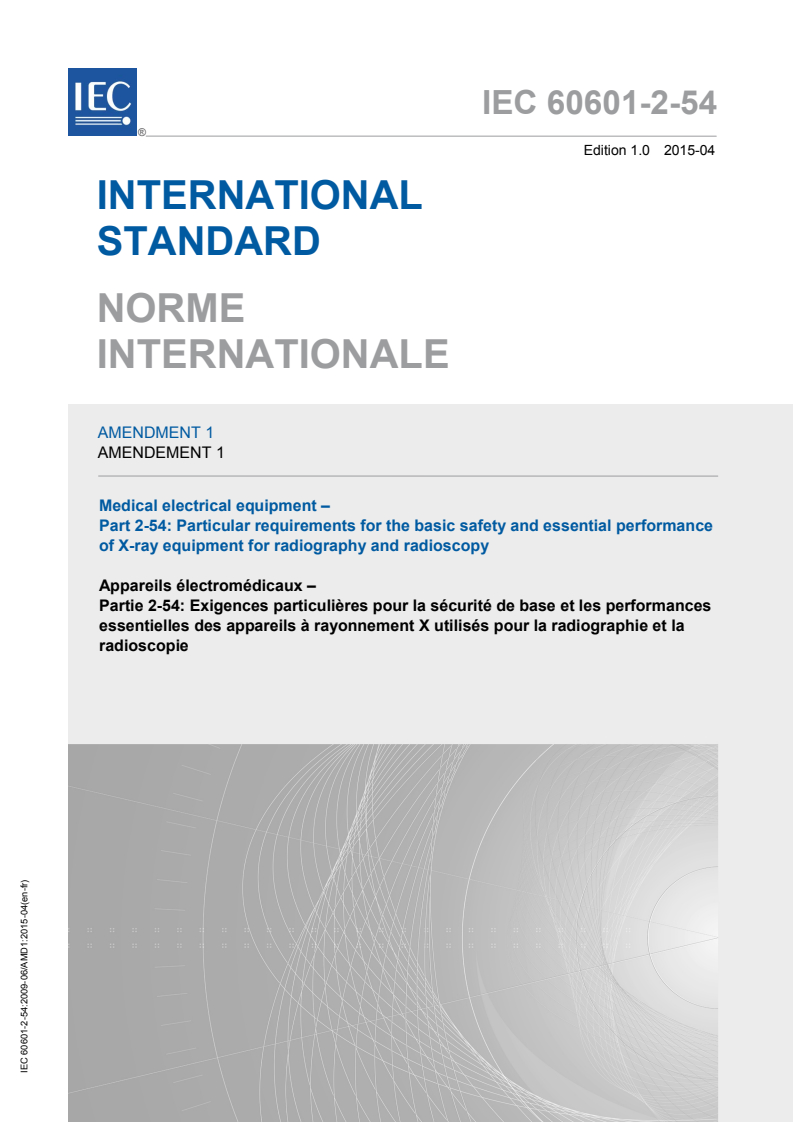

IEC 60601-2-54 ®
Edition 1.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Medical electrical equipment –
Part 2-54: Particular requirements for the basic safety and essential performance
of X-ray equipment for radiography and radioscopy
Appareils électromédicaux –
Partie 2-54: Exigences particulières pour la sécurité de base et les performances
essentielles des appareils à rayonnement X utilisés pour la radiographie et la
radioscopie
IEC 60601-2-54:2009-06/AMD1:2015-04(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

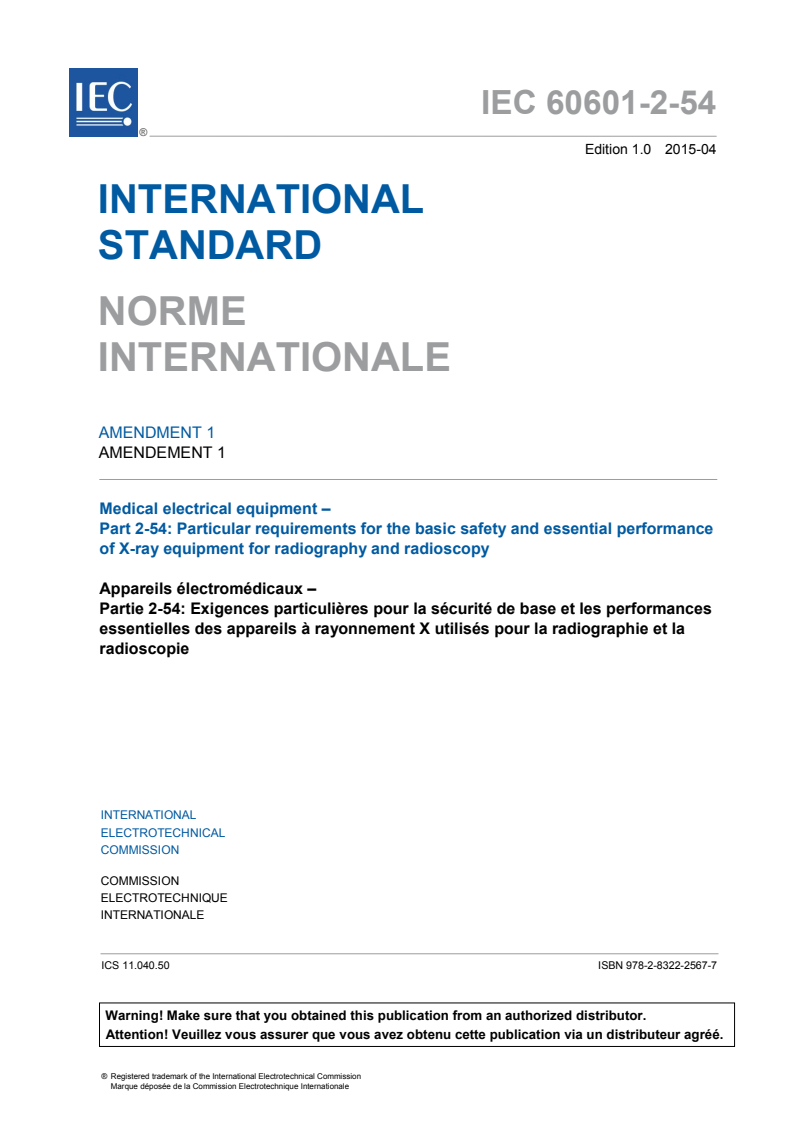

IEC 60601-2-54 ®
Edition 1.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Medical electrical equipment –
Part 2-54: Particular requirements for the basic safety and essential performance
of X-ray equipment for radiography and radioscopy
Appareils électromédicaux –
Partie 2-54: Exigences particulières pour la sécurité de base et les performances
essentielles des appareils à rayonnement X utilisés pour la radiographie et la
radioscopie
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 11.040.50 ISBN 978-2-8322-2567-7

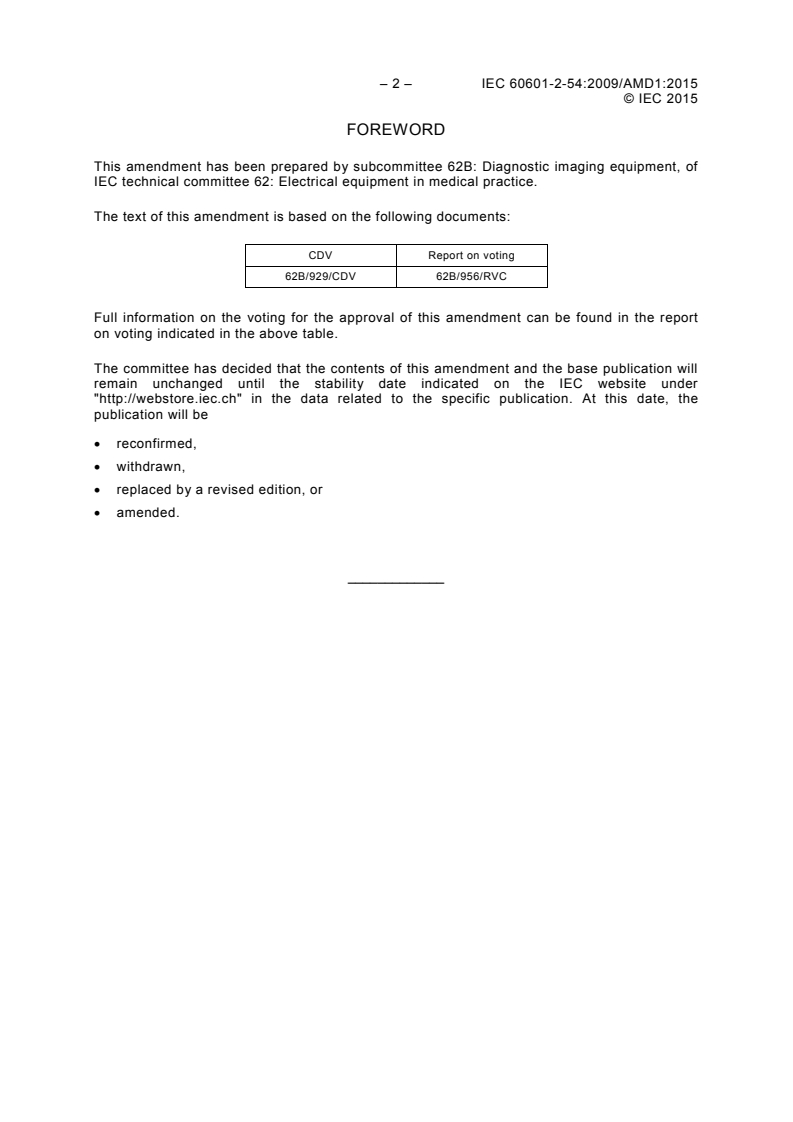

– 2 – IEC 60601-2-54:2009/AMD1:2015
© IEC 2015
FOREWORD
This amendment has been prepared by subcommittee 62B: Diagnostic imaging equipment, of
IEC technical committee 62: Electrical equipment in medical practice.
The text of this amendment is based on the following documents:
CDV Report on voting
62B/929/CDV 62B/956/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
© IEC 2015
INTRODUCTION TO AMENDMENT 1
The purpose of this first amendment to IEC 60601-2-54:2009 is to introduce changes to
reference the first amendment (2012) to IEC 60601-1:2005. As neither IEC 60601-2-54:2009
nor this amendment refers to specific elements of IEC 60601-1-2, the introduction of a dated
reference to the latter document has been removed. In addition, a number of technical errors
have been corrected.
FOREWORD
Replace, in the existing second paragraph, the phrase "IEC 60601-2-28:1993 (currently under
revision)" with "parts of IEC 60601-2-28:1993".
201.1 Scope, object and related standards
Amend the footnote to read as follows:
1)
The general standard is IEC 60601-1:2005 and IEC 60601-1:2005/AMD1:2012, Medical electrical equipment –
Part 1: General requirements for basic safety and essential performance
201.1.3 Collateral standards
Replace the existing second sentence of the second paragraph with the following:
IEC 60601-1-8, IEC 60601-1-10, IEC 60601-1-11 and IEC 60601-1-12 do not apply.
201.2 Normative references
Add the following new reference:
IEC 60601-1:2005, Medical electrical equipment – Part 1: General requirements for basic
safety and essential performance
IEC 60601-1:2005/AMD1:2012
Delete the following reference:
IEC 60601-1-2:2007, Medical electrical equipment – Part 1-2: General requirements for basic
safety and essential performance– Collateral standard: Electromagnetic compatibility –
Requirements and tests
Replace the existing reference to IEC 60601-1-3 with the following:
IEC 60601-1-3:2008 Medical electrical equipment – Part 1-3: General requirements for basic
safety and essential performance – Collateral standard: Radiation protection in diagnostic
X-ray equipment
IEC 60601-1-3:2008/AMD1:2013
– 4 – IEC 60601-2-54:2009/AMD1:2015
© IEC 2015
201.3 Terms and definitions
Replace, in the introductory paragraph, the reference to "IEC 60601-1:2005" by
"IEC 60601-1:2005 and IEC 60601-1:2005/AMD1:2012".
201.4.3 ESSENTIAL PERFORMANCE
201.4.3.101 * Additional ESSENTIAL PERFORMANCE requirements
Replace the existing title with the following:
201.4.3.101 * Additional potential ESSENTIAL PERFORMANCE requirements
Replace, in the first sentence, the term "ESSENTIAL PERFORMANCE" by "potential ESSENTIAL
PERFORMANCE".
Table 201.101 – Distributed ESSENTIAL PERFORMANCE requirements
Amend the existing title of the table to read as follows:
Table 201.101 – Distributed potential ESSENTIAL PERFORMANCE requirements
201.7 ME EQUIPMENT identification, marking and documents
201.7.2 Marking on the outside of ME EQUIPMENT or ME EQUIPMENT parts
201.7.2.101 BEAM LIMITING DEVICE
Replace the existing third dash with the following:
QUALITY EQUIVALENT FILTRATION of all materials together that are permanently fixed and
–
intercept the X-RAY BEAM.
CCOMPANYING DOCUMENTS
201.7.9 A
201.7.9.2 Instructions for use
Add the following new subclause:
201.7.9.2.17 ME EQUIPMENT emitting radiation
Replacement:
For X-RAY EQUIPMENT the instructions for use shall provide information as required in 203.5.
© IEC 2015
201.9 Protection against MECHANICAL HAZARDS of ME EQUIPMENT and ME SYSTEMS
201.9.2 HAZARDS associated with moving parts
Replace the existing title with the following:
201.9.2 MECHANICAL HAZARDS associated with moving parts
Add the following header:
201.9.2.2 TRAPPING ZONE
201.9.2.2.4 GUARDS and protective measures
Replace the existing title with the following:
201.9.2.2.4 GUARDS and other RISK CONTROL measures
201.9.2.2.4.4 Protective measures
Replace the existing title with the following:
201.9.2.2.4.4 Other RISK CONTROL measures
201.9.2.3 Other HAZARDS associated with moving parts
Replace the existing title with the following:
201.9.2.3 Other MECHANICAL HAZARDS associated with moving parts
201.9.2.3.1 Unintended movement
Add the following new paragraph between the penultimate paragraph and the compliance
statement:
The configurations shall be considered in the USABILITY ENGINEERING PROCESS.
Replace the final paragraph (compliance statement) by the following:
Compliance is checked by functional tests and by inspection of the instructions for use and
the USABILITY ENGINEERING FILE.
201.11 Protection against excessive temperatures and other HAZARDS
201.11.101 Protection against excessive temperatures of X-RAY TUBE ASSEMBLIES
Add the following note after the first paragraph:
NOTE Examples of such means are covers, handles for operation etc.
202 Electromagnetic compatibility – Requirements and tests
Replace the dated reference by an undated reference in the first paragraph as follows:
– 6 – IEC 60601-2-54:2009/AMD1:2015
© IEC 2015
IEC 60601-1-2 applies, except as follows.
202.101 Immunity testing of ESSENTIAL PERFORMANCE
Add the following two new paragraphs before the existing first paragraph:
The MANUFACTURER may minimize the test requirements of the additional potential ESSENTIAL
PERFORMANCE requirements listed in Table 201.101 to a practical level through the RISK
MANAGEMENT PROCESS.
When selecting the requirements to be tested, the MANUFACTURER needs to take into account
the sensitivity to the EMC environment, probability of EMC condition and severity, and
probability and contribution to unacceptable RISK through the RISK MANAGEMENT PROCESS.
Add, after the last paragraph, the following new text:
ME EQUIPMENT being tested shall not be modified to perform this immunity test.
Compliance is checked by the inspection of RISK MANAGEMENT FILE.
203 Radiation protection in diagnostic X-ray equipment
Replace, in the first paragraph, the reference to "IEC 60601-1-3:2008" by
"IEC 60601-1-3:2008 and IEC 60601-1-3:2008/AMD1:2013".
203.6 RADIATION management
203.6.4 Indication of operational states
203.6.4.5 *Dosimetric indications
Replace, in the third paragraph, the second, third and fourth dashes with the following:
– The value of the cumulative REFERENCE AIR KERMA resulting from RADIOSCOPY and
RADIOGRAPHY since the last reset operation shall be
• continuously displayed at the working position of the OPERATOR in mGy together with
this unit and updated at least once every 5 s; or
• displayed not later than 5 s after the interruption or termination of LOADING.
– The values for the REFERENCE AIR KERMA RATE and the cumulative REFERENCE AIR KERMA
shall be clearly distinguishable from each other.
203.7 RADIATION QUALITY
203.7.1 HALF-VALUE LAYERS and TOTAL FILTRATION in X-RAY EQUIPMENT
Add the following note after the first paragraph:
NOTE An appropriate permanently mounted FILTER, not remova
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
