Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD
14776-381
First edition
2000-06
Information technology –
Small computer system interface (SCSI) –
Part 381:
Optical Memory Card Device Commands (OMC)
Reference number
ISO/IEC 14776-381:2000(E)
---------------------- Page: 1 ----------------------
INTERNATIONAL ISO/IEC
STANDARD
14776-381
First edition
2000-06
Information technology –
Small computer system interface (SCSI) –
Part 381:
Optical Memory Card Device Commands (OMC)
 ISO/IEC 2000

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any

means, electronic or mechanical, including photocopying and microfilm, without permission in writing from the publisher.

ISO/IEC Copyright Office Case postale 56 CH-1211 Genève 20 Switzerland
• • •
PRICE CODE
For price, see current catalogue
---------------------- Page: 2 ----------------------

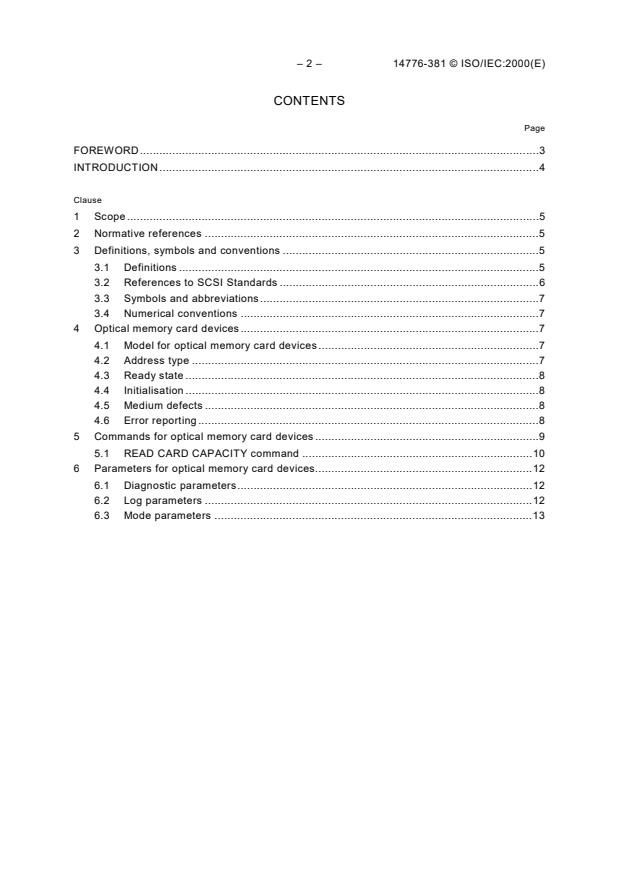

– 2 – 14776-381 © ISO/IEC:2000(E)
CONTENTS
Page

FOREWORD...........................................................................................................................3

INTRODUCTION.....................................................................................................................4

Clause

1 Scope...............................................................................................................................5

2 Normative references .......................................................................................................5

3 Definitions, symbols and conventions ...............................................................................5

3.1 Definitions ...............................................................................................................5

3.2 References to SCSI Standards ................................................................................6

3.3 Symbols and abbreviations......................................................................................7

3.4 Numerical conventions ............................................................................................7

4 Optical memory card devices............................................................................................7

4.1 Model for optical memory card devices ....................................................................7

4.2 Address type ...........................................................................................................7

4.3 Ready state .............................................................................................................8

4.4 Initialisation .............................................................................................................8

4.5 Medium defects .......................................................................................................8

4.6 Error reporting .........................................................................................................8

5 Commands for optical memory card devices .....................................................................9

5.1 READ CARD CAPACITY command .......................................................................10

6 Parameters for optical memory card devices...................................................................12

6.1 Diagnostic parameters...........................................................................................12

6.2 Log parameters .....................................................................................................12

6.3 Mode parameters ..................................................................................................13

---------------------- Page: 3 ----------------------
14776-381 © ISO/IEC:2000(E) – 3 –
INFORMATION TECHNOLOGY –
SMALL COMPUTER SYSTEM INTERFACE (SCSI) –
Part 381: Optical Memory Card Device Commands (OMC)
FOREWORD

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)

form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC

participate in the development of International Standards through technical committees established by the

respective organization to deal with particular fields of technical activity. ISO and IEC technical committees

collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in

liaison with ISO and IEC, also take part in the work.

In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

International Standard ISO/IEC 14776-381 was prepared by subcommittee 25: Interconnection of

information technology equipment, of ISO/IEC joint technical committee 1: Information technology.

International Standards are drafted in accordance with ISO/IEC Directives, Part 3.

---------------------- Page: 4 ----------------------
– 4 – 14776-381 © ISO/IEC:2000(E)
INTRODUCTION

The SCSI-3 Optical Memory Card (OMC) command set specifies the commands for a device

that declares itself as an optical memory card device in the device type field of the INQUIRY

command. The OMC command set is specified independently of any service delivery
subsystem, an underlying command-response protocol is assumed.

The optical memory card is a Write Once media in that a written area cannot be overwritten.

Information stored on an optical memory card is non-volatile. The media is preformatted

during manufacture and cannot be formatted by the user. The specification for the

preformatted area is defined in ISO/IEC 11694, part 4. Data written to the optical memory

card cannot be updated. Therefore the update commands are not defined for optical memory

card devices.
This standard defines the device model for the optical memory card devices.
This standard is divided into six clauses:
Clause 1 is the scope.
Clause 2 lists the normative references that apply to this standard.

Clause 3 describes the definitions, symbols and abbreviations used in this standard.

Clause 4 describes models for optical memory card devices.

Clause 5 provides the definitions of all commands unique to optical memory card devices.

This clause also provides references to the ISO/IEC 14776-311 SCSI-3 SPC
standard for primary commands and the ISO/IEC 14776-321 SCSI-3 SBC
standard for block commands used with optical memory card device class.

Clause 6 provides the definition of all parameters unique to optical memory card devices.

---------------------- Page: 5 ----------------------
14776-381 © ISO/IEC:2000(E) – 5 –
INFORMATION TECHNOLOGY –
SMALL COMPUTER SYSTEM INTERFACE (SCSI) –
Part 381: Optical Memory Card Device Commands (OMC)
1 Scope

This standard defines the command set extensions to facilitate operation of optical memory

card devices. The clause(s) of this standard pertaining to optical memory card device class,

implemented in conjunction with the applicable clauses of the ISO/IEC 14776-311 SCSI-3

Primary Commands (SPC) and the ISO/IEC 14776-321 SCSI-3 Block Commands (SBC), fully

specify the standard command set for optical memory card devices.
2 Normative references

The following normative documents contain provisions which, through reference in this text,

constitute provisions of this part of ISO/IEC 14776. For dated references, subsequent

amendments to, or revisions of, any of these publications do not apply. However, parties to

agreements based on this part of ISO/IEC 14776 are encouraged to investigate the possibility

of applying the most recent editions of the normative documents indicated below. For undated

references, the latest edition of the normative document referred to applies. Members of ISO

and IEC maintain registers of currently valid International Standards.
ISO/IEC 7810:1995, Identification cards – Physical characteristics
ISO/IEC 9316:1995, Information technology – Small Computer System Interface-2

ISO/IEC 11694-4:1996, Identification cards – Optical memory cards – Linear recording

method – Part 4: Logical data structures
ISO/IEC CD 14776-311, Information technology – Small Computer System Interface –
Part 311: Primary Commands (SCSI-3 SPC)
ISO/IEC CD 14776-321, Information technology – Small Computer System Interface –
Part 321: Block Commands (SCSI-3 SBC)
3 Definitions, symbols and conventions
3.1 Definitions
For purposes of this standard, the following definitions apply.
3.1.1
address type
addressing methods for optical memory card devices, see 4.2
3.1.2
device-specific

Something (e.g., a bit, field, code value, etc.) that is not defined by this standard and may be

defined differently for each device.
___________
Under consideration.
---------------------- Page: 6 ----------------------
– 6 – 14776-381 © ISO/IEC:2000(E)
3.1.3
ID-1 card
card whose size is defined in ISO/IEC 7810
3.1.4
invalid
illegal or unsupported bit, byte, word, field or code value
3.1.5
mandatory

The referenced item is required to claim compliance with this International Standard.

3.1.6
obsolete

The referenced item was defined in prior SCSI standards but has been removed from this

International Standard.
3.1.7
optional

The referenced item is not required to claim compliance with this International Standard.

Implementation of an optional item must be as defined in this International Standard.

3.1.8
partition

the entire usable region for recording and reading in a recording medium or in a portion of a

recording medium. If there is more than one partition, they shall be numbered starting with

zero
3.1.9
reserved

identifies bits, bytes, words, fields and code values that are set aside for future

standardisation
3.1.10
sector

the minimum unit of data that can be accessed on a recording medium for any read and/or

write commands
3.1.11
type of sector
an identifier which distinguishes the kind of sectors defined in ISO/IEC 11694-4
3.1.12
vendor-specific

Something (e.g. a bit, field, code value, etc.) that is not defined by this standard and may be

used differently in various implementations by each vendor.
3.2 References to SCSI Standards

The term SCSI is used wherever it is not necessary to distinguish between the versions

of SCSI. The Small Computer System Interface-2 (ISO/IEC 9316) is referred to herein as

SCSI-2. The set of SCSI-3 standards are collectively referred to as SCSI-3.
---------------------- Page: 7 ----------------------
14776-381 © ISO/IEC:2000(E) – 7 –
3.3 Symbols and abbreviations
SBC: SCSI-3 Block Commands standard
SCSI: Either SCSI-2 or SCSI-3
SCSI-2: Small Computer System Interface-2
SCSI-3: Small Computer System Interface-3
SPC: SCSI-3 Primary Commands standard
3.4 Numerical conventions

Digits 0 to 9 in the text of this standard that are not immediately followed by lower-case "h"

are decimal values. Digits 0 to 9 and upper case letter "A" to "F" immediately followed by

lower-case "h" are hexadecimal values.
4 Optical memory card devices
4.1 Model for optical memory card devices

An optical memory card device is a device that returns 0Fh in the PERIPHERAL DEVICE

TYPE field of the INQUIRY command response data.

An optical memory card device is a device that supports an ID-1 card size removable optical

recording medium. In several respects, an optical memory card device is similar to a direct-

access device and an optical memory device.

A sector is the minimum data recording/reproduction unit for optical memory card devices.

Optical memory card devices use variable size sectors to optimize storage performance on

the medium.
4.2 Address type

There are two address types for optical memory card devices. Address type specifies the

value in the logical block address field of the medium access commands and the sense data

information field.

If the device supports both address types, the address types can be selected using the MODE

SELECT command by setting the address type (AT) bit of the optical memory card device

mode parameter header (see SCSI-3 SPC). If the device supports only one address type, the

AT bit is a read-only bit and cannot be changed by the MODE SELECT command. In this

case, the device specific default address type will be used. The current operating address

type of the device can be obtained using the MODE SENSE command.

If the AT bit of mode parameter header is set to zero, the value in the logical block address

field of the medium access commands and the sense data information field consist of the

partition number and the logical block address in the partition as shown in Table 1.

Table 1 – Logical block address field and information field (AT = 0)
Bit 7 654 321 0
Byte
n Partition number
n+1 (MSB) Logical block address in the partition
n+2
n+3 (LSB)
---------------------- Page: 8 ----------------------
– 8 – 14776-381 © ISO/IEC:2000(E)

If the AT bit is set to one, the value in the logical block address field of the medium access

commands and the sense data information field consist of the type of sector, the track

address and the sector address as shown in Table 2.
Table 2 – Logical block address field and information field (AT = 1)
Bit 7 6 5 432 1 0
Byte
n Type of sector
n+1 (MSB) Track address
n+2 (LSB)
n+3 Sector address

NOTE The commands using the logical block address field for optical memory card devices are the following

commands: READ(10), SEEK(10), WRITE(10), WRITE AND VERIFY, and READ CARD CAPACITY command.

4.3 Ready state

The conditions to determine logical unit ready is vendor specific. However, ready state means

that the logical unit would accept an appropriate medium access command without returning

CHECK CONDITION status, and at least both of the following two conditions shall be

satisfied:
1) medium in accordance with a logical unit shall be loaded in a logical unit;
2) basic information (e.g. specific track) in a medium shall be sensed.
4.4 Initialisation

The command for medium initialisation is not defined for optical memory card devices.

4.5 Medium defects

The raw defect rate is typically higher for optical medium than magnetic medium. Data is

usually recovered though the use of sophisticated error correction algorithms. The level of

error correction used for data recovery can be selected. Control of the error correction

algorithms and level of correction depends on the type of sector.
4.6 Error reporting

If any of the following conditions occur during the execution of a command the target shall

return CHECK CONDITION status. The appropriate sense key and additional sense code

should be set. The following list illustrates some error conditions and the applicable sense

keys. The list does not provide an exhaustive enumeration of all conditions that may cause

the CHECK CONDITION status.
---------------------- Page: 9 ----------------------
14776-381 © ISO/IEC:2000(E) – 9 –
Condition Sense key
Invalid address ILLEGAL REQUEST
Unsupported option requested ILLEGAL REQUEST
Target reset or medium change since last command from this UNIT ATTENTION
initiator
Self diagnostic failed HARDWARE ERROR
Unrecovered read error MEDIUM ERROR or
HARDWARE ERROR
Recovered read error RECOVERED ERROR
Overrun or other error that might be resolved by repeating the ABORTED COMMAND
command
Attempt to read a blank or previously unwritten block BLANK CHECK
Attempt to write a previously written block and blank block BLANK CHECK
checking is enabled
Attempt to write on write protected medium DATA PROTECT

In the case of an invalid address, the sense data information field shall be set to the first

invalid address.

In the case of an attempt to read a blank or previously unwritten block, the sense data

information field shall be set to the address of the first blank encountered. The data read up to

that block shall be transferred.

In the case of an attempt to write a previously written block and blank block checking is

enabled, the sense data information field shall be set to the address of the first non-blank

block encountered.
5 Commands for optical memory card devices
The commands for optical memory card devices shall be as shown in Table 3
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
