Magnetic powder cores - Guidelines on dimensions and the limits of surface irregularities - Part 4: Block-cores

IEC 63182-4:2021 specifies the preferred range of the dimensions that are of importance for mechanical interchangeability and gives guidelines on allowable limits of surface irregularities for block-cores made of metallic magnetic powder.
This document is a specification about surface irregularities which is useful in the negotiations between suppliers and users of magnetic powder-cores.

Noyaux en poudre magnétique – Lignes directrices concernant les dimensions et les limites des irrégularités de surface – Partie 4: Noyaux en blocs

L’IEC 63182-4:2021 spécifie la plage préférentielle des dimensions qui sont importantes pour l’interchangeabilité mécanique, ainsi que les lignes directrices concernant les limites admissibles des irrégularités de surface pour les noyaux en blocs en poudre magnétique métallique.
Le présent document est une spécification portant sur les irrégularités de surface, qui est utile pour les négociations entre les fournisseurs et les utilisateurs de noyaux en poudre magnétique.

General Information

Status
Published
Publication Date
28-Nov-2021
Current Stage
PPUB - Publication issued
Completion Date
29-Nov-2021
Ref Project

Buy Standard

Standard
IEC 63182-4:2021 - Magnetic powder cores - Guidelines on dimensions and the limits of surface irregularities - Part 4: Block-cores
English and French language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 63182-4
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Magnetic powder cores – Guidelines on dimensions and the limits of surface
irregularities –
Part 4: Block-cores
Noyaux en poudre magnétique – Lignes directrices concernant les dimensions
et les limites des irrégularités de surface –
Partie 4: Noyaux en blocs
IEC 63182-4:2021-11(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

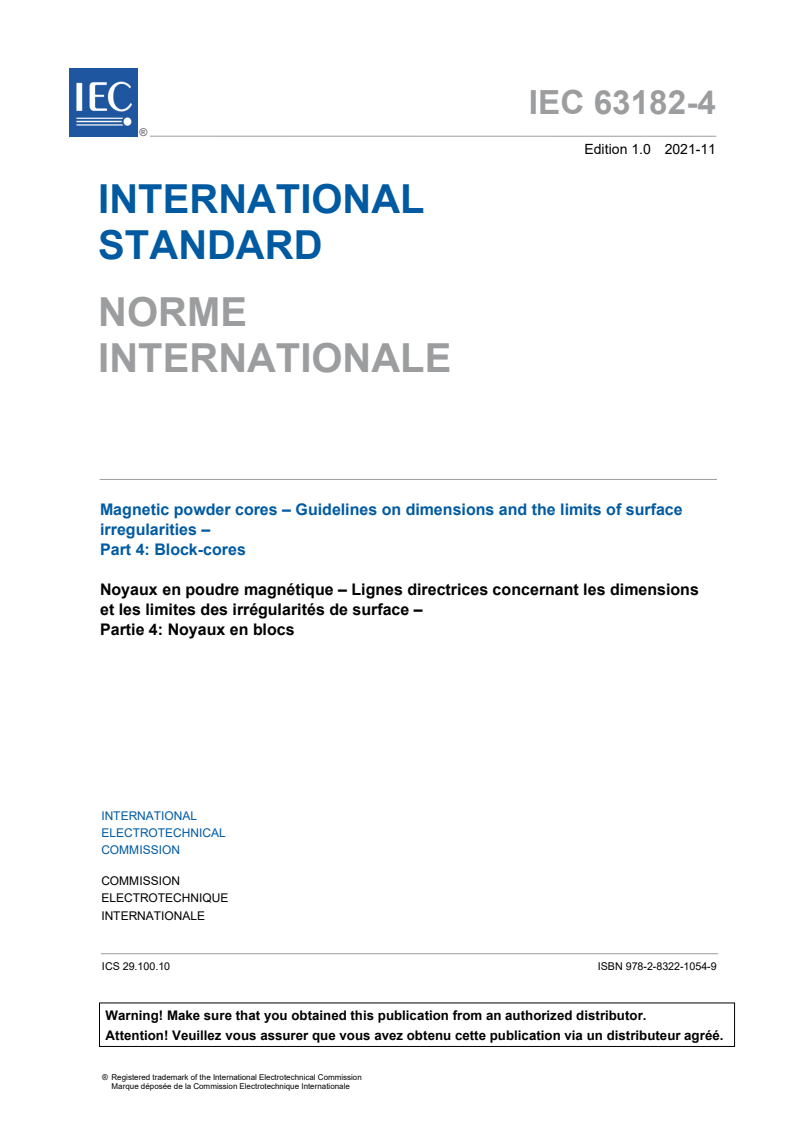

IEC 63182-4
Edition 1.0 2021-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Magnetic powder cores – Guidelines on dimensions and the limits of surface
irregularities –
Part 4: Block-cores
Noyaux en poudre magnétique – Lignes directrices concernant les dimensions
et les limites des irrégularités de surface –
Partie 4: Noyaux en blocs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10 ISBN 978-2-8322-1054-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 63182-4:2021 © IEC 2021

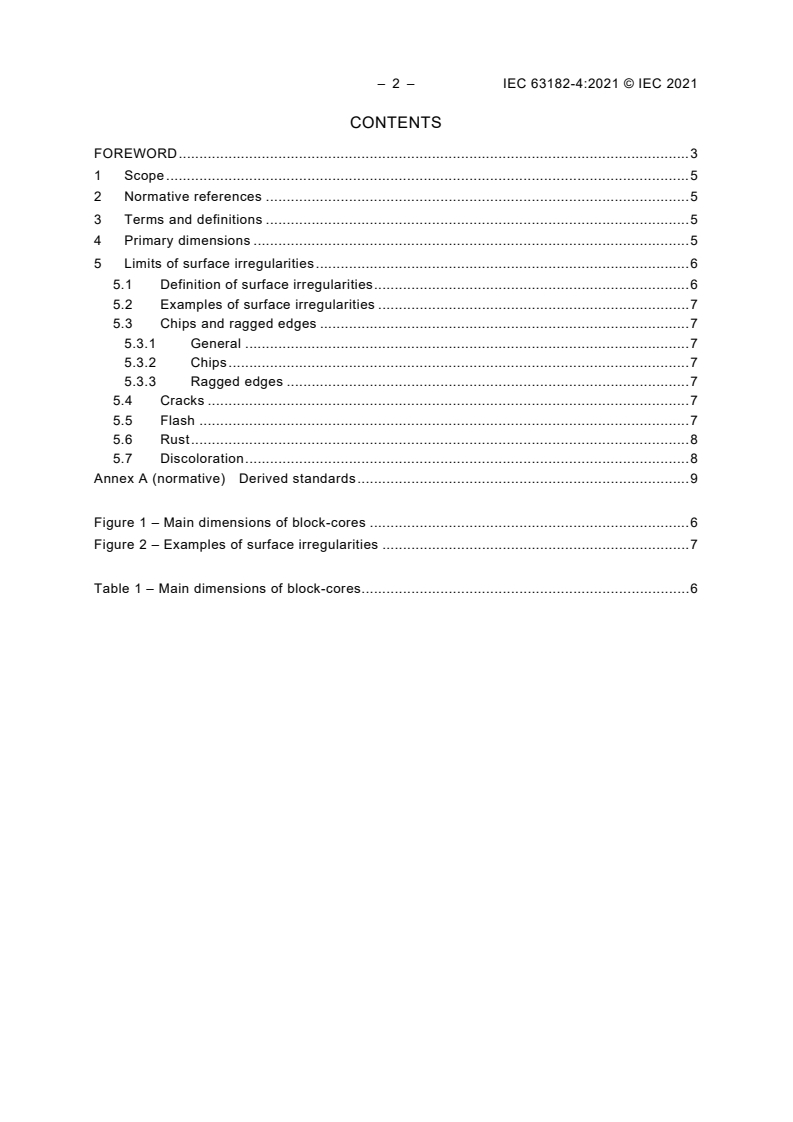

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Primary dimensions ......................................................................................................... 5

5 Limits of surface irregularities .......................................................................................... 6

5.1 Definition of surface irregularities ............................................................................ 6

5.2 Examples of surface irregularities ........................................................................... 7

5.3 Chips and ragged edges ......................................................................................... 7

5.3.1 General ........................................................................................................... 7

5.3.2 Chips ............................................................................................................... 7

5.3.3 Ragged edges ................................................................................................. 7

5.4 Cracks .................................................................................................................... 7

5.5 Flash ...................................................................................................................... 7

5.6 Rust ........................................................................................................................ 8

5.7 Discoloration ........................................................................................................... 8

Annex A (normative) Derived standards ................................................................................ 9

Figure 1 – Main dimensions of block-cores ............................................................................. 6

Figure 2 – Examples of surface irregularities .......................................................................... 7

Table 1 – Main dimensions of block-cores............................................................................... 6

---------------------- Page: 4 ----------------------
IEC 63182-4:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MAGNETIC POWDER CORES – GUIDELINES ON DIMENSIONS
AND THE LIMITS OF SURFACE IRREGULARITIES –
Part 4: Block-cores
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63182-4 has been prepared by IEC technical committee 51: Magnetic components, ferrite

and magnetic powder materials. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
51/1373/CDV 51/1391/RVC

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

---------------------- Page: 5 ----------------------
– 4 – IEC 63182-4:2021 © IEC 2021

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 63182 series, published under the general title Magnetic powder

cores – Guidelines on dimensions and the limits of surface irregularities can be found on the

IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 63182-4:2021 © IEC 2021 – 5 –
MAGNETIC POWDER CORES – GUIDELINES ON DIMENSIONS
AND THE LIMITS OF SURFACE IRREGULARITIES –
Part 4: Block-cores
1 Scope

This part of IEC 63182 specifies the preferred range of the dimensions that are of importance

for mechanical interchangeability and gives guidelines on allowable limits of surface

irregularities for block-cores made of metallic magnetic powder.

This document is a specification about surface irregularities which is useful in the negotiations

between suppliers and users of magnetic powder-cores.

The use of “derived” standards which give more detailed specifications of component parts

while still permitting compliance with this document is discussed in Annex A.
2 Normative references

The following document is referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 63182-1, Magnetic powder cores – Guidelines on dimensions and the limits of surface

irregularities – Part 1: General specification
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 63182-1 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Primary dimensions

The main dimensions of block-cores shall be those given in Table 1. The dimensions specified

in Table 1 are illustrated in Figure 1.
---------------------- Page: 7 ----------------------
– 6 – IEC 63182-4:2021 © IEC 2021
Figure 1 – Main dimensions of block-cores
Table 1 – Main dimensions of block-cores
A B C
Size mm mm mm
Min. Max. Min. Max. Min. Max.
B474128 47,0 48,0 40,5 41,5 27,0 28,0
B502015 49,5 50,5 19,5 20,5 14,5 15,5
B502020 49,5 50,5 19,5 20,5 19,5 20,5
B503015 49,5 50,5 29,5 30,5 14,5 15,5
B503020 49,5 50,5 29,5 30,5 19,5 20,5
B602015 59,5 60,5 19,5 20,5 14,5 15,5
B602020 59,5 60,5 19,5 20,5 19,5 20,5
B603015 59,5 60,5 29,5 30,5 14,5 15,5
B603020 59,5 60,5 29,5 30,5 19,5 20,5
B702015 69,5 70,5 19,5 20,5 14,5 15,5
B702020 69,5 70,5 19,5 20,5 19,5 20,5
B703015 69,5 70,5 29,5 30,5 14,5 15,5
B703020 69,5 70,5 29,5 30,5 19,5 20,5
B802015 79,5 80,5 19,5 20,5 14,5 15,5
B802020 79,5 80,5 19,5 20,5 19,5 20,5
B803015 79,5 80,5 29,5 30,5 14,5 15,5
B803020 79,5 80,5 29,5 30,5 19,5 20,5

NOTE For the 5030, 6030, 7030 and 8030 block-cores, 30,3 mm is also used as the nominal dimension B by

many suppliers and users. For these cases, B can be specified as 29,8 mm min. / 30,8 mm max.

The core size designation contains a combination of six numbers: the first and second indicate the length A of

the core, the third and fourth its width B, and the fifth and sixth its height C.

5 Limits of surface irregularities
5.1 Definition of surface irregularities
Surface irregularities are defined in IEC 63182-1.
---------------------- Page: 8 ----------------------
IEC 63182-4:2021 © IEC 2021 – 7 –
5.2 Examples of surface irregularities
Figure 2 shows different examples of surface irregularities of block-cores.
Figure 2 – Examples of surface irregularities
5.3 Chips and ragged edges
5.3.1 General

The minimum area for a chip is taken as 0,5 mm , so as to be distinguishable to the naked eye.

The maximum cumulative area of chips on a surface, regardless of core size, is 50 mm . Area

and length references for visual inspection are given in IEC 63182-1.
5.3.2 Chips

Figure 2 shows the chips at various locations for block-cores. The maximum cumulative area of

chips on a surface is 3 % of the area of the surface or 50 mm , whichever is smaller.

5.3.3 Ragged edges

Figure 2 shows the ragged edges at various locations for block-cores. The total length of the

ragged edges shall be less than 20 % of the length of the relevant edges.
5.4 Cracks

Figure 2 shows the cracks at various locations for block-cores. Up to three cracks per surface

are allowed, as long as each crack is less than 25 % of the reference dimension and no crack

is in contact with the edge at both ends. The reference dimension is the smallest dimension of

a surface.
5.5 Flash

The maximum dimension of flashes on the surface shall not exceed 0,2 mm (see Figure 2).

---------------------- Page: 9 ----------------------
– 8 – IEC 63182-4:2021 © IEC 2021
5.6 Rust

Figure 2 shows rust at various locations for block-cores. The area of rust shall not exceed the

following limits:

– the cumulative area of the rust located on the same surface shall not exceed 25 % of the

surface area;

– rust should not influence the electromagnetic properties or the mechanical strength of the

core. Otherwise, it is not acceptable.
5.7 Discoloration
Generally, no limit of the disco
...
