IEC 61076-2-109:2014

Connectors for electronic equipment - Product requirements - Part 2-109: Circular connectors - Detail specification for connectors with M 12 x 1 screw-locking, for data transmission frequencies up to 500 MHz

IEC 61076-2-109:2014 describes circular connectors with IP 65/IP 67 degree of protection and suitable for data transmission with frequencies up to 500 MHz. Applications include, but are not limited to, vision systems and data acquisition. These connectors consist of fixed and free connectors, either rewireable or non-rewireable, with M 12 x 1 screw-locking. Male connectors have round contacts ∅ 0,6 mm. This standard covers two different types of connectors, denominated X and H, with different contact arrangement, not mutually interchangeable, but with common ratings and purposes. Keywords: Connectors, Circular Connectors, Data transmission

Connecteurs pour équipements électroniques - Exigences de produit - Partie 2-109: Connecteurs circulaires - Spécification particulière relative aux connecteurs avec verrouillage à vis M 12 x 1, pour les transmissions de données à des fréquences jusqu'à 500 MHz

L'IEC 61076-2-109:2014 décrit des connecteurs circulaires avec un degré de protection IP 65/IP 67 et adaptés à une transmission de données à des fréquences jusqu'à 500 MHz. Les applications incluent, sans toutefois s'y limiter, les systèmes de vision et l'acquisition de données. Ces connecteurs se composent d'embases et de fiches, démontables ou non et sont équipés d'un système à vis M 12 x 1. Les connecteurs mâles possèdent des contacts arrondis de ∅ 0,6 mm. La présente norme couvre deux types différents de connecteurs, désignés X et H, avec différentes dispositions des contacts, non interchangeables, mais avec des caractéristiques assignées et des applications prévues communes. Mots-clés: Connecteurs, Connecteurs circulaires, Transmission de données

General Information

• Status: Published
• Publication Date: 07-May-2014
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 08-May-2014
• Completion Date: 15-May-2014

Overview

IEC 61076-2-109:2014 is an international standard published by the International Electrotechnical Commission (IEC) that specifies product requirements for circular connectors used in electronic equipment. These connectors feature M 12 x 1 screw-locking mechanisms and support data transmission frequencies up to 500 MHz. Designed for robust industrial applications, these circular connectors provide IP65/IP67 degrees of protection, ensuring reliable performance in harsh environments.

This standard covers two types of connectors, labeled X and H, each with different contact arrangements. Both types share common electrical ratings and intended purposes but are not interchangeable. Male connectors utilize round contacts with a diameter of 0.6 mm, and the range includes fixed and free connectors, which can be either rewireable or non-rewireable.

Key Topics

• Connector Types X and H: The specification differentiates between two distinct connector configurations to cater to diverse application requirements, with specific interface dimensions and contact placements.

• M 12 x 1 Screw-Locking Mechanism: Ensures secure and vibration-resistant connections critical for data integrity in industrial environments.

• Data Transmission up to 500 MHz: Suitable for high-frequency data applications, supporting vision systems, data acquisition, and other demanding use cases.

• Ingress Protection Ratings: IP65 and IP67 classifications confirm the connectors’ ability to resist dust ingress and withstand immersion in water, making them ideal for rugged applications.

• Electrical and Mechanical Specifications:

  • Rated voltage and impulse voltage values ensuring safe operation.
  • Low contact resistance for optimal signal transmission.
  • Mechanical endurance to withstand repeated mating cycles.
  • Resistance to vibration and shock for reliability.

• Recommended Termination Methods: Guidelines on contact termination and cable connections for balanced cabling systems, facilitating consistent electrical performance.

• Compliance Testing and Quality Assurance: Detailed test schedules covering preliminary assessments, dynamic/climatic conditions, mechanical endurance, electrical load, chemical resistivity, connection methods, and electrical transmission requirements.

Applications

IEC 61076-2-109 standard connectors are widely used in industrial and electronic equipment that demands reliable data communication with robust physical and environmental protection. Typical applications include:

• Industrial Vision Systems: High-frequency data transmission for cameras and sensors in automation and inspection lines.

• Data Acquisition Equipment: Secure and stable connections for data collection devices in manufacturing and process monitoring.

• Automation Systems: Connector solutions for PLCs, robotics, and machinery requiring durable and shielded interfaces.

• Harsh Environment Installations: Usage in outdoor, wet, or dusty locations due to their IP65/IP67-rated protection against the elements.

Related Standards

IEC 61076 series includes multiple parts addressing various connector types and product requirements. Related standards that complement IEC 61076-2-109 include:

• IEC 61076-2-101: Specifications for M 12 connectors for sensor and actuator interfaces.

• IEC 61076-2-104: Circular connectors with screw-locking for Ethernet connections.

• IEC 61076-2-111: Detail specification for M 12 connectors used in power applications.

• Other IEC technical reports and guides related to connector testing methods, marking requirements, and safety standards.

Conclusion

IEC 61076-2-109:2014 delivers a comprehensive specification for circular connectors optimized for high-frequency data transmission in demanding industrial environments. Its emphasis on environmental protection, reliable screw-locking mechanisms, and precise electrical and mechanical criteria makes it an essential standard for manufacturers and users of electronic connectivity solutions. Adopting this standard ensures interoperability, safety, and performance consistency across diverse applications requiring circular data connectors with M 12 x 1 interfaces.

Standards Content (Sample)

IEC 61076-2-109 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –
Part 2-109: Circular connectors – Detail specification for connectors with
M 12 × 1 screw-locking, for data transmission frequencies up to 500 MHz

Connecteurs pour équipements électroniques – Exigences de produit –
Partie 2-109: Connecteurs circulaires – Spécification particulière relative aux
connecteurs avec verrouillage à vis M 12 × 1, pour les transmissions de données
à des fréquences jusqu’à 500 MHz

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61076-2-109 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Product requirements –

Part 2-109: Circular connectors – Detail specification for connectors with

M 12 × 1 screw-locking, for data transmission frequencies up to 500 MHz

Connecteurs pour équipements électroniques – Exigences de produit –

Partie 2-109: Connecteurs circulaires – Spécification particulière relative aux

connecteurs avec verrouillage à vis M 12 × 1, pour les transmissions de

données à des fréquences jusqu’à 500 MHz

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 31.220.10 ISBN 978-2-8322-1541-8

– 2 – IEC 61076-2-109:2014 © IEC 2014

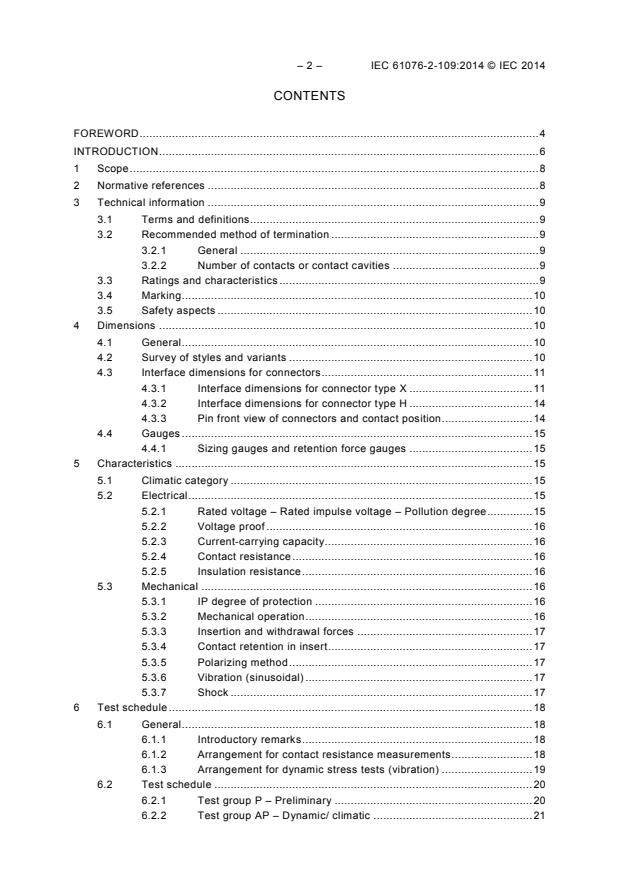

CONTENTS

FOREWORD . 4
INTRODUCTION . 6
1 Scope . 8
2 Normative references . 8
3 Technical information . 9
3.1 Terms and definitions . 9
3.2 Recommended method of termination . 9
3.2.1 General . 9
3.2.2 Number of contacts or contact cavities . 9
3.3 Ratings and characteristics . 9
3.4 Marking . 10
3.5 Safety aspects . 10
4 Dimensions . 10
4.1 General . 10
4.2 Survey of styles and variants . 10
4.3 Interface dimensions for connectors . 11
4.3.1 Interface dimensions for connector type X . 11
4.3.2 Interface dimensions for connector type H . 14
4.3.3 Pin front view of connectors and contact position . 14
4.4 Gauges . 15
4.4.1 Sizing gauges and retention force gauges . 15
5 Characteristics . 15
5.1 Climatic category . 15
5.2 Electrical . 15
5.2.1 Rated voltage – Rated impulse voltage – Pollution degree . 15
5.2.2 Voltage proof . 16
5.2.3 Current-carrying capacity . 16
5.2.4 Contact resistance . 16
5.2.5 Insulation resistance . 16
5.3 Mechanical . 16
5.3.1 IP degree of protection . 16
5.3.2 Mechanical operation . 16
5.3.3 Insertion and withdrawal forces . 17
5.3.4 Contact retention in insert . 17
5.3.5 Polarizing method . 17
5.3.6 Vibration (sinusoidal) . 17
5.3.7 Shock . 17
6 Test schedule . 18
6.1 General . 18
6.1.1 Introductory remarks . 18
6.1.2 Arrangement for contact resistance measurements . 18
6.1.3 Arrangement for dynamic stress tests (vibration) . 19
6.2 Test schedule . 20
6.2.1 Test group P – Preliminary . 20
6.2.2 Test group AP – Dynamic/ climatic . 21

6.2.3 Test group BP – Mechanical endurance . 23
6.2.4 Test group CP – Electrical load . 24
6.2.5 Test group DP – Chemical resistivity . 25
6.2.6 Test group EP – Connection method tests . 25
6.2.7 Test group FP – Electrical transmission requirements . 25
Annex A (informative) Contact and pair designation for balanced cabling . 29
A.1 Recommendation for cable connection . 29

Figure 1 – Interface dimensions for connectors type X with female contacts . 11
Figure 2 – Interface dimensions for connectors type X with male contacts . 12
Figure 3 – Interface dimensions for connectors type H with male contacts . 14
Figure 4 – Gauge dimensions . 15
Figure 5 – Contact resistance arrangement . 19
Figure 6 – Dynamic stress test arrangement . 19

Table 1 – Contact termination . 9
Table 2 – Interface dimensions, connector type X with female contacts . 12
Table 3 – Interface dimensions, connector type X with male contacts . 13
Table 4 – Interface dimensions for connectors type H with male contacts . 14
Table 5 – Gauges . 15
Table 6 – Climatic category . 15
Table 7 – Rated voltage – Impulse voltage – Pollution degree . 16
Table 8 – Voltage proof, r.m.s. withstand voltages . 16
Table 9 – Number of mechanical operations . 17
Table 10 – Insertion and withdrawal forces . 17
Table 11 – Number of test specimens . 18
Table 12 – Test group P . 20
Table 13 – Test group AP (1 of 2) . 21
Table 14 – Test group BP . 23
Table 15 – Test group CP . 24
Table 16 – Test group DP . 25
Table 17 – Test group EP . 25
Table 18 – Test group FP (1 of 2) . 27
Table A.1 – Example of contact and pair designation for balanced cabling
(informative) . 29

– 4 – IEC 61076-2-109:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-109: Circular connectors – Detail specification for
connectors with M 12 x 1 screw-locking, for data
transmission frequencies up to 500 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
International Standard IEC 61076-2-109 has been prepared by subcommittee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.
This first edition of IEC 61076-2-109 cancels and relaces IEC PAS 61076-2-109, published in
2010.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/2369/FDIS 48B/2382/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61076 series, published under the general title Connectors for
electronic equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61076-2-109:2014 © IEC 2014
INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of a patent concerning
connector given in 4.3.2.
IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he/she is willing to negotiate licences
free of charge with applicants throughout the world. In this respect, the statement of the
holder of this patent right is registered with IEC. Information may be obtained from:
Tyco Electronics Corporation
Licensing Council, Tyco Electronics Technology Resources Inc.
4550 New Linden Hill Road, Suite 140
Wilmington, DE 19808
USA
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line data bases of
patents relevant to their standards. Users are encouraged to consult the data bases for the
most up to date information concerning patents.

INTERNATIONAL ELECTROTECHNICAL COMMISSION IEC 61076-2-109 Ed. 1.0
IEC SC 48B – Connectors
ELECTRONIC COMPONENTS
in accordance with IEC 61076-1
Circular connectors
M12 × 1 mm 2 to 8 ways, for data
transmission frequencies up to 500 MHz

Pin and socket connectors with round

contact
Rewireable – Non-rewirable
Free cable connectors
Straight and right angle connectors

Fixed connectors
Type X
Flange mounting
Rear mounting
Single hole mounting
Type H
IEC  1225/14
– 8 – IEC 61076-2-109:2014 © IEC 2014
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-109: Circular connectors – Detail specification for
connectors with M 12 x 1 screw-locking, for data
transmission frequencies up to 500 MHz

1 Scope
This part of IEC 61076 describes circular connectors with IP 65/IP 67 degree of protection
and suitable for data transmission with frequencies up to 500 MHz. Applications include, but
are not limited to, vision systems and data acquisition. These connectors consist of fixed and
free connectors, either rewireable or non-rewireable, with M12 x 1 screw-locking. Male
connectors have round contacts ∅ 0,6 mm.
This standard covers two different types of connectors, denominated X and H, with different
contact arrangement, not mutually interchangeable, but with common ratings and purposes.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050 (all parts), International Electrotechnical Vocabulary (available at
http://www.electropedia.org)
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance
IEC 60068-2-60:1995, Environmental testing – Part 2: Tests – Test Ke: Flowing mixed gas
corrosion test
IEC 60352 (all parts), Solderless connections
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-29-100: Connectors for electronic equipment – Tests and measurements – Part
29-100: Signal integrity tests up to 500 MHz on M12 style connectors – Tests 29a to 29g (to
be published)
IEC 60529:1989, Degrés de protection procurés par les enveloppes (Code IP)
Amendement 2:2013
Amendement 1:1999
IEC 60603-7:2008, Connectors for electronic equipment – Part 7: Detail specification for 8-
way, unshielded, free and fixed connectors
Amendment 1:2011
IEC 60603-7-1, Connectors for electronic equipment – Part 7-1: Detail specification for 8-way,
shielded, free and fixed connectors

IEC 60664-1:2007, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60998-2-1:2002, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 60999 (all parts), Connecting devices – Electrical copper conductors – Safety
requirements for screw-type and screwless-type clamping units
IEC 61076-1, Connectors for electronic equipment – Product requirements – Part 1: Generic
specification
IEC 61076-2:2011, Connectors for electronic equipment – Product requirements – Part 2:
Sectional specification for circular connectors
IEC 61076-2-101:2012, Connectors for electronic equipment – Product requirements – Part 2-
101: Circular connectors – Detail specification for M12 connectors with screw-locking
IEC 61984:2008, Connectors –Safety requirements and tests
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ISO 11801:2002, Information technology – Generic cabling for customer premises
3 Technical information
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-581 apply.
3.2 Recommended method of termination
3.2.1 General
The contact terminations shall be of the following types: screw, crimp, insulation piercing,
insulation displacement, press-in or solder.
3.2.2 Number of contacts or contact cavities
2 to 8 contacts and 8 cavities.
Table 1 – Contact termination
Connector type Number of contacts Typical. termination
2 2 a)
X 2 to 8 0,14 mm to 0,25 mm
2 2 a)
H 2 to 8 0,14 mm to 0,25 mm
a)
Corresponds to AWG 26 to 24.
3.3 Ratings and characteristics
Rated voltage: 50 V a.c. / 60 V d.c., see 5.2.1, Table 7
Rated Current: 0,5 A, see 5.2.3
Insulation resistance: 10 Ω, see 5.2.5

– 10 – IEC 61076-2-109:2014 © IEC 2014
Climatic category: –25 °C / +85 °C / 21 days, see 5.1, Table 6
Contact spacing: see Clause 4
3.4 Marking
The marking of the connector and the package shall be in accordance with 2.6 of IEC 61076-
2:2011.
3.5 Safety aspects
For safety aspects IEC 61984 shall be considered. In the sense of IEC 61984 this standard
covers connectors without breaking capacity (COC).
4 Dimensions
4.1 General
All dimensions in mm are original. Drawings are shown in the first angle projection. The shape
of the connectors may deviate from those given in the following drawings as long as the
specified dimensions are not influenced.
For connector dimensions, see 4.3.
Missing dimensions shall be chosen according to the common characteristics and intended
use.
The missing interface dimensions of the female styles shall be chosen according to the
common characteristics of the male styles.
4.2 Survey of styles and variants
Subclause 2.2 of IEC 61076-2-101:2012 applies.

4.3 Interface dimensions for connectors
4.3.1 Interface dimensions for connector type X
IEC  1218/14
Figure 1 – Interface dimensions for connectors type X with female contacts

– 12 – IEC 61076-2-109:2014 © IEC 2014
Table 2 – Interface dimensions, connector type X with female contacts
Reference Minimum Nominal Maximum
mm mm mm
A 5,6 5,6 5,6
B 2,8 2,8 2,8
C 1,05 1,05 1,1
D 1,5 1,5 1,6
E 0,4 0,4 0,5
F 0,96 1,02 1,02
G 8,15 8,25 8,25
H 1,24 1,24 1,34
I 0,7 0,7 0,75
K 0,1 0,1 0,15
M M12x1
N 1 1 1,1
R 94,5° 95° 95°
S 1,6 1,6 1,7
T 4,7 4,9 5,1
NOTE All radii without dimensions are 0,1.

IEC  1219/14
Figure 2 – Interface dimensions for connectors type X with male contacts

Table 3 – Interface dimensions, connector type X with male contacts
Reference Minimum Nominal Maximum
mm mm mm
A 5,6 5,6 5,6
B 2,8 2,8 2,8
C 0,9 1 1
D 1,4 1,5 1,5
E 0,3 0,4 0,4
F 1,06 1,06 1,11
G 8,3 8,3 8,45
H 1,1 1,2 1,2
I 0,57 0,6 0,63
K 0,07 0,1 0,13
L 10,2 10,5 10,5
M M12x1
N 0,9 1 1
O 5,3 5,5 5,7
P 8,7 8,9 8,9
Q 1,1 1,1 1,2
R 94,5° 95° 95°
S 4,1 4,1 4,2
T 2,5 2,5 2,6
U 10
V   3
NOTE All radii without dimensions are 0,1.

– 14 – IEC 61076-2-109:2014 © IEC 2014
4.3.2 Interface dimensions for connector type H
W
B F P
Sealing surface
K
O
W - W
8x
E
I Ø 0,10 A
B
1 2
D
A M L
B
6 5
G
N
H
B
W
C
IEC  1220/14
Figure 3 – Interface dimensions for connectors type H with male contacts
Table 4 – Interface dimensions for connectors type H with male contacts
Reference Minimum Nominal Maximum
mm mm mm
A 2,9 2,9 2,9
B 1,6 1,6 1,6
C 3,25 3,25 3,25
D 3,55 3,55 3,55
E 0,74
F 1,10 1,20 1,20
G 1,35
H 22,5° 23° 23,5°
I 0,57 0,6 0,63
K R 0,30 typ.
L 10,2 10,5 10,5
M M12x1
N Ø 8,15 Ø 8,30 Ø 8,45
O 6,7 6,9 7,1
P 8,7 8,9 8,9
4.3.3 Pin front view of connectors and contact position
As described in 4.3.
The contact or cavity marking shall be on the termination side of the connector insert as long
as the size of the components allows the placement there.
4.4 Gauges
4.4.1 Sizing gauges and retention force gauges
Material: tool steel, hardened
= Surface roughness according to ISO 1302: Ra = 0,25 µm max.
0,15 µm min.
R
l
IEC  1221/14
Figure 4 – Gauge dimensions
Table 5 – Gauges
Gauge Mass Application ∅ a l min.
g mm mm
P31 – Sizing 0,63 10
P32 15 Retention force 0,57 10

5 Characteristics
5.1 Climatic category
Conditions: IEC 60068-1.
Table 6 – Climatic category
Category of temperature Damp heat steady-state
Climatic
Lower Upper Temperature Relative humidity
Days
category
°C °C °C %
25/85/21 –25 [phone]
5.2 Electrical
5.2.1 Rated voltage – Rated impulse voltage – Pollution degree
Conditions: IEC 60664-1.
The permissible rated voltage depends on the application or specified safety requirement.
Reductions in creepage or clearance distances may occur due to the printed board or wiring
used and shall be duly taken into account.
a
– 16 – IEC 61076-2-109:2014 © IEC 2014
Table 7 – Rated voltage – Impulse voltage – Pollution degree
Contact arrangement Rated voltage Rated impulse voltage IP65 / IP67 variants
b
according to Clause 3 V kV Pollution degree
b b b a
8 poles 50 a.c. 60 d.c. 0,8 3
a
In mated and locked condition.
b
The rated voltage and impulse voltage are based on pollution degree 2. This results from application of the
rules from IEC 61984.
5.2.2 Voltage proof
Conditions: IEC 60512, Test 4a
Standard atmospheric conditions
Mated connectors
Table 8 – Voltage proof, r.m.s. withstand voltages
r.m.s. values in kilovolts (kV), withstand voltage
Between contacts Between contacts and metal housing

Fixed connectors Free connectors Fixed connectors Free connectors
Contact arrangement
0,5 0,5 0,5 0,5
according to Figure 1
5.2.3 Current-carrying capacity
Conditions: IEC 60512, Test 5a
All contacts
Values at 40 °C ambient temperature
wire gauge) = 0,5 A (single contact 1 A)
8 pole (0,25 mm
5.2.4 Contact resistance
Conditions: IEC 60512, Test 2a
Standard atmospheric conditions
Connecting points, see 6.1.2
Contact resistance < 15 mΩ
5.2.5 Insulation resistance
Conditions: IEC 60512, Test 3a, Method A
Standard atmospheric conditions
Insulation resistance ≥10 Ω
5.3 Mechanical
5.3.1 IP degree of protection
IP65 and IP67 according to IEC 60529 connectors in mated and locked position. IP68 as
agreed between manufacturer and user.
5.3.2 Mechanical operation
Conditions: IEC 60512, Test 9a
Standard atmospheric conditions
Max. speed of operations = 10 mm/s

Rest: 30 s, unmated
Table 9 – Number of mechanical operations
Contact finish Mechanical operations
Gold 100
a
Other types
a
Other mating cycles are permissible when agreed between manufacturer and
user.
5.3.3 Insertion and withdrawal forces
Conditions: IEC 60512, Test 13b
Standard atmospheric conditions
Max. speed = 10 mm/s
Table 10 – Insertion and withdrawal forces
Total insertion force Total withdrawal force
N N
30 max. 30 max.
5.3.4 Contact retention in insert
Not applicable.
5.3.5 Polarizing method
Conditions: IEC 60512, Test 13e
Engaging force: 1,5 x total insertion force but 35 N min.
5.3.6 Vibration (sinusoidal)
Conditions: IEC 60512, Test 6d
Standard atmospheric conditions
Connectors in mated and locked position
The fixed and free connector shall be rigidly installed in a suitable fixture as
specified in 6.1.3
Vibration severity: 10 Hz to 500 Hz and 0,35 mm or 5 g
5.3.7 Shock
Conditions: IEC 60512, Test 6c
Connectors in mated and locked position
The fixed and free connector shall be rigidly installed in a suitable fixture as
specified in 6.1.3
Half sine shock acceleration 490 m/s (50 g)
Duration of impact: 11 ms
– 18 – IEC 61076-2-109:2014 © IEC 2014
6 Test schedule
6.1 General
6.1.1 Introductory remarks
This test schedule shows the tests and the order in which they shall be carried out as well as
the requirements to be met.
Unless otherwise specified, all tests shall be carried out under standard atmospheric
conditions for testing as specified in IEC 60068-1, as directed by the applicable part of
IEC 60512.
Unless otherwise specified, mated and locked sets of connectors shall be tested. Care shall
be taken to keep a particular combination of connectors together during the complete test
sequence, i.e. when unmating is necessary for a certain test, the same connector styles as
before shall be mated for the subsequent tests.
In the following, a mated and locked set of connector styles is called a specimen.
When the initial tests have been completed, all the specimens are divided in the 4 test groups
AP,BP,CP and DP. In addition 20 single contacts are used for EP and 20 additional
specimens for FP.
Before testing commences, the connectors shall be stored for at least 24 h in the non-
engaged state under standard atmospheric conditions as per IEC 60068-1.
The necessary specimens are stated in Table 11.
Table 11 – Number of test specimens
Test group
P AP BP CP DP EP FP
Number of 20 single
12 3 3 3 3 2
specimen contacts
6.1.2 Arrangement for contact resistance measurements
Conditions: see 5.2.4.
The measurement of contact resistance shall be carried out on the number of contacts
specified. Any subsequent measurements of contact resistance shall be made on the same
contacts.
Connection points
40 40
Cable Cable
Free connector Fixed connector
IEC  1222/14
Figure 5 – Contact resistance arrangement
6.1.3 Arrangement for dynamic stress tests (vibration)
Conditions: see 5.3.6.
Fixed connector
25 max. 25 max.
Free connector
Cable clamp
Cable clamp
Mounting panel
Fixture
IEC  1223/14
Figure 6a) – Straight version
Fixed connector
25 max.
Free connector
Cable clamp
Cable clamp
Mounting panel
Fixture
IEC  1224/14
Figure 6b) – Right-angled version
Figure 6 – Dynamic stress test arrangement
25 max.
– 20 – IEC 61076-2-109:2014 © IEC 2014
6.2 Test schedule
6.2.1 Test group P – Preliminary
All specimens shall be subject to the following tests.
Table 12 – Test group P
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 All connector styles
Test No. condition of test Test No.
P1 General 1 Unmated Visual 1a There shall be no defect
examination connectors examination that would impair normal
operation
Dimensional 1b The dimensions shall
examination comply with those
specified in 4.3
P2  Connection points Contact 2a Initial value according to
according to 6.1.1 resistance – 5.2.4
all contacts per Millivolt level
specimens method
P3  Test voltage Insulation 3a Initial value according to
resistance 5.2.5
500 V ± 15 V d.c.
Method A
P4  Contact/ Voltage proof 4a According to 5.2.2
contact same
measuring points
as for P3
The specimen shall be divided into 4 groups. All connectors in each group shall undergo the
tests specified for the relevant group.

6.2.2 Test group AP – Dynamic/ climatic
Table 13 – Test group AP (1 of 2)
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 All connector styles
Test No. condition of test Test No.
AP1  See 5.3.3 Insertion and 13b Requirements see 5.3.3
withdrawal
forces
AP2 Gauge Female contacts Engaging and 16e See 4.4.1
retention only 3 contacts/ separating
force specimen sizing forces
and retention
force gauge see
4.4.1
AP3 Vibration 6d Sweep cycles: 10 Contact 2e Duration of disturbance
disturbance
1 µs max.
Full duration: 6 h
Contact 2a Rise in relation to initial
See 5.3.6
resistance – values ≤15 mΩ
Millivolt level
method
Visual 1a There shall be no defect
examination that would impair normal
operation
AP4 Shock 6c See 5.3.7 Contact 2e Duration of disturbance
disturbance
1 µs max.
Contact 2a Rise in relation to initial
resistance – values ≤15 mΩ
Millivolt level
method
Visual 1a There shall be no defect
examination that would impair normal
operation
AP5 Rapid 11d −25 °C to 85 °C Contact 2a Rise in relation to initial
change of resistance –
values ≤15 mΩ
t = 30 min.
temperature Millivolt level
method
5 cycles
Insulation 3a Initial value according to
resistance 5.2.5
Voltage proof 4a According to 5.2.2
Visual 1a There shall be no defect
examination that would impair normal
operation
– 22 – IEC 61076-2-109:2014 © IEC 2014
Table 13 (2 of 2)
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512
Test No. condition of test Test No.
AP6 Climatic 11a
sequence
AP6.1 Dry heat 11i Temperature: Insulation 3a Initial value according to
85 °C resistance at high 5.2.5
temperature
Duration: 16 h
AP6.2 Damp heat, 11m Method Db Visual examination 1a There shall be no defect
cyclic, first that would impair normal
Temperature:
cycle operation
40 °C
Recovery time:
2 h
AP6.3 Cold 11j Temperature: Visual examination 1a There shall be no defect
that would impair normal
−25 °C
operation
Duration: 2 h
Recovery time:
2 h
AP6.4 Damp heat, 11m Conditions Contact resistance 2a Rise in relation to initial
cyclic, according – Millivolt level values
remaining to AP6.2 method ≤15 mΩ
cycles
5 cycles
Insulation 3a Initial value according to
resistance 5.2.5
Recovery time:
2 h
Voltage proof 4a According to 5.2.2
Insertion and 13b Requirements see 5.3.3
withdrawal forces
Visual examination 1a There shall be no defect
that would impair normal
operation
AP7 IP Protection IEC 60529 Table 1 of According to 5.3.1
degree IEC 60529:1989
AP8  Visual examination 1a There shall be no defect
that would impair normal
operation
AP9 13e See 5.3.5  It shall be possible to
Polarizing
correctly align and mate
method
the appropriate mating
connectors.
It shall not be possible to
mate the connectors in
any other than the correct
manner. The insertion and
withdrawal forces
according to AP1
6.2.3 Test group BP – Mechanical endurance
Table 14 – Test group BP
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 All connector styles
Test No. condition of Test No.
test
BP1  Female Gauge 16e See 4.4.1
contacts only retention
3 contacts/ force
specimen sizing
and retention
force gauge see
4.4.1
BP2 Mechanical 9a Speed 10 mm/s
operation (half max. Rest 30 s
of the specified (unmated)
number of
Operations see
operations)
5.3.2
Speed: 10 mm/s
max.
Rest time: 30 s
(unmated)
Contact 2a Rise in relation to initial
resistance- values ≤15 mΩ
Millivolt level
method
Visual 1a There shall be no defect
examination that would impair normal
operation
BP3 Climatic test
BP3.1 Corrosion 11g Flowing mixed Contact 2a Rise in relation to initial
industrial gas corrosion – resistance- values ≤15 mΩ
atmosphere 4 days, test Millivolt level
method 4 method
according
IEC 60068-2-60
BP4 Mechanical 9a See BP2 Contact 2a Rise in relation to initial
operation resistance – values ≤15 mΩ
(remaining half Millivolt level
of specified method
number of
Insulation 3a Initial value according to
operations)
resistance 5.2.5
Voltage proof 4a According to 5.2.2
Unmated Visual 1a There shall be no defect
connectors examination that would impair normal
operation
BP5  Insertion and 13b For requirements,
withdrawal see 5.3.3
forces
BP6  Female Gauge 16e See 4.4.1
contacts only retention
3 contacts/speci force
men sizing and
retention force
gauge see 4.4.1
– 24 – IEC 61076-2-109:2014 © IEC 2014
6.2.4 Test group CP – Electrical load
Table 15 – Test group CP
Test Test Measurement to be Requirements
phase performed
Title IEC 60512 Severity or Title IEC 60512 All connector styles
Test No. condition of Test No.
test
CP1 Rapid change of 11d Contact 2a Rise in relation to initial
−25 °C to 85 °C
temperature r = 1 h resistance – values ≤15 mΩ
5 cycles Millivolt level
method
Insulation 3a Initial value according to
resistance 5.2.5
Voltage proof 4a According to 5.2.2
CP2 Mechanical 9a See BP2
operation
CP3 Electrical load 9b Duration: Contact 2a Rise in relation to initial
and temperature resistance –
values ≤15 mΩ
1 000 h
Millivolt level
method
Amp.Temp.:
40 °C
Insulation 3a Initial value according to
resistance 5.2.5
Current load
according to
Voltage proof 4a According to 5.2.2
5.2.3
Recovery time:
2 h
Temperature:
sensor in center
of specimen
CP4  Unmated Visual 1a There shall be no defect
connectors examination that would impair normal
operation
6.2.5 Test group DP – Chemical resistivity
Table 16 – Test group DP
Test Test Measurement Requirement
phase to be performed
Title IEC 60512 Severity or Title IEC 60512 All connector styles
Test No. condition of Test No.
test
DP1 Resistance 19c Upon  Upon agreement between
to fluids agreement manufacturer and user
between
manufacturer
and user
DP2 Retreatment Clearing of Contact 2a Rise in relation to initial
specimen resistance –
values ≤15 mΩ
by washing Millivolt level
briefly in
light petrol
DP3  Voltage proof 4a According to 5.2.2
DP4  Unmated Visual 1a There shall be no defect
connectors examination that would impair normal
operation
DP5 Solderability, 12b Iron size B
wetting, iron
method
DP6 Resistance 12e Iron size B
to soldering
heat, iron
methode
6.2.6 Test group EP – Connection method tests
Table 17 – Test group EP
Test Test Measurement Requir
...
