Specifications for particular types of winding wires - Part 0-4: General requirements - Glass-fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire

IEC 60317-0-4:2020 is available as IEC 60317-0-4:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60317-0-4:2020 specifies general requirements of glass-fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire.The range of nominal conductor dimensions is given in 4.1 and the relevant specification sheet. This fourth edition cancels and replaces the third edition published in 2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- addition of dimensional requirements for grade 1 enamelled wire in Table 4;
- addition of dielectric breakdown requirements for grade 1 enamelled wire in Table 7.
- addition of requirement for the adherence test in 8.2.1 and 8.2.2.

Spécifications pour types particuliers de fils de bobinage - Partie 0-4: Exigences générales - Fil de section rectangulaire en cuivre nu ou émaillé, guipé de fibres de verre imprégnées de vernis ou de résine

IEC 60317-0-4:2020 est disponible sous forme de IEC 60317-0-4:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
IEC 60317-0-4:2020 spécifie les exigences générales relatives aux fils de section rectangulaire en cuivre nus ou émaillés, guipés de fibres de verre imprégnées de vernis ou de résine. La gamme des dimensions nominales des conducteurs est indiquée en 4.1 et dans la feuille de spécifications correspondante. Cette quatrième édition annule et remplace la troisième édition parue en 2015. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- ajout des exigences dimensionnelles pour le fil émaillé de grade 1 dans le Tableau 4;
- ajout des exigences de claquage diélectrique pour le fil émaillé de grade 1 dans le Tableau 7;
- ajout des exigences pour l'essai d'adhérence en 8.2.1 et en 8.2.2.

General Information

Status
Published
Publication Date
26-Apr-2020
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
27-Apr-2020
Ref Project

Buy Standard

Standard
IEC 60317-0-4:2020 - Specifications for particular types of winding wires - Part 0-4: General requirements - Glass-fibre wound, resin or varnish impregnated, bare or enamelled rectangular copper wire
English and French language
49 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60317-0-4
Edition 4.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 0-4: General requirements – Glass-fibre wound, resin or varnish
impregnated, bare or enamelled rectangular copper wire
Spécifications pour types particuliers de fils de bobinage –
Partie 0-4: Exigences générales – Fil de section rectangulaire en cuivre nu
ou émaillé, guipé de fibres de verre imprégnées de vernis ou de résine
IEC 60317-0-4:2020-04(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and

a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or need CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,

webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en

La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues

en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire

comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary

IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais

Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des

Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées

Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org
---------------------- Page: 2 ----------------------
IEC 60317-0-4
Edition 4.0 2020-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 0-4: General requirements – Glass-fibre wound, resin or varnish
impregnated, bare or enamelled rectangular copper wire
Spécifications pour types particuliers de fils de bobinage –
Partie 0-4: Exigences générales – Fil de section rectangulaire en cuivre nu
ou émaillé, guipé de fibres de verre imprégnées de vernis ou de résine
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-8220-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60317-0-4:2020 © IEC 2020

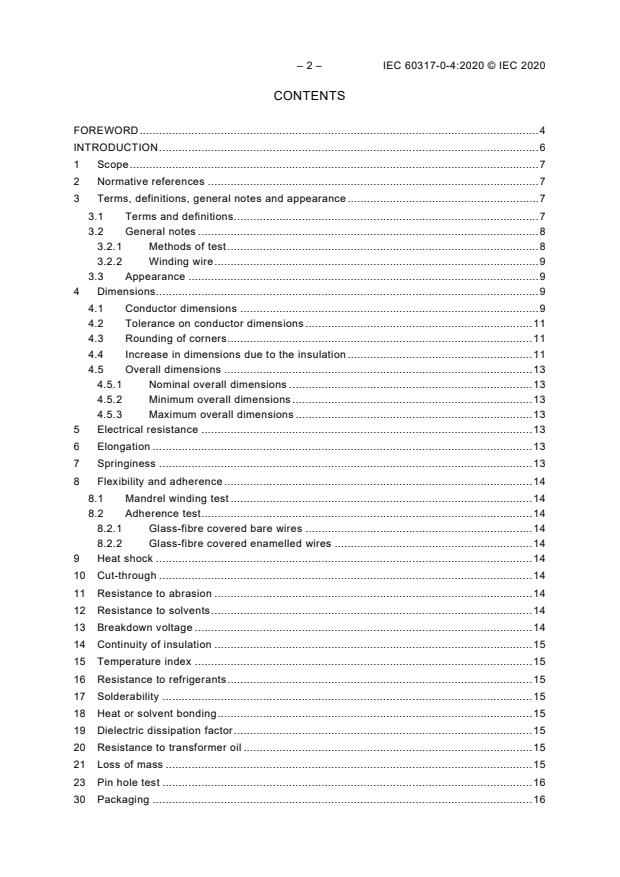

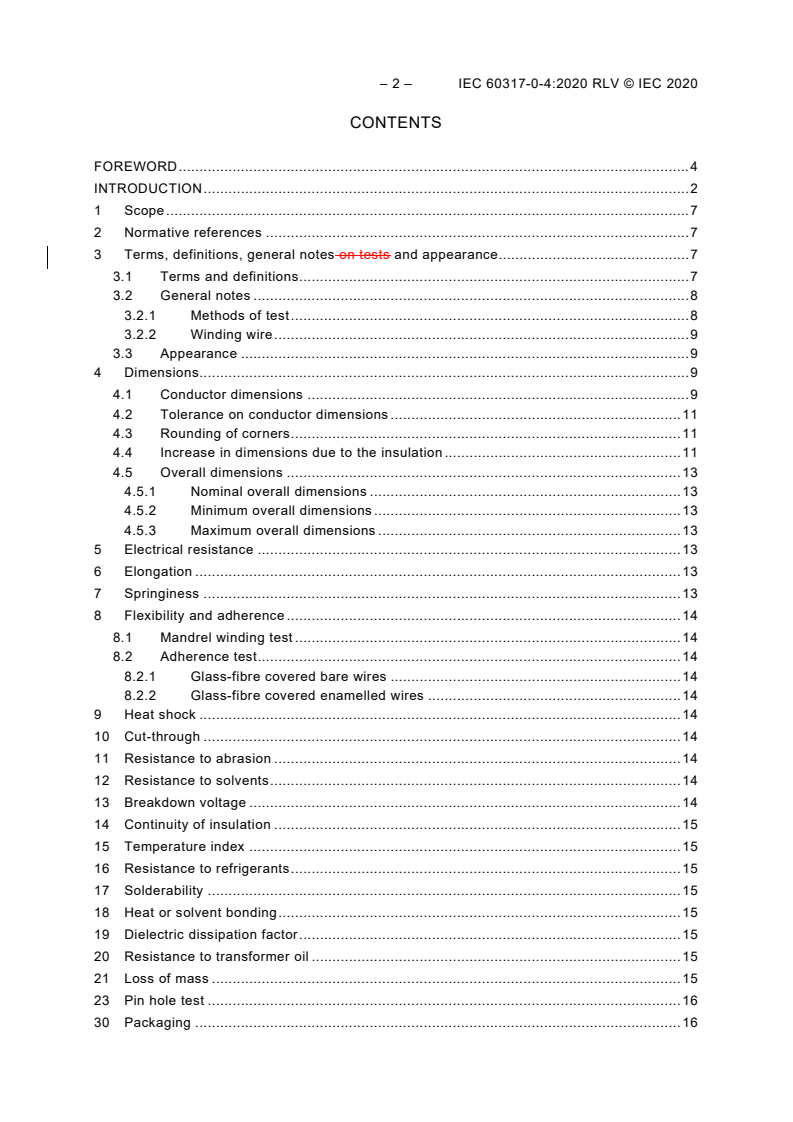

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions, general notes and appearance ........................................................... 7

3.1 Terms and definitions .............................................................................................. 7

3.2 General notes ......................................................................................................... 8

3.2.1 Methods of test ................................................................................................ 8

3.2.2 Winding wire .................................................................................................... 9

3.3 Appearance ............................................................................................................ 9

4 Dimensions...................................................................................................................... 9

4.1 Conductor dimensions ............................................................................................ 9

4.2 Tolerance on conductor dimensions ...................................................................... 11

4.3 Rounding of corners .............................................................................................. 11

4.4 Increase in dimensions due to the insulation ......................................................... 11

4.5 Overall dimensions ............................................................................................... 13

4.5.1 Nominal overall dimensions ........................................................................... 13

4.5.2 Minimum overall dimensions .......................................................................... 13

4.5.3 Maximum overall dimensions ......................................................................... 13

5 Electrical resistance ...................................................................................................... 13

6 Elongation ..................................................................................................................... 13

7 Springiness ................................................................................................................... 13

8 Flexibility and adherence ............................................................................................... 14

8.1 Mandrel winding test ............................................................................................. 14

8.2 Adherence test ...................................................................................................... 14

8.2.1 Glass-fibre covered bare wires ...................................................................... 14

8.2.2 Glass-fibre covered enamelled wires ............................................................. 14

9 Heat shock .................................................................................................................... 14

10 Cut-through ................................................................................................................... 14

11 Resistance to abrasion .................................................................................................. 14

12 Resistance to solvents ................................................................................................... 14

13 Breakdown voltage ........................................................................................................ 14

14 Continuity of insulation .................................................................................................. 15

15 Temperature index ........................................................................................................ 15

16 Resistance to refrigerants .............................................................................................. 15

17 Solderability .................................................................................................................. 15

18 Heat or solvent bonding ................................................................................................. 15

19 Dielectric dissipation factor ............................................................................................ 15

20 Resistance to transformer oil ......................................................................................... 15

21 Loss of mass ................................................................................................................. 15

23 Pin hole test .................................................................................................................. 16

30 Packaging ..................................................................................................................... 16

---------------------- Page: 4 ----------------------
IEC 60317-0-4:2020 © IEC 2020 – 3 –

Annex A (informative) Nominal cross-sectional areas for preferred and intermediate

sizes ..................................................................................................................................... 17

Bibliography .......................................................................................................................... 24

Table 1 – Nominal cross-sectional areas of preferred sizes ................................................... 10

Table 2 – Conductor tolerances ............................................................................................ 11

Table 3 – Corner radii ........................................................................................................... 11

Table 4 – Increase in dimensions .......................................................................................... 12

Table 5 – Elongation ............................................................................................................. 13

Table 6 – Mandrel winding .................................................................................................... 14

Table 7 – Breakdown voltage ................................................................................................ 15

Table A.1 – Nominal cross-sectional areas ........................................................................... 17

---------------------- Page: 5 ----------------------
– 4 – IEC 60317-0-4:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 0-4: General requirements – Glass-fibre wound, resin or varnish
impregnated, bare or enamelled rectangular copper wire
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60317-0-4 has been prepared by IEC technical committee 55:

Winding wires.

This fourth edition cancels and replaces the third edition published in 2015. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) addition of dimensional requirements for grade 1 enamelled wire in Table 4;

b) addition of dielectric breakdown requirements for grade 1 enamelled wire in Table 7.

c) addition of requirement for the adherence test in 8.2.1 and 8.2.2.
---------------------- Page: 6 ----------------------
IEC 60317-0-4:2020 © IEC 2020 – 5 –
The text of this publication is based on the following documents:
FDIS Report on voting
55/1835A/FDIS 55/1852/RVD

Full information on the voting for the approval of this document can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This standard is to be read in conjunction with the IEC 60851 series. The clause numbers used

in this standard are identical with the respective test numbers of the IEC 60851 series.

In the case of inconsistencies between IEC 60851 and this standard, the latter prevails.

The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in

order to reserve space for possible future wire requirements prior to those for wire packaging.

A list of all parts in the IEC 60317 series, published under the general title Specifications for

particular types of winding wires, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 60317-0-4:2020 © IEC 2020
INTRODUCTION

This part of IEC 60317 belongs to a series of standards which deals with insulated wires used

for windings in electrical equipment. It is composed of the following series:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).
---------------------- Page: 8 ----------------------
IEC 60317-0-4:2020 © IEC 2020 – 7 –
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –
Part 0-4: General requirements – Glass-fibre wound, resin or varnish
impregnated, bare or enamelled rectangular copper wire
1 Scope

This part of IEC 60317 specifies general requirements of glass-fibre wound, resin or varnish

impregnated, bare or enamelled rectangular copper wire.

The range of nominal conductor dimensions is given in 4.1 and the relevant specification sheet.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.
IEC 60851 (all parts), Winding wires – Test methods
ISO 3, Preferred numbers – Series of preferred numbers
EN 1977, Copper and copper alloys – Copper drawing stock (wire rod)

ISO 1190-1, Copper and copper alloys − Code of designation – Part 1: Designation of materials

for code of designation
ASTM B49, Standard Specification for Copper Rod for Electrical Purposes
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
coating

material that is deposited on a conductor or wire by a suitable means and then dried and/or

cured
3.1.2
conductor
bare metal after removal of the insulation
---------------------- Page: 9 ----------------------
– 8 – IEC 60317-0-4:2020 © IEC 2020
3.1.3
covering
material that is wound, wrapped or braided around a bare or insulated conductor
3.1.4
crack

opening in the insulation that exposes the conductor to view at the stated magnification

3.1.5
enamelled wire
wire coated with an insulation of cured resin
3.1.6
grade
range of thickness of the insulation of a wire
3.1.7
insulation

coating or covering on the conductor with the specific function of withstanding voltage

3.1.8
nominal conductor dimension
designation of the conductor size in accordance with the IEC 60317 series
3.1.9
normal vision
20/20 vision, with corrective lenses if necessary
3.1.10
winding wire
wire used for winding a coil to provide a magnetic field
3.1.11
wire
conductor coated or covered with insulation
3.2 General notes
3.2.1 Methods of test

All methods of test to be used for this document are given in IEC 60851 (all parts).

The clause numbers used in this document are identical to the corresponding test numbers in

the IEC 60851 series of standards.

In the case of inconsistencies between the publication on methods of test and this document,

IEC 60317-0-4 shall prevail.

Where no specific range of nominal conductor dimensions is given for a test, the test applies to

all nominal conductor dimensions covered by the specification sheet.

Unless otherwise specified, all tests shall be carried out at a temperature from 15 °C to 40 °C

and a relative humidity from 25 % to 75 %. Before measurements are made, the specimens

shall be preconditioned under these atmospheric conditions for a time sufficient to allow the

specimens to reach stability.
---------------------- Page: 10 ----------------------
IEC 60317-0-4:2020 © IEC 2020 – 9 –

The wire to be tested shall be removed from the packaging in such a way that it is not subjected

to tension or unnecessary bends. Before each test, sufficient wire should be discarded to ensure

that any damaged wire is not included in the test specimens.
3.2.2 Winding wire

When reference is made to a winding wire in accordance with a standard of the IEC 60317

series, the following information is given in the description:
– reference of the IEC specification;
– nominal conductor dimensions in millimetres (width × thickness);
– grade.
EXAMPLE IEC 60317-31 – 4,00 × 1,00 Grade 2GL1
3.3 Appearance

The fibrous covering shall be essentially smooth as agreed upon between the customer and the

supplier in accordance with good commercial practice, and free from physical damage and

foreign material when examined with normal vision, as wound on the original spool or reel.

The fibres shall be wound evenly, bound to the copper or coating and not loose.

NOTE Evidence of physical damage includes gashes, broken fibre strands, and the like.

4 Dimensions
4.1 Conductor dimensions

The dimensions for widths and thicknesses of conductors of winding wires with rectangular

cross-section, recommended in this document, shall be in accordance with Table 1, and are

taken from the R 20 series in ISO 3.

Preferred and intermediate sizes are combinations of width and thickness, both in accordance

with the R 20 series.

Intermediate sizes are combinations of width or thickness in accordance with the R 20 series

with the other dimension in accordance with the R 40 series.
This document covers:
– widths from 2,00 mm up to and including 16,00 mm;
– thicknesses from 0,80 mm up to and including 5,60 mm.

For thickness over 5,60 mm up to and including 10 mm and for widths over 16 mm up to and

including 25 mm where, the R 40 series shall be used when, for technical reasons, additional

sizes may be needed. The ratio width/thickness shall be within the specified limits, and

combinations of R 40 and R 40 are not allowed in the case of additional sizes.

The ratio width/thickness shall be greater than or equal to 1,4:1 and shall not exceed 8:1.

The actual values of dimensions are given in Table 1.

The nominal cross-sectional areas for preferred sizes are given in Table 1 and the nominal

cross-sectional areas for intermediate sizes are given in Annex A.
---------------------- Page: 11 ----------------------
– 10 – IEC 60317-0-4:2020 © IEC 2020
Table 1 – Nominal cross-sectional areas of preferred sizes
Thickness

mm 0,80 0,90 1,00 1,12 1,25 1,40 1,60 1,80 2,00 2,24 2,50 2,80 3,15 3,55 4,00 4,50 5,00 5,60

a a a a a

Corner radius (0,5 mm ) Corner radius (0,5 mm ) Corner radius (0,65 mm ) Corner radius (0,80 mm ) Corner radius (1,0 mm )

2,00 1,463 1,626 1,785 2,025 2,285 2,585
2,24 1,655 1,842 2,205 2,294 2,585 2,921 3,369
2,50 1,863 2,076 2,285 2,585 2,910 3,285 3,785 4,137
Not recommended
2,80 2,103 2,346 2,585 2,921 3,285 3,705 4,265 4,677 5,237
Ratio width/thickness smaller than 1,4:1
3,15 2,383 2,661 2,935 3,313 3,723 4,195 4,825 5,307 5,937 6,693
3,55 2,703 3,021 3,335 3,761 4,223 4,755 5,465 6,027 6,737 7,589 8,326
4,00 3,063 3,426 3,785 4,265 4,785 5,385 6,185 6,831 7,637 8,597 9,451 10,65

4,50 3,463 3,876 4,285 4,825 5,410 6,085 6,85 7,737 8,631 9,717 10,70 12,05 13,63

5,00 3,863 4,326 4,785 5,385 6,035 6,785 7,785 8,637 9,637 10,84 12,18 13,45 15,20 17,20

5,60 4,363 4,866 5,385 6,057 6,785 7,625 8,745 9,717 10,84 12,18 13,45 15,13 17,09 19,33 21,54

6,30 4,903 5,496 6,085 6,841 7,660 8,605 9,865 10,98 12,24 13,75 15,20 17,09 19,30 21,82 24,34 27,49

7,10 6,216 6,885 7,737 8,660 9,725 11,15 12,42 13,84 15,54 17,20 19,33 21,82 24,66 27,54 31,09 34,64

8,00 7,785 8,745 9,785 10,99 12,59 14,04 15,64 17,56 19,45 21,85 24,65 27,85 31,14 35,14 39,14 43,94

9,00 9,865 11,04 12,39 14,19 15,84 17,64 19,80 21,95 24,65 27,80 31,40 35,14 39,64 44,14 49,54

10,0 12,29 13,79 15,79 17,64 19,64 22,04 24,45 27,45 30,95 34,95 39,14 44,14 49,14 55,14

11,2 15,47 17,71 19,80 22,04 24,79 27,46 30,81 34,73 39,21 43,94 49,54 55,14 61,86

12,5 19,79 22,14 24,64 27,64 30,70 34,45 38,83 43,83 49,14 55,39 61,64 69,14

Not recommended
Ratio width/thickness over 8:1
14,0 24,84 27,64 31,00 34,45 38,65 43,55 49,15 55,14 62,14 69,14 77,54
16,0 31,64 35,48 39,45 44,25 49,85 56,25 63,14 71,14 79,14 88,74
Nominal thickness
Width
---------------------- Page: 12 ----------------------
IEC 60317-0-4:2020 © IEC 2020 – 11 –
4.2 Tolerance on conductor dimensions

The conductor dimensions shall not differ from the nominal values by more than the tolerance

given in Table 2.
Table 2 – Conductor tolerances
Nominal width or thickness
of the conductor
Tolerance
Up to and mm
Over
including
– 3,15
±0,030
3,15 6,30 ±0,050
6,30 12,50 ±0,070
12,50 16,00 ±0,100
4.3 Rounding of corners

The arc shall merge smoothly into the flat surfaces of the conductor and the strip shall be free

from sharp, rough and projecting edges. The conductor shall have corner radii complying with

Table 3. The specified radii shall be maintained within ±25 %.
Table 3 – Corner radii
Nominal thickness
of the conductor
Corner radius
Up to and mm
Over
including
– 1,00 0,5 nominal thickness
1,00 1,60
0,50
1,60 2,24 0,65
2,24 3,55 0,80
3,55 5,60 1,00
5,60 10,00 1,25

If agreed between purchaser and supplier, the corner radii for wires with a width

greater than 4,8 mm may be:
0,5 mm × t, where t is the nominal thickness of the conductor;
0,8 mm.
4.4 Increase in dimensions due to the insulation

The increase in width or thickness due to the insulation shall be as specified in Table 4.

---------------------- Page: 13 ----------------------
– 12 – IEC 60317-0-4:2020 © IEC 2020
Table 4 – Increase in dimensions
Increase in dimensions
Glass-fibre covering over Glass-fibre covering over Glass-fibre covering over
bare conductor grade 1 enamelled wire grade 2 enamelled wire
Nominal width
of the
conductor

mm Single covering Double covering Single covering Double covering Single covering Double covering

(GL1) (GL2) (grade 1 GL1) (grade 1 GL2) (grade 2 GL1) (grade 2 GL2)
Up to

Over and Min. Nom. Max. Min. Nom. Max. Min. Nom. Max. Min. Nom. Max. Min. Nom. Max. Min. Nom. Max.

incl.

– 3,15 0,10 0,14 0,18 0,21 0,27 0,33 0,16 0,23 0,30 0,27 0,36 0,45 0,23 0,29 0,35 0,35 0,42 0,49

3,15 6,30 0,12 0,16 0,20 0,23 0,30 0,37 0,18 0,25 0,32 0,29 0,39 0,49 0,25 0,31 0,37 0,38 0,45 0,52

6,30 12,50 0,14 0,19 0,24 0,27 0,35 0,43 0,20 0,28 0,36 0,33 0,44 0,55 0,27 0,34 0,41 0,43 0,50 0,57

12,50 16,00 0,17 0,23 0,29 0,31 0,39 0,47 0,23 0,32 0,41 0,37 0,48 0,59 0,30 0,38 0,46 0,46 0,54 0,62

The maximum increase in thickness or width due to the insulation may be exceeded, provided the overall thickness or width

...
