IEC 60512-99-001:2012

Connectors for electronic equipment - Tests and measurements - Part 99-001: Test schedule for engaging and separating connectors under electrical load - Test 99a: Connectors used in twisted pair communication cabling with remote power

IEC 60512-99-001:2012 used for the assessment of connectors within the scope of SC 48B that are used in twisted pair communication cabling with remote power, such as ISO/IEC 11801 Class D, or better, balanced cabling in support of IEEE Std 802.3at - 2009 (latest edition (PoE Plus - Power over Ethernet Plus). The object of this standard is to detail a test schedule to determine the ability of connectors to withstand a minimal number of engagements and separations when an electrical current is being passed through the connector in accordance with IEC 60512-9-3. Keywords: connectors, engaging and separating connectors

Connecteurs pour équipments électroniques - Essais et mesures - Partie 99-001: Programme d'essai relatif aux connexions et déconnexions sous charge électrique - Essai 99a: Connecteurs utilisés dans le câblage de communication à paires torsadées permettant une alimentation à distance

La CEI 60512-99-001:2012 est utilisée pour l'évaluation des connecteurs entrant dans le domaine d'application du SC 48B, qui sont utilisés dans le câblage de communication à paires torsadées permettant une alimentation à distance, comme par exemple la Classe D de l'ISO/CEI 11801, ou plus, le câblage à paires symétriques associé aux applications de l'IEEE 802.3 at (PoE Plus - Power over Ethernet Plus). Cette norme a pour objet de détailler un programme d'essai afin de déterminer l'aptitude des connecteurs à résister à un nombre limité de connexions et déconnexions, lorsqu'un courant électrique circule à travers le connecteur, conformément à la CEI 60512-9-3. Mots clé: connecteurs, connexions et déconnexions

General Information

• Status: Published
• Publication Date: 12-Aug-2012
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 30-Jun-2012
• Completion Date: 13-Aug-2012

Standards Content (Sample)

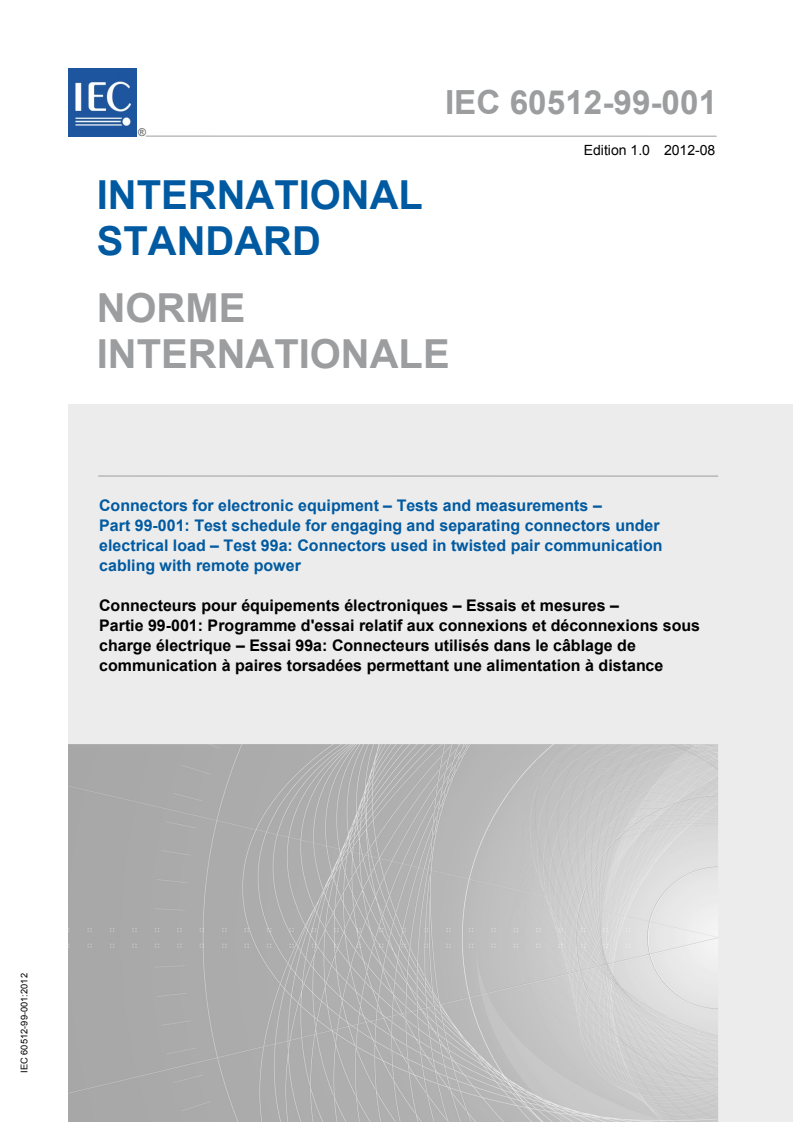

IEC 60512-99-001
®

Edition 1.0 2012-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Connectors for electronic equipment – Tests and measurements –
Part 99-001: Test schedule for engaging and separating connectors under
electrical load – Test 99a: Connectors used in twisted pair communication
cabling with remote power

Connecteurs pour équipements électroniques – Essais et mesures –
Partie 99-001: Programme d'essai relatif aux connexions et déconnexions sous
charge électrique – Essai 99a: Connecteurs utilisés dans le câblage de
communication à paires torsadées permettant une alimentation à distance

IEC 60512-99-001:2012

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].


A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:

Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].

---------------------- Page: 2 ----------------------

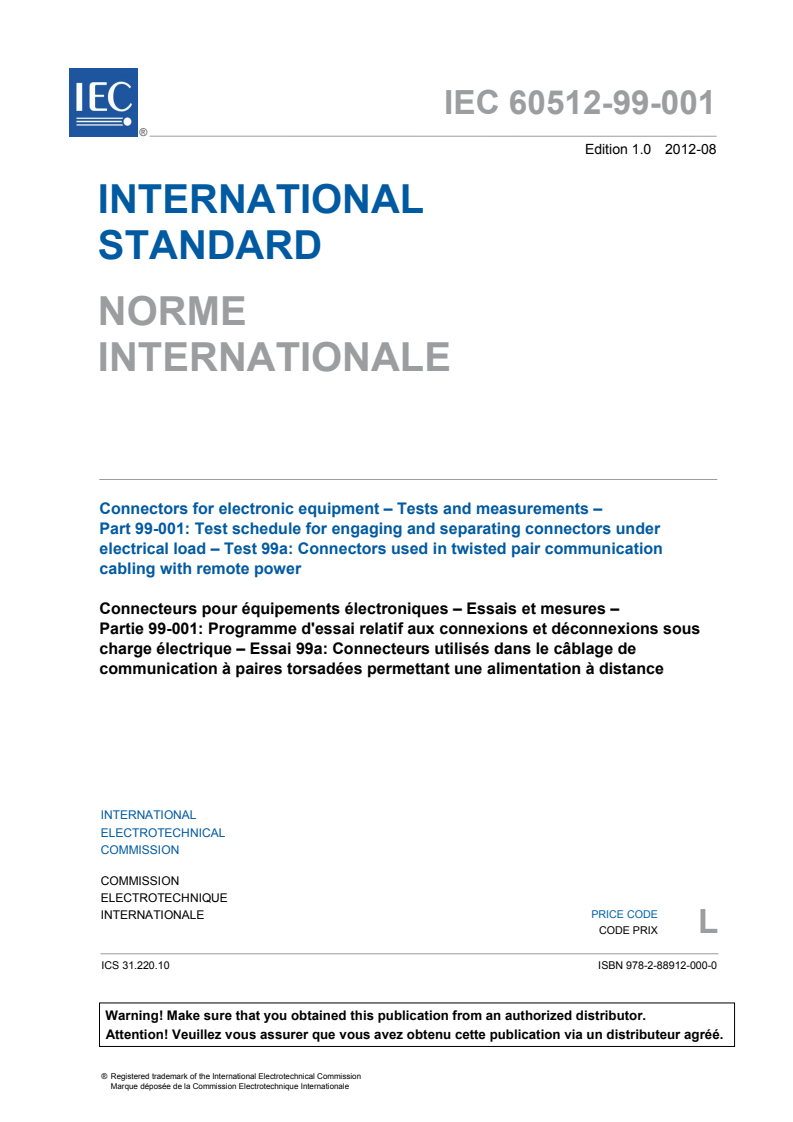

IEC 60512-99-001

®


Edition 1.0 2012-08




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Connectors for electronic equipment – Tests and measurements –

Part 99-001: Test schedule for engaging and separating connectors under

electrical load – Test 99a: Connectors used in twisted pair communication


cabling with remote power



Connecteurs pour équipements électroniques – Essais et mesures –


Partie 99-001: Programme d'essai relatif aux connexions et déconnexions sous

charge électrique – Essai 99a: Connecteurs utilisés dans le câblage de

communication à paires torsadées permettant une alimentation à distance










INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

CODE PRIX L


ICS 31.220.10 ISBN 978-2-88912-000-0



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

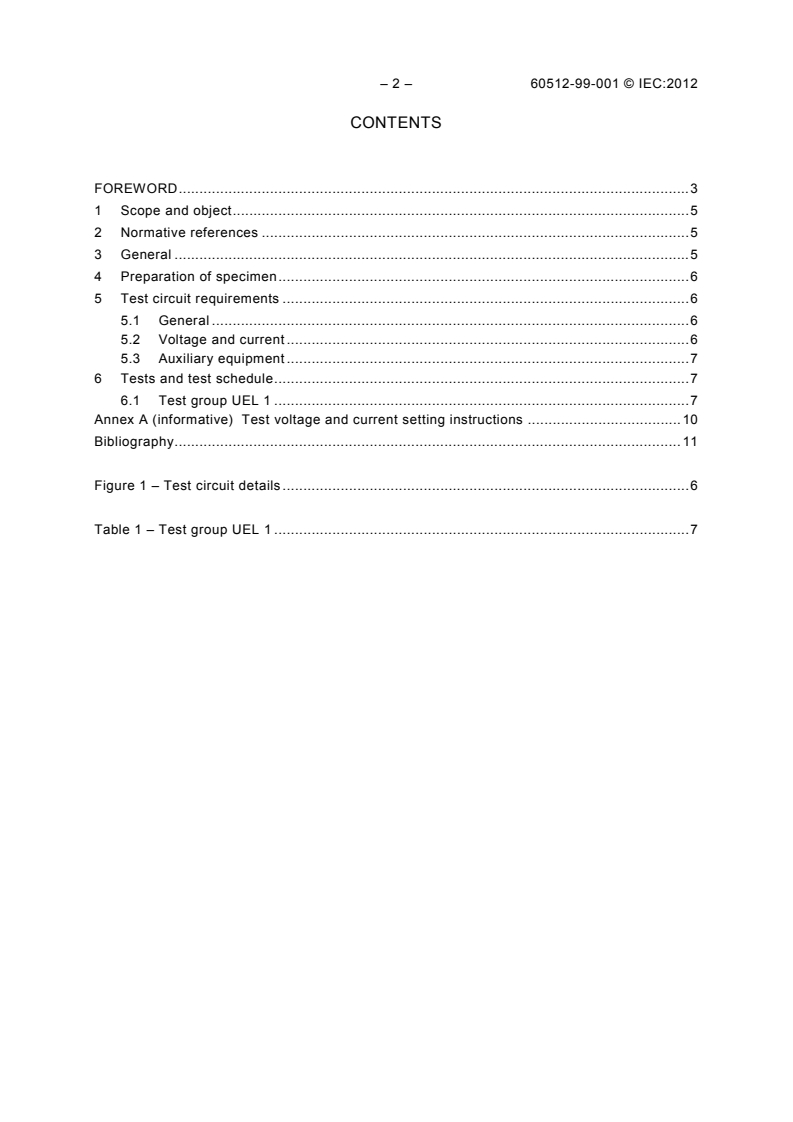

– 2 – 60512-99-001 © IEC:2012
CONTENTS

FOREWORD . 3
1 Scope and object . 5
2 Normative references . 5
3 General . 5
4 Preparation of specimen . 6
5 Test circuit requirements . 6
5.1 General . 6
5.2 Voltage and current . 6
5.3 Auxiliary equipment . 7
6 Tests and test schedule . 7
6.1 Test group UEL 1 . 7
Annex A (informative) Test voltage and current setting instructions . 10
Bibliography . 11

Figure 1 – Test circuit details . 6

Table 1 – Test group UEL 1 . 7

---------------------- Page: 4 ----------------------
60512-99-001 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

CONNECTORS FOR ELECTRONIC EQUIPMENT –
TESTS AND MEASUREMENTS –

Part 99-001: Test schedule for engaging and separating
connectors under electrical load –
Test 99a: Connectors used in twisted pair
communication cabling with remote power

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60512-99-001 has been prepared by subcommittee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/2291/FDIS 48B/2306/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – 60512-99-001 © IEC:2012
A list of all parts of IEC 60512 series, under the general title Connectors for electronic
equipment – Tests and measurements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 6 ----------------------
60512-99-001 © IEC:2012 – 5 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –
TESTS AND MEASUREMENTS –

Part 99-001: Test schedule for engaging and separating
connectors under electrical load –
Test 99a: Connectors used in twisted pair
communication cabling with remote power



1 Scope and object
This part of IEC 60512 is used for the assessment of connectors within the scope of SC 48B
that are used in twisted pair communication cabling with remote power, such as
IEEE Std 802.3at™-2009
ISO/IEC 11801 Class D, or better, balanced cabling in support of
(PoE Plus – Power over Ethernet Plus).
The object of this standard is to detail a test schedule to determine the ability of connectors to
withstand a minimal number of engagements and separations when an electrical current is
being passed through the connector in accordance with IEC 60512-9-3.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60512 (all parts): Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100: Connectors for electronic equipment – Tests and measurements –
Part 1-100: General – Applicable publications
IEC 60512-9-3:2011, Connectors for electronic equipment – Tests and measurements –
Part 9-3: Endurance tests – Test 9c: Mechanical operation (engaging and separating) with
electrical load
IEC 61156 (all parts): Multicore and symmetrical pair/quad cables for digital communications
3 General
The current carrying capacity of a mated connector, including the corresponding current de-
rating for temperature, shall be specified in the detail specification. Although many
applications are configured such that the current is not drawn until after full engagement of
the connector has been achieved (i.e. the connector does not “make” the current), this test
schedule is suitable for verification of engaging and separating of connectors under PoE Plus
load conditions where this may occur in practice.
An application specific current, and associated open circuit voltage, is specified that
corresponds with the current and voltage of the supported application.
The circuitry and test conditions given in this standard correspond to the conditions
associated with ISO/IEC 11801 Class D, or better, balanced cabling in support of
IEEE 802.3at (PoE Plus – Power over Ethernet Plus)

---------------------- Page: 7 ----------------------
– 6 – 60512-99-001 © IEC:2012
Further information on the possible effects of such operations may be found in IEC TR 62652.
NOTE The above documents are not essential for the application of this standard but are given as source of
information, as such, they may be found in the Bibliography.
4 Preparation of specimen
Each specimen shall consist of a mated connector with its terminations. Specimens shall be
conformant to the relevant IEC connector standards. Each free connector and each fixed
connector shall be terminated with 3 m (max.) of the maximum conductor size cable for which
it is intended to be terminated, according to IEC 61156 series. For each specimen, all of the
circuits (mated contacts) shall be wired in parallel, as given in IEC 60512-9-3, and all of the
circuits shall be tested (see Figure 1). If necessary, a printed circuit board may be used which
shall not influence the test results.
5 Test circuit requirements
5.1 General
The values for the circuit components and the details of the test circuit, referenced in
IEC 60512-9-3, shall be as shown in Figure 1.

1
2 3
4
5
6
IEC  1098/12

Key
1 Cables in accordance with 4.1
2 Connector under test
3
Inductor 100 μH
4
Variable resistor (e.g. 50 Ω to 300 Ω)
5
Capacitor 5 μF
6 Power source

NOTE 1 Only one circuit of the connector under test, as referenced in IEC 60512-9-3, is shown for clarity. Items
1, 3, 4, 5, and 6, are replicated for each circuit (engaged contacts) of the connector. Item 6 may be single or
multiple. Each circuit of the specimen shall be wired in parallel with the other circuits of the specimen, and all
circuits of each specimen shall operate simultaneously.
NOTE 2 The variable resistor(s) are used to adjust the current(s) to the specified value.
Figure 1 – Test circuit details
5.2 Voltage and current
The variable resistor(s) shall be set so that the electrical current in each circuit (mated
contacts) of the specimen is 0,6 A. When specimen is unmated, the ‘open circuit’ voltage, in
all circuits, shall be 55 V d.c. See Annex A.
IEEE 802.3 at specifies a maximum current of 0,3 A per conductor and an open circuit voltage
of 55 V d.c. The test current has been doubled to 0,6 A in order to represent the high

---------------------- Page: 8 ----------------------
60512-99-001 © IEC:2012 – 7 –
probability that one contact of any given pair will separate before the other. Therefore as in
the cited application, where current is carried by pairs of contacts in multiple parallel circuits,
the last contact to break will do so carrying all the current (twice the nominal).
5.3 Auxiliary equipment
The test laboratory may choose to use switches to reverse polarity. However, use of such
switches shall not influence the test parameters.
6 Tests and test schedule
6.1 Test group UEL 1
A minimum number of 8 specimens shall be prepared for this group; then tested according to
Table 1.
Table 1 – Test group UEL 1
Test Test Measurement to be performed
Phase
Title IEC 60512 Severity or condition of Title IEC 60512 Requirements
test No. test test No.
UEL General 1 Visual 1a There shall be no
1.1 examination examination defects that would
impair normal
operation
UEL Contact Millivolt level 2a Contact resistance
1.2 resistance method
20 mΩ maximum
UEL  100 V d.c. Insulation 3a
500 MΩ minimum
1.3 resistance
Method A
Mated connectors
UEL  Contact to contact Voltage proof 4a 1 000 V d.c. or a.c.
1.4 peak
All signal contacts to shield
and test panel, as 1 500 V d.c. or a.c.
applicable peak
Method A
Mated connectors
UEL  An electrical load, current Mechanical 9c
1.5 and open circuit voltage, as operations with
detailed in Clause 5, shall electrical load
be applied to each
specimen.
For the purpose of this test
one connector shall be
fixed and the other
disengaged at a speed of
150 ± 10 mm/s.
One engagement and one
separation constitute one
cycle.
25 cycles shall be
performed.
The polarity of the d.c.
source (direction of the
electrical current) shall be
reversed and 25 further
cycles performed.

---------------------- Page: 9 ----------------------
– 8 – 60512-99-001 © IEC:2012
Table 1 (continued)
Test Test Measurement to be performed
Phase
Title IEC 60512 Severity or condition of Title IEC 60512 Requirements
test No. test test No.
UEL 1.6 Flowing 11g 4 days. 11g
mixed gas
Half of the samples mated;
test.
half of the samples
Method 1 unmated
UEL 1.7  Contact 2a 20 mΩ maximum
resistance-
change from initial
Millivolt level
method
UEL 1.8  An electrical load, current Mechanical 9c
and open circuit voltage, as Operations
with electrical
detailed in Clause 5, shall
be applied to each load.
specimen.
For the purpose of this test
one connector shall be
fixed and the other
disengaged at a speed of
150 ± 10 mm/s.
One engagement and one
separation constitute one
cycle.
25 cycles shall be
performed.
The polarity of the dc.
source (direction of the
electrical current) shall be
reversed and 25 further
cycles performed.
The specified testing is
done with voltage present
during engagement. If a
specimen does not “pass”
the test sequence, the test
shall be repeated with a
new specimen, without
applied voltage during
engagement, but the
appropriate voltage and
current shall be applied
during disengagement. A
connector passing the test
in this manner shall be
reported as such in test
reports. Further, this
information shall be made
evident in the all relevant
documentation of the
manufacturer and supplier
regarding this mode of
complying with this test
schedule requirement.

---------------------- Page: 10 ----------------------
60512-99-001 © IEC:2012 – 9 –
Table 1 (continued)
Test Test Measurement to be performed
Phase
Title IEC 60512 Severity or condition of Title IEC 60512 Requirements
test No. test test No.
UEL 1.9 General 1 Visual 1a There shall be no
examination examination defects that would
impair normal
operation. However,
physical
deterioration of the
contacts may be
observed. Such
deterioration shall
not be cited as a
failure of this test.
UEL 1.10  Contact resistance Millivolt level 2a
20 mΩ maximum
method
change from initial
UEL 1.11  100 V d.c. Method A Mated Insulation 3a
500 MΩ minimum
connectors resistance
UEL 1.12  Contact to contact Voltage proof 4a 1 000 V d.c. or a.c.
peak
All signal contacts to shield
and test panel, as 1 500 V d.c. or a.c.
applicable
peak.
Method A
Mated connectors

---------------------- Page: 11 ----------------------
– 10 – 60512-99-001 © IEC:2012
Annex A
(informative)

Test voltage and current setting instructions
A.1 General
It is possible that confusion as to how to set the required voltages and currents may arise.
Given below are a set of informative instructions as to how this may be achieved.
A.2 Rationale
The open circuit voltage requirement is stated such that during unmating under load, the
stated voltage is available to ‘drive’ arcing.
Some power sources have an ‘open circuit’ setting which is used to clamp the voltage to
prevent an over voltage condition. As no source voltage is stated for the supply in a constant
voltage mode, an interpretation of the requirements could be to set some level of source
voltage (the dc supply constant voltage setting) below (e.g.) 55 V, and to set the maximum
open circuit voltage at (e.g.) 55 V. But, under this interpretation, upon unmating the constant
voltage setting would not allow the voltage to reach the intended open circuit level.
A.3 Suggested setting instructions
The d.c. source voltage and variable resistors should be adjusted such that the current in
each circuit (each mated pair of contacts within the connector under test) is the required value
(e.g. 0,6 A) when mated and the open circuit voltage is the required value (e.g. 55 V) when
unmated. For each test circuit the suggested setting instructions are as follows.
a) With the d.c. power supply off and all variable resistors adjusted at a suitably high value
(e.g. 200 Ω), perform the initial mating of the connector.
b) Place the power supply in a constant voltage mode with the voltage adjustment set at 0 V,
and the current adjustment at its maximum setting.
c) Turn on the power supply.
d) Adjust the constant voltage setting to the required voltage.
e) Reduce the resistance of the variable resistor in each circuit until the required current
value is flowing in the circuit being adjusted.

---------------------- Page: 12 ----------------------
60512-99-001 © IEC:2012 – 11 –
Bibliography
IEC 60512-1-1, Connectors for electronic equipment – Tests and measurements – Part 1-1:
General examination – Test 1a: Visual examination
IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60512-3-1, Connectors for electronic equipment – Tests and measurements – Part 3-1:
Insulation tests – Test 3a: Insulation resistance
IEC 60512-4-1, Connectors for electronic equipment – Tests and measurements – Part 4-1:
Voltage stress tests – Test 4a: Voltage proof
IEC 60512-11-7, Connectors for electronic equipment – Tests and measurements – Part 11-7:
Climatic tests – Test 11g: Flowing mixed gas corrosion test
IEC/TR 62652, Effects of engaging and separating under electrical load on connector
interfaces used to support IEEE 802.3af Power-over-Ethernet (PoE) applications
ISO/IEC 11801:2002, Information technology – Generic cabling for customer premises
Amendment 1 (2008)
IEEE 802.3at : 2009, IEEE Standard for Information technology – Local and metropolitan area
networks – Specific requirements – Part 3 : CSMA/CD Access Method and Physical Layer
Specifications – Amendment 3 : Data Terminal Equipment (DTE) Power via the Media
Dependent Interface (MDI) Enhancements

___________
