ISO/TR 18228-1:2020

Design using geosynthetics — Part 1: General

This document provides general considerations to support the guidance to geotechnical and civil engineers for design using geosynthetics provided in the subsequent parts of the ISO/TR 18228 series.

Conception utilisant des géosynthétiques — Partie 1: Généralités

General Information

• Status: Published
• Publication Date: 13-Apr-2020
• ICS: 59.080.70 - Geotextiles
• Technical Committee: ISO/TC 221 - Geosynthetics
• Drafting Committee: ISO/TC 221/WG 6 - Design using geosynthetics
• Current Stage: 6060 - International Standard published
• Start Date: 14-Apr-2020
• Completion Date: 14-Apr-2020

Standards Content (Sample)

TECHNICAL ISO/TR
REPORT 18228-1
First edition
2020-04
Design using geosynthetics —
Part 1:
General
Conception utilisant des géosynthétiques —
Partie 1: Généralités
Reference number
ISO/TR 18228-1:2020(E)
©
ISO 2020

---------------------- Page: 1 ----------------------
ISO/TR 18228-1:2020(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 18228-1:2020(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and symbols . 1
3.1 Terms and definitions . 1
3.2 Symbols . 1
4 General design considerations . 3
4.1 Fundamentals . 3
4.2 Short-term properties. 3
4.2.1 Survivability . 3
4.2.2 Mechanical properties . 4
4.2.3 Hydraulic properties . 5
4.2.4 Friction properties . 5
4.3 Long term properties . 5
4.3.1 Durability . 5
4.3.2 Mechanical damage . 5
4.3.3 Weathering . 6
4.3.4 Chemical resistance . 6
4.3.5 Mechanical properties . 6
4.3.6 Hydraulic properties . 7
4.4 External loadings . 7
4.4.1 Live loading . 7
4.4.2 Permanent applied loading. 8
5 Local design requirements . 8
5.1 General . 8
5.2 Europe . 8
5.3 United States of America . 8
5.4 Hong Kong . 9
5.5 Australia . 9
5.6 South Africa . 9
5.7 United Kingdom . 9
Bibliography .10
© ISO 2020 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 18228-1:2020(E)

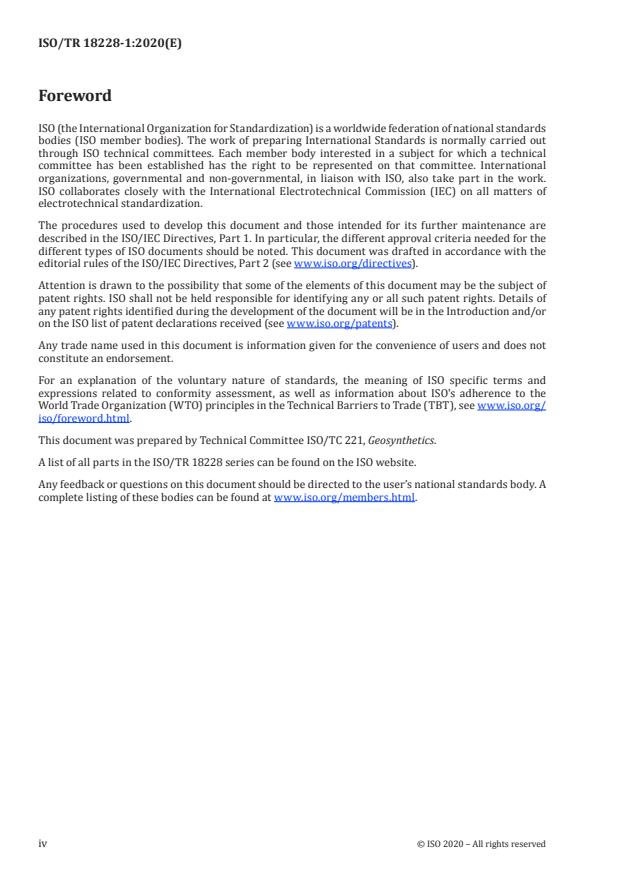

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 221, Geosynthetics.
A list of all parts in the ISO/TR 18228 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 18228-1:2020(E)

Introduction
The ISO/TR 18228 series provides guidance for designs using geosynthetics for soils and below ground
structures in contact with natural soils, fills and asphalt. The series contains 10 parts which cover
designs using geosynthetics, including guidance for characterization of the materials to be used and
other factors affecting the design and performance of the systems which are particular to each part.
The series is generally written in a limit state format and guidelines are provided in terms of partial
material factors and load factors for various applications and design lives, where appropriate.
For each of the design considerations, the characteristics of the geosynthetics and the test methods
normally used to quantify the properties of the geosynthetics are described. Some regional specific
rules and regulations that normally apply to designs using geosynthetics in these regions are also
provided.
© ISO 2020 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 18228-1:2020(E)
Design using geosynthetics —
Part 1:
General
1 Scope
This document provides general considerations to support the guidance to geotechnical and civil
engineers for design using geosynthetics provided in the subsequent parts of the ISO/TR 18228 series.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10318-1, Geosynthetics — Part 1: Terms and definitions
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 10318-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.2 Symbols
For the purposes of this document, the symbols are taken from ISO 10318-2. Table 1, Table 2 and Table 3
provide lists of the lowercase, uppercase and Greek symbols that are typically used throughout the
ISO/TR 18228 series. Additional useful symbols may be found in the relevant parts of the series.
Table 1 — Lowercase symbols
Symbol Meaning
f Partial factor (with subscripts as noted)
h Hydraulic head
i Hydraulic gradient
pH Value of acidity of an aqueous solution
m Mass of an element
q Flow quantity (with subscripts as noted)
r Pore pressure ratio
u
t Thickness of a geosynthetic
t Design life
d
t Test duration
t
© ISO 2020 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 18228-1:2020(E)

Table 1 (continued)
Symbol Meaning
u Pore water pressure
Table 2 — Uppercase symbols
Symbol Meaning
A Area
C Hazen empirical coefficient for permeability
C Coefficient of uniformity (D60/D10)
u
D Particle grain size, subscript defines percentile
E Elastic modulus
F Factored design load
d
F Unfactored characteristic load
k
H Total height
t
K Hydraulic conductivity or coefficient of
permeability of the soil
K Coefficient of active earth pressure
a
K Coefficient of earth pressure at rest
o
K Coefficient of passive earth pressure
p
L Length
N Normal force
O Effective or characteristic opening size in a geotex-
90
tile, (where 90 % of openings finer than the value)
POA Percentage open area
Q Applied pressure
Q Average pressure
m
R Reaction
T Extrapolated compressive creep rupture
CR
strength at the end of the design life
Z Section modulus
Table 3 — Greek letter symbols
Symbol Meaning
α Inclination of a slope to the horizontal
γ Unit mass density of soil (with subscripts as
noted)
µ Apparent coefficient of friction
φ Friction angle of the soil (degree)
σ Normal stress
σ Horizontal stress on an element of soil
h
σ Vertical stress on an element of soil
v
σ’ Applied vertical effective stress
v
Θ Transmissivity of a geosynthetic
Τ Shear stress
2 © ISO 2020 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 18228-1:2020(E)

4 General design considerations
4.1 Fundamentals
Designs using geosynthetics normally take into account the nature of the soils in contact with the
geosynthetic materials. The characteristic properties of the soils can be measured using in situ tests
as described in ISO 14688-1, ISO 14688-2, ISO 22476 (all parts) and ISO 22282 (all parts), or with
associated laboratory tests from ISO 17892 (all parts) as appropriate for the information required for
the designs being made.
Geosynthetics have characteristics which might be suited to specific functions or applications but
might be unsuitable for some functions or applications. The individual parts of the ISO/TR 18228
series provide guidance as to which types are suited to each function or application, but the final choice
of product for any situation will be the choice of the designer or the project approval authority.
All geosynthetic products delivered to a construction site would normally be clearly marked and
labelled as described in ISO 10320.
4.2 Short-term properties
4.2.1 Survivability
4.2.1.1 Mechanical damage
Geosynthetics are predominantly sheet materials which are supplied in rolls or as large folded units.
Geosynthetics can be damaged during transport to the construction site, between initial storage on
site and the point of laying and during the construction process. To minimize the damage that can arise
due to transportation and handling, some geosynthetics might need to be wrapped and pads might be
required where appropriate to reduce contact stresses and any resultant damage.
The incorporation of geosynthetics in the construction works involves rolling out or laying the material.
Special handling equipment would normally be used when the material units are too heavy for manual
handling.
The assessment of survivability would normally consider the nature of the soils and materials in contact
with the geosynthetic, and whether construction equipment, wheeled or tracked, will be allowed to run
over the geosynthetic.
Any resulting damage from placing fill material (i.e. soil, rock or asphalt) on a geosynthetic would
normally be considered in the design by the application of a damage factor. Product specific advice
may be obtained from the manufacturer of the geosynthetic as to the damage factor(s) to be used in the
particular situation.
4.2.1.2 Weathering
All geosynthetic materials are susceptible to the effects of weathering during periods of exposure; the
effects of weathering can be assessed following EN 12224 and EN 12226.
Weathering can be defined as exposure to one or more of the following:
— sunlight (UV radiation/oxidation) (see ISO 13438);
— water (see EN 12447);
— extremes of temperature;
— wind.
Weathering resistance can be built into the geosynthetic or can be inherent as part of the manufacturing
process.
© ISO 2020 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 18228-1:2020(E)

Polymers and natural materials used in the manufacture of geosynthetics have varying susceptibility
to UV damage. The base polymers can be mixed with additives to enhance the UV resistance. If a
geosynthetic is supplied in a protective wrapping, it would normally be kept wrapped or stored as
recommended by the manufacturer until needed.
The weathering assessment would normally also consider other processes that can affect geosynthetic
performance. Some geosynthetics might be more resistant to the actions of wind and/or flowing water.
Selection of a particular geosynthetic would normally consider the method of manufacture and the site
conditions.
4.2.1.3 Chemical resistance
Polymer geosynthetics degrade principally due to chemical reactions with the environment. The rate
at which this occurs depends significantly on temperature and other conditions. Some key points are:
— Many reactions occur at the polymer surface therefore thicker materials are normally more resistant
than thinner materials.
— A change in temperature can lead to a change in the rate of the chemical reaction at the polymer
surface.
— Chemical reactions between particles in a solid state are generally slow in comparison to reactions
between those involving fluid states.
— The high surface area of fine fibres, as used in the manufacture of geotextiles, will increase the rate
of chemical surface attack.
— Chemical reactions can take place in the main chain of the polymer or in the side chains. Rupture of
the main chain is more critical because it will directly reduce the strength of the polymer.
4.2.2 Mechanical properties
4.2.2.1 Tensile behaviour
As a short-term property tensile strength is one of the measures used to determine the resistance of
the geosynthetic to damage during the construction process. Tensile test method is given in ISO 10319.
4.2.2.2 Impact or penetration damage resistance
Impact or penetration damage can occur when fill or other materials are dropped or placed onto
geosynthetics during construction. The laboratory tests described in EN 14574, ISO 12236, ISO 10722
and ISO 13433 measure how easily holes can be made in the product. In some circumstances, full scale
site tests might be required when laboratory tests are unable to model the site conditions, including full
scale rock dropping tests.
4.2.2.3 Compressive behaviour
Compressive behaviour as measured in ISO 25619-1 and ISO 25619-2, or the ability of three-dimensional
products to support loads applied normal to the surface of the material, is usually assessed when the
geosynthetic is required to transmit fluids in the plane of the product. Applications such as drains in
sports fields, transportation works, structural drainage, landfill drains and gas vents require a three-
dimensional core combined with a geotextile filter to ensure that the core remains clear.
4.2.2.4 Abrasion resistance
Abrasion resistance as measured by ISO 13427 is used to check that the geosynthetic does not suffer
from damage during construction when subjected to compaction forces on the surface of the product.
4 © ISO 2020 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 18228-1:2020(E)

4.2.3 Hydraulic properties
4.2.3.1 Filtration and permeability
Filtration is the ability of a geotextile to filter soils so that fine materials do not clog any of the drainage
layers, natural sands/gravels or three-dimensional geosynthetic products. The effective opening size,
O , of the geotextile as measured by ISO 12956, is a measure of the pore sizes in the geotextile.
90
Permeability is a measure of the ability of the geotextile to allow water or other fluids to pass through
the product into a drain. The permeability of barriers is measured using tests in EN 14150, EN 16416,
ISO 10776, ISO 10772 and ISO 11058.
4.2.3.2 Drainage or flow capacity
Short-term drainage will normally not be critical as any geosynthetic acting as a drain will have its
maximum capacity during construction. If the geosynthetic is required to carry additional flows
during construction the capacity of the drainage layer would normally be checked. The flow capacity is
measured using test in ISO 18325.
4.2.4 Friction properties
4.2.4.1 Direct shear and inclined plane
Friction as measured in either the direct shear (ISO 12957-1) or the inclined plane test (ISO 12957-2)
would normally be considered to ensure that fill materials do not slip over the geosynthetic or that the
geosynthetic does not sli
...
