INTERNATIONAL ISO/IEC
STANDARD 12785-1
First edition
2009-12-15
Information technology — Learning,
education, and training — Content
packaging
Part 1:
Information model
Technologies de l'information — Apprentissage, éducation et
formation — Paquetage du contenu
Partie 1: Modèle de l'information
Reference number
ISO/IEC 12785-1:2009(E)
©
ISO/IEC 2009
---------------------- Page: 1 ----------------------
ISO/IEC 12785-1:2009(E)

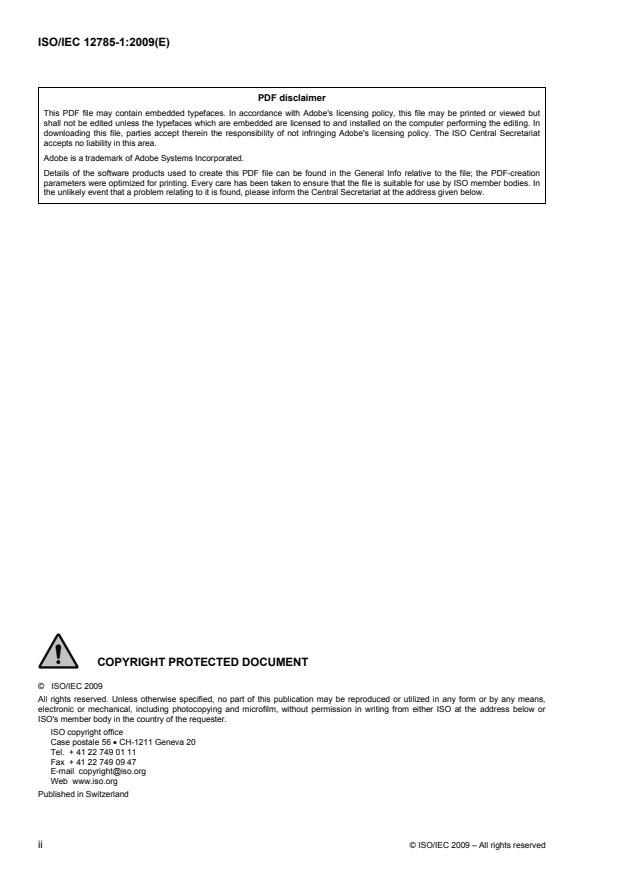

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 12785-1:2009(E)
Contents Page
Foreword .iv
0 Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Acronyms and abbreviations .6
5 The Content Packaging conceptual model (CPCM).7
6 Class description and relationship requirements.8
7 Conformance .53
Bibliography.59
© ISO/IEC 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 12785-1:2009(E)

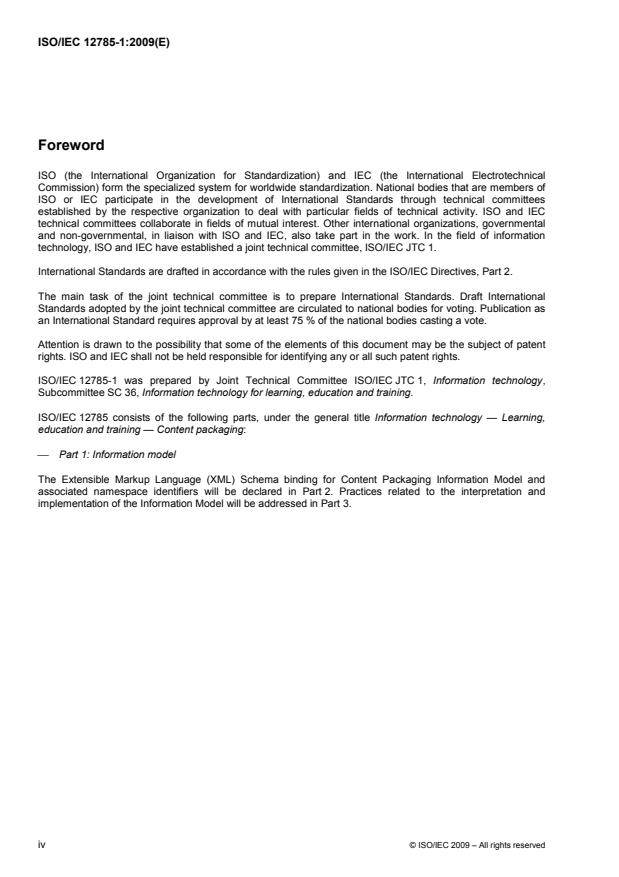

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 12785-1 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 36, Information technology for learning, education and training.
ISO/IEC 12785 consists of the following parts, under the general title Information technology — Learning,
education and training — Content packaging:
⎯ Part 1: Information model
The Extensible Markup Language (XML) Schema binding for Content Packaging Information Model and
associated namespace identifiers will be declared in Part 2. Practices related to the interpretation and
implementation of the Information Model will be addressed in Part 3.
iv © ISO/IEC 2009 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 12785-1:2009(E)
0 Introduction
0.1 Purpose and overview
ISO/IEC 12785 is derived from the IMS Global Learning Consortium (IMS GLC) Content Packaging version
1.2 Specification. IMS Content Packaging is probably the most widely used specification in support of learning
technology around the world. IMS Content Packaging has been an integral foundation of Sharable Content
Object Reference Model (SCORM) from its inception to the current version. But, most importantly, IMS
Content Packaging has also been used widely outside of SCORM on a standalone basis. IMS Content
Packaging is also used in many other high profile educational uses, such as archiving for MIT
OpenCourseWare, distributing content packages that exclude runtime and metadata for the Learning
Federation of Australia, and nationwide e-learning services for the Cyber Home Learning System in Korea.
The IMS Content Packaging Information Model that is the source and base specification for this part of
ISO/IEC 12785 describes data structures that can be used to exchange data between systems that wish to
import, export, aggregate, and disaggregate packages of learning, education and training (LET) content.
The IMS Content Packaging specification was initially conceived for the packaging of instructional content.
The specification supports the description of content associated with a given learning activity, location of the
content, and how these pieces of content can be organized for best instructional effect. As a result of wide
adoption of the specification, millions of IMS content packages of instructional content are used in a variety of
software applications.
Adopters of IMS Content Packaging have extended its use beyond just the packaging of instructional content.
IMS Content Packaging is now referenced by other IMS Specifications to package and exchange other types
of data.
Requests for major functional additions were not included in the IMS Content Packaging version 1.1.x series
and were accumulated as practice matured around implementing IMS Content Packaging. Evaluation of these
requests in 2006, combined with feedback from the wider adopter community, led to the decision to make a
significant update and definitive release for this specification as an International Standard series.
The new functionality and clarifications incorporated in this Content Packaging specification are as follows.
a) The meanings of terms used within the specification have been clarified.
b) The use of (sub)manifests, now termed child-manifests, has been clarified and enhanced:
1) Interpretation of an item pointing to a child-manifest has been clarified.
2) New functionality allowing components of child-manifests to be precisely referenced and interpreted
has been added.
3) Support for external child-manifests has been added.
c) Support for external referenced metadata files has been added.
d) All internal vocabularies have been removed and are now maintained through the IMS vocabularies
registration process (see http://www.imsglobal.org/vdex/index.html).
e) A new resource type of “stand-alone resource” has been added that allows another package to be used
as a piece of LET content.
© ISO/IEC 2009 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 12785-1:2009(E)
f) The syntax and usage of the Base, Parameter, 'IsVisible', and 'Href' Information Model classes has been
clarified.
g) Support for variant resources has been added. This includes support for alternative resources for
accessible LET content.
h) Support for Organization and Item titles in multiple languages has been added.
i) Support for interchange packages that contain only content and interchange packages that have no local
content files has been clarified.
0.2 Compatibility
This part of ISO/IEC 12785 arises in an active implementation environment of ever increasing adoption of IMS
Content Packaging. A primary goal of this part of ISO/IEC 12785 is to enable future growth while regularizing
current practice. To that end, the following definition of backwards compatibility has guided the development
of this Content Packaging Information Model:
a) From the perspective of the IMS Content Packaging Information Model, the IMS Content Packaging
Information Model v1.1.4 is a proper subset of this Content Packaging Information Model.
b) The semantics of the Content Packaging Information Model components persists between versions,
except where necessary to ensure disambiguation.
vi © ISO/IEC 2009 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 12785-1:2009(E)
Information technology — Learning, education, and training —
Content packaging
Part 1:
Information model
1 Scope
This part of ISO/IEC 12785 defines the data structures that can be used to exchange language, education and
training (LET) content among systems that wish to import, export, aggregate, and disaggregate packages of
LET content.
It illustrates the conceptual structure of the Content Packaging Information Model and defines the structural
relationships, data-type, value-space, and number of occurrences permitted for each kind of information
object.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 639-2:1998, Codes for the representation of names of languages — Part 2: Alpha-3 code
ISO 3166-1:1997, Codes for the representation of names of countries and their subdivisions — Part 1:
Country codes
ISO/IEC 10646:2003, Information technology — Universal Multiple-Octet Coded Character Set (UCS)
IEEE 1484.12.1-2002, Draft Standard for Learning Object Metadata
IETF RFC 1951 (1996), DEFLATE Compressed Data Format Specification version 1.3
IETF RFC 2119 (1997), Keywords for use in RFCs to Indicate Requirement Levels
IETF RFC 2234 (1997), Augmented BNF for Syntax Specifications: ABNF
IETF RFC 2732 (1999), Format for Literal IPv6 Addresses in URL’s
IETF RFC 3986 (2005), Uniform Resource Identifier (URI): Generic Syntax
© ISO/IEC 2009 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/IEC 12785-1:2009(E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
child manifest
complete, subordinate manifest contained in parent manifest
NOTE 1 A manifest can contain one or more child manifests.
NOTE 2 A manifest can include a reference to a child manifest that is external to the interchange package.
NOTE 3 A child manifest describes a complete logical package that is part of the larger logical package defined by its
parent manifest.
NOTE 4 A child manifest can be local or remote.
cf. interchange package, local, logical package, manifest, remote
3.2
content file
computer file(s) that embodies the LET content described by the manifest
NOTE 1 Content files can be local or remote.
NOTE 2 Content will often contain more than one content file. For example, web content is often instantiated by HTML,
JPEG, and CSS files. Content files can be local or remote.
cf. local, logical package, remote
3.3
content organization
organization
logical relationships, such as a hierarchical tree, among units of LET content
NOTE 1 More than one logical organization can be described in a manifest.
NOTE 2 An organization is bound to files through the relationship among item components and their referenced
resource components of a manifest.
NOTE 3 The rules governing the structuring and ordering of a hierarchical tree need to be specified.
cf. resource
3.4
control file
single computer file that governs the binding of the Content Packaging Information Model (CPIM) to make it
suitable for machine processing
NOTE A software component can refer to a control file when assessing the validity of a bound instance of the
information model or to guide the creation of a bound instance of the information model. For example, a file containing an
XML schema can be used as a control file for an XML binding of a manifest.
3.5
interchange package
set of usable (reusable) LET content that is exchanged among computing systems used for information
technology for learning, education and training (ITLET) purposes
NOTE An interchange package can be instantiated in a single compressed binary file (package interchange file) or as
a collection of files on portable media (e.g., CD, DVD, USB memory device).
cf. logical package, package interchange file
2 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/IEC 12785-1:2009(E)
3.6
launchable URI
representation of a Universal Resource Locator (URL) that may be included in a resource description and that
is used to locate and access the content described by the resource
NOTE The launchable Uniform Resource Identifier (URI) is not meant to be resolved by a package reader.
cf. interchange package, package reader
3.7
LET content
content
logical unit to represent usable (and reusable) information contained in or related to learning, education, and
training (LET) data in a formalized manner suitable for interpretation by human means
EXAMPLE In the instructional context, content can be web-based instructional materials.
NOTE 1 A logical unit of usable (and reusable) information can be described by a logical package.
NOTE 2 A logical package can contain one or more units of LET content.
cf. logical package
3.8
local
〈component of the logical package〉 contained within the interchange package
cf. logical package, interchange package
3.9
logical package
representation of one or more units of usable (and reusable) LET content
NOTE A logical package encompasses the full set of components described by the manifest and its child manifests,
including the local components and the remote components included by reference.
cf. child manifest, local, manifest, remote
3.10
manifest
description of a complete instance of a logical package
NOTE 1 A manifest describes resources in the logical package, their organization and the locations of the associated
content and control files.
NOTE 2 A manifest can contain references to components that are local or remote.
cf. local, logical package, remote
3.11
manifest document
manifest with contents that are structured according to various binding technologies
3.12
metadata
〈content packaging〉 descriptive information about logical packages, logical organizations, content, and files
NOTE 1 Metadata can be assigned to any of the core structures within the logical package, including the manifest.
NOTE 2 Any binding of a metadata object is permitted. Each object of metadata can be local or remote.
cf. local, logical package, remote
© ISO/IEC 2009 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/IEC 12785-1:2009(E)
3.13
namespace
XML namespace identified by a URI reference
NOTE Namespace in Content Packaging follows W3C recommendation Namespaces in XML 1.0 (Second Edition).
3.14
package
unit of usable (and reusable) LET content
NOTE 1 This can be part of a learning course that has instructional relevance outside of a LET content aggregation
and can be delivered independently, as an entire learning course or as a collection of learning courses.
NOTE 2 A package is able to stand-alone; that is, it contains all the information needed to use the contents for
learning, education, and training when it has been unpacked.
cf. interchange package, logical package
3.15
package interchange file
PIF
instantiation of an interchange package which is physically encapsulated as a compressed binary file
conforming to IETF RFC 1951 (1996)
NOTE 1 An interchange package can be instantiated in a format other than a package interchange file (PIF).
NOTE 2 Usually the representation (binding) is expressed in XML.
EXAMPLE An interchange package can be instantiated as a collection of files on removable media, e.g. CD, DVD,
USB memory device, or compressed using another format such as .zip, .tar, .jar, .cab.
cf. interchange package
3.16
package reader
software that reads a manifest and verifies the contents of an interchange package
NOTE A package reader can also process a logical package (retrieve and store information referenced by the
manifest, unpack local files from a PIF, retrieve or log addresses of remote files, etc.) or delegate that task to another
software typed process.
cf. interchange package, logical package
3.17
package writer
software that creates or modifies an instance of an interchange package and assembles content file(s) and
other files declared local to the interchange package and writes them to the targeted interchange package
binding, or delegates those tasks to another software typed process
cf. interchange package
3.18
referenced manifest
manifest or a component of a manifest that is referenced from within another manifest
NOTE 1 A manifest can reference an organization in another manifest.
NOTE 2 The manifest containing the component being referenced is called a referenced-manifest.
NOTE 3 A manifest can contain references to components that are local or remote.
cf. local, remote
4 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC 12785-1:2009(E)
3.19
relative reference
expression of a URI reference relative to the namespace of another hierarchical URI
NOTE 1 See IETF RFC 3986 (2005).
NOTE 2 The extension and the context are combined to create a target URI.
EXAMPLE A relative/path/to/resource.txt is a relative reference that is interpreted in terms of a context to be
resolved. [The algorithm for resolving relative references in terms of contexts is defined in Section 5 of
IETF RFC 3986 (2005).]
3.20
remote
〈component of the logical package〉 located outside the interchange package
cf. interchange package, logical package
3.21
resource
description of a collection of content files used by the logical package
NOTE 1 The description can include metadata about the collection of LET content and resource files, a description of
each of the files, and information about variant forms of the collection of files.
cf. logical package
NOTE 2 A resource is often used to describe a unit of LET content. When this is the case, the resource can contain a
launchable URI for the LET content.
NOTE 3 The files described by a resource can be local or remote.
cf. launchable URI, local, remote
3.22
stand-alone resource
resource that allows a manifest to declare a relationship to another manifest in such a way that the related
manifests are processed as separate but related data sets
NOTE 1 The related manifests can be contained within a single content package or accessible as an external URI
addressable resource.
NOTE 2 Each manifest represents a stand-alone learning resource which can be aggregated with other learning
resources to create arbitrarily rich learning experiences.
3.23
uniform resource identifier
URI
compact sequence of characters that identifies an abstract or physical resource
NOTE See IETF RFC 3986 (2005).
3.24
uniform resource locator
URL
subset of URIs that provide a means of locating a resource by describing its primary access mechanism
NOTE See (IETF RFC 3986 (2005).
© ISO/IEC 2009 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/IEC 12785-1:2009(E)
3.25
variant
container for referencing and describing somewhat different LET content
NOTE 1 A particular resource can have variants of different formats and for different purposes.
NOTE 2 The listing of variants within a resource identifies alternative collections of files for the resource.
NOTE 3 Metadata is used to describe the intended uses of the original resource and the intended uses of the variants.
EXAMPLES Lingual variants, visual or auditory variants, remediation variants, and platform delivery variants.
cf. metadata, resource
4 Acronyms and abbreviations
1)
Augmented Backus-Naur Form
ABNF
ADL Advanced Distributed Learning
CPCM Content Packaging Conceptual Model
CPIM Content Packaging Information Model
IETF Internet Engineering Task Force
LET Learning, Education, and Training
MPEG Moving Picture Experts Group
MPEG-21 ISO/IEC 21000 (all parts)
PIF Packaging Interchange File
PIM Platform Independent Model
RFC Request for Comments
SCORM Sharable Content Object Reference Model
UML Unified Modeling Language
URI Uniform Resource Identifier (IETF RFC 3986)
URL Uniform Resource Locator (IETF RFC 3986)
URN Uniform Resource Name (IETF RFC 3986)
W3C World Wide Web Consortium
XML Extensible Markup Language (W3C XML)
1) “Augmented BNF for Syntax Specifications: ABNF,” D. Crocker (Ed.), P. Overell, Internet Engineering Task Force,
Network Working Group, Request for Comments: 2234, November 1997.
6 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/IEC 12785-1:2009(E)
5 The Content Packaging conceptual model (CPCM)
Content package is a unit of usable (and reusable) LET content as defined within the Content Package
Information Model. A content package consists of a logical description of the package (the Manifest) and the
physical resources.
Figure 1 is a conceptual diagram that illustrates the structure of the Content Packaging Information Model
(CPIM).
Figure 1 — Illustrative representation of the Content Packaging conceptual model (CPCM).
These core structural components are:
⎯ Logical package – a representation of one or more units of usable (and reusable) LET content. The
logical package encompasses the full set of components described by the manifest, including the local
components and the remote components included by reference.
⎯ Interchange package – the set of LET content related components that are to be exchanged among
systems. An interchange package shall include a manifest and may include content files and control files.
All of the files included in an interchange package shall be described in the manifest or a child manifest.
⎯ Manifest – the component that describes a complete instance of a logical package. A manifest may
contain references to components that are local or remote.
⎯ Organizations – logical relationships among the units of LET content. More than one logical organization
may be described.
⎯ Resources – the description of LET content and resource files used by the logical package. The files
may be local or remote.
⎯ Child manifests – complete and subordinate manifests that are contained within or referenced from
another manifest. This each describes a complete logical package that is part of the larger logical
package. The child-manifests may be local or remote.
© ISO/IEC 2009 – All rights reserved 7
---------------------- Page: 13 ----------------------
ISO/IEC 12785-1:2009(E)
⎯ Files – computer files that embody the LET content described by the logical package or govern the
binding of other files to make them suitable for machine processing. Content files may be local or remote.
⎯ Metadata (in content packaging) – descriptive information about content packages, logical
organizations, content, or files. In this diagram the metadata box represents the set of local and/or remote
metadata objects that are contained within the logical package. Any binding of a metadata object is
permitted. Metadata may be assigned to any of the core structures within the logical package including
the manifest.
The information model defines these core structural components for describing and organizing LET content for
exchange. An important underpinning is support for extensibility. Implementers of this specification may use
these extension mechanisms to define new vocabulary terms and structures.
6 Class description and relationship requirements
An informative overview of the entire Content Packaging Information Model (CPIM) is provided as a Platform
Independent Model (PIM) expressed in UML constructs. All UML diagrams expressed as “Platform
Independent Model” are non-normative. Normative tables defining the classes in this Information Model follow
the informative UML diagrams.
A full definition of the UML Profile and the terms used in the normative tabular descriptions in this document to
describe the PIM can be found in IMS UML Profile guideline (bibliography item [9]).
In the tables in this subclause the character sequence “n / a” is used to mark a field “not applicable.” Any field
so marked is not relevant to the class being defined. Features so marked shall be ignored when binding a
class defined by this Information Model
Augmented Backus-Naur form (ABNF) is used to define certain rules in the tables. Augmented Backus-Naur
form is defined in IETF RFC 2234.
6.1 Key terms and concepts
Classes in this information model are of four abstract types in Content Packaging Information Model. These
abstractions are bound to specific data structures for machine processing in the Content Packaging Part 2 -
XML Binding. The four abstract class types are:
⎯ container class: A container class may be a parent of one or more child classes.
⎯ value class: A value class shall not be a parent. That is, it shall not be a composite of characteristic,
container, value, or unspecified class types. A value class shall always be a child of a container class and
shall have semantic value within the scope of its parent class’s semantic value.
⎯ characteristic class: A characteristic class shall not be a parent. A characteristic class shall declare a
trait or value that is an intrinsic feature or part of a container class. A characteristic class is tightly coupled
to the container class it modifies or one of which facets it describes.
⎯ unspecified class: An unspecified class may be a parent. An unspecified class serves as an extension
point for this Information Model.
Where the numbers of elements are greater than one, the importance of the ordering of siblings is also
indicated by appending either "ordered" or "unordered". "ordered" specifies a sequence of siblings as listed,
"unordered" specifies a collection or bag of siblings. Order is not important.
Table 1 lists the class descriptors used to describe the abstract classes and definitions of the descriptors.
8 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 14 ----------------------
ISO/IEC 12785-1:2009(E)
Table 1 — Class descriptors.
Descriptor Definition
Class name The name given to the class being described.
Class type The abstract class type of this class.
Data type For value and characteristic classes, the allowed structure for valid values for
the class.
Valid data types are:
• URI: Any syntactically valid instance of a URI as defined in
IETF RFC 3986. Note: Many of the foundational Specifications,
Standards, and Recommendations referred to by this Information
Model use IETF RFC 3986 and IETF RFC 2732 as the definitions of
URI. These are made obsolete by IETF RFC 3986, but many of the
foundational documents have not been updated to reference
IETF RFC 3986.
• LUID: An identifier that is locally unique within a manifest This will
be based upon the String data-type that has a constrained value-
space.
• LUIDref: A reference to a LUID that has been defined elsewhere
within a manifest. The value of the LUID and the LUIDref(s) that
reference it shall be the same.
• Boolean: The primitive, two-valued data type that uses the
keywords “true” and “false” to indicate the logical state of an object.
• String: A sequence of printable characters.
• Unspecified: The data type is not known or is not important.
Value space The range of valid values for this class. If the value space is unspecified, it is
not known or is not important.
Multiplicity A property
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
