Water quality — Determination of cyclic volatile methylsiloxanes in water — Part 2: Method using liquid-liquid extraction with gas chromatography-mass spectrometry (GC-MS)

This document specifies a method for the determination of certain cyclic volatile methylsiloxanes (cVMS) in environmental water samples with low density polyethylene (LDPE) as a preservative and subsequent liquid-liquid extraction with hexane containing 13C-labeled cVMS as internal standards. The extract is then analysed by gas chromatography-mass spectrometry (GC-MS). NOTE Using the 13C-labeled, chemically identical substances as internal standards with the same properties as the corresponding analytes, minimizes possible substance-specific discrimination in calibrations. Since these substances are least soluble in water, they are introduced via the extraction solvent hexane into the system.

Qualité de l'eau — Détermination de méthylsiloxanes cycliques volatiles dans l'eau — Partie 2: Méthode par extraction liquide-liquide avec chromatographie en phase gazeuse-spectrométrie de masse (CG-SM)

General Information

Status
Published
Publication Date
27-Jan-2021
Current Stage
6060 - International Standard published
Start Date
28-Jan-2021
Completion Date
28-Jan-2021
Ref Project

Buy Standard

Standard
ISO 20596-2:2021 - Water quality -- Determination of cyclic volatile methylsiloxanes in water
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 20596-2:Version 13-okt-2020 - Water quality -- Determination of cyclic volatile methylsiloxanes in water
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

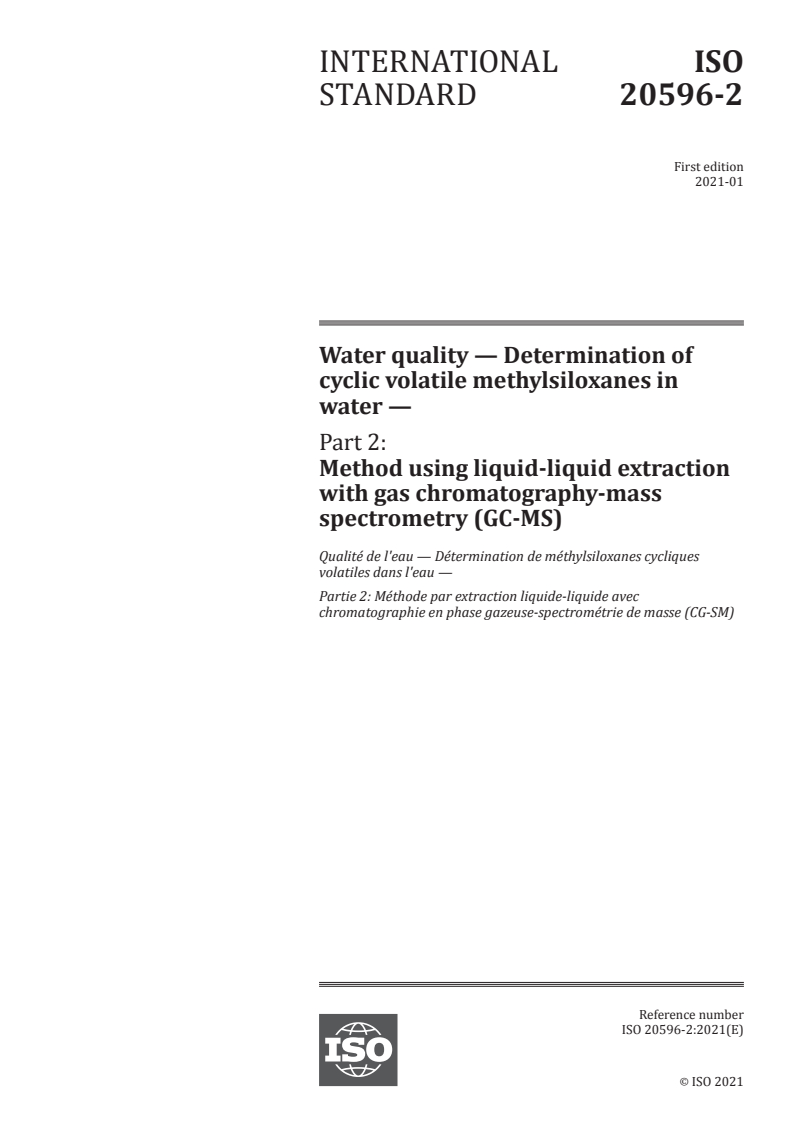

INTERNATIONAL ISO
STANDARD 20596-2
First edition
2021-01
Water quality — Determination of
cyclic volatile methylsiloxanes in
water —
Part 2:
Method using liquid-liquid extraction
with gas chromatography-mass
spectrometry (GC-MS)
Qualité de l'eau — Détermination de méthylsiloxanes cycliques
volatiles dans l'eau —
Partie 2: Méthode par extraction liquide-liquide avec
chromatographie en phase gazeuse-spectrométrie de masse (CG-SM)
Reference number
ISO 20596-2:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 20596-2:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 20596-2:2021(E)

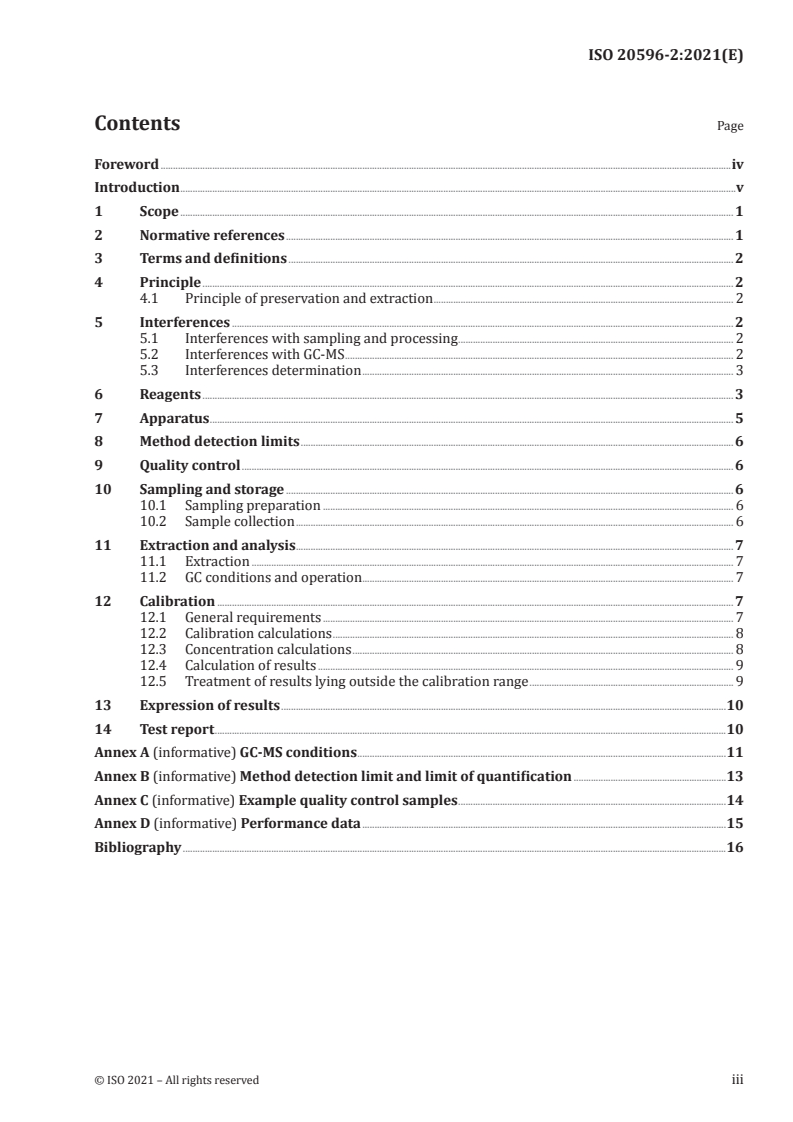

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Principle ........................................................................................................................................................................................................................ 2

4.1 Principle of preservation and extraction .......................................................................................................................... 2

5 Interferences ............................................................................................................................................................................................................ 2

5.1 Interferences with sampling and processing ................................................................................................................ 2

5.2 Interferences with GC-MS .............................................................................................................................................................. 2

5.3 Interferences determination ....................................................................................................................................................... 3

6 Reagents ........................................................................................................................................................................................................................ 3

7 Apparatus ..................................................................................................................................................................................................................... 5

8 Method detection limits ................................................................................................................................................................................ 6

9 Quality control ........................................................................................................................................................................................................ 6

10 Sampling and storage ...................................................................................................................................................................................... 6

10.1 Sampling preparation ....................................................................................................................................................................... 6

10.2 Sample collection .................................................................................................................................................................................. 6

11 Extraction and analysis .................................................................................................................................................................................. 7

11.1 Extraction .................................................................................................................................................................................................... 7

11.2 GC conditions and operation ....................................................................................................................................................... 7

12 Calibration .................................................................................................................................................................................................................. 7

12.1 General requirements ....................................................................................................................................................................... 7

12.2 Calibration calculations ................................................................................................................................................................... 8

12.3 Concentration calculations ........................................................................................................................................................... 8

12.4 Calculation of results ......................................................................................................................................................................... 9

12.5 Treatment of results lying outside the calibration range ................................................................................... 9

13 Expression of results .....................................................................................................................................................................................10

14 Test report ................................................................................................................................................................................................................10

Annex A (informative) GC-MS conditions ......................................................................................................................................................11

Annex B (informative) Method detection limit and limit of quantification ..............................................................13

Annex C (informative) Example quality control samples .............................................................................................................14

Annex D (informative) Performance data ....................................................................................................................................................15

Bibliography .............................................................................................................................................................................................................................16

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 20596-2:2021(E)

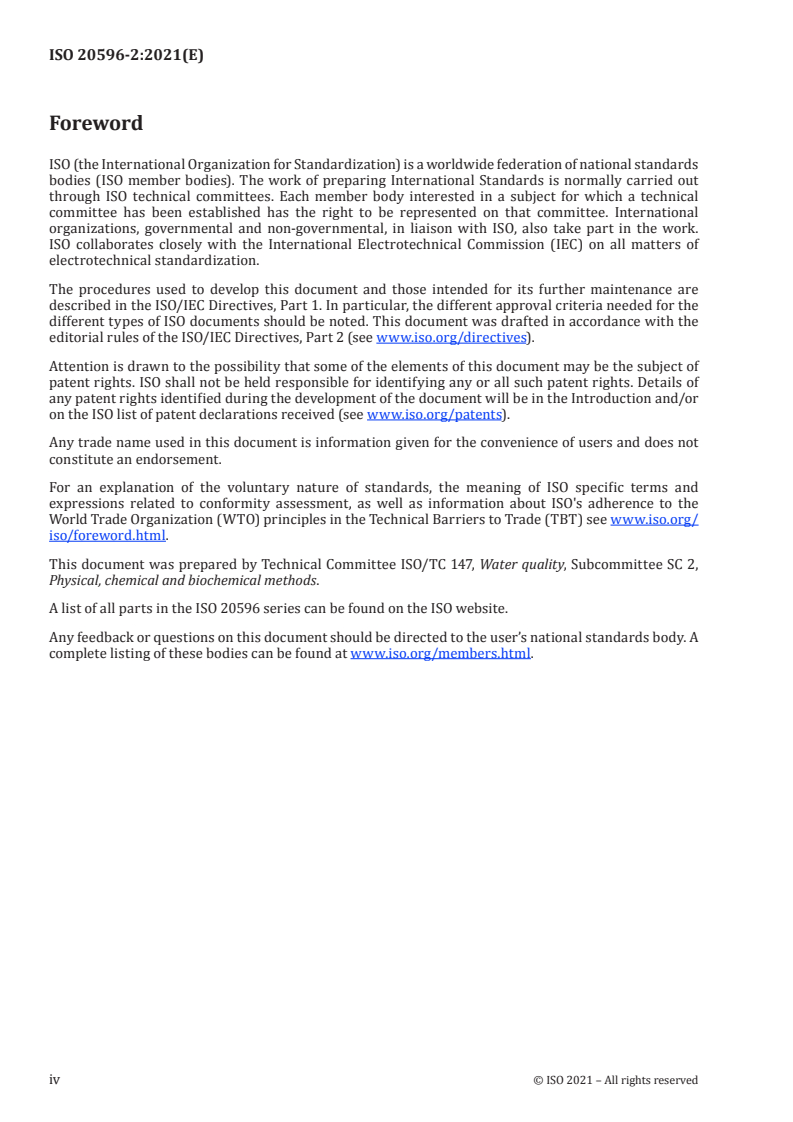

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,

Physical, chemical and biochemical methods.
A list of all parts in the ISO 20596 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 20596-2:2021(E)
Introduction

The method described in this document uses low density polyethylene to prevent volatilization of

samples during transit and storage. The samples are processed using a liquid-liquid extraction into

a non-polar solvent with subsequent injection onto a gas chromatograph-mass spectrometer for

separation and quantitation.
© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 20596-2:2021(E)
Water quality — Determination of cyclic volatile
methylsiloxanes in water —
Part 2:
Method using liquid-liquid extraction with gas
chromatography-mass spectrometry (GC-MS)

WARNING — Persons using this document should be familiar with normal laboratory practice.

This document does not purport to address all of the safety problems, if any, associated with its

use. It is the responsibility of the user to establish appropriate safety and health practices and to

ensure neutralization and proper disposal of waste solutions.

IMPORTANT — It is absolutely essential that tests conducted in accordance with this document

be carried out by suitably qualified staff.
1 Scope

This document specifies a method for the determination of certain cyclic volatile methylsiloxanes (cVMS)

in environmental water samples with low density polyethylene (LDPE) as a preservative and subsequent

liquid-liquid extraction with hexane containing C-labeled cVMS as internal standards. The extract is

then analysed by gas chromatography-mass spectrometry (GC-MS).

NOTE Using the C-labeled, chemically identical substances as internal standards with the same properties

as the corresponding analytes, minimizes possible substance-specific discrimination in calibrations. Since these

substances are least soluble in water, they are introduced via the extraction solvent hexane into the system.

This document is applicable to the measurement of the following cVMS in rivers, streams, and waste

water (influent and effluent):
Table 1 — Analytes determined by this method
Analyte Formula Abbreviation CAS -RN
Octamethylcyclotetrasiloxane C H O Si D4 556-67-2
8 24 4 4
Decamethylcyclopentasiloxane C H O Si D5 541-02-6
10 30 5 5
Dodecamethylcyclohexasiloxane C H O Si D6 540-97-6
12 36 6 6
CAS-RN Chemical Abstracts Services Registration Number

This method can be used to determine cVMS from 0,1 µg/l to 250 μg/l. In well controlled laboratory

environments, where contamination is minimized, the lower end of the application range can be

diminished by a factor of up to 10.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 3696, Water for analytical laboratory use — Specification and test methods

ISO 5667-4, Water quality — Sampling — Part 4: Guidance on sampling from lakes, natural and man-made

ISO 5667-6, Water quality — Sampling — Part 6: Guidance on sampling of rivers and streams

© ISO 2021 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 20596-2:2021(E)

ISO 5667-10, Water quality — Sampling — Part 10: Guidance on sampling of waste waters

ISO 5667-14, Water quality — Sampling — Part 14: Guidance on quality assurance and quality control of

environmental water sampling and handling

ISO 8466-1, Water quality — Calibration and evaluation of analytical methods and estimation of

performance characteristics — Part 1: Statistical evaluation of the linear calibration function

ISO/TS 13530, Water quality — Guidance on analytical quality control for chemical and physicochemical

water analysis
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http:// www .iso .org ./ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Principle
4.1 Principle of preservation and extraction

The siloxane compounds (D4), (D5), and (D6) are relatively volatile and have low solubility in water

thus making accurate quantification in aqueous matrices challenging. Low density polyethylene (LDPE)

is added to samples to prevent volatilization of the cVMS through a partial physical barrier between the

water and headspace and a matrix to which the cVMS may adsorb. Hexane is then used to extract the

dissolved and sorbed fractions of cVMS. The hexane extracts are then analysed by GC-MS (Annex A).

5 Interferences
5.1 Interferences with sampling and processing

Silicones, including D4, D5, and D6 are widely used in industrial applications as well as personal care

products such as conditioner, hand lotion, sunscreens, and cosmetics (not all inclusive). Persons involved

with the collection and analysis of samples should refrain from using siloxane containing products to

limit potential contamination of the sample.

Additionally, the users should refrain from using collection devices, sampling containers, laboratory

equipment or consumables which may contain silicones/siloxanes. Sample contact surfaces should

be suitably rinsed with acetone or hexane and subsequently dried in a clean area of the laboratory to

remove any contamination.
5.2 Interferences with GC-MS

Silicones are also commonly found in parts and consumables associated with gas chromatography

including septa for the vials and inlet. Commonly used types of GC columns are polydimethylsiloxane

based which when exposed to moisture or when heated may generate cVMS and in such a way can

contribute to background. Thus, the use of non-polydimethylsiloxane-based GC columns is highly

recommended, in particular when analysing sub-ppb concentrations. Autosampler vial septa should be

silicone free or at a minimum coated with polytetrafluoroethylene on the side exposed to the sample.

2 © ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 20596-2:2021(E)

The inlet septum should be replaced with a Merlin MicroSeal™ to reduce background contamination

from this source. In addition, any solvents should be dried prior to injection into the GC or care should

be taken to use a solvent in which water is only soluble in the mg/l levels.
5.3 Interferences determination

In order to determine the integrity of the sampling, preparation and instrumental analysis of the

samples, it is recommended to prepare quality control (QC) samples. An example of QC samples consists

of a series of blanks and spikes to identify potential sources of contamination or loss during the life

cycle of the samples.
6 Reagents

It is recommended to verify the absence (or presence of only negligible amounts) or absence of cVMS

from solvents being utilized.
6.1 Water, grade 1, as defined in ISO 3696.

6.2 Hexane, C H n-hexane or mixture of isomers, determined to be suitably free of cVMS.

6 14
6.3 Tetrahydrofuran, C H O.
4 8
6.4 Calibration stock solutions.
6.4.1 Reference substances
See Table 1.
— Octamethylcyclotetrasiloxane;
— Decamethylcyclopentasiloxane;
— Dodecamethylcyclohexasiloxane.
6.4.2 Calibration stock solution 1

Weigh 30 mg of each of the listed standards into a 25 ml volumetric flask and fill to volume with hexane

(6.2). The concentration of this solution is approximately 1 200 µg/ml.
6.4.3 Calibration stock solution 2

Dilute calibration stock solution 1 (6.4.2) with hexane (6.2) in a ratio of 1:250. The concentration of this

solution is approximately 4 800 ng/ml.
6.4.4 Calibration stock solution 3

Dilute calibration stock solution 2 (6.4.3) with hexane (6.2) in a ratio of 1:100. The concentration of this

solution is approximately 48 ng/ml.

1) Merlin MicroSeal is the trademark of a product supplied by Sigma-Aldrich. This information is given for

the convenience of users of this document and does not constitute and endorsement by ISO of the product named.

Equivalent products may be used if they can be shown to lead to the same results.

© ISO 2021 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 20596-2:2021(E)
6.5 Spiking stock solutions
6.5.1 Spiking stock solution 1

Dilute calibration stock solution 1 (6.4.2) with tetrahydrofuran (6.3) in a ratio of 1:100. The

concentration of this solution is approximately 12 µg/ml.
6.5.2 Spiking stock solution 2

Dilute spiking stock solution 1 (6.5.1) with tetrahydrofuran (6.3) in a ratio of 1:50. The concentration of

this solution is approximately 240 ng/ml.
6.6 Internal standard working solution
6.6.1 Individual internal standards
C-labelled cVMS. Typical products available from suppliers are:
13 13
— C-D4, such as 2,4,6,8- C -octamethylcyclotetrasiloxane; or
— 2,2,4,4,6,6,8,8- C -octamethylcyclotetrasiloxane;
13 13
— C-D5, such as 2,4,6,8,10- C -decamethylcyclopentasiloxane; or
— or 2,2,4,4,6,6,8,8,10,10- C -decamethylcyclopentasiloxane;
13 13
— C-D6, such as 2,4,6,8,10,12- C -dodecamethylcyclohexasiloxane.
6.6.2 Internal standard stock solution 1

Weigh 10 mg of the appropriate internal standard (6.6.1) into a 100 ml volumetric flask and fill to

volume with hexane (6.2). The concentration of this solution is approximately 100 µg/ml.

6.6.3 Internal standard stock solution 2

Dilute internal standard stock solution 1 (6.6.2) with hexane (6.2) in a ratio of 1:100. The concentration

of this solution is approximately 1 000 ng/ml.
6.6.4 Internal standard working solution

Dilute internal standard stock solution 2 (6.6.3) with hexane (6.2) in a ratio of 1:250. The concentration

of this solution is approximately 4 ng/ml.
6.7 Calibration standards

Using Table 2 weigh the appropriate amount of calibration stock 2 (6.4.3) or calibration stock 3 (6.4.4)

into a 5 ml volumetric flask and dilute to volume with internal standard working solution (6.6.4). Weigh

the amount of internal standard working solution added and convert to volume using the density of the

solvent used. Table 2 is given as an example, the calibration range can be modified to meet the needs of

the samples. It is recommended that at least five calibration standards be used for a calibration curve.

Table 2 — Calibration standards
Calibration Volume Target con- Target concentration
stock centration (relative to 50 ml sample)
µl ng/ml µg/l
STD A 3 20 0,19 0,038
4 © ISO 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 20596-2:2021(E)
Table 2 (continued)
Calibration Volume Target con- Target concentration
stock centration (relative to 50 ml sample)
µl ng/ml µg/l
STD B 3 50 0,48 0,096
STD C 3 125 1,2 0,24
STD D 3 275 2,6 0,53
STD E 3 550 5,3 1,1
STD F 2 15 14 2,9
STD G 2 25 24 4,8
STD H 2 50 48 9,6
STD I 2 100 96 19,2
STD J 2 300 288 57,6
STD K 2 750 720 144
STD L 2 1 500 1 440 288
7 Apparatus

WARNING — Any surfaces that come into contact with a solution to be analysed should be

suitably rinsed with acetone or hexane and allowed to dry in a clean area of the laboratory to

remove any contamination.
7.1 Gas chromatograph/mass spectrometer

The gas chromatograph shall be temperature-programmable, with all required accessories including

gasses, capillary columns, autosampler, and mass spectrometric detector. The inlet should be equipped

with a Merlin MicroSeal™ to minimize contamination (5.2).

The mass spectrometer should be capable of operating over the mass range of interest (200 m/z to

500 m/z) and it should be equipped with a data system capable of quantifying ions using selected

m/z values.
7.2 GC columns

Recommended column is DB-WAXetr (30 m × 0,25 mm i.d., 0,25 μm film thickness). If blank levels are

proved to be sufficiently low, other columns may be used such as DB-5ms , if appropriately tested prior

to sample processing.
7.3 Volumetric flasks, with inert/silicone free stopper.

7.4 Vials, glass autosampler vials with a fluorocarbon lined, non-silicone septa.

7.5 Multi-Tube Vortexer , capable of handling multiple 125 ml jars.

2) Merlin MicroSeal is the trademark of a product supplied by Sigma-Aldrich. This information is given for the

convenience of users of this document and does not constitute and endorsement by ISO of the product named.

Equivalent products may be used if they can be shown to lead to the same results.

3) DB-WAXetr and DB-5ms are the tradenames of products supplied by Agilent Technologies. This information is

given for the convenience of users of this document and does not constitute and endorsement by ISO of the product

named. Equivalent products may be used if they can be shown to lead to the same results.

4) Multi-Tube Vortexer is the tradename of a product available commercially. This information is given for the

convenience of users of this document and does not constitute and endorsement by ISO of this product.

© ISO 2021 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 20596-2:2021(E)
7.6 Jars, 125 ml wide mouth glass jars with a PTFE lined lid.

7.7 Centrifuge, Alternative phase separation can be obtained by centrifuging the samples for 5 min at

2 500 rpm.

7.8 Low density polyethylene (LDPE), 51 µm to 63 μm thick clear base film. Film is cut into 2,5 cm ×

2,5 cm squares and subsequently washed twice with hexane (6.2) and allowed to dry.

8 Method detection limits

Any laboratory performing this test will determine the limit of detection and the limit of quantification

as defined in ISO/TS 13530. The method detection limit and limit of quantification should be assessed

as defined in Annex B.
9 Quality control

Quality control samples shall be used to verify the integrity of the samples during sampling, processing

and analysing by indicating any potential contamination or loss of analyte (ISO 5667-14). This is most

important when analysing concentrations in the sub-μg/l range, where relevant contamination with

cVMS is more likely. Typically, a series of blanks and spiked samples are used for quality control.

Reference examples of these quality control samples, and their use are described in Annex C.

NOTE The initial interlaboratory trial conducted when developing this document, for sub-ppb concentrations

did not meet the ISO performance criteria, mainly because of an un-discovered contamination issue.

Blank levels and sample concentrations shall differ sufficiently to qualify sample concentrations as

relevant. Where concentrations reported are close to the detection limits, replicates of blank samples

and of actual samples may be measured and 2-sample t-test can be used to check for a statistically

significant difference.
10 Sampling and storage
10.1 Sampling preparation

Ensure that all sample contact surfaces have been washed with acetone or hexane and allowed to dry.

And ensure that all LDPE squares have been solvent washed with hexane in duplicate and allowed to dry.

Add 8 LDPE squares to each 125 ml uniquely labelled sample jar with lid. Take a weight of the sample

jar. This weight will be used to later determine the weight and volume of the sample.

10.2 Sample collection

Take samples in accordance with ISO 5667-4, ISO 5667-6, ISO 5667-10, ensure sampling collection

devices are clean and free of siloxanes. In order to collect a homogenous sample, the sample collection

device should be sufficient to contain a bulk sample so that sufficient replicate samples can be poured

or drawn from the same source. It is advisable to take two samples, one to be retained in the event of a

repeat analysis is required.

If field blanks are utilized, it is appropriate to open the field blanks as described in Annex C.

Rinse the sampling device three times with the intended sample and collect the bulk sample. Then

aliquot the bulk sample into the 125 ml sample jars so that each jar is approximately ½ full. This allows

for the solvent extraction step to be performed in the jar. The LDPE helps prevent volatilization of cVMS

into the headspace.

Close the samples and place them in a storage/shipping container to be maintained at a temperature

(5 ± 3) °C. These samples should be extracted within 14 d of collection.
6 © ISO 2021 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 20596-2:2021(E)
11 Extraction and analysis
11.1 Extraction

Weigh the sample jar to determine the amount of sample collected. Add 10 ml of internal standard working

solution (6.6.4) to the samples. The samples are placed on the Multi-Tube Vortexer (7.5) and vortexed at

maximum speed for 30 min. The extracted sample in the jar is allowed to settle to separate the organic

phase, showing clear phase separation, or alternatively phase separation can be obtained by centrifuging

(7.7) the samples. The organic phase is removed and placed in a previously cleaned storage vial. An aliquot

is removed from the storage vial and placed into an autosampler vial for analysis by GC-MS.

NOTE To reduce negative effects caused by water traces being present in the organic phase, it can be

advantageous to add approximately 1 g of dry MgSO into the vial.
11.2 GC conditions and operation
Example operating conditions can be found in Annex A.

If multiple injections of a sample, blank, or calibration solution are to be made, it is recommended to

prepare an autosampler vial for each injection to reduce spurious contamination. It is also recommended

to utilize the autosamplers needle wash function prior to and after each sample injection with a wash

of hexane.

Solvent blanks and a calibration solution should be run at intervals not to exceed more than ten sample

injections to verify the validity of the calibration curve as well as to ensure the background of the

instrument is low.
12 Calibration
Example operating conditions can be found in Annex A.
12.1 General requirements

For practical reasons, the calibration uses at least five solutions containing the analytes of interest and

internal standards (Annex A and Table 2).
Ensure there is a linear dependence between signal and concentration.

Determine the linear working range using at least five measurements at different concentrations, as

specified in ISO 8466-1.

The calibration function for a substance is valid only for the measured concentration range. Additionally,

the calibration function depends on the condition of the instrument and shall be checked regularly.

Table 3 — Explanation of subscripts
Subscript Meaning
a Target compound
e Calibration step
I Internal standard
c Calibration standard
t Sample
n Procedure blank
© ISO 2021 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO 20596-2:2021(E)
12.2 Calibration calculations

The purpose of using the internal standard is to account for any errors that can occur during the

injection of the sample into the GC. An internal standard can also account for any volatilization

occurring during and after the extraction, matrix effects. The internal standard normalizes the results

for any of these areas.
The amount in mass of both the interna
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 20596-2
ISO/TC 147/SC 2
Water quality — Determination of
Secretariat: DIN
cyclic volatile methylsiloxanes in
Voting begins on:
2020-10-06 water —
Voting terminates on:
Part 2:
2020-12-01
Method using liquid-liquid extraction
with gas chromatography-mass
spectrometry (GC-MS)
Qualité de l'eau — Détermination de méthylsiloxanes cycliques
volatiles dans l'eau —
Partie 2: Méthode par extraction liquide-liquide avec
chromatographie en phase gazeuse-spectrométrie de masse (CG-SM)
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 20596-2:2020(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2020
---------------------- Page: 1 ----------------------
ISO/FDIS 20596-2:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 20596-2:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Principle ........................................................................................................................................................................................................................ 2

4.1 Principle of preservation and extraction .......................................................................................................................... 2

5 Interferences ............................................................................................................................................................................................................ 2

5.1 Interferences with sampling and processing ................................................................................................................ 2

5.2 Interferences with GC-MS .............................................................................................................................................................. 2

5.3 Interferences determination ....................................................................................................................................................... 3

6 Reagents ........................................................................................................................................................................................................................ 3

7 Apparatus ..................................................................................................................................................................................................................... 5

8 Method detection limits ................................................................................................................................................................................ 6

9 Quality control ........................................................................................................................................................................................................ 6

10 Sampling and storage ...................................................................................................................................................................................... 6

10.1 Sampling preparation ....................................................................................................................................................................... 6

10.2 Sample collection .................................................................................................................................................................................. 6

11 Extraction and analysis .................................................................................................................................................................................. 7

11.1 Extraction .................................................................................................................................................................................................... 7

11.2 GC conditions and operation ....................................................................................................................................................... 7

12 Calibration .................................................................................................................................................................................................................. 7

12.1 General requirements ....................................................................................................................................................................... 7

12.2 Calibration calculations ................................................................................................................................................................... 8

12.3 Concentration calculations ........................................................................................................................................................... 9

12.4 Calculation of results ......................................................................................................................................................................... 9

12.5 Treatment of results lying outside the calibration range ................................................................................10

13 Expression of results .....................................................................................................................................................................................10

14 Test report ................................................................................................................................................................................................................10

Annex A (informative) GC-MS conditions ......................................................................................................................................................11

Annex B (informative) Method detection limit and limit of quantification ..............................................................13

Annex C (informative) Example quality control samples .............................................................................................................14

Annex D (informative) Performance data ....................................................................................................................................................15

Bibliography .............................................................................................................................................................................................................................17

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 20596-2:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,

Physical, chemical and biochemical methods.
A list of all parts in the ISO 20596 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/FDIS 20596-2:2020(E)
Introduction

The method described in this document uses low density polyethylene to prevent volatilization of

samples during transit and storage. The samples are processed using a liquid-liquid extraction into

a non-polar solvent with subsequent injection onto a gas chromatograph-mass spectrometer for

separation and quantitation.
© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 20596-2:2020(E)
Water quality — Determination of cyclic volatile
methylsiloxanes in water —
Part 2:
Method using liquid-liquid extraction with gas
chromatography-mass spectrometry (GC-MS)

WARNING — Persons using this document should be familiar with normal laboratory practice.

This document does not purport to address all of the safety problems, if any, associated with its

use. It is the responsibility of the user to establish appropriate safety and health practices and to

ensure neutralization and proper disposal of waste solutions.

IMPORTANT — It is absolutely essential that tests conducted in accordance with this document

be carried out by suitably qualified staff.
1 Scope

This document specifies a method for the determination of certain cyclic volatile methylsiloxanes (cVMS)

in environmental water samples with low density polyethylene (LDPE) as a preservative and subsequent

13 1)

liquid-liquid extraction with hexane containing the internal standard substances C-labeled cVMS .

The extract is then analysed by gas chromatography-mass spectrometry (GC-MS).

This document is applicable to the measurement of the following cVMS in rivers, streams, and waste

water (influent and effluent):
Table 1 — Analytes determined by this method
Analyte Formula Abbreviation CAS -RN
Octamethylcyclotetrasiloxane C H O Si D4 556-67-2
8 24 4 4
Decamethylcyclopentasiloxane C H O Si D5 541-02-6
10 30 5 5
Dodecamethylcyclohexasiloxane C H O Si D6 540-97-6
12 36 6 6
CAS-RN Chemical Abstracts Services Registration Number

This method can be used to determine cVMS from 0,1 µg/l to 250 μg/l. In very controlled laboratory

environments, extremely minimizing contamination, the lower end of the application range can be

diminished by a factor of up to 10.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 3696, Water for analytical laboratory use — Specification and test methods

ISO 5667-4, Water quality — Sampling — Part 4: Guidance on sampling from lakes, natural and man-made

ISO 5667-6, Water quality — Sampling — Part 6: Guidance on sampling of rivers and streams

13

1) Using the C-labeled, chemically identical substances as internal standards with the same properties

as the corresponding analytes, minimizes possible substance-specific discrimination in calibrations. Since these

substances are least soluble in water, they are introduced via the extraction solvent hexane into the system.

© ISO 2020 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/FDIS 20596-2:2020(E)

ISO 5667-10, Water quality — Sampling — Part 10: Guidance on sampling of waste waters

ISO 5667-14, Water quality — Sampling — Part 14: Guidance on quality assurance and quality control of

environmental water sampling and handling

ISO 8466-1, Water quality — Calibration and evaluation of analytical methods and estimation of

performance characteristics — Part 1: Statistical evaluation of the linear calibration function

ISO/TS 13530, Water quality — Guidance on analytical quality control for chemical and physicochemical

water analysis
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http:// www .iso .org ./ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Principle
4.1 Principle of preservation and extraction

The siloxane compounds (D4), (D5), and (D6) are relatively volatile and have low solubility in water

thus making accurate quantification in aqueous matrices challenging. Low density polyethylene (LDPE)

is added to samples to prevent volatilization of the cVMS through a partial physical barrier between the

water and headspace and a matrix to which the cVMS may adsorb. Hexane is then used to extract the

dissolved and sorbed fractions of cVMS. The hexane extracts are then analysed by GC-MS (Annex A).

5 Interferences
5.1 Interferences with sampling and processing

Silicones, including D4, D5, and D6 are widely used in industrial applications as well as personal care

products such as conditioner, hand lotion, sunscreens, and cosmetics (not all inclusive). Persons involved

with the collection and analysis of samples should refrain from using siloxane containing products to

limit potential contamination of the sample.

Additionally, the users should refrain from using collection devices, sampling containers, laboratory

equipment or consumables which may contain silicones/siloxanes. Sample contact surfaces should

be suitably rinsed with acetone or hexane and subsequently dried in a clean area of the laboratory to

remove any contamination.
5.2 Interferences with GC-MS

Silicones are also commonly found in parts and consumables associated with gas chromatography

including septa for the vials and inlet. Commonly used types of GC columns are polydimethylsiloxane

based which when exposed to moisture or when heated may generate cVMS and in such a way can

contribute to background. Thus, the use of non-polydimethylsiloxane-based GC columns is highly

recommended, in particular when analysing sub-ppb concentrations. Autosampler vial septa should be

silicone free or at a minimum coated with polytetrafluoroethylene on the side exposed to the sample.

2 © ISO 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/FDIS 20596-2:2020(E)

The inlet septum should be replaced with a Merlin MicroSeal™ to reduce background contamination

from this source. In addition, any solvents should be dried prior to injection into the GC or care should

be taken to use a solvent in which water is only soluble in the ppm levels.
5.3 Interferences determination

In order to determine the integrity of the sampling, processing and analysis of the samples, it is

recommended to prepare quality control (QC) samples. An example of QC samples consists of a series

of blanks and spikes to identify potential sources of contamination or loss during the life cycle of the

samples.
6 Reagents

It is recommended to verify the negligible amounts or absence of cVMS from solvents being utilized.

6.1 Water, grade 1, as defined in ISO 3696.

6.2 Hexane, C H n-hexane or mixture of isomers, determined to be suitably free of cVMS.

6 14
6.3 Tetrahydrofuran, C H O.
4 8
6.4 Calibration stock solutions.
6.4.1 Reference substances
See Table 1.
— Octamethylcyclotetrasiloxane;
— Decamethylcyclopentasiloxane;
— Dodecamethylcyclohexasiloxane.
6.4.2 Calibration stock solution 1

Weigh 30 mg of each of the listed standards into a 25 ml volumetric flask and fill to volume with hexane

(6.2). The concentration of this solution is approximately 1 200 µg/ml.
6.4.3 Calibration stock solution 2

Dilute calibration stock solution 1 (6.4.2) with hexane (6.2) in a ratio of 1:250. The concentration of this

solution is approximately 4 800 ng/ml.
6.4.4 Calibration stock solution 3

Dilute calibration stock solution 2 (6.4.3) with hexane (6.2) in a ratio of 1:100. The concentration of this

solution is approximately 48 ng/ml.

2) Merlin MicroSeal is the trademark of a product supplied by Sigma-Aldrich. This information is given for

the convenience of users of this document and does not constitute and endorsement by ISO of the product named.

Equivalent products may be used if they can be shown to lead to the same results.

© ISO 2020 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/FDIS 20596-2:2020(E)
6.5 Spiking stock solutions
6.5.1 Spiking stock solution 1

Dilute calibration stock solution 1 (6.4.2) with tetrahydrofuran (6.3) in a ratio of 1:100. The

concentration of this solution is approximately 12 µg/ml.
6.5.2 Spiking stock solution 2

Dilute spiking stock solution 1 (6.5.1) with tetrahydrofuran (6.3) in a ratio of 1:50. The concentration of

this solution is approximately or 240 ng/ml.
6.6 Internal standard working solution
6.6.1 Individual internal standards
C-labelled cVMS. Typical products available from suppliers are:
13 13
— C-D4, such as 2,4,6,8- C -octamethylcyclotetrasiloxane; or
— 2,2,4,4,6,6,8,8- C -octamethylcyclotetrasiloxane;
13 13
— C-D5, such as 2,4,6,8,10- C -decamethylcyclopentasiloxane; or
— or 2,2,4,4,6,6,8,8,10,10- C -decamethylcyclopentasiloxane;
13 13
— C-D6, such as 2,4,6,8,10,12- C -dodecamethylcyclohexasiloxane.
6.6.2 Internal standard stock solution 1

Weigh 10 mg of the appropriate internal standard (6.6.1) into a 100 ml volumetric flask and fill to

volume with hexane (6.2). The concentration of this solution is approximately 100 µg/ml.

6.6.3 Internal standard stock solution 2

Dilute internal standard stock solution 1 (6.6.2) with hexane (6.2) in a ratio of 1:100. The concentration

of this solution is approximately 1 000 ng/ml.
6.6.4 Internal standard working solution

Dilute internal standard stock solution 2 (6.6.3) with hexane (6.2) in a ratio of 1:250. The concentration

of this solution is approximately 4 ng/ml.
6.7 Calibration standards

Using Table 2 weigh the appropriate amount of calibration stock 2 (6.4.3) or calibration stock 3 (6.4.4)

into a 5 ml volumetric flask and dilute to volume with internal standard working solution (6.6.4). Weigh

the amount of internal standard working solution added and convert to volume using the density of the

solvent used. Table 2 is given as an example, the calibration range can be modified to meet the needs of

the samples. It is recommended that at least five calibration standards be used for a calibration curve.

Table 2 — Calibration standards
Calibration Volume Target con- Target concentration
stock centration (relative to 50 ml sample)
µl ng/ml µg/l
STD A 3 20 0,19 0,038
4 © ISO 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/FDIS 20596-2:2020(E)
Table 2 (continued)
Calibration Volume Target con- Target concentration
stock centration (relative to 50 ml sample)
µl ng/ml µg/l
STD B 3 50 0,48 0,096
STD C 3 125 1,2 0,24
STD D 3 275 2,6 0,53
STD E 3 550 5,3 1,1
STD F 2 15 14 2,9
STD G 2 25 24 4,8
STD H 2 50 48 9,6
STD I 2 100 96 19,2
STD J 2 300 288 57,6
STD K 2 750 720 144
STD L 2 1 500 1 440 288
7 Apparatus

WARNING — Any surfaces that come into contact with a solution to be analysed should be

suitably rinsed with acetone or hexane and allowed to dry in a clean area of the laboratory to

remove any contamination.
7.1 Gas chromatograph/mass spectrometer

The gas chromatograph shall be temperature-programmable, with all required accessories including

gasses, capillary columns, autosampler, and mass spectrometric detector. The inlet should be equipped

with a Merlin MicroSeal™ to minimize contamination (5.2).

The mass spectrometer should be capable of operating over the mass range of interest (200 m/z to

500 m/z) and it should be equipped with a data system capable of quantifying ions using selected

m/z values.
7.2 GC columns

Recommended column is DB-WAXetr (30 m × 0,25 mm i.d., 0,25 μm film thickness). If blank levels are

proved to be sufficiently low, other columns may be used such as DB-5ms , if appropriately tested prior

to sample processing.

If blank levels are proved to sufficiently low, other columns may be used such as DB-5ms , if

appropriately tested prior to sample processing.
7.3 Volumetric flasks, with inert/silicone free stopper.

7.4 Vials, glass autosampler vials with a fluorocarbon lined, non-silicone septa.

3) Merlin MicroSeal is the trademark of a product supplied by Sigma-Aldrich. This information is given for the

convenience of users of this document and does not constitute and endorsement by ISO of the product named.

Equivalent products may be used if they can be shown to lead to the same results.

4) DB-WAXetr and DB-5ms are the tradenames of products supplied by Agilent Technologies. This information is

given for the convenience of users of this document and does not constitute and endorsement by ISO of the product

named. Equivalent products may be used if they can be shown to lead to the same results.

© ISO 2020 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/FDIS 20596-2:2020(E)
7.5 Multi-Tube Vortexer , capable of handling multiple 125 ml jars.
7.6 Jars, 125 ml wide mouth glass jars with a PTFE lined lid.

7.7 Centrifuge, Alternative phase separation can be obtained by centrifuging the samples for 5 min at

2 500 rpm.

7.8 Low density polyethylene (LDPE), 51 µm to 63 μm thick clear base film. Film is cut into 2,5 cm ×

2,5 cm squares and subsequently washed twice with hexane and allowed to dry.
8 Method detection limits

Any laboratory performing this test will determine the limit of detection and the limit of quantification

as defined in ISO/TS 13530. The method detection limit and limit of quantification should be assessed

as defined in Annex B.
9 Quality control

Quality control samples shall be used to verify the integrity of the samples during sampling, processing

and analysing by indicating any potential contamination or loss of analyte (ISO 5667-14). This is most

important when analysing concentrations in the sub-ppb range, where relevant contamination with

cVMS is more likely. Typically, a series of blanks and spiked samples are used for quality control.

Reference examples of these quality control samples, and their use are described in Annex C.

Note The initial interlaboratory trial conducted when developing this document, for sub-ppb concentrations

did not meet the ISO performance criteria, mainly because of un-discovered contamination issue.

Blank levels and sample concentrations shall differ sufficiently to qualify sample concentrations as

relevant. In case - and this is considered necessary for concentrations close to detection limit - replicates

of blank samples and of actual samples are measured, the 2-sample t-test can be used to check for a

statistically significant difference.
10 Sampling and storage
10.1 Sampling preparation

Ensure that all sample contact surfaces have been washed with acetone or hexane and allowed to dry.

And ensure that all LDPE squares have been solvent washed in duplicate and allowed to dry.

Add 8 LDPE squares to each 125 ml uniquely labelled sample jar with lid. Take a weight of the sample

jar. This weight will be used to later determine the weight and volume of the sample.

10.2 Sample collection

Take samples in accordance with ISO 5667-4, ISO 5667-6, ISO 5667-10, ensure sampling collection

devices are clean and free of siloxanes. In order to collect a homogenous sample, the sample collection

device should be sufficient to contain a bulk sample so that sufficient replicate samples can be poured

or drawn from the same source. It is advisable to take two samples, on to be retained in the event of a

repeat analysis is required.

If field blanks are utilized, it is appropriate to open the field blanks as described in Annex C.

5) Multi-Tube Vortexer is the tradename of a product available commercially. This information is given for the

convenience of users of this document and does not constitute and endorsement by ISO of this product.

6 © ISO 2020 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/FDIS 20596-2:2020(E)

Rinse the sampling device three times with the intended sample and collect the bulk sample. Then

aliquot the bulk sample into the 125 ml sample jars so that each jar is approximately ½ full. This allows

for the solvent extraction step to be performed in the jar. The LDPE helps prevent volatilization of cVMS

into the headspace.

Close the samples and place them in a storage/shipping container to be maintained at a temperature

(5 ± 3) °C. These samples should be extracted within 14 d of collection.
11 Extraction and analysis
11.1 Extraction

Weigh the sample jar to determine the amount of sample collected. Add 10 ml of internal standard

working solution (6.6.4) to the samples. The samples are placed on the Multi-Tube Vortexer (7.5) and

vortexed at maximum speed for 30 min. The extracted sample in the jar is allowed to settle to separate

the organic phase, showing clear phase separation, or alternatively phase separation can be obtained by

centrifuging (7.7) the samples. The organic phase is removed and placed in a previously cleaned storage

vial. An aliquot is removed from the storage vial and placed into an autosampler vial for analysis by GC.

Note To reduce negative effects caused by water traces being present in the organic phase, it can be

advantageous to add approximately 1 g of dry MgSO into the vial.
11.2 GC conditions and operation
Example operating conditions can be found in Annex A.

If multiple injections of a sample, blank, or calibration solution are to be made, it is recommended to

prepare an autosampler vial for each injection to reduce spurious contamination. It is also recommended

to utilize the autosamplers needle wash function prior to and after each sample injection with a wash

of hexane.

Solvent blanks and a calibration solution should be run at intervals not to exceed more than ten

sample injections to verify the validity of the calibration curve as well to ensure the background of the

instrument is low.
12 Calibration
Example operating conditions can be found in Annex A.
12.1 General requirements

For practical reasons, the calibration uses at least five solutions containing the analytes of interest and

internal standards (Annex A and Table 2).
Ensure there is a linear dependence between signal and concentration.

Determine the linear working range using at least five measurements at difference concentrations, as

specified in ISO 8466-1.

The calibration function for a substance is valid only for the measured concentration range. Additionally,

the calibration func
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
