Standards Content (Sample)

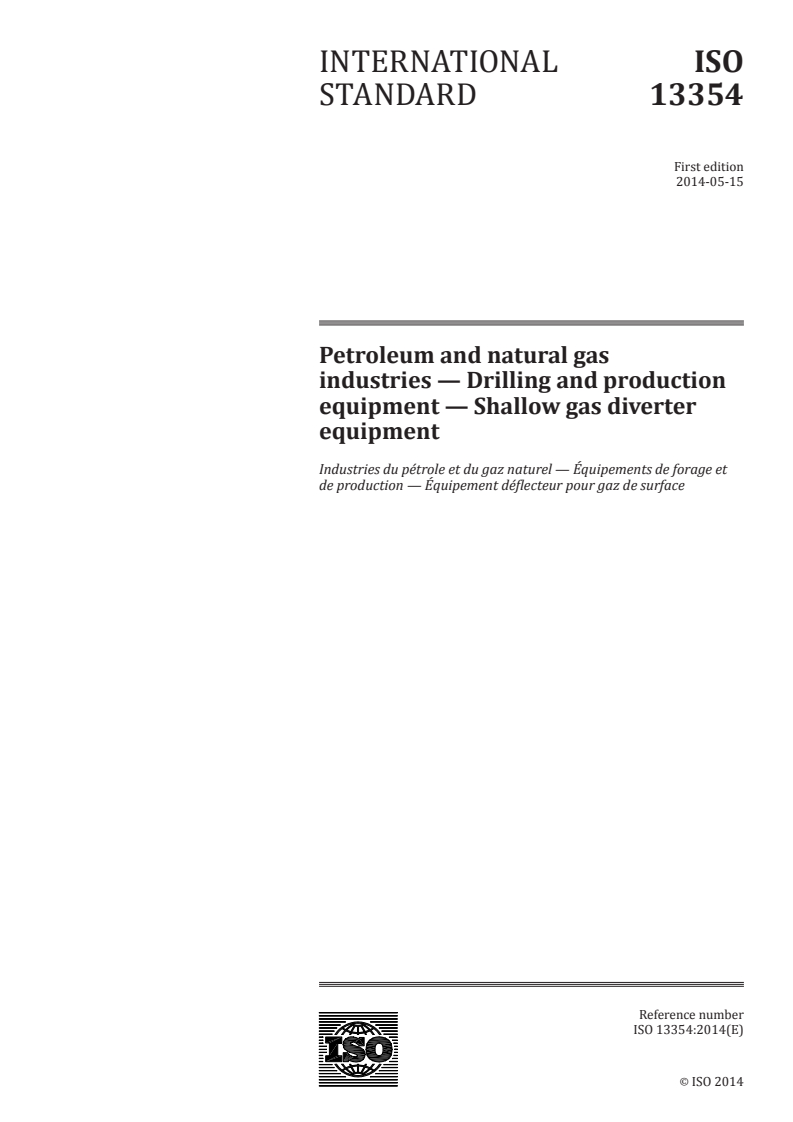

INTERNATIONAL ISO
STANDARD 13354
First edition
2014-05-15
Petroleum and natural gas
industries — Drilling and production
equipment — Shallow gas diverter
equipment
Industries du pétrole et du gaz naturel — Équipements de forage et
de production — Équipement déflecteur pour gaz de surface
Reference number
ISO 13354:2014(E)
ISO 2014
---------------------- Page: 1 ----------------------
ISO 13354:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 13354:2014(E)

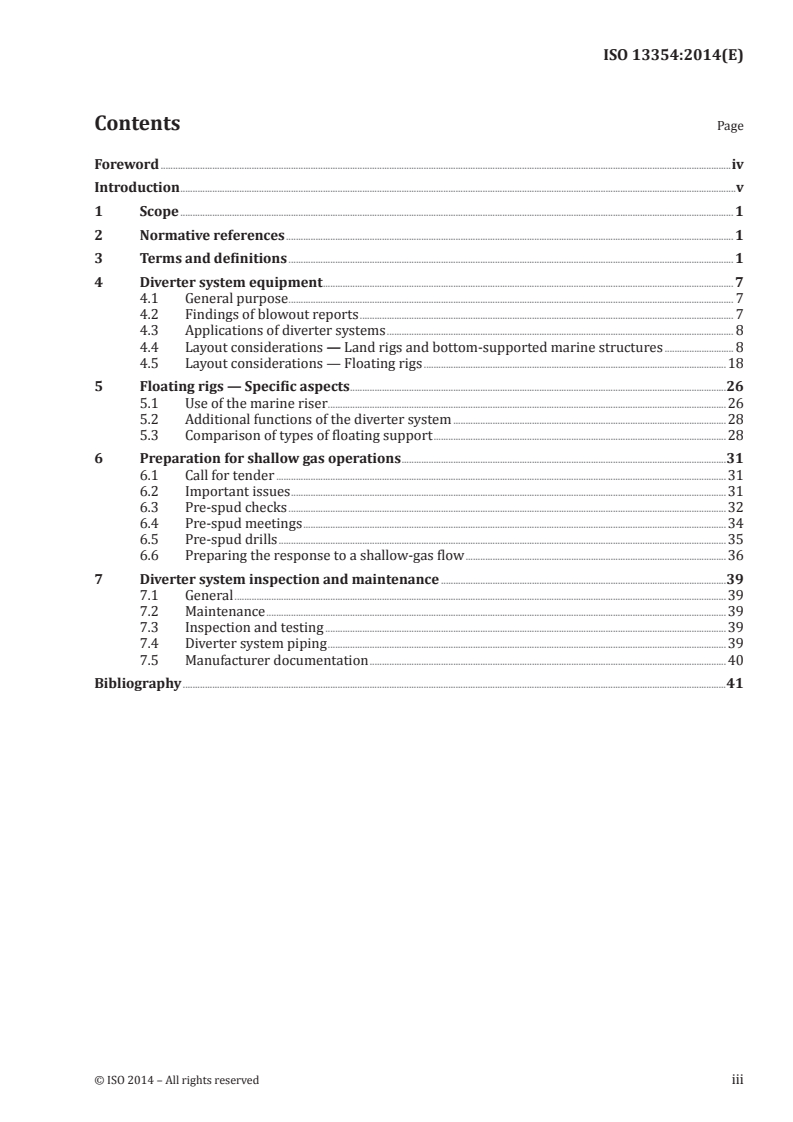

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Diverter system equipment ....................................................................................................................................................................... 7

4.1 General purpose ..................................................................................................................................................................................... 7

4.2 Findings of blowout reports ........................................................................................................................................................ 7

4.3 Applications of diverter systems ............................................................................................................................................. 8

4.4 Layout considerations — Land rigs and bottom-supported marine structures ............................ 8

4.5 Layout considerations — Floating rigs ...........................................................................................................................18

5 Floating rigs — Specific aspects .........................................................................................................................................................26

5.1 Use of the marine riser ..................................................................................................................................................................26

5.2 Additional functions of the diverter system ...............................................................................................................28

5.3 Comparison of types of floating support .......................................................................................................................28

6 Preparation for shallow gas operations ....................................................................................................................................31

6.1 Call for tender .......................................................................................................................................................................................31

6.2 Important issues .................................................................................................................................................................................31

6.3 Pre-spud checks ..................................................................................................................................................................................32

6.4 Pre-spud meetings ............................................................................................................................................................................34

6.5 Pre-spud drills ......................................................................................................................................................................................35

6.6 Preparing the response to a shallow-gas flow ..........................................................................................................36

7 Diverter system inspection and maintenance ....................................................................................................................39

7.1 General ........................................................................................................................................................................................................39

7.2 Maintenance ...........................................................................................................................................................................................39

7.3 Inspection and testing ...................................................................................................................................................................39

7.4 Diverter system piping ..................................................................................................................................................................39

7.5 Manufacturer documentation .................................................................................................................................................40

Bibliography .............................................................................................................................................................................................................................41

© ISO 2014 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 13354:2014(E)

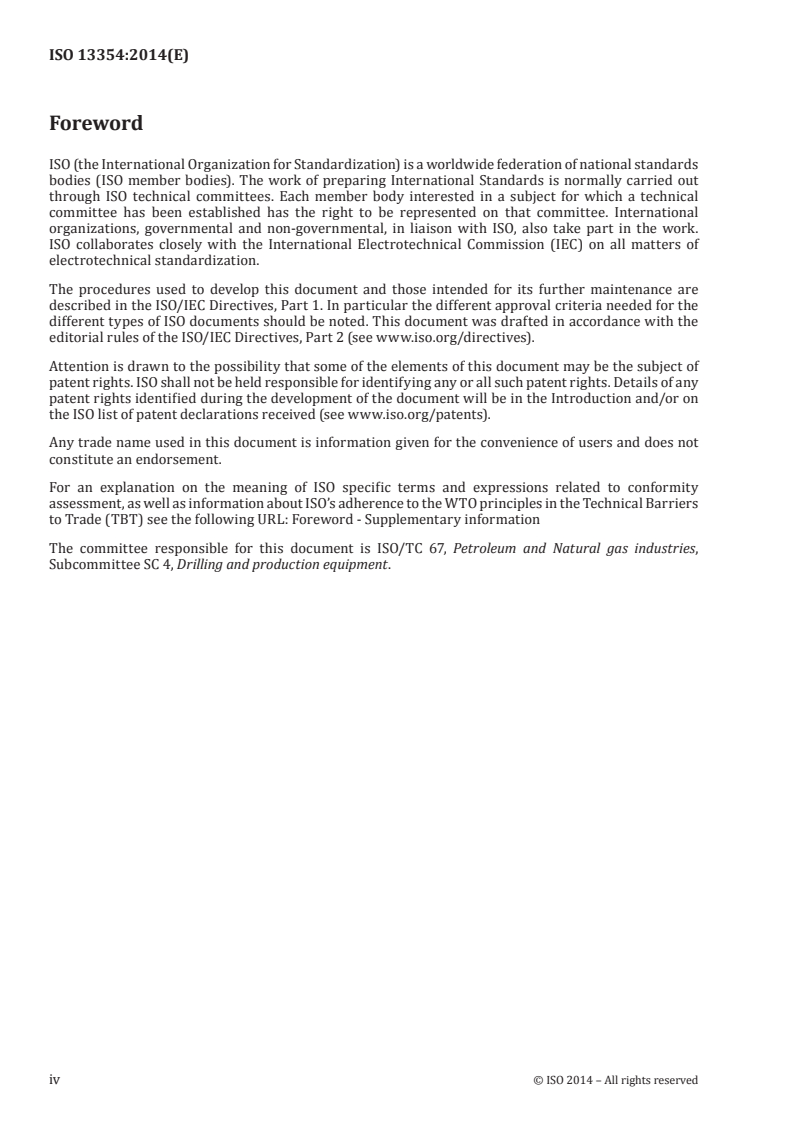

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any

patent rights identified during the development of the document will be in the Introduction and/or on

the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT) see the following URL: Foreword - Supplementary information

The committee responsible for this document is ISO/TC 67, Petroleum and Natural gas industries,

Subcommittee SC 4, Drilling and production equipment.
iv © ISO 2014 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 13354:2014(E)
Introduction

Drilling into shallow-gas-bearing formations is a very delicate and challenging operation. If the drilling

operations are seriously complicated by the reduced safety margin available between kick and loss, the

situation in case of a gas influx becomes extremely hazardous, due to a combination of the following

adverse factors.

— Shallow gas flows are extremely fast-developing events; there is only a short transition time

between influx detection and well unloading, resulting in a reduced time for the driller to take the

right decision, and leaving little room for error.

— Past blowout reports have disclosed the magnitude of severe dynamic loads applied to surface

diverting equipment. One of the associated effects is erosion, which adds a high potential for fire

and explosion due to flow impingement on rig facilities which gives the gas flow access to various

sources of ignition.

— Many past shallow-gas kicks turned into uncontrolled blowouts due to the failure of former diverter

systems installed several decades ago. Failure is seen as a result of the system’s complexity, its lack

of functional reliability and its inability to cope with the severe dynamic loads.

— Certain drilling supports are exposed to specific threats associated with shallow gas blowouts, e.g.

risk of cratering, risk of ship-shaped vessel capsize.

— Unprepared or inadequately trained drilling crews experience a high level of stress when facing a

violent shallow gas flow.

In the aftermath of shallow gas blowouts during the last four decades, comprehensive inquiries and

reports have been carried out, in particular by the specialists involved in combating these events, and

significant findings and conclusions have been published. In the meantime, the manufacturing industry

has developed various equipment aimed at significantly improving the safety of shallow-gas drilling

operations.

This International Standard has been prepared taking these aspects into consideration.

© ISO 2014 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 13354:2014(E)
Petroleum and natural gas industries — Drilling and
production equipment — Shallow gas diverter equipment
1 Scope

This International Standard specifies requirements for the selection of the diverter equipment for rigs

used to drill shallow-gas-bearing formations. It covers both onshore and offshore drilling operations,

and considers also the auxiliary equipment associated with floating rigs.
The specified requirements concern the following diverter equipment:
— annular sealing devices;
— vent outlets;
— diverter valves;
— diverter piping.

This International Standard highlights the concerns associated with the selection of a marine floating

drilling support. It covers safety issues concerning key rig equipment, and important steps of action

required prior to starting the drilling operations.

It provides only general guidelines regarding the response to be given to a shallow-gas flow.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 13533, Petroleum and natural gas industries — Drilling and production equipment — Drill-through

equipment

API 16D (latest revision), Specification for Control Systems for Drilling Well Control Equipment and Control

Systems for Diverter Equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
actuator

device used to open or close a valve by means of applied manual, hydraulic, pneumatic or electrical

energy
3.2
annular packing element

doughnut-shaped rubber/elastomer element that creates a seal in an annular preventer or diverter

Note 1 to entry: The annular packing element is displaced toward the bore centre by the upward movement of an

annular piston.
© ISO 2014 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 13354:2014(E)
3.3
annular sealing device

torus-shaped steel housing containing an annular packing element which facilitates closure of the

annulus by constricting to seal on the pipe or kelly in the wellbore

Note 1 to entry: Some annular sealing devices also facilitate shutoff of the open hole.

3.4
bag preventer
device that can seal around any object in the wellbore or upon itself

Note 1 to entry: Compression of a reinforced rubber/elastomer packing element by hydraulic pressure creates

the seal.
3.5
ball valve
valve that employs a rotating ball to open or close the flow passage
3.6
blowout

uncontrolled flow of well fluids and/or formation fluids from the wellbore or into lower-pressured

subsurface zones

Note 1 to entry: When the uncontrolled flow of fluids goes into lower-pressured subsurface zones, it is termed an

underground blowout.
3.7
blowout preventer stack
BOP stack

device that allows the well to be sealed to confine the well fluids in the wellbore

3.8
bottom-supported marine structure

drilling structure supported by the soil on the seabed while in the operating mode

Note 1 to entry: Rigs of this type include fixed platforms, submersibles, swamp barges and jack-up drilling rigs.

3.9
cleanout

point in the flow-line piping where the internal area of the pipe can be accessed to remove accumulated

debris and drill cuttings
3.10
closing unit

assemblage of pumps, valves, lines, accumulators and other items necessary to open and close the BOP

equipment and diverter system
3.11
control function

control system circuit (hydraulic, pneumatic, electrical, mechanical, or a combination thereof) used to

operate the position selection of a diverter unit, BOP, valve or regulator
EXAMPLE Diverter “close” function, starboard vent valve “open” function.
3.12
control function

each position of a diverter unit, BOP or valve and each regulator assignment that is operated by the

control system
2 © ISO 2014 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 13354:2014(E)
3.13
diverter

device attached to the wellhead or marine riser to close the vertical access and to direct any flow into a

set of vent lines and away from the drilling unit
3.14
diverter control system

assemblage of pumps, accumulators, manifolds, control panels, valves, lines, etc., used to operate the

diverter system
3.15
diverter housing

permanent installation under the rotary table which houses the insert-type diverter assembly

3.16
diverter packer
annular sealing device of the diverter
3.17
diverter piping
vent lines of the diverter
3.18
diverter system

assemblage, comprising an annular sealing device, flow control means, vent system components and

control system, which facilitates closure of the upward flow path of the well fluid and opening of the

vent to the atmosphere
3.19
diverter unit
device that embodies the annular sealing device and its actuating means
3.20
drill floor substructure

foundation structure on which the derrick, rotary table, draw-works and other drilling equipment are

supported
3.21
drilling spool

flanged joint placed between the BOP and casing-head that serves as a spacer or crossover

3.22
drill ship
self-propelled, floating, ship-shaped vessel equipped with drilling equipment
3.23
dump valve

device used to control bottom-riser annulus pressure by establishing direct communication with the

sea
3.24
dynamically positioned drilling vessel
DP drilling vessel

drill-ship or semi-submersible drilling rig equipped with computer-controlled thrusters which enable it

to maintain a constant position relative to a fixed point on the sea floor without the use of anchors and

mooring lines while conducting floating drilling operations
3.25
elastomer
any of various elastic compounds or substances resembling rubber
© ISO 2014 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 13354:2014(E)
3.26
fill-up line

line, usually connected into the bell nipple above the BOP, to allow addition of drilling fluid to the hole

while simultaneously pulling out of the hole to compensate for the metal volume displacement of the

drill string being pulled
3.27
flex/ball joint

device installed directly above the subsea BOP stack and at the top of the telescopic riser joint to permit

relative angular movement of the riser, thus reducing stresses due to vessel motions and environmental

forces
3.28
flow-line
shaker line

piping that exits the bell nipple and conducts drilling fluid and cuttings to the shale shaker and drilling

fluid pits
3.29
formation fracture pessure

value of pressure required to initiate a fracture in a subsurface formation (geologic strata)

3.30
function test
closing and opening (cycling) equipment to verify operability
3.31
gate valve
valve that employs a sliding gate to open or close the flow passage
3.32
hydrostatic head
true vertical length of fluid column
3.33
hydrostatic pressure

pressure that exists at any point in the wellbore due to the weight of the vertical column of fluid above

that point
3.34
inner barrel

part of the telescopic slip joint on a marine riser that is attached to the flex joint beneath the diverter

3.35
insert-type packer

diverter element that uses inserts designed to close and seal on specific ranges of pipe diameter

3.36
integral valve

valve embodied in the diverter unit that operates integrally with the annular sealing device

3.37
interlock

arrangement of control system functions designed to require the actuation of one function as a

prerequisite to actuate another
4 © ISO 2014 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 13354:2014(E)
3.38
kelly

joint of pipe with flat or fluted sides that is free to move vertically through a bushing in the rotary table

Note 1 to entry: The bushing is termed a “kelly bushing”, and it imparts torque to the kelly thereby rotating the

drill string.
3.39
kick

influx of gas, oil or other well fluids which, if not controlled, can result in a blowout

3.40
kill mud

drilling fluid with sufficient mud weight used to overcome the borehole pressure in case of well influx

3.41
knife valve
valve using a portal plate or blade to facilitate open and close operations

Note 1 to entry: A knife valve differs from a gate valve in that the bonnet area is open, i.e. not sealed.

3.42
lost circulation
loss of drilling fluid to the wellbore
3.43
marine riser

extension of the well-bore from the subsea conductor pipe housing or wellhead to the floating drilling

vessel which provides for fluid returns to the drilling vessel and guides tools into the well

3.44
moored vessel

offshore floating drilling vessel which relies on anchors, chain and mooring lines extended to the ocean

floor to maintain a constant location relative to the ocean floor
3.45
mud line
floor of an ocean, lake, bay or swamp
3.46
outer barrel

part of the telescopic slip joint on a marine riser that is attached to tensioner lines

Note 1 to entry: Tension is transferred through the outer barrel into the riser.
3.47
pre-spud
period of time which precedes the start of drilling activities
3.48
poor-boy separator

pressure vessel designed to provide effective separation of gas from drilling fluid at atmospheric

pressure while circulating out a wellbore kick through the choke manifold
3.49
primary well control

prevention of formation fluid flow by maintaining a hydrostatic pressure equal to or greater than the

formation pressure
© ISO 2014 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 13354:2014(E)
3.50
production platform

permanently installed bottom-supported/connected offshore structure, fitted with drilling and/or

production equipment for drilling and/or development of offshore oil and gas reservoirs

3.51
riser hydraulic connector

hydraulic latch which connects the 762 mm (30 in) conductor pipe housing and the bottom of the marine

riser
Note 1 to entry: O-ring seals prevent leaks between the latch and the housing.
3.52
rotary table

device through which the bit and drill string pass and which transmits rotational action to the kelly

3.53
subsea diverter
seabed diverter

set-up of equipment attached to the bottom of the marine riser and connected to the 762 mm (30 in)

subsea wellhead housing, designed to close the well in case of shallow-gas influx and to direct it through

two subsea lateral vent outlets
3.54
semi-submersible

floating offshore drilling vessel which is ballasted at the drilling location and conducts drilling operations

in a stable, partly submerged position
3.55
target

bull plug or blind flange at the end of a tee to reduce erosion at a point where change in flow direction

occurs
3.56
targeted

having a type of fluid piping system in which flow impinges upon a lead (or other material)-filled end

(target) or a piping tee when the fluid flow changes direction
3.57
telescopic joint packer

torus-shaped, hydraulically, pneumatically or mechanically actuated, resilient element between the

inner and outer barrels of the telescopic joint which serves to retain drilling fluid inside the marine riser

3.58
vent line

conduit that directs the flow of diverted wellbore fluids away from the drill floor and to the atmosphere

3.59
vent line valve

full-opening valve which allows passage of diverted wellbore fluids through the vent line

3.60
vent outlet

point at which fluids exit the wellbore below the annular sealing device via the vent line

3.61
wellhead

apparatus or structure, placed on the top of the casings, that supports the internal tubular, seals the well

and permits access to the casing annulus
6 © ISO 2014 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 13354:2014(E)
3.62
working pressure rating
WP rating
maximum internal pressure that the equipment is designed to contain or control
4 Diverter system equipment
4.1 General purpose

The diverter system is designed to permit the drilling crew to blow down shallow-gas accumulations

downwind of the rig. Until a sufficient casing length has been set to allow a well to be shut-in during a kick,

the diverter system is the only line of defence, and is only expected to contain the hazard temporarily,

although as long as possible.

The diverter system is not intended to be a well-control device. It simply allows the flow to be diverted

in a safe manner in order to allow enough time to attempt regaining primary control of the well and,

should the latter fail, enough time for proper evacuation of the drilling crew or for proper move-off of

the drilling unit from the location (floating rigs), until the flow stops due to gas accumulation blow-

down, hole bridging, hole collapse, etc.
Traditional diverter system components comprise:
— the annular sealing device;
— vent outlet(s) and vent line(s);
— valves;
— the control system.
4.2 Findings of blowout reports

Blowout inquiries have concluded that the original designs underestimated the fact that shallow-gas

blowouts produce huge amounts of gas, together with abrasive solids, flowing at very high speed,

producing severe dynamic loads, and eroding and destroying many parts of the existing diverter

systems.

The failure of these diverter systems led unfortunately to the loss of many lives.

It is therefore of paramount importance to select suitable equipment able to function in a reliable and safe

manner, i.e. able to operate whenever required under the worst possible conditions. Diverter equipment

shall also be able to cope with the prevailing dynamic loads and associated effects.

The most frequent findings from blowout reports are as follows.
— Insert-type diverters have too many components.

— The locking mechanism of insert-type diverters is not really designed to contend with severe

dynamic loads.

— Insert-type diverter packers cannot close on open-hole and on some drilling assemblies.

— Piston-actuated bag preventers are stronger and less complex, but close too slowly.

— Diverter outlets often promote erosion.

— Diverter vent lines are usually thin-walled, too small in diameter, have a tortuous path, and are

inadequately supported, fastened and secured.
— Some valve systems are inadequate and unreliable.
© ISO 2014 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO 13354:2014(E)
— Layouts for control systems are too complex.
— Power sources of some control systems are not reliable.

— The maintenance of diverter systems is not given the same importance compared to BOPs.

4.3 Applications of diverter systems
Diverters are primarily used to divert flow from the rig in three situations:
— shallow fluid and gas flows;
— drilling with a rotating head;
— drilling with a marine riser.

This International Standard will not discuss the specific aspects associated with rotating-head drilling.

4.4 Layout considerations — Land rigs and bottom-supported marine structures
4.4.1 General

Drilling operations into shallow-gas-bearing formations include drilling from a land rig, or from a marine

structure supported by a mat-type base, by legs, or drilling from a barge that rests on the bottom, e.g.

jack-up drilling rigs, production platforms rigs and swamp-barge rigs.

Land rigs and bottom-supported marine structures have at their disposal a wide range of equipment to

build diverter arrangements.
4.4.2 Types of annular sealing devices in use
4.4.2.1 Insert-type diverter assembly

In the insert-type diverter assembly, the insert packing is latched in place into a diverter assembly, which

in turn is locked inside the support housing. This housing provides two outlets, one for the mud returns

to flow towards the shakers, one for the diverted fluids to flow out through the vent line(s). The insert is

removed prior to pulling or running the bottom-hole assembly (see Figure 1).

The rig substructure and the diverter assembly locking dogs shall be able to withstand the upward

forces of the diverted fluid.
4.4.2.2 Annular packing element

This set-up requires a conventional bag-type preventer and a drilling spool (or diverter spool) which are

directly located on top of the first casing (conductor pipe, drive pipe). This set-up is therefore below the

rotary table and below the flow-line, unlike the insert-type diverter assembly (see Figure 2).

The connections shall be in accordance with the applicable provisions of ISO 13533. The annular

packing element should be of sufficient internal diameter to pass the various bottom-hole assemblies

and casing/liner strings required for subsequent drilling operations.

NOTE For the purposes of this provision, ANSI/API 16A is equivalent to ISO 13533.

8 © ISO 2014 – All rights reserved
---------------------- Page: 13 ----------------------
ISO 13354:2014(E)
Key
1 insert packing
2 piston
3 support housing
4 flow line outlet
5 vent line outlet
Figure 1 — Example of insert-type diverter assembly
© ISO 2014 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO 13354:2014(E)
Key
1 bell nipple 6 vent line
2 flow line 7 diverter spool
3 fill-up line 8 hydraulically operated full opening valve
4 annular packing element 9 drive/conductor pipe
5 standard bag-type preventer
Figure 2 — Example of diverter assembly with annular packing element
4.4.2.3 Comparison of systems
The two systems can be compared as follows.
a) Insert-type diverter assembly
10 © ISO 2014 – All rights reserved
---------------------- Page: 15 ----------------------
ISO 13354:2014(E)
— Advantages:
— quick assembly;
— flow-line, fill-up line and vent line permanently hooked up;
— faster shut-in time;
— light equipment, not cumbersome.
— Drawbacks:

— the insert-type diverter system cannot withstand more than 3 447 kPa (500 psi) beneath the

packer; this can be a problem when coping with severe gas flows;
— insert-type packer never providing complete pack-off on open hole;
— requires a significant number of valves, adding potential failure points;

— requires complex sequencing operations and interlocks to activate the vent and flow-line valves;

— requires complex control system and several power sources (pneumatic and hydraulic) to

perform the closing sequence, adding potential failure points;

— location likely to create potential erosion points in the flow-line if the latter is not properly

designed;

— overshot packer located below the diverter system, hence exposed to shallow gas flow;

— ease of hook-up is largely outweighed by the potential for failure and leaks.
b) Classical annular packing assembly
— Advantages:

— dynamic loads absorbed by the conductor pipe and the diverter system connection (clamp or

flange);

— reduced number of remotely controlled valves, due to the system position directly on top of the

first casing and below the flow-line;
...

DRAFT INTERNATIONAL STANDARD ISO/DIS 13354
ISO/TC 67/SC 4 Secretariat: ANSI
Voting begins on Voting terminates on
2013-02-07 2013-07-07

INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION

Petroleum and natural gas industries — Shallow gas diverter
equipment

Industries du pétrole et du gaz naturel — Equipement de diversion pour gaz de surface

ICS 75.180.10
ISO/CEN PARALLEL PROCESSING

This draft has been developed within the International Organization for Standardization (ISO), and

processed under the ISO-lead mode of collaboration as defined in the Vienna Agreement.

This draft is hereby submitted to the ISO member bodies and to the CEN member bodies for a parallel

five-month enquiry.

Should this draft be accepted, a final draft, established on the basis of comments received, will be

submitted to a parallel two-month approval vote in ISO and formal vote in CEN.

To expedite distribution, this document is circulated as received from the committee

secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at

publication stage.

Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du

secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au

Secrétariat central de l'ISO au stade de publication.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE

REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.

IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT

INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO

WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.

RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH

THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
© International Organization for Standardization, 2013
---------------------- Page: 1 ----------------------
ISO/DIS 13354

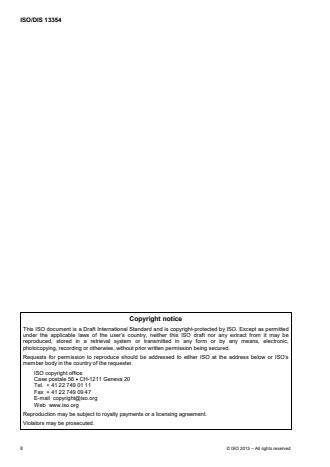

Copyright notice

This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted

under the applicable laws of the user’s country, neither this ISO draft nor any extract from it may be

reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic,

photocopying, recording or otherwise, without prior written permission being secured.

Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s

member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2013 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 13354

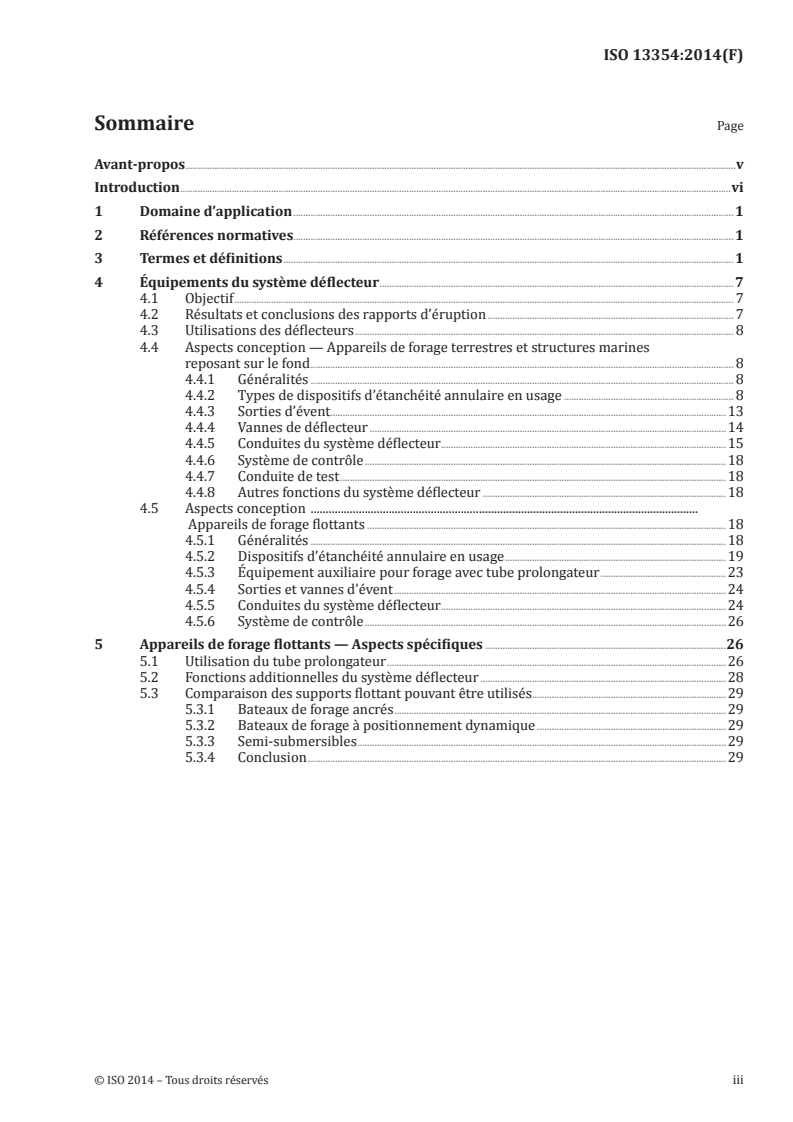

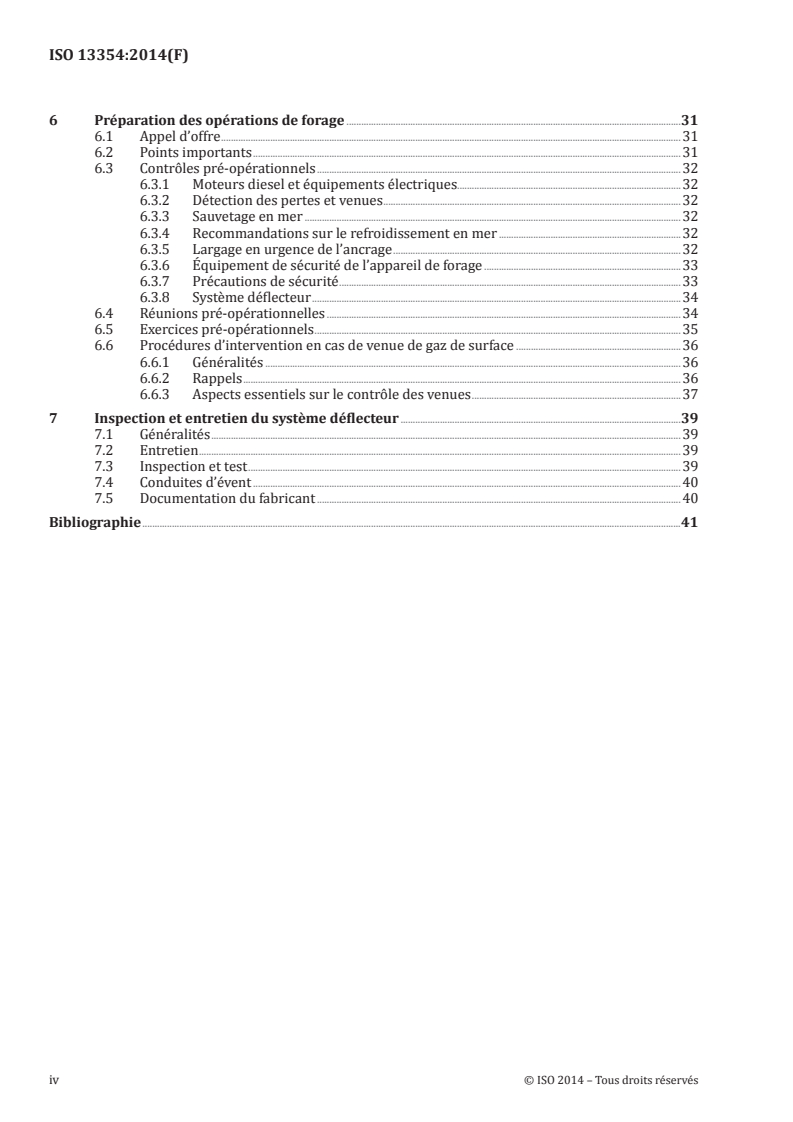

Contents Page

Foreword ............................................................................................................................................................. v

Introduction ........................................................................................................................................................ vi

1 Scope ...................................................................................................................................................... 1

2 Normative references ............................................................................................................................ 1

3 Terms and definitions ........................................................................................................................... 1

4 Diverter system equipment .................................................................................................................. 7

4.1 General purpose .................................................................................................................................... 7

4.2 Findings of blowout reports ................................................................................................................. 7

4.3 Applications of diverter systems ......................................................................................................... 8

4.4 Design considerations — Land rigs and bottom-supported marine structures ............................. 8

4.4.1 General ................................................................................................................................................... 8

4.4.2 Types of annular sealing devices in use ............................................................................................. 8

4.4.3 Vent outlets .......................................................................................................................................... 12

4.4.4 Diverter valves ..................................................................................................................................... 14

4.4.5 Diverter piping ..................................................................................................................................... 15

4.4.6 The control system .............................................................................................................................. 18

4.4.7 Kill-line facility ..................................................................................................................................... 18

4.4.8 Additional functions for the diverter system .................................................................................... 18

4.5 Design considerations — Floating rigs ............................................................................................. 18

4.5.1 General ................................................................................................................................................. 18

4.5.2 Annular sealing devices in use .......................................................................................................... 19

4.5.3 Auxiliary diverter system equipment for riser drilling ..................................................................... 21

4.5.4 Diverter outlets and valves ................................................................................................................. 23

4.5.5 Diverter piping ..................................................................................................................................... 23

4.5.6 Control system .................................................................................................................................... 24

5 Floating rigs — Specific aspects ....................................................................................................... 24

5.1 Use of the marine riser ........................................................................................................................ 24

5.2 Additional functions of the diverter system ..................................................................................... 27

5.3 Comparison of types of floating support .......................................................................................... 27

5.3.1 Moored drill ships ................................................................................................................................ 27

5.3.2 DP drill-ships ....................................................................................................................................... 28

5.3.3 Semi-submersibles .............................................................................................................................. 28

5.3.4 Conclusion ........................................................................................................................................... 28

6 Preparation for shallow gas operations ............................................................................................ 30

6.1 Call for tender ...................................................................................................................................... 30

6.2 Important issues .................................................................................................................................. 30

6.3 Pre-spud checks .................................................................................................................................. 31

6.3.1 Diesel engines and electrical equipment .......................................................................................... 31

6.3.2 Kick and loss detection ...................................................................................................................... 31

6.3.3 Offshore rescue ................................................................................................................................... 31

6.3.4 Offshore cooling recommendations .................................................................................................. 31

6.3.5 Offshore emergency-release requirements ...................................................................................... 31

6.3.6 Rig safety equipment .......................................................................................................................... 32

6.3.7 Safety precautions .............................................................................................................................. 32

6.3.8 Diverter system .................................................................................................................................... 32

6.4 Pre-spud meetings .............................................................................................................................. 33

6.5 Pre-spud drills ..................................................................................................................................... 34

6.6 Preparing the response to a shallow-gas flow ................................................................................. 34

6.6.1 General ................................................................................................................................................. 34

© ISO 2012 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 13354

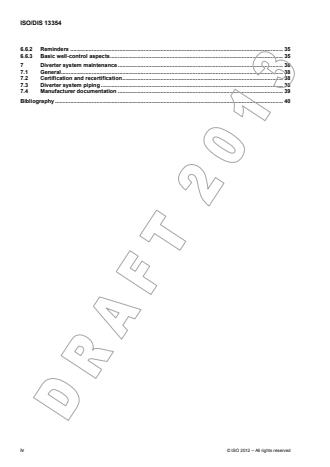

6.6.2 Reminders ........................................................................................................................................... 35

6.6.3 Basic well-control aspects ................................................................................................................. 35

7 Diverter system maintenance ............................................................................................................ 38

7.1 General ................................................................................................................................................. 38

7.2 Certification and recertification ......................................................................................................... 38

7.3 Diverter system piping ....................................................................................................................... 38

7.4 Manufacturer documentation ............................................................................................................ 39

Bibliography ..................................................................................................................................................... 40

iv © ISO 2012 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 13354
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 13354 was prepared by Technical Committee ISO/TC 67, Petroleum and Natural gas industries,

Subcommittee SC 4, Drilling and production equipment.
© ISO 2012 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/DIS 13354
Introduction

Drilling into shallow-gas-bearing formations is a very delicate and challenging operation. If the drilling

operations are seriously complicated by the reduced safety margin available between kick and loss, the

situation in case of a gas influx becomes extremely hazardous, due to a combination of the following adverse

factors.

 Shallow gas flows are extremely fast-developing events; there is only a short transition time between

influx detection and well unloading, resulting in a reduced time for the driller to take the right decision, and

leaving little room for error.

 Past blowout reports have disclosed the magnitude of severe dynamic loads applied to surface diverting

equipment. One of the associated effects is erosion, which adds a high potential for fire and explosion

due to flow impingement on rig facilities which gives the gas flow access to various sources of ignition.

 Many past shallow-gas kicks turned into uncontrolled blowouts due to the failure of former diverter

systems installed several decades ago. Failure is seen as a result of the system's complexity, its lack of

functional reliability and its inability to cope with the severe dynamic loads,

 Certain drilling supports are exposed to specific threats associated with shallow gas blowouts, e.g. risk of

cratering, risk of ship-shaped vessel capsize,

 Unprepared or inadequately trained drilling crews experience a high level of stress when facing a violent

shallow gas flow.

In the aftermath of shallow gas blowouts during the last four decades, comprehensive inquiries and reports

have been carried out, in particular by the specialists involved in combating these events, and significant

findings and conclusions have been published. In the meantime, the manufacturing industry has developed

various equipment aimed at significantly improving the safety of shallow-gas drilling operations.

This International Standard has been prepared taking these aspects into consideration.

vi © ISO 2012 – All rights reserved
---------------------- Page: 6 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 13354
Petroleum and natural gas industries — Drilling and production
equipment — Shallow gas diverter equipment
1 Scope

This International Standard specifies requirements for the selection of the diverter equipment for rigs used to

drill shallow-gas-bearing formations. It covers both onshore and offshore drilling operations, and considers

also the auxiliary equipment associated with floating rigs.
The specified requirements concern the following diverter equipment:
 annular sealing devices;
 vent outlets;
 diverter valves;
 diverter piping.

This International Standard highlights the concerns associated with the selection of a marine floating drilling

support. It covers safety issues concerning key rig equipment, and important steps of action required prior to

starting the drilling operations.

It provides only general guidelines regarding the response to be given to a shallow-gas flow.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

ISO 13533:2001, Petroleum and natural gas industries — Drilling and production equipment — Drill-through

equipment

API 16D:2005, Specification for Control Systems for Drilling Well Control Equipment and Control Systems for

Diverter Equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
actuator

device used to open or close a valve by means of applied manual, hydraulic, pneumatic or electrical energy

© ISO 2012 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/DIS 13354
3.2
annular packing element

doughnut-shaped rubber/elastomer element that creates a seal in an annular preventer or diverter

Note 1 to entry: The annular packing element is displaced toward the bore centre by the upward movement of an

annular piston.
3.3
annular sealing device

torus-shaped steel housing containing an annular packing element which facilitates closure of the annulus by

constricting to seal on the pipe or kelly in the wellbore

Note 1 to entry: Some annular sealing devices also facilitate shutoff of the open hole.

3.4
bag preventer
device that can seal around any object in the wellbore or upon itself

Note 1 to entry: Compression of a reinforced rubber/elastomer packing element by hydraulic pressure creates the seal.

3.5
ball valve
valve that employs a rotating ball to open or close the flow passage
3.6
blowout

uncontrolled flow of well fluids and/or formation fluids from the wellbore or into lower-pressured subsurface

zones

Note 1 to entry: When the uncontrolled flow of fluids goes into lower-pressured subsurface zones, it is termed an

underground blowout.
3.7
blowout preventer stack
BOP stack

device that allows the well to be sealed to confine the well fluids in the wellbore

3.8
bottom-supported marine structure

drilling structure supported by the soil on the seabed while in the operating mode

Note 1 to entry: Rigs of this type include fixed platforms, submersibles, swamp barges and jack-up drilling rigs.

3.9
cleanout

point in the flow-line piping where the internal area of the pipe can be accessed to remove accumulated debris

and drill cuttings
3.10
closing unit

assemblage of pumps, valves, lines, accumulators and other items necessary to open and close the BOP

equipment and diverter system
3.11
control function

control system circuit (hydraulic, pneumatic, electrical, mechanical, or a combination thereof) used to operate

the position selection of a diverter unit, BOP, valve or regulator
EXAMPLES Diverter “close” function, starboard vent valve “open” function.
2 © ISO 2012 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/DIS 13354
3.12
control function

each position of a diverter unit, BOP or valve and each regulator assignment that is operated by the control

system
3.13
diverter

device attached to the wellhead or marine riser to close the vertical access and to direct any flow into a set of

vent lines and away from the drilling unit
3.14
diverter control system

assemblage of pumps, accumulators, manifolds, control panels, valves, lines, etc., used to operate the

diverter system
3.15
diverter housing

permanent installation under the rotary table which houses the insert-type diverter assembly

3.16
diverter packer
annular sealing device of the diverter
3.17
diverter piping
vent lines of the diverter
3.18
diverter system

assemblage, comprising an annular sealing device, flow control means, vent system components and control

system, which facilitates closure of the upward flow path of the well fluid and opening of the vent to the

atmosphere
3.19
diverter unit
device that embodies the annular sealing device and its actuating means
3.20
drill floor substructure

foundation structure on which the derrick, rotary table, draw-works and other drilling equipment are supported

3.21
drilling spool

flanged joint placed between the BOP and casing-head that serves as a spacer or crossover

3.22
drill ship
self-propelled, floating, ship-shaped vessel equipped with drilling equipment
3.23
dump valve

device used to control bottom-riser annulus pressure by establishing direct communication with the sea

3.24
dynamically positioned drilling vessel
DP drilling vessel

drill-ship or semi-submersible drilling rig equipped with computer-controlled thrusters which enable it to

maintain a constant position relative to the sea floor without the use of anchors and mooring lines while

conducting floating drilling operations
© ISO 2012 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/DIS 13354
3.25
dynamic kill procedure

planned operation to control a flowing well by pumping fluid of sufficient density and at a sufficient rate into the

wellbore to effect a kill without completely closing in the well with the surface containment equipment

3.26
elastomer
any of various elastic compounds or substances resembling rubber
3.27
fill-up line

line, usually connected into the bell nipple above the BOP, to allow addition of drilling fluid to the hole while

simultaneously pulling out of the hole to compensate for the metal volume displacement of the drill string

being pulled
3.28
flex/ball joint

device installed directly above the subsea BOP stack and at the top of the telescopic riser joint to permit

relative angular movement of the riser, thus reducing stresses due to vessel motions and environmental

forces
3.29
flow-line
shaker line

piping that exits the bell nipple and conducts drilling fluid and cuttings to the shale shaker and drilling fluid pits

3.30
formation fracture gradient

value of pressure required to initiate a fracture in a subsurface formation (geologic strata)

3.31
function test
closing and opening (cycling) equipment to verify operability
3.32
gate valve
valve that employs a sliding gate to open or close the flow passage
3.33
hydrostatic head
true vertical length of fluid column
3.34
hydrostatic pressure

pressure that exists at any point in the wellbore due to the weight of the vertical column of fluid above that

point
3.35
inner barrel

part of the telescopic slip joint on a marine riser that is attached to the flex joint beneath the diverter

3.36
insert-type packer

diverter element that uses inserts designed to close and seal on specific ranges of pipe diameter

3.37
integral valve

valve embodied in the diverter unit that operates integrally with the annular sealing device

4 © ISO 2012 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/DIS 13354
3.38
interlock

arrangement of control system functions designed to require the actuation of one function as a prerequisite to

actuate another
3.39
kelly

joint of pipe with flat or fluted sides that is free to move vertically through a bushing in the rotary table

Note 1 to entry: The bushing is termed a “kelly bushing”, and it imparts torque to the kelly thereby rotating the drill string.

3.40
kick

influx of gas, oil or other well fluids which, if not controlled, can result in a blowout

3.41
kill mud

drilling fluid with sufficient mud weight used to overcome the borehole pressure in case of well influx

3.42
knife valve
valve using a portal plate or blade to facilitate open and close operations

Note 1 to entry: A knife valve differs from a gate valve in that the bonnet area is open, i.e. not sealed.

3.43
lost circulation
loss of drilling fluid to the wellbore
3.44
marine riser

extension of the well-bore from the subsea conductor pipe housing or wellhead to the floating drilling vessel

which provides for fluid returns to the drilling vessel and guides tools into the well

3.45
moored vessel

offshore floating drilling vessel which relies on anchors, chain and mooring lines extended to the ocean floor to

maintain a constant location relative to the ocean floor
3.46
mud line
floor of an ocean, lake, bay or swamp
3.47
outer barrel

part of the telescopic slip joint on a marine riser that is attached to tensioner lines

Note 1 to entry: Tension is transferred through the outer barrel into the riser.
3.48
pre-spud
period of time which precedes the start of drilling activities
3.49
poor-boy separator

pressure vessel designed to provide effective separation of gas from drilling fluid at atmospheric pressure

while circulating out a wellbore kick through the choke manifold
© ISO 2012 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/DIS 13354
3.50
primary well control

prevention of formation fluid flow by maintaining a hydrostatic pressure equal to or greater than the formation

pressure
3.51
production platform

permanently installed bottom-supported/connected offshore structure, fitted with drilling and/or production

equipment for drilling and/or development of offshore oil and gas reservoirs
3.52
riser hydraulic connector

hydraulic latch which connects the 762 mm (30 in) conductor pipe housing and the bottom of the marine riser

Note 1 to entry: O-ring seals prevent leaks between the latch and the housing.
3.53
rotary table

device through which the bit and drill string pass and which transmits rotational action to the kelly

3.54
subsea diverter
seabed diverter

set-up of equipment attached to the bottom of the marine riser and connected to the 762 mm (30 in) subsea

wellhead housing, designed to close the well in case of shallow-gas influx and to direct it through two subsea

lateral vent outlets
3.55
semi-submersible

floating offshore drilling vessel which is ballasted at the drilling location and conducts drilling operations in a

stable, partly submerged position
3.56
target

bull plug or blind flange at the end of a tee to prevent erosion at a point where change in flow direction occurs

3.57
targeted

type of fluid piping system in which flow impinges upon a lead (or other material)-filled end (target) or a piping

tee when the fluid flow changes direction
3.58
telescopic joint packer

torus-shaped, hydraulically, pneumatically or mechanically actuated, resilient element between the inner and

outer barrels of the telescopic joint which serves to retain drilling fluid inside the marine riser

3.59
vent line

conduit that directs the flow of diverted wellbore fluids away from the drill floor and to the atmosphere

3.60
vent-line valve

full-opening valve which allows passage of diverted wellbore fluids through the vent line

3.61
vent outlet

point at which fluids exit the wellbore below the annular sealing device via the vent line

6 © ISO 2012 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/DIS 13354
3.62
wellhead

apparatus or structure, placed on the top of the casings, that supports the internal tubular, seals the well and

permits access to the casing annulus
3.63
working pressure rating
WP rating
maximum internal pressure that the equipment is designed to contain or control
4 Diverter system equipment
4.1 General purpose

The diverter system is designed to permit the drilling crew to blow down shallow-gas accumulations downwind

of the rig. Until a sufficient casing length has been set to allow a well to be shut-in during a kick, the diverter

system is the only line of defence, and is only expected to contain the hazard temporarily, although as long as

possible.

The diverter system is not intended to be a well-control device. It simply allows the flow to be diverted in a

safe manner in order to allow enough time to attempt regaining primary control of the well and, should the

latter fail, enough time for proper evacuation of the drilling crew or for proper move-off of the drilling unit from

the location (floating rigs), until the flow stops due to gas accumulation blow-down, hole bridging, hole

collapse, etc.
Traditional diverter system components comprise:
 the annular sealing device;
 vent outlet(s) and vent-line(s);
 valves;
 the control system.
4.2 Findings of blowout reports

Blowout inquiries have concluded that the original designs underestimated the fact that shallow-gas blowouts

produce huge amounts of gas, together with abrasive solids, flowing at very high speed, producing severe

dynamic loads, and eroding and destroying many parts of the existing diverter systems.

Statistics obtained in the 1990s in Norway have shown that 54 % of shallow-gas blowouts caused severe

damage or total loss of the drilling structure and support, due to the failure of the diverter system.

Unfortunately, many lives were lost during those dramatic events.

It is therefore of paramount importance to select suitable equipment able to function in a reliable and safe

manner, i.e. able to operate whenever required under the worst possible conditions. Diverter equipment shall

also be able to cope with the prevailing dynamic loads and associated effects.
The most frequent
...

NORME ISO
INTERNATIONALE 13354
Première édition
2014-05-15
Industries du pétrole et du gaz
naturel — Équipements de forage
et de production — Équipement
déflecteur pour gaz de surface
Petroleum and natural gas industries — Drilling and production
equipment — Shallow gas diverter equipment
Numéro de référence
ISO 13354:2014(F)
ISO 2014
---------------------- Page: 1 ----------------------
ISO 13354:2014(F)
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2014

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée

sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur

l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à

l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2014 – Tous droits réservés
---------------------- Page: 2 ----------------------
ISO 13354:2014(F)
Sommaire Page

Avant-propos ................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Domaine d’application ................................................................................................................................................................................... 1

2 Références normatives ................................................................................................................................................................................... 1

3 Termes et définitions ....................................................................................................................................................................................... 1

4 Équipements du système déflecteur ................................................................................................................................................ 7

4.1 Objectif ........................................................................................................................................................................................................... 7

4.2 Résultats et conclusions des rapports d’éruption .................................................................................................... 7

4.3 Utilisations des déflecteurs .......................................................................................................................................................... 8

4.4 Aspects conception — Appareils de forage terrestres et structures marines

reposant sur le fond ............................................................................................................................................................................ 8

4.4.1 Généralités ............................................................................................................................................................................ 8

4.4.2 Types de dispositifs d’étanchéité annulaire en usage ..................................................................... 8

4.4.3 Sorties d’évent.................................................................................................................................................................13

4.4.4 Vannes de déflecteur .................................................................................................................................................14

4.4.5 Conduites du système déflecteur ....................................................................................................................15

4.4.6 Système de contrôle ...................................................................................................................................................18

4.4.7 Conduite de test .............................................................................................................................................................18

4.4.8 Autres fonctions du système déflecteur ...................................................................................................18

4.5 Aspects conception .................................................................................................................................

Appareils de forage flottants ..................................................................................................................................................18

4.5.1 Généralités .........................................................................................................................................................................18

4.5.2 Dispositifs d’étanchéité annulaire en usage ..........................................................................................19

4.5.3 Équipement auxiliaire pour forage avec tube prolongateur ...................................................23

4.5.4 Sorties et vannes d’évent .......................................................................................................................................24

4.5.5 Conduites du système déflecteur ....................................................................................................................24

4.5.6 Système de contrôle ...................................................................................................................................................26

5 Appareils de forage flottants — Aspects spécifiques ..................................................................................................26

5.1 Utilisation du tube prolongateur ..........................................................................................................................................26

5.2 Fonctions additionnelles du système déflecteur ....................................................................................................28

5.3 Comparaison des supports flottant pouvant être utilisés ......... ......................................................................29

5.3.1 Bateaux de forage ancrés .......................................................................................................................................29

5.3.2 Bateaux de forage à positionnement dynamique .............................................................................29

5.3.3 Semi-submersibles ......................................................................................................................................................29

5.3.4 Conclusion ..........................................................................................................................................................................29

© ISO 2014 – Tous droits réservés iii
---------------------- Page: 3 ----------------------
ISO 13354:2014(F)

6 Préparation des opérations de forage ........................................................................................................................................31

6.1 Appel d’offre ...........................................................................................................................................................................................31

6.2 Points importants ..............................................................................................................................................................................31

6.3 Contrôles pré-opérationnels ....................................................................................................................................................32

6.3.1 Moteurs diesel et équipements électriques...........................................................................................32

6.3.2 Détection des pertes et venues .........................................................................................................................32

6.3.3 Sauvetage en mer .........................................................................................................................................................32

6.3.4 Recommandations sur le refroidissement en mer ..........................................................................32

6.3.5 Largage en urgence de l’ancrage .....................................................................................................................32

6.3.6 Équipement de sécurité de l’appareil de forage ................................................................................33

6.3.7 Précautions de sécurité ...........................................................................................................................................33

6.3.8 Système déflecteur ......................................................................................................................................................34

6.4 Réunions pré-opérationnelles ................................................................................................................................................34

6.5 Exercices pré-opérationnels .....................................................................................................................................................35

6.6 Procédures d’intervention en cas de venue de gaz de surface ...................................................................36

6.6.1 Généralités .........................................................................................................................................................................36

6.6.2 Rappels ..................................................................................................................................................................................36

6.6.3 Aspects essentiels sur le contrôle des venues .....................................................................................37

7 Inspection et entretien du système déflecteur ..................................................................................................................39

7.1 Généralités ...............................................................................................................................................................................................39

7.2 Entretien ....................................................................................................................................................................................................39

7.3 Inspection et test ................................................................................................................................................................................39

7.4 Conduites d’évent ..............................................................................................................................................................................40

7.5 Documentation du fabricant ....................................................................................................................................................40

Bibliographie ...........................................................................................................................................................................................................................41

iv © ISO 2014 – Tous droits réservés
---------------------- Page: 4 ----------------------
ISO 13354:2014(F)
Avant-propos

L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes

nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est

en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude

a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,

gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.

L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui concerne

la normalisation électrotechnique.

Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont

décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents

critères d’approbation requis pour les différents types de documents ISO. Le présent document a été

rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.

iso.org/directives).

L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de

droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable

de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant les

références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de l’élaboration

du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de brevets reçues par

l’ISO (voir www.iso.org/brevets).

Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour

information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.

Pour une explication de la signification des termes et expressions spécifiques de l’ISO liés à l’évaluation

de la conformité, ou pour toute information au sujet de l’adhésion de l’ISO aux principes de l’OMC

concernant les obstacles techniques au commerce (OTC), voir le lien suivant: Avant-propos - Informations

supplémentaires.

Le comité chargé de l’élaboration du présent document est l’ISO/TC 67, Matériel, équipement et structures

en mer pour les industries pétrolière, pétrochimique et du gaz naturel, sous-comité SC 4, Équipement de

forage et de production.
© ISO 2014 – Tous droits réservés v
---------------------- Page: 5 ----------------------
ISO 13354:2014(F)
Introduction

Le forage des formations contenant du gaz de surface est une opération délicate et pleine de défi. Si ces

opérations sont assez compliquées en raison de la disponibilité d’une marge de sécurité réduite entre

pertes et gains, la situation en cas de venue devient dangereuse du fait de la combinaison de plusieurs

facteurs défavorables:

— les éruptions de gaz de surface sont des évènements extrêmement rapides; le temps séparant la

détection de la venue du vidage du puits est court, laissant peu de temps au foreur pour prendre la

bonne décision et laissant peu de place à l’erreur;

— les rapports d’éruption ont révélé la magnitude et la sévérité des impacts dynamiques imposés aux

équipements déflecteurs de surface. L’un des effets associés est l’érosion, avec comme conséquence

le risque élevé d’incendie et d’explosion, la collision du gaz avec les installations du support de forage

donnant accès à d’éventuelles sources d’inflammation;

— de nombreuses venues de gaz de surface se sont transformées dans le passé en éruptions incontrôlées

du fait de la défaillance des équipements déflecteurs anciens installés il y a plusieurs dizaines

d’années, en raison de leur complexité, de leur manque de fiabilité fonctionnelle et de leur incapacité

à résister aux sévères impacts dynamiques;

— certains supports de forage sont exposés à des risques spécifiques en cas d’éruption de gaz de surface,

notamment le risque de formation de cratère ou le risque de chavirage pour les bateaux de forage,

— un personnel de chantier non-préparé ou insuffisamment entraîné ressent un niveau de stress élevé

lors de venues violentes de gaz de surface.

Suite aux éruptions de gaz de surface survenues durant les quatre dernières décennies, des enquêtes

et rapports complets ont été réalisés, notamment par les spécialistes impliqués pour lutter contre

ces évènements, et des résultats et conclusions significatifs ont été publiés. Entre-temps, l’industrie

manufacturière a développé des équipements destinés à améliorer de manière significative la sécurité

lors des opérations de forage des gaz de surface.

La présente Norme internationale a été préparée tout en prenant ces aspects en considération.

vi © ISO 2014 – Tous droits réservés
---------------------- Page: 6 ----------------------
NORME INTERNATIONALE ISO 13354:2014(F)
Industries du pétrole et du gaz naturel — Équipements de
forage et de production — Équipement déflecteur pour
gaz de surface
1 Domaine d’application

La présente Norme internationale spécifie les exigences pour le choix de l’équipement déflecteur des

appareils de forage qui sont requis pour forer des formations contenant du gaz de surface. Elle couvre

les opérations terrestres et en mer, ainsi que les équipements auxiliaires requis sur les engins flottants.

Les exigences spécifiées concernent les équipements suivants:
— dispositif d’obturation annulaire;
— sorties d’évent;
— vannes du système déflecteur;
— conduites du système déflecteur.

La présente Norme internationale met en lumière les préoccupations associées à la sélection d’un support

de forage flottant. Elle couvre les aspects sécurité liés à des équipements essentiels de l’appareil de forage,

ainsi que les actions importantes devant être réalisées avant le démarrage des activités de forage.

Elle ne fournit que des recommandations d’ordre général à propos des actions à mener en cas de venue

de gaz de surface.
2 Références normatives

Les documents ci-après, dans leur intégralité ou non, sont des références normatives indispensables à

l’application du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les

références non datées, la dernière édition du document de référence s’applique (y compris les éventuels

amendements).

ISO 13533, Industries du pétrole et du gaz naturel — Équipements de forage et de production — Équipements

à travers lesquels s’effectue le forage

API 16D (dernière révision), Specification for Control Systems for Drilling Well Control Equipment and

Control Systems for Diverter Equipment
3 Termes et définitions

Pour les besoins du présent document, les termes et définitions suivants s’appliquent.

3.1
servomoteur

dispositif utilisé pour ouvrir ou fermer une vanne au moyen d’une énergie manuelle, hydraulique,

pneumatique ou électrique
3.2
garniture annulaire

élément en caoutchouc ou élastomère en forme d’anneau qui effectue une étanchéité dans un obturateur

annulaire ou un déflecteur

Note 1 à l’article: La garniture annulaire est déplacée vers le centre du puits sous l’action verticale d’un piston annulaire.

© ISO 2014 – Tous droits réservés 1
---------------------- Page: 7 ----------------------
ISO 13354:2014(F)
3.3
dispositif d’étanchéité annulaire

équipement torique en acier contenant une garniture annulaire qui effectue la fermeture de l’espace

annulaire par constriction autour d’une tige de forage ou d’une tige carrée présente dans le puits

Note 1 à l’article: Certains dispositifs d’étanchéité annulaire réalisent une fermeture complète du puits ouvert.

3.4
obturateur annulaire

dispositif pouvant faire étanchéité autour de n’importe quel objet présent dans le puits ou pouvant

obturer intégralement le puits

Note 1 à l’article: Une garniture renforcée en caoutchouc ou élastomère est comprimée par pression hydraulique

pour réaliser l’étanchéité.
3.5
vanne à boisseau sphérique

vanne utilisant une sphère percée d’un trou pour ouvrir ou obturer le passage du fluide

3.6
éruption

débit incontrôlé de fluides de forage et/ou de formation en surface ou dans une formation souterraine à

pression inférieure (éruption souterraine)

Note 1 à l’article: Lorsque le débit incontrôlé de fluide pénètre dans les couches de sub-surface, on parle alors

d’éruption souterraine.
3.7
bloc d’obturation de puits
BOP

dispositif permettant de fermer le puits afin d’y confiner les fluides de forage ou de formation

3.8
structure marine reposant sur le fond
structure de forage reposant sur le fond marin durant les opérations de forage

Note 1 à l’article: Ceci inclue les plates-formes fixes, les engins submersibles, les barges de marais et les plates-

formes auto-élévatrices.
3.9
point de débouchage

point situé sur la ligne de goulotte, permettant d’y avoir accès afin de réaliser l’évacuation des déblais de

forage qui peuvent éventuellement s’y accumuler
3.10
unité de contrôle

ensemble de pompes, vannes, conduits, accumulateurs et autres équipements requis pour ouvrir et

fermer les BOP et le déflecteur
3.11
fonction de contrôle

se réfère au circuit du système de contrôle (hydraulique, pneumatique, électrique, mécanique, seul ou

en combinaison) utilisé pour opérer le sélecteur de position d’un déflecteur, d’un BOP, d’une vanne ou

d’un régulateur
EXEMPLE Fonction déflecteur «fermé», fonction vanne d’évent tribord «ouvert».
3.12
fonction de contrôle

se réfère aussi à chaque position du déflecteur, BOP, vanne et à chaque affectation de régulateur opéré

par le système de contrôle
2 © ISO 2014 – Tous droits réservés
---------------------- Page: 8 ----------------------
ISO 13354:2014(F)
3.13
déflecteur

dispositif fixé à la tête de puits ou au tube prolongateur marin pour stopper la progression verticale

d’une quelconque venue et la diriger vers un ensemble de lignes d’évent qui l’éloigne de l’unité de forage

3.14
système de contrôle du déflecteur

ensemble de pompes, accumulateurs, manifolds, panneaux de contrôle, vannes, conduites, etc. utilisés

pour opérer le déflecteur
3.15
logement support du déflecteur

installation permanente sous la table de rotation dans laquelle vient se loger le déflecteur à insert

3.16
garniture de déflecteur
dispositif d’étanchéité annulaire du déflecteur
3.17
conduite de déflecteur
se réfère à la ligne d’évent
3.18
système déflecteur

ensemble comprenant étanchéité annulaire, moyens de contrôle de débit, lignes d’évents et système

de contrôle qui facilitent l’arrêt dans la progression verticale d’une venue de fluide et sa dérivation

vers l’atmosphère
3.19
unité déflecteur

ensemble comprenant le dispositif d’étanchéité annulaire et son système d’activation

3.20
infrastructure du plancher de forage

fondation sur laquelle le derrick, la table de rotation, le treuil et autre équipement de forage sont installés

3.21
raccord (ou entretoise) de forage

joint à brides situé entre BOP et tête de puits, utilisé comme entretoise ou adaptateur

3.22
bateau de forage
navire flottant autopropulsé, à profil de bateau, équipé d’équipements de forage
3.23
vanne de décharge

dispositif utilisé pour contrôler la pression en pied de tube prolongateur, grâce à l’établissement d’une

communication directe avec l’eau de mer
3.24
support de forage à positionnement dynamique

bateau ou engin semi-submersible de forage équipé de propulseurs pilotés par ordinateur, permettant

de maintenir une position constante par rapport à un point fixe sur le fond marin sans l’aide d’ancre et

de lignes d’ancrage durant les opérations de forage
3.25
élastomère
composé élastique ou substance ressemblant à du caoutchouc
© ISO 2014 – Tous droits réservés 3
---------------------- Page: 9 ----------------------
ISO 13354:2014(F)
3.26
ligne de remplissage

ligne habituellement reliée au tube fontaine au-dessus des BOP, permettant l’ajout de fluide de forage

dans le trou lors de la remontée du train de forage afin de compenser le volume de métal retiré du trou

3.27
joint flexible/à rotule

dispositif installé directement au-dessus des BOP sous-marins et au sommet du joint télescopique du tube

prolongateur, permettant un mouvement angulaire relatif de ce dernier afin de réduire les contraintes

induites par les déplacements du support marin et par les forces environnementales

3.28
goulotte
ligne des vibrateurs

conduite conduisant les déblais de forage depuis le tube fontaine vers les vibrateurs et les bassins de forage

3.29
pression de fracturation de la formation

pression requise pour initier une fracture dans une formation géologique souterraine

3.30
test de fonction

cycle d’ouverture et fermeture d’un équipement pour en vérifier sa capacité à fonctionner

3.31
vanne-porte

vanne utilisant une porte coulissante pour ouvrir ou obturer le circuit d’écoulement

3.32
hauteur hydrostatique
hauteur vraie d’une colonne de fluide
3.33
pression hydrostatique

pression qui existe en tout point dans le sondage en raison du poids de la colonne verticale de fluide

existant au-dessus de ce point
3.34
cylindre intérieur

partie du joint télescopique du tube prolongateur marin qui est attachée au joint flexible sous le

système déflecteur
3.35
garniture de type insert

dispositif utilisant un insert destiné à fermer le puits et faire étanchéité autour d’une gamme spécifique

de diamètres de tube de forage
3.36
vanne intégrale

vanne faisant partie intégrante du déflecteur et fonctionnant intégralement avec le dispositif

d’étanchéité annulaire
3.37
inter-verrouillage

organisation des fonctions du système de contrôle conçue pour que l’activation d’une fonction donnée

soit la condition préalable à l’activation d’une autre fonction
4 © ISO 2014 – Tous droits réservés
---------------------- Page: 10 ----------------------
ISO 13354:2014(F)
3.38
tige carrée

tige de forage à flancs plats ou cannelés, mue par un carré d’entraînement situé dans la table de rotation

Note 1 à l’article: Le carré (appelé carré d’entraînement) transmet du couple à la tige carrée, permettant ainsi au

train de forage de tourner.
3.39
venue

débit de gaz, d’huile ou autre fluide en provenance du puits, pouvant résulter en une éruption s’il

n’est pas contrôlé
3.40
boue lourde

fluide de forage de densité suffisante pour contrebalancer la pression de gisement en cas de venue

3.41
vanne à guillotine

vanne utilisant une pelle coulissante afin de réaliser les opérations d’ouverture-fermeture

Note 1 à l’article: Elle diffère de la vanne-porte dans la mesure où le chapeau de vanne est ouvert et n’est donc pas

étanche.
3.42
perte de circulation
perte de fluide de forage dans le sondage
3.43
tube prolongateur marin

extension du sondage entre la tête de puits sous-marine et le support de forage flottant, permettant de

remonter les déblais de forage vers ce dernier et de guider les outils dans le puits

3.44
navire ancré

support de forage flottant, qui a besoin d’ancres, de chaînes et de lignes d’ancrage entre le fond marin et

le navire pour conserver une position constante par rapport au fond marin
3.45
fond marin
plancher océanique, ou fond d’un lac, d’une baie, d’un marais
3.46
cylindre extérieur

partie du joint télescopique du tube prolongateur marin qui est attaché aux lignes du dispositif de

tensionnement

Note 1 à l’article: La tension est transférée au tube prolongateur via ce cylindre extérieur.

3.47
période pré-opérationnelle
période qui précède le démarrage des activités de forage
3.48
séparateur vertical atmosphérique

réservoir sous pression prévu pour effectuer la séparation et la détente à pression atmosphérique du

gaz présent dans le fluide de forage, lors de la circulation d’une venue à travers le manifold de duses

3.49
contrôle primaire du puits

méthode pour prévenir tout débit du puits grâce au maintien d’une pression hydrostatique égale ou

supérieure à celle de la pression de gisement
© ISO 2014 – Tous droits réservés 5
---------------------- Page: 11 ----------------------
ISO 13354:2014(F)
3.50
plate-forme de production

structure installée de manière permanente sur le fond marin, équipée d’installations pour le forage

et/ou le développement de réservoirs sous-marins
3.51
connecteur hydraulique du tube prolongateur

système de verrou hydraulique reliant l’extrémité du tube conducteur et la base du tube prolongateur marin

Note 1 à l’article: Des joints d’étanchéité contiennent les fuites entre le verrou hydraulique et l’extrémité du

tube conducteur.
3.52
table de rotation

dispositif à travers lequel passent l’outil de forage et le train de sonde, et qui transmet la rotation à

la tige carrée
3.53
système déflecteur sous-marin

ensemble fixé à la base du tube prolongateur marin, relié à l’extrémité du tube conducteur, conçu pour fermer

le puits en cas de venue de gaz de surface et pour diriger celle-ci vers deux évents latéraux sous-marins

3.54
semi-submersible

support de forage flottant ballasté sur le site de forage, pouvant mener à bien les opérations en condition

stable, dans une position partiellement submergée
3.55
cible anti-érosion

bouchon plein forgé ou bride installé au fond d’un raccord en T pour réduire l’érosion à l’endroit où le

changement de direction du fluide a lieu
3.56
conduite protégée

se réfère à un système de conduite dans lequel un écoulement de fluide percute une cible anti-érosion

remplie de plomb (ou de tout autre matériau), à un endroit où il y a changement de direction d’écoulement

3.57
garniture d’étanchéité du joint télescopique

élément résilient torique, activé par une source d’énergie hydraulique, pneumatique ou mécanique,

situé entre les deux cylindres du joint télescopique, servant à contenir le fluide de forage à l’intérieur du

tube prolongateur
3.58
ligne d’évent

conduite dirigeant l’écoulement des fluides en provenance du puits à l’atmosphère, loin du plancher de forage

3.59
vanne de ligne d’évent

vanne à ouverture complète permettant le passage des fluides en provenance du puits à travers la

ligne d’évent
3.60
sortie d’évent
point où le fluide sort du puits à travers la ligne d’évent
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
