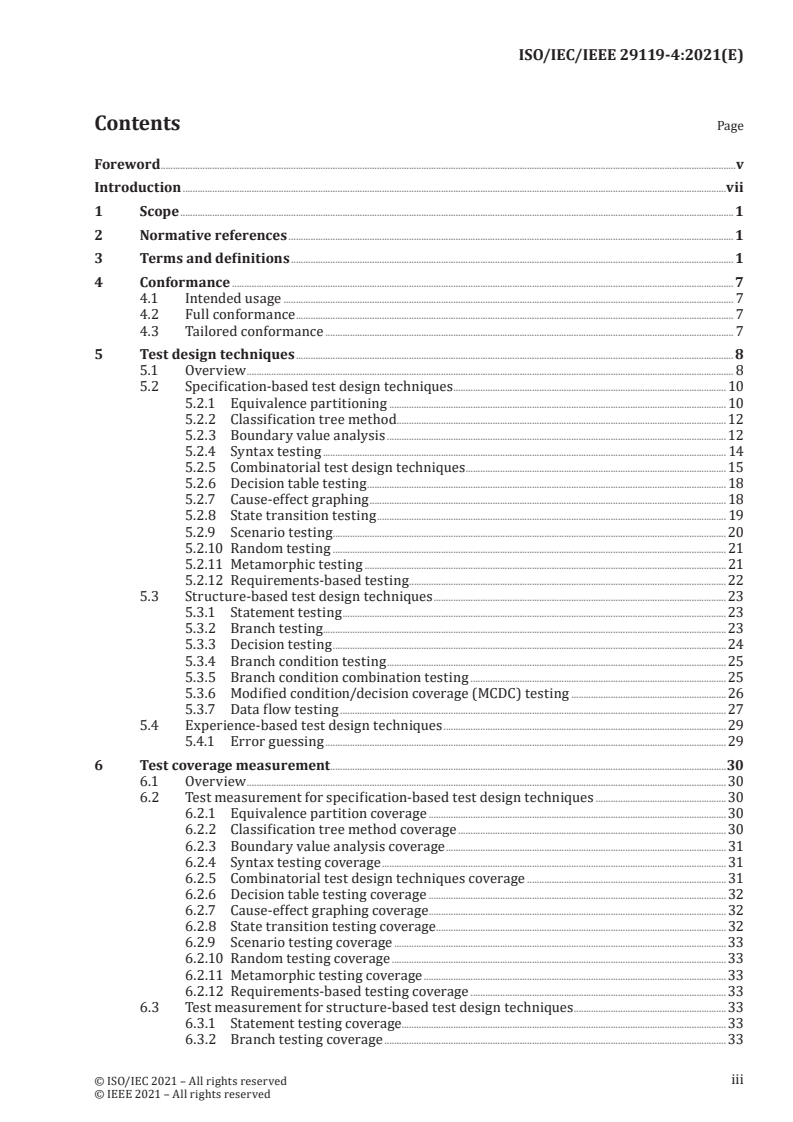

Contents Page
Foreword .v
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Conformance . 7
4.1 Intended usage . 7
4.2 Full conformance . 7
4.3 Tailored conformance . 7
5 Test design techniques . 8
5.1 Overview . 8
5.2 Specification-based test design techniques . 10
5.2.1 Equivalence partitioning . 10
5.2.2 Classification tree method.12
5.2.3 Boundary value analysis .12
5.2.4 Syntax testing . 14
5.2.5 Combinatorial test design techniques . 15
5.2.6 Decision table testing . 18
5.2.7 Cause-effect graphing . 18
5.2.8 State transition testing . 19
5.2.9 Scenario testing . 20
5.2.10 Random testing . 21
5.2.11 Metamorphic testing . 21
5.2.12 Requirements-based testing . 22
5.3 Structure-based test design techniques . 23
5.3.1 Statement testing . 23
5.3.2 Branch testing.23
5.3.3 Decision testing . 24
5.3.4 Branch condition testing . 25
5.3.5 Branch condition combination testing . 25
5.3.6 Modified condition/decision coverage (MCDC) testing . 26
5.3.7 Data flow testing . 27
5.4 Experience-based test design techniques .29
5.4.1 Error guessing .29
6 Test coverage measurement . .30
6.1 Overview . 30
6.2 Test measurement for specification-based test design techniques .30
6.2.1 Equivalence partition coverage .30
6.2.2 Classification tree method coverage .30
6.2.3 Boundary value analysis coverage . 31
6.2.4 Syntax testing coverage . 31
6.2.5 Combinatorial test design techniques coverage . 31
6.2.6 Decision table testing coverage . 32
6.2.7 Cause-effect graphing coverage . 32
6.2.8 State transition testing coverage . 32
6.2.9 Scenario testing coverage . 33
6.2.10 Random testing coverage . 33
6.2.11 Metamorphic testing coverage . 33
6.2.12 Requirements-based testing coverage . 33
6.3 Test measurement for structure-based test design techniques . 33
6.3.1 Statement testing coverage . . 33
6.3.2 Branch testing coverage . 33
iii
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
6.3.3 Decision testing coverage .34
6.3.4 Branch condition testing coverage.34
6.3.5 Branch condition combination testing coverage .34
6.3.6 Modified condition/decision coverage (MCDC) .34
6.3.7 Data flow testing coverage . 35
6.4 Test measurement for experience-based testing design techniques — Error
guessing coverage . 35
Annex A (informative) Testing quality characteristics .36
Annex B (informative) Guidelines and examples for the application of specification-based
test design techniques .49
Annex C (informative) Guidelines and examples for the application of structure-based test
design techniques . 102
Annex D (informative) Guidelines and examples for the application of experience-based
test design techniques . 122
Annex E (informative) Guidelines and examples for the application of grey-box test design
techniques . 125
Annex F (informative) Test design technique effectiveness . 128
Annex G (informative) ISO/IEC/IEEE 29119-4 and BS 7925-2 test design technique
alignment . 131
Annex H (informative) Test models . 133
Bibliography .134
IEEE Notices and Abstract. 136
iv
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed
for the different types of ISO/IEC documents should be noted. This document was drafted in
accordance with the rules given in the ISO/IEC Directives, Part 2 (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
IEEE Standards documents are developed within the IEEE Societies and the Standards Coordinating
Committees of the IEEE Standards Association (IEEE-SA) Standards Board. The IEEE develops its
standards through a consensus development process, approved by the American National Standards
Institute, which brings together volunteers representing varied viewpoints and interests to achieve the
final product. Volunteers are not necessarily members of the Institute and serve without compensation.
While the IEEE administers the process and establishes rules to promote fairness in the consensus
development process, the IEEE does not independently evaluate, test, or verify the accuracy of any of
the information contained in its standards.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC
list of patent declarations received (see https://patents.iec.c).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
ISO/IEC/IEEE 29119-4 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information
Technology, Subcommittee SC 7, Software and systems engineering, in cooperation with the Systems and
Software Engineering Standards Committee of the IEEE Computer Society, under the Partner Standards
Development Organization cooperation agreement between ISO and IEEE.
This second edition cancels and replaces the first edition (ISO/IEC/IEEE 29119-4:2015), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— The test techniques in this document are defined using a new form of the test design and
implementation process from ISO/IEC/IEEE 29119-2. In the first version, this process was based
on the use of test conditions. Feedback on use of the previous edition highlighted a problem with
users’ understanding of test conditions and their use for deriving test cases. This second edition has
replaced the use of test conditions with test models. Annex H provides more detail on this change
and the Introduction describes the new process.
A list of all parts in the ISO/IEC/IEEE 29119 series can be found on the ISO and IEC websites.
v
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.
vi
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Introduction
The purpose of this document is to provide an International Standard that defines software test design
techniques (also known as test case design techniques or test methods) that can be used within the test
design and implementation process that is defined in ISO/IEC/IEEE 29119-2. This document does not
describe a process for test design and implementation. The intent is to describe a series of techniques
that have wide acceptance in the software testing industry. This document is originally based on the
British standard, BS 7925-2. Annex G provides a mapping from the requirements of BS 7925-2 to the
clauses and subclauses of this document.
The test design techniques presented in this document can be used to derive test cases that, when
executed, generate evidence that test item requirements have been met or that defects are present in
a test item (i.e. that requirements have not been met). Risk-based testing can be used to determine the
set of techniques that are applicable in specific situations (risk-based testing is covered in ISO/IEC/
IEEE 29119-1 and ISO/IEC/IEEE 29119-2).
NOTE A “test item” is a work product that is being tested (see ISO/IEC/IEEE 29119-1).
EXAMPLE 1 “Test items” include systems, software items, objects, classes, requirements documents, design
specifications, and user guides.
Each technique follows the test design and implementation process that is defined in ISO/IEC/IEEE
29119-2 and shown in Figure 1.
Of the activities in this process, this document provides guidance on how to implement the following
activities in detail for each technique that is described:
— create test model (TD1);
— identify test coverage items (TD2);
— derive test cases (TD3).
A test model represents testable aspects of a test item, such as a function, transaction, feature, quality
attribute, or structural element identified as a basis for testing. The test model reflects the required
test completion criterion in the test strategy.
EXAMPLE 2 If a test completion criterion for state transition testing was identified that required coverage of
all states then the test model would show the states the test item can be in.
Test coverage items are attributes of the test model that can be covered during testing. A single test
model will typically be the basis for several test coverage items.
A test case is a set of preconditions, inputs (including actions, where applicable), and expected results,
developed to determine whether or not the covered part of the test item has been implemented
correctly.
Specific (normative) guidance on how to implement the create test procedures activity (TD4) in the test
design and implementation process of ISO/IEC/IEEE 29119-2 is not included in Clauses 5 or 6 because
the process is the same for all techniques.
vii
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Figure 1 — ISO/IEC/IEEE 29119-2 test design and implementation process
ISO/IEC 25010 defines eight quality characteristics (including functional suitability) that can be used
to identify types of testing that may be applicable for testing a specific test item. Annex A provides
example mappings of test design techniques that apply to testing quality characteristics defined in ISO/
IEC 25010.
Experience-based testing practices like exploratory testing and other test practices such as model-
based testing are not defined in this document because this document only describes techniques for
designing test cases. Test practices such as exploratory testing, which can use the test techniques
defined in this document, are described in ISO/IEC/IEEE 29119-1.
Templates and examples of test documentation that are produced during the testing process are defined
in ISO/IEC/IEEE 29119-3. The test techniques in this document do not describe how to document
test cases (e.g. they do not include information or guidance on assigning unique identifiers, test case
descriptions, priorities, traceability or pre-conditions to test cases). Information on how to document
test cases can be found in ISO/IEC/IEEE 29119-3.
This document aims to provide stakeholders with the ability to design test cases for software testing in
any organization.
viii
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
INTERNATIONAL STANDARD ISO/IEC/IEEE 29119-4:2021(E)
Software and systems engineering — Software testing —
Part 4:
Test techniques
1 Scope
This document defines test design techniques that can be used during the test design and implementation
process that is defined in ISO/IEC/IEEE 29119-2.
Each technique follows the test design and implementation process that is defined in ISO/IEC/IEEE
29119-2 and shown in Figure 1. This document is intended for, but not limited to, testers, test managers,
and developers, particularly those responsible for managing and implementing software testing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC/IEEE 29119-2, Software and systems engineering — Software testing — Part 2: Test processes
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO, IEC and IEEE maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
— IEEE Standards Dictionary Online: available at https:// ieeexplore .ieee .org/ xpls/ dictionary .jsp
NOTE For additional terms and definitions in the field of systems and software engineering, see ISO/IEC/
IEEE 24765, which is published periodically as a “snapshot” of the SEVOCAB (Systems and software Engineering
Vocabulary) database and is publicly accessible at https:// www .computer .org/ sevocab.
3.1
Backus-Naur Form
formal meta-language used for defining the syntax of a language in a textual format
3.2
base choice
base value
input parameter value used in ‘base choice testing’ that is normally selected based on being a
representative or typical value for the parameter
3.3
boundary value analysis
specification-based test case (3.49) design technique based on exercising the boundaries of equivalence
partitions (3.28)
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
3.4
branch condition combination testing
structure-based test case (3.49) design technique based on exercising combinations of Boolean values
of conditions (3.13) within a decision
3.5
branch condition testing
structure-based test case (3.49) design technique based on exercising Boolean values of the conditions
(3.13) within decisions and the decision outcomes (3.21)
3.6
branch testing
structure-based test case (3.49) design technique based on exercising branches in the control flow
(3.14) of the test item (3.52)
3.7
c-use
computation data use
use of the value of a variable in any type of statement
3.8
cause-effect graph
graphical representation of decision rules (3.22) between causes (inputs described as Boolean
conditions) and effects (outputs described as Boolean expressions)
3.9
cause-effect graphing
specification-based test case (3.49) design technique based on exercising decision rules (3.22) in a cause-
effect graph (3.8)
3.10
classification tree
hierarchical tree model of the input data to a program in which the inputs are represented by distinct
classifications (relevant test aspects) and classes (input values)
3.11
classification tree method
specification-based test case (3.49) design technique based on exercising classes in a classification tree
(3.10)
3.12
combinatorial test design techniques
class of specification-based test case (3.49) design techniques based on exercising combinations of P-V
pairs (3.38)
EXAMPLE All combinations testing (3.57), pair-wise testing, each choice testing, base choice testing
3.13
condition
Boolean expression containing no Boolean operators
EXAMPLE “A < B” is a condition but “A and B” is not.
3.14
control flow
sequence in which operations are performed during the execution of a test item (3.52)
3.15
control flow sub-path
sequence of executable statements (3.30) within a test item (3.52)
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
3.16
data definition
variable definition
statement where a variable is assigned a value
3.17
data definition c-use pair
data definition (3.16) and subsequent computation data use (3.7), where the data use (3.20) uses the
value defined in the data definition
3.18
data definition p-use pair
data definition (3.16) and subsequent predicate data use (3.37), where the data use (3.20) uses the value
defined in the data definition
3.19
data flow testing
class of structure-based test case (3.49) design techniques based on exercising definition-use pairs (3.26)
EXAMPLE All-definitions testing (3.57), all-c-uses testing, all-p-uses testing, all-uses testing, all-du-paths
testing.
3.20
data use
executable statement (3.30) where the value of a variable is accessed
3.21
decision outcome
result of a decision that determines the branch to be executed
3.22
decision rule
combination of conditions (3.13) (also known as causes) and actions (also known as effects) that produce
a specific outcome in decision table testing (3.24) and cause-effect graphing (3.9)
3.23
decision table
tabular representation of decision rules (3.22) between causes (inputs described as Boolean conditions
(3.13)) and effects (outputs described as Boolean expressions)
3.24
decision table testing
specification-based test case (3.49) design technique based on exercising decision rules (3.22) in a
decision table (3.23)
3.25
decision testing
structure-based test case (3.49) design technique based on exercising decision outcomes (3.21) in the
control flow (3.14) of the test item (3.52)
3.26
definition-use pair
data definition-use pair
data definition (3.16) and subsequent predicate (3.40) or computational data use (3.20), where the data
use uses the value defined in the data definition
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
3.27
entry point
point in a test item (3.52) at which execution of the test item can begin
Note 1 to entry: An entry point is an executable statement (3.30) within a test item that can be selected by an
external process as the starting point for one or more paths (3.39) through the test item. It is most commonly the
first executable statement within the test item.
3.28
equivalence partition
equivalence class
class of inputs or outputs that are expected to be treated similarly by the test item (3.52)
3.29
equivalence partitioning
specification-based test case (3.49) design technique based on exercising equivalence partitions (3.28)
3.30
executable statement
statement which, when compiled, is translated into object code, which will be executed procedurally
when the test item (3.52) is running and may perform an action on program data
3.31
exit point
last executable statement (3.30) within a test item (3.52)
Note 1 to entry: An exit point is a terminal point of a path (3.39) through a test item, being an executable statement
within the test item which either terminates the test item or returns control to an external process. This is most
commonly the last executable statement within the test item.
3.32
expected result
observable predicted behaviour of the test item (3.52) under specified conditions (3.13) based on its
specification or another source
3.33
experience-based testing
class of test case (3.49) design techniques based on using the experience of testers to generate test cases
EXAMPLE Error guessing.
Note 1 to entry: Experience based testing (3.57) can include concepts such as test attacks, tours, and error
taxonomies which target potential problems such as security, performance, and other quality areas.
3.34
metamorphic relation
description of how changes to the test inputs for a test case (3.49) affect the expected outputs based on
the required behaviour of a test item (3.52)
3.35
metamorphic testing
specification-based test case (3.49) design technique based on generating test cases on the basis of
existing test cases and metamorphic relations (3.34)
3.36
modified condition/decision coverage testing
MCDC testing
structure-based test case (3.49) design technique based on demonstrating that a single Boolean
condition (3.13) within a decision can independently affect the outcome of the decision
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
3.37
p-use
predicate data use
data use (3.20) associated with the decision outcome (3.21) of the predicate (3.40) portion of a decision
statement
3.38
P-V pair
parameter-value pair
combination of a test item (3.52) parameter with a value assigned to that parameter, used as a test
coverage item in combinatorial test design techniques (3.12)
3.39
path
sequence of executable statements (3.30) of a test item (3.52)
3.40
predicate
logical expression which evaluates to TRUE or FALSE to direct the execution path (3.39) in code
3.41
random testing
specification-based test case (3.49) design technique based on generating test cases to exercise
randomly selected test item (3.52) inputs
3.42
requirements-based testing
specification-based test case (3.49) design technique based on exercising atomic requirements
EXAMPLE An atomic requirement can be ‘The system shall collect and store the date of birth of all registered
users.’
3.43
scenario testing
specification-based test case (3.49) design technique based on exercising sequences of interactions
between the test item (3.52) and other systems
Note 1 to entry: Users are considered to be other systems in this context.
3.44
state transition testing
specification-based test case (3.49) design technique based on exercising transitions in a state model
EXAMPLE Example state models are state transition diagram and state table.
3.45
statement testing
structure-based test case (3.49) design technique based on exercising executable statements (3.30) in
the source code of the test item (3.52)
3.47
sub-path
path (3.39) that is part of a larger path
3.46
syntax testing
specification-based test case (3.49) design technique based on exercising elements of a formal definition
of the test item (3.52) inputs
EXAMPLE Backus-Naur Form (3.1) is commonly used for defining the syntax of test item inputs.
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
3.48
test
activity in which a system or component is executed under specified conditions (3.13), the results are
observed or recorded, and an evaluation is made of some aspect of the system or component
3.49
test case
set of preconditions, inputs and expected results (3.32), developed to drive the execution of a test item
(3.52) to meet test objectives (3.55)
Note 1 to entry: A test case is the lowest level of test implementation documentation (i.e. test cases are not made
up of test cases) for the test level (3.53) or test type (3.56) for which it is intended.
Note 2 to entry: Test case preconditions include the required state of the test environment, data (e.g. databases)
used by the test item, and the test item itself.
Note 3 to entry: Inputs are the data information and actions, where applicable, used to drive test execution (3.51).
3.50
test condition
testable aspect of a component or system, such as a function, transaction, feature, quality attribute, or
structural element identified as a basis for testing (3.57)
Note 1 to entry: ISO/IEC/IEEE 29119 (all parts) does not use the concept of test conditions, but instead uses the
concept of a test model (3.54) for test design. See Annex H for an explanation.
3.51
test execution
process of running a test (3.48) on the test item (3.52), producing actual results
3.52
test item
test object
work product to be tested
EXAMPLE Software component, system, requirements document, design specification, user guide.
3.53
test level
one of a sequence of test stages, each of which is typically associated with the achievement of particular
objectives and used to treat particular risks
EXAMPLE The following are common test levels, listed sequentially: unit/component testing (3.57),
integration testing, system testing, system integration testing, acceptance testing.
Note 1 to entry: It is not always necessary for a test item (3.52) to be tested at all test levels, but the sequence of
test levels generally stays the same.
Note 2 to entry: Typical objectives can include consideration of basic functionality for unit/component testing,
interaction between integrated components for integration testing, acceptability to end users for acceptance
testing
3.54
test model
representation of the test item (3.52), which allows the testing (3.57) to be focused on particular
characteristics or qualities
EXAMPLE Requirements statements, equivalence partitions (3.28), state transition diagram, use case
description, decision table (3.23), input syntax description, source code, control flow (3.14) graph, parameters
and values, classification tree (3.10), natural language.
Note 1 to entry: The test model and the required test coverage are used to identify test coverage items.
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Note 2 to entry: A separate test model can be required for each different type of required test coverage included
in the test completion criteria.
Note 3 to entry: A test model can include one or more test conditions (3.50).
Note 4 to entry: Test models are commonly used to support test design (e.g. they are used to support test design
in this document, and they are used in model-based testing). Other types of models exist to support other aspects
of testing, such as test environment models, test maturity models and test architecture models.
3.55
test objective
reason for performing testing (3.57)
EXAMPLE Checking for correct implementation, identification of defects, measuring quality.
3.56
test type
testing (3.57) that is focused on specific quality characteristics
EXAMPLE Security testing, functional testing, usability testing, and performance testing.
Note 1 to entry: A test type can be performed at a single test level (3.53) or across several test levels (e.g.
performance testing performed at a unit test level and at a system test level).
3.57
testing
set of activities conducted to facilitate discovery and evaluation of properties of test items (3.52)
Note 1 to entry: Testing activities include planning, preparation, execution, reporting, and management activities,
insofar as they are directed towards testing.
4 Conformance
4.1 Intended usage
The requirements in this document are contained in Clauses 5 and 6. It is recognized that particular
projects or organizations will not need to use all of the techniques defined by this document.
Implementation of ISO/IEC/IEEE 29119-2 involves using a risk-based approach to select a subset of
techniques suitable for a given project or organization. There are two ways that an organization or
individual can claim conformance to the provisions of this document – full conformance and tailored
conformance.
The organization shall assert whether it is claiming full or tailored conformance to this document.
4.2 Full conformance
Full conformance is achieved by demonstrating that all of the requirements (i.e. ‘shall’ statements) of
the chosen (non-empty) set of techniques in Clause 5 and the corresponding test coverage measurement
approaches in Clause 6 have been satisfied.
EXAMPLE An organization can choose to conform only to one technique, such as boundary value analysis. In
this scenario, the organization would only be required to provide evidence that they have met the requirements
of that one technique in order to claim conformance to this document.
4.3 Tailored conformance
Tailored conformance is achieved by demonstrating that the chosen subset of requirements from the
chosen (non-empty) set of techniques and corresponding test coverage measurement approaches have
been satisfied. Where tailoring occurs, justification shall be provided (either directly or by reference)
whenever the normative requirements of a technique defined in Clause 5 or measure defined in Clause 6
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
are not followed completely. All tailoring decisions shall be recorded with their rationale, including the
consideration of any applicable risks. Tailoring shall be agreed by the relevant stakeholders.
5 Test design techniques
5.1 Overview
This document defines test design techniques for specification-based testing (5.2), structure-based
testing (5.3) and experience-based testing (5.4). In specification-based testing, the test basis (e.g.
requirements, specifications, models or user needs) is used as the main source of information to design
test cases. In structure-based testing, the structure of the test item (e.g. source code or the structure of
a model) is used as the primary source of information to design test cases. In experience-based testing,
the knowledge and experience of the tester is used as the primary source of information during test
case design. For specification-based testing, structure-based testing and experience-based testing,
the test basis is used to generate the expected results. These classes of test design techniques are
complementary, and their combined application typically results in more effective testing.
Although the techniques presented in this document are classified as specification-based, structure-
based or experience-based, in practice some of them can be used interchangeably (e.g. branch testing
can be applied to the specification of the graphical user interface of a web-based system). This is
demonstrated in Annex E. In addition, although each technique is defined independently of all others, in
practice some can be used in combination with other techniques.
EXAMPLE The test coverage items derived by applying equivalence partitioning can be used to identify the
input parameters of test cases derived for scenario testing.
This document uses the terms specification-based testing and structure-based testing; these categories
of techniques are also known as "black-box testing" and "white-box testing" (or "clear-box testing")
respectively. The terms “black-box” and “white-box” refer to the visibility of the internal structure of
the test item. In black-box testing the internal structure of the test item is not visible (hence the black
box), whereas for white-box testing the internal structure of the test item is visible. When a technique
is applied while utilising a combination of knowledge from the test item’s specification and structure,
this is often called "grey-box testing".
This document defines how the generic test design and implementation process steps TD1(create test
model), TD2 (identify test coverage items), and TD3 (derive test cases) from ISO/IEC/IEEE 29119-2
(see Introduction) shall be used by each technique. It does not provide context-specific definitions of
the techniques that describe how each technique should be used in all situations. Annex B, Annex C,
Annex D and Annex E provide detailed examples that demonstrate how to apply the techniques.
The techniques that are defined this document are shown in Figure 2. This set of techniques is not
exhaustive. There are useful techniques that are used by testing practitioners or researchers that are
not included in this document.
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
Figure 2 — The set of test design techniques presented in this document
Of the four activities in the test design and implementation process (see Figure 1), test design
techniques provide unique and specific guidance on the derivation of test models (TD1), identification
of test coverage items (TD2) and the derivation of test cases (TD3). Therefore, each technique is defined
in terms of these three activities.
There are varying levels of granularity within steps TD1 (create test model), TD2 (identify test coverage
items) and TD3 (derive test cases). Within each technique, the term "model" is used to describe the
concept of preparing a logical representation of the test item for the purposes of deriving test coverage
© ISO/IEC 2021 – All rights reserved
© IEEE 2021 – All rights reserved
items in step TD2 (e.g. a control flow model is normally used as a test model for identifying test coverage
items for all structural techniques).
EXAMPLE 1 In state transition testing, if there is a requirement to cover all states then the state model for the
test item would form the test model. If the
...
