TECHNICAL ISO/TR
REPORT 11925-1
First edition
1999-03-15
Reaction to fire tests — Ignitability of
building products subjected to direct
impingement of flame —
Part 1:
Guidance on ignitability
Essais de réaction au feu — Allumabilité des produits de bâtiment soumis à
l'incidence directe de la flamme —
Partie 1: Lignes directrices sur l'allumabilité
Reference number
ISO/TR 11925-1:1999(E)
---------------------- Page: 1 ----------------------
ISO/TR 11925-1:1999(E)

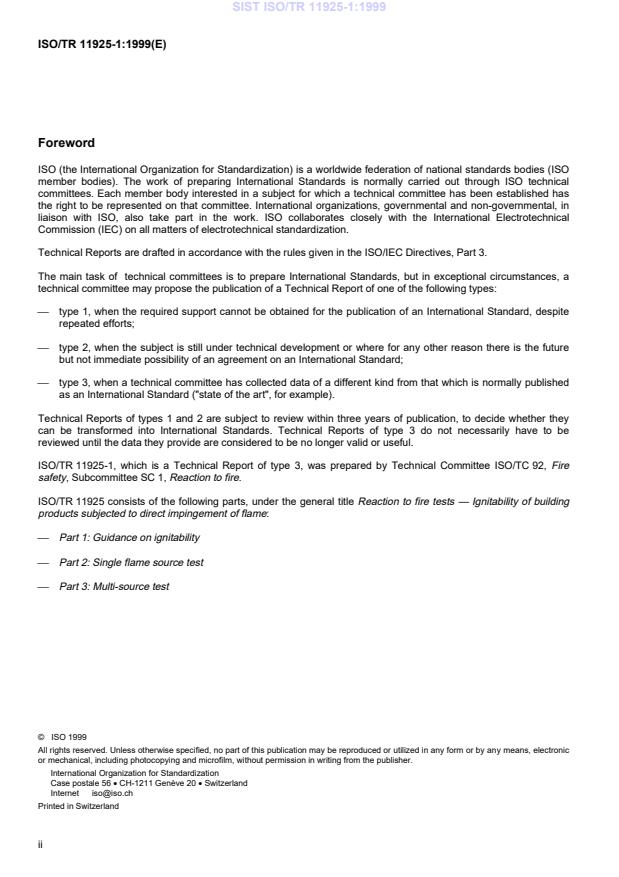

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO

member bodies). The work of preparing International Standards is normally carried out through ISO technical

committees. Each member body interested in a subject for which a technical committee has been established has

the right to be represented on that committee. International organizations, governmental and non-governmental, in

liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical

Commission (IEC) on all matters of electrotechnical standardization.

Technical Reports are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

The main task of technical committees is to prepare International Standards, but in exceptional circumstances, a

technical committee may propose the publication of a Technical Report of one of the following types:

 type 1, when the required support cannot be obtained for the publication of an International Standard, despite

repeated efforts;

 type 2, when the subject is still under technical development or where for any other reason there is the future

but not immediate possibility of an agreement on an International Standard;

 type 3, when a technical committee has collected data of a different kind from that which is normally published

as an International Standard ("state of the art", for example).

Technical Reports of types 1 and 2 are subject to review within three years of publication, to decide whether they

can be transformed into International Standards. Technical Reports of type 3 do not necessarily have to be

reviewed until the data they provide are considered to be no longer valid or useful.

ISO/TR 11925-1, which is a Technical Report of type 3, was prepared by Technical Committee ISO/TC 92, Fire

safety, Subcommittee SC 1, Reaction to fire.

ISO/TR 11925 consists of the following parts, under the general title Reaction to fire tests — Ignitability of building

products subjected to direct impingement of flame:
 Part 1: Guidance on ignitability
 Part 2: Single flame source test
 Part 3: Multi-source test
© ISO 1999

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from the publisher.

International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
---------------------- Page: 2 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
Introduction

Ignitability of materials is of basic importance when fire hazard is analysed because of two reasons: First, at the

initiation of a fire some object or local area is ignited, and second, during the fire growth period ignitability is an

essential factor in fire spread to the other parts of a room or compartment.

In buildings the structural, lining and furnishing materials are solids, which require external heating to achieve

flaming combustion. The ignition condition can be characterized by the minimum surface temperature at which the

flow of volatiles is sufficient for sustained flaming. However, the difference in these temperatures between materials

is not large. Hence it is usually more important to take into account the time of exposure and the thermal properties

of the material when assessing risk of ignition.

When a material is exposed to an external heat flux (radiative, convective, conductive or a combination), its surface

temperature starts to rise. The temperature inside the solid also increases with time, but at a slower rate. Provided

the net flux into the material is sufficiently high, eventually the surface temperature reaches a level at which

pyrolysis begins. The vapours generated emerge through the exposed surface and mix with air in the boundary

layer. Under certain conditions this mixture exceeds the lower flammability limit and ignites. The initiation of flaming

combustion as described above is termed flaming ignition. For some materials or under certain conditions,

combustion is not in the gas phase but in the solid phase. In such cases no flame can be observed and the surface

is glowing. This quite different phenomenon is termed smouldering ignition.

The definition of ignition has been debated in many fora. It is most usually defined as the presence of a flame on a

surface, or more simply the persistence of flame. Some documents try to subdivide the ignition process in three

ways: flashing (less than 1s of flaming); transient ignition (greater than 1s and less than 4s); and sustained ignition

(more than 4s of flame). Other documents define ignition as the persistence of flame for greater than 10s. Many of

the definitions have been derived from apparatus-dependent parameters. All definitions have their merits and all

have been well discussed.

This Technical Report describes and characterizes the "real fire" ignition sources, the ignition sources used in the

testing of materials and products, and any correlation between those and "real fire" sources. Some of the theoretical

principles of ignition and ignitability are also addressed.

The majority of ignitability tests used internationally are based on the direct application of a flame. A few tests

involve radiative heating of the material but generally also require some form of pilot source whether a flame or a

spark. In general the ignition sources used have some relevance to end-use hazard.

ISO/TC 92/SC 1 has concentrated on the development of tests to simulate ignitability by a range of flame sources of

increasing size and also a piloted (by flame) radiative ignition source, see ISO 11925-2 and ISO 11925-3 and

ISO 5657, respectively.

The guidance given in this Technical Report should enable choice of the appropriate ignition source when related to

the end-use application of the material or product being assessed.

A comprehensive review of piloted ignition and ignitability test methods is also given in ISO/TR 11696-1. ISO 11093

also provides a brief description for a number (13) of different types of ignition source and is a reference document

for persons seeking descriptions of the standardized source apparatus
iii
---------------------- Page: 3 ----------------------
TECHNICAL REPORT © ISO ISO/TR 11925-1:1999(E)
Reaction to fire tests — Ignitability of building products subjected
to direct impingement of flame —
Part 1:
Guidance on ignitability
1 Scope

This Technical Report provides guidance on "ignitability" tests for building products. It describes the principles of

ignitability and characterizes different ignition sources.

The results of small-scale ignitability tests may be used as a component of a total hazard analysis of a specified fire

scenario. It is therefore important that the flame or radiative source chosen is fully characterized so that relevant

conclusions may be made from the test results.

Guidance given in this Technical Report may also have relevance to other application areas (e.g. building contents,

plastics, etc.)
2 References

ISO 5657:1997, Reaction to fire tests — Ignitability of building products using a radiant heat source.

ISO 5658-2:1996, Reaction to fire tests — Spread of flame — Part 2: Lateral spread on building products in vertical

configuration.

ISO 5660-1:1993, Fire tests — Reaction to fire — Part 1: Rate of heat release from building products (Cone

calorimeter method).

ISO 9239-1:1997, Reaction to fire tests — Horizontal surface spread of flame on floor-covering systems — Part 1:

Flame spread using a radiant heat ignition source.
ISO 9705:1993, Fire tests — Full scale room test for surface products.
ISO 10093:1998, Plastics — Fire tests — Standard ignition sources.

ISO/TR 11696-1:— , Use of reaction to fire tests — Part 1: Application of results to predict fire performance of

building products by mathematical modelling.

ISO 11925-2:1997, Reaction to fire tests — Ignitability of building products subjected to direct impingement of

flame — Part 2: Single flame source test.

ISO 11925-3:1997, Reaction to fire tests — Ignitability of building products subjected to direct impingement of

flame — Part 3: Multisource test.
To be published.
---------------------- Page: 4 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
3 Typical 'real fire' ignition sources
3.1 General

Fires are caused by a wide range of ignition sources. Statistical analysis of real fires conducted in many countries

has identified the most common primary and secondary sources especially in fires within buildings. The most

frequent sources of fires may be the following.
a) Cooking appliances (electric and gas)
b) Space heating appliances (electric, gas and solid fuel)
c) Electrical wiring

d) Other electrical appliances (such as washing machines, bedwarmers, televisions, water heaters)

e) Cigarettes
f) Matches and smokers' gas lighters
g) Blow lamps, blow torches and welding torches, hot metal
h) Rubbish burning, e.g. in waste paper baskets or in bins or accumulated piles
i) Candles
The items first ignited are probably the following.
a) Food including cooking fat
b) Gases, i.e. mains gas and bottled gasses
c) Liquids, e.g. petroleum, paint spirits
d) Textiles, e.g. clothing, curtains
e) Upholstery, e.g. chairs, beds, sofas, etc.
f) Floorcoverings
g) Building structures, e.g. wall linings, ceilings, partitions.
h) Electrical wiring

Smouldering ignition sources are particularly insidious in real fire situations since they can involve a considerable

induction period before flaming combustion develops. In general, the real source is used in standardized tests (e.g.

the cigarette, which is defined in terms of its burning rate).

Primary ignition sources (i.e. sources which directly cause ignition), range from relatively common sources such as

matches to fires ignited from radiant heaters. Gas flames (e.g. cigarette lighters, welding torches' etc.) can also

cause fires if carelessly used. Gas or electric radiant heaters may raise the temperature of materials above their

flash or self-ignition temperatures. Radiant heaters can cause ignition by radiant heat alone. Other radiant heat

sources include electric light bulbs which can cause high local temperatures.

Secondary ignition sources do not directly cause ignition but can be ignited using primary sources (e.g. matches or

cigarettes) and then burn to produce a large ignition source. Secondary sources include waste paper baskets,

newspapers or journals, clothing, loose furnishings, upholstery, etc. These items, once themselves ignited, may

then spread the fire either by direct flame impingement or by radiative and convective ignition.

---------------------- Page: 5 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
The list below details the type of sources in each category.
a) Primary source
Smouldering Cigarette
Flaming Match
Smoker's gas lighter
Candle
Chip-pan
Blowlamp
Electrical Wiring
Appliances
Radiative Space heater
Light bulbs
Conductive Sparks
Hot coals
Convective Hot gases
Hot air guns
b) Secondary sources
Smouldering Cellulose materials
Flaming Building contents (e.g. furniture, waste bins, curtains, etc.)
Radiative Large non-contacting flames from burning items.
3.2 Characteristics of flame sources

A major consideration in the selection of the type of ignition source in any test must come from a knowledge of the

real fire and its associated heat fluxes. In theory, this could range from zero to an upper value of FT where T is the

maximum flame temperature. The maximum flame temperature for most common fuels is approximately 2300 K [1].

–11 –2 –4 –2

Since the Stefan Boltzman constant F is 5,67 x 10 kWm K , a maximum irradiance of 1500 kWm can be

expected, which is approximately 10 times greater than the maximum actually found.

Since theory gives little guidance on the characteristics of typical ignition sources in real fires, experimental data

must be used to characterize real fire sources.

The main characteristics of ignition sources and their relation to the test specimen may be defined by the following

factors:

a) The intensity of the ignition source, i.e. the thermal input to the material to be ignited, which includes the

conductive, convective and radiative effects of the ignition source.
b) Area of flame contact of the ignition source.
---------------------- Page: 6 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
c) Duration of exposure to the ignition source.
d) Orientation of the specimen relative to the ignition source.
e) Ventilation conditions around ignition source.

An ignition source may be as small as an electrical spark or as large as a burning building which can act as an

ignition source to an adjacent building. For the purpose of this Technical Report, however, ignition sources are

limited to those which are commonly found to be the cause of a room fire, and the range of potential ignition sources

will generally have heat fluxes of less than 50 kWm .

Table 1 shows the characteristics of various real flame sources in terms of the temperature, area of flame contact

and imposed heat fluxes [2].
Table 1
Source Temperature Area of Maximum
a a
flame contact heat flux
o 2 2
( C) (mm ) (kW/m )
First flame after electrical failure of cable 800 50 30
Match 850 500 35
Lighter 800 800 30
4 sheets tabloid newspaper >600 60,000 25
Deep fat fryer fire (Domestic) >1100 125,000 50
Plumbers blow-torch (Specialist tool) >1000 4,000 140
Oxyacetylene premixed flame (Specialist welding >1800 2,500 150
source)
Waste paper basket >900 110,000 50
Cigarette >1000 100 <5

The values quoted are all nominal and are subject to the conditions of the investigation. The values were

derived by measuring against a flat non-combustible thermally thick board.
Measured in the luminous part of the flame.
Function of diameter of the receptacle and its location.

From table 1, it can be seen that diffusion flame sources give very similar imposed heat fluxes. Work by Babrauskas

et al. [2] has shown a direct linear relationship between the fuel input to a diffusion burner and the area of flame

contact with a significant increase in the imposed heat flux. To increase the heat flux seen by the surface in the area

of flame contact, it is necessary to increase the depth of the flame. It is for this reason that higher heat flux values

are recorded for the deep fat fryer and waster paper basket fires where the flames may be of an order of 100 mm to

200 mm thick.

In general, therefore, the real fire sources fall into two types, when assessed in terms of their imposed heat fluxes -

those with premixed flames giving heat fluxes in the order of 150 kW/m and those with diffusion flames with heat

fluxes in the order of 30 to 50 kW/m .

Two of the diffusion flames, the deep fat fryer and the waste-paper basket, have heat fluxes in the order of

50 kW/m : This is due to the thickness of the flame created, the thicker the flame, the greater the imposed heat flux.

This phenomenon should also be considered when producing standardized ignition sources since in general only

"thin" flames are used as standard sources, with the exception of the sand burner used in ISO 9705.

---------------------- Page: 7 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
3.3 Characteristics of electrical sources

The main ignition sources created by misuse of electrical supply and appliances are:

a) overloaded wires and cables where breakdown of the insulation occurs and adjacent combustible materials are

ignited by hot wires (by conduction or radiation);

b) mechanical failure of the insulation resulting from ageing or physical damage (conductive heating);

c) heaters where glowing wires or bars emit high radiant energy (radiative ignition);

d) high temperature arcing (radiative and convective).
3.4 Characteristics of radiative sources

Radiative sources generally consist of either electrical or gas fired radiant panels or elements (e.g. gas fires,

electrical bar heaters). They are normally sited remote from the item to be ignited and are the primary source of the

fire. The type of scenario envisaged would be the ignition of an object placed too close to the "radiator".

The main characteristics of radiant sources are defined by:
a) the intensity of the radiation and effectiveness of radiation transfer;
b) the duration of exposure;
c) spectral distribution.

NOTE Large flames or hot gas layers produced from an item already ignited (secondary source) can also act as a radiative

source to ignite other remote items.
4 Factors affecting ignitability tests
4.1 General

The choice of ignition source in any fire experiment is significant. It is important to identify what real ignition source

is being simulated in terms of heat duration, irradiance, area of heat contact, etc.

A typical ignition source could be chosen or a range selected in order of severity. Occasionally, a worst case

example could be employed.

The size of the ignition source should be selected with due consideration of the fire to be simulated and should not

be excessive in relation to the dimensions, shape and ventilation of the test specimen or construction. The ignition

source will also have some affect on the ventilation conditions prevalent in the fire enclosure. The specimen

presented for testing should be appropriately sized and not scaled down with relation to the ignition source, i.e. one

specimen should be of sufficient size not for the flame to influence or overwhelm the thermal properties of the

specimen.

It is important to choose an ignition source which will not adversely affect measurements (for example, by

generating high levels of smoke, or toxic gases, or reducing the available oxygen for combustion). For this reason, it

may be necessary to carry out preliminary tests to estimate the likely effects of the chosen ignition source on such

measurements and to correct these after the test.

When an attempt is made to simulate a real ignition source, it is essential to realize that burning characteristics may

be affected by environmental conditions and therefore recognize that the design parameters chosen may not be

correct and may require subsequent adjustment.
---------------------- Page: 8 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
Possible ignition sources can be characterized by:
a) total fuel content
b) type of fuel
c) rate and nature of fuel release (e.g. ramped, stepped or steady state)
d) rate of heat release
e) height of flame for given location
f) convective and radiative heat
g) time of burning
Annex A gives guidance on the development of ignition sources for fire tests.
4.2 Type of heat source

The complete character of the ignition source should be determined, including mass, material identification,

morphology dimensions and all other physical and chemical characteristics necessary to repeat each ignition

scenario. Typical ignition sources are solid, liquid or gaseous fuels including gas burners, liquid pool fires, wood

cribs, electrical sources, etc.
4.2.1 Gas burners
Gas burner flames have the following advantages:
a) they are reproducible;

b) they are well-defined; i.e. their heat production rate is readily determined from the gas flow rates;

c) they can be varied with time to represent the burning of different products or be maintained constant to facilitate

analytical studies;

d) their burning rates are not influenced by heat feedback (unless controlled artificially).

Their disadvantages are:

a) the radiation properties of the flames are different from those of the product simulated;

b) gas flames do not resemble what is seen in real fires;

c) soot production is much less than from real fires therefore flames are less luminous.

Differences between diffusion and premixed burners should be recognized. As an example, the flames from a

premixed burner will be hotter, shorter and have lower emissivities. In order to avoid locally high velocities, the gas

can be delivered through a large-area diffusing surface, such as a porous plate or a layer of sand.

4.2.2 Liquid pool fires
These fire sources have the following advantages:

a) their rate of fuel production is readily determined from their rate of mass loss or the flow rate necessary to

maintain a constant depth in the pool;

b) they have an interaction with the fire environment which can be quantified by their change in heat production

rate;
---------------------- Page: 9 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
c) they are reproducible under the same exposure conditions;
d) their radiation characteristics can be controlled by the choice of fuel.
Their disadvantages are:

a) the effect of feedback is not quantitatively the same as for real products; and

b) they lack visual realism unless they are intended to represent liquid fuel spills. A variation of the liquid pool fires

is obtained by supplying the liquid fuel in a matrix of sand in order to vary its burning rate.

4.2.3 Solid fuels

The solid fuels which have been used routinely as ignition sources have included waste containers and wood cribs,

with the latter having the longest history. The dimensions of the sticks, type of wood and spacing as well as total

mass have a large effect on the burning rate of the wood cribs.
Waste containers and wood crib fires have the following advantages:
a) they provide the best visual simulation of the burning of products;

b) their interaction with the environment of the fire room is, perhaps, closer to, though not the same as, that of the

burning products; and

c) their radiation characteristics more nearly match those of the real product fire.

Waste containers and wood cribs have the following disadvantages:
a) their reproducibility is not as good as that for gas burners; and

b) the ratio of their heat release rates to their measured mass loss rates vary throughout the test.

4.2.4 Radiative sources

Radiative sources are powered either by electricity or gas. These sources have the following advantages:

a) they are reproducible;
b) they can provide either a uniform or gradient of irradiance;
c) the heat output can be quantified;
d) the gas fuelled sources are controllable with rapid responses;
e) they can produce a wide range of irradiance.
The main disadvantages to these sources are that
a) electrical radiant sources are not immediately controllable;

b) for lamp type sources, the radiation properties are different to those of the product simulated;

c) radiant sources generally require a form of piloted ignition and the flame or spark needs to be positioned in an

area in which the decomposition gases (from the effects of the radiant heat) are at their most concentrated;

d) radiant sources usually assume a set distance between the source and the item to be ignited (some materials

shrink or swell under heat, therefore, this distance changes and this change cannot be quantified).

---------------------- Page: 10 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
4.2.5 Electrical sources

Electrical ignition sources for use in large tests can be simulated using sources from smaller-scale fire tests (e.g.

glow-wires at temperatures up to 960 C).

Electrical sources are usually contact (conductive) sources. The advantages of the conductive sources are that they

are simple and the tests are easy to conduct. The disadvantages are that the tests are only effective for small scale

ignition of materials and are generally a function of the materials autoignition temperatures.

4.2.6 Smouldering sources

The most widely used smouldering source is the glowing cigarette and considerable work has been done to study

the effect of this low intensity ignition source [5]. The major disadvantages of using this standardized ignition source,

which is generally specified in terms of burning rate and mass, are:
a) it has rather poor repeatability and reproducibility;

b) its behaviour and its ability to act as an effective ignition source is very dependent upon its location which in

turn affects its reproducibility.
Its main advantages are that:
a) it is easy to use; and

b) it is the "real" ignition source and therefore should mirror real fire performance.

4.3 Size

The size of the flame or area of radiative influence greatly affects the fire behaviour of the material being exposed to

the ignition source, since it affects the area of flame contact. The larger the area of flame contact, the less the

influence of the material to be ignited since the ability of the material to dissipate the heat or conduct it away from

the area of flame contact is reduced and earlier ignition can be expected.

The depth of the flame source is also important since the greater the depth, the greater the resultant heat flux on the

surface of the material exposed.

The ignitability of a flame retardant treated product is also influenced by the relative sizes of the flame source and

the object to be ignited.
4.4 Location

The location of the ignition source is one of the most important considerations in conducting compartment

experiments. Its position in relation to the wall can significantly influence the rate of burning. When it is close to the

wall, there can be major feedback influences and the ignition source will burn more quickly, although this will

depend to some extent on the properties of the lining, the availability of air and the type of ignition source. The flame

height is affected by the entrainment of air into the plume which itself is critically affected by the position of the

ignition source in relation to the wall/corner. For example, if the access of air to the flame is blocked from one side,

such as would occur by placing the ignition source against a wall, then an increased flame height for the same rate

of gaseous fuel leaving the source would result. This analogy can be extended further to an ignition source in a

corner which would give an even higher flame height.

In addition, the height of the flame source from the floor will have an effect on the ignitability of test specimens within

a compartment.
4.5 Physical and chemical response of exposed material

In ignitability tests, the thermophysical response of the material can be significant. When a specimen shrinks, flows,

melts, deforms, chars, intumesces, etc., it can significantly change the critical distances between the ignition source

or flame combustion zone and the material. Therefore, results on the ignitability of these types of materials can be

---------------------- Page: 11 ----------------------
© ISO
ISO/TR 11925-1:1999(E)

variable as ignition may be difficult to achieve. Preheating of a material prior to the application of an ignition source

may also cause physical changes such that the materials propensity to ignite may be altered, e.g. charring.

One form of behaviour, would be for the specimen to melt or expand sufficiently under the influence of the flame or

radiant heat to extinguish the ignition source by blocking the burner orifice or completely obscuring the radiator.

The incorporation of flame retardants or the coating of the product with a flame retardant agent can affect the

behaviour of the product to ignition sources. Products may have different behaviour when applying ignition sources

of different sizes. Performance in the small scale may not be the same as in the larger scale.

5 Ignitability tests

The following diagram indicates the types of ignition sources which have been developed within ISO/TC 92/SC 1.

Also indicated are two ASTM Standards upon which the subcommittee is currently working. The diagram is included

to provide an easy reference to the ignition sources available in the ISO/TC 92/SC 1 portfolio.

5.1 Radiative sources

There are generally two types of radiative ignition source used; electrical and gaseous.

5.1.1 Electrical

Both the test methods which utilize this type of ignition source are based on truncated cone heaters.

a) ISO 5657

This ignitability test (figure 1a) is designed to assess the possibility of secondary ignition by radiative heat transfer,

however, a pilot flame is used to ignite any volatile gases released from the specimen.

The radiator (figure 1b) is in the shape of a truncated cone with an upper diameter of 66 mm and a lower diameter

of 200 mm. The internal windings on the cone are capable of producing an imposed irradiance on the flat surface of

a specimen positioned below the heater of between 0 and 50 kW/m .

The specimen is mounted on a pressure plate which keeps the specimen in the vicinity of the cone heater during

the test, which results in a partially closed system (i.e. limited ventilation). The pilot flame which is applied to the

area just above the centre of the specimen surface is not present continuously but is positioned on a dipping

mechanism such that it is only present for 1 second in every 4.

The specimen size is 165 mm square and is placed on base board of 6 mm non-combustible insulation material of

density 825 kg/m .
---------------------- Page: 12 ----------------------
© ISO
ISO/TR 11925-1:1999(E)
b) ISO 5660

This test method (figure 2) is primarily used to determine heat release rates, however, as part of the test procedure,

the time to ignition is also determined.

The radiator is similar to that used in ISO 5657 with an upper and lower diameter of 80 mm and 177 mm

respectively.
...

SLOVENSKI STANDARD
SIST ISO/TR 11925-1:1999
01-september-1999
Preskusi odziva na ogenj - Sposobnost vžiga gradbenih proizvodov v
neposrednem stiku s plamenom - 1. del: Smernice za preskušanje širjenja plamena

Reaction to fire tests -- Ignitability of building products subjected to direct impingement of

flame -- Part 1: Guidance on ignitability

Essais de réaction au feu -- Allumabilité des produits de bâtiment soumis à l'incidence

directe de la flamme -- Partie 1: Lignes directrices sur l'allumabilité
Ta slovenski standard je istoveten z: ISO/TR 11925-1:1999
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
SIST ISO/TR 11925-1:1999 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST ISO/TR 11925-1:1999
---------------------- Page: 2 ----------------------
SIST ISO/TR 11925-1:1999
TECHNICAL ISO/TR
REPORT 11925-1
First edition
1999-03-15
Reaction to fire tests — Ignitability of
building products subjected to direct
impingement of flame —
Part 1:
Guidance on ignitability
Essais de réaction au feu — Allumabilité des produits de bâtiment soumis à
l'incidence directe de la flamme —
Partie 1: Lignes directrices sur l'allumabilité
Reference number
ISO/TR 11925-1:1999(E)
---------------------- Page: 3 ----------------------
SIST ISO/TR 11925-1:1999
ISO/TR 11925-1:1999(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO

member bodies). The work of preparing International Standards is normally carried out through ISO technical

committees. Each member body interested in a subject for which a technical committee has been established has

the right to be represented on that committee. International organizations, governmental and non-governmental, in

liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical

Commission (IEC) on all matters of electrotechnical standardization.

Technical Reports are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

The main task of technical committees is to prepare International Standards, but in exceptional circumstances, a

technical committee may propose the publication of a Technical Report of one of the following types:

 type 1, when the required support cannot be obtained for the publication of an International Standard, despite

repeated efforts;

 type 2, when the subject is still under technical development or where for any other reason there is the future

but not immediate possibility of an agreement on an International Standard;

 type 3, when a technical committee has collected data of a different kind from that which is normally published

as an International Standard ("state of the art", for example).

Technical Reports of types 1 and 2 are subject to review within three years of publication, to decide whether they

can be transformed into International Standards. Technical Reports of type 3 do not necessarily have to be

reviewed until the data they provide are considered to be no longer valid or useful.

ISO/TR 11925-1, which is a Technical Report of type 3, was prepared by Technical Committee ISO/TC 92, Fire

safety, Subcommittee SC 1, Reaction to fire.

ISO/TR 11925 consists of the following parts, under the general title Reaction to fire tests — Ignitability of building

products subjected to direct impingement of flame:
 Part 1: Guidance on ignitability
 Part 2: Single flame source test
 Part 3: Multi-source test
© ISO 1999

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from the publisher.

International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet iso@iso.ch
Printed in Switzerland
---------------------- Page: 4 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
Introduction

Ignitability of materials is of basic importance when fire hazard is analysed because of two reasons: First, at the

initiation of a fire some object or local area is ignited, and second, during the fire growth period ignitability is an

essential factor in fire spread to the other parts of a room or compartment.

In buildings the structural, lining and furnishing materials are solids, which require external heating to achieve

flaming combustion. The ignition condition can be characterized by the minimum surface temperature at which the

flow of volatiles is sufficient for sustained flaming. However, the difference in these temperatures between materials

is not large. Hence it is usually more important to take into account the time of exposure and the thermal properties

of the material when assessing risk of ignition.

When a material is exposed to an external heat flux (radiative, convective, conductive or a combination), its surface

temperature starts to rise. The temperature inside the solid also increases with time, but at a slower rate. Provided

the net flux into the material is sufficiently high, eventually the surface temperature reaches a level at which

pyrolysis begins. The vapours generated emerge through the exposed surface and mix with air in the boundary

layer. Under certain conditions this mixture exceeds the lower flammability limit and ignites. The initiation of flaming

combustion as described above is termed flaming ignition. For some materials or under certain conditions,

combustion is not in the gas phase but in the solid phase. In such cases no flame can be observed and the surface

is glowing. This quite different phenomenon is termed smouldering ignition.

The definition of ignition has been debated in many fora. It is most usually defined as the presence of a flame on a

surface, or more simply the persistence of flame. Some documents try to subdivide the ignition process in three

ways: flashing (less than 1s of flaming); transient ignition (greater than 1s and less than 4s); and sustained ignition

(more than 4s of flame). Other documents define ignition as the persistence of flame for greater than 10s. Many of

the definitions have been derived from apparatus-dependent parameters. All definitions have their merits and all

have been well discussed.

This Technical Report describes and characterizes the "real fire" ignition sources, the ignition sources used in the

testing of materials and products, and any correlation between those and "real fire" sources. Some of the theoretical

principles of ignition and ignitability are also addressed.

The majority of ignitability tests used internationally are based on the direct application of a flame. A few tests

involve radiative heating of the material but generally also require some form of pilot source whether a flame or a

spark. In general the ignition sources used have some relevance to end-use hazard.

ISO/TC 92/SC 1 has concentrated on the development of tests to simulate ignitability by a range of flame sources of

increasing size and also a piloted (by flame) radiative ignition source, see ISO 11925-2 and ISO 11925-3 and

ISO 5657, respectively.

The guidance given in this Technical Report should enable choice of the appropriate ignition source when related to

the end-use application of the material or product being assessed.

A comprehensive review of piloted ignition and ignitability test methods is also given in ISO/TR 11696-1. ISO 11093

also provides a brief description for a number (13) of different types of ignition source and is a reference document

for persons seeking descriptions of the standardized source apparatus
iii
---------------------- Page: 5 ----------------------
SIST ISO/TR 11925-1:1999
---------------------- Page: 6 ----------------------
SIST ISO/TR 11925-1:1999
TECHNICAL REPORT © ISO ISO/TR 11925-1:1999(E)
Reaction to fire tests — Ignitability of building products subjected
to direct impingement of flame —
Part 1:
Guidance on ignitability
1 Scope

This Technical Report provides guidance on "ignitability" tests for building products. It describes the principles of

ignitability and characterizes different ignition sources.

The results of small-scale ignitability tests may be used as a component of a total hazard analysis of a specified fire

scenario. It is therefore important that the flame or radiative source chosen is fully characterized so that relevant

conclusions may be made from the test results.

Guidance given in this Technical Report may also have relevance to other application areas (e.g. building contents,

plastics, etc.)
2 References

ISO 5657:1997, Reaction to fire tests — Ignitability of building products using a radiant heat source.

ISO 5658-2:1996, Reaction to fire tests — Spread of flame — Part 2: Lateral spread on building products in vertical

configuration.

ISO 5660-1:1993, Fire tests — Reaction to fire — Part 1: Rate of heat release from building products (Cone

calorimeter method).

ISO 9239-1:1997, Reaction to fire tests — Horizontal surface spread of flame on floor-covering systems — Part 1:

Flame spread using a radiant heat ignition source.
ISO 9705:1993, Fire tests — Full scale room test for surface products.
ISO 10093:1998, Plastics — Fire tests — Standard ignition sources.

ISO/TR 11696-1:— , Use of reaction to fire tests — Part 1: Application of results to predict fire performance of

building products by mathematical modelling.

ISO 11925-2:1997, Reaction to fire tests — Ignitability of building products subjected to direct impingement of

flame — Part 2: Single flame source test.

ISO 11925-3:1997, Reaction to fire tests — Ignitability of building products subjected to direct impingement of

flame — Part 3: Multisource test.
To be published.
---------------------- Page: 7 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
3 Typical 'real fire' ignition sources
3.1 General

Fires are caused by a wide range of ignition sources. Statistical analysis of real fires conducted in many countries

has identified the most common primary and secondary sources especially in fires within buildings. The most

frequent sources of fires may be the following.
a) Cooking appliances (electric and gas)
b) Space heating appliances (electric, gas and solid fuel)
c) Electrical wiring

d) Other electrical appliances (such as washing machines, bedwarmers, televisions, water heaters)

e) Cigarettes
f) Matches and smokers' gas lighters
g) Blow lamps, blow torches and welding torches, hot metal
h) Rubbish burning, e.g. in waste paper baskets or in bins or accumulated piles
i) Candles
The items first ignited are probably the following.
a) Food including cooking fat
b) Gases, i.e. mains gas and bottled gasses
c) Liquids, e.g. petroleum, paint spirits
d) Textiles, e.g. clothing, curtains
e) Upholstery, e.g. chairs, beds, sofas, etc.
f) Floorcoverings
g) Building structures, e.g. wall linings, ceilings, partitions.
h) Electrical wiring

Smouldering ignition sources are particularly insidious in real fire situations since they can involve a considerable

induction period before flaming combustion develops. In general, the real source is used in standardized tests (e.g.

the cigarette, which is defined in terms of its burning rate).

Primary ignition sources (i.e. sources which directly cause ignition), range from relatively common sources such as

matches to fires ignited from radiant heaters. Gas flames (e.g. cigarette lighters, welding torches' etc.) can also

cause fires if carelessly used. Gas or electric radiant heaters may raise the temperature of materials above their

flash or self-ignition temperatures. Radiant heaters can cause ignition by radiant heat alone. Other radiant heat

sources include electric light bulbs which can cause high local temperatures.

Secondary ignition sources do not directly cause ignition but can be ignited using primary sources (e.g. matches or

cigarettes) and then burn to produce a large ignition source. Secondary sources include waste paper baskets,

newspapers or journals, clothing, loose furnishings, upholstery, etc. These items, once themselves ignited, may

then spread the fire either by direct flame impingement or by radiative and convective ignition.

---------------------- Page: 8 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
The list below details the type of sources in each category.
a) Primary source
Smouldering Cigarette
Flaming Match
Smoker's gas lighter
Candle
Chip-pan
Blowlamp
Electrical Wiring
Appliances
Radiative Space heater
Light bulbs
Conductive Sparks
Hot coals
Convective Hot gases
Hot air guns
b) Secondary sources
Smouldering Cellulose materials
Flaming Building contents (e.g. furniture, waste bins, curtains, etc.)
Radiative Large non-contacting flames from burning items.
3.2 Characteristics of flame sources

A major consideration in the selection of the type of ignition source in any test must come from a knowledge of the

real fire and its associated heat fluxes. In theory, this could range from zero to an upper value of FT where T is the

maximum flame temperature. The maximum flame temperature for most common fuels is approximately 2300 K [1].

–11 –2 –4 –2

Since the Stefan Boltzman constant F is 5,67 x 10 kWm K , a maximum irradiance of 1500 kWm can be

expected, which is approximately 10 times greater than the maximum actually found.

Since theory gives little guidance on the characteristics of typical ignition sources in real fires, experimental data

must be used to characterize real fire sources.

The main characteristics of ignition sources and their relation to the test specimen may be defined by the following

factors:

a) The intensity of the ignition source, i.e. the thermal input to the material to be ignited, which includes the

conductive, convective and radiative effects of the ignition source.
b) Area of flame contact of the ignition source.
---------------------- Page: 9 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
c) Duration of exposure to the ignition source.
d) Orientation of the specimen relative to the ignition source.
e) Ventilation conditions around ignition source.

An ignition source may be as small as an electrical spark or as large as a burning building which can act as an

ignition source to an adjacent building. For the purpose of this Technical Report, however, ignition sources are

limited to those which are commonly found to be the cause of a room fire, and the range of potential ignition sources

will generally have heat fluxes of less than 50 kWm .

Table 1 shows the characteristics of various real flame sources in terms of the temperature, area of flame contact

and imposed heat fluxes [2].
Table 1
Source Temperature Area of Maximum
a a
flame contact heat flux
o 2 2
( C) (mm ) (kW/m )
First flame after electrical failure of cable 800 50 30
Match 850 500 35
Lighter 800 800 30
4 sheets tabloid newspaper >600 60,000 25
Deep fat fryer fire (Domestic) >1100 125,000 50
Plumbers blow-torch (Specialist tool) >1000 4,000 140
Oxyacetylene premixed flame (Specialist welding >1800 2,500 150
source)
Waste paper basket >900 110,000 50
Cigarette >1000 100 <5

The values quoted are all nominal and are subject to the conditions of the investigation. The values were

derived by measuring against a flat non-combustible thermally thick board.
Measured in the luminous part of the flame.
Function of diameter of the receptacle and its location.

From table 1, it can be seen that diffusion flame sources give very similar imposed heat fluxes. Work by Babrauskas

et al. [2] has shown a direct linear relationship between the fuel input to a diffusion burner and the area of flame

contact with a significant increase in the imposed heat flux. To increase the heat flux seen by the surface in the area

of flame contact, it is necessary to increase the depth of the flame. It is for this reason that higher heat flux values

are recorded for the deep fat fryer and waster paper basket fires where the flames may be of an order of 100 mm to

200 mm thick.

In general, therefore, the real fire sources fall into two types, when assessed in terms of their imposed heat fluxes -

those with premixed flames giving heat fluxes in the order of 150 kW/m and those with diffusion flames with heat

fluxes in the order of 30 to 50 kW/m .

Two of the diffusion flames, the deep fat fryer and the waste-paper basket, have heat fluxes in the order of

50 kW/m : This is due to the thickness of the flame created, the thicker the flame, the greater the imposed heat flux.

This phenomenon should also be considered when producing standardized ignition sources since in general only

"thin" flames are used as standard sources, with the exception of the sand burner used in ISO 9705.

---------------------- Page: 10 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
3.3 Characteristics of electrical sources

The main ignition sources created by misuse of electrical supply and appliances are:

a) overloaded wires and cables where breakdown of the insulation occurs and adjacent combustible materials are

ignited by hot wires (by conduction or radiation);

b) mechanical failure of the insulation resulting from ageing or physical damage (conductive heating);

c) heaters where glowing wires or bars emit high radiant energy (radiative ignition);

d) high temperature arcing (radiative and convective).
3.4 Characteristics of radiative sources

Radiative sources generally consist of either electrical or gas fired radiant panels or elements (e.g. gas fires,

electrical bar heaters). They are normally sited remote from the item to be ignited and are the primary source of the

fire. The type of scenario envisaged would be the ignition of an object placed too close to the "radiator".

The main characteristics of radiant sources are defined by:
a) the intensity of the radiation and effectiveness of radiation transfer;
b) the duration of exposure;
c) spectral distribution.

NOTE Large flames or hot gas layers produced from an item already ignited (secondary source) can also act as a radiative

source to ignite other remote items.
4 Factors affecting ignitability tests
4.1 General

The choice of ignition source in any fire experiment is significant. It is important to identify what real ignition source

is being simulated in terms of heat duration, irradiance, area of heat contact, etc.

A typical ignition source could be chosen or a range selected in order of severity. Occasionally, a worst case

example could be employed.

The size of the ignition source should be selected with due consideration of the fire to be simulated and should not

be excessive in relation to the dimensions, shape and ventilation of the test specimen or construction. The ignition

source will also have some affect on the ventilation conditions prevalent in the fire enclosure. The specimen

presented for testing should be appropriately sized and not scaled down with relation to the ignition source, i.e. one

specimen should be of sufficient size not for the flame to influence or overwhelm the thermal properties of the

specimen.

It is important to choose an ignition source which will not adversely affect measurements (for example, by

generating high levels of smoke, or toxic gases, or reducing the available oxygen for combustion). For this reason, it

may be necessary to carry out preliminary tests to estimate the likely effects of the chosen ignition source on such

measurements and to correct these after the test.

When an attempt is made to simulate a real ignition source, it is essential to realize that burning characteristics may

be affected by environmental conditions and therefore recognize that the design parameters chosen may not be

correct and may require subsequent adjustment.
---------------------- Page: 11 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
Possible ignition sources can be characterized by:
a) total fuel content
b) type of fuel
c) rate and nature of fuel release (e.g. ramped, stepped or steady state)
d) rate of heat release
e) height of flame for given location
f) convective and radiative heat
g) time of burning
Annex A gives guidance on the development of ignition sources for fire tests.
4.2 Type of heat source

The complete character of the ignition source should be determined, including mass, material identification,

morphology dimensions and all other physical and chemical characteristics necessary to repeat each ignition

scenario. Typical ignition sources are solid, liquid or gaseous fuels including gas burners, liquid pool fires, wood

cribs, electrical sources, etc.
4.2.1 Gas burners
Gas burner flames have the following advantages:
a) they are reproducible;

b) they are well-defined; i.e. their heat production rate is readily determined from the gas flow rates;

c) they can be varied with time to represent the burning of different products or be maintained constant to facilitate

analytical studies;

d) their burning rates are not influenced by heat feedback (unless controlled artificially).

Their disadvantages are:

a) the radiation properties of the flames are different from those of the product simulated;

b) gas flames do not resemble what is seen in real fires;

c) soot production is much less than from real fires therefore flames are less luminous.

Differences between diffusion and premixed burners should be recognized. As an example, the flames from a

premixed burner will be hotter, shorter and have lower emissivities. In order to avoid locally high velocities, the gas

can be delivered through a large-area diffusing surface, such as a porous plate or a layer of sand.

4.2.2 Liquid pool fires
These fire sources have the following advantages:

a) their rate of fuel production is readily determined from their rate of mass loss or the flow rate necessary to

maintain a constant depth in the pool;

b) they have an interaction with the fire environment which can be quantified by their change in heat production

rate;
---------------------- Page: 12 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
c) they are reproducible under the same exposure conditions;
d) their radiation characteristics can be controlled by the choice of fuel.
Their disadvantages are:

a) the effect of feedback is not quantitatively the same as for real products; and

b) they lack visual realism unless they are intended to represent liquid fuel spills. A variation of the liquid pool fires

is obtained by supplying the liquid fuel in a matrix of sand in order to vary its burning rate.

4.2.3 Solid fuels

The solid fuels which have been used routinely as ignition sources have included waste containers and wood cribs,

with the latter having the longest history. The dimensions of the sticks, type of wood and spacing as well as total

mass have a large effect on the burning rate of the wood cribs.
Waste containers and wood crib fires have the following advantages:
a) they provide the best visual simulation of the burning of products;

b) their interaction with the environment of the fire room is, perhaps, closer to, though not the same as, that of the

burning products; and

c) their radiation characteristics more nearly match those of the real product fire.

Waste containers and wood cribs have the following disadvantages:
a) their reproducibility is not as good as that for gas burners; and

b) the ratio of their heat release rates to their measured mass loss rates vary throughout the test.

4.2.4 Radiative sources

Radiative sources are powered either by electricity or gas. These sources have the following advantages:

a) they are reproducible;
b) they can provide either a uniform or gradient of irradiance;
c) the heat output can be quantified;
d) the gas fuelled sources are controllable with rapid responses;
e) they can produce a wide range of irradiance.
The main disadvantages to these sources are that
a) electrical radiant sources are not immediately controllable;

b) for lamp type sources, the radiation properties are different to those of the product simulated;

c) radiant sources generally require a form of piloted ignition and the flame or spark needs to be positioned in an

area in which the decomposition gases (from the effects of the radiant heat) are at their most concentrated;

d) radiant sources usually assume a set distance between the source and the item to be ignited (some materials

shrink or swell under heat, therefore, this distance changes and this change cannot be quantified).

---------------------- Page: 13 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)
4.2.5 Electrical sources

Electrical ignition sources for use in large tests can be simulated using sources from smaller-scale fire tests (e.g.

glow-wires at temperatures up to 960 C).

Electrical sources are usually contact (conductive) sources. The advantages of the conductive sources are that they

are simple and the tests are easy to conduct. The disadvantages are that the tests are only effective for small scale

ignition of materials and are generally a function of the materials autoignition temperatures.

4.2.6 Smouldering sources

The most widely used smouldering source is the glowing cigarette and considerable work has been done to study

the effect of this low intensity ignition source [5]. The major disadvantages of using this standardized ignition source,

which is generally specified in terms of burning rate and mass, are:
a) it has rather poor repeatability and reproducibility;

b) its behaviour and its ability to act as an effective ignition source is very dependent upon its location which in

turn affects its reproducibility.
Its main advantages are that:
a) it is easy to use; and

b) it is the "real" ignition source and therefore should mirror real fire performance.

4.3 Size

The size of the flame or area of radiative influence greatly affects the fire behaviour of the material being exposed to

the ignition source, since it affects the area of flame contact. The larger the area of flame contact, the less the

influence of the material to be ignited since the ability of the material to dissipate the heat or conduct it away from

the area of flame contact is reduced and earlier ignition can be expected.

The depth of the flame source is also important since the greater the depth, the greater the resultant heat flux on the

surface of the material exposed.

The ignitability of a flame retardant treated product is also influenced by the relative sizes of the flame source and

the object to be ignited.
4.4 Location

The location of the ignition source is one of the most important considerations in conducting compartment

experiments. Its position in relation to the wall can significantly influence the rate of burning. When it is close to the

wall, there can be major feedback influences and the ignition source will burn more quickly, although this will

depend to some extent on the properties of the lining, the availability of air and the type of ignition source. The flame

height is affected by the entrainment of air into the plume which itself is critically affected by the position of the

ignition source in relation to the wall/corner. For example, if the access of air to the flame is blocked from one side,

such as would occur by placing the ignition source against a wall, then an increased flame height for the same rate

of gaseous fuel leaving the source would result. This analogy can be extended further to an ignition source in a

corner which would give an even higher flame height.

In addition, the height of the flame source from the floor will have an effect on the ignitability of test specimens within

a compartment.
4.5 Physical and chemical response of exposed material

In ignitability tests, the thermophysical response of the material can be significant. When a specimen shrinks, flows,

melts, deforms, chars, intumesces, etc., it can significantly change the critical distances between the ignition source

or flame combustion zone and the material. Therefore, results on the ignitability of these types of materials can be

---------------------- Page: 14 ----------------------
SIST ISO/TR 11925-1:1999
© ISO
ISO/TR 11925-1:1999(E)

variable as ignition may be difficult to achieve. Preheating of a material prior to the application of an ignition source

may also cause physical changes such that the materials propensity to ignite may be altered, e.g. charring.

One form of behaviour, would be for the specimen to melt or expand sufficiently under the influence of the flame or

radiant heat to extinguish the ignition source by blocking the burner orifice or completely obscuring the radiator.

The incorporation of flame retardants or the coating of the product with a flame retardant agent can affect the

behaviour of the product to ignition sources. Products may have different behaviour when applying ignition sources

of different sizes. Performance in the small scale may not be the same as in the larger scale.

5 Ignitability tests

The following diagram indicates the types of ignition sources which have been developed within ISO/TC 92/SC 1.

Also indicated are two ASTM Standards upon which the subcommittee is currently working. The diagram is included

to provide an easy reference to the ignition sources available in the ISO/TC 92/SC 1 portfolio.

5.1 Radiative sources

There are generally two types of radiative ignition source used; electrical and gaseous.

5.1.1 Electrical

Both the test methods which utilize this type of ignition source are based on truncated cone heaters.

a) ISO 5657
This ignitability test (figure 1a) is designed
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
