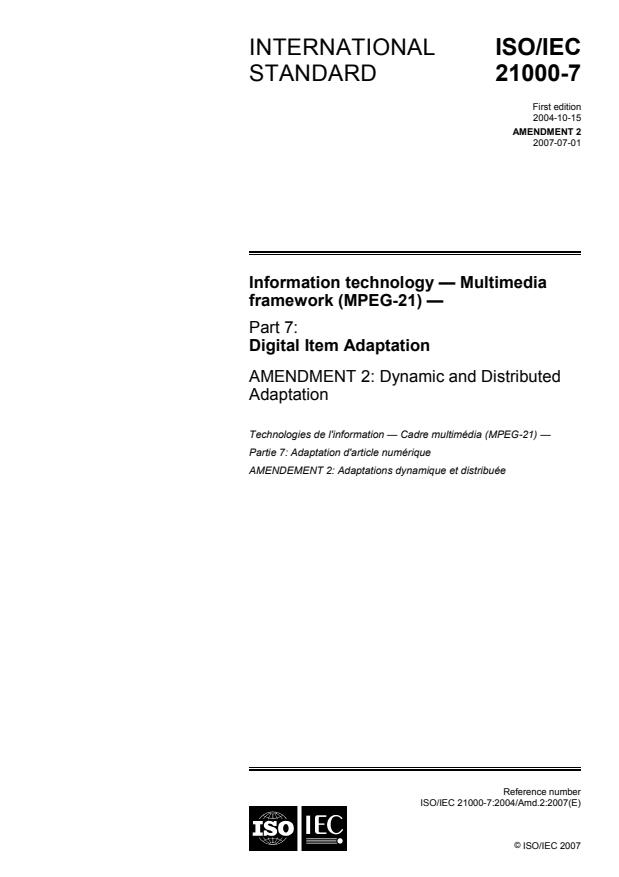

INTERNATIONAL ISO/IEC
STANDARD 21000-7
First edition
2004-10-15
AMENDMENT 2
2007-07-01
Information technology — Multimedia
framework (MPEG-21) —
Part 7:
Digital Item Adaptation
AMENDMENT 2: Dynamic and Distributed
Adaptation
Technologies de l'information — Cadre multimédia (MPEG-21) —
Partie 7: Adaptation d'article numérique
AMENDEMENT 2: Adaptations dynamique et distribuée
Reference number
ISO/IEC 21000-7:2004/Amd.2:2007(E)
©
ISO/IEC 2007
---------------------- Page: 1 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2007 — All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)

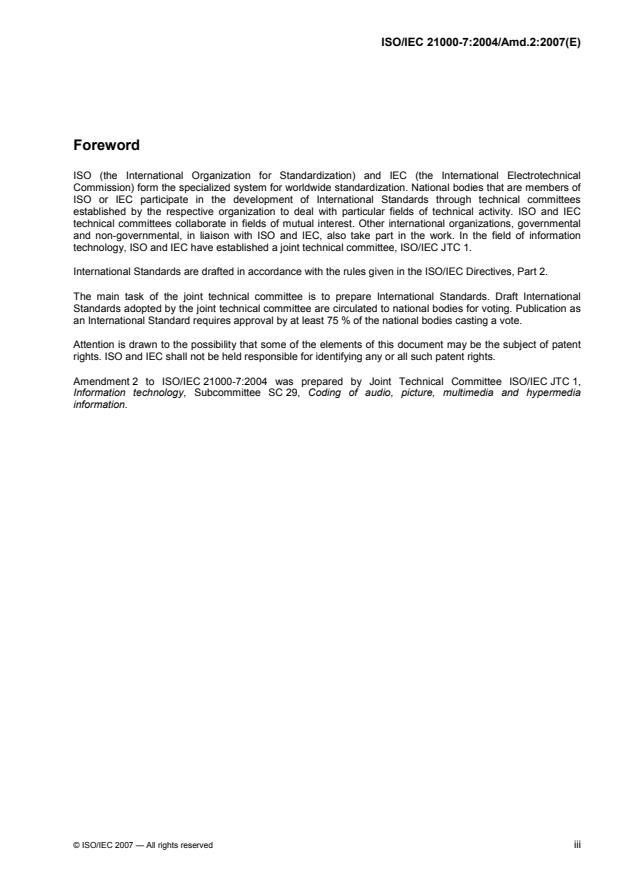

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to ISO/IEC 21000-7:2004 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
© ISO/IEC 2007 — All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
Information technology — Multimedia framework (MPEG-21) —
Part 7:
Digital Item Adaptation
AMENDMENT 2: Dynamic and Distributed Adaptation
In subclause 1.4, replace the fourth list item with the following:
— Bitstream Syntax Description tools comprise the third major category of Digital Item Adaptation tools. A
BSD describes the syntax – in most cases, the high level structure – of a binary media resource. Using
such a description, a Digital Item resource adaptation engine can transform the bitstream and the
corresponding description using editing-style operations such as data truncation and simple modifications.
Streaming instructions enhance the BSD by defining a set of properties and attributes which describe the
fragmentation, timing and random access point indication for the BSD and its described resource. They
are used for streamed processing and transport, e.g., in dynamic and distributed adaptation scenarios.
In Clause 2, add the following text:
ISO/IEC 14977:1996, Information technology — Syntactic metalanguage — Extended BNF
ISO/IEC 14496-10, Information technology — Coding of audio-visual objects — Part 10: Advanced Video
Coding
ISO/IEC 16262, Information technology — ECMAScript language specification
Document Object Model (DOM) Level 3 Core Specification, Version 1.0, W3C Recommendation 07 April 2004
Insert a new subclause 3.1.4 as follows:
3.1.4 Dynamic and Distributed Adaptation-specific terms and definitions
3.1.4.1
dynamic adaptation
adaptation of Digital Items according to dynamically changing usage environments
EXAMPLE The available bandwidth may drop during a streaming session and the Digital Item is consequently
adapted to this new usage environment.
3.1.4.2
distributed adaptation
multiple adaptation steps successively performed on different ISO/IEC 21000 peers
EXAMPLE A same resource may be successively adapted on a server, network node and/or terminal.
© ISO/IEC 2007 — All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
3.1.4.3
process unit
well-formed fragment of a BSD or other XML metadata used for adaptation purposes, that can be consumed
as such by the ISO/IEC 21000 peer, and to which a time information may be attached, indicating the point in
time when it becomes available to the ISO/IEC 21000 peer for consumption
NOTE A process unit is a processing-oriented concept rather than a delivery-oriented concept. It does not depend on
any encoding method used for delivering it.
3.1.4.4
XML fragmentation
authoring process by which an XML document is split into process units meaningful for consumption
purposes
NOTE This process may attach time information to the output process units indicating the point in time when they
become available to the ISO/IEC 21000 peer for consumption.
3.1.4.5
processing time
point in time when a process unit is available to the ISO/IEC 21000 peer for consumption
3.1.4.6
access unit
smallest segment of data that is atomic in time
EXAMPLE ISO/IEC 14496-1 access unit or ISO/IEC 15938-1 access unit (cf. TeM or BiM).
3.1.4.7
encoding
process by which a process unit is transformed into another representation for storage and/or delivery
purposes
NOTE 1 The output of encoding is a sequence of one or more access units.
NOTE 2 Encoding does not necessarily imply compression (see for example TeM for XML).
3.1.4.8
random access point
point which indicates whether an access unit carries information that can be consumed by a ISO/IEC 21000
peer independent from any other access units
In subclause 3.2, append the following text at the end of this sublcause and order the resulting list
alphabetically:
PU: Process Unit
AU: Access Unit
RAP: Random Access Point
CTS: Composition Time Stamp
DTS: Decoding Time Stamp
PTS: Processing Time Stamp
2 © ISO/IEC 2007 — All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 3.4, append the following new rows to Table 1:
msi urn:mpeg:mpeg21:2003:01-DIA-MSI-NS
si urn:mpeg:mpeg21:2003:01-DIA-XSI-NS
ps urn:mpeg:mpeg21:2003:01-DIA-PSS-NS
bs1x urn:mpeg:mpeg21:2003:01-DIA-BSDL1x-NS
bs2x urn:mpeg:mpeg21:2003:01-DIA-BSDL2x-NS
Insert a new subclause 4.4.4 as follows:
4.4.4 Classification scheme resolution mechanism
ISO/IEC 15938-5 specifies a descriptor named mpeg7:ClassificationSchemeAliasType for assigning
an alias to a namespace. Additionally, this part of ISO/IEC 21000 specifies a more compact syntax for the
same purpose by making use of the XML namespace binding context. The XML Namespaces
recommendation [13] specified how to bind a prefix to a namespace. This namespace binding context is then
inherited by the child elements of the element where the namespace is declared. This part of 21000 uses this
namespace binding context to resolve the aliases used in classification schemes.
In case of conflicts between the namespace binding context and the binding specified by
mpeg7:ClassificationSchemeAliasType, the namespace bound by the latter is used.
EXAMPLE 1 When a classification scheme term such as :myAlias:myCSTerm, the alias myAlias alias is resolved
against the namespace binding context, i.e. the XML namespaces declaration.
EXAMPLE 2 Classification Scheme resolution mechanism using the XML namespace declaration. The alias MV4 is
resolved against the namespace binding context, i.e., the XML namespace declaration within the Description element
which is inherited by its child elements (xmlns:MV4="urn:mpeg:mpeg4:video:cs:syntacticalLabels").
xmlns:gbsd="urn:mpeg:mpeg21:2003:01-DIA-gBSD-NS"
bs1:bitstreamURI="akiyo.mpg4"
xmlns:MV4="urn:mpeg:mpeg4:video:cs:syntacticalLabels">
Remove subclause 5.2.3, Unsigned integer datatypes semantics.
© ISO/IEC 2007 — All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 5.5.2, append the following text to the schema of this subclause:
In subclause 5.5.3, append the following text after the semantics of the SemanticalDataRefType:
Semantics of the ExternalVectorRefType:
ExternalVectorRefType
ExternalVectorRefType extends VectorDataType and provides
a base abstract type for referencing external data by use of the
XPointer framework.
uri Describes the URI fragment identifier to be evaluated.
Semantics of the ExternalNMTokenVectorRefType:
ExternalNMTokenVectorRefType
Describes a vector of xsd:NMTOKEN values which must be returned
by the URI fragment identifier evaluation.
In subclause 6.5.4.2, replace the text of the whole subclause with the following text:
minOccurs="0" maxOccurs="unbounded"/>
minOccurs="0" maxOccurs="unbounded"/>
minOccurs="0" maxOccurs="unbounded"/>
4 © ISO/IEC 2007 — All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 6.5.4.3, append a new row after the definition of the Encoding element:
DecodingEncoding Describes the decoding and encoding capabilities of the terminal.
In subclause 6.5.12.2, add a new attribute to the AudioOutputCapabilitiesType:
In subclause 6.5.12.3, append a new row after the definition of the numChannels attribute:
silenceSuppression
Describes whether silence suppression shall be applied for the audio.
NOTE This feature is usually applied to stop the audio transfer through the
network during periods when the participants in an audio conference are
currently not talking. Furthermore, this feature is applied to decrease the used
bandwidth in moments of silence.
Insert the following as a new subclause 6.5.29 and increment subsequent clauses accordingly:
6.5.29 RELCapabilities
6.5.29.1 Introduction
This subclause specifies the rights expression languages a terminal supports. A terminal can support none,
one, or multiple rights expression languages (RELs). In the case of supporting multiple RELs, the terminal can
also specify the preference level for each one of them.
6.5.29.2 RELCapabilities syntax
minOccurs="0" maxOccurs="unbounded"/>
© ISO/IEC 2007 — All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
6.5.29.3 RELCapabilities semantics
Semantics of the RELCapabilitiesType:
Name Definition
RELCapabilitiesType
Tool for describing the rights expression language capabilities a terminal
supports.
RightsLanguage Describes a rights expression language supported by a terminal.
Insert the following as a new subclause 6.5.30 and increment subsequent clauses accordingly:
6.5.30 RELCapability
6.5.30.1 Introduction
This subclause specifies a rights language that a terminal supports.
6.5.30.2 RELCapability syntax
use="optional"/>
6.5.30.3 RELCapability semantics
Semantics of the RELCapabilityType:
Name Definition
RELCapabilityType
Tool for describing a rights expression language a terminal supports.
Name Describes the name of a rights language. A classification scheme that
may be used for this purpose is the RightsLanguagesCS defined in
Annex A.2.16.
preferenceLevel Describes the preference level of a rights language among the supported
ones by a terminal. The value of one indicates the top preference level.
6 © ISO/IEC 2007 — All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 6.5.29 (will be 6.5.31 after incrementing) append the following text:
EXAMPLE 5 The following example provides an instantiation of the RELCapabilities of the terminal. In this example,
the terminal is able to interpret the following languages in decreased level preference: ISO/IEC 21000-5 Base profile and
ISO/IEC 21000-5.
href="urn:mpeg:mpeg21:2003:01-DIA-RightsLanguagesCS-
NS:2003:RELProfile:Base">
MPEG-21 REL Base Profile
href="urn:mpeg:mpeg7:2003:01-DIA-RightsLanguagesCS-NS:2003:REL">
MPEG-21 REL
In subclause 6.6.4.2, add a new attribute to the NetworkCapabilityType:
In subclause 6.6.4.3, append a new row after the definition of the errorCorrection attribute:
maxPacketSize
Describes the maximum size of a packet in bit.
NOTE This attribute is considered for technologies that support packet
transport (e.g. IP networks).
In subclause 7.2.2, append the following text to the schema:
use="optional"/>
use="optional"/>
use="optional"/>
© ISO/IEC 2007 — All rights reserved 7
---------------------- Page: 10 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
use="optional"/>
use="optional"/>
use="optional"/>
In subclause 7.2.3, append the following text at the end of this subclause:
Semantics of the StreamingRefType:
Name Definition
StreamingRefType
Describes a reference to the (generic) Bitstream Syntax Description or
AdaptationQoS description which can be used by a streaming processor.
The target of this reference shall be of bs1:BSDType or
dia:AdaptationQoSType.
NOTE In case it is used by the SteeringDescriptionRef element the
reference shall be of dia:AdaptationQoSType. In case it is used by the
BSDRef element the reference shall be of bs1:BSDType.
minPUSize
Describes the minimum size of the process unit in bytes.
avgPUSize
Describes the average size of the process unit in bytes.
maxPUSize
Describes the maximum size of the process unit in bytes.
minBitstreamPUSize Describes the minimum size of the bitstream fragment in bytes which is
described by a single process unit.
NOTE 1 This attribute shall appear only once, e.g., within a single BSDLink
description.
avgBitstreamPUSize
Describes the average size of the bitstream fragment in bytes which is
described by a single process unit.
NOTE 2 This attribute shall appear only once, e.g., within a single BSDLink
description.
maxBitstreamPUSize
Describes the maximum size of the bitstream fragment in bytes which is
described by a single process unit.
NOTE 3 This attribute shall appear only once, e.g., within a single BSDLink
description.
NOTE 4 The information within the StreamingRefType may be used by the buffer of an adaptation engine in a
streaming scenario – similar to a decoding buffer of a media resource player – which is related to the processing part of
the delivery and not the delivery itself.
8 © ISO/IEC 2007 — All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 7.2.4, append the following text at the end of this subclause:
EXAMPLE This example demonstrates the usage of the dia:StreamingRefType within a BSDLink description for
an ISO/IEC 14496-3 bit sliced arithmetic coding (BSAC) bitstream.
uri="bsac_AQoS.xml"
maxPUSize="52"/>
uri="bsac_gBSD.xml"
maxPUSize="132"
minBitstreamPUSize="98"
maxBitstreamPUSize="515"
avgBitstreamPUSize="228"/>
type="http://www.w3.org/1999/XSL/Transform"/>
LAYERS_OF_SCALABLE_AUDIO
In subclause 8.1.6, append a new paragraph at the end of this subclause:
Subclauses 8.5 and 8.6 specify media resource and XML streaming instructions required for adapting
resources in streaming scenarios, in particular for dynamic and distributed adaptation scenarios. The media
resource and XML streaming instructions define a set of properties and attributes which describe the
fragmentation, timing, and additional information of a BSD and its corresponding bitstream. Furthermore,
subclause 8.7 specifies a so-called properties stylesheet enabling to set these properties without modifying
the XML document.
In subclause 8.2.1, append a new paragraph at the end of this subclause:
Optional features
This part of ISO/IEC 21000 specifies a set of optional features in Annex L organized in modules. A conformant
BSDtoBin or BintoBSD parser is not required to implement these features. Alternatively, when it implements, it
shall conform to their specification in this part of ISO/IEC 21000. These features are organized in three
modules:
⎯ Use of ISO/IEC 16262 (ECMAScript) for user-defined datatypes.
⎯ Use of ISO/IEC 16262 (ECMAScript) for user-defined XPath functions.
⎯ Support for array of variables.
NOTE A set of non-normative features of BSDL used for extensibility and for debugging is defined in Annex M.
Information about the BS Schema
A bs1:schemaInformation element contained at the root of the schema document wraps information
about the BS Schema. This information is provided as attributes in BSDL-1 or BSDL-2 namespaces. BSDL-1
attributes are relevant to both BSDtoBin and BintoBSD processors whereas BSDL-2 attributes are only
relevant to BintoBSD.
© ISO/IEC 2007 — All rights reserved 9
---------------------- Page: 12 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
When a BSDL-1 attribute is provided both in the BSD and the bs1:schemaInformation element of the BS
Schema with conflicting values, the value used in the BSD supersedes the one used in the BS Schema.
In subclause 8.3.1.1, replace Table 4 with the following table:
See Section Datatype name Encoding
length
xsd:string
3.2.1 Indefinite
3.3.1 xsd:normalizedString Indefinite
xsd:float
3.2.4 4
xsd:double
3.2.5 8
3.2.15 xsd:hexBinary Indefinite
xsd:base64Binary
3.2.16 Indefinite
xsd:long
3.3.16 8
3.3.17 xsd:int 4
xsd:short
3.3.18 2
xsd:byte
3.3.19 1
3.3.21 xsd:unsignedLong 8
xsd:unsignedInt
3.3.22 4
xsd:unsignedShort
3.3.23 2
3.3.24 xsd:unsignedByte 1
In subclause 8.3.1.1, replace the following paragraph:
All integer types (xsd:long, xsd:int, xsd:short, xsd:byte) and their unsigned derivatives
(xsd:unsignedLong, xsd:unsignedInt, xsd:unsignedShort, xsd:unsignedByte) are encoded in
big endian. BSDL does not provide equivalent types for little endian, but the BS Schema author still has the
possibility to specify a little endian value by decomposing it into several ordered bytes.
with:
All integer types (xsd:long, xsd:int, xsd:short, xsd:byte) and their unsigned derivatives
(xsd:unsignedLong, xsd:unsignedInt, xsd:unsignedShort, xsd:unsignedByte) are encoded in
big endian. BSDL provides equivalent types for little endian in subclause 8.3.1.4.
In subclause 8.3.1.1, replace the following paragraph:
xsd:normalizedString is coded as US-ASCII. Note that the xsd:string type is not supported by BSDL
since it allows carriage return and line feed characters whose processing is platform-dependent.
with:
xsd:string and xsd:normalizedString are coded as US-ASCII. Note that care should be taken with
the xsd:string type since it allows carriage return and line feed characters whose processing is platform-
dependent. In case such control characters with platform-dependent encoding are present in the stream it is
recommended to escape these characters in the BSD with a character reference as specified in XML such as
"
" or "
" instead of the Carriage Return character.
10 © ISO/IEC 2007 — All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
In subclause 8.3.1.1, replace the following paragraph:
BSDL built-in datatypes
In addition to the XML Schema built-in datatypes listed above, BSDL provides two built-in datatypes named
bs1:byteRange and bs1:bitstreamSegment. Their syntax is defined in the Schema for BSDL-1
extensions. They carry specific semantics in the context of bitstream generation explained in subclause
8.3.1.4 and have an indefinite length similarly to xsd:hexBinary and xsd:base64Binary.
with:
BSDL built-in datatypes
In addition to the XML Schema built-in datatypes listed above, BSDL provides two built-in datatypes pointing
to segments of data within the described bitstream, a set of built-in integer datatypes supporting little-endian
encoding, two built-in datatypes corresponding to the exponentional Golomb variable-length coding scheme,
and string datatypes supporting UTF-8 and UTF-16 encoding, as well as strings terminated with a null
character. Their syntax is defined in the Schema for BSDL-1 extensions. They carry specific semantics in the
context of bitstream generation explained in subclause 8.3.1.4.
Additionaly, BSDL provides datatypes for unsigned integer values encoded from 1 to 32 bits. Their syntax is
defined in a separate schema document with no target namespace provided in subclause 8.3.1.2 and their
semantics is defined in subclause 8.3.1.4. This schema document is included by the Schema for BSDL-1
extensions and the datatype consequently inherit the BSDL-1 namespace.
Extension datatypes
In addition to XML Schema and BSDL built-in datatypes, BSDL provides the possibility to specify proprietary
extension datatypes and use them in a BS Schema. An extension datatype is identified by a URI comprising a
base part followed by a fragment identifier. The bs1:codec attribute allows a schema author to override a
datatype defined in the schema. For this, the simple type needs to be derived by extension by declaring a
bs1:codec attribute with a fixed or default value equal to the URI identifying the extension datatype. It is then
possible to extend the implementation of BSDtoBin and BintoBSD processors to implement the decoding (i.e.,
reading the syntactical element from the bitstream and instantiating its lexical representation) and encoding
(i.e., binary encoding the lexical value and writing it to the bitstream) of these datatypes. This extension
mechanism is further specified in Annex K.
Properties in BS Description
For processing purpose, BSDL defines a set of abstract element properties that enrich the infoset of BS
Description elements and are considered by the BSDtoBin processor. Each has an associated attribute.
These properties are ineritable from the parent element. Properties may be specified by the associated
attribute provided by the BS Description or the BS Schema (via its default or fixed value) or inherited from the
parent element in the following way:
For each BS Decsription element in document order:
⎯ if the associated attribute is present in the BS Description element, then the property is obtained from the
value specified by the attribute; the way the property is computed from the attribute value is specific to the
property,
⎯ otherwise, if the BS Schema declares a default or fixed value for the associated attribute, then the
property is obtained from this value,
⎯ otherwise, if the element has a parent element, the property is inherited from the property of the parent
element,
⎯ otherwise (root element), it takes the default value for the document.
© ISO/IEC 2007 — All rights reserved 11
---------------------- Page: 14 ----------------------
ISO/IEC 21000-7:2004/Amd.2:2007(E)
The properties are the following:
⎯ The addressUnit property is associated with the the bs1:addressUnit attribute. It indicates the address
unit used by the bs1:byteRange and bs1:bitstreamSegment datatypes. Its value is bit or byte, the
default value for the document is byte.
⎯ The ignore property is associated with the the the bs1:ignore attribute. Its value is a true or false. If set
to true, BSDtoBin shall ignore the current element. Otherwise, process the element normally. The default
value for the document is false.
⎯ The bitstreamURI property indicates the absolute URI of the described bitstream and is associated to the
bs1:bitstreamURI attribute. If the bs1:bitstreamURI attribute indicates a relative URI, then the
bitstreamURI property of the element is obtained by r
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
