INTERNATIONAL ISO/IEC
STANDARD 23000-13
Second edition
2017-11
Information technology - Multimedia
application format (MPEG-A) —
Part 13:
Augmented reality application format
Technologies de l'information - Format des applications
multimedias —
Partie 13: Format pour les Applications de Realité Augmentée
Reference number
ISO/IEC 23000-13:2017(E)
©
ISO/IEC 2017
---------------------- Page: 1 ----------------------
ISO/IEC 23000-13:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23000-13:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, and abbreviated terms . 1
3.1 Terms and definitions . 1
3.2 Abbreviated terms . 3
4 ARAF principle and context . 3
5 ARAF scene description . 5
5.1 General . 5
5.1.1 Elementary media . 7
5.1.2 Programming information.34
5.1.3 User interactivity .35
5.1.4 Scene related information (spatial and temporal relationships) .43
5.1.5 Dynamic and animated scene .98
5.1.6 Communication and compression .102
5.1.7 Terminal .112
6 ARAF for sensors and actuators .113
6.1 General .113
6.1.1 Usage of InputSensor and script nodes .113
6.2 Access to local camera sensor .116
6.3 Usage of outputactuator and script nodes .117
6.3.1 General.117
7 ARAF compression .120
8 Reference software .121
8.1 General .121
8.2 Implementation details .121
8.3 Utility software .122
9 Conformance .122
Annex A (informative) Map related prototypes implementation .125
Annex B (informative) ARAF support for proprietary formats .143
Annex C (informative) ARAF interactive applications description .144
Bibliography .146
© ISO/IEC 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23000-13:2017(E)

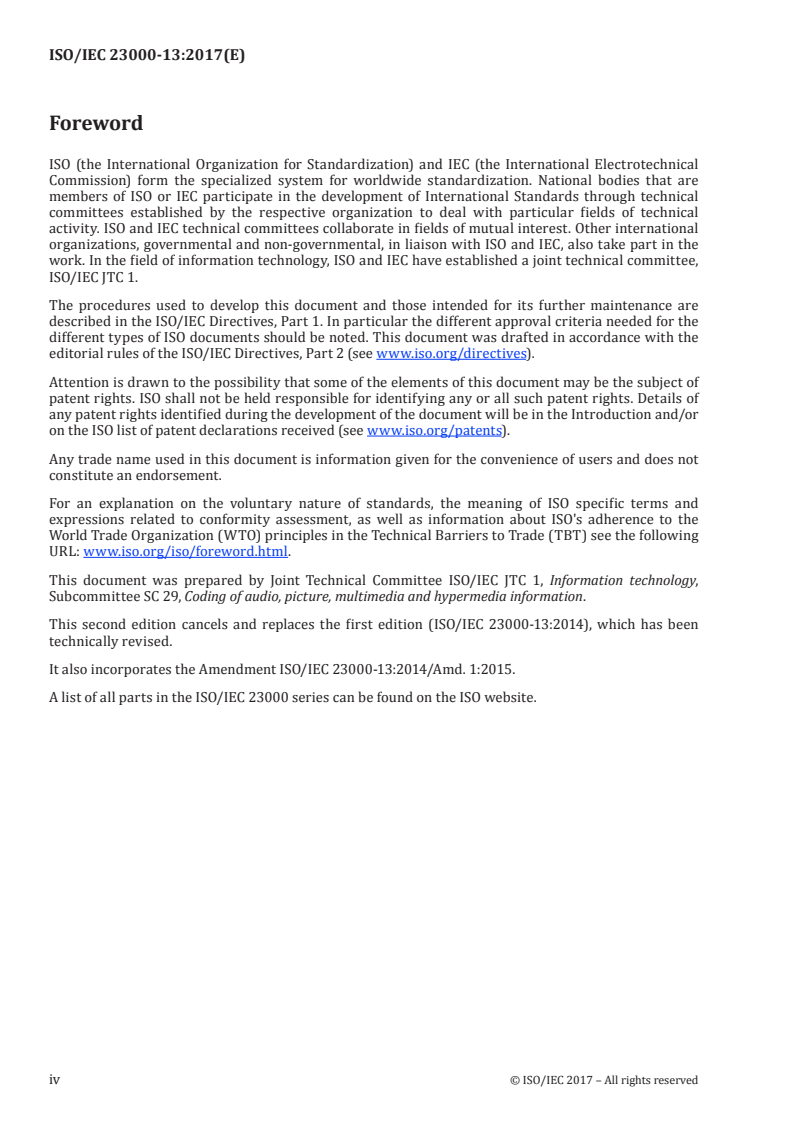

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
This second edition cancels and replaces the first edition (ISO/IEC 23000-13:2014), which has been
technically revised.
It also incorporates the Amendment ISO/IEC 23000-13:2014/Amd. 1:2015.
A list of all parts in the ISO/IEC 23000 series can be found on the ISO website.
iv © ISO/IEC 2017 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 23000-13:2017(E)
Introduction
Augmented Reality (AR) applications refer to a view of a real-world environment (RWE), whose
elements are augmented by content, such as graphics or sound, in a computer driven process.
Augmented Reality Application Format (ARAF) is a collection of a subset of the ISO/IEC 14496-11
Scene Description and Application Engine standard, combined with other relevant MPEG standards
(e.g. ISO/IEC 23005, MPEG-V), designed to enable the consumption of 2D/3D multimedia content.
Consequently, this document focuses not on client or server procedures, but on the data formats used to
provide an augmented reality presentation.
© ISO/IEC 2017 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23000-13:2017(E)
Information technology - Multimedia application format
(MPEG-A) —
Part 13:
Augmented reality application format
1 Scope
This document specifies the following:
— scene description elements for representing AR content;
— mechanisms to connect to local and remote sensors and actuators;
— mechanisms to integrated compressed media (image, audio, video, graphics);
— mechanisms to connect to remote resources such as maps and compressed media.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 10646-1:2012, Information technology — Universal multiple-octet coded character set (UCS) —
Part 1: Architecture and basic multilingual plane
ISO/IEC 14496-1:2010 + Amd. 2:2014, Information technology — Coding of audio-visual objects —
Part 1: Systems
ISO/IEC 14496-3:2009, Information technology — Coding of audio-visual objects — Part 3: Audio
ISO/IEC 14496-11:2015, Information technology — Coding of audio-visual objects — Part 11: Scene
description and application engine
ISO/IEC 14496-16:2011, Information technology — Coding of audio-visual objects — Part 16: Animation
Framework eXtension (AFX)
ISO/IEC 14772-1:1997, Information technology — Computer graphics and image processing — The Virtual
Reality Modeling Language — Part 1: Functional specification and UTF-8 encoding
ISO/IEC 23005-5, Information technology — Media context and control — Part 5: Data formats for
interaction devices
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 23000-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
© ISO/IEC 2017 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 23000-13:2017(E)
— IEC Electropedia: available at http://www.electropedia.org/
3.1.1
ARAF browser
augmented reality application format compliant browser
3.1.2
MAR scene
textual result of the MAREC creation, played by an ARAF browser (3.1.1)
Note 1 to entry: The result is a MAR experience.
3.1.3
MAR experience
act of playing the ARAF scene using an ARAF browser (3.1.1)
Note 1 to entry: The ARAF browser interprets the ARAF scene and presents the result on the end-user’s device.
3.1.4
content creator
creator of the media files that are being used within the MAR experience (3.1.3)
Note 1 to entry: The media files can be 2D and/or 3D graphics, images, videos and/or sounds.
3.1.5
end-user device
smartphone or mobile device used by an end-user to play a MAR scene (3.1.2)
Note 1 to entry: The device shall have an ARAF browser installed.
3.1.6
processing server
server that offers at least one required processing functionality for a MAR experience (3.1.3) and it is
capable of communicating with an ARAF browser (3.1.1)
3.1.7
target resource
target image or target image descriptor
Note 1 to entry: The target image represents the image that shall be detected and recognized by a recognition
library. The target image descriptor is represented by the visual descriptors extracted from a target image. The
target resources may be specified by the MAREC or they can be already stored in databases on remote servers.
3.1.8
prerecorded video
prerecorded 2D video whose location is specified by MAREC
Note 1 to entry: The video file can be stored locally (on the device where the MAR experience is played) or
remotely (anywhere else on the web). The recognition process shall be performed on the frames (still images)
composing the video.
3.1.9
live video camera (stream)
live 2D video camera feed
Note 1 to entry: The URL of the camera providing the real time capture is specified by the MAREC. The URL can
point to one of the cameras of the device where the MAR experience is played or to any other camera that can
provide a live video stream and the ARAF browser can connect to.
2 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23000-13:2017(E)
3.1.10
image recognition library
library that is able to recognize target resources (3.1.7) in a video
Note 1 to entry: The library can run locally (implemented in the ARAF browser) or remotely (on a processing
server). The result of an image recognition library is an array of indexes of the recognized target resources.
3.1.11
image recognition and tracking library
library that is able to recognize and track target resources (3.1.7) in a video
Note 1 to entry: The library can run locally (implemented in the ARAF browser) or remotely (on a processing
server). The result of a recognition and tracking library is an array of indexes of the recognized target resources
and their pose matrixes. Each recognized target resource shall have a pose matrix associated or a default value if
the corresponding pose matrix could not be computed.
3.1.12
augmentation resource
media objects that are used in the augmentation of the MAR experience (3.1.3)
Note 1 to entry: A valid augmentation resource can be a 2D/3D grapic element, an image, a video, a sound or a BIFS
scene. The augmentation resources can be stored locally in the MAR Scene or remotely anywhere on the Web, as
long as the ARAF browser is capable of accesing their locations. In this case, a URL pointing to the augmentation
resource is stored in the MAR scene.
3.2 Abbreviated terms
AR Augmented Reality
ARAF Augmented Reality Application Format
URI Uniform Resource Identifier
URL Uniform Resource Locator
URN Uniform Resource Name
MAR Mixed and Augmented Reality
MARE Mixed and Augmented Reality Experience
MAREC Mixed and Augmented Reality Experience Creator
PROTO A PROTOtype is a mechanism used to group together scene graph elements in order to im-
plement one or several specific functionalities.
RTR Recognized Target Resource
4 ARAF principle and context
Augmented Reality (AR) applications refer to a view of a real-world environment whose elements are
augmented by content, such as graphics or sound, in a computer driven process. Figure 1 illustrates two
real and virtual cameras and the composition of a real image and graphics objects. Annex C describes
several application scenarios for augmented reality.
© ISO/IEC 2017 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 23000-13:2017(E)
Key
1 real picture
2 real camera
3 graphic object
4 virtual camera
5 calibration
6 position and orientation
Figure 1 — Simplified illustration of the AR principle
The Augmented Reality Application Format (ARAF) is an extension of a subset of the MPEG-4 part 11
Scene Description and Application Engine standard, combined with other relevant MPEG standards
(MPEG-4, MPEG-V), designed to enable the consumption of 2D/3D multimedia content as depicted in
Figure 2.
An ARAF, available as a file or stream, is interpreted by a device, called ARAF device. The nodes of the
ARAF scene point to different sources of multimedia content such as 2D/3D image, 2D/3D audio, 2D/3D
video, 2D/3D graphics and sensor/sensory information sources/sinks that are either remote or/and local.
Figure 2 — The ARAF context
4 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 23000-13:2017(E)
5 ARAF scene description
5.1 General
To describe the multimedia scene, ARAF is based on ISO/IEC 14496-11 which at its turn is based on
ISO/IEC 14772-1 (VRML97). About two hundred nodes are standardized in MPEG-4 BIFS and VRML,
allowing various kinds of scenes to be constructed. ARAF is referring to a subset of MPEG-4 BIFS
nodes and external prototypes as defined in ISO/IEC 14496-11:2015, Annex E for scene description as
presented in Table 1.
Table 1 — ARAF nodes and prototypes
Sub- Node, prototypes/elements Type
Category
category name in MPEG-4 BIFS/XMT
AudioSource Node
Audio Sound Node
Sound2D Node
ImageTexture Node
and video
MovieTexture Node
FontStyle Node
Textual
information
Text Node
Appearance Node
Color Node
LineProperties Node
LinearGradient Node
Material Node
Elementary Node
Material2D
media
Rectangle Node
Shape Node
SBVCAnimationV2 Node
Graphics SBBone Node
SBSegment Node
SBSite Node
SBSkinnedModel Node
MorphShape Node
Coordinate Node
TextureCoordinate Node
Normal Node
IndexedFaceSet Node
IndexedLineSet Node
Programming
Script Node
information
© ISO/IEC 2017 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 23000-13:2017(E)
Table 1 (continued)
Sub- Node, prototypes/elements Type
Category
category name in MPEG-4 BIFS/XMT
InputSensor Node
OutputActuator Node
SphereSensor Node
User
TimeSensor Node
interactivity
TouchSensor Node
MediaSensor Node
PlaneSensor Node
Background Node
Scene related) Background2D Node
information CameraCalibration PROTO
(spatial and Group Node
temporal Inline Node
relationships Layer2D Node
Layer3D Node
Layout Node
NavigationInfo Node
OrderedGroup Node
LocImg PROTO
RemImgProxy PROTO
RemImgServer PROTO
RemImgComp PROTO
LocAud PROTO
RemAud PROTO
Switch Node
Transform Node
Transform2D Node
Viewpoint Node
Viewport Node
Form Node
OrientationInterpolator Node
ScalarInterpolator Node
CoordinateInterpolator Node
Dynamic and
animated scene
ColorInterpolator Node
PositionInterpolator Node
Valuator Node
BitWrapper Node
MediaControl Node
Communication
Map PROTO
and compression
Maps MapOverlay PROTO
MapMarker PROTO
MapPlayer PROTO
Terminal TermCap Node
6 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 23000-13:2017(E)
All the above listed elements are specified in MPEG-4 Part 11. However, to facilitate the implementation
of ARAF content, the current document contains their XML syntax as well as the semantics and
functionality.
MPEG-4 Part 11 describes a scene with a hierarchical structure that can be represented as a graph.
Nodes of the graph build up various types of objects, such as audio video, image, graphic, text, etc.
Furthermore, to ensure the flexibility, a new, user-defined type of node derived from a parent one can
also be defined on demand by using the Proto method.
In general, nodes expose a set of parameters, through which aspects of their appearance and behavior
can be controlled. By setting these values, scene designers have a tool to force a scene-reconstruction
at clients’ terminals to adhere to their intention in a predefined manner. In more complicated scenario,
the structure of BIFS nodes is not necessarily static; nodes can be added or removed from the scene
graph arbitrarily.
Certain types of nodes called sensors, such as TimeSensor, TouchSensor, can interact with users and
generate appropriate triggers, which are transmitted to others nodes by routing mechanism, causing
changes in state of these receiving nodes. They are bases for the dynamic behavior of a multimedia
content supported by MPEG-4.
The maximum flexibility in the programmable feature of MPEG-4 scene is carried out with the Script
node. By routing mechanism to Event In valueIn attribute of Script node, the associated function
(defined in its URL attribute) with the same name Event In valueIn () will be triggered. The behavior of
this function is user-defined, i.e. scene-designer can freely process some computations, and then sets
the values for every Event Out valueOut attribute, which consecutively affect the states of other nodes
linked to them.
Direct manipulation of nodes’ states is also possible in MPEG-4 Part 11: the Field field attribute can
refer to any node in the scene; through this link, all attributes of the contacted node will be exposed
to direct setting and modifying operators within the Script node. The syntax of the language used to
implement the function of Script node is ECMAScript (see ISO/IEC 16262).
ARAF supports the definition and reusability of complex objects by using the MPEG-4 PROTO
mechanism. The PROTO statement creates its own nodes by defining a configurable object prototype; it
can integrate any other node from the scene graph.
ARAF makes extensive use of EXTERNPROTO mechanism which are nodes whose syntax is identified
by URNs as given in ISO/IEC 14496-11:2915, Annex E, while their names are only informative and for
convenience can be changed by the content creator in the declaration step.
Table 1 indicates the MPEG-4 Part 11 nodes that are included in ARAF. For each node, it is specified in
the version of this document when it was published. Further, the XML syntax as well as the semantics
and functionality of these elements are described.
5.1.1 Elementary media
5.1.1.1 Audio
The following audio related nodes are used in ARAF: AudioSource, Sound, Sound2D.
5.1.1.1.1 AudioSource
5.1.1.1.1.1 XSD description
© ISO/IEC 2017 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 23000-13:2017(E)
5.1.1.1.1.2 Functionality and semantics
As defined in ISO/IEC 14496-11:2015, 7.2.2.15.
This node is used to add sound to a BIFS scene. See ISO/IEC 14496-3 for information on the various
audio tools available for coding sound.
The addChildren eventIn specifies a list of nodes that shall be added to the children field. The
removeChildren eventIn specifies a list of nodes that shall be removed from the children field.
The children field allows buffered AudioBuffer or AdvancedAudioBuffer data to be used as sound
samples within a structured audio decoding process. Only AudioBuffer and AdvancedAudioBuffer
nodes shall be children to an AudioSource node, and only in the case where url indicates a structured
audio bitstream. The pitch field controls the playback pitch for the structured audio, the parametric
speech (HVXC) and the parametric audio (HILN) decoder. It is specified as a ratio, where 1 indicates
the original bitstream pitch, values other than 1 indicate pitch-shifting by the given ratio. This field
is available through the getttune() core opcode in the structured audio decoder (see ISO/IEC 14496-
3:2009, Clause 5). To adjust the pitch of other decoder types, use the AudioFX node with an appropriate
effects orchestra.
The speed field controls the playback speed for the structured audio decoder (see ISO/IEC 14496-
3:2009, Clause 5), the parametric speech (HVXC) and the parametric audio (HILN) decoder. It is
specified as a ratio, where 1 indicates the original speed; values other than 1 indicate multiplicative
time-scaling by the given ratio (i.e. 0,5 specifies twice as fast). The value of this field shall be made
available to the structured audio decoder indicated by the url field. ISO/IEC 14496-3:2009, 5.7.3.3.6,
list item 8 describes the use of this field to control the structured audio decoder. To adjust the speed of
other decoder types, use the AudioFX node with an appropriate effects orchestra (see ISO/IEC 14496-
3:2009, 5.9.14.4).
The startTime and stopTime exposedFields and their effects on the AudioSource node are described in
ISO/IEC 14496-11:2015, 7.1.1.1.6.2. The numChan field describes how many channels of audio are in the
decoded bitstream.
5.1.1.1.2 Sound
5.1.1.1.2.1 XSD description
8 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 23000-13:2017(E)
5.1.1.1.2.2 Functionality and semantics
As defined in ISO/IEC 14496-11:2015, 7.2.2.116.
The Sound node is used to attach sound to a scene, thereby giving it spatial qualities and relating it to
the visual content of the scene. The Sound node relates an audio BIFS sub-graph to the rest of an audio-
visual scene. By using this node, sound may be attached to a group, and spatialized or moved around
as appropriate for the spatial transforms above the node. By using the functionality of the audio BIFS
nodes, sounds in an audio scene described using ISO/IEC 14496-11 may be filtered and mixed before
being spatially composited into the scene. The semantics of this node are as defined in ISO/IEC 14472-
1:1997, 6.42, with the following exceptions and additions.
The source field allows the connection of an audio sub-graph containing the sound. The spatialize
field determines whether the Sound shall be spatialized. If this flag is set, the sound shall be presented
spatially according to the local coordinate system and current listeningPoint, so that it apparently
comes from a source located at the location point, facing in the direction given by direction. The
exact m
...
