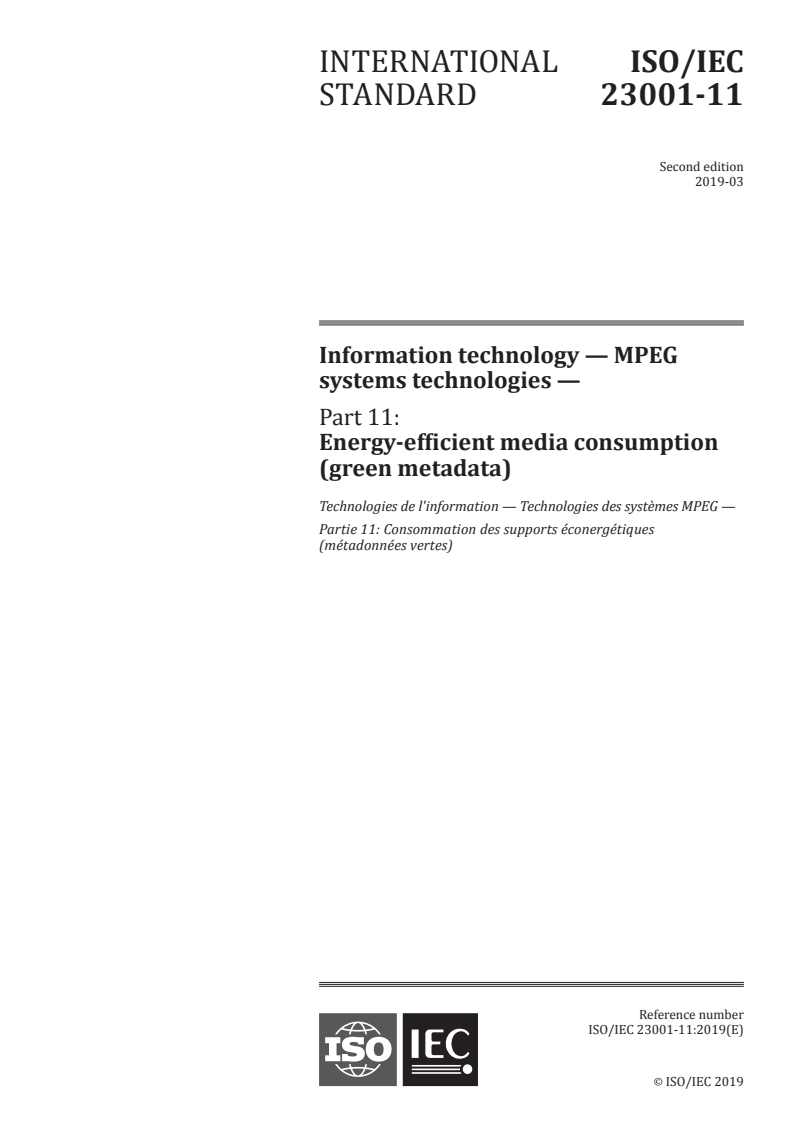

INTERNATIONAL ISO/IEC
STANDARD 23001-11
Second edition
2019-03
Information technology — MPEG
systems technologies —
Part 11:
Energy-efficient media consumption
(green metadata)
Technologies de l'information — Technologies des systèmes MPEG —
Partie 11: Consommation des supports éconergétiques
(métadonnées vertes)
Reference number
ISO/IEC 23001-11:2019(E)
©
ISO/IEC 2019
---------------------- Page: 1 ----------------------
ISO/IEC 23001-11:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23001-11:2019(E)

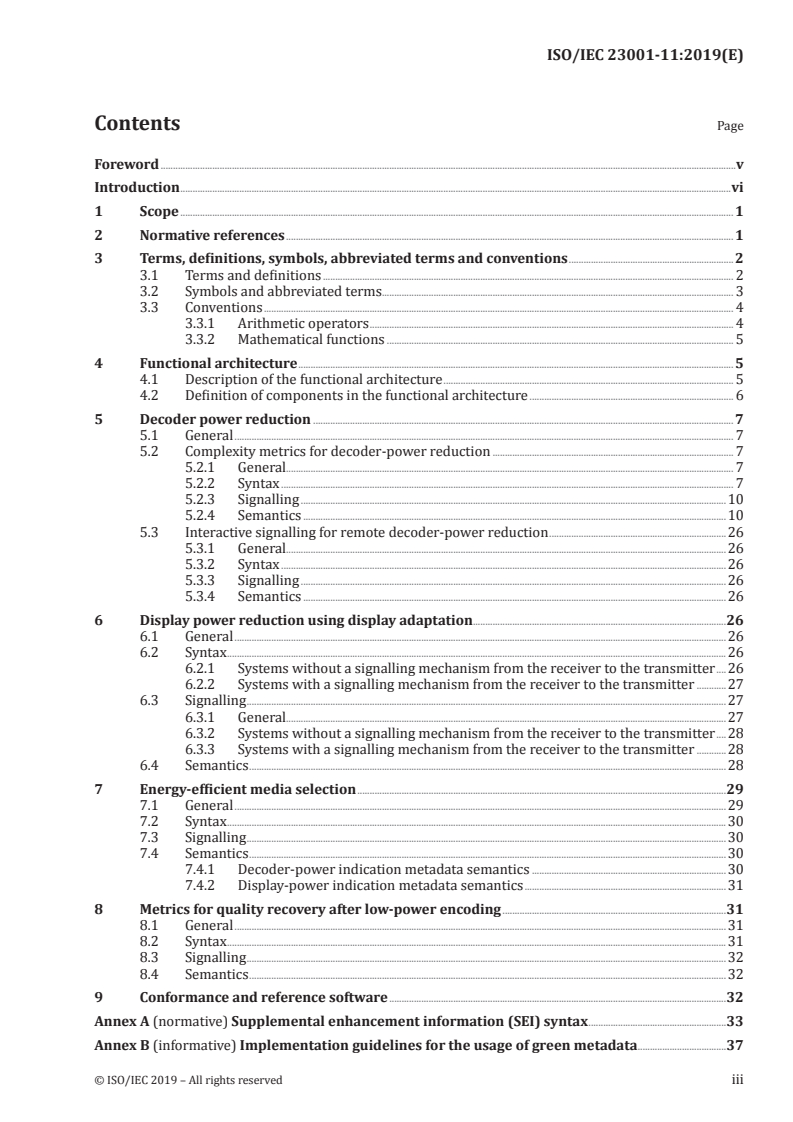

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, symbols, abbreviated terms and conventions .2
3.1 Terms and definitions . 2
3.2 Symbols and abbreviated terms. 3
3.3 Conventions . 4
3.3.1 Arithmetic operators . 4
3.3.2 Mathematical functions . 5
4 Functional architecture . 5
4.1 Description of the functional architecture . 5
4.2 Definition of components in the functional architecture . 6
5 Decoder power reduction . 7
5.1 General . 7
5.2 Complexity metrics for decoder-power reduction . 7
5.2.1 General. 7
5.2.2 Syntax . 7
5.2.3 Signalling .10
5.2.4 Semantics .10
5.3 Interactive signalling for remote decoder-power reduction .26
5.3.1 General.26
5.3.2 Syntax .26
5.3.3 Signalling .26
5.3.4 Semantics .26
6 Display power reduction using display adaptation .26
6.1 General .26
6.2 Syntax .26
6.2.1 Systems without a signalling mechanism from the receiver to the transmitter .26
6.2.2 Systems with a signalling mechanism from the receiver to the transmitter .27
6.3 Signalling .27
6.3.1 General.27
6.3.2 Systems without a signalling mechanism from the receiver to the transmitter .28
6.3.3 Systems with a signalling mechanism from the receiver to the transmitter .28
6.4 Semantics .28
7 Energy-efficient media selection .29
7.1 General .29
7.2 Syntax .30
7.3 Signalling .30
7.4 Semantics .30
7.4.1 Decoder-power indication metadata semantics .30
7.4.2 Display-power indication metadata semantics .31
8 Metrics for quality recovery after low-power encoding .31
8.1 General .31
8.2 Syntax .31
8.3 Signalling .32
8.4 Semantics .32
9 Conformance and reference software .32
Annex A (normative) Supplemental enhancement information (SEI) syntax .33
Annex B (informative) Implementation guidelines for the usage of green metadata .37
© ISO/IEC 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23001-11:2019(E)
Annex C (normative) Conformance and reference software .62
Bibliography .66
iv © ISO/IEC 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 23001-11:2019(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
This second edition cancels and replaces the first edition (ISO/IEC 23001-11:2015), which has been
technically revised. It also incorporates the Amendments ISO/IEC 23001-11:2015/Amd 1:2016 and ISO/
IEC 23001-11:2015/Amd 2:2018. The main changes compared to the previous edition are as follows:
— specification of an HEVC SEI message carrying green metadata and modification of text specifying
the carriage of green Metadata in an AVC SEI message so that the AVC and HEVC SEI messages are
consistent;
— inclusion of Annex C which specifies conformance-verification procedures for the power-reduction
technologies specified in this document, precises the role of the reference software for each
technology and gives the links to reference softwares and test vectors.
— specification of HEVC Complexity metrics and improvement of the existing AVC Complexity metrics.
A list of all parts in the ISO/IEC 23001 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
© ISO/IEC 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 23001-11:2019(E)
Introduction
This document specifies the metadata (green metadata) that facilitates reduction of energy usage
during media consumption as follows:
— the format of the metadata that enables reduced decoder power consumption;
— the format of the metadata that enables reduced display power consumption;
— the format of the metadata that enables media selection for joint decoder and display power
reduction;
— the format of the metadata that enables quality recovery after low-power encoding.
This metadata facilitates reduced energy usage during media consumption without any degradation
in the quality of experience (QoE). However, it is also possible to use this metadata to get larger energy
savings, but at the expense of some QoE degradation.
vi © ISO/IEC 2019 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23001-11:2019(E)
Information technology — MPEG systems technologies —
Part 11:
Energy-efficient media consumption (green metadata)
1 Scope
This document specifies metadata for energy-efficient decoding, encoding, presentation and selection
of media.
The metadata for energy-efficient decoding specifies two sets of information: complexity metrics (CM)
metadata and decoding operation reduction request (DOR-Req) metadata. A decoder uses CM metadata
to vary operating frequency and thus reduce decoder power consumption. In a point-to-point video
conferencing application, the remote encoder uses the DOR-Req metadata to modify the decoding
complexity of the bitstream and thus reduce local decoder power consumption.
The metadata for energy-efficient encoding specifies a quality metric that is used by a decoder to reduce
the quality loss from low-power encoding.
The metadata for energy-efficient presentation specifies RGB-component statistics and quality levels. A
presentation subsystem uses this metadata to reduce power by adjusting display parameters, based on
the statistics, to provide a desired quality level from those provided in the metadata.
The metadata for energy-efficient media selection specifies decoder operation reduction ratios (DOR-
Ratios), RGB-component statistics and quality levels. The client in an adaptive streaming session
uses this metadata to determine decoder and display power-saving characteristics of available video
representations and to select the representation with the optimal quality for a given power-saving.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 13818-1, Information technology — Generic coding of moving pictures and associated audio
information — Part 1: Systems
1)
ISO/IEC 14496-10:— , Information technology — Coding of audio-visual objects — Part 10: Advanced
video coding
ISO/IEC 23001-10, Information technology — MPEG systems technologies — Part 10: Carriage of timed
metadata metrics of media in ISO base media file format
ISO/IEC 23008-2, Information technology — High efficiency coding and media delivery in heterogeneous
environments — Part 2: High efficiency video coding
2)
ISO/IEC 23009-1:— , Information technology — Dynamic adaptive streaming over HTTP (DASH) —
Part 1: Media presentation description and segment formats
ISO/IEC/TR 23009-3, Information technology — Dynamic adaptive streaming over HTTP (DASH) —
Part 3: Implementation guidelines
1) Under preparation. Stage at the time of publication: ISO/IEC DIS 14496-10:2018.
2) Under preparation. Stage at the time of publication: ISO/IEC FDIS 23009-1:2019.
© ISO/IEC 2019 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/IEC 23001-11:2019(E)
3 Terms, definitions, symbols, abbreviated terms and conventions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496-10, ISO/IEC 23008-
2 and ISO/IEC 23009-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1 Terms and definitions
3.1.1
alpha-point deblocking instance
APDI
single filtering operation that produces either a single, filtered output p' or a single, filtered output q' ,
0 0
where p' and q' are filtered samples across a 4x4 block edge
0 0
3.1.2
chroma_format_idc
chroma sampling relative to the luma sampling
3.1.3
deblocking filtering instance
single filtering operation that produces either a single, filtered output p' or a single, filtered output q',
where p' and q' are filtered samples across a 8x8 block edge
3.1.4
decoding process
process that reads a bitstream and derives decoded pictures from it
Note 1 to entry: This process is specified in ISO/IEC 14496-10 or ISO/IEC 23008-2.
3.1.5
display process
process that takes, as its input, the cropped decoded pictures that are the output of the decoding
process (3.1.4)
3.1.6
encoder
embodiment of an encoding process (3.1.7)
3.1.7
encoding process
process that produces a bitstream
Note 1 to entry: The bitstream produced is conforming to ISO/IEC 14496-10 or ISO/IEC 23008-2.
3.1.8
no-quality-loss operating point
NQLOP
metadata-enabled operating point associated with the largest display-power reduction that can be
achieved without any quality loss (infinite PSNR)
3.1.9
non-zero block
block containing at least one non-zero transform coefficient
2 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/IEC 23001-11:2019(E)
3.1.10
peak signal
maximum permissible RGB component (3.1.16) in a reconstructed frame (3.1.14)
Note 1 to entry: For 8-bit video, the peak signal is 255.
3.1.11
period
interval over which complexity-metrics metadata are applicable
3.1.12
PicSizeInMbs
product of the picture width and the picture height in units of macroblocks
3.1.13
pixel
smallest addressable element in an all-points addressable display device
3.1.14
reconstructed frames
frames obtained after applying RGB colour-space (3.1.15) conversion and cropping to the specific
decoded picture or pictures for which display power-reduction metadata are applicable
3.1.15
RGB colour space
colour space based on the red, green and blue primaries
3.1.16
RGB component
single sample representing one of the three primary colours of the RGB colour space (3.1.15)
3.1.17
separate_colour_plane_flag
flag that, when set, specifies that the three colour components of the 4:4:4 chroma format are coded
separately
3.1.18
six-tap filtering
STF
single application of the 6-tap filter to generate a single filtered sample for fractional positions using
the samples at integer-sample positions
3.2 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in the following apply:
APDI alpha-point deblocking instance
ASIC application specific integrated circuit
AVC advanced video coding — ISO/IEC 14496-10
BMFF base media file format
CM complexity metric
CMOS complementary metal oxide semiconductor
CPU central processing unit
© ISO/IEC 2019 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/IEC 23001-11:2019(E)
DASH dynamic adaptive streaming over HTTP
DOR-Ratio decoding operation reduction ratio
DOR-Req decoding operation reduction request
DVFS dynamic voltage frequency scaling
Fps frames per second
FS fresh start
GP good picture
HEVC high efficiency video coding — ISO/IEC 23008-2
Mbps mega bits per second
MPD media presentation description
MSD mean square difference
MV motion vector
NQLOP no-quality-loss operating point
PSNR peak signal to noise ratio
QoE quality of experience
RBLL remaining battery life level
RGB red, green, blue
SEI supplemental enhancement information
SP start picture
STF six-tap filtering
XSD cross-segment decoding
3.3 Conventions
3.3.1 Arithmetic operators
+ Addition
− Subtraction (as a two-argument operator) or negation (as a unary prefix operator)
* Multiplication
y
x Exponentiation
4 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC 23001-11:2019(E)
x/y Division where no truncation or rounding is intended
x
Division where no truncation or rounding is intended
y
y
fi() Summation of f(i) with i taking all integer values from x up to and including y
∑
ix=
3.3.2 Mathematical functions
Mathematical functions in this document are defined as follows:
−
Abs(x)= (1)
xx, ≥0
xx, <256
Clip()x = (2)
255, otherwise
Floor(x) is the greatest integer less than or equal to x (3)
Log10(x) returns the base-10 logarithm of x (4)
Round(x) = Sign(x) * Floor(Abs(x) + 0.5) (5)
−<10, x
Sign()x = (6)
10, x≤
4 Functional architecture
This clause is informative and placed here to provide context.
4.1 Description of the functional architecture
Figure 1 shows the functional architecture utilizing green metadata in this document. The media pre-
processor is applied to analyse and to filter the content source and a video encoder is used to encode the
content to a bitstream for delivery. The bitstream is delivered to the receiver and decoded by a video
decoder with the output rendered on a presentation subsystem that implements a display process.
© ISO/IEC 2019 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/IEC 23001-11:2019(E)
Figure 1 — Functional architecture
The green metadata is extracted from either the media encoder or the media pre-processor. In both
cases, the green metadata is multiplexed or encapsulated in the conformant bitstream. Such green
metadata is used at the receiver to reduce the power consumption for video decoding and presentation.
The bitstream is packetized and delivered to the receiver for decoding and presentation. At the receiver,
the metadata extractor processes the packets and sends the green metadata to a power optimization
module for efficient power control. For instance, the power optimization module interprets the green
metadata and then applies appropriate operations to reduce the video decoder’s power consumption
when decoding the video and also to reduce the presentation subsystem’s power consumption when
rendering the video. In addition, the power-optimization module can collect receiver information, such
as remaining battery capacity, and send it to the transmitter as green feedback to adapt the encoder
operations for power-consumption reduction.
The normative aspect of this document is limited to the green metadata and green feedback in
Figure 1.
4.2 Definition of components in the functional architecture
Green metadata generator
— Generates metadata from either the video encoder or the content pre-processor.
Green metadata extractor
— Interprets the bitstream syntax information and sends it to the power optimization module in the
receiver.
Green feedback generator
— Generates feedback information for the transmitter.
— Communicates with the transmitter through a feedback channel, if available, for energy-efficient
processing.
6 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/IEC 23001-11:2019(E)
Green feedback extractor
— Receives the feedback from the receiver and sends it to the power optimization module in the
transmitter.
Power optimization module in the transmitter
— Collects platform statistics such as the remaining battery capacity of the device in which the
transmitter resides.
— Controls the operation of the green metadata generator, video encoder and content pre-processor.
— Processes green feedback.
Power optimization module in the receiver
— Processes the green-metadata information and applies appropriate operations for power-
consumption control.
— Collects platform statistics such as remaining battery capacity of the device in which the receiver
resides.
— Sends requests to Green feedback generator.
5 Decoder power reduction
5.1 General
Energy-efficient decoding is achieved with two types of metadata: complexity metrics (CMs) metadata
and decoding operation reduction request (DOR-Req) metadata. A decoder may use CMs metadata
to vary operating frequency and thus reduce decoder power consumption. In a point-to-point video
conferencing application, the remote encoder may use the DOR-Req metadata to modify the decoding
complexity of the bitstream and thus reduce local decoder power consumption.
5.2 Complexity metrics for decoder-power reduction
5.2.1 General
With respect to the functional architecture in Figure 1, the green-metadata generator provides CMs
that indicate the picture-decoding complexity of an AVC or HEVC bitstream to the decoder.
5.2.2 Syntax
The syntax for the AVC CMs is given in Table 1.
Table 1 — Syntax for the AVC CMs
Size (bits) Descriptor
period_type 8 unsigned integer
if (period_type = = 2) || ( period_type == 7 ) {
num_seconds 16 unsigned integer
}
else if (period_type = = 3) || ( period_type == 8 ) {
num_pictures 16 unsigned integer
}
if ( period_type == 8 ) {
© ISO/IEC 2019 – All rights reserved 7
---------------------- Page: 13 ----------------------
ISO/IEC 23001-11:2019(E)
Table 1 (continued)
temporal_map
for ( t=0; t<8; t++ ) {
if ( (temporal_map>>t)%2 == 1 )
num_pictures_in_temporal_layers[t]
}
}
if ( period_type <= 3 ) {
portion_non_zero_8x8_blocks 8 unsigned integer
portion_intra_predicted_macroblocks 8 unsigned integer
portion_six_tap_filterings 8 unsigned integer
portion_alpha_point_deblocking_instances 8 unsigned integer
}
else if ( period_type == 4 ) {
for ( i=0; i<= num_slice_groups_minus1; i++ ) {
num_slices_minus1[i] 16 unsigned integer
}
for ( i=0; i<= num_slice_groups_minus1; i++ ) {
for ( j=0; j<=num_slices_minus1[i]; j++ ) {
first_mb_in_slice[i][j] 16 unsigned integer
portion_non_zero_8x8_blocks[i][j] 8 unsigned integer
portion_intra_predicted_macroblocks[i][j] 8 unsigned integer
portion_six_tap_filterings[i][j] 8 unsigned integer
portion_alpha_point_deblocking_instances[i][j] 8 unsigned integer
}
}
}
else if ( period_type >= 5 ) && ( period_type <= 8 ) {
num_layers_minus1 16 unsigned integer
for ( l=0; l<= num_layers_minus1; l++ ) {
picture_parameter_set_id[l] 8 unsigned integer
priority_id[l] 6 unsigned integer
dependency_id[l] 3 unsigned integer
quality_id[l] 4 unsigned integer
temporal_id[l] 3 unsigned integer
portion_non_zero_8x8_blocks[l] 8 unsigned integer
portion_intra_predicted_macroblocks[l] 8 unsigned integer
portion_six_tap_filterings[l] 8 unsigned integer
portion_alpha_point_deblocking_instances[l] 8 unsigned integer
}
}
The syntax for the HEVC CMs is given in Table 2.
8 © ISO/IEC 2019 – All rights reserved
---------------------- Page: 14 ----------------------
ISO/IEC 23001-11:2019(E)
Table 2 — Syntax for the HEVC CMs
Size (bits) Descriptor
period_type 8 unsigned integer
if ( period_type == 2 ) {
num_seconds 16 unsigned integer
}
else if ( period_type == 3 ) {
num_pictures 16 unsigned integer
}
if ( period_type <= 3 ) {
portion_non_zero_blocks_area 8 unsigned integer
if ( portion_non_zero_blocks_area != 0 ) {
portion_8x8_blocks_in_non_zero_area 8 unsigned integer
portion_16x16_blocks
...
