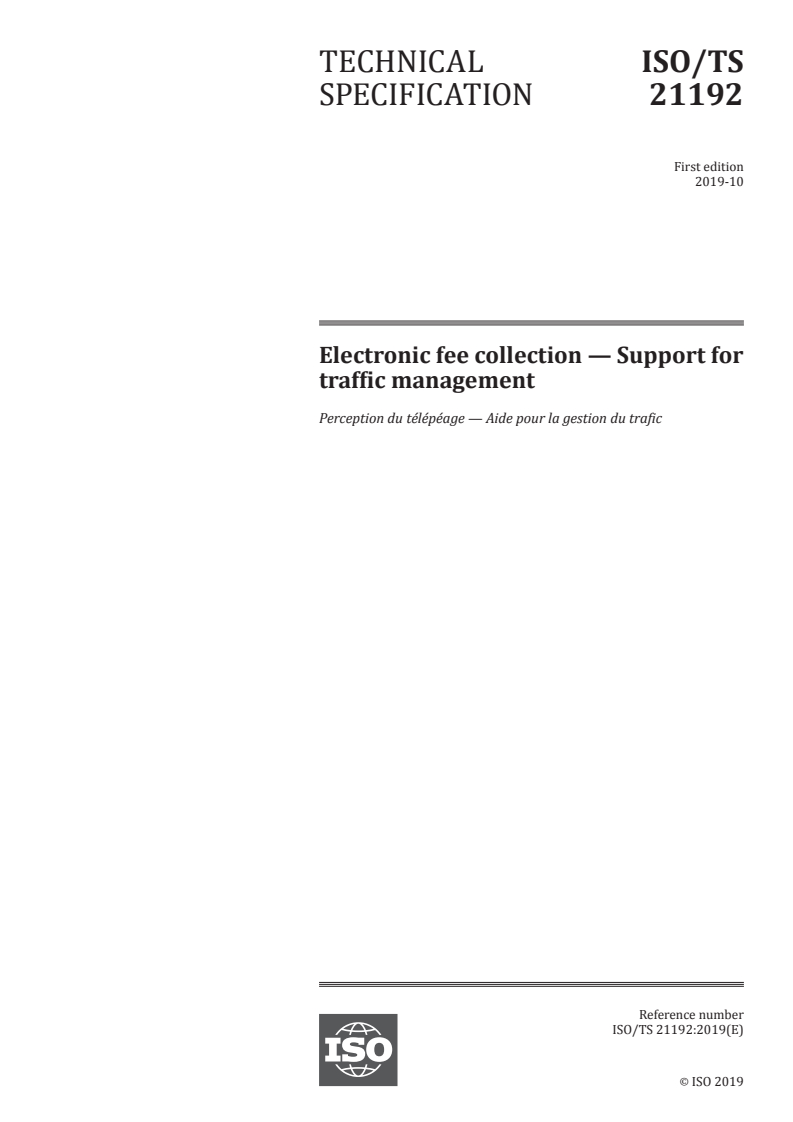

TECHNICAL ISO/TS
SPECIFICATION 21192
First edition
2019-10
Electronic fee collection — Support for
traffic management
Perception du télépéage — Aide pour la gestion du trafic
Reference number
ISO/TS 21192:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TS 21192:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 21192:2019(E)

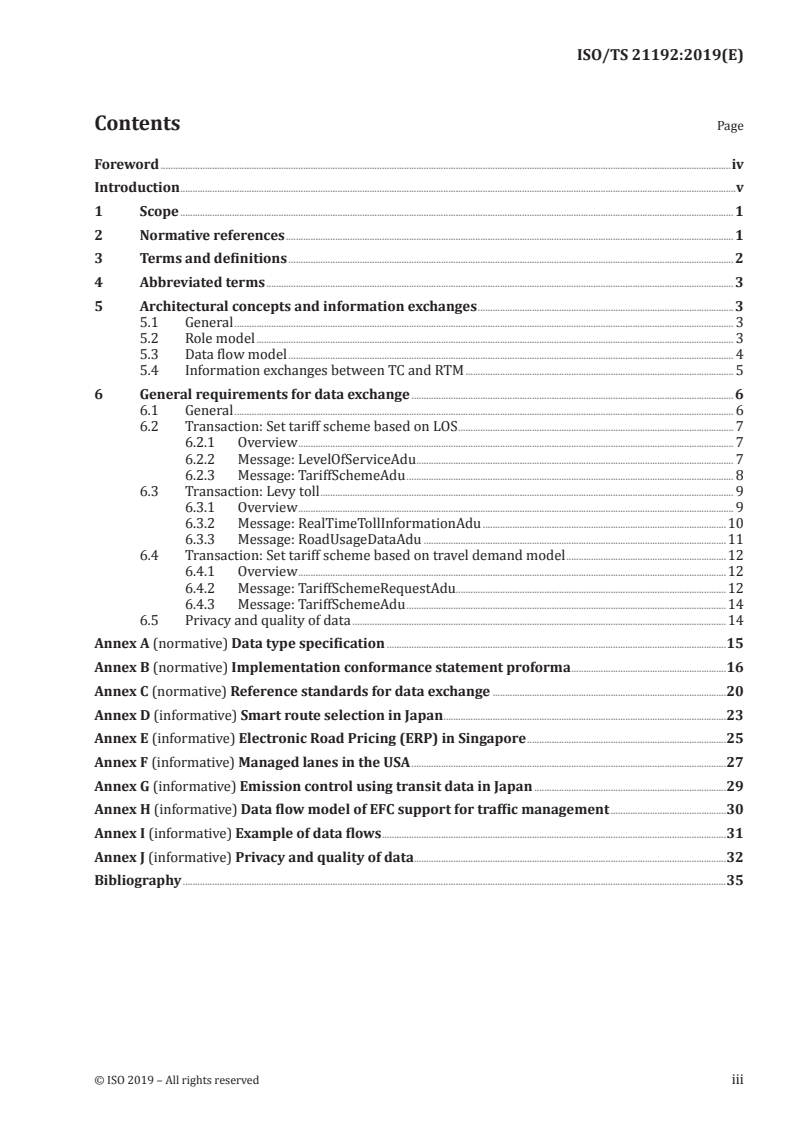

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Abbreviated terms .............................................................................................................................................................................................. 3

5 Architectural concepts and information exchanges ........................................................................................................ 3

5.1 General ........................................................................................................................................................................................................... 3

5.2 Role model .................................................................................................................................................................................................. 3

5.3 Data flow model ..................................................................................................................................................................................... 4

5.4 Information exchanges between TC and RTM ............................................................................................................. 5

6 General requirements for data exchange ................................................................................................................................... 6

6.1 General ........................................................................................................................................................................................................... 6

6.2 Transaction: Set tariff scheme based on LOS ................................................................................................................ 7

6.2.1 Overview ................................................................................................................................................................................. 7

6.2.2 Message: LevelOfServiceAdu ................................................................................................................................. 7

6.2.3 Message: TariffSchemeAdu ..................................................................................................................................... 8

6.3 Transaction: Levy toll ........................................................................................................................................................................ 9

6.3.1 Overview ................................................................................................................................................................................. 9

6.3.2 Message: RealTimeTollInformationAdu ...................................................................................................10

6.3.3 Message: RoadUsageDataAdu ...........................................................................................................................11

6.4 Transaction: Set tariff scheme based on travel demand model .................................................................12

6.4.1 Overview ..............................................................................................................................................................................12

6.4.2 Message: TariffSchemeRequestAdu..............................................................................................................12

6.4.3 Message: TariffSchemeAdu ..................................................................................................................................14

6.5 Privacy and quality of data ........................................................................................................................................................14

Annex A (normative) Data type specification ..........................................................................................................................................15

Annex B (normative) Implementation conformance statement proforma ...............................................................16

Annex C (normative) Reference standards for data exchange ...............................................................................................20

Annex D (informative) Smart route selection in Japan ...................................................................................................................23

Annex E (informative) Electronic Road Pricing (ERP) in Singapore .................................................................................25

Annex F (informative) Managed lanes in the USA ................................................................................................................................27

Annex G (informative) Emission control using transit data in Japan ..............................................................................29

Annex H (informative) Data flow model of EFC support for traffic management ...............................................30

Annex I (informative) Example of data flows ............................................................................................................................................31

Annex J (informative) Privacy and quality of data...............................................................................................................................32

Bibliography .............................................................................................................................................................................................................................35

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 21192:2019(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 21192:2019(E)
Introduction

Electronic fee collection (EFC) systems have been introduced in many countries where collected

revenue is mostly used for funding the construction or maintenance of roads. EFC is also used for traffic

management to reduce congestion in urban areas, such as London and Stockholm, since tolling is closely

related to travel demand elasticity.
Examples of EFC used for traffic management in other countries include:

— a new movement for traffic management, called smart route selection, in which EFC will be used for

selecting a route in the Tokyo metropolitan area to divert traffic out of central Tokyo (see Annex D);

— Electronic Road Pricing in Singapore (see Annex E);

— Managed lanes [including services known as high occupancy vehicle (HOV) lanes and high occupancy

tolls (HOT)] on interstate freeways in the USA (see Annex F).

Traffic management is becoming more important in urban areas for reduction of congestion and also

for emissions control, and EFC schemes such as the smart route selection and managed lanes are some

of the key EFC applications used to support traffic management.
Figure 1 shows the scope of this document in the data flow model.
Figure 1 — Scope of this document in data flow model
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
TECHNICAL SPECIFICATION ISO/TS 21192:2019(E)
Electronic fee collection — Support for traffic management
1 Scope

This document identifies the architecture of a toll system environment in which a toll charger (TC) can

act to support traffic management with the use of a tariff scheme.
The scope of this document defines:
— the architecture related to the scope;
— a standard framework and data flow model;

— an exchange of information between a TC and a road and traffic manager (RTM), e.g.:

— level of service (LOS);
— tariff scheme;

— data which is needed to support traffic management (vehicle probe and traffic flow data).

This document is a toolbox standard of application protocol data units (APDUs), which can be

used for the assigned purpose. The detailed definitions of mandatory and optional elements in real

implementation are outside the scope of this document. This document does not define communication

stacks or timings.

Data types and associated coding related to the data elements described in Clause 6 are defined in

Annex A, using the abstract syntax notation one (ASN.1) according to ISO/IEC 8824-1. This document

allows the implementer to define suitable protocol procedures such as basic interaction, protocol

mechanism, and choice of transfer protocol.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 12855:2015, Electronic fee collection — Information exchange between service provision and toll

charging

ISO 14827-1, Transport information and control systems — Data interfaces between centres for transport

information and control systems — Part 1: Message definition requirements

ISO 14827-2, Transport information and control systems — Data interfaces between centres for transport

information and control systems — Part 2: DATEX-ASN

ISO 14827-3, Transport information and control systems — Data interfaces between centres for transport

information and control systems — Part 3: Data interfaces between centres for intelligent transport sytems

(ITS) using XML (Profile A)

ISO 14906, Electronic fee collection — Application interface definition for dedicated short-range

communication

ISO 17575-3, Electronic fee collection — Application interface definition for autonomous systems — Part 3:

Context data
ISO 22837:2009, Vehicle probe data for wide area communications
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/TS 21192:2019(E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
electronic fee collection
EFC
fee collection by electronic means
[SOURCE: ISO 17573-1:2019, 3.5, modified — Note 1 to entry has been deleted.]
3.2
level of service
LOS

rating of the quality of transportation facilities and services from the user perspective, with reference

to speed, convenience and comfort, to evaluate problems and potential solutions
3.3
transport performance requirement

needed level of service (3.2) related to a set of operational goals and performance measures, e.g. speed,

travel time, freedom to manoeuvre, traffic interruptions, comfort or convenience
3.4
probe data

vehicle sensor information, formatted as probe data elements and/or probe messages, that is processed,

formatted, and transmitted to a land-based centre for processing to create a good understanding of the

driving environment
[SOURCE: ISO 22837:2009, 4.3]
3.5
road and traffic manager
RTM

manager responsible for a road transport network operation including monitoring of the level of

transport service
3.6
road usage data
travel data accumulated per road user, which is used to calculate the toll due
3.7
tariff scheme
set of rules to determine the fee due for a vehicle within a toll domain
[SOURCE: ISO 12855:2015, 3.12]
3.8
traffic flow information
traffic related data
EXAMPLE Average speed, traffic volume, level of congestion.
3.9
transit data

road usage data (3.6) necessary to calculate fees based on used road sections or passage of certain points

2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TS 21192:2019(E)
3.10
travel demand model
model for estimating travel demand and behaviour
3.11
dynamic toll

toll adjusted in real time in response to the actual traffic situation or other actual external conditions

3.12
fixed toll
toll applied according to a predefined tariff scheme
4 Abbreviated terms
EFC Electronic Fee Collection (ISO 17573-1)
OBE On-Board Equipment (ISO 14906)
LOS Level of Service
RSE Roadside Equipment (ISO 14906)
RTM Road and Traffic Manager
TC Toll Charger (ISO 17573-1)
5 Architectural concepts and information exchanges
5.1 General

This clause specifies the role model of EFC support for traffic management in terms of its roles and

relationship with EFC and traffic management related roles. The information exchanges needed by a

toll charger (TC) and an RTM to perform their roles are described in this clause.

5.2 Role model

ISO 17573-1 defines the four main roles in the toll charging environment. Figure 2 shows the role model

expanded with one role to support for traffic management. Interactions between the management

role of road and traffic operation environment and the charging role of the toll are both management

and operational information flows, e.g. information flows regarding setting a tariff scheme, or daily

operation of the tolling.

The role related to the management of road and traffic operation environment is identified to manage a

road and traffic operation environment, i.e. defining and maintaining a set of rules that, taken together,

defines the policy of traffic management. It should be noted that the role related to traffic management

is not part of the EFC domain, but it belongs to the traffic management domain. Hence, this document

describes the interface between the two domains, see Figure 2.

The responsibilities of the role allocated to the traffic management domain include:

— definition of the LOS, including required transport performance which is appropriate for a regional

transportation network;

— provision of road usage data, including transit data to find the individual vehicle trace of the routes

and to calculate the tolls;

— operation of a travel demand model, including requesting a new tariff scheme to improve traffic

management.
© ISO 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/TS 21192:2019(E)

Figure 2 — Role model in the toll charging environment to support traffic management

5.3 Data flow model

The TC needs to establish and maintain close contact with the relevant RTM in order to use a tariff

scheme for traffic management. In Figure 3, the data flow model for EFC support for traffic management

is shown with RTM, which plays an important role for traffic management in a region, in the centre of

the EFC architecture standard. The corresponding data flow of this document is shown in the double

line arrows between TC and RTM.
The roles and tasks of TC and RTM to support traffic management are as follows:

— RTM is a manager responsible for a road transport network operation including monitoring of the

level of transport service. RTM defines the LOS and sets transport performance requirements,

based on the regional transport policy and traffic status, and sends them to TC.

— TC sets a tariff scheme, based on the transport performance requirements to optimize the toll

revenue and the LOS, and sends it to RTM. TC levies tolls and sends real time toll information to RTM.

— RTM monitors the LOS by taking vehicle probe data and traffic flow data. RTM provides real time

toll information for the users through the roadside information equipment, on-board equipment

(OBE), in-car navigation devices, or web pages. RTM sends the road usage data required for tolling

upon request from TC.

— RTM runs the travel demand model, to pursue better traffic management, and requests a new tariff

scheme with the running data from the TC.
— TC evaluates and sets a new tariff scheme and sends it back to RTM.

— RTM activates the new tariff scheme, runs the travel demand model, and requests a new tariff

scheme if necessary.

Upon considering the roles, the data flow model is depicted as Figure 3 with RTM in the centre of the

basic EFC system architecture.
4 © ISO 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TS 21192:2019(E)
Figure 3 — Data flow model
5.4 Information exchanges between TC and RTM

The information exchanges between TC and RTM to support the traffic management with the use of

EFC scheme shall be the flows with the time order of the exchanges, which are described as in Figure 4.

The first step is to define the LOS by RTM, then RTM shall send a performance request in terms of

definition of LOS to TC. TC shall set a tariff scheme to satisfy the LOS and send it to RTM.

The second step is to levy the toll. The real time toll information shall be sent to RTM upon levying the

toll to disseminate necessary tolling information to the road users, and RTM shall provide road usage

data which are collected from OBE as vehicle probe data. The probe data is the vehicle data that is used

to determine traffic conditions, time stamped unique identifiers, and to measure a vehicle’s progress

through the network, e.g. current position, speed, and heading and snapshots of recent events. This

includes route information, starts and stops, speed changes, and other information that can be used to

estimate traffic conditions. TC then calculates the tolls of individual vehicles. The vehicle probe data can

also be transmitted to TC, where TC may calculate the tolls without the road usage data sent from RTM.

The third step is to run the travel demand model and evaluate the tariff scheme. When the tariff scheme

is found to be not satisfactory with the LOS and a new tariff scheme is expected to meet LOS better by

running the model, RTM shall request TC to evaluate and set a new tariff scheme. (See Annex I in detail

including RSE and OBE.)
© ISO 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/TS 21192:2019(E)
Figure 4 — Information exchanges between TC and RTM
6 General requirements for data exchange
6.1 General

Data to be exchanged for traffic management are categorized as traffic flow related, traffic incident

related and tolling related data. The purposes of the data are shown in Table 1, together with the terms

which are required to evaluate the performance of traffic management. The performance measures,

which are required to set and evaluate the tariff scheme for supporting traffic management, should

be classified as the categories of congestion management, tolling, safety, monitoring environmental

impact, monitoring goods movement, and total management.

Table 1 — Exchanging data and purposes for evaluating the performance of traffic management

Traffic management purpose
Congestion Tolling Safety Monitoring Monitor- Total man-
Exchanging data
management environmental ing goods agement
impact movement
Traffic speed      
Traffic volume   
Traffic density  
Vehicle type/fleet compo-
    
sition
 
Traffic incident data
Toll data (revenues and
 
transactions)

The interface specifications of traffic centres and EFC centres are defined in ISO 14827 for traffic

management and ISO 12855 for EFC, respectively. The interface between RTM and TC shall be defined

in reference to the data exchange procedure in ISO 12855 and/or message exchange procedure in

ISO 14827. The reference interface specification based on these standards is shown in Annex C. This

document defines the data attributes as application data units (ADUs) for EFC supporting traffic

management.

The description of data message in Clause 6 is ADU based on ISO 12855. Basic transaction flow including

AckADU is described in ISO 12855:2015, Clause 6 also.
The following basic data attributes are described in 6.2 to 6.4:
— LOS;
6 © ISO 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/TS 21192:2019(E)
— tariff scheme;
— real time toll information;
— road usage data;
— new tariff scheme request.
6.2 Transaction: Set tariff scheme based on LOS
6.2.1 Overview

LevelOfService and TariffScheme are exchanged between the RTM and TC for setting and revising tariff

scheme based on LOS as shown in Figure 5.

For each correct LevelOfServiceAdu the RTM sends, the TollCharger shall respond with one

corresponding TariffSchemeAdu. For each correct TariffSchemeAdu the TollCharger sends, the RTM

shall respond with one corresponding and positive AckAdu. Any incorrect ADU shall respond with a

negative AckAdu.
Figure 5 — Sequence diagram of LevelOfService and TariffScheme
6.2.2 Message: LevelOfServiceAdu

LOS, the rating of the quality of transportation facilities and services from the user perspective, shall

be a factor to evaluate the transportation system (see Annex A, LevelOfService for syntax definition).

In the case of basic motorway sections, the LOSs should be based on density. Speed and flow are also

related to densities and the LOS.
The semantic definitions are in Table 2:
© ISO 2019 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/TS 21192:2019(E)
Table 2 — Semantic definitions for data type LevelOfServiceAdu
Data element Semantic definition Type Informative remarks
userInformation A human readable message UTF8String(SIZE(0..255))
from RTM about target traf-
ficStatus, TravelSpeed and
TravelTime.

trafficStatus A classification agreed bilat- TrafficStatus ::= NOTE 1 Data source is roadside

erally between implementors. UTF8String(SIZE(1)) vehicle detector, closed-circuit

television
EXAMPLE Highway Capacity
Manual by TRB. TRB defines
six levels of service, designated
by the letters A through F, with
A being the highest LOS and F
the lowest.

minimumTra f f ic Minimum target vehicle speed MinimumTrafficSpeed ::= NOTE 2 Data source is road-

Speed on average on a certain road VehicleSpeed side vehicle detector
measured in km/h. VehicleSpeed ::= REAL
NOTE 3 velocity(m/sec.) is
used in ISO 22837

ma x i mu mTr avel a time interval in seconds. MaximumTravelTime::=REAL NOTE 4 Data source is probe

Time Maximum travel time on av- data, Automatic license Plate
erage on a certain route Recognition
6.2.3 Message: TariffSchemeAdu

A tariff scheme, i.e. the set of rules to determine the toll, shall be determined to optimize the toll revenue

and the LOS for suitable traffic management (see Annex A, TariffScheme for syntax definition). The

tariff scheme shall be classified into three schemes: fixed toll, dynamic toll, and combination of both

fixed and dynamic. The fixed toll scheme, applied according to a predefined tariff scheme, is usually

expressed as the form of the tables with the data of the toll based on the route, time of day, day of

week, vehicle class, and user class. The dynamic toll scheme is expressed as the toll adjusted in real

time in response to the actual traffic situation or other external actual conditions. The dynamic toll is

determined by considering both the basic toll and the traffic management. In case of the combination

type of both fixed and dynamic tolls, the toll is determined with the statistics of the traffic flow of the

week or seasonal changes.
The semantic definitions are in Tables 3 to 6.
Table 3 — Semantic definitions for data type TariffSchemeAdu
Data element Data type Semantic Definition Informative remarks
userInformation UTF8String(SIZE(0..255)) A human readable message
from RTM about tariff scheme.
fixedToll FixedToll See Table 4 NOTE 1 Fixed toll is a toll
based on route, time of day, day
of week, vehicle class, user class
(e.g. number of passengers)
NOTE 2 Data source is TC
(Travel demand model), traffic
statistics
dynamicToll DynamicToll See Table 5 NOTE 3 Dynamic toll is a toll
based on status of traffic flow
NOTE 4 Data source is TC
(Travel demand model, toll
computation model), traffic
statistics
8 © ISO 2019 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/TS 21192:2019(E)
Table 3 (continued)
Data element Data type Semantic Definition Informative remarks
combinationOfToll CombinationOfToll See Table 6 NOTE 5 Combination of tolls
is a toll combined by both fixed
and dynamic
NOTE 6 Data source is TC
(Travel demand model, toll
computation model), traffic
statistics
Table 4 — Semantic definitions for data type FixedToll
Data element Data type Semantic definition

tollBasedOnRoute INTEGER Indicator of tariff table with trip route of the vehicle. 1 is

active, 0 is disable.
timeOfDay Time See ISO 17575-3
dayOfWeek INTEGER See Table 6
vehicleClass VehicleClass See Table 6
userClass DriverCharacteristics See ISO 14906
Table 5 — Semantic definitions for data type DynamicToll
Data element Data type Semantic definition
statusOfTrafficFlow INTEGER Average vehicle speed [km/h] on certain roads
Table 6 — Semantic definitions for data type CombinationOfToll
Data element Data type Semantic definition

tollBasedOnRoute INTEGER Indicator of tariff table with trip route of the vehicle. 1 is

active, 0 is disable.
timeOfDay Time See ISO 17575-3
dayOfWeek INTEGER Day of the week
0=Sunday, 1=Monday, 2=Tuesday, 3=Wednesday, 4=Thurs-
day, 5=Friday, 6=Saturday
vehicleClass VehicleClass See ISO 14906
userClass Int1 See ISO 14906
statusOfTrafficFlow INTEGER Average vehicle speed [km/h] on certain roads
6.3 Transaction: Levy toll
6.3.1 Overview

RealTimeTollInformation is informed from TC to RTM for displaying real-time toll information text

on VMS, in-vehicle device, or OBE. RoadUsageData is informed from RTM to TC for analysing traffic

conditions and updating tariff schemes. The data exchanges are shown i
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
