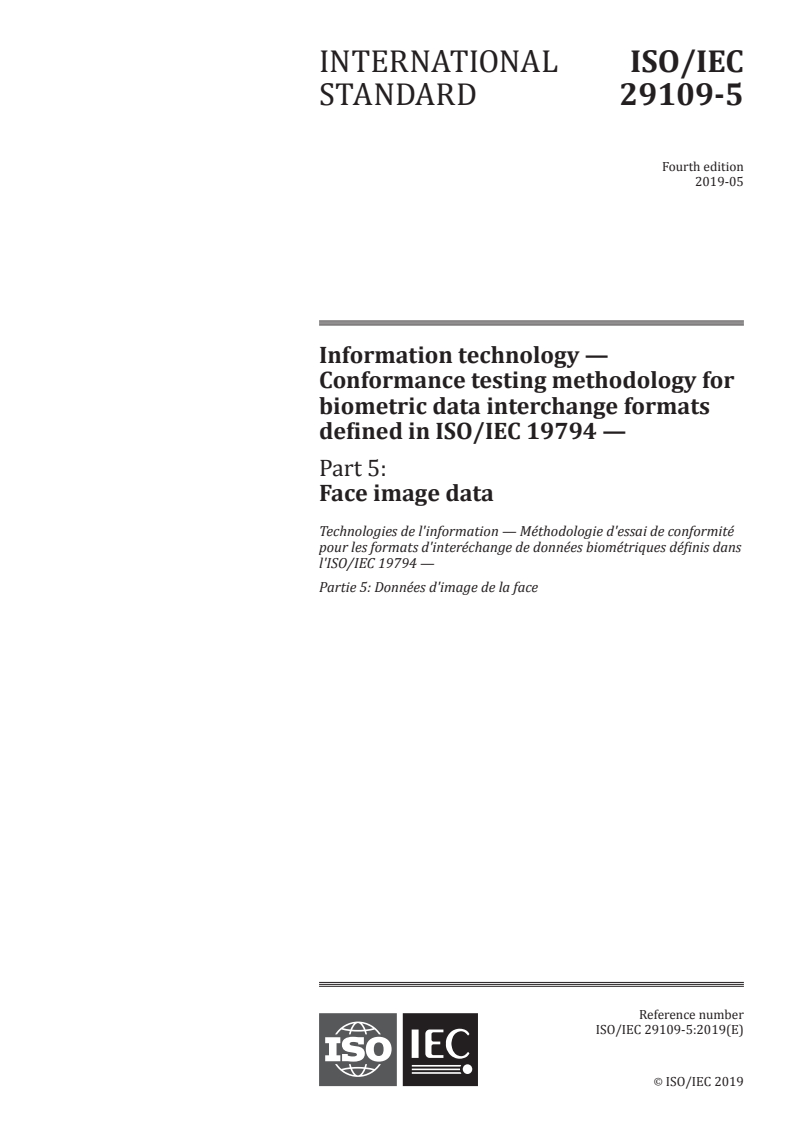

INTERNATIONAL ISO/IEC
STANDARD 29109-5
Fourth edition
2019-05
Information technology —
Conformance testing methodology for
biometric data interchange formats
defined in ISO/IEC 19794 —
Part 5:
Face image data
Technologies de l'information — Méthodologie d'essai de conformité
pour les formats d'interéchange de données biométriques définis dans
l'ISO/IEC 19794 —
Partie 5: Données d'image de la face
Reference number
©
ISO/IEC 2019
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved

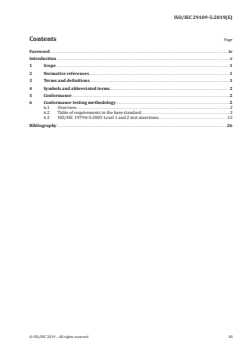

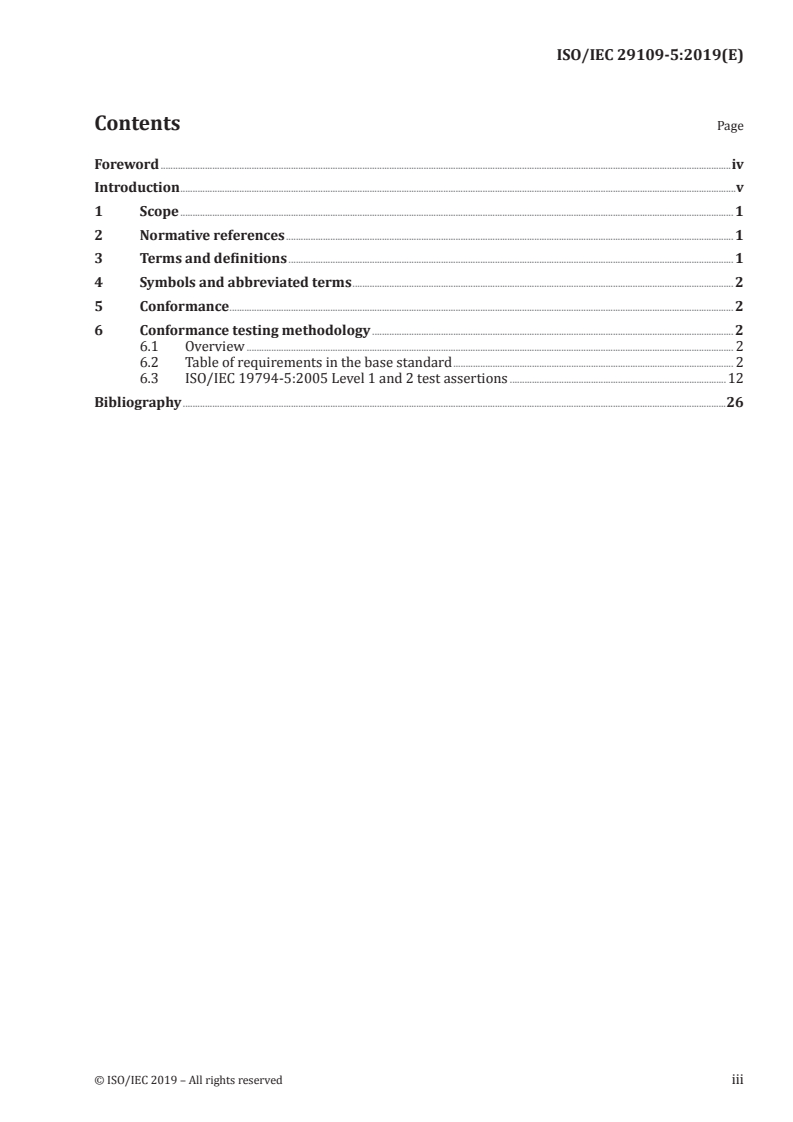

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 2
5 Conformance . 2
6 Conformance testing methodology . 2
6.1 Overview . 2
6.2 Table of requirements in the base standard . 2
6.3 ISO/IEC 19794-5:2005 Level 1 and 2 test assertions .12
Bibliography .26
© ISO/IEC 2019 – All rights reserved iii

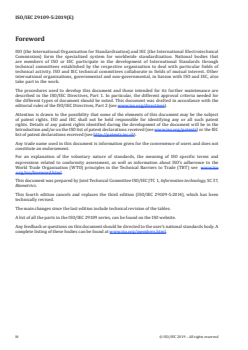

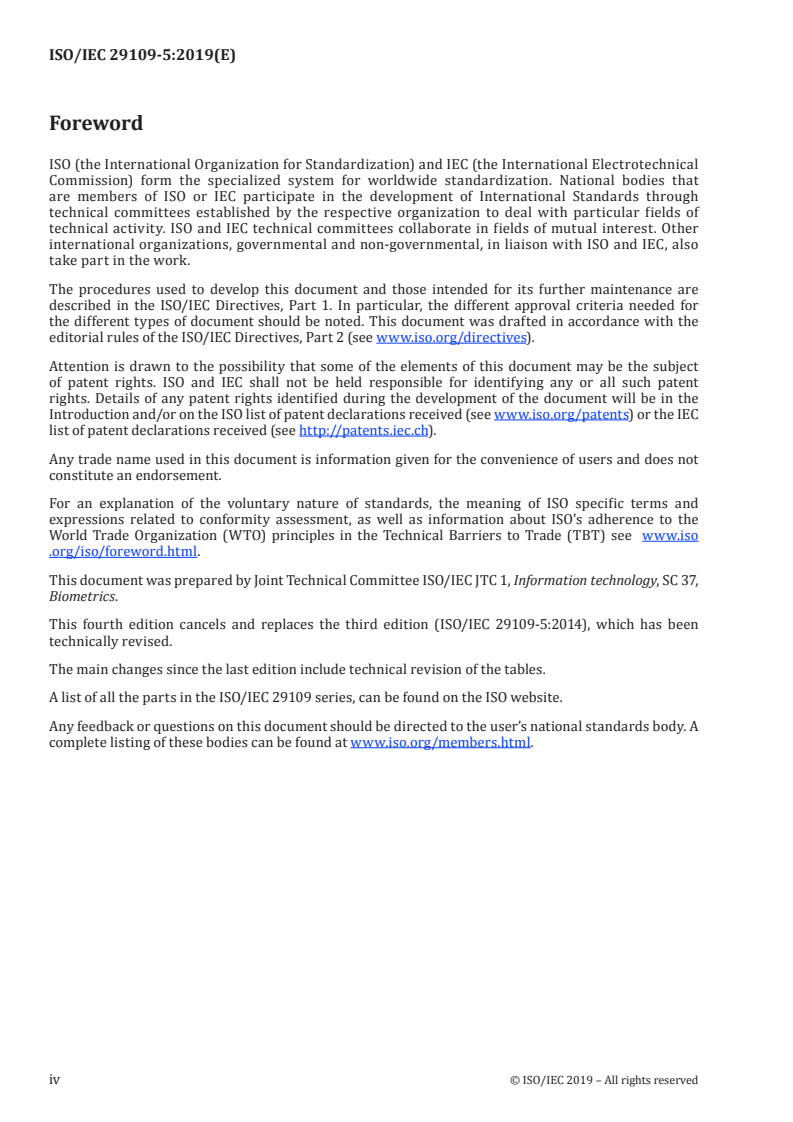

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology, SC 37,
Biometrics.
This fourth edition cancels and replaces the third edition (ISO/IEC 29109-5:2014), which has been
technically revised.
The main changes since the last edition include technical revision of the tables.
A list of all the parts in the ISO/IEC 29109 series, can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2019 – All rights reserved
Introduction
ISO/IEC 19794-5:2005 specifies a data record interchange format for storing, recording, and
transmitting one or more face images within a Common Biometric Exchange Formats Framework
(CBEFF) data structure. Each image is accompanied by subject-specific and image-specific metadata
contained in a header record. This part of the ISO/IEC 29109 series establishes tests for checking the
correctness of the binary record.
The objective of ISO/IEC 19794-5:2005 cannot be completely achieved until biometric products can
be tested to determine whether they conform to those specifications. Conforming implementations
are a necessary prerequisite for achieving interoperability among implementations; therefore there
is a need for a standardized conformance testing methodology, test assertions, and test procedures
as applicable to specific modalities addressed by each part of ISO/IEC 19794. The test assertions will
cover as much as practical of the ISO/IEC 19794 requirements (covering the most critical features),
so that the conformity results produced by the test suites will reflect the real degree of conformity of
the implementations to ISO/IEC 19794 Data Interchange Format records. This is the motivation for the
development of this conformance testing methodology.
This document supports those applications that require use of face image data according to ISO/IEC
19794-5:2005. It defines a testing methodology to ensure conformance of a vendor’s application or
service to the base ISO/IEC 19794-5:2005 specification. Thus this document is intended to:
— establish elements of the Conformance Testing Methodology framework that are specific to the Face
Image-based Data Record requirements of ISO/IEC 19794-5:2005 conformance testing;
— define requirements and guidelines for specifying conformance test suites and related test
methods for measuring conformity of products and services to the Face Image-based Data Record
requirements of ISO/IEC 19794-5:2005; and
— define test procedures to be followed before, during, and after conformance testing.
This document is applicable to the development and use of conformity test method specifications,
conformity test suites for ISO/IEC 19794-5:2005 records, and conformance testing programs for ISO/
IEC 19794-5:2005 conformant products. It is intended primarily for use by testing organizations, but
may be applied by developers and users of test method specifications and test method implementations.
© ISO/IEC 2019 – All rights reserved v
INTERNATIONAL STANDARD ISO/IEC 29109-5:2019(E)
Information technology — Conformance testing
methodology for biometric data interchange formats
defined in ISO/IEC 19794 —
Part 5:
Face image data
1 Scope
This document specifies elements of conformance testing methodology, test assertions, and test
procedures as applicable to two-dimensional face images defined in the ISO/IEC 19794-5:2005
biometric data interchange format standard for face image data.
This document establishes
— test assertions of the structure of the face image data format as specified in ISO/IEC 19794-5:2005
(Type A Level 1 as defined in ISO/IEC 29109-1:2009),
— test assertions of internal consistency by checking the types of values that may be contained within
each field (Type A Level 2 as defined in ISO/IEC 29109-1:2009).
This document does not establish
— tests of conformance of 3D face records defined in ISO/IEC 19794-5:2005, 5.7.1, codes 0x80, 0x81,
and 0x82,
— tests of conformance of CBEFF structures required by ISO/IEC 19794-5:2005,
— tests of consistency with the input biometric data record (Level 3),
— tests of conformance of the image data to the quality-related specifications of ISO/IEC 19794-5:2005,
— tests of conformance of the image data blocks to the respective JPEG or JPEG 2000 standards,
— tests of other characteristics of biometric products or other types of testing of biometric products
(e.g., acceptance, performance, robustness, security).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 19794-5:2005, Information technology — Biometric data interchange formats — Part 5: Face
image data
ISO/IEC 29109-1:2009, Information technology — Conformance testing methodology for biometric data
interchange formats defined in ISO/IEC 19794 — Part 1: Generalized conformance testing methodology<
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 29109-1 apply.
© ISO/IEC 2019 – All rights reserved 1
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 29109-1 apply.
5 Conformance
Biometric data interchange format conformance tests conform to this document if they satisfy all of the
normative requirements related to Clause 6. Specifically, they shall use the test methodology specified
in ISO/IEC 29109-1:2009, Clauses 6, 7 and 8, and all Level 1 and Level 2 tests shall use the assertions
defined in Table 2 of this document.
Implementations of ISO/IEC 19794-5:2005 tested according to the methodology specified shall be able
to claim conformance only to those biometric data record requirements specified in ISO/IEC 19794-
5:2005 that are tested by the test methods established by this methodology.
Implementations of ISO/IEC 19794-5:2005 do not necessarily need to conform to all possible aspects
of ISO/IEC 19794-5:2005, but only to those ISO/IEC 19794-5:2005 requirements that are claimed to
be supported by the implementation in an Implementation Conformance Statement, filled out in
accordance with ISO/IEC 29109-1:2009, Clause 8 and Table 1 of this document.
6 Conformance testing methodology
6.1 Overview
The testing methodology specified in ISO/IEC 29109-1:2009, Clauses 6, 7 and 8 shall apply. The content
of the tables below is based on the conformance testing methodology outlined in ISO/IEC 29109-1 and
shall only be used in the context of that testing methodology.
6.2 Table of requirements in the base standard
The normative requirements of ISO/IEC 19794-5:2005 are listed in Table 1. The supplier of the IUT can
explain which optional components of the standard are supported and the testing laboratory can note
the results of the test.
Under subformat applicability the columns labelled B, F and T indicate the Basic, Full Frontal and Token
Frontal image types.
2 © ISO/IEC 2019 – All rights reserved
Table 1 — Requirements of the base international standard (ISO/IEC 19794-5:2005)
Require- Ref. in Requirement summary Level Sta- Subformat IUT Sup- Test
ment ID base tus applicabil- sup- ported re-
std ity port range sult
B F T
R-1 5.2.1 Within the record format and all well-defined data blocks 1 M Y Y Y
therein, all multi-byte quantities are [implied shall] stored in
Big-Endian format. That is, the more significant bytes of any
multi-byte quantity are stored at lower addresses in memory
than less significant bytes. For example, the value 1 025 (2
to the 10th power plus one) would be stored as first byte =
00000100 and second byte =00000001.
R-2 5.2.2 Numeric Values 3C O-3 Y Y Y
All numeric values are fixed-length unsigned integer quanti-
ties, unless otherwise specified.
R-3 5.4.1 Format Identifier 1 M Y Y Y
The (4 byte) Format Identifier shall consist of three ASCII
characters “FAC” followed by a zero byte as a NULL string ter-
minator to identify the record format as the face record format.
R-4 5.4.2 Version Number 1 M Y Y Y
The (4 byte) Version Number block shall consist of three ASCII
numerals followed by a zero byte as a NULL string terminator.
The first and second character will represent the m
...
INTERNATIONAL ISO/IEC
STANDARD 29109-5
Fourth edition
2019-05
Information technology —
Conformance testing methodology for
biometric data interchange formats
defined in ISO/IEC 19794 —
Part 5:
Face image data
Technologies de l'information — Méthodologie d'essai de conformité
pour les formats d'interéchange de données biométriques définis dans
l'ISO/IEC 19794 —
Partie 5: Données d'image de la face
Reference number
©
ISO/IEC 2019
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 2
5 Conformance . 2
6 Conformance testing methodology . 2
6.1 Overview . 2
6.2 Table of requirements in the base standard . 2
6.3 ISO/IEC 19794-5:2005 Level 1 and 2 test assertions .12
Bibliography .26
© ISO/IEC 2019 – All rights reserved iii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents) or the IEC
list of patent declarations received (see http: //patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology, SC 37,
Biometrics.
This fourth edition cancels and replaces the third edition (ISO/IEC 29109-5:2014), which has been
technically revised.
The main changes since the last edition include technical revision of the tables.
A list of all the parts in the ISO/IEC 29109 series, can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2019 – All rights reserved
Introduction
ISO/IEC 19794-5:2005 specifies a data record interchange format for storing, recording, and
transmitting one or more face images within a Common Biometric Exchange Formats Framework
(CBEFF) data structure. Each image is accompanied by subject-specific and image-specific metadata
contained in a header record. This part of the ISO/IEC 29109 series establishes tests for checking the
correctness of the binary record.
The objective of ISO/IEC 19794-5:2005 cannot be completely achieved until biometric products can
be tested to determine whether they conform to those specifications. Conforming implementations
are a necessary prerequisite for achieving interoperability among implementations; therefore there
is a need for a standardized conformance testing methodology, test assertions, and test procedures
as applicable to specific modalities addressed by each part of ISO/IEC 19794. The test assertions will
cover as much as practical of the ISO/IEC 19794 requirements (covering the most critical features),
so that the conformity results produced by the test suites will reflect the real degree of conformity of
the implementations to ISO/IEC 19794 Data Interchange Format records. This is the motivation for the
development of this conformance testing methodology.
This document supports those applications that require use of face image data according to ISO/IEC
19794-5:2005. It defines a testing methodology to ensure conformance of a vendor’s application or
service to the base ISO/IEC 19794-5:2005 specification. Thus this document is intended to:
— establish elements of the Conformance Testing Methodology framework that are specific to the Face
Image-based Data Record requirements of ISO/IEC 19794-5:2005 conformance testing;
— define requirements and guidelines for specifying conformance test suites and related test
methods for measuring conformity of products and services to the Face Image-based Data Record
requirements of ISO/IEC 19794-5:2005; and
— define test procedures to be followed before, during, and after conformance testing.
This document is applicable to the development and use of conformity test method specifications,
conformity test suites for ISO/IEC 19794-5:2005 records, and conformance testing programs for ISO/
IEC 19794-5:2005 conformant products. It is intended primarily for use by testing organizations, but
may be applied by developers and users of test method specifications and test method implementations.
© ISO/IEC 2019 – All rights reserved v
INTERNATIONAL STANDARD ISO/IEC 29109-5:2019(E)
Information technology — Conformance testing
methodology for biometric data interchange formats
defined in ISO/IEC 19794 —
Part 5:
Face image data
1 Scope
This document specifies elements of conformance testing methodology, test assertions, and test
procedures as applicable to two-dimensional face images defined in the ISO/IEC 19794-5:2005
biometric data interchange format standard for face image data.
This document establishes
— test assertions of the structure of the face image data format as specified in ISO/IEC 19794-5:2005
(Type A Level 1 as defined in ISO/IEC 29109-1:2009),
— test assertions of internal consistency by checking the types of values that may be contained within
each field (Type A Level 2 as defined in ISO/IEC 29109-1:2009).
This document does not establish
— tests of conformance of 3D face records defined in ISO/IEC 19794-5:2005, 5.7.1, codes 0x80, 0x81,
and 0x82,
— tests of conformance of CBEFF structures required by ISO/IEC 19794-5:2005,
— tests of consistency with the input biometric data record (Level 3),
— tests of conformance of the image data to the quality-related specifications of ISO/IEC 19794-5:2005,
— tests of conformance of the image data blocks to the respective JPEG or JPEG 2000 standards,
— tests of other characteristics of biometric products or other types of testing of biometric products
(e.g., acceptance, performance, robustness, security).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 19794-5:2005, Information technology — Biometric data interchange formats — Part 5: Face
image data
ISO/IEC 29109-1:2009, Information technology — Conformance testing methodology for biometric data
interchange formats defined in ISO/IEC 19794 — Part 1: Generalized conformance testing methodology<
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 29109-1 apply.
© ISO/IEC 2019 – All rights reserved 1
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in ISO/IEC 29109-1 apply.
5 Conformance
Biometric data interchange format conformance tests conform to this document if they satisfy all of the
normative requirements related to Clause 6. Specifically, they shall use the test methodology specified
in ISO/IEC 29109-1:2009, Clauses 6, 7 and 8, and all Level 1 and Level 2 tests shall use the assertions
defined in Table 2 of this document.
Implementations of ISO/IEC 19794-5:2005 tested according to the methodology specified shall be able
to claim conformance only to those biometric data record requirements specified in ISO/IEC 19794-
5:2005 that are tested by the test methods established by this methodology.
Implementations of ISO/IEC 19794-5:2005 do not necessarily need to conform to all possible aspects
of ISO/IEC 19794-5:2005, but only to those ISO/IEC 19794-5:2005 requirements that are claimed to
be supported by the implementation in an Implementation Conformance Statement, filled out in
accordance with ISO/IEC 29109-1:2009, Clause 8 and Table 1 of this document.
6 Conformance testing methodology
6.1 Overview
The testing methodology specified in ISO/IEC 29109-1:2009, Clauses 6, 7 and 8 shall apply. The content
of the tables below is based on the conformance testing methodology outlined in ISO/IEC 29109-1 and
shall only be used in the context of that testing methodology.
6.2 Table of requirements in the base standard
The normative requirements of ISO/IEC 19794-5:2005 are listed in Table 1. The supplier of the IUT can
explain which optional components of the standard are supported and the testing laboratory can note
the results of the test.
Under subformat applicability the columns labelled B, F and T indicate the Basic, Full Frontal and Token
Frontal image types.
2 © ISO/IEC 2019 – All rights reserved
Table 1 — Requirements of the base international standard (ISO/IEC 19794-5:2005)
Require- Ref. in Requirement summary Level Sta- Subformat IUT Sup- Test
ment ID base tus applicabil- sup- ported re-
std ity port range sult
B F T
R-1 5.2.1 Within the record format and all well-defined data blocks 1 M Y Y Y
therein, all multi-byte quantities are [implied shall] stored in
Big-Endian format. That is, the more significant bytes of any
multi-byte quantity are stored at lower addresses in memory
than less significant bytes. For example, the value 1 025 (2
to the 10th power plus one) would be stored as first byte =
00000100 and second byte =00000001.
R-2 5.2.2 Numeric Values 3C O-3 Y Y Y
All numeric values are fixed-length unsigned integer quanti-
ties, unless otherwise specified.
R-3 5.4.1 Format Identifier 1 M Y Y Y
The (4 byte) Format Identifier shall consist of three ASCII
characters “FAC” followed by a zero byte as a NULL string ter-
minator to identify the record format as the face record format.
R-4 5.4.2 Version Number 1 M Y Y Y
The (4 byte) Version Number block shall consist of three ASCII
numerals followed by a zero byte as a NULL string terminator.
The first and second character will represent the m
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
