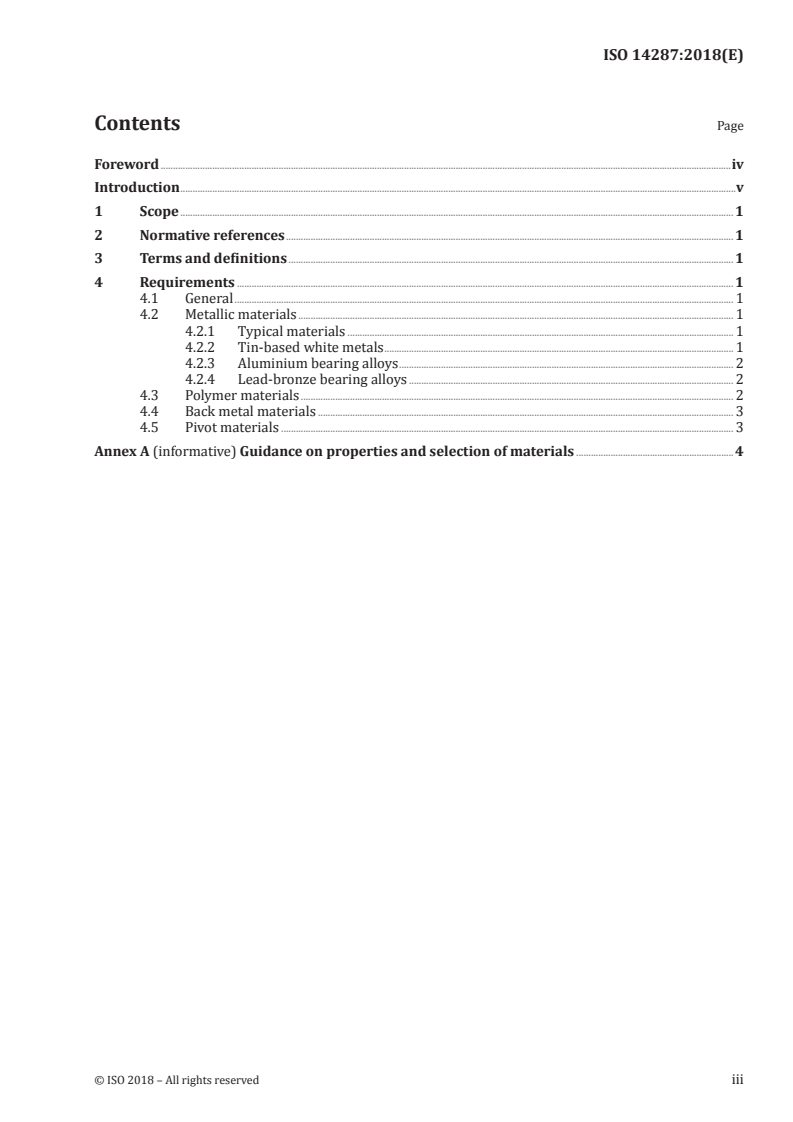

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 1
4.1 General . 1
4.2 Metallic materials . 1
4.2.1 Typical materials . 1
4.2.2 Tin-based white metals . 1
4.2.3 Aluminium bearing alloys . 2
4.2.4 Lead-bronze bearing alloys . 2
4.3 Polymer materials . 2
4.4 Back metal materials . 3
4.5 Pivot materials . 3
Annex A (informative) Guidance on properties and selection of materials .4
© ISO 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 14287:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 123, Plain bearings, Subcommittee SC 7,
Special types of plain bearings.
This second edition cancels and replaces the first edition (ISO 14287:2012), which has been technically
revised. The main changes compared to the previous edition are as follows:
— The content of the Scope has been changed to a concise expression.
— Descriptions on processing and sheet dimensions have been deleted.
— Table 1, Figure A.1 and Figure A.2 have been reviewed.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 14287:2018(E)
Introduction
Tilting pad bearings are divided in circumferential direction and are pivoted at the supporting points
on their back surfaces. This configuration allows the pads to tilt freely, enabling an optimum position
and oil film to be realized for the applied duty condition (i.e. speed, pressure and oil viscosity), and
improves load-carrying capabilities.
Such bearings are normally used as thrust and journal bearings for rotating machineries; tilting pad
bearings are classified to the category of static load conditions with lubricating oil applied. They have
been used for many years and have a long history. As a result of developments in high-speed, high-
performance rotating machineries, many various types of pad materials have been put into practical use.
© ISO 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 14287:2018(E)
Plain bearings — Pad materials for tilting pad bearings
1 Scope
This document specifies requirements for tilting pad bearing lining materials (metals and polymers),
backing metals and pivots.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 4381, Plain bearings — Tin casting alloys for multilayer plain bearings
ISO 4383, Plain bearings — Multilayer materials for thin-walled plain bearings
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Requirements
4.1 General
The sliding surface of a pad may be a metal or a polymer, which is typically bonded to a backing metal,
depending on the operating conditions of the bearing. Alloys shall be in accordance with ISO 4381;
materials shall be in accordance with ISO 4383. Guidance for the selection of pad surface layer materials
is given in Annex A.
4.2 Metallic materials
4.2.1 Typical materials
The chemical composition of some typical materials base
...
