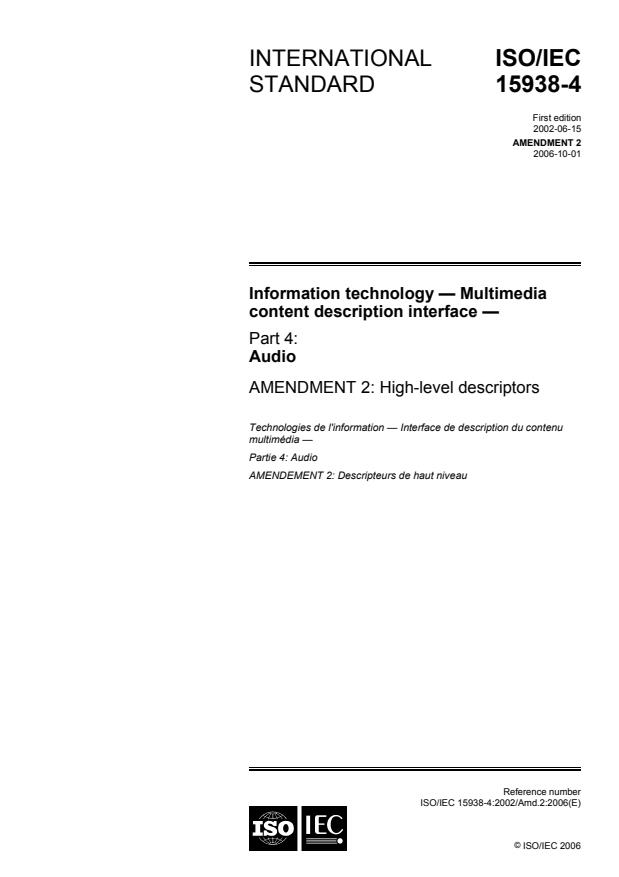

INTERNATIONAL ISO/IEC
STANDARD 15938-4
First edition
2002-06-15
AMENDMENT 2
2006-10-01
Information technology — Multimedia
content description interface —
Part 4:
Audio
AMENDMENT 2: High-level descriptors
Technologies de l'information — Interface de description du contenu
multimédia —
Partie 4: Audio
AMENDEMENT 2: Descripteurs de haut niveau
Reference number
ISO/IEC 15938-4:2002/Amd.2:2006(E)
©
ISO/IEC 2006
---------------------- Page: 1 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO/IEC 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2006 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)

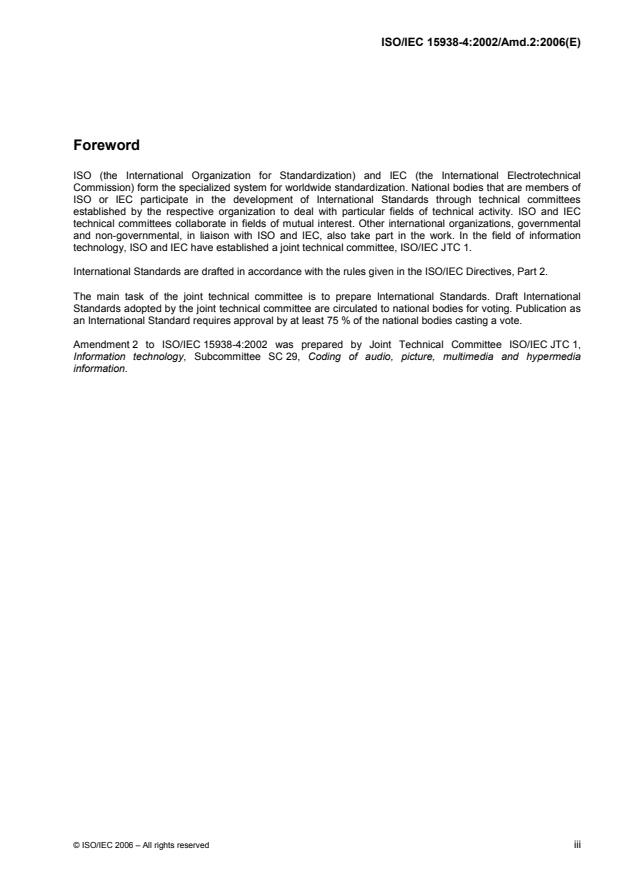

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Amendment 2 to ISO/IEC 15938-4:2002 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
© ISO/IEC 2006 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
Information technology — Multimedia content description
interface —
Part 4:
Audio
AMENDMENT 2: High-level descriptors
Remove subclauses 5.2.3. and add following subclauses:
5.2.3 SeriesOfScalarType
This descriptor represents a series of scalars, at full resolution or scaled. Use this type within descriptor
definitions to represent a series of feature values.
5.2.3.1 Syntax
5.2.3.2 Semantics
Name Definition
SeriesOfScalarType
A representation of a series of scalar values of a feature.
Raw
Series of unscaled samples (full resolution). Use only if scaling is absent to
indicate the entire series.
© ISO/IEC 2006 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
Min
Series of minima of groups of samples. The value of numOfElements shall
equal the length of the vector. This element shall be absent or empty if the Raw
element is present.
Max
Series of maxima of groups of samples. The value of numOfElements shall
equal the length of the vector. This element shall be absent or empty if the Raw
element is present.
Mean
Series of means of groups of samples. The value of numOfElements shall equal
the length of the vector. This element shall be absent or empty if the Raw element
is present.
Random
Downsampled series (one sample selected at random from each group of
samples). The value of numOfElements shall equal the length of the vector.
This element shall be absent or empty if the Raw element is present.
First
Downsampled series (first sample selected from each group of samples). The
value of numOfElements shall equal the length of the vector. This element shall
be absent or empty if the Raw element is present.
Last
Downsampled series (last sample selected from each group of samples). The
value of numOfElements shall equal the length of the vector. This element shall
be absent or empty if the Raw element is present.
Variance
Series of variances of groups of samples. The value of numOfElements shall
equal the length of the vector. This element shall be absent or empty if the Raw
element is present. Mean must be present in order for Variance to be present.
Weight
Optional series of weights. Contrary to other fields, these do not represent values
of the descriptor itself, but rather auxiliary weights to control scaling (see below).
The value of numOfElements shall equal the length of the vector.
LogBase
In the case, its value is different to the default value, a logarithm has to be
performed on the input data, before calculating any series (mean,
variance…).The value is the base of a logarithm that is performed on the input
data. Note that the value of LogBase must be greater than 0.
Note: Data of a full resolution series (ratio = 1) are stored in the Raw field. Accompanying zero-sized fields
(such as Mean) indicate how the series may be scaled, if the need for scaling arises. The data are then stored
in the scaled field(s) and the Raw field disappears.
In the case, that the value of LogBase is different from its default value, a logarithm must be performed on any
input data before series calculation. In case, it is equal to the default value, no logarithm must be performed
on the input data. The following formula shows the rule for this calculation. Base contains the base of the
logarithm and is defined in LogBase. In case the logarithmic calculation is invalid (for e.g. log 0) or the
2 2
calculated output is smaller than -1.0e the output value is fixed to -1.0e .
outputValue= log (inputValue)
base
Scalable Series allow data to be stored at reduced resolution, according to a number of possible scaling
operations. The allowable operations are those that are scalable in the following sense. Suppose the original
series is scaled by a scale ratio of P, and this scaled series is then rescaled by a factor of Q. The result is the
same as if the original series had been scaled by a scale ratio of N = PQ.
2 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
Figure AMD2.1 illustrates the scalability property. This scaled series can be derived indifferently from the
original series by applying the scaling operation with the ratios shown, or from the scaled Series of Figure
AMD2.1 by applying the appropriate rescaling operation. The result is identical. Scaling operations are chosen
among those for which this property can be enforced.
original series
scaled series
1
k (index) 2
3 4 5 6 7 8
ratio 6 2 4
3 3 2
numOfElements
totalNumOfSamples 31
Num
Figure AMD2.1 — An illustration of the scalability property
If the scaling operations are used, they shall be computed as follows.
Name Definition Definition if Weight present
kN
Min
Ignore samples with zero weight. If all have zero
m = min x
k i=1+(k−1)N i
weight, set to zero by convention.
kN
Max
Ignore samples with zero weight. If all have zero
M = max x
k i=1+(k−1)N i
weight, set to zero by convention.
kN kN kN
Mean
x = (1/N) x x = wx w
k ∑ i k ∑ i i ∑ i
i=1+(k−1)N i=1+(k−1)N i=1+(k−1)N
If all samples have zero weight, set to zero by
convention.
Random choose at random among N samples Choose at random with probabilities proportional to
weights. If all samples have zero weight, set to zero by
convention.
First choose the first of N samples Choose first non-zero-weight sample. If all samples
have zero weight, set to zero by convention.
Last choose the last of N samples Choose last non-zero-weight sample. If all samples
have zero weight, set to zero by convention.
kN kN
kN
Variance
2
2
z = w (x− x ) w
z = (1/ N) (x −x )
∑ ∑
k ∑ i k k i i k i
i=1+(k−1)N i=1+ (k−1) N
i=1+(k−1)N
kN
2 2
= (1/ N) x −x If all samples have zero weight, set to zero by
∑ i k
i=1+(k−1)N
convention.
kN
Weight
w = (1/N) w
k ∑ i
i=1+(k−1)N
© ISO/IEC 2006 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
In these formulae, k is an index in the scaled series, and i an index in the original series. N is the number of
samples summarized by each scaled sample. In case logBase is not equal to the default value, X is the
logarithm of the input data, otherwise the raw input data. The formula for Variance differs from the standard
formula for unbiased variance by the presence of N rather than N − 1. Unbiased variance is easy to derive
from it. If the Weight field is present, the terms of all sums are weighted.
Replace subclause 5.2.5 with the following:
5.2.5 SeriesOfVectorType
This descriptor represents a series of vectors.
5.2.5.1 Syntax
minOccurs="0"/>
minOccurs="0"/>
5.2.5.2 Semantics
Name Definition
SeriesOfVectorType
A type for scaled series of vectors.
Raw
Series of unscaled samples (full resolution). Use only if ratio=1 for the entire
series.
Min Series of minima of groups of samples. Number of rows must equal
numOfElements, number of columns must equal vectorSize. This element
must be absent or empty if the element Raw is present.
Max Series of maxima of groups of samples. Number of rows must equal
numOfElements, number of columns must equal vectorSize. This element
must be absent or empty if the element Raw is present.
4 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
Name Definition
Mean
Series of means of groups of samples. Number of rows must equal
numOfElements, number of columns must equal vectorSize. This element
must be absent or empty if the element Raw is present.
Random
Downsampled series (one sample selected at random from each group of
samples). Number of rows must equal numOfElements, number of columns must
equal vectorSize. This element must be absent or empty if the element Raw is
present.
First Downsampled series (first sample selected from each group of samples). Number
of rows must equal numOfElements, number of columns must equal
vectorSize. This element must be absent or empty if the element Raw is
present.
Last
Downsampled series (last sample selected from each group of samples). Number
of rows must equal numOfElements, number of columns must equal
vectorSize. This element must be absent or empty if the element Raw is
present.
Variance Series of variance vectors of groups of vector samples. Number of rows must
equal numOfElements, number of columns must equal vectorSize. This
element must be absent or empty if the element Raw is present. Mean must be
present in order for Variance to be present.
LogBase
Base of a logarithm that is performed on the input data. If the value is equal the
default value, no logarithm is performed. Note that the value of LogBase must be
greater than 0.
Covariance
Series of covariance matrices of groups of vector samples. This is a three-
dimensional matrix. Number of rows must equal numOfElements, number of
columns and number of pages must both equal vectorSize. This element must
be absent or empty if the element Raw is present. Mean must be present in order
for Covariance to be present.
VarianceSummed
Series of summed variance coefficients of groups of samples. Size of the vector
must equal numOfElements. This element must be absent or empty if the
element Raw is present. Mean must be present in order for VarianceSummed to
be present.
MaxSqDist
Maximum Squared Distance (MSD). Series of coefficients representing an upper
bound of the distance between groups of samples and their mean. Size of array
must equal numOfElements. This element must be absent or empty if the
element Raw is present. If MaxSqDist is present, Mean must also be present.
Weight
Optional series of weights. Weights control downsampling of other fields (see
explanation for SeriesOfScalars). Size of array must equal numOfElements.
vectorSize The number of elements of each vector within the series.
© ISO/IEC 2006 – All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
Most of the above operations are straightforward extensions of operations previously defined in section
5.2.3.2 for series of scalars, applied uniformly to each dimension of the vectors. Operations that are specific to
vectors are defined here:
Name Definition Definition if Weight present
kN
kN kN
Covariance
1
jj' j j j' j' jj' j j j' j'
σ = (x −x )(x −x )
σ = w (x −x )(x −x ) w
∑
k i i
k ∑ i i i ∑ i
N
i=1+(k−1)N
i=1+(k−1)N i=1+(k−1)N
D kN kN
D kN
VarianceSummed
j j 2
j j 2
z = w (x −x ) w
k∑∑ i i i ∑ i
z = (1/N) (x −x )
∑∑
k i i
j=−1 i=1+(k 1)N i=1+(k−1)N
j=−1 i=1+(k 1)N
If all samples have zero weight, set to zero by
convention.
2
MaxSqDist
kN Ignore samples with zero weight. If all samples
MSD = max x−x
k i=1+(k−1)N i k
have zero weight, set to zero by convention
In these formulae, k is an index in the scaled series and i an index in the original series. N is the number of
vectors summarized by each scaled vector. D is the size of each vector and j is an index into each vector.
In the case, that the value of LogBase is different from the default value, a logarithm must be performed on
any input data before series calculation. In case, it is equal to the default value, no logarithm must be
performed on the input data. The following formula shows the rule for this calculation. Base contains the base
of the logarithm and is defined in LogBase. In case the logarithmic calculation is invalid (for e.g. log 0) or the
2 2
calculated output is smaller than -1.0e the output value is fixed to -1.0e .
outputValue= log (inputValue)
base
j
In case logBase is equal to the default value, x is the mean of N samples and X are the raw input data.
i
The various variance/covariance options offer a choice of several cost/performance tradeoffs for the
representation of variability.
Add at the end of subclause 6.8.3.3.3:
6.9 Rhythmic Pattern
6.9.1 RhythmicBaseType
This base descriptor contains a description of one single rhythmic pattern. The pattern is represented in a way
that the parts of the bar are sorted in order of their importance. This is based on the fact, that the importance
decreases with the order of the prime index. Regarding any further classification or matching of rhythmic
patterns, this representation allows a setting of several grades in the resolution. Therefore for every pattern
the most compact representation can be provided, resulting in an efficient comparison of the patterns and
minimal memory needed for the storage.
6 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
6.9.1.1 Syntax
maxOccurs="1"/>
maxOccurs="1"/>
6.9.1.2 Semantics
Name Definition
RhythmicBaseType The RhythmicBaseType contains elements of a single rhythmic
pattern with different degrees of resolution.
PrimeIndex
The Integer vector indicating the initial index of the rhythmic pattern.
Velocity
The Integer vector indicating the velocity of the elements.
6.9.1.3 Usage
The RhythmicBaseType contains elements of a single rhythmic pattern with different degrees of resolution (i.e.
on any different hierarchic levels). A representation of a rhythmic pattern requires indexing of the rhythmic grid
with respect to the rhythmic significance of the grid position.
The calculation of each PrimeIndex of the example pattern may be done in the following manner:
1. Vector of prime factorization of the top part of the meter:
nomVec = { nom … nom } sorted by size with the largest value first
1 k
2. Vector of prime factorization of the number of divisions per beat (tick):
mtVec = { mt … mt }
1 k
3. calculation of the prime indices from the grid positions:
patternLength = product(nomVec) * product(mtVec)
( product: multiply each value within the vector)
vector primeVec() ( initialized with the size of patternLength )
primeVec()= 0 ( set all Elements of the vector to 0 )
primeIndex = 1
primeProduct = 1
count = 0
for i=1 : length(nomVec)
{
© ISO/IEC 2006 – All rights reserved 7
---------------------- Page: 10 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
primeProduct *= nomVec(i)
while (count < patternLength)
{
if (((count/(patternLength/primeProduct)) modulo 1 ) == 0)
{
if (primeVec[count]==0)
{
primeVec[count] = primeIndex;
primeIndex++;
}
}
count++;
}
}
for i=1 : length(mtVec)
{
primeProduct *= mtVec (i)
while (count < patternLength)
{
if (((count/(patternLength/primeProduct)) modulo 1 ) == 0)
{
if (primeVec[count]==0)
{
primeVec[count] = primeIndex;
primeIndex++;
}
}
count++;
}
}
The successive prime factorization of the nominator and the micro time is necessary, because a joint prime
factorization of the maximum number of elements can lead to comparisons of patterns with different time
signature (but same length) in cases of reduced rhythmic resolution.
Example 1: meter = 4/4; micro time = 2; resulting size = 4 * 2 = 8 ;
The following table shows a rhythmic pattern with a binary feeling notated as commonly done in a score-like
representation:
part of the bar 1 1+ 2 2+ 3 3+ 4 4+
grid position 1 2 3 4 5 6 7 8
prime index 1 5 3 6 2 7 4 8
velocity 100 0 112 0 150 68 120 0
No elements will be applied for any part of the bar with velocity equal to zero:
prime index 1 3 2 7 4
velocity 100 112 150 68 120
8 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
According to the ascending order of the prime indexes the elements will be rearranged, resulting in the final
representation:
prime index 1 2 3 4 7
velocity 100 150 112 120 68
Example 2: meter = 4/4; micro time = 3; resulting size = 4 * 3 = 12 ;
The following table shows a rhythmic pattern with a ternary feeling notated as commonly done in a score-like
representation:
part of the bar 1 1+ 1++ 2 2+ 2++ 3 3+ 3++ 4 4+ 4++
grid position 1 2 3 4 5 6 7 8 9 10 11 12
prime index 1 5 6 3 7 8 2 9 10 4 11 12
velocity 180 0 100 200 0 99 190 0 97 205 0 101
No elements will be applied for any part of the bar with velocity equal to zero.
prime index 1 6 3 8 2 10 4 12
velocity 180 100 200 99 190 97 205 101
According to the ascending order of the prime indexes the elements will be rearranged, resulting in the final
representation:
grid position 1 2 3 4 6 8 10 12
velocity 180 190 200 205 100 99 97 101
The following example demonstrates how two representations exhibiting different grades of resolution can be
easily compared to each other. Only the number of elements of the shorter representation is taken into
account. It is advantageous to compare only patterns with similar meter.
Pattern 1: meter: 4/4;
grid position 1 2 3 4 7
velocity 100 150 112 120 68
Pattern2: meter: 4/4;
prime index 1 2
velocity 120 145
The examples demonstrate how the use of a specific order allows the specification of a rhythmic hierarchy
without any additional information.
© ISO/IEC 2006 – All rights reserved 9
---------------------- Page: 12 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
6.9.2 AudioRhythmicPatternDS
The AudioRhythmicPatternType provides a more comprehensive description of a rhythmical structure of a
whole song. The internal structure of the representation is dependent on the underlying rhythmical structure of
the pattern that has been defined in RhythmicPatternType. Additionally to the rhythmic information of the
pattern, this descriptor contains meter, instrument information, number of recurrences and segments as well.
6.9.2.1 Syntax of AudioRhythmicPatternType
6.9.2.2 Semantics
Name Definition
AudioRhythmicPatternDS
A description scheme providing a compact and efficient
representation of rhythmical patterns.
SinglePattern
Element that describes one single rhythmic pattern.
Instrument Describes the devices/procedure and settings used for the creation of
the metadata, such as the tools used to extract the metadata or the
extraction parameters. Instrument is of type
CreationToolType. Musical instruments should be only drum
instruments and they must have been previously defined.
Recurrences The number of recurrences of the same pattern.
RhythmPattern The rhythmical pattern of an audio signal of PatternType data.
Meter The meter of the music pattern.
AudioSegment The time when the pattern starts and the duration of it.
10 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 15938-4:2002/Amd.2:2006(E)
6.9.2.3 Instantiation requirements
In order to guarantee a proper instantiation of this description scheme, the following requirements have to be
fulfilled:
• The number of elements of Velocity and PrimeIndex, as provided by RhythmicBaseType must be
equal and not 0.
6.9.2.4 Usage
The AudioRhythmicPattern DS aggregates rhythmic information from different fields of the song. Single
patterns have been specified in RhythmicBaseType. To define a drum instrument that plays the actual pattern
the attribute Instrument has been introduced. When using the CreationToolType for specifying an instrument
it must be assured, that only drum instruments have been used. Recurrences describes the number of times
the same pattern is played consecutively. To describe the currently played pattern RhythmPattern must be
used. The start of the rhythmic pattern and its length (including the number of recurrences) must be indicated
by AudioSegment.
The first step of extracting rhythmic patterns from a polyphonic music signal would be to transcribe percussive
instruments. A commonly used technique is template matching by performing a differentiation, a halfway-
rectification and a Principal Component Analysis on the input data to find spectral characteristics of un-pitched
percussive instruments and to transcribe the actual drum tracks.
After transcribing the input data and obtaining the drum tracks, the actual pattern could be calculated. At first,
the audio signal might be segmented into similar and characteristic regions using a self-similarity method. The
segmentation is motivated by the assumption, that within each region not more than one representative drum
pattern occurs, and that the rhythmic features are nearly invariant. Subsequently, the temporal positions of the
events are quantized on a tatum grid. The term tatum grid refers to the pulse series on the lowest metric level.
Tatum period and phase is computed by means of a two-way mismatch error procedure. The pattern length
might be estimated by searching for the prominent periodicity in the quantized score with periods equal to an
integer multiple of the bar length. The periodicity function is obtained by calculating a similarity measure
between the signal and its time shifted version. The similarity between two score representations is calculated
as weighted sum of the number of simultaneously occurring notes and rests in the score. The pattern is
calculated by means of a histogram representation measuring the occurrence of notes on each metrical
position within the pattern for each instrument. By comparing the histogram values with an arbitrary threshold
the pattern elements are chosen as frequently occurring notes.
6.9.2.5 Applications
6.9.2.5.1 Automatic Retrieval and Recommendation
When using rhythmic patterns to refer to a particular musical style or genre it is possible to query for musical
content that is also characterized by one ore more representative rhythmic patterns. This mechanism can
serve as a search criterion in applications proposing a number of musical titles belonging to a particular
musical
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
