ISO 22902-7:2006

Road vehicles — Automotive multimedia interface — Part 7: Physical specification

The scope of ISO 22902-7:2006 is limited to conditions and testing at the equipment level; it does not include all conditions and testing necessary for complete verification and validation of the vehicle system. Environmental and reliability testing at lower and higher levels are required to ensure that vehicle quality and reliability objectives are met.

Véhicules routiers — Interface multimédia pour l'automobile — Partie 7: Spécifications physiques

General Information

• Status: Withdrawn
• Publication Date: 23-Oct-2006
• Withdrawal Date: 23-Oct-2006
• ICS: 43.040.15 - Car informatics. On board computer systems
• Technical Committee: ISO/TC 22/SC 31 - Data communication
• Drafting Committee: ISO/TC 22/SC 31 - Data communication
• Current Stage: 9599 - Withdrawal of International Standard
• Completion Date: 02-Aug-2021

Standards Content (Sample)

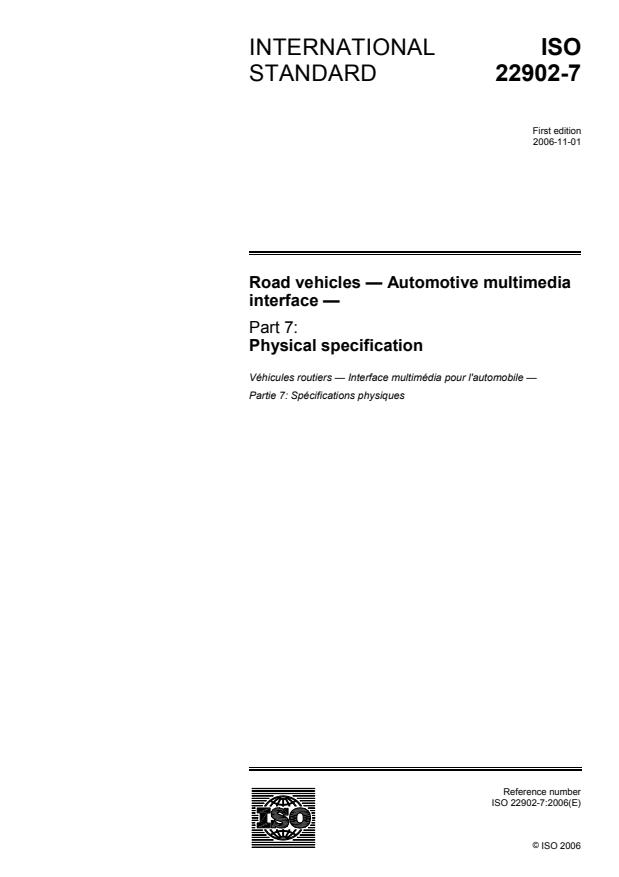

INTERNATIONAL ISO
STANDARD 22902-7
First edition
2006-11-01

Road vehicles — Automotive multimedia
interface —
Part 7:
Physical specification
Véhicules routiers — Interface multimédia pour l'automobile —
Partie 7: Spécifications physiques




Reference number
ISO 22902-7:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 22902-7:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 22902-7:2006(E)

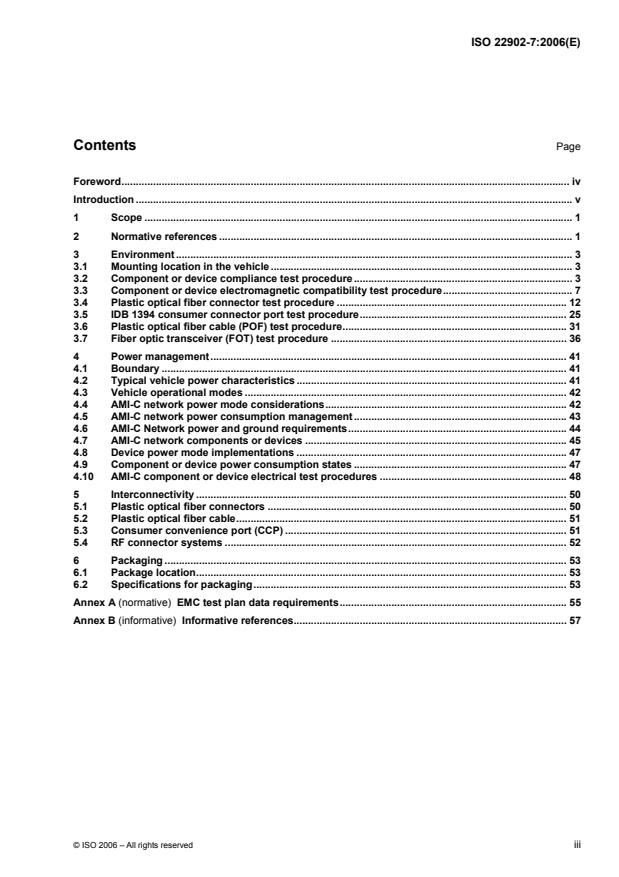

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Environment . 3
3.1 Mounting location in the vehicle . 3
3.2 Component or device compliance test procedure . 3
3.3 Component or device electromagnetic compatibility test procedure. 7
3.4 Plastic optical fiber connector test procedure . 12
3.5 IDB 1394 consumer connector port test procedure. 25
3.6 Plastic optical fiber cable (POF) test procedure. 31
3.7 Fiber optic transceiver (FOT) test procedure . 36
4 Power management. 41
4.1 Boundary . 41
4.2 Typical vehicle power characteristics . 41
4.3 Vehicle operational modes . 42
4.4 AMI-C network power mode considerations. 42
4.5 AMI-C network power consumption management . 43
4.6 AMI-C Network power and ground requirements. 44
4.7 AMI-C network components or devices . 45
4.8 Device power mode implementations . 47
4.9 Component or device power consumption states . 47
4.10 AMI-C component or device electrical test procedures . 48
5 Interconnectivity . 50
5.1 Plastic optical fiber connectors . 50
5.2 Plastic optical fiber cable. 51
5.3 Consumer convenience port (CCP) . 51
5.4 RF connector systems . 52
6 Packaging . 53
6.1 Package location. 53
6.2 Specifications for packaging. 53
Annex A (normative) EMC test plan data requirements. 55
Annex B (informative) Informative references. 57

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 22902-7:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 22902-7 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3,
Electrical and electronic equipment.
ISO 22902 consists of the following parts, under the general title Road vehicles — Automotive multimedia
interface:
⎯ Part 1: General technical overview
⎯ Part 2: Use cases
⎯ Part 3: System requirements
⎯ Part 4: Network protocol requirements for vehicle interface access
⎯ Part 5: Common message set
⎯ Part 6: Vehicle interface requirements
⎯ Part 7: Physical specification
iv © ISO 2006 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 22902-7:2006(E)
Introduction
This part of ISO 22902 describes environmental conditions and tests to be applied to AMI-C compliant
electrical and electronic equipment and some subcomponents directly mounted in or on the vehicle. It is not
intended for direct application to all parts or assemblies that are part of that equipment. For example, it should
not be directly applied to integrated circuits (ICs) and discrete components, printed circuit boards (PCBs),
gages, displays, controls, etc. that are subassemblies of the equipment. Electrical, mechanical, climatic and
chemical loads permitted for such parts and assemblies can be quite different than those described in this part
of ISO 22902.
© ISO 2006 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 22902-7:2006(E)

Road vehicles — Automotive multimedia interface —
Part 7:
Physical specification
1 Scope
The scope of this part of ISO 22902 is limited to conditions and testing at the equipment level; it does not
include all conditions and testing necessary for complete verification and validation of the vehicle system.
Environmental and reliability testing at lower and higher levels are required to ensure that vehicle quality and
reliability objectives are met.
It addresses the following requirements relating to the design and manufacture of automotive components and
of devices intended to be used in vehicles:
⎯ Environment. The conditions in and on a vehicle that a component or device must function within. These
conditions include chemical, climatic, electromagnetic and mechanical factors and stress.
⎯ Power management. The requirements for power supply and delivery from a vehicle to its components
and the devices used in that vehicle.
⎯ Interconnectivity. The requirements for delivering data within a vehicle. These requirements differ
depending on the delivery method selected by the automaker or supplier.
⎯ Packaging. The standards for locating, securing, protecting, and enclosing or covering components and
devices.
⎯ Homologation. An overview of the legal requirements that apply to AMI-C compliant vehicles.
⎯ Diagnostic functional requirements. An overview of the sensing and analysis that AMI-C compliant
components and devices shall support. This section also recommends characteristics of diagnostic tools.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 11452-4, Road vehicles — Component test methods for electrical disturbances from narrowband radiated
electromagnetic energy — Part 4: Bulk current injection [BCI]
ISO 16750-1, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 1: General
ISO 16750-2, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 2: Electrical loads
ISO 175, Plastics — Methods of test for the determination of the effects of immersion in liquid chemicals
© ISO 2006 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 22902-7:2006(E)
ISO 1817, Rubber, vulcanized — Determination of the effects of liquids
ISO 6722, Road vehicles — 60 V and 600 V single-core cables — Dimensions, test methods and
requirements
ISO 7637-1, Road vehicles — Electrical disturbances by conduction and coupling — Part 1: Definitions and
general considerations
ISO 7637-2, Road vehicles — Electrical disturbances by conduction and coupling — Part 2: Electrical
transient conduction along supply lines only
ISO 8092-2, Road vehicles — Connections for on-board electrical wiring harnesses — Part 2: Definitions, test
methods and general performance requirements
ISO 16750-3, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 3: Mechanical loads
ISO 16750-4, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 4: Climatic loads
ISO 16750-5, Road vehicles — Environmental conditions and testing for electrical and electronic
equipment — Part 5: Chemical loads
IEC 60068-2-27, Environmental testing. Part 2: Tests — Test Ea and guidance: Shock
IEC 60068-2-28, Environmental testing. Part 2: Tests — Guidance for damp heat tests
IEC 60068-2-32, Environmental testing. Part 2: Tests — Test Ed: Free fall
IEC 60695-11-10, Fire hazard testing — Part 11-10: Test flames — 50 W horizontal and vertical flame test
IEC 60793-1-40, Optical fibres — Part 1-40: Measurement methods and test procedures — Attenuation
IEC 60794-1-2, Optical fibre cables — Part 1-2: Generic specification — Basic optical cable test procedures
IEC 61280-1-1, Fibre optic communication subsystem basic test procedures — Part 1-1: Test procedures for
general communication subsystems — Transmitter output optical power measurement for single-mode optical
fibre cable
IEC 61300-3-8, Fibre optic interconnecting devices and passive components — Basic test and measurement
procedures — Part 3-8: Examinations and measurements — Ambient light susceptibility
2 © ISO 2006 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 22902-7:2006(E)
3 Environment
3.1 Mounting location in the vehicle
In current or future designs of road vehicles, systems, components and devices are mounted in almost any
location of the vehicle. The environmental requirements for each specific application depend highly on its
mounting location. Each location in the vehicle has a distinct set of environmental loads. For example, the
range of temperatures in the luggage compartment differs from the range of temperatures in the passenger
compartment. Devices installed in doors are exposed to a high number of mechanical shocks from door
slamming.
3.2 Component or device compliance test procedure
The following tests shall be conducted as appropriate to ensure that physical components or devices comply
with performance requirements. The pass/fail criteria listed for each test constitutes the performance
requirements for the parameter being tested. Perform the sequences of a test in order, as indicated by the
sequence number.
3.2.1 Visual and dimensional inspection
Sample size: 2 AMI-C compliant devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Verify material, finish,
and standards.
Visual and Perform dimensional
1 EIA 455-13A No non-conformances.
dimensional inspection for
compliance with
detailed drawing.
3.2.2 General inspection
The following quantities assume all tests are run.
Sample size: 54 devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Functional, Confirm part number, No defects that would impair
1 visual and EIA 455-13A condition, normal operation or deviate
parametric conformance. from dimensional tolerances
3.2.3 Combined environment
This test simulates the environment in a vehicle.
Sample size: 12 devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Mate & un-mate Functional class A as defined
1 Durability EIA 455-21
connector 10 times in ISO 16750-1
High
Temperature aging Functional class A as defined
2 temperature ISO 16750-4
500 hours at 85 °C in ISO 16750-1
aging
© ISO 2006 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 22902-7:2006(E)
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Combined
temperature and
Functional class A as defined
3 Vibration ISO 16750-3 vibration
in ISO 16750-1
Max temperature
Class 2: 85 °C
Rapid change of
temperature Functional class A as defined
4 Thermal shock ISO 16750-4
Max temperature in ISO 16750-1
85 °C
Humidity Para: temperature / Functional class A as defined
5 ISO 16750-3
(cyclic) humidity cycling in ISO 16750-1
3.2.4 Temperature exposure
Sample size: 12 devices.
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Para - low
Functional class A as
Low temperature exposure
defined in ISO 16750-1
with and without
temperature
1 ISO 16750-4 Failure mode is insufficient
exposure and electrical operation.
frost resistance/electrical
operation 24 hrs at −40 °C/Tmin
malfunction.
for 24 hrs.
Para - high
temperature exposure
Functional class A as
with (6 devices) and
High
defined in ISO 16750-1
temperature without (6 devices)
2 ISO 16750-4 Failure mode is insufficient
electrical operation.
exposure and
heat resistance/electrical
operation
Dry heat @ +85 °C
malfunction.
for 48 hrs/ Dry heat at
Tmax for 96 hrs.
Para 5.3.2, varying Functional class A as
Powered temperatures with defined in ISO 16750-1
3 ISO 16750-4
thermal cycle electrical operation Failure mode is electrical
malfunction.
Para 5.3.3 Rapid Functional class A as
change of defined in ISO 16750-1
Thermal shock
4 ISO 16750-4 temperature with Failure modes are
resistance
specified transition mechanical cracking of
duration – 6 cycles materials or seal failures.
Powered See Powered See Powered
vibration vibration vibration endurance
Functional class A as
5 endurance/ endurance test test criteria (4.7.11) in
defined in ISO 16750-1
audible noise criteria (4.7.11) in this document.
under vibration this document.
Subject component to
six 50G 10msec half-
Medium
IEC 68-2-27 sine shock pulses, Functional class A as
6 mechanical
IEC 68-2-32 one in each opposite defined in ISO 16750-1
shock
direction of each
perpendicular axis.
4 © ISO 2006 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 22902-7:2006(E)
3.2.5 Water, humidity resistance
Sample size: 6 devices.
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Para - Simulate the Functional class A as
Humidity and use of the defined in ISO 16750-1
1 temperature ISO 16750-4 component/device Failure mode is electrical
cycle under high ambient malfunction caused by
humidity. moisture.
Para - water/fluid Functional class A as
Water/ fluid spills on defined in ISO 16750-1
2 ISO 16750-4
ingress component/device. Failure mode is electrical
malfunction.
3.2.6 Salt, chemical resistance
Sample size: 6 devices.
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Salt mist - Para - resistance to Functional class A as
1 Atmosphere ISO 16750-4 corrosion defined in ISO 16750-1
Failure mode is corrosion.
Chemical Resistance to Functional class A as
2 ISO 16750-5
resistance chemical agents. defined in ISO 16750-1
3.2.7 Mechanical endurance
Sample size: 6 devices.
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Para - rapid change Functional class A as
of temp with specified defined in ISO 16750-1
Thermal shock
1 ISO 16750-4 transition duration – Failure modes are
resistance
6 cycles mechanical cracking of
materials or seal failures.
See Powered See Powered
Powered vibration vibration endurance
Functional class A as
2 vibration endurance test test criteria in this
defined in ISO 16750-1
endurance criteria in this document.
document.
Dust intrusion Para - resistance to Functional class A as
3 ISO 16750-4
dust intrusion. defined in ISO 16750-1
© ISO 2006 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 22902-7:2006(E)
3.2.8 Thermal shock
Sample size: 3 devices.
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Para - Rapid change
Thermal shock of temp with specified Functional class A as
1 ISO 16750-4
endurance transition duration – defined in ISO 16750-1
1000 cycles
3.2.9 Temperature life
Sample size: 6 devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Cycle between modes
every 10 hrs for a
High
total test time of Functional class A as
1 Temperature IEC 68-2-2B
1000 hrs at the test defined in ISO 16750-1
Endurance
maximum operating
temperature Tmax.
3.2.10 Mechanical shock
Sample size: 3 devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Functional class A as
defined in ISO 16750-1
1 Package drop ISO 16750-3 Para - free fall
Failure mode is mechanical
damage.
3.2.11 Powered vibration endurance test criteria
Sample size 3
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Vibration
1 AMI-C specified
endurance
6 © ISO 2006 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 22902-7:2006(E)
Table 1 — Vibration endurance test criteria
Number Total
Time Number
of
Frequency Amplitude Sweep
Sweep of axes sweeps Sweeps Duration
per axis
10 mm peak
5-12.2 Hz
to peak
12.2-100 Hz log 20 min 3 18 54 18 H
3.0 G 0 peak
101-200 Hz
1.5 G 0 peak

3.0
2.5
2.0
0.5
1.0
0.5
0.0
100 Hz 200 Hz
Figure 1 — Powered vibration endurance test criteria
3.2.11.1 Vibration pass/fail criteria
The following items are the requirements for measuring audible noise under vibration:
⎯ The units shall be tested with a sinusoidal acceleration from 10 to 200 Hz.
⎯ Acceleration amplitude shall be 1G 0 peak from 10 to 100 Hz and 0.5 0 peak from 101 to 200 Hz.
⎯ Frequency sweep shall be linear, constant time per frequency, and have a duration of 10 minutes to cover
10 to 200 Hz range.
⎯ Under the above vibration profile, the unit shall not emit an overall “A” weighted noise SPL greater than
70 dB using 1/3 octave analysis for the 25 Hz to 20 kHz frequency range, 1/8 second integration time per
sample and peak hold mode.
⎯ Place the microphone between 0.1 and 1 meter from the unit. Adjust reported noise measurements to
reflect equivalent SPL at 0.1 meter. The above noise requirements (70 dB maximum SPL) are for the
0.1 meter placement.
3.3 Component or device electromagnetic compatibility test procedure
This standard establishes verification requirements for the control of the electromagnetic interference
characteristics (emission and susceptibility) of electronic, electrical, equipment and subsystems designed or
procured in compliance with this standard requirements. Such equipment and subsystems may be used
independently or as an integral part of other subsystems or systems.
The following tests shall be conducted as appropriate to ensure that physical components or devices comply
with this standard performance requirements. The pass/fail criteria listed for each test constitutes the
performance requirements for the parameter being tested. Perform the sequences of a test in order, as
indicated by the sequence number.
© ISO 2006 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO 22902-7:2006(E)
3.3.1 General inspection
The following quantities assume all tests are run.
Sample size: 8 devices
Seq
Test Reference spec Test criteria Pass/fail criteria
#
Functional, Confirm part number, No defects that would impair
1 visual and EIA 455-13A condition, normal operation or deviate
parametric conformance. from dimensional tolerances
3.3.2 Emissions test procedure
Sample size: 2 devices
Seq
Test Reference spec Test criteria Pass / fail criteria
#
Radiated Radiated emissions below
1 CISPR 25 See Table 2.
Emissions requirements
Conducted Conducted emissions below
2 CISPR 25 See Table 3.
Emissions requirements
3.3.2.1 Radiated emissions test criteria
The table below shows the number of frequencies per band during emissions testing.
Table 2 — Narrowband radiated emissions specification
Frequency (MHz) dBuV/m Comments
0.15…30 30 Plotted in typical CISPR format up to 1000 MHz
30…400 10 Plotted in typical CISPR format up to 1000 MHz
400…1000 22…32 Plotted in typical CISPR format up to 1000 MHz
1567-1574 50-10 Use of high gain (38 dB gain, 0.5 dB noise figure) Low Noise
1574-1576 10 Amplifier is required to decrease noise floor,
1576-1583 10-15 Plotted as individual band
Use of high gain (38 dB gain, 0.5 dB noise figure) Low Noise
2308…2362 25 Amplifier is required to decrease noise floor,
Plotted as individual band
Table 3 — Narrowband conducted emissions specification
Frequency (MHz) dBuV/m Comments
0.15…0,.45 60 Plotted in typical CISPR format

0.45…1.75 34

1.75…30 39
8 © ISO 2006 – All rights reserved

---------------------- Page: 13 ----------------------
ISO 22902-7:2006(E)
3.3.3 Radiated and conducted immunity test procedure
Sample size: 2 devices
Seq
Test Reference spec Test criteria Pass / fail criteria
#
1 Operate properly during and
Direct radiation after exposure - according to
SAE J1113-21 See 3.3.3.1 and Table 4
test test plan created with
appendix B
See - Critical vehicle
functions are
Operate properly during and
considered “Level 2”
Bulk current after exposure - according to
2 ISO 11452-4 functions and non-
injection test plan created with
critical functions are
appendix B
considered “Level 1”
functions.
See - Noise from the
relay shall not affect the
operation of the Device
Under Test (DUT). This
Operate properly during and
test will be performed by
Parallel wire SAE J1113-12 after exposure - according to
3 simulating the coupling
misc. noise Appendix B test plan created with
on one unshielded
appendix B
twisted pair (UTP) at a
time. Each UTP will be
exposed to the noise for
10 seconds.
3.3.3.1 Radiated immunity – test criteria
The following table shows the requirements levels when using the direct radiation chamber to measure the
immunity of components and subsystems to electromagnetic fields.
Table 4 — Radiated immunity reverberation requirement table
Level 2 Level 1
Freqency range Modulation
(V/m) (V/m)
400 MHz to 1 GHz 100 50 CW,
1 GHz to 2 GHz 30 15 CW, AM 80%

Pulse PRR=50 Hz, PD=6.67 msec and
800 MHz to 2 GHz 70 70
Pulse PRR=217 Hz, PD=0.57 msec
Pass / fail criteria: Shall operate as designed during and after exposure.
The field strength requirements are peak levels.
© ISO 2006 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO 22902-7:2006(E)
The table below shows the number of frequencies per band during radiated immunity testing.
Table 5 — Radiated immunity frequency
Frequency band Base freq Number of N Method Input levels
(MHz) (MHz) frequencies
1 to 30 1 34 7 BCI See Table 6.
30 to 400 30 93 25 BCI See Table 6.
400 to 1000 400 33 25 Direct Radiation See Table 6.
1000 to 10000 1000 167 50 Direct Radiation See Table 6.
The test frequency computation is as follows:
⎛⎞k
⎜⎟
N
⎝⎠
ff= 2.
test o
where
f is the frequency to be tested;
test
f is the base frequency;
o
N is the number of steps per octave.
3.3.3.2 Radiated immunity – bulk current injection test criteria
The following table shows the requirement levels and location of both injection and monitoring probes using
the common mode bulk current injection (CBCI) for 1-30 MHz and differential mode bulk current injection
(DBCI) for 30-400 MHz. As an option, either CBCI or DBCI or both test configurations may be specified by the
automaker.
Table 6 — BCI immunity configuration table
Frequency range Level Method Modulation
1 MHz to 10 MHz #1 - 74 to 100 dB (µA) DBCI CW, off / on, on / off, AM 80%
1 MHz to 10 MHz #2 -80 to 106 dB (µA) DBCI CW, off / on, on / off, AM 80%
10 MHz to 30 MHz #1 - 100 dB (µA) DBCI CW, off / on, on / off, AM 80%
10 MHz to 30 MHz # 2 - 106 dB (µA) DBCI CW, off / on, on / off, AM 80%
30 MHz to
#1 -100 to 89 dB (µA) CBCI CW, off / on, on / off, AM 80%
400 MHz
30 MHz to
#2 106 to 95 dB (µA) CBCI CW, off / on, on / off, AM 80%
400 MHz

CBCI
Injection &
monitoring probe
configuration

10 © ISO 2006 – All rights reserved

---------------------- Page: 15 ----------------------
ISO 22902-7:2006(E)
Frequency range Level Method Modulation
NOTES
DBCI
Injection &
monitoring probe
Power (+)
configuration
Power (-)

2. On/Off & Off/On
modulation:
Maximum overshoot
− 0.5 dB
Maximum rise time
= 3 msec
Minimum power step
= 20 dB
3. Test duration:
Conducted per
ISO 11452-4
Success criteria: If deviations are observed, the induced current shall be reduced until the DUT functions
normally. Then the induced current shall be increased until the deviation occurs. This level shall be reported
as the deviation threshold.
3.3.4 Electrostatic discharge immunity test procedure
Sample size: 2 devices
Seq
Test Reference spec Test criteria Pass / fail criteria
#
Operate properly during and
after exposure
Non-powered – (Be sure to discharge directly
1 (Shipment & ISO 10605
to pins of device, unless pins
Handling) are recessed and
surrounded by metalized
connector)
Powered – Operate properly during and
(Accessible after exposure
2 and non- ISO 10605 (Be sure to discharge directly
accessible to pins which are accessible
points) by test tools also)
3.3.4.1 Electrostatic discharge testing criteria
NOTE Discharges per point are to be applied at one-second intervals.
Table 7 — Non-powered handling ESD requirements
Type of
Discharges
Discharge network Level Deviations
per point
discharge
Contact C = 150 pF, R = 2 kΩ 10 +/− 4 kV No deviations allowed
Contact 10 No deviations allowed
C = 150 pF, R = 2 kΩ +/− 6 kV
Air 10 No deviations allowed
C = 150 pF, R = 2 kΩ +/−
...
